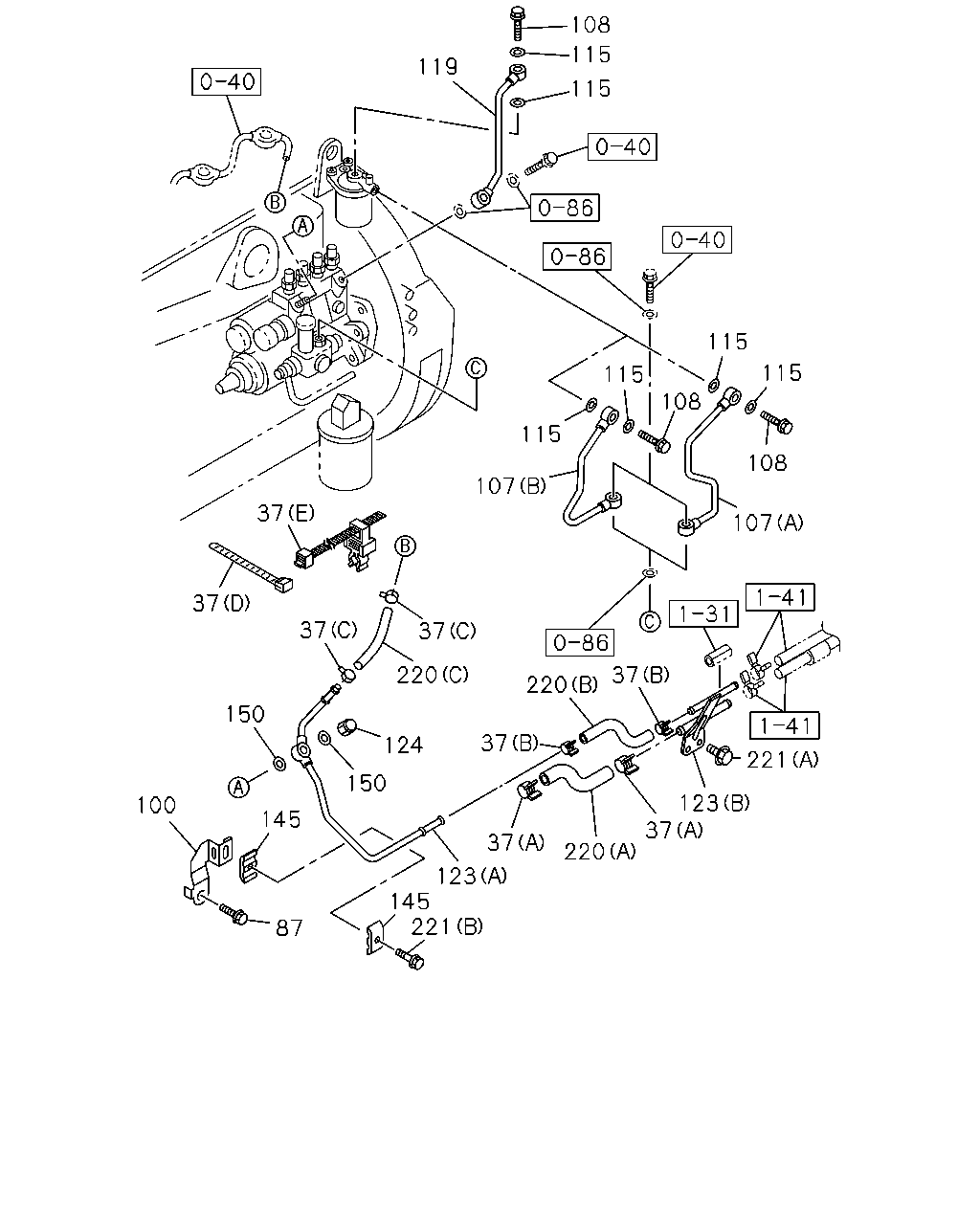

0-42 — FUEL PUMP AND PIPE (#78327) — 28 parça

108 115 119 115 115 115 115 108 115 108 107 37 107 37 37 37 220 37 220 150 37 124 221 150 123 37 100 145 37 220 123 145 221 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
37	03.162 CLIP; FUEL HOSE (D) L=140	5-09707-031-1	01	1	1012-	●
37	03.162 CLIP; FUEL HOSE 01.219 (C) ID=12	8-94238-610-0	02	1	1012-1101		●
37	03.162 CLIP; FUEL HOSE 03.680 (E) L=350	8-97373-487-0	01	1	1102-		●
37	03.162 CLIP; FUEL HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	1012-	●	●
37	03.162 CLIP; FUEL HOSE 01.219 (B) ID=13	8-94238-571-0	02	1	1012-	●	●
37	03.162 CLIP; FUEL HOSE 03.680 (E) L=350	8-97373-487-0	01	1	1012-1101	●	●
37	03.162 CLIP; FUEL HOSE 01.219 (C) ID=12	8-94238-610-0	02	1	1102-	●	●
87	03.162 BOLT; STAY,FUEL PIPE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1012-	●	●
100	03.162 CLIP; "B",FUEL PIPE	8-97108-315-0	01	1	1012-	●	●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL (B)	8-97210-721-1	01	1	1012-	●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL (A)	8-97088-046-3	01	1	1012-		●
108	03.162 BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	02	1	1012-	●	●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	1012-	●	●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU	8-97211-323-1	01	1	1012-	●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU	8-97088-047-0	01	1	1012-		●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF (A)	8-97223-179-0	01	1	1012-	●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF (A)	8-97118-894-1	01	1	1012-		●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF (B)	8-97087-196-0	01	1	1012-	●	●
124	03.162 NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	1012-	●	●
145	03.162 CLIP; FUEL PIPE 03.330 ID=6.1 & 9.6	8-97016-323-1	02	1	1012-	●	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	1012-	●	●
220	03.163 HOSE; FUEL (C)	8-97208-874-0	01	1	1012-	●
220	03.163 HOSE; FUEL (C) L=270 SERVICED BY L=3000	0-01256-300-0	01	1	1012-1412		●
220	03.163 HOSE; FUEL (C) L=270 SERVICED BY L=3000	0-01856-300-0	01	1	1501-		●
220	03.163 HOSE; FUEL (A)	8-97087-227-2	01	1	1012-	●	●
220	03.163 HOSE; FUEL (B)	8-97087-228-2	01	1	1012-	●	●
221	03.163 BOLT; FUEL PIPE 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	1012-	●	●
221	03.163 BOLT; FUEL PIPE 00.685 (B) M6X40 FLANGE	0-28650-640-0	01	1	1012-	●	●
