Sayfa 0-40 - Isuzu EPC

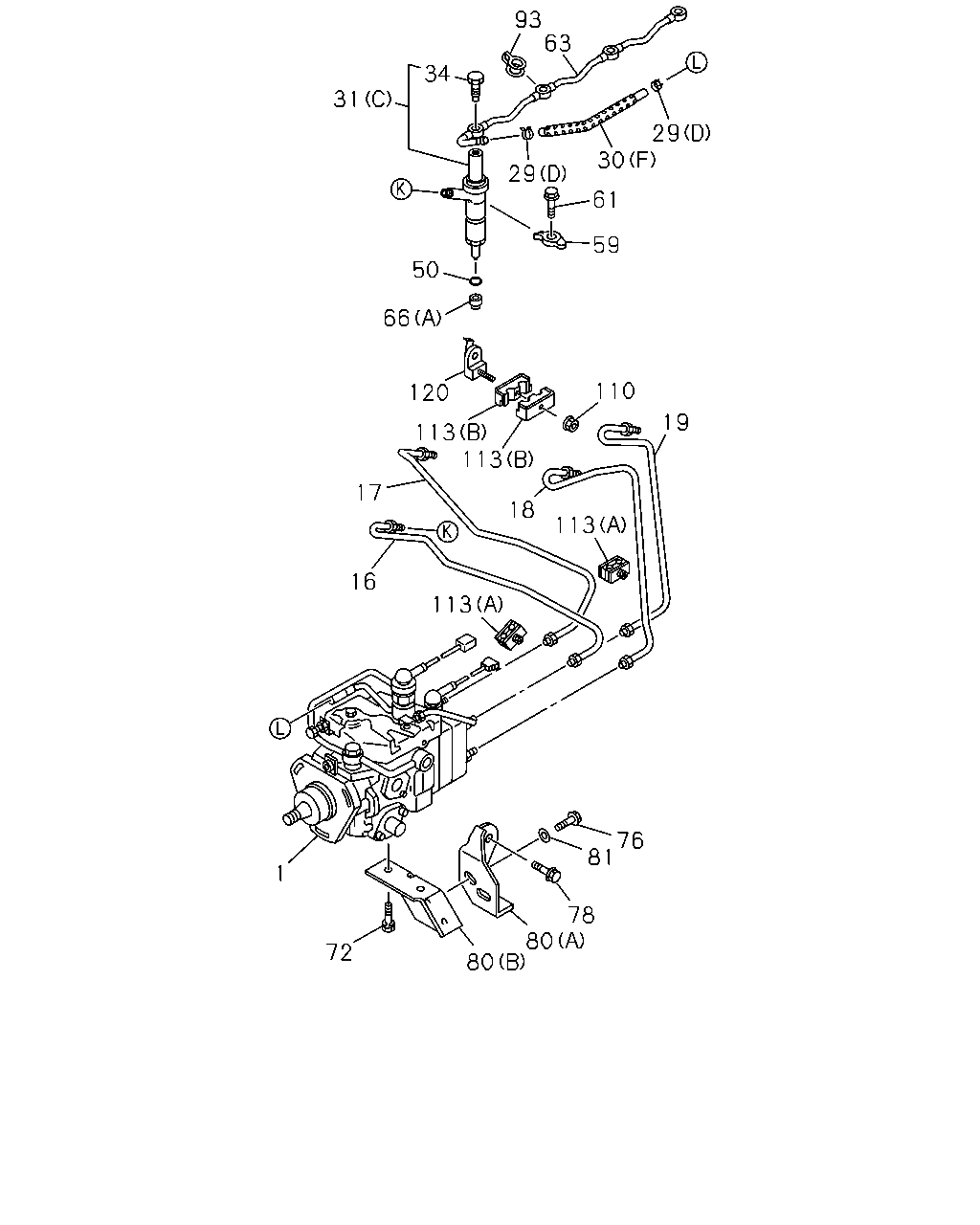

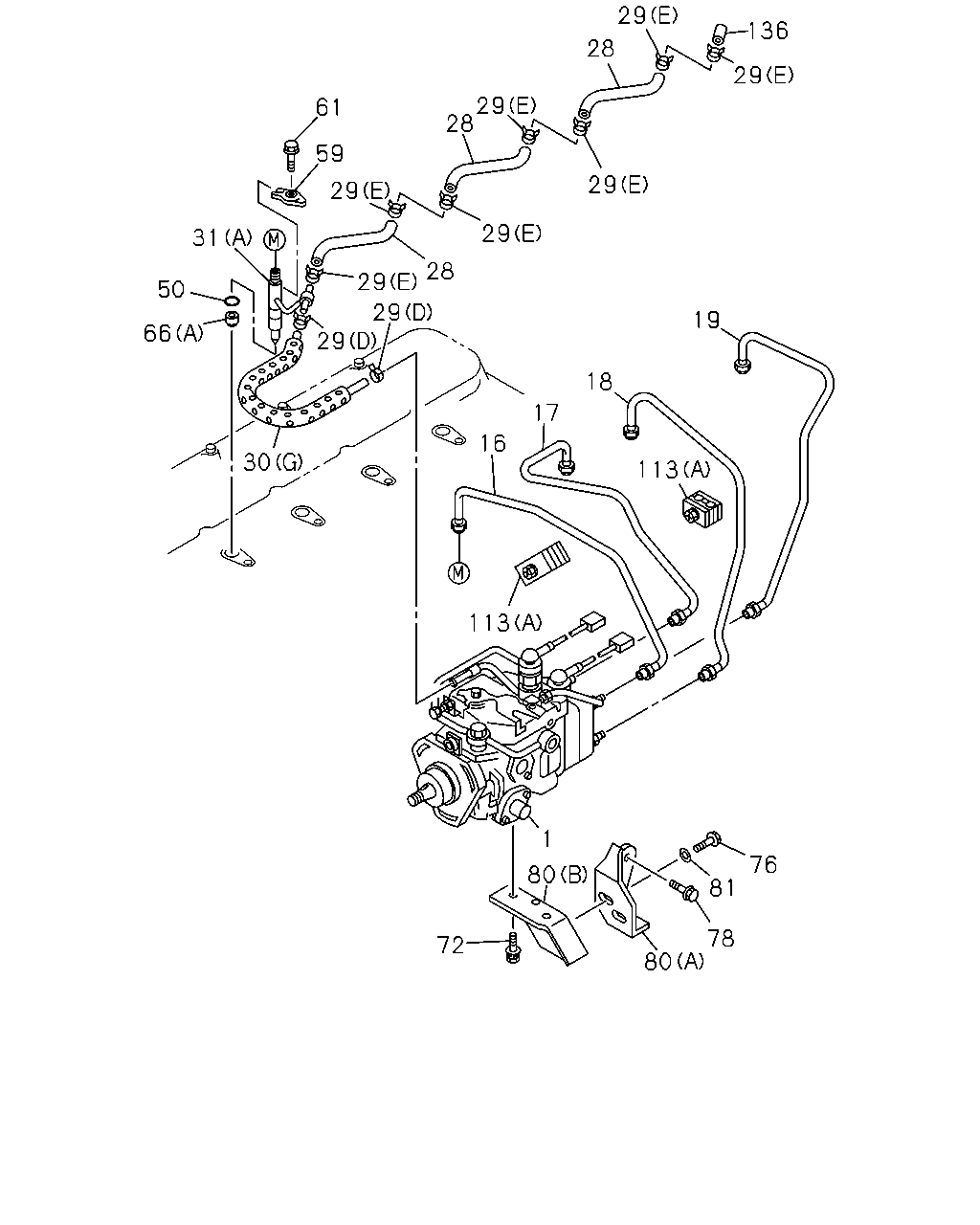

0-40 — FUEL INJECTION SYSTEM (#78325) — 834 parça

29 136 28 29 29 28 61 59 29 29 29 31 28 29 50 29 29 19 66 18 17 16 30 113 113 1 76 80 81 78 72 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. MALAYSIA EQUIPMENT(B10)	8-97204-201-9	01	1	1405-	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97178-485-5	01	1	1012-		●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. HEATER & DEFROSTER(C41) EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97212-102-0	01	1	1012-1405			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97212-102-0	01	1	1012-1405			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65),HIGH ALTITUDE COMPENSATOR(EE2)	8-97212-102-0	01	1	1406-			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97385-476-0	01	1	1012-1405			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> EXC. INDONESIA EQUIPMENT(B00),HIGH ALTITUDE COMPENSATOR(EE2)	8-97385-476-0	01	1	1406-			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. HIGH ALTITUDE COMPENSATOR(EE2) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEAT ER(C65)	8-97212-101-0	01	1	1012-1405			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. HIGH ALTITUDE COMPENSATOR(EE2) EXHAUST BRAKE<NF8> EXC. INDONESIA EQUIPMENT(B00),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEA TER(C65)	8-97212-101-0	01	1	1406-			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97263-086-3	01	1	1012-1404	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. MALAYSIA EQUIPMENT(B10)	8-97263-086-3	01	1	1405-	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. HIGH ALTITUDE COMPENSATOR(EE2)	8-97120-181-1	01	1	1012-				●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97120-180-1	01	1	1012-				●
16	03.330 PIPE; INJ NO.1	8-97209-493-1	01	1	1012-		●
16	03.330 PIPE; INJ NO.1	8-97123-374-0	01	1	1012-			●
16	03.330 PIPE; INJ NO.1	8-97223-923-1	01	1	1012-	●
16	03.330 PIPE; INJ NO.1	8-98011-606-0	01	1	1012-1201					●
16	03.330 PIPE; INJ NO.1	8-98203-719-0	01	1	1202-					●
16	03.330 PIPE; INJ NO.1	8-97120-154-2	01	1	1012-				●
17	03.330 PIPE; INJ NO.2	8-97209-494-1	01	1	1012-		●
17	03.330 PIPE; INJ NO.2	8-97123-375-0	01	1	1012-			●
17	03.330 PIPE; INJ NO.2	8-97223-924-1	01	1	1012-	●
17	03.330 PIPE; INJ NO.2	8-98043-684-0	01	1	1012-1201					●
17	03.330 PIPE; INJ NO.2	8-98203-720-0	01	1	1202-					●
17	03.330 PIPE; INJ NO.2	8-97120-155-2	01	1	1012-				●
18	03.330 PIPE; INJ NO.3	8-97209-495-1	01	1	1012-		●
18	03.330 PIPE; INJ NO.3	8-97123-376-0	01	1	1012-			●
18	03.330 PIPE; INJ NO.3	8-97223-925-1	01	1	1012-	●
18	03.330 PIPE; INJ NO.3	8-98011-608-0	01	1	1012-1201					●
18	03.330 PIPE; INJ NO.3	8-98203-721-0	01	1	1202-					●
18	03.330 PIPE; INJ NO.3	8-97120-156-2	01	1	1012-				●
19	03.330 PIPE; INJ NO.4	8-97209-496-1	01	1	1012-		●
19	03.330 PIPE; INJ NO.4	8-97123-377-1	01	1	1012-			●
19	03.330 PIPE; INJ NO.4	8-97223-926-1	01	1	1012-	●
19	03.330 PIPE; INJ NO.4	8-98011-609-0	01	1	1012-1201					●
19	03.330 PIPE; INJ NO.4	8-98203-722-0	01	1	1202-					●
19	03.330 PIPE; INJ NO.4	8-97120-157-3	01	1	1012-				●
28	03.163 HOSE; FUEL,NOZZLE TO NOZZLE	8-97912-623-0	03	1	1012-				●
29	03.162 CLIP; HOSE 00.034 (A) ID=12 WO/PVC COATING	8-94123-526-1	02	1	1012-					●
29	03.162 CLIP; HOSE 01.240 (B) ID=16	8-94392-924-0	02	1	1012-					●
29	03.162 CLIP; HOSE 03.374 (C) ID=10.5	8-97019-473-0	10	1	1012-					●
29	03.162 CLIP; HOSE 03.163 (D) ID=11	8-97173-219-0	02	1	1012-	●			●
29	03.162 CLIP; HOSE 01.219 (E) ID=13	8-94238-571-0	07	1	1012-				●
30	03.163 HOSE; RUBBER,FUEL LEAK (F) L=320	8-97364-773-0	01	1	1012-1509	●
30	03.163 HOSE; RUBBER,FUEL LEAK EXC. MALAYSIA EQUIPMENT(B10) (F) L=320	8-97364-773-0	01	1	1510-	●
30	03.163 HOSE; RUBBER,FUEL LEAK (A) L=130	0-01804-130-0	01	1	1012-					●
30	03.163 HOSE; RUBBER,FUEL LEAK (B) L=98	8-97354-652-0	03	1	1012-					●
30	03.163 HOSE; RUBBER,FUEL LEAK (C) L=150	8-97362-306-2	01	1	1012-					●
30	03.163 HOSE; RUBBER,FUEL LEAK (D) L=110	8-97377-894-0	01	1	1012-					●
30	03.163 HOSE; RUBBER,FUEL LEAK (E) L=265	8-98009-700-2	01	1	1012-1101					●
30	03.163 HOSE; RUBBER,FUEL LEAK (E) L=265	8-98169-863-0	01	1	1102-					●
30	03.163 HOSE; RUBBER,FUEL LEAK (G) L=240	8-97364-774-1	01	1	1012-				●
31	03.332 NOZZLE ASM; INJ (D)	8-97200-570-3	04	1	1012-		●
31	03.332 NOZZLE ASM; INJ (B)	8-97119-811-0	04	1	1012-			●
31	03.332 NOZZLE ASM; INJ (C)	8-97382-945-0	04	1	1012-	●
31	03.332 NOZZLE ASM; INJ (E)	8-98011-604-5	04	1	1012-					●
31	03.332 NOZZLE ASM; INJ (A)	8-97122-939-0	04	1	1012-				●
50	03.332 GASKET; NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97287-402-2	04	1	1012-	●			●
59	03.332 CLAMP; NOZZLE HOLDER	8-97259-884-0	04	1	1012-	●
59	03.332 CLAMP; NOZZLE HOLDER	8-98092-539-0	04	1	1012-					●
59	03.332 CLAMP; NOZZLE HOLDER	8-94433-427-0	04	1	1012-				●
61	03.332 BOLT; CLAMP NOZZLE HOLDER	8-94468-020-2	04	1	1012-	●
61	03.332 BOLT; CLAMP NOZZLE HOLDER	8-94433-717-1	04	1	1012-				●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 07.003 (A)	8-97171-332-0	04	1	1012-		●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (B)	8-94326-439-0	04	1	1012-		●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (C)	8-98077-165-0	04	1	1012-1103					●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (C)	8-98181-540-0	04	1	1104-					●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (A) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	1012-1208	●	●	●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (A) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	1209-	●		●	●
72	03.330 BOLT; BRKT TO INJ PUMP M10X20 W/LK WASHER	0-50551-020-0	02	1	1012-	●			●
76	03.330 BOLT; BRKT TO BRKT 09.008 M8X25 W/LK WASHER	0-50540-825-0	02	1	1012-	●			●
78	03.330 BOLT; BRKT TO C/BL 02.343 M10X20 FLANGE	0-28751-020-0	01	1	1012-		●
78	03.330 BOLT; BRKT TO C/BL 02.343 M10X20 FLANGE	0-28751-020-0	02	1	1012-			●
78	03.330 BOLT; BRKT TO C/BL 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1012-	●			●
80	03.306 BRACKET; PUMP (C)	8-97136-677-0	01	1	1012-		●	●
80	03.306 BRACKET; PUMP (A)	8-97368-670-0	01	1	1012-	●			●
80	03.306 BRACKET; PUMP (B)	8-97368-671-0	01	1	1012-	●			●
81	03.330 WASHER; PL,BRKT TO PUMP 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	1012-	●			●
113	03.162 CLIP; INJ PIPE (B)	8-97213-481-0	01	1	1012-		●
113	03.162 CLIP; INJ PIPE (C)	8-97213-050-0	04	1	1012-		●	●
113	03.162 CLIP; INJ PIPE (B)	1-09701-132-1	02	1	1012-1210	●
113	03.162 CLIP; INJ PIPE 03.634 (B)	1-09701-240-0	02	1	1211-	●
113	03.162 CLIP; INJ PIPE (A)	8-97224-041-1	02	1	1012-1212	●
113	03.162 CLIP; INJ PIPE (A)	8-98227-926-0	02	1	1301-	●
113	03.162 CLIP; INJ PIPE 03.330 (A)	5-15419-013-1	02	1	1012-				●
136	03.162 CAP; NOZZLE,FUEL END	8-94473-967-0	01	1	1012-				●

29 30 29 29 30 29 211 219 199 199 290 289 288 137 283 216 210 175 175 205 329 424 408 382 219 445 426 283 282

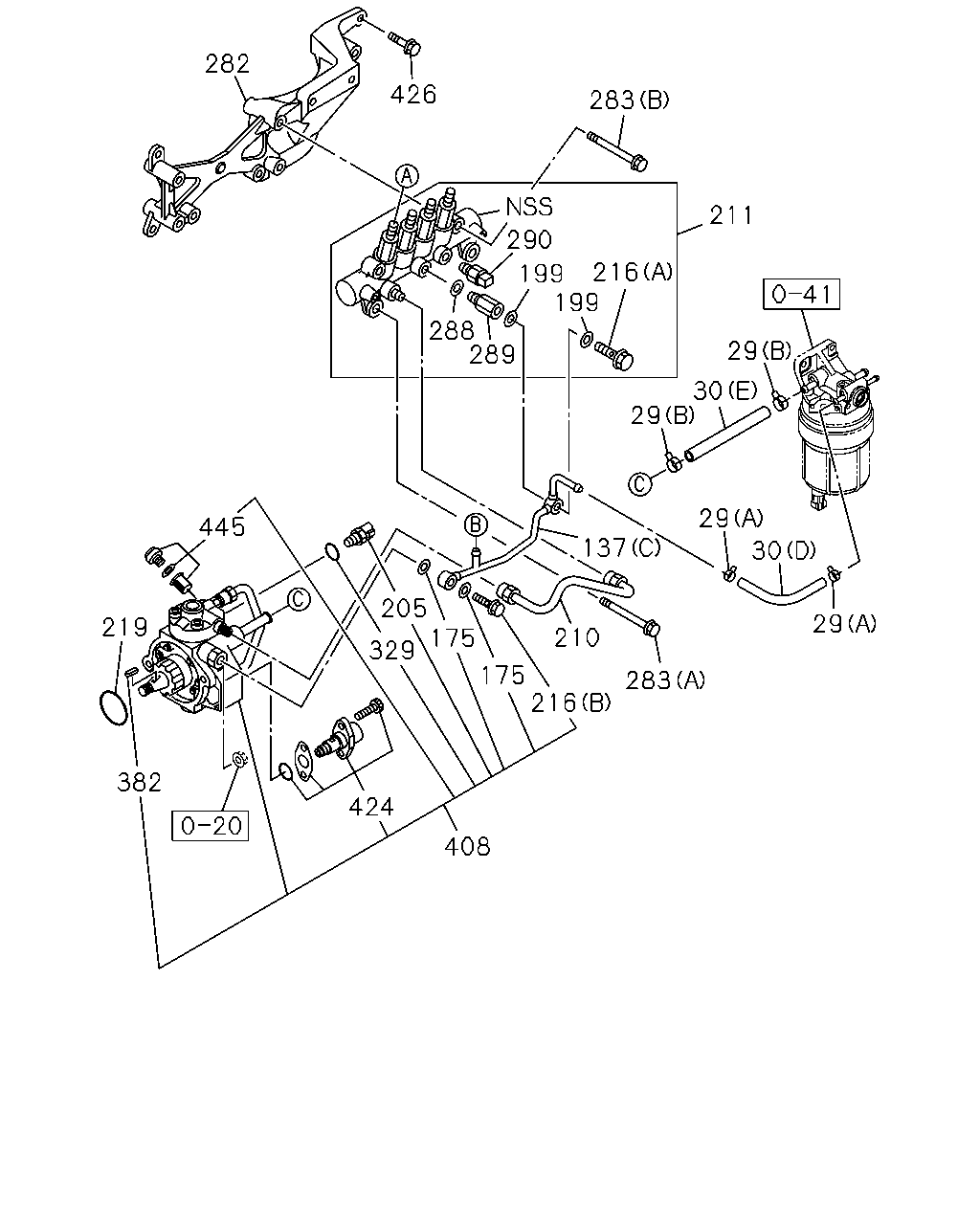

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
29	03.162 CLIP; HOSE 00.034 (A) ID=12 WO/PVC COATING	8-94123-526-1	02	1	1012-					●
29	03.162 CLIP; HOSE 01.240 (B) ID=16	8-94392-924-0	02	1	1012-					●
29	03.162 CLIP; HOSE 03.374 (C) ID=10.5	8-97019-473-0	10	1	1012-					●
29	03.162 CLIP; HOSE 03.163 (D) ID=11	8-97173-219-0	02	1	1012-	●			●
29	03.162 CLIP; HOSE 01.219 (E) ID=13	8-94238-571-0	07	1	1012-				●
30	03.163 HOSE; RUBBER,FUEL LEAK (F) L=320	8-97364-773-0	01	1	1012-1509	●
30	03.163 HOSE; RUBBER,FUEL LEAK EXC. MALAYSIA EQUIPMENT(B10) (F) L=320	8-97364-773-0	01	1	1510-	●
30	03.163 HOSE; RUBBER,FUEL LEAK (A) L=130	0-01804-130-0	01	1	1012-					●
30	03.163 HOSE; RUBBER,FUEL LEAK (B) L=98	8-97354-652-0	03	1	1012-					●
30	03.163 HOSE; RUBBER,FUEL LEAK (C) L=150	8-97362-306-2	01	1	1012-					●
30	03.163 HOSE; RUBBER,FUEL LEAK (D) L=110	8-97377-894-0	01	1	1012-					●
30	03.163 HOSE; RUBBER,FUEL LEAK (E) L=265	8-98009-700-2	01	1	1012-1101					●
30	03.163 HOSE; RUBBER,FUEL LEAK (E) L=265	8-98169-863-0	01	1	1102-					●
30	03.163 HOSE; RUBBER,FUEL LEAK (G) L=240	8-97364-774-1	01	1	1012-				●
137	03.163 PIPE ASM; LEAK OFF (A)	8-97315-230-2	01	1	1012-1101					●
137	03.163 PIPE ASM; LEAK OFF (A)	8-98161-062-0	01	1	1102-					●
137	03.163 PIPE ASM; LEAK OFF (B)	8-97315-231-2	03	1	1012-1101					●
137	03.163 PIPE ASM; LEAK OFF (B)	8-98161-061-0	03	1	1102-					●
137	03.163 PIPE ASM; LEAK OFF (C)	8-98009-699-0	01	1	1012-					●
137	03.163 PIPE ASM; LEAK OFF (D)	8-98036-510-0	01	1	1012-					●
175	03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE 01.531 ID=10.2 OD=15.2	1-09630-083-0	02	1	1012-					●
199	03.332 GASKET; EYE BOLT	8-97602-218-0	02	1	1012-					●
205	03.320 SENSOR; FUEL TEMP	8-98023-581-0	01	1	1012-					●
210	03.330 PIPE; INJ,C/R	8-97388-902-0	01	1	1012-					●
211	03.331 RAIL ASM; COMMON	8-98011-888-2	01	1	1012-					●
216	03.162 BOLT; EYE (A)	8-98043-033-0	01	1	1012-					●
216	03.162 BOLT; EYE 03.280 (B)	9-88130-088-0	01	1	1012-					●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	1012-1312		●	●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●	●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7	1-09623-541-0	01	1	1012-					●
282	03.163 BRACKET; COMMON RAIL	8-98147-694-0	01	1	1012-					●
283	03.330 BOLT; COMMON RAIL 00.206 (A) M8X70 FLANGE	0-28050-870-0	02	1	1012-					●
283	03.330 BOLT; COMMON RAIL (B) M8X81 FLANGE	8-97354-584-0	02	1	1012-					●
288	03.331 GASKET ID=11 OD=16.3	1-15641-046-0	01	1	1012-					●
289	03.331 LIMITER; FUEL PRESS	8-98032-549-0	01	1	1012-					●
290	03.331 SENSOR; PRESS	8-98119-790-0	01	1	1012-					●
329	03.335 GASKET; SENSOR,FUEL TEMP 03.304 ID=9.8 OD=11.7	9-09566-110-0	01	1	1012-1104					●
382	03.162 KEY; DRIVE SHAFT	8-97375-384-0	01	1	1012-1104					●
382	03.162 KEY; DRIVE SHAFT	8-98161-995-0	01	1	1105-					●
408	03.306 PUMP ASM; FUEL,SUPPLY	8-97381-555-5	01	1	1012-					●
424	03.332 OVERHAUL KIT; SUPPLY PUMP	8-98145-501-1	01	1	1012-					●
426	03.330 BOLT; BRACKET 04.686 M8X60 FLANGE	0-28050-860-0	01	1	1012-					●
445	03.330 SCREW; FILTER,INLET	8-98204-986-0	01	1	1012-					●

93 63 34 31 29 30 29 61 59 50 66 110 120 19 113 113 17 18 113 16 113 76 81 1 78 80 80 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. MALAYSIA EQUIPMENT(B10)	8-97204-201-9	01	1	1405-	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97178-485-5	01	1	1012-		●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. HEATER & DEFROSTER(C41) EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97212-102-0	01	1	1012-1405			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97212-102-0	01	1	1012-1405			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65),HIGH ALTITUDE COMPENSATOR(EE2)	8-97212-102-0	01	1	1406-			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97385-476-0	01	1	1012-1405			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> EXC. INDONESIA EQUIPMENT(B00),HIGH ALTITUDE COMPENSATOR(EE2)	8-97385-476-0	01	1	1406-			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. HIGH ALTITUDE COMPENSATOR(EE2) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEAT ER(C65)	8-97212-101-0	01	1	1012-1405			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. HIGH ALTITUDE COMPENSATOR(EE2) EXHAUST BRAKE<NF8> EXC. INDONESIA EQUIPMENT(B00),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEA TER(C65)	8-97212-101-0	01	1	1406-			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97263-086-3	01	1	1012-1404	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. MALAYSIA EQUIPMENT(B10)	8-97263-086-3	01	1	1405-	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. HIGH ALTITUDE COMPENSATOR(EE2)	8-97120-181-1	01	1	1012-				●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97120-180-1	01	1	1012-				●
16	03.330 PIPE; INJ NO.1	8-97209-493-1	01	1	1012-		●
16	03.330 PIPE; INJ NO.1	8-97123-374-0	01	1	1012-			●
16	03.330 PIPE; INJ NO.1	8-97223-923-1	01	1	1012-	●
16	03.330 PIPE; INJ NO.1	8-98011-606-0	01	1	1012-1201					●
16	03.330 PIPE; INJ NO.1	8-98203-719-0	01	1	1202-					●
16	03.330 PIPE; INJ NO.1	8-97120-154-2	01	1	1012-				●
17	03.330 PIPE; INJ NO.2	8-97209-494-1	01	1	1012-		●
17	03.330 PIPE; INJ NO.2	8-97123-375-0	01	1	1012-			●
17	03.330 PIPE; INJ NO.2	8-97223-924-1	01	1	1012-	●
17	03.330 PIPE; INJ NO.2	8-98043-684-0	01	1	1012-1201					●
17	03.330 PIPE; INJ NO.2	8-98203-720-0	01	1	1202-					●
17	03.330 PIPE; INJ NO.2	8-97120-155-2	01	1	1012-				●
18	03.330 PIPE; INJ NO.3	8-97209-495-1	01	1	1012-		●
18	03.330 PIPE; INJ NO.3	8-97123-376-0	01	1	1012-			●
18	03.330 PIPE; INJ NO.3	8-97223-925-1	01	1	1012-	●
18	03.330 PIPE; INJ NO.3	8-98011-608-0	01	1	1012-1201					●
18	03.330 PIPE; INJ NO.3	8-98203-721-0	01	1	1202-					●
18	03.330 PIPE; INJ NO.3	8-97120-156-2	01	1	1012-				●
19	03.330 PIPE; INJ NO.4	8-97209-496-1	01	1	1012-		●
19	03.330 PIPE; INJ NO.4	8-97123-377-1	01	1	1012-			●
19	03.330 PIPE; INJ NO.4	8-97223-926-1	01	1	1012-	●
19	03.330 PIPE; INJ NO.4	8-98011-609-0	01	1	1012-1201					●
19	03.330 PIPE; INJ NO.4	8-98203-722-0	01	1	1202-					●
19	03.330 PIPE; INJ NO.4	8-97120-157-3	01	1	1012-				●
29	03.162 CLIP; HOSE 00.034 (A) ID=12 WO/PVC COATING	8-94123-526-1	02	1	1012-					●
29	03.162 CLIP; HOSE 01.240 (B) ID=16	8-94392-924-0	02	1	1012-					●
29	03.162 CLIP; HOSE 03.374 (C) ID=10.5	8-97019-473-0	10	1	1012-					●
29	03.162 CLIP; HOSE 03.163 (D) ID=11	8-97173-219-0	02	1	1012-	●			●
29	03.162 CLIP; HOSE 01.219 (E) ID=13	8-94238-571-0	07	1	1012-				●
30	03.163 HOSE; RUBBER,FUEL LEAK (F) L=320	8-97364-773-0	01	1	1012-1509	●
30	03.163 HOSE; RUBBER,FUEL LEAK EXC. MALAYSIA EQUIPMENT(B10) (F) L=320	8-97364-773-0	01	1	1510-	●
30	03.163 HOSE; RUBBER,FUEL LEAK (A) L=130	0-01804-130-0	01	1	1012-					●
30	03.163 HOSE; RUBBER,FUEL LEAK (B) L=98	8-97354-652-0	03	1	1012-					●
30	03.163 HOSE; RUBBER,FUEL LEAK (C) L=150	8-97362-306-2	01	1	1012-					●
30	03.163 HOSE; RUBBER,FUEL LEAK (D) L=110	8-97377-894-0	01	1	1012-					●
30	03.163 HOSE; RUBBER,FUEL LEAK (E) L=265	8-98009-700-2	01	1	1012-1101					●
30	03.163 HOSE; RUBBER,FUEL LEAK (E) L=265	8-98169-863-0	01	1	1102-					●
30	03.163 HOSE; RUBBER,FUEL LEAK (G) L=240	8-97364-774-1	01	1	1012-				●
31	03.332 NOZZLE ASM; INJ (D)	8-97200-570-3	04	1	1012-		●
31	03.332 NOZZLE ASM; INJ (B)	8-97119-811-0	04	1	1012-			●
31	03.332 NOZZLE ASM; INJ (C)	8-97382-945-0	04	1	1012-	●
31	03.332 NOZZLE ASM; INJ (E)	8-98011-604-5	04	1	1012-					●
31	03.332 NOZZLE ASM; INJ (A)	8-97122-939-0	04	1	1012-				●
34	03.330 BOLT; EYE,NOZZLE HOLDER 03.162 M8X18 EYE-BOLT	1-09675-037-1	04	1	1012-		●
34	03.330 BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	04	1	1012-			●
34	03.330 BOLT; EYE,NOZZLE HOLDER 03.306	8-94320-307-0	04	1	1012-	●
50	03.332 GASKET; NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97287-402-2	04	1	1012-	●			●
59	03.332 CLAMP; NOZZLE HOLDER	8-97259-884-0	04	1	1012-	●
59	03.332 CLAMP; NOZZLE HOLDER	8-98092-539-0	04	1	1012-					●
59	03.332 CLAMP; NOZZLE HOLDER	8-94433-427-0	04	1	1012-				●
61	03.332 BOLT; CLAMP NOZZLE HOLDER	8-94468-020-2	04	1	1012-	●
61	03.332 BOLT; CLAMP NOZZLE HOLDER	8-94433-717-1	04	1	1012-				●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97148-969-2	01	1	1012-		●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97118-895-0	01	1	1012-			●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97288-702-0	01	1	1012-	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 07.003 (A)	8-97171-332-0	04	1	1012-		●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (B)	8-94326-439-0	04	1	1012-		●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (C)	8-98077-165-0	04	1	1012-1103					●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (C)	8-98181-540-0	04	1	1104-					●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (A) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	1012-1208	●	●	●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (A) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	1209-	●		●	●
72	03.330 BOLT; BRKT TO INJ PUMP M10X20 W/LK WASHER	0-50551-020-0	02	1	1012-	●			●
76	03.330 BOLT; BRKT TO BRKT 09.008 M8X25 W/LK WASHER	0-50540-825-0	02	1	1012-	●			●
78	03.330 BOLT; BRKT TO C/BL 02.343 M10X20 FLANGE	0-28751-020-0	01	1	1012-		●
78	03.330 BOLT; BRKT TO C/BL 02.343 M10X20 FLANGE	0-28751-020-0	02	1	1012-			●
78	03.330 BOLT; BRKT TO C/BL 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1012-	●			●
80	03.306 BRACKET; PUMP (C)	8-97136-677-0	01	1	1012-		●	●
80	03.306 BRACKET; PUMP (A)	8-97368-670-0	01	1	1012-	●			●
80	03.306 BRACKET; PUMP (B)	8-97368-671-0	01	1	1012-	●			●
81	03.330 WASHER; PL,BRKT TO PUMP 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	1012-	●			●
93	03.162 GASKET; LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97375-236-0	04	1	1012-	●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	1012-	●	●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	02	1	1012-					●
113	03.162 CLIP; INJ PIPE (B)	8-97213-481-0	01	1	1012-		●
113	03.162 CLIP; INJ PIPE (C)	8-97213-050-0	04	1	1012-		●	●
113	03.162 CLIP; INJ PIPE (B)	1-09701-132-1	02	1	1012-1210	●
113	03.162 CLIP; INJ PIPE 03.634 (B)	1-09701-240-0	02	1	1211-	●
113	03.162 CLIP; INJ PIPE (A)	8-97224-041-1	02	1	1012-1212	●
113	03.162 CLIP; INJ PIPE (A)	8-98227-926-0	02	1	1301-	●
113	03.162 CLIP; INJ PIPE 03.330 (A)	5-15419-013-1	02	1	1012-				●
120	03.330 BRACKET; INJ PIPE	8-98015-024-1	01	1	1012-	●

31 31 32 140 34 44 32 43 47 146 46 140 33 44 43 35 47 45 138 140 43 272 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
31	03.332 NOZZLE ASM; INJ (D)	8-97200-570-3	04	1	1012-		●
31	03.332 NOZZLE ASM; INJ (B)	8-97119-811-0	04	1	1012-			●
31	03.332 NOZZLE ASM; INJ (C)	8-97382-945-0	04	1	1012-	●
31	03.332 NOZZLE ASM; INJ (E)	8-98011-604-5	04	1	1012-					●
31	03.332 NOZZLE ASM; INJ (A)	8-97122-939-0	04	1	1012-				●
32	03.332 HOLDER ASM; NOZZLE	8-97078-783-1	04	1	1012-		●
32	03.332 HOLDER ASM; NOZZLE	8-94311-966-2	04	1	1012-			●
32	03.332 HOLDER ASM; NOZZLE	8-97203-471-1	04	1	1012-	●
32	03.332 HOLDER ASM; NOZZLE	8-94451-184-1	04	1	1012-				●
33	03.332 NOZZLE; INJ	8-97119-809-0	04	1	1012-			●
33	03.332 NOZZLE; INJ	8-97109-671-0	04	1	1012-				●
34	03.330 BOLT; EYE,NOZZLE HOLDER 03.162 M8X18 EYE-BOLT	1-09675-037-1	04	1	1012-		●
34	03.330 BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	04	1	1012-			●
34	03.330 BOLT; EYE,NOZZLE HOLDER 03.306	8-94320-307-0	04	1	1012-	●
35	03.330 NUT; NOZZLE RET,NOZZLE HOLDER	1-15349-041-0	04	1	1012-	●	●
35	03.330 NUT; NOZZLE RET,NOZZLE HOLDER	8-94174-184-0	04	1	1012-			●	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A)	8-97223-339-0	04	1	1012-		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B)	8-97349-452-0	04	1	1012-		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A)	8-94329-555-0	04	1	1012-			●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.00	8-97223-343-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.02	8-97223-344-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.04	8-97223-345-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.06	8-97223-346-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.08	8-97223-347-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.10	8-97223-348-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.12	8-97223-349-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.14	8-97223-350-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.16	8-97223-351-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.18	8-97223-352-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.20	8-97223-353-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.22	8-97223-354-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.24	8-97223-355-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.26	8-97223-356-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.28	8-97223-357-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.30	8-97223-358-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.32	8-97223-359-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.34	8-97223-360-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.36	8-97223-361-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.38	8-97223-362-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.40	8-97223-363-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.42	8-97223-364-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.44	8-97223-365-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.46	8-97223-366-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.48	8-97223-367-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.50	8-97223-368-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.52	8-97223-369-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.54	8-97223-370-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.56	8-97223-371-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.58	8-97223-372-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.60	8-97223-373-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.62	8-97223-374-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.64	8-97223-375-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.66	8-97223-376-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.68	8-97223-377-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.70	8-97223-378-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.72	8-97223-379-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.74	8-97223-380-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.76	8-97223-381-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.78	8-97223-382-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.80	8-97223-383-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.82	8-97223-384-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.84	8-97223-385-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.86	8-97223-386-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.88	8-97223-387-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.90	8-97223-388-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.92	8-97223-389-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.94	8-97223-390-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.96	8-97223-391-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.98	8-97223-392-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=3.00	8-97223-393-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B)	8-97361-697-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A)	8-94312-723-0	04	1	1012-				●
44	03.330 SPRING; NOZZLE,NOZZLE HOLDER	1-15343-003-0	04	1	1012-	●	●
44	03.330 SPRING; NOZZLE,NOZZLE HOLDER	8-94174-141-0	04	1	1012-			●	●
45	03.330 ROD; PUSH,NOZZLE HOLDER	1-15341-008-0	04	1	1012-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.25	8-97355-112-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.26	8-97355-113-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.27	8-97355-114-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.28	8-97355-115-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.29	8-97355-116-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.30	8-97355-117-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.31	8-97355-118-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.32	8-97355-119-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.33	8-97355-120-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.34	8-97355-121-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.35	8-97355-122-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.36	8-97355-123-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.37	8-97355-124-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.38	8-97355-125-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.39	8-97355-126-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.40	8-97355-127-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.41	8-97355-128-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.42	8-97355-129-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.43	8-97355-130-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.44	8-97355-131-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.45	8-97355-132-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.46	8-97355-133-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.47	8-97355-134-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.48	8-97355-135-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.49	8-97355-136-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.50	8-97355-137-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.51	8-97355-138-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.52	8-97355-139-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.53	8-97355-140-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.54	8-97355-141-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.55	8-97355-142-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.56	8-97355-143-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.57	8-97355-144-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.58	8-97355-145-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.59	8-97355-146-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.60	8-97355-147-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.61	8-97355-148-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.62	8-97355-149-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.63	8-97355-150-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.64	8-97355-151-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.65	8-97355-152-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.66	8-97355-153-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.67	8-97355-154-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.68	8-97355-155-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.69	8-97355-156-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.70	8-97355-157-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.71	8-97355-158-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.72	8-97355-159-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.73	8-97355-160-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.74	8-97355-161-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.75	8-97355-162-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.76	8-97355-163-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.77	8-97355-164-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.78	8-97355-165-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.79	8-97355-166-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.80	8-97355-167-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.81	8-97355-168-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.82	8-97355-169-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.83	8-97355-170-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.84	8-97355-171-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.85	8-97355-172-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.86	8-97355-173-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.87	8-97355-174-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.88	8-97355-175-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.89	8-97355-176-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.90	8-97355-177-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.91	8-97355-178-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.92	8-97355-179-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.93	8-97355-180-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.94	8-97355-182-0	04	1	1012-	●
46	03.330 PIN; NOZZLE SET,NOZZLE HOLDER	8-94174-139-0	08	1	1012-			●	●
47	03.332 SPACER; NOZZLE SPRING,NOZZLE HOL	8-97223-340-0	04	1	1012-	●	●
138	03.330 SPRING; NOZZLE LWR,NOZZLE HOLDER	1-15343-004-0	04	1	1012-		●
138	03.330 SPRING; NOZZLE LWR,NOZZLE HOLDER	8-94174-141-0	04	1	1012-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=1.20	1-15349-004-0	04	1	1012-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.40	1-15349-042-0	AR	1	1012-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.50	1-15349-043-0	AR	1	1012-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.10	8-97027-432-0	AR	1	1012-			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.20	8-97027-433-0	AR	1	1012-			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.30	8-97027-434-0	AR	1	1012-			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.40	8-97027-435-0	AR	1	1012-			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.50	8-97027-436-0	AR	1	1012-			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.52	8-97027-437-0	AR	1	1012-			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.54	8-97027-438-0	AR	1	1012-			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.56	8-97027-439-0	AR	1	1012-			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.58	8-97027-440-0	AR	1	1012-			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=1.20	1-15349-004-0	AR	1	1012-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.52	1-15349-044-0	AR	1	1012-	●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.54	1-15349-045-0	AR	1	1012-	●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.56	1-15349-046-0	AR	1	1012-	●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.58	1-15349-047-0	AR	1	1012-	●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.60	1-15349-048-0	AR	1	1012-	●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.70	1-15349-049-0	AR	1	1012-	●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.10	8-97116-029-0	AR	1	1012-	●	●		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.20	8-97116-032-0	AR	1	1012-	●	●		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.30	8-97116-033-0	AR	1	1012-	●	●		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.40	8-97116-034-0	AR	1	1012-	●	●		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.50	8-97116-035-0	AR	1	1012-	●	●		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.51	8-97116-036-0	AR	1	1012-	●	●		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.52	8-97116-037-0	AR	1	1012-	●	●		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.53	8-97116-038-0	AR	1	1012-	●	●		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.54	8-97116-039-0	AR	1	1012-	●	●		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.55	8-97116-040-0	AR	1	1012-	●	●		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.56	8-97116-041-0	AR	1	1012-	●	●		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.57	8-97116-042-0	AR	1	1012-	●	●		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.58	8-97116-043-0	AR	1	1012-	●	●		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.59	8-97116-044-0	AR	1	1012-	●	●		●
146	03.332 SPACER; NOZZLE	8-94344-439-0	04	1	1012-			●
146	03.332 SPACER; NOZZLE	8-94174-183-0	04	1	1012-				●
272	03.332 NOZZLE KIT; INJ	8-97352-267-0	04	1	1012-		●
272	03.332 NOZZLE KIT; INJ	8-97329-208-0	04	1	1012-	●

18 19 17 113 16 36 62 31 63 66 66 2 161 80 2 158 2 2 1 84 78 219 2 226 219

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. MALAYSIA EQUIPMENT(B10)	8-97204-201-9	01	1	1405-	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97178-485-5	01	1	1012-		●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. HEATER & DEFROSTER(C41) EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97212-102-0	01	1	1012-1405			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97212-102-0	01	1	1012-1405			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65),HIGH ALTITUDE COMPENSATOR(EE2)	8-97212-102-0	01	1	1406-			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97385-476-0	01	1	1012-1405			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> EXC. INDONESIA EQUIPMENT(B00),HIGH ALTITUDE COMPENSATOR(EE2)	8-97385-476-0	01	1	1406-			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. HIGH ALTITUDE COMPENSATOR(EE2) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEAT ER(C65)	8-97212-101-0	01	1	1012-1405			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. HIGH ALTITUDE COMPENSATOR(EE2) EXHAUST BRAKE<NF8> EXC. INDONESIA EQUIPMENT(B00),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEA TER(C65)	8-97212-101-0	01	1	1406-			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97263-086-3	01	1	1012-1404	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. MALAYSIA EQUIPMENT(B10)	8-97263-086-3	01	1	1405-	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. HIGH ALTITUDE COMPENSATOR(EE2)	8-97120-181-1	01	1	1012-				●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97120-180-1	01	1	1012-				●
2	03.330 BOLT; INJ PUMP 02.277 (A) M10X70 FLANGE	0-28151-070-0	01	1	1012-		●	●
2	03.330 BOLT; INJ PUMP 00.206 (B) M12X70 FLANGE	0-28151-270-0	01	1	1012-		●	●
2	03.330 BOLT; INJ PUMP (C) M12X90 FLANGE	0-28151-290-0	01	1	1012-		●	●
2	03.330 BOLT; INJ PUMP 03.162 (D) M14X27 FLANGE	1-09675-086-0	02	1	1012-		●	●
2	03.330 BOLT; INJ PUMP 03.162 (E) M14X30	8-97203-957-0	01	1	1012-		●	●
16	03.330 PIPE; INJ NO.1	8-97209-493-1	01	1	1012-		●
16	03.330 PIPE; INJ NO.1	8-97123-374-0	01	1	1012-			●
16	03.330 PIPE; INJ NO.1	8-97223-923-1	01	1	1012-	●
16	03.330 PIPE; INJ NO.1	8-98011-606-0	01	1	1012-1201					●
16	03.330 PIPE; INJ NO.1	8-98203-719-0	01	1	1202-					●
16	03.330 PIPE; INJ NO.1	8-97120-154-2	01	1	1012-				●
17	03.330 PIPE; INJ NO.2	8-97209-494-1	01	1	1012-		●
17	03.330 PIPE; INJ NO.2	8-97123-375-0	01	1	1012-			●
17	03.330 PIPE; INJ NO.2	8-97223-924-1	01	1	1012-	●
17	03.330 PIPE; INJ NO.2	8-98043-684-0	01	1	1012-1201					●
17	03.330 PIPE; INJ NO.2	8-98203-720-0	01	1	1202-					●
17	03.330 PIPE; INJ NO.2	8-97120-155-2	01	1	1012-				●
18	03.330 PIPE; INJ NO.3	8-97209-495-1	01	1	1012-		●
18	03.330 PIPE; INJ NO.3	8-97123-376-0	01	1	1012-			●
18	03.330 PIPE; INJ NO.3	8-97223-925-1	01	1	1012-	●
18	03.330 PIPE; INJ NO.3	8-98011-608-0	01	1	1012-1201					●
18	03.330 PIPE; INJ NO.3	8-98203-721-0	01	1	1202-					●
18	03.330 PIPE; INJ NO.3	8-97120-156-2	01	1	1012-				●
19	03.330 PIPE; INJ NO.4	8-97209-496-1	01	1	1012-		●
19	03.330 PIPE; INJ NO.4	8-97123-377-1	01	1	1012-			●
19	03.330 PIPE; INJ NO.4	8-97223-926-1	01	1	1012-	●
19	03.330 PIPE; INJ NO.4	8-98011-609-0	01	1	1012-1201					●
19	03.330 PIPE; INJ NO.4	8-98203-722-0	01	1	1202-					●
19	03.330 PIPE; INJ NO.4	8-97120-157-3	01	1	1012-				●
31	03.332 NOZZLE ASM; INJ (D)	8-97200-570-3	04	1	1012-		●
31	03.332 NOZZLE ASM; INJ (B)	8-97119-811-0	04	1	1012-			●
31	03.332 NOZZLE ASM; INJ (C)	8-97382-945-0	04	1	1012-	●
31	03.332 NOZZLE ASM; INJ (E)	8-98011-604-5	04	1	1012-					●
31	03.332 NOZZLE ASM; INJ (A)	8-97122-939-0	04	1	1012-				●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=8.6	8-94395-214-0	04	1	1012-1312		●	●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=8.6	8-98246-930-0	04	1	1401-		●	●
62	03.332 NUT; NOZZLE HOLDER 01.062 M8 FLANGE	0-91180-108-0	08	1	1012-		●	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97148-969-2	01	1	1012-		●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97118-895-0	01	1	1012-			●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97288-702-0	01	1	1012-	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 07.003 (A)	8-97171-332-0	04	1	1012-		●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (B)	8-94326-439-0	04	1	1012-		●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (C)	8-98077-165-0	04	1	1012-1103					●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (C)	8-98181-540-0	04	1	1104-					●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (A) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	1012-1208	●	●	●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (A) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	1209-	●		●	●
78	03.330 BOLT; BRKT TO C/BL 02.343 M10X20 FLANGE	0-28751-020-0	01	1	1012-		●
78	03.330 BOLT; BRKT TO C/BL 02.343 M10X20 FLANGE	0-28751-020-0	02	1	1012-			●
78	03.330 BOLT; BRKT TO C/BL 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1012-	●			●
80	03.306 BRACKET; PUMP (C)	8-97136-677-0	01	1	1012-		●	●
80	03.306 BRACKET; PUMP (A)	8-97368-670-0	01	1	1012-	●			●
80	03.306 BRACKET; PUMP (B)	8-97368-671-0	01	1	1012-	●			●
84	03.330 NUT; BRKT TO BRKT 04.085 M10 FLANGE	0-91180-210-0	01	1	1012-		●	●
113	03.162 CLIP; INJ PIPE (B)	8-97213-481-0	01	1	1012-		●
113	03.162 CLIP; INJ PIPE (C)	8-97213-050-0	04	1	1012-		●	●
113	03.162 CLIP; INJ PIPE (B)	1-09701-132-1	02	1	1012-1210	●
113	03.162 CLIP; INJ PIPE 03.634 (B)	1-09701-240-0	02	1	1211-	●
113	03.162 CLIP; INJ PIPE (A)	8-97224-041-1	02	1	1012-1212	●
113	03.162 CLIP; INJ PIPE (A)	8-98227-926-0	02	1	1301-	●
113	03.162 CLIP; INJ PIPE 03.330 (A)	5-15419-013-1	02	1	1012-				●
158	03.330 NUT; INJ PUMP 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-		●	●
161	03.340 STUD; INJ PUMP 00.724 M10X46.5 L=58.5	8-97066-386-1	02	1	1012-		●	●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	1012-1312		●	●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●	●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7	1-09623-541-0	01	1	1012-					●
226	03.163 PIPE; FUEL	8-97203-567-0	01	1	1012-		●	●

31 31 32 32 34 34 58 58 45 138 140 43 140 44 43 146 46 140 44 43 47 272 33 35 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
31	03.332 NOZZLE ASM; INJ (D)	8-97200-570-3	04	1	1012-		●
31	03.332 NOZZLE ASM; INJ (B)	8-97119-811-0	04	1	1012-			●
31	03.332 NOZZLE ASM; INJ (C)	8-97382-945-0	04	1	1012-	●
31	03.332 NOZZLE ASM; INJ (E)	8-98011-604-5	04	1	1012-					●
31	03.332 NOZZLE ASM; INJ (A)	8-97122-939-0	04	1	1012-				●
32	03.332 HOLDER ASM; NOZZLE	8-97078-783-1	04	1	1012-		●
32	03.332 HOLDER ASM; NOZZLE	8-94311-966-2	04	1	1012-			●
32	03.332 HOLDER ASM; NOZZLE	8-97203-471-1	04	1	1012-	●
32	03.332 HOLDER ASM; NOZZLE	8-94451-184-1	04	1	1012-				●
33	03.332 NOZZLE; INJ	8-97119-809-0	04	1	1012-			●
33	03.332 NOZZLE; INJ	8-97109-671-0	04	1	1012-				●
34	03.330 BOLT; EYE,NOZZLE HOLDER 03.162 M8X18 EYE-BOLT	1-09675-037-1	04	1	1012-		●
34	03.330 BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	04	1	1012-			●
34	03.330 BOLT; EYE,NOZZLE HOLDER 03.306	8-94320-307-0	04	1	1012-	●
35	03.330 NUT; NOZZLE RET,NOZZLE HOLDER	1-15349-041-0	04	1	1012-	●	●
35	03.330 NUT; NOZZLE RET,NOZZLE HOLDER	8-94174-184-0	04	1	1012-			●	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A)	8-97223-339-0	04	1	1012-		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B)	8-97349-452-0	04	1	1012-		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A)	8-94329-555-0	04	1	1012-			●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.00	8-97223-343-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.02	8-97223-344-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.04	8-97223-345-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.06	8-97223-346-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.08	8-97223-347-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.10	8-97223-348-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.12	8-97223-349-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.14	8-97223-350-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.16	8-97223-351-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.18	8-97223-352-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.20	8-97223-353-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.22	8-97223-354-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.24	8-97223-355-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.26	8-97223-356-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.28	8-97223-357-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.30	8-97223-358-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.32	8-97223-359-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.34	8-97223-360-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.36	8-97223-361-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.38	8-97223-362-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.40	8-97223-363-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.42	8-97223-364-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.44	8-97223-365-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.46	8-97223-366-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.48	8-97223-367-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.50	8-97223-368-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.52	8-97223-369-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.54	8-97223-370-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.56	8-97223-371-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.58	8-97223-372-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.60	8-97223-373-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.62	8-97223-374-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.64	8-97223-375-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.66	8-97223-376-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.68	8-97223-377-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.70	8-97223-378-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.72	8-97223-379-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.74	8-97223-380-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.76	8-97223-381-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.78	8-97223-382-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.80	8-97223-383-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.82	8-97223-384-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.84	8-97223-385-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.86	8-97223-386-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.88	8-97223-387-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.90	8-97223-388-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.92	8-97223-389-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.94	8-97223-390-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.96	8-97223-391-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=2.98	8-97223-392-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A) T=3.00	8-97223-393-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B)	8-97361-697-0	04	1	1012-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A)	8-94312-723-0	04	1	1012-				●
44	03.330 SPRING; NOZZLE,NOZZLE HOLDER	1-15343-003-0	04	1	1012-	●	●
44	03.330 SPRING; NOZZLE,NOZZLE HOLDER	8-94174-141-0	04	1	1012-			●	●
45	03.330 ROD; PUSH,NOZZLE HOLDER	1-15341-008-0	04	1	1012-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.25	8-97355-112-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.26	8-97355-113-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.27	8-97355-114-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.28	8-97355-115-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.29	8-97355-116-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.30	8-97355-117-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.31	8-97355-118-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.32	8-97355-119-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.33	8-97355-120-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.34	8-97355-121-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.35	8-97355-122-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.36	8-97355-123-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.37	8-97355-124-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.38	8-97355-125-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.39	8-97355-126-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.40	8-97355-127-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.41	8-97355-128-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.42	8-97355-129-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.43	8-97355-130-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.44	8-97355-131-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.45	8-97355-132-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.46	8-97355-133-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.47	8-97355-134-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.48	8-97355-135-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.49	8-97355-136-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.50	8-97355-137-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.51	8-97355-138-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.52	8-97355-139-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.53	8-97355-140-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.54	8-97355-141-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.55	8-97355-142-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.56	8-97355-143-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.57	8-97355-144-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.58	8-97355-145-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.59	8-97355-146-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.60	8-97355-147-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.61	8-97355-148-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.62	8-97355-149-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.63	8-97355-150-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.64	8-97355-151-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.65	8-97355-152-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.66	8-97355-153-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.67	8-97355-154-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.68	8-97355-155-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.69	8-97355-156-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.70	8-97355-157-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.71	8-97355-158-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.72	8-97355-159-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.73	8-97355-160-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.74	8-97355-161-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.75	8-97355-162-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.76	8-97355-163-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.77	8-97355-164-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.78	8-97355-165-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.79	8-97355-166-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.80	8-97355-167-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.81	8-97355-168-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.82	8-97355-169-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.83	8-97355-170-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.84	8-97355-171-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.85	8-97355-172-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.86	8-97355-173-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.87	8-97355-174-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.88	8-97355-175-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.89	8-97355-176-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.90	8-97355-177-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.91	8-97355-178-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.92	8-97355-179-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.93	8-97355-180-0	04	1	1012-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.94	8-97355-182-0	04	1	1012-	●
46	03.330 PIN; NOZZLE SET,NOZZLE HOLDER	8-94174-139-0	08	1	1012-			●	●
47	03.332 SPACER; NOZZLE SPRING,NOZZLE HOL	8-97223-340-0	04	1	1012-	●	●
58	03.332 FLANGE; INJ,NOZZLE HOLDER	8-97065-713-0	04	1	1012-		●	●
138	03.330 SPRING; NOZZLE LWR,NOZZLE HOLDER	1-15343-004-0	04	1	1012-		●
138	03.330 SPRING; NOZZLE LWR,NOZZLE HOLDER	8-94174-141-0	04	1	1012-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=1.20	1-15349-004-0	04	1	1012-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.40	1-15349-042-0	AR	1	1012-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.50	1-15349-043-0	AR	1	1012-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.10	8-97027-432-0	AR	1	1012-			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.20	8-97027-433-0	AR	1	1012-			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.30	8-97027-434-0	AR	1	1012-			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.40	8-97027-435-0	AR	1	1012-			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.50	8-97027-436-0	AR	1	1012-			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.52	8-97027-437-0	AR	1	1012-			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.54	8-97027-438-0	AR	1	1012-			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.56	8-97027-439-0	AR	1	1012-			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.58	8-97027-440-0	AR	1	1012-			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=1.20	1-15349-004-0	AR	1	1012-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.52	1-15349-044-0	AR	1	1012-	●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.54	1-15349-045-0	AR	1	1012-	●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.56	1-15349-046-0	AR	1	1012-	●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.58	1-15349-047-0	AR	1	1012-	●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.60	1-15349-048-0	AR	1	1012-	●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.70	1-15349-049-0	AR	1	1012-	●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.10	8-97116-029-0	AR	1	1012-	●	●		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.20	8-97116-032-0	AR	1	1012-	●	●		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.30	8-97116-033-0	AR	1	1012-	●	●		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.40	8-97116-034-0	AR	1	1012-	●	●		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.50	8-97116-035-0	AR	1	1012-	●	●		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.51	8-97116-036-0	AR	1	1012-	●	●		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.52	8-97116-037-0	AR	1	1012-	●	●		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.53	8-97116-038-0	AR	1	1012-	●	●		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.54	8-97116-039-0	AR	1	1012-	●	●		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.55	8-97116-040-0	AR	1	1012-	●	●		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.56	8-97116-041-0	AR	1	1012-	●	●		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.57	8-97116-042-0	AR	1	1012-	●	●		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.58	8-97116-043-0	AR	1	1012-	●	●		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.59	8-97116-044-0	AR	1	1012-	●	●		●
146	03.332 SPACER; NOZZLE	8-94344-439-0	04	1	1012-			●
146	03.332 SPACER; NOZZLE	8-94174-183-0	04	1	1012-				●
272	03.332 NOZZLE KIT; INJ	8-97352-267-0	04	1	1012-		●
272	03.332 NOZZLE KIT; INJ	8-97329-208-0	04	1	1012-	●

19 18 113 17 16 68 99 36 63 113 110 2 62 31 161 66 2 66 1 2 219 226 219 80 2 158 2 2 84 78 167

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. MALAYSIA EQUIPMENT(B10)	8-97204-201-9	01	1	1405-	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97178-485-5	01	1	1012-		●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. HEATER & DEFROSTER(C41) EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97212-102-0	01	1	1012-1405			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97212-102-0	01	1	1012-1405			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65),HIGH ALTITUDE COMPENSATOR(EE2)	8-97212-102-0	01	1	1406-			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97385-476-0	01	1	1012-1405			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> EXC. INDONESIA EQUIPMENT(B00),HIGH ALTITUDE COMPENSATOR(EE2)	8-97385-476-0	01	1	1406-			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. HIGH ALTITUDE COMPENSATOR(EE2) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEAT ER(C65)	8-97212-101-0	01	1	1012-1405			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. HIGH ALTITUDE COMPENSATOR(EE2) EXHAUST BRAKE<NF8> EXC. INDONESIA EQUIPMENT(B00),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEA TER(C65)	8-97212-101-0	01	1	1406-			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97263-086-3	01	1	1012-1404	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. MALAYSIA EQUIPMENT(B10)	8-97263-086-3	01	1	1405-	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. HIGH ALTITUDE COMPENSATOR(EE2)	8-97120-181-1	01	1	1012-				●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97120-180-1	01	1	1012-				●
2	03.330 BOLT; INJ PUMP 02.277 (A) M10X70 FLANGE	0-28151-070-0	01	1	1012-		●	●
2	03.330 BOLT; INJ PUMP 00.206 (B) M12X70 FLANGE	0-28151-270-0	01	1	1012-		●	●
2	03.330 BOLT; INJ PUMP (C) M12X90 FLANGE	0-28151-290-0	01	1	1012-		●	●
2	03.330 BOLT; INJ PUMP 03.162 (D) M14X27 FLANGE	1-09675-086-0	02	1	1012-		●	●
2	03.330 BOLT; INJ PUMP 03.162 (E) M14X30	8-97203-957-0	01	1	1012-		●	●
16	03.330 PIPE; INJ NO.1	8-97209-493-1	01	1	1012-		●
16	03.330 PIPE; INJ NO.1	8-97123-374-0	01	1	1012-			●
16	03.330 PIPE; INJ NO.1	8-97223-923-1	01	1	1012-	●
16	03.330 PIPE; INJ NO.1	8-98011-606-0	01	1	1012-1201					●
16	03.330 PIPE; INJ NO.1	8-98203-719-0	01	1	1202-					●
16	03.330 PIPE; INJ NO.1	8-97120-154-2	01	1	1012-				●
17	03.330 PIPE; INJ NO.2	8-97209-494-1	01	1	1012-		●
17	03.330 PIPE; INJ NO.2	8-97123-375-0	01	1	1012-			●
17	03.330 PIPE; INJ NO.2	8-97223-924-1	01	1	1012-	●
17	03.330 PIPE; INJ NO.2	8-98043-684-0	01	1	1012-1201					●
17	03.330 PIPE; INJ NO.2	8-98203-720-0	01	1	1202-					●
17	03.330 PIPE; INJ NO.2	8-97120-155-2	01	1	1012-				●
18	03.330 PIPE; INJ NO.3	8-97209-495-1	01	1	1012-		●
18	03.330 PIPE; INJ NO.3	8-97123-376-0	01	1	1012-			●
18	03.330 PIPE; INJ NO.3	8-97223-925-1	01	1	1012-	●
18	03.330 PIPE; INJ NO.3	8-98011-608-0	01	1	1012-1201					●
18	03.330 PIPE; INJ NO.3	8-98203-721-0	01	1	1202-					●
18	03.330 PIPE; INJ NO.3	8-97120-156-2	01	1	1012-				●
19	03.330 PIPE; INJ NO.4	8-97209-496-1	01	1	1012-		●
19	03.330 PIPE; INJ NO.4	8-97123-377-1	01	1	1012-			●
19	03.330 PIPE; INJ NO.4	8-97223-926-1	01	1	1012-	●
19	03.330 PIPE; INJ NO.4	8-98011-609-0	01	1	1012-1201					●
19	03.330 PIPE; INJ NO.4	8-98203-722-0	01	1	1202-					●
19	03.330 PIPE; INJ NO.4	8-97120-157-3	01	1	1012-				●
31	03.332 NOZZLE ASM; INJ (D)	8-97200-570-3	04	1	1012-		●
31	03.332 NOZZLE ASM; INJ (B)	8-97119-811-0	04	1	1012-			●
31	03.332 NOZZLE ASM; INJ (C)	8-97382-945-0	04	1	1012-	●
31	03.332 NOZZLE ASM; INJ (E)	8-98011-604-5	04	1	1012-					●
31	03.332 NOZZLE ASM; INJ (A)	8-97122-939-0	04	1	1012-				●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=8.6	8-94395-214-0	04	1	1012-1312		●	●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=8.6	8-98246-930-0	04	1	1401-		●	●
62	03.332 NUT; NOZZLE HOLDER 01.062 M8 FLANGE	0-91180-108-0	08	1	1012-		●	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97148-969-2	01	1	1012-		●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97118-895-0	01	1	1012-			●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97288-702-0	01	1	1012-	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 07.003 (A)	8-97171-332-0	04	1	1012-		●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (B)	8-94326-439-0	04	1	1012-		●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (C)	8-98077-165-0	04	1	1012-1103					●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (C)	8-98181-540-0	04	1	1104-					●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (A) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	1012-1208	●	●	●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (A) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	1209-	●		●	●
68	03.162 CLIP; INJ PIPE	1-09701-091-0	01	1	1102-		●
68	03.162 CLIP; INJ PIPE	8-97213-481-0	04	1	1012-1201					●
68	03.162 CLIP; INJ PIPE ID=11 & 11 L=19	8-98039-293-0	04	1	1202-1405					●
68	03.162 CLIP; INJ PIPE ID=11 & 11 L=19	8-98148-996-2	04	1	1406-					●
78	03.330 BOLT; BRKT TO C/BL 02.343 M10X20 FLANGE	0-28751-020-0	01	1	1012-		●
78	03.330 BOLT; BRKT TO C/BL 02.343 M10X20 FLANGE	0-28751-020-0	02	1	1012-			●
78	03.330 BOLT; BRKT TO C/BL 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1012-	●			●
80	03.306 BRACKET; PUMP (C)	8-97136-677-0	01	1	1012-		●	●
80	03.306 BRACKET; PUMP (A)	8-97368-670-0	01	1	1012-	●			●
80	03.306 BRACKET; PUMP (B)	8-97368-671-0	01	1	1012-	●			●
84	03.330 NUT; BRKT TO BRKT 04.085 M10 FLANGE	0-91180-210-0	01	1	1012-		●	●
99	03.330 BOLT; CLIP,INJ,PIPE 00.685 M6X25 FLANGE	0-28650-625-0	01	1	1012-		●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	1012-	●	●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	02	1	1012-					●
113	03.162 CLIP; INJ PIPE (B)	8-97213-481-0	01	1	1012-		●
113	03.162 CLIP; INJ PIPE (C)	8-97213-050-0	04	1	1012-		●	●
113	03.162 CLIP; INJ PIPE (B)	1-09701-132-1	02	1	1012-1210	●
113	03.162 CLIP; INJ PIPE 03.634 (B)	1-09701-240-0	02	1	1211-	●
113	03.162 CLIP; INJ PIPE (A)	8-97224-041-1	02	1	1012-1212	●
113	03.162 CLIP; INJ PIPE (A)	8-98227-926-0	02	1	1301-	●
113	03.162 CLIP; INJ PIPE 03.330 (A)	5-15419-013-1	02	1	1012-				●
158	03.330 NUT; INJ PUMP 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-		●	●
161	03.340 STUD; INJ PUMP 00.724 M10X46.5 L=58.5	8-97066-386-1	02	1	1012-		●	●
167	03.330 SPACER; GUIDE TUBE	8-97065-515-2	01	1	1012-		●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	1012-1312		●	●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●	●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7	1-09623-541-0	01	1	1012-					●
226	03.163 PIPE; FUEL	8-97203-567-0	01	1	1012-		●	●

29 122 137 122 137 30 29 29 9 110 122 30 137 122 29 31 166 313 68 137 29 68 59 30 347 29 66 19 29 18 30 29 17 16 137 280 29 30 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
9	03.340 STUD; CLIP 03.162 M6X25 L=36	8-97214-234-1	02	1	1012-1201					●
9	03.340 STUD; CLIP 00.413 M6X30 L=38	0-41010-630-0	02	1	1202-					●
16	03.330 PIPE; INJ NO.1	8-97209-493-1	01	1	1012-		●
16	03.330 PIPE; INJ NO.1	8-97123-374-0	01	1	1012-			●
16	03.330 PIPE; INJ NO.1	8-97223-923-1	01	1	1012-	●
16	03.330 PIPE; INJ NO.1	8-98011-606-0	01	1	1012-1201					●
16	03.330 PIPE; INJ NO.1	8-98203-719-0	01	1	1202-					●
16	03.330 PIPE; INJ NO.1	8-97120-154-2	01	1	1012-				●
17	03.330 PIPE; INJ NO.2	8-97209-494-1	01	1	1012-		●
17	03.330 PIPE; INJ NO.2	8-97123-375-0	01	1	1012-			●
17	03.330 PIPE; INJ NO.2	8-97223-924-1	01	1	1012-	●
17	03.330 PIPE; INJ NO.2	8-98043-684-0	01	1	1012-1201					●
17	03.330 PIPE; INJ NO.2	8-98203-720-0	01	1	1202-					●
17	03.330 PIPE; INJ NO.2	8-97120-155-2	01	1	1012-				●
18	03.330 PIPE; INJ NO.3	8-97209-495-1	01	1	1012-		●
18	03.330 PIPE; INJ NO.3	8-97123-376-0	01	1	1012-			●
18	03.330 PIPE; INJ NO.3	8-97223-925-1	01	1	1012-	●
18	03.330 PIPE; INJ NO.3	8-98011-608-0	01	1	1012-1201					●
18	03.330 PIPE; INJ NO.3	8-98203-721-0	01	1	1202-					●
18	03.330 PIPE; INJ NO.3	8-97120-156-2	01	1	1012-				●
19	03.330 PIPE; INJ NO.4	8-97209-496-1	01	1	1012-		●
19	03.330 PIPE; INJ NO.4	8-97123-377-1	01	1	1012-			●
19	03.330 PIPE; INJ NO.4	8-97223-926-1	01	1	1012-	●
19	03.330 PIPE; INJ NO.4	8-98011-609-0	01	1	1012-1201					●
19	03.330 PIPE; INJ NO.4	8-98203-722-0	01	1	1202-					●
19	03.330 PIPE; INJ NO.4	8-97120-157-3	01	1	1012-				●
29	03.162 CLIP; HOSE 00.034 (A) ID=12 WO/PVC COATING	8-94123-526-1	02	1	1012-					●
29	03.162 CLIP; HOSE 01.240 (B) ID=16	8-94392-924-0	02	1	1012-					●
29	03.162 CLIP; HOSE 03.374 (C) ID=10.5	8-97019-473-0	10	1	1012-					●
29	03.162 CLIP; HOSE 03.163 (D) ID=11	8-97173-219-0	02	1	1012-	●			●
29	03.162 CLIP; HOSE 01.219 (E) ID=13	8-94238-571-0	07	1	1012-				●
30	03.163 HOSE; RUBBER,FUEL LEAK (F) L=320	8-97364-773-0	01	1	1012-1509	●
30	03.163 HOSE; RUBBER,FUEL LEAK EXC. MALAYSIA EQUIPMENT(B10) (F) L=320	8-97364-773-0	01	1	1510-	●
30	03.163 HOSE; RUBBER,FUEL LEAK (A) L=130	0-01804-130-0	01	1	1012-					●
30	03.163 HOSE; RUBBER,FUEL LEAK (B) L=98	8-97354-652-0	03	1	1012-					●
30	03.163 HOSE; RUBBER,FUEL LEAK (C) L=150	8-97362-306-2	01	1	1012-					●
30	03.163 HOSE; RUBBER,FUEL LEAK (D) L=110	8-97377-894-0	01	1	1012-					●
30	03.163 HOSE; RUBBER,FUEL LEAK (E) L=265	8-98009-700-2	01	1	1012-1101					●
30	03.163 HOSE; RUBBER,FUEL LEAK (E) L=265	8-98169-863-0	01	1	1102-					●
30	03.163 HOSE; RUBBER,FUEL LEAK (G) L=240	8-97364-774-1	01	1	1012-				●
31	03.332 NOZZLE ASM; INJ (D)	8-97200-570-3	04	1	1012-		●
31	03.332 NOZZLE ASM; INJ (B)	8-97119-811-0	04	1	1012-			●
31	03.332 NOZZLE ASM; INJ (C)	8-97382-945-0	04	1	1012-	●
31	03.332 NOZZLE ASM; INJ (E)	8-98011-604-5	04	1	1012-					●
31	03.332 NOZZLE ASM; INJ (A)	8-97122-939-0	04	1	1012-				●
59	03.332 CLAMP; NOZZLE HOLDER	8-97259-884-0	04	1	1012-	●
59	03.332 CLAMP; NOZZLE HOLDER	8-98092-539-0	04	1	1012-					●
59	03.332 CLAMP; NOZZLE HOLDER	8-94433-427-0	04	1	1012-				●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 07.003 (A)	8-97171-332-0	04	1	1012-		●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (B)	8-94326-439-0	04	1	1012-		●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (C)	8-98077-165-0	04	1	1012-1103					●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (C)	8-98181-540-0	04	1	1104-					●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (A) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	1012-1208	●	●	●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (A) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	1209-	●		●	●
68	03.162 CLIP; INJ PIPE	1-09701-091-0	01	1	1102-		●
68	03.162 CLIP; INJ PIPE	8-97213-481-0	04	1	1012-1201					●
68	03.162 CLIP; INJ PIPE ID=11 & 11 L=19	8-98039-293-0	04	1	1202-1405					●
68	03.162 CLIP; INJ PIPE ID=11 & 11 L=19	8-98148-996-2	04	1	1406-					●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	1012-	●	●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	02	1	1012-					●
122	03.162 CLIP; LEAK OFF PIPE	8-97315-286-0	04	1	1012-					●
137	03.163 PIPE ASM; LEAK OFF (A)	8-97315-230-2	01	1	1012-1101					●
137	03.163 PIPE ASM; LEAK OFF (A)	8-98161-062-0	01	1	1102-					●
137	03.163 PIPE ASM; LEAK OFF (B)	8-97315-231-2	03	1	1012-1101					●
137	03.163 PIPE ASM; LEAK OFF (B)	8-98161-061-0	03	1	1102-					●
137	03.163 PIPE ASM; LEAK OFF (C)	8-98009-699-0	01	1	1012-					●
137	03.163 PIPE ASM; LEAK OFF (D)	8-98036-510-0	01	1	1012-					●
166	03.304 GASKET; FUEL INJECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 03.332 ID=11 OD=14.8	9-09566-111-0	04	1	1012-					●
280	03.330 BOLT; CLIP,FUEL HOSE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1012-					●
313	03.330 BOLT; BRKT,INJ NOZZLE M8X50 W/WASHER	8-97372-144-0	04	1	1012-					●
347	03.332 PIN	8-97383-286-0	04	1	1012-1012					●
347	03.332 PIN	8-98165-035-0	04	1	1012-					●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
