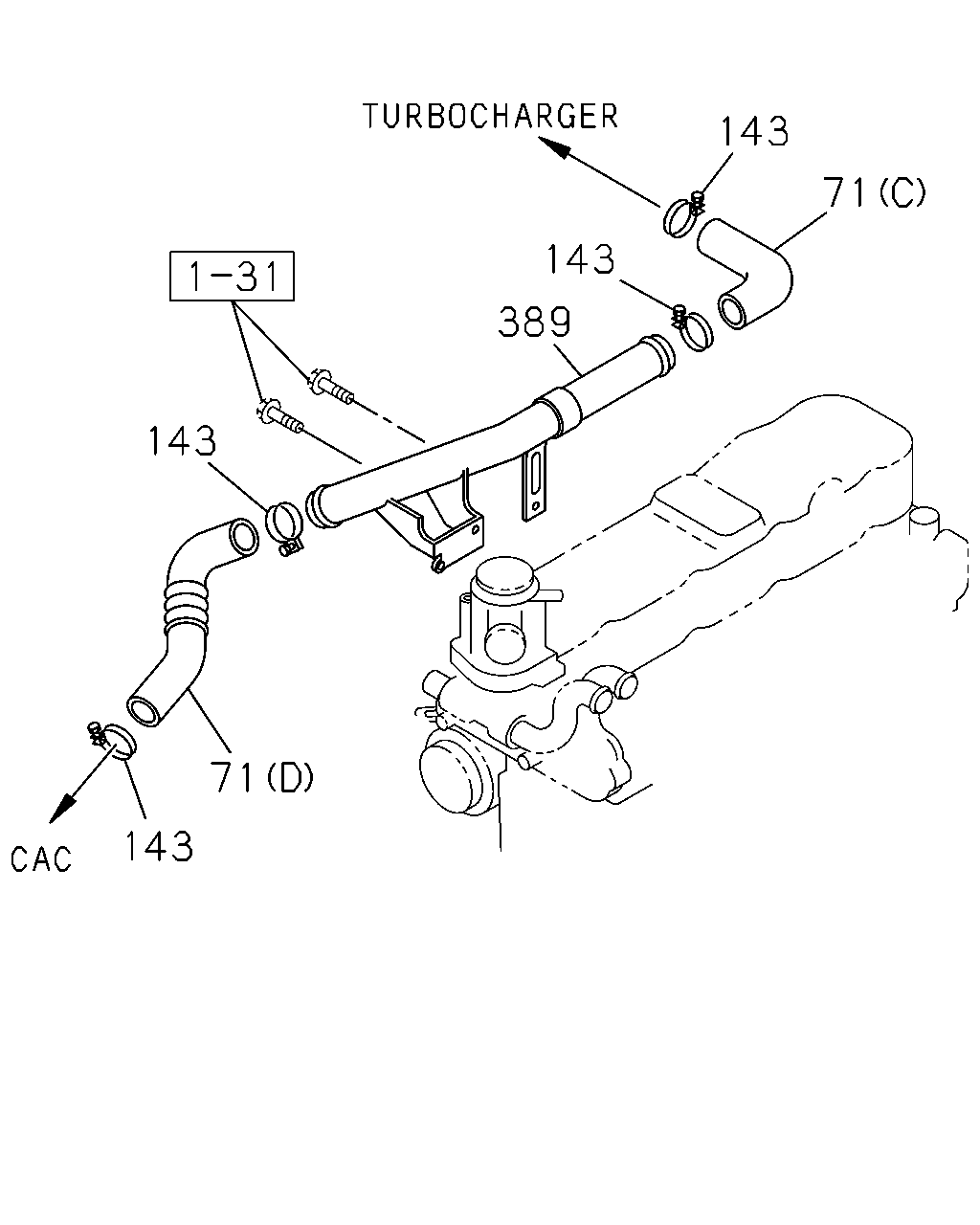

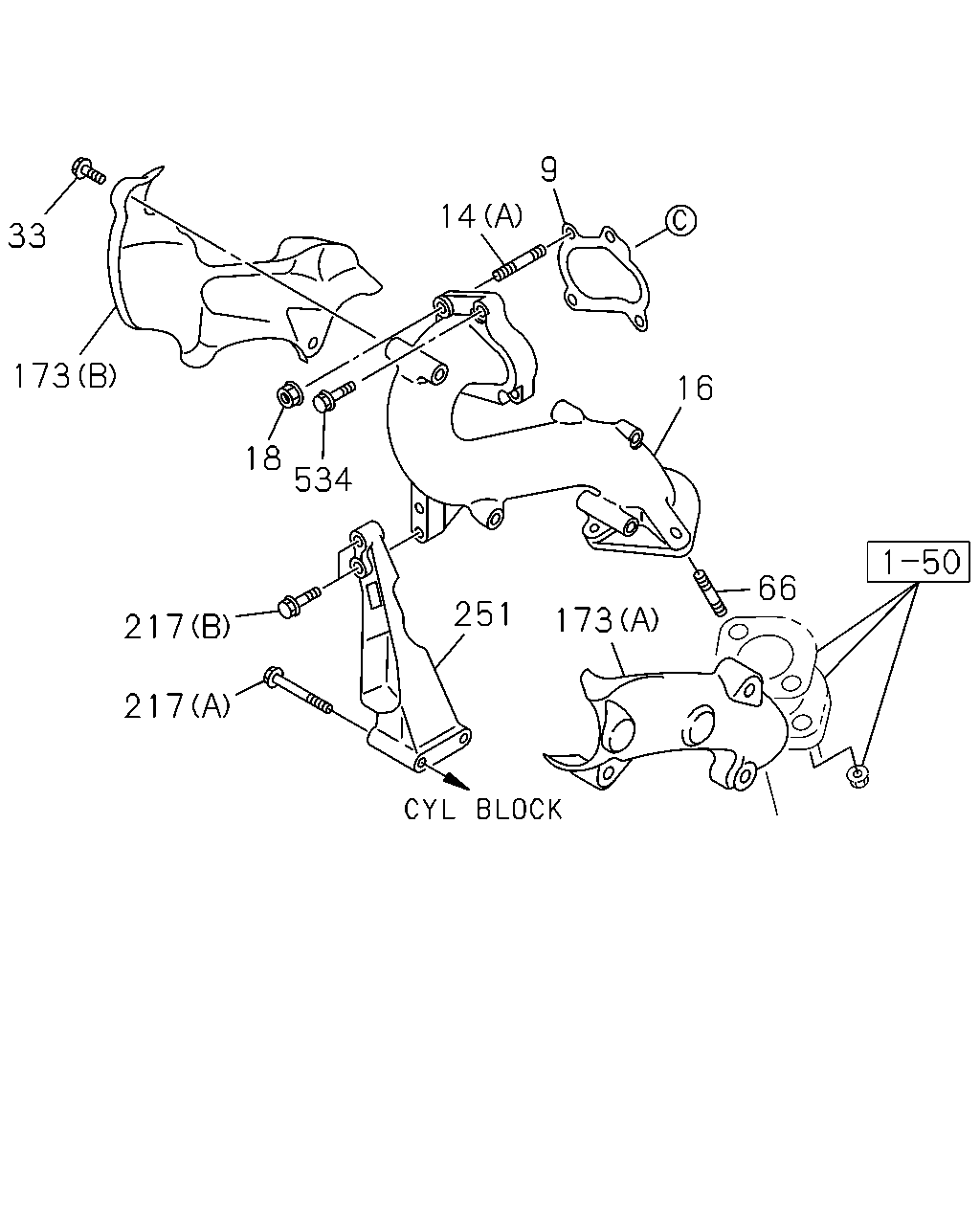

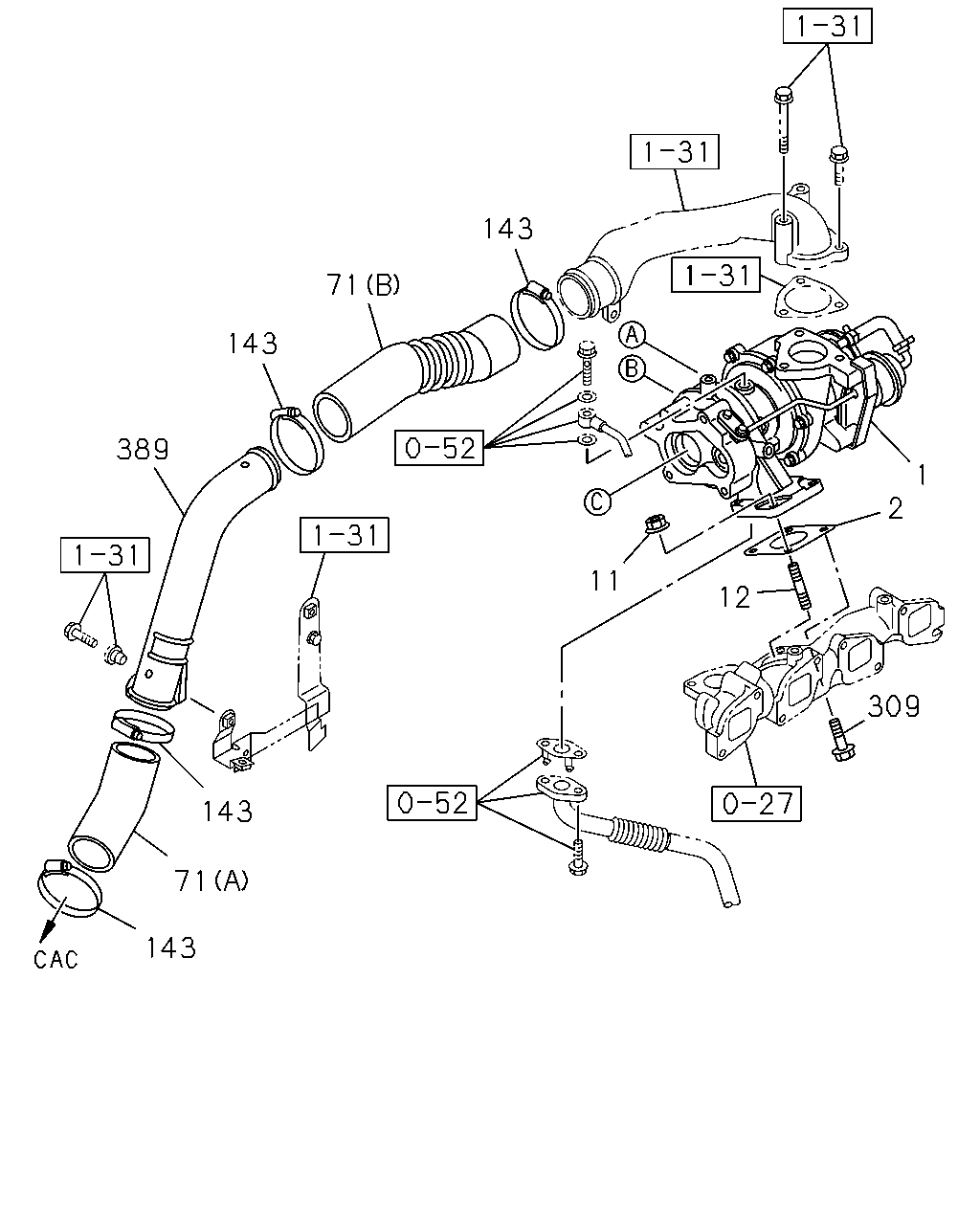

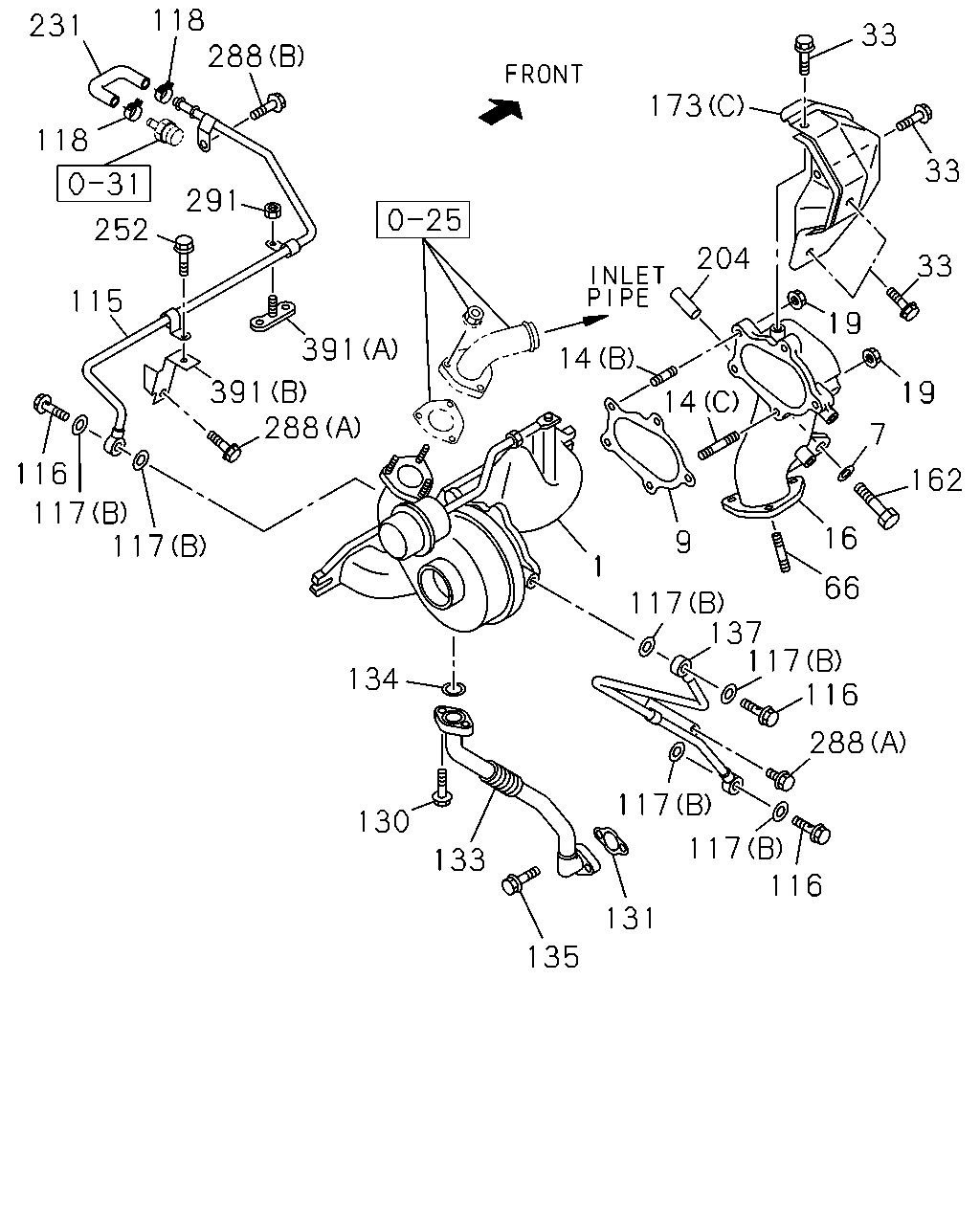

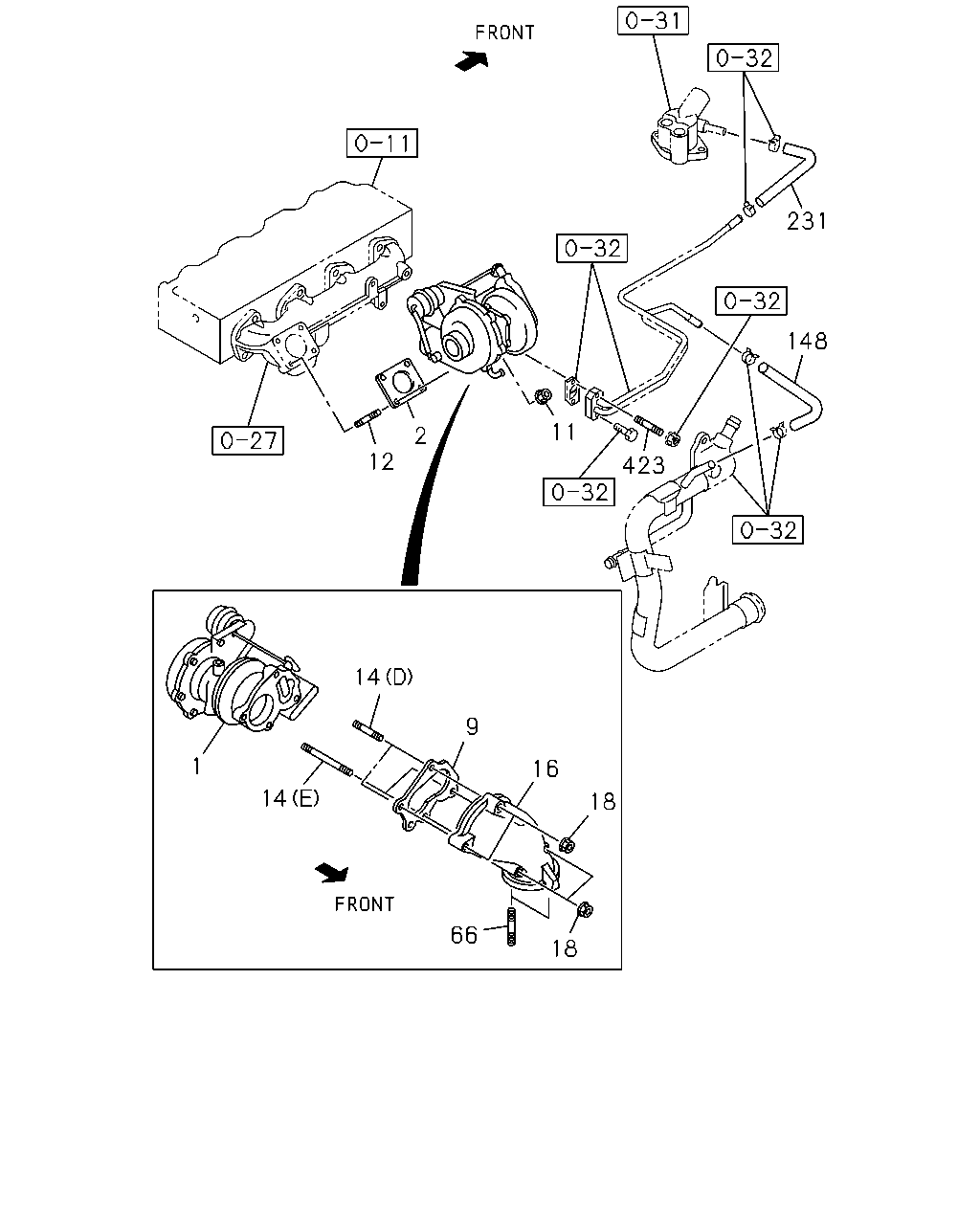

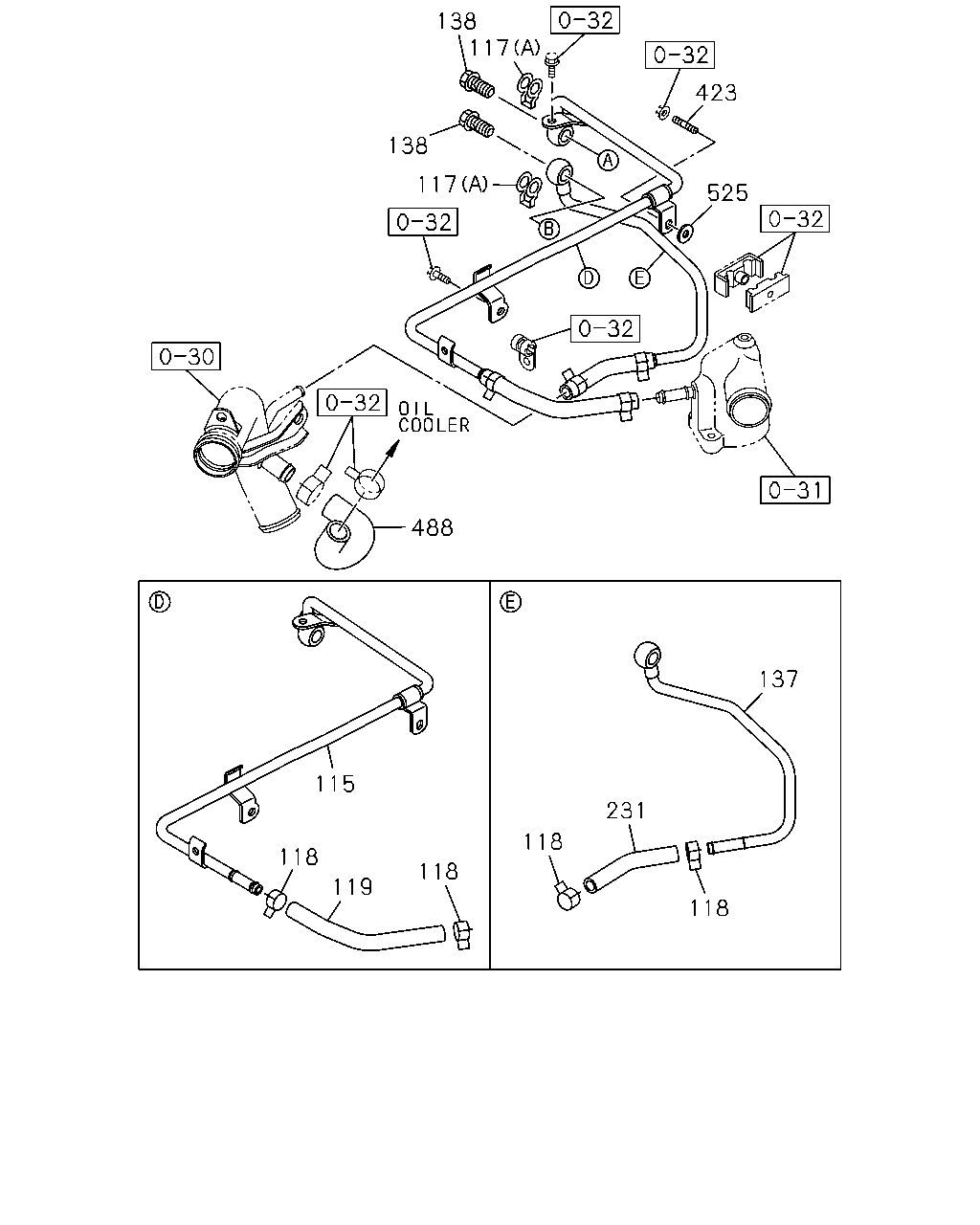

0-36 — TURBOCHARGER SYSTEM (#78323) — 162 parça

143 71 143 389 1 2 11 12 309 143 71 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. MALAYSIA EQUIPMENT(B10)	8-97192-331-4	01	1	1405-	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97326-752-1	01	1	1012-		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97331-185-1	01	1	1012-1404	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. MALAYSIA EQUIPMENT(B10)	8-97331-185-1	01	1	1405-	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98097-686-1	01	1	1012-			●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97315-266-0	01	1	1012-	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-94433-605-0	01	1	1012-			●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	1012-	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	1012-			●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	1012-	●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	1012-			●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (C)	8-97217-911-3	01	1	1012-	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (D)	8-98069-636-0	01	1	1012-	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (A)	8-98036-513-2	01	1	1012-			●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (B)	8-98159-280-1	01	1	1012-			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> 03.417 ID=40-50	8-98133-347-0	04	1	1012-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 ID=44-60	8-94175-940-0	04	1	1012-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> ID=45-65	8-98133-348-0	04	1	1012-			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> ID=60-65	8-98096-418-0	04	1	1012-			●
309	03.342 BOLT; TURBOCHARGER 03.417 M8X28 FLANGE	8-98043-528-0	02	1	1012-			●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC 03.417	8-97216-223-0	01	1	1012-	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98038-996-1	01	1	1012-			●

2 12 11 423 148 231 9 14 16 18 1 14 66 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. MALAYSIA EQUIPMENT(B10)	8-97192-331-4	01	1	1405-	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97326-752-1	01	1	1012-		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97331-185-1	01	1	1012-1404	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. MALAYSIA EQUIPMENT(B10)	8-97331-185-1	01	1	1405-	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98097-686-1	01	1	1012-			●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97315-266-0	01	1	1012-	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-94433-605-0	01	1	1012-			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-98015-116-1	02	1	1012-			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97039-777-1	01	1	1012-		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97139-726-0	01	1	1012-	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	1012-	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	1012-			●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	1012-	●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	1012-			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (C) M8X94 L=108	8-97019-477-0	02	1	1012-		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	1012-		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (D) M8X43 L=54	8-97378-067-0	02	1	1012-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (E) M8X126 L=137	8-97378-069-0	02	1	1012-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1012-			●
16	03.609 ADAPTER; EXH PIPE	8-97178-487-3	01	1	1012-		●
16	03.609 ADAPTER; EXH PIPE	8-97192-332-0	01	1	1012-	●
16	03.609 ADAPTER; EXH PIPE	8-98012-735-4	01	1	1012-			●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	1012-	●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	02	1	1012-			●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	1012-		●
66	03.342 STUD; EXH PIPE 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	1012-	●
66	03.342 STUD; EXH PIPE M10X25 L=45	0-43211-025-0	03	1	1012-			●
148	03.417 HOSE; TURBOCHARGER,INL 01.097 L=180 SERVICED BY L=3000	0-03559-300-0	01	1	1012-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	1012-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97212-155-0	01	1	1012-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98030-402-0	01	1	1012-			●
423	03.373 STUD; WATER PIPE 01.652 M6X20 L=28	0-41010-620-0	01	1	1012-	●
423	03.373 STUD; WATER PIPE 00.206 M6X16 L=25	0-41010-616-0	01	1	1012-			●

143 71 143 389 143 71 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	C
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (C)	8-97217-911-3	01	1	1012-	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (D)	8-98069-636-0	01	1	1012-	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (A)	8-98036-513-2	01	1	1012-		●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (B)	8-98159-280-1	01	1	1012-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> 03.417 ID=40-50	8-98133-347-0	04	1	1012-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 ID=44-60	8-94175-940-0	04	1	1012-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> ID=45-65	8-98133-348-0	04	1	1012-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> ID=60-65	8-98096-418-0	04	1	1012-		●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC 03.417	8-97216-223-0	01	1	1012-	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98038-996-1	01	1	1012-		●

138 117 423 138 117 525 488 137 115 231 118 118 118 119 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-97210-077-2	01	1	1012-		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98113-710-0	01	1	1012-			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 (B) ID=14.2 OD=19.2	1-09630-085-0	04	1	1012-1312		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (B) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	1012-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (A) ID=12.6	8-97331-137-1	02	1	1012-			●
118	03.342 CLIP; WATER HOSE 03.162 ID=15.5	8-94221-519-0	02	1	1012-		●
118	03.342 CLIP; WATER HOSE 01.153 ID=12.8	8-94367-943-0	04	1	1012-			●
119	03.342 HOSE; WATER,TURBOCHARGER	8-98113-336-0	01	1	1012-			●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97229-036-0	01	1	1012-		●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97381-650-0	01	1	1012-			●
138	03.342 BOLT; EYE,WATER PIPE 01.531 M12X24 EYE-BOLT	1-09675-081-0	02	1	1012-			●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	1012-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97212-155-0	01	1	1012-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98030-402-0	01	1	1012-			●
423	03.373 STUD; WATER PIPE 01.652 M6X20 L=28	0-41010-620-0	01	1	1012-	●
423	03.373 STUD; WATER PIPE 00.206 M6X16 L=25	0-41010-616-0	01	1	1012-			●
488	03.163 HOSE; RUBBER	8-98066-091-0	01	1	1012-			●
525	03.373 PLATE; WATER,TURBO 02.334 ID=6.4 OD=18	9-09164-706-0	01	1	1012-			●

9 14 33 173 16 18 534 66 251 173 217 217

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-98015-116-1	02	1	1012-			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97039-777-1	01	1	1012-		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97139-726-0	01	1	1012-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (C) M8X94 L=108	8-97019-477-0	02	1	1012-		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	1012-		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (D) M8X43 L=54	8-97378-067-0	02	1	1012-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (E) M8X126 L=137	8-97378-069-0	02	1	1012-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1012-			●
16	03.609 ADAPTER; EXH PIPE	8-97178-487-3	01	1	1012-		●
16	03.609 ADAPTER; EXH PIPE	8-97192-332-0	01	1	1012-	●
16	03.609 ADAPTER; EXH PIPE	8-98012-735-4	01	1	1012-			●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	1012-	●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	02	1	1012-			●
33	03.342 BOLT; HEAT PROTECTOR 03.604 M6X12 FLANGE	8-97108-669-0	04	1	1012-		●
33	03.342 BOLT; HEAT PROTECTOR 02.343 M8X12 FLANGE	0-28050-812-0	06	1	1012-			●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	1012-		●
66	03.342 STUD; EXH PIPE 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	1012-	●
66	03.342 STUD; EXH PIPE M10X25 L=45	0-43211-025-0	03	1	1012-			●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (C)	8-97178-497-2	01	1	1012-		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (A)	8-98032-023-1	01	1	1012-			●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (B)	8-98032-024-3	01	1	1012-			●
217	03.417 BOLT; BRKT 03.706 (A) M10X70 FLANGE	0-28051-070-0	02	1	1012-			●
217	03.417 BOLT; BRKT 03.604 (B) M10X30 FLANGE	8-98032-158-0	02	1	1012-			●
251	03.417 BRACKET; ADAPTER	8-98009-098-1	01	1	1012-			●
534	03.342 BOLT; TURBOCHARGER TO EXH PIPE M8X35 FLANGE	8-98053-224-0	02	1	1012-			●

118 288 231 33 173 118 33 291 252 204 33 115 19 391 14 391 288 19 14 7 116 162 117 117 16 9 1 66 117 137 117 116 134 288 117 130 117 116 133 131 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. MALAYSIA EQUIPMENT(B10)	8-97192-331-4	01	1	1405-	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97326-752-1	01	1	1012-		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97331-185-1	01	1	1012-1404	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. MALAYSIA EQUIPMENT(B10)	8-97331-185-1	01	1	1405-	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98097-686-1	01	1	1012-			●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	1012-		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-98015-116-1	02	1	1012-			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97039-777-1	01	1	1012-		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97139-726-0	01	1	1012-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (C) M8X94 L=108	8-97019-477-0	02	1	1012-		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	1012-		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (D) M8X43 L=54	8-97378-067-0	02	1	1012-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (E) M8X126 L=137	8-97378-069-0	02	1	1012-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1012-			●
16	03.609 ADAPTER; EXH PIPE	8-97178-487-3	01	1	1012-		●
16	03.609 ADAPTER; EXH PIPE	8-97192-332-0	01	1	1012-	●
16	03.609 ADAPTER; EXH PIPE	8-98012-735-4	01	1	1012-			●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	05	1	1012-		●
33	03.342 BOLT; HEAT PROTECTOR 03.604 M6X12 FLANGE	8-97108-669-0	04	1	1012-		●
33	03.342 BOLT; HEAT PROTECTOR 02.343 M8X12 FLANGE	0-28050-812-0	06	1	1012-			●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	1012-		●
66	03.342 STUD; EXH PIPE 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	1012-	●
66	03.342 STUD; EXH PIPE M10X25 L=45	0-43211-025-0	03	1	1012-			●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-97210-077-2	01	1	1012-		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98113-710-0	01	1	1012-			●
116	03.342 BOLT; WATER PIPE M14X30 EYE-BOLT	8-94455-144-0	03	1	1012-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 (B) ID=14.2 OD=19.2	1-09630-085-0	04	1	1012-1312		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (B) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	1012-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (A) ID=12.6	8-97331-137-1	02	1	1012-			●
118	03.342 CLIP; WATER HOSE 03.162 ID=15.5	8-94221-519-0	02	1	1012-		●
118	03.342 CLIP; WATER HOSE 01.153 ID=12.8	8-94367-943-0	04	1	1012-			●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D M6X20 W/LK WASHER	0-50540-620-0	02	1	1012-		●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	1012-		●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-98172-659-0	01	1	1012-		●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	1012-		●
135	01.531 BOLT; OIL PIPE TO C/BL 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1012-		●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97229-036-0	01	1	1012-		●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97381-650-0	01	1	1012-			●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	1012-		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (C)	8-97178-497-2	01	1	1012-		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (A)	8-98032-023-1	01	1	1012-			●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (B)	8-98032-024-3	01	1	1012-			●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	1012-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	1012-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97212-155-0	01	1	1012-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98030-402-0	01	1	1012-			●
252	03.417 BOLT; BRKT 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1012-		●
288	03.342 BOLT; WATER PIPE CLIP 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1012-		●
288	03.342 BOLT; WATER PIPE CLIP 00.029 (B) M10X16 FLANGE	0-28151-016-0	01	1	1012-		●
291	03.374 NUT; PIPE TO BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-		●
391	03.342 BRACKET; WATER PIPE (A)	8-97210-078-0	01	1	1012-		●
391	03.342 BRACKET; WATER PIPE (B)	8-97221-061-0	01	1	1012-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
