Sayfa 0-33 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51284 - NLR/NMR55,71,85(RHD) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-33 - FAN AND FAN BELT ▶

0-33 — FAN AND FAN BELT (#78321) — 188 parça

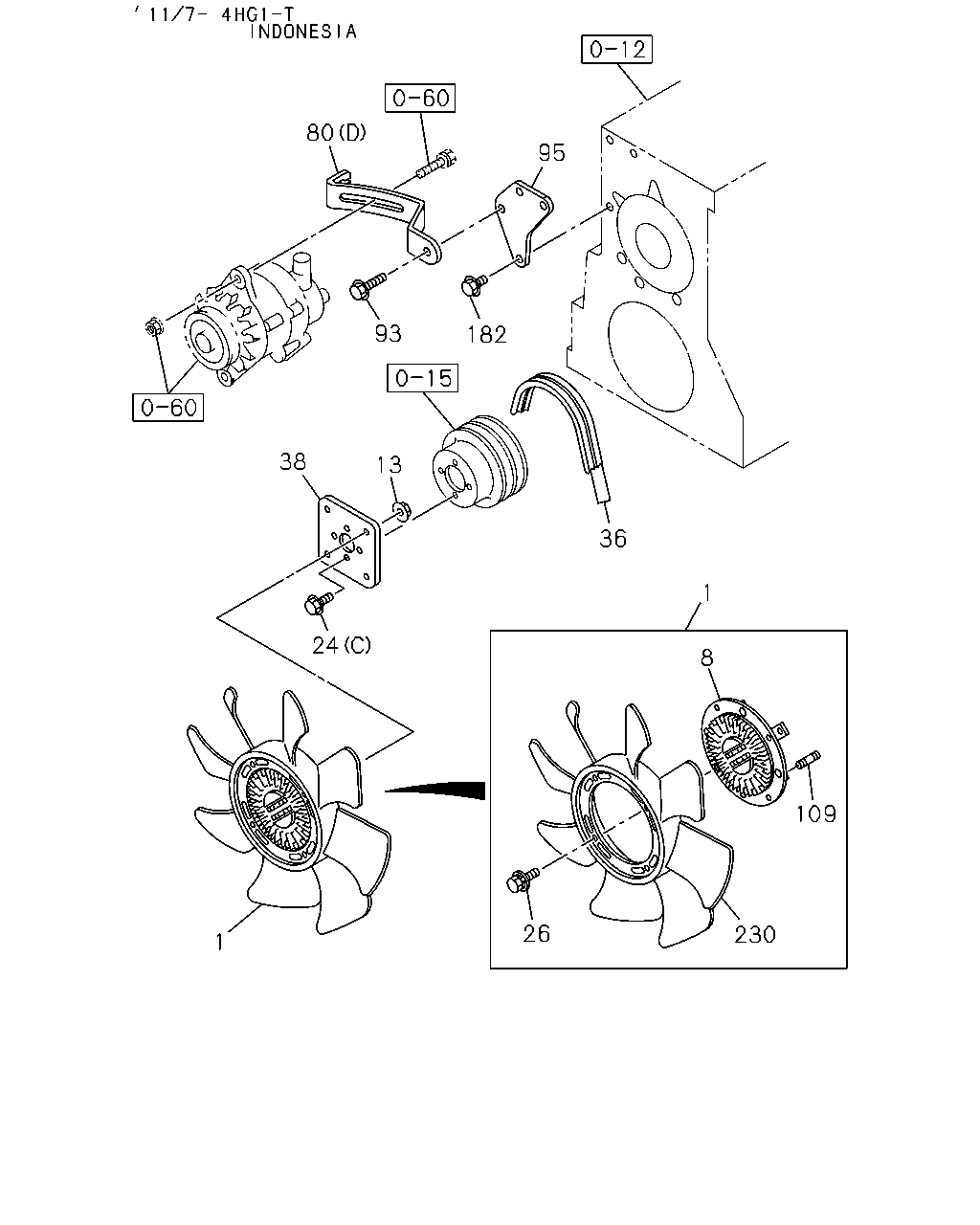

80 95 93 182 38 13 36 1 24 8 109 26 230 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	01.064 FAN; COOLING OD=430	8-97141-195-2	01	1	1012-	●	●
1	01.064 FAN; COOLING OD=410	8-97129-769-2	01	1	1012-			●
1	01.064 FAN; COOLING OD=450	8-97382-603-1	01	1	1012-				●
1	01.064 FAN; COOLING OD=390	8-94239-651-0	01	1	1012-					●
8	01.064 CLUTCH; COOLING FAN	8-97139-299-0	01	1	1012-	●	●
8	01.064 CLUTCH; COOLING FAN	8-97129-735-0	01	1	1012-			●
8	01.064 CLUTCH; COOLING FAN	8-98024-684-0	01	1	1012-				●
8	01.064 CLUTCH; COOLING FAN	8-94244-409-0	01	1	1012-					●
13	01.062 NUT; COOLING FAN M8 FLANGE	0-91180-108-0	04	1	1012-	●	●
13	01.062 NUT; COOLING FAN 07.829 M6 FLANGE	5-09440-004-0	04	1	1012-			●	●	●
24	01.062 BOLT; FAN 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1012-				●
24	01.062 BOLT; FAN 08.900 (C) M8X18 FLANGE	0-28080-818-0	04	1	1012-	●	●
24	01.062 BOLT; FAN 03.417 (A) M10X20 FLANGE	0-28151-020-0	02	1	1012-				●
26	01.062 BOLT; FAN TO CLU 01.428 M6X12 FLANGE	0-28080-612-0	04	1	1012-	●	●
26	01.062 BOLT; FAN TO CLU	8-94389-764-0	04	1	1012-			●	●
36	01.066 BELT; COOLING FAN 1 SET=2 PIECE(8971801810)	8-97180-199-1	01	1	1012-	●	●
36	01.066 BELT; COOLING FAN GENERATOR 24V80A(7YN) L=1046	8-98003-187-0	01	1	1012-1301				●
36	01.066 BELT; COOLING FAN EXC. GENERATOR 24V80A(7YN) L=1006	8-97362-926-0	01	1	1012-1301				●
36	01.066 BELT; COOLING FAN L=1006	8-97362-926-0	01	1	1302-				●
36	01.066 BELT; COOLING FAN L=1041 MITSUBOSHI	8-97315-153-0	01	1	1012-			●		●
36	01.066 BELT; COOLING FAN GENERATOR 24V80A(7YN) BEST VALUE PARTS	5-87610-101-0	01	1	1012-1301				●
36	01.066 BELT; COOLING FAN BEST VALUE PARTS	5-87610-098-0	01	1	1012-	●	●
36	01.066 BELT; COOLING FAN EXC. GENERATOR 24V80A(7YN) BEST VALUE PARTS	5-87610-100-0	01	1	1012-1301				●
36	01.066 BELT; COOLING FAN BEST VALUE PARTS	5-87610-100-0	01	1	1302-				●
38	01.062 SPACER; FAN	8-97108-643-0	01	1	1012-	●	●
80	02.317 PLATE; ADJ INDONESIA EQUIPMENT(B00) (D)	8-97172-415-0	01	1	1107-	●
80	02.317 PLATE; ADJ (B)	8-97164-089-2	01	1	1012-1106	●	●
80	02.317 PLATE; ADJ EXC. INDONESIA EQUIPMENT(B00) (B)	8-97164-089-2	01	1	1107-	●
80	02.317 PLATE; ADJ (B)	8-97164-089-2	01	1	1107-		●
80	02.317 PLATE; ADJ 02.274 (A)	8-98039-816-1	01	1	1012-				●
80	02.317 PLATE; ADJ (C)	8-97080-556-2	01	1	1012-			●		●
93	02.317 BOLT; ADJ PLATE BRKT 00.029 M10X25 FLANGE	0-28651-025-0	01	1	1012-1106	●	●
93	02.317 BOLT; ADJ PLATE BRKT INDONESIA EQUIPMENT(B00) 00.029 M10X25 FLANGE	0-28651-025-0	01	1	1107-	●
95	02.317 BRACKET; ADJ PLATE INDONESIA EQUIPMENT(B00)	8-97037-510-0	01	1	1107-	●
109	01.062 STUD; FAN CLU M8X13.5 L=22	8-97049-577-1	04	1	1012-	●	●
109	01.062 STUD; FAN CLU M6X18 L=27	0-41010-618-0	04	1	1012-			●	●	●
182	01.062 BOLT; BRKT EXC. INDONESIA EQUIPMENT(B00) 01.060 M8X35 FLANGE	0-28650-835-0	02	1	1107-	●
182	01.062 BOLT; BRKT 01.060 M8X35 FLANGE	0-28650-835-0	02	1	1107-		●
182	01.062 BOLT; BRKT 01.060 M8X35 FLANGE	0-28650-835-0	02	1	1012-1106	●	●
182	01.062 BOLT; BRKT INDONESIA EQUIPMENT(B00) 01.060 M8X35 FLANGE	0-28650-835-0	03	1	1107-	●
182	01.062 BOLT; BRKT GENERATOR 24V80A(7YN) 09.173 M8X45 FLANGE	0-28050-845-0	02	1	1012-1301				●
230	01.055 FAN; COOLING	8-97140-854-1	01	1	1012-	●	●
230	01.055 FAN; COOLING 01.064	8-97094-660-1	01	1	1012-			●
230	01.055 FAN; COOLING	8-97330-207-0	01	1	1012-				●
230	01.055 FAN; COOLING 01.064	5-13660-300-0	01	1	1012-					●

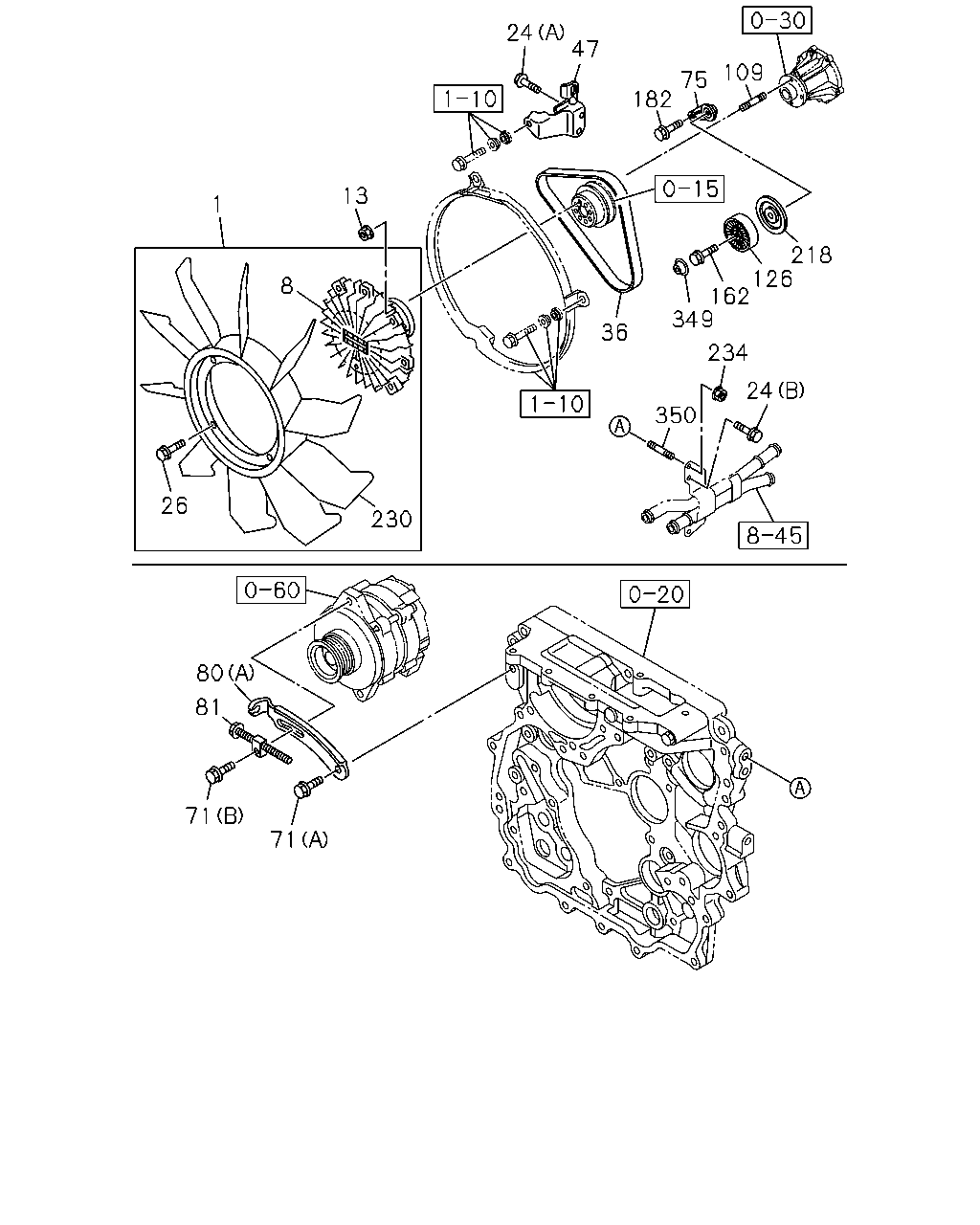

24 47 109 75 182 13 1 218 126 162 349 8 36 234 24 350 26 230 80 81 71 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	01.064 FAN; COOLING OD=430	8-97141-195-2	01	1	1012-	●	●
1	01.064 FAN; COOLING OD=410	8-97129-769-2	01	1	1012-			●
1	01.064 FAN; COOLING OD=450	8-97382-603-1	01	1	1012-				●
1	01.064 FAN; COOLING OD=390	8-94239-651-0	01	1	1012-					●
8	01.064 CLUTCH; COOLING FAN	8-97139-299-0	01	1	1012-	●	●
8	01.064 CLUTCH; COOLING FAN	8-97129-735-0	01	1	1012-			●
8	01.064 CLUTCH; COOLING FAN	8-98024-684-0	01	1	1012-				●
8	01.064 CLUTCH; COOLING FAN	8-94244-409-0	01	1	1012-					●
13	01.062 NUT; COOLING FAN M8 FLANGE	0-91180-108-0	04	1	1012-	●	●
13	01.062 NUT; COOLING FAN 07.829 M6 FLANGE	5-09440-004-0	04	1	1012-			●	●	●
24	01.062 BOLT; FAN 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1012-				●
24	01.062 BOLT; FAN 08.900 (C) M8X18 FLANGE	0-28080-818-0	04	1	1012-	●	●
24	01.062 BOLT; FAN 03.417 (A) M10X20 FLANGE	0-28151-020-0	02	1	1012-				●
26	01.062 BOLT; FAN TO CLU 01.428 M6X12 FLANGE	0-28080-612-0	04	1	1012-	●	●
26	01.062 BOLT; FAN TO CLU	8-94389-764-0	04	1	1012-			●	●
36	01.066 BELT; COOLING FAN 1 SET=2 PIECE(8971801810)	8-97180-199-1	01	1	1012-	●	●
36	01.066 BELT; COOLING FAN GENERATOR 24V80A(7YN) L=1046	8-98003-187-0	01	1	1012-1301				●
36	01.066 BELT; COOLING FAN EXC. GENERATOR 24V80A(7YN) L=1006	8-97362-926-0	01	1	1012-1301				●
36	01.066 BELT; COOLING FAN L=1006	8-97362-926-0	01	1	1302-				●
36	01.066 BELT; COOLING FAN L=1041 MITSUBOSHI	8-97315-153-0	01	1	1012-			●		●
36	01.066 BELT; COOLING FAN GENERATOR 24V80A(7YN) BEST VALUE PARTS	5-87610-101-0	01	1	1012-1301				●
36	01.066 BELT; COOLING FAN BEST VALUE PARTS	5-87610-098-0	01	1	1012-	●	●
36	01.066 BELT; COOLING FAN EXC. GENERATOR 24V80A(7YN) BEST VALUE PARTS	5-87610-100-0	01	1	1012-1301				●
36	01.066 BELT; COOLING FAN BEST VALUE PARTS	5-87610-100-0	01	1	1302-				●
47	01.060 BRACKET; FAN	8-98064-373-0	01	1	1012-1502				●
47	01.060 BRACKET; FAN	8-98203-027-1	01	1	1503-				●
71	02.317 BOLT; ADJ PLATE,GEN EXC. AIR CONDITIONER MANUAL CONT(C60) (C) M8X40 W/WASHER	8-97011-792-4	01	1	1012-	●	●
71	02.317 BOLT; ADJ PLATE,GEN 03.403 (A) M8X30 FLANGE	0-28650-830-0	01	1	1012-				●
71	02.317 BOLT; ADJ PLATE,GEN 02.277 (B) M8X50 FLANGE	8-98050-130-0	01	1	1012-				●
75	01.062 BRACKET; IDLE PULLEY GENERATOR 24V80A(7YN)	8-97381-570-1	01	1	1012-1301				●
80	02.317 PLATE; ADJ INDONESIA EQUIPMENT(B00) (D)	8-97172-415-0	01	1	1107-	●
80	02.317 PLATE; ADJ (B)	8-97164-089-2	01	1	1012-1106	●	●
80	02.317 PLATE; ADJ EXC. INDONESIA EQUIPMENT(B00) (B)	8-97164-089-2	01	1	1107-	●
80	02.317 PLATE; ADJ (B)	8-97164-089-2	01	1	1107-		●
80	02.317 PLATE; ADJ 02.274 (A)	8-98039-816-1	01	1	1012-				●
80	02.317 PLATE; ADJ (C)	8-97080-556-2	01	1	1012-			●		●
81	02.317 PIECE; SLIDING AIR CONDITIONER MANUAL CONT(C60)	8-97257-223-0	01	1	1012-	●	●
81	02.317 PIECE; SLIDING	8-97132-048-0	01	1	1012-				●
109	01.062 STUD; FAN CLU M8X13.5 L=22	8-97049-577-1	04	1	1012-	●	●
109	01.062 STUD; FAN CLU M6X18 L=27	0-41010-618-0	04	1	1012-			●	●	●
126	01.062 PULLEY; IDLE GENERATOR 24V80A(7YN) 00.659	8-97371-903-1	01	1	1012-1301				●
162	01.062 BOLT; FAN CLU GENERATOR 24V80A(7YN) 00.685 M10X45 FLANGE	0-28051-045-0	01	1	1012-1301				●
182	01.062 BOLT; BRKT EXC. INDONESIA EQUIPMENT(B00) 01.060 M8X35 FLANGE	0-28650-835-0	02	1	1107-	●
182	01.062 BOLT; BRKT 01.060 M8X35 FLANGE	0-28650-835-0	02	1	1107-		●
182	01.062 BOLT; BRKT 01.060 M8X35 FLANGE	0-28650-835-0	02	1	1012-1106	●	●
182	01.062 BOLT; BRKT INDONESIA EQUIPMENT(B00) 01.060 M8X35 FLANGE	0-28650-835-0	03	1	1107-	●
182	01.062 BOLT; BRKT GENERATOR 24V80A(7YN) 09.173 M8X45 FLANGE	0-28050-845-0	02	1	1012-1301				●
218	01.062 COVER; IDLE PULLEY GENERATOR 24V80A(7YN)	8-98045-582-0	01	1	1012-1301				●
230	01.055 FAN; COOLING	8-97140-854-1	01	1	1012-	●	●
230	01.055 FAN; COOLING 01.064	8-97094-660-1	01	1	1012-			●
230	01.055 FAN; COOLING	8-97330-207-0	01	1	1012-				●
230	01.055 FAN; COOLING 01.064	5-13660-300-0	01	1	1012-					●
234	01.060 NUT; FAN BRKT 06.164 M8 FLANGE	5-09440-010-0	01	1	1012-				●
349	01.252 CAP; IDLE PULLEY GENERATOR 24V80A(7YN) 00.724	8-97386-240-0	01	1	1012-1301				●
350	02.317 STUD; FAN BRKT 01.428 M8X18 L=30	0-41010-818-0	01	1	1012-				●

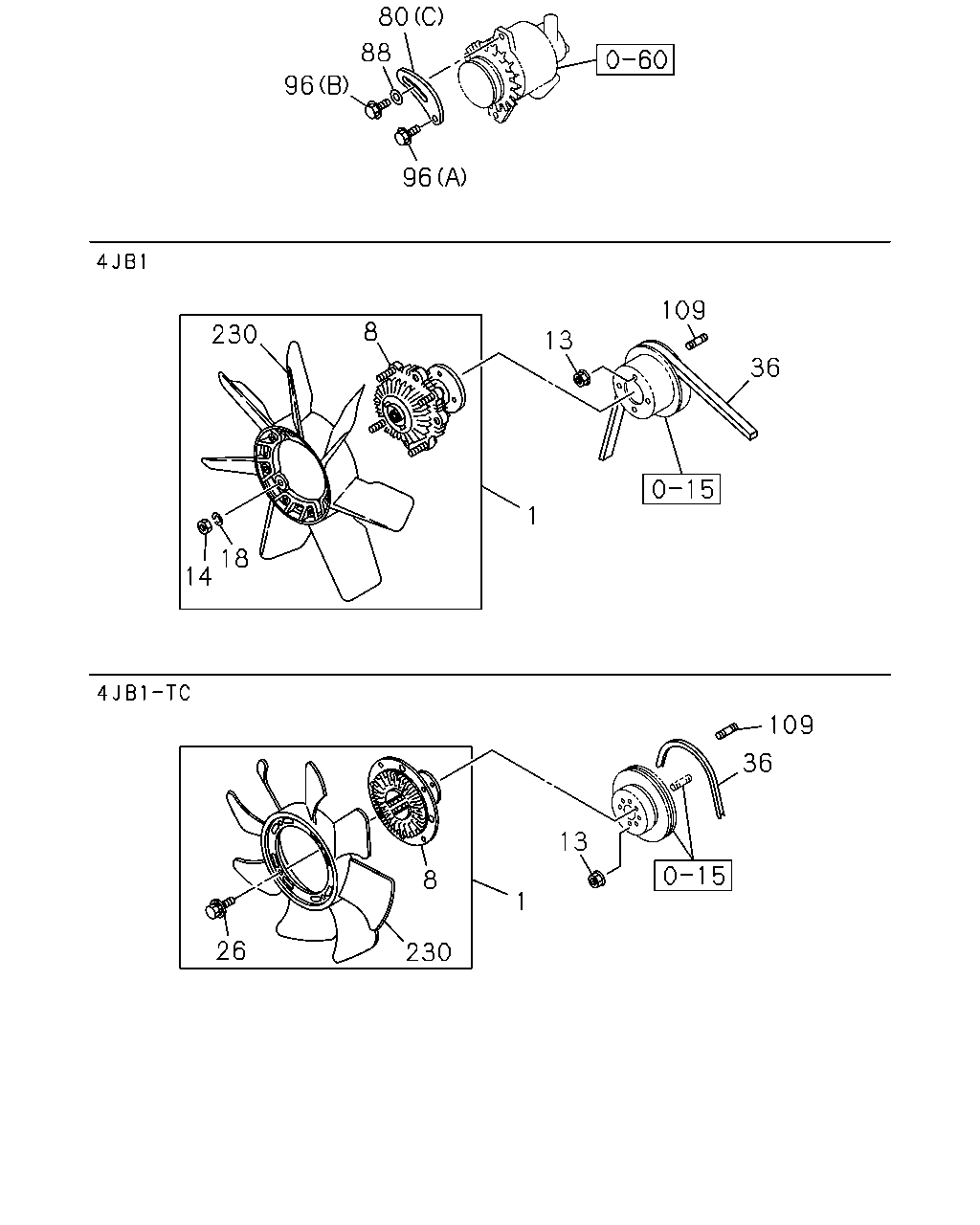

80 88 96 96 109 8 230 13 36 1 18 14 109 36 13 8 1 26 230

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	01.064 FAN; COOLING OD=430	8-97141-195-2	01	1	1012-	●	●
1	01.064 FAN; COOLING OD=410	8-97129-769-2	01	1	1012-			●
1	01.064 FAN; COOLING OD=450	8-97382-603-1	01	1	1012-				●
1	01.064 FAN; COOLING OD=390	8-94239-651-0	01	1	1012-					●
8	01.064 CLUTCH; COOLING FAN	8-97139-299-0	01	1	1012-	●	●
8	01.064 CLUTCH; COOLING FAN	8-97129-735-0	01	1	1012-			●
8	01.064 CLUTCH; COOLING FAN	8-98024-684-0	01	1	1012-				●
8	01.064 CLUTCH; COOLING FAN	8-94244-409-0	01	1	1012-					●
13	01.062 NUT; COOLING FAN M8 FLANGE	0-91180-108-0	04	1	1012-	●	●
13	01.062 NUT; COOLING FAN 07.829 M6 FLANGE	5-09440-004-0	04	1	1012-			●	●	●
14	01.062 NUT; FAN TO CLU 00.413 M6	9-09110-506-0	04	1	1012-					●
18	01.062 WASHER; FAN TO CLU 00.206 ID=6.1	9-09150-506-0	04	1	1012-					●
26	01.062 BOLT; FAN TO CLU 01.428 M6X12 FLANGE	0-28080-612-0	04	1	1012-	●	●
26	01.062 BOLT; FAN TO CLU	8-94389-764-0	04	1	1012-			●	●
36	01.066 BELT; COOLING FAN 1 SET=2 PIECE(8971801810)	8-97180-199-1	01	1	1012-	●	●
36	01.066 BELT; COOLING FAN GENERATOR 24V80A(7YN) L=1046	8-98003-187-0	01	1	1012-1301				●
36	01.066 BELT; COOLING FAN EXC. GENERATOR 24V80A(7YN) L=1006	8-97362-926-0	01	1	1012-1301				●
36	01.066 BELT; COOLING FAN L=1006	8-97362-926-0	01	1	1302-				●
36	01.066 BELT; COOLING FAN L=1041 MITSUBOSHI	8-97315-153-0	01	1	1012-			●		●
36	01.066 BELT; COOLING FAN GENERATOR 24V80A(7YN) BEST VALUE PARTS	5-87610-101-0	01	1	1012-1301				●
36	01.066 BELT; COOLING FAN BEST VALUE PARTS	5-87610-098-0	01	1	1012-	●	●
36	01.066 BELT; COOLING FAN EXC. GENERATOR 24V80A(7YN) BEST VALUE PARTS	5-87610-100-0	01	1	1012-1301				●
36	01.066 BELT; COOLING FAN BEST VALUE PARTS	5-87610-100-0	01	1	1302-				●
80	02.317 PLATE; ADJ INDONESIA EQUIPMENT(B00) (D)	8-97172-415-0	01	1	1107-	●
80	02.317 PLATE; ADJ (B)	8-97164-089-2	01	1	1012-1106	●	●
80	02.317 PLATE; ADJ EXC. INDONESIA EQUIPMENT(B00) (B)	8-97164-089-2	01	1	1107-	●
80	02.317 PLATE; ADJ (B)	8-97164-089-2	01	1	1107-		●
80	02.317 PLATE; ADJ 02.274 (A)	8-98039-816-1	01	1	1012-				●
80	02.317 PLATE; ADJ (C)	8-97080-556-2	01	1	1012-			●		●
88	02.317 WASHER; PL,ADJ PLATE 02.277 ID=8.4 OD=22	0-91614-708-0	01	1	1012-			●		●
96	02.317 BOLT; ADJ PLATE 09.173 (A) M8X45 FLANGE	0-28050-845-0	01	1	1012-			●		●
96	02.317 BOLT; ADJ PLATE 09.008 (B) M8X25 W/LK WASHER	0-50540-825-0	01	1	1012-			●		●
109	01.062 STUD; FAN CLU M8X13.5 L=22	8-97049-577-1	04	1	1012-	●	●
109	01.062 STUD; FAN CLU M6X18 L=27	0-41010-618-0	04	1	1012-			●	●	●
230	01.055 FAN; COOLING	8-97140-854-1	01	1	1012-	●	●
230	01.055 FAN; COOLING 01.064	8-97094-660-1	01	1	1012-			●
230	01.055 FAN; COOLING	8-97330-207-0	01	1	1012-				●
230	01.055 FAN; COOLING 01.064	5-13660-300-0	01	1	1012-					●

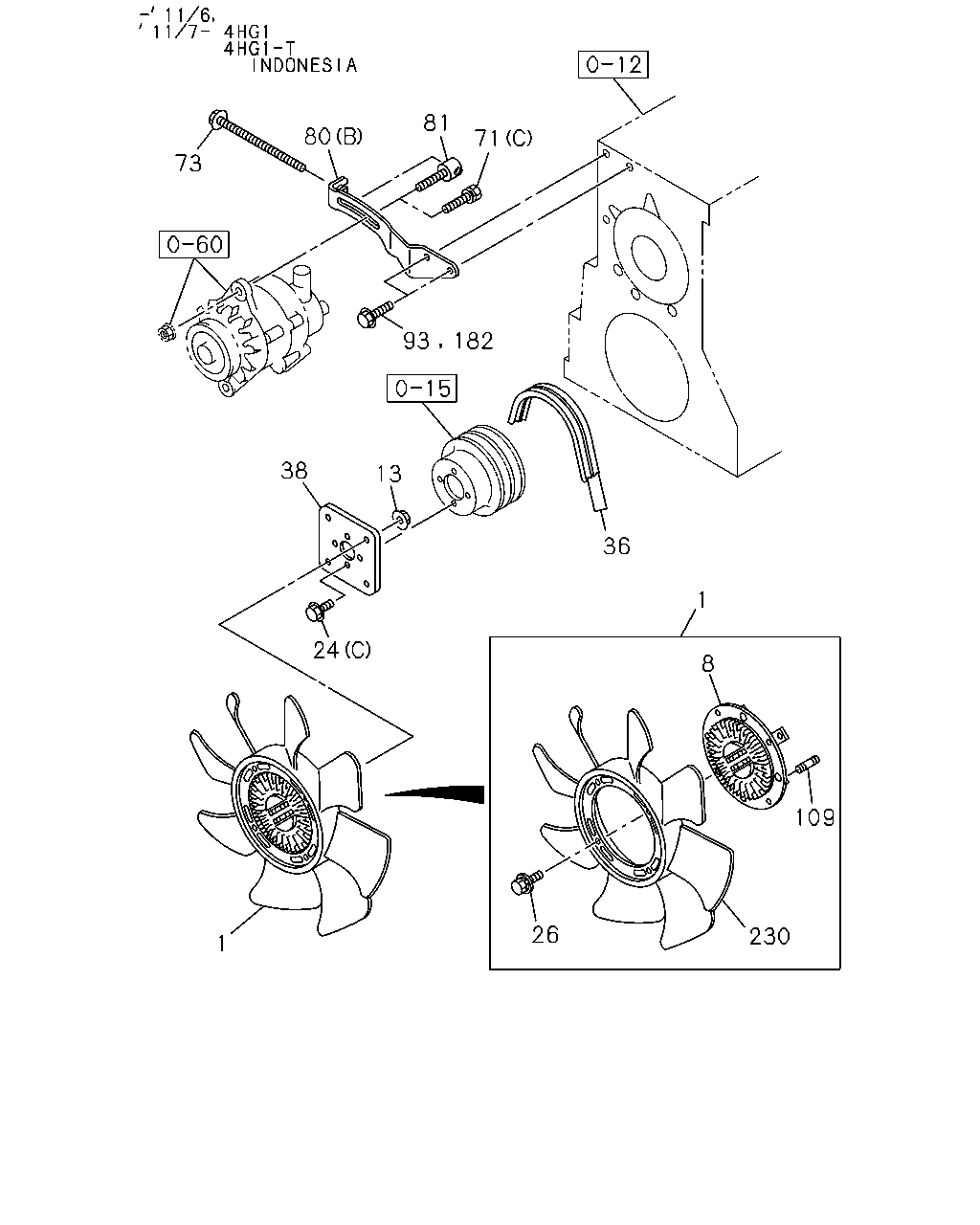

81 80 71 73 93 182 38 13 36 1 24 8 109 26 230 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	01.064 FAN; COOLING OD=430	8-97141-195-2	01	1	1012-	●	●
1	01.064 FAN; COOLING OD=410	8-97129-769-2	01	1	1012-			●
1	01.064 FAN; COOLING OD=450	8-97382-603-1	01	1	1012-				●
1	01.064 FAN; COOLING OD=390	8-94239-651-0	01	1	1012-					●
8	01.064 CLUTCH; COOLING FAN	8-97139-299-0	01	1	1012-	●	●
8	01.064 CLUTCH; COOLING FAN	8-97129-735-0	01	1	1012-			●
8	01.064 CLUTCH; COOLING FAN	8-98024-684-0	01	1	1012-				●
8	01.064 CLUTCH; COOLING FAN	8-94244-409-0	01	1	1012-					●
13	01.062 NUT; COOLING FAN M8 FLANGE	0-91180-108-0	04	1	1012-	●	●
13	01.062 NUT; COOLING FAN 07.829 M6 FLANGE	5-09440-004-0	04	1	1012-			●	●	●
24	01.062 BOLT; FAN 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1012-				●
24	01.062 BOLT; FAN 08.900 (C) M8X18 FLANGE	0-28080-818-0	04	1	1012-	●	●
24	01.062 BOLT; FAN 03.417 (A) M10X20 FLANGE	0-28151-020-0	02	1	1012-				●
26	01.062 BOLT; FAN TO CLU 01.428 M6X12 FLANGE	0-28080-612-0	04	1	1012-	●	●
26	01.062 BOLT; FAN TO CLU	8-94389-764-0	04	1	1012-			●	●
36	01.066 BELT; COOLING FAN 1 SET=2 PIECE(8971801810)	8-97180-199-1	01	1	1012-	●	●
36	01.066 BELT; COOLING FAN GENERATOR 24V80A(7YN) L=1046	8-98003-187-0	01	1	1012-1301				●
36	01.066 BELT; COOLING FAN EXC. GENERATOR 24V80A(7YN) L=1006	8-97362-926-0	01	1	1012-1301				●
36	01.066 BELT; COOLING FAN L=1006	8-97362-926-0	01	1	1302-				●
36	01.066 BELT; COOLING FAN L=1041 MITSUBOSHI	8-97315-153-0	01	1	1012-			●		●
36	01.066 BELT; COOLING FAN GENERATOR 24V80A(7YN) BEST VALUE PARTS	5-87610-101-0	01	1	1012-1301				●
36	01.066 BELT; COOLING FAN BEST VALUE PARTS	5-87610-098-0	01	1	1012-	●	●
36	01.066 BELT; COOLING FAN EXC. GENERATOR 24V80A(7YN) BEST VALUE PARTS	5-87610-100-0	01	1	1012-1301				●
36	01.066 BELT; COOLING FAN BEST VALUE PARTS	5-87610-100-0	01	1	1302-				●
38	01.062 SPACER; FAN	8-97108-643-0	01	1	1012-	●	●
71	02.317 BOLT; ADJ PLATE,GEN EXC. AIR CONDITIONER MANUAL CONT(C60) (C) M8X40 W/WASHER	8-97011-792-4	01	1	1012-	●	●
71	02.317 BOLT; ADJ PLATE,GEN 03.403 (A) M8X30 FLANGE	0-28650-830-0	01	1	1012-				●
71	02.317 BOLT; ADJ PLATE,GEN 02.277 (B) M8X50 FLANGE	8-98050-130-0	01	1	1012-				●
73	02.277 BOLT; GEN TO ADJ PLATE AIR CONDITIONER MANUAL CONT(C60) 02.317 M8X130 FLANGE	8-97172-720-1	01	1	1012-	●	●
80	02.317 PLATE; ADJ INDONESIA EQUIPMENT(B00) (D)	8-97172-415-0	01	1	1107-	●
80	02.317 PLATE; ADJ (B)	8-97164-089-2	01	1	1012-1106	●	●
80	02.317 PLATE; ADJ EXC. INDONESIA EQUIPMENT(B00) (B)	8-97164-089-2	01	1	1107-	●
80	02.317 PLATE; ADJ (B)	8-97164-089-2	01	1	1107-		●
80	02.317 PLATE; ADJ 02.274 (A)	8-98039-816-1	01	1	1012-				●
80	02.317 PLATE; ADJ (C)	8-97080-556-2	01	1	1012-			●		●
81	02.317 PIECE; SLIDING AIR CONDITIONER MANUAL CONT(C60)	8-97257-223-0	01	1	1012-	●	●
81	02.317 PIECE; SLIDING	8-97132-048-0	01	1	1012-				●
93	02.317 BOLT; ADJ PLATE BRKT 00.029 M10X25 FLANGE	0-28651-025-0	01	1	1012-1106	●	●
93	02.317 BOLT; ADJ PLATE BRKT INDONESIA EQUIPMENT(B00) 00.029 M10X25 FLANGE	0-28651-025-0	01	1	1107-	●
109	01.062 STUD; FAN CLU M8X13.5 L=22	8-97049-577-1	04	1	1012-	●	●
109	01.062 STUD; FAN CLU M6X18 L=27	0-41010-618-0	04	1	1012-			●	●	●
182	01.062 BOLT; BRKT EXC. INDONESIA EQUIPMENT(B00) 01.060 M8X35 FLANGE	0-28650-835-0	02	1	1107-	●
182	01.062 BOLT; BRKT 01.060 M8X35 FLANGE	0-28650-835-0	02	1	1107-		●
182	01.062 BOLT; BRKT 01.060 M8X35 FLANGE	0-28650-835-0	02	1	1012-1106	●	●
182	01.062 BOLT; BRKT INDONESIA EQUIPMENT(B00) 01.060 M8X35 FLANGE	0-28650-835-0	03	1	1107-	●
182	01.062 BOLT; BRKT GENERATOR 24V80A(7YN) 09.173 M8X45 FLANGE	0-28050-845-0	02	1	1012-1301				●
230	01.055 FAN; COOLING	8-97140-854-1	01	1	1012-	●	●
230	01.055 FAN; COOLING 01.064	8-97094-660-1	01	1	1012-			●
230	01.055 FAN; COOLING	8-97330-207-0	01	1	1012-				●
230	01.055 FAN; COOLING 01.064	5-13660-300-0	01	1	1012-					●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
