◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51276 - NNR/NPR/NQR AUST/NZ EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#78319) — 89 parça

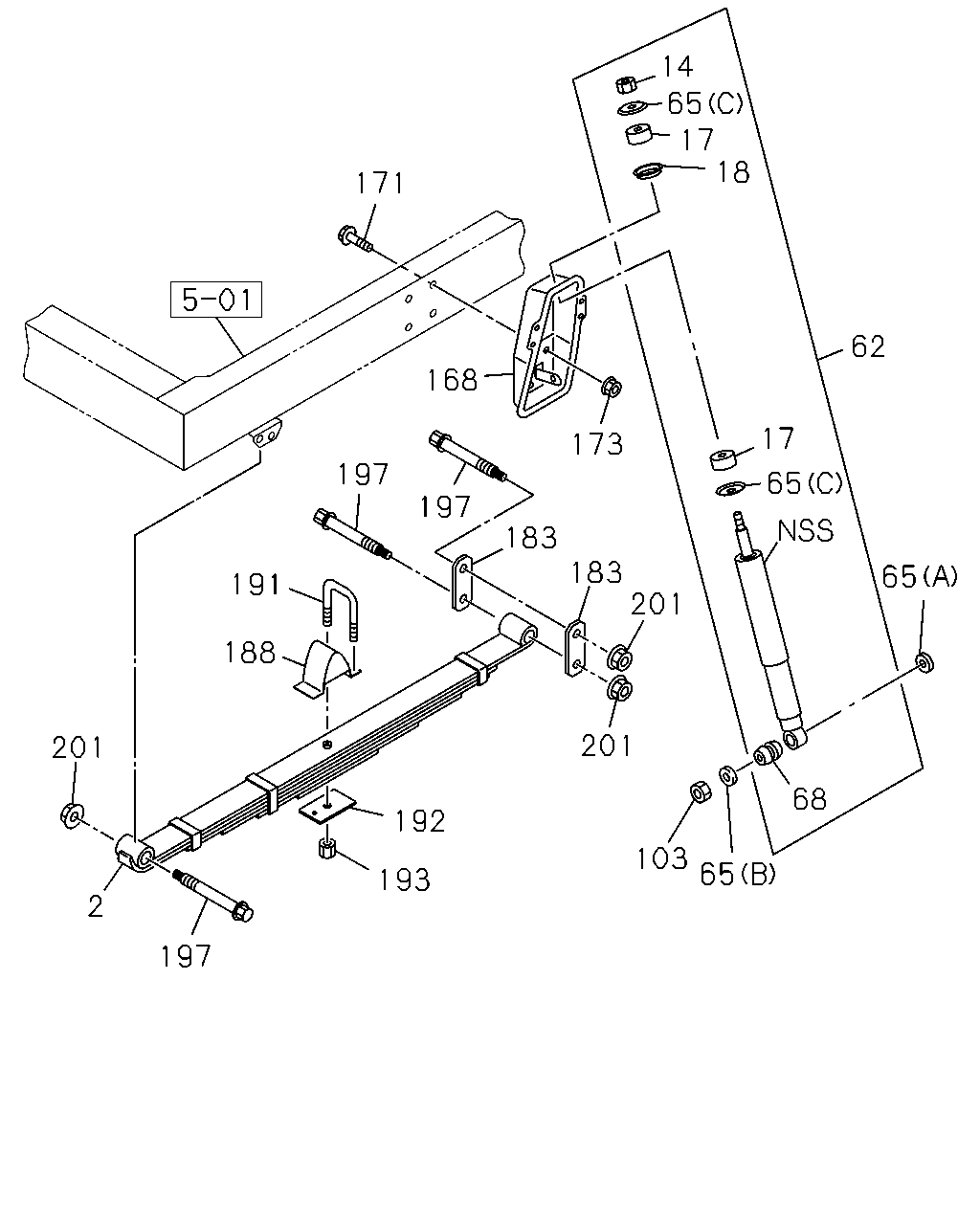

çizim 124039
14 65 17 18 62 17 65 65 68 65 103 201 201 183 183 197 197 168 173 171 191 188 201 2 197 193 192
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) 3-LEAF 		8-98079-965-0 01 1 1009-1011 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 3-LEAF 		8-98079-965-0 01 1 1009-1011 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 3-LEAF 		8-98079-965-0 01 1 1012- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 3-LEAF 		8-98079-965-0 01 1 1012- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) 3-LEAF 		8-98079-966-0 01 1 1009-1011 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 3-LEAF 		8-98079-966-0 01 1 1009-1011 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 3-LEAF 		8-98079-966-0 01 1 1012- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 3-LEAF 		8-98079-966-0 01 1 1012- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 2-LEAF 		8-98025-018-0 01 1 1009- ● ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 2-LEAF 		8-98025-019-0 01 1 1009- ● ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 5.5-6.0TON(RPU) 2-LEAF 		8-98075-741-0 01 1 1009- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 5.5-6.0TON(RPU) 2-LEAF 		8-98075-742-0 01 1 1009- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF 		8-98079-914-0 01 1 1009-1011 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 6.5-7.0TON(RPW) EXC. FRAME STRAIGHT TYPE<7KJ> 6-LEAF 		8-98079-914-0 01 1 1012-1504 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF 		8-98079-914-0 01 1 1012-1504 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 6.5-7.0TON(RPW) EXC. FRAME STRAIGHT TYPE<7KJ> 6-LEAF 		8-98079-914-0 01 1 1505- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 6.5-7.0TON(RPW) 6-LEAF 		8-98079-914-0 01 1 1505- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF 		8-98079-916-0 01 1 1009-1011 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 6.5-7.0TON(RPW) EXC. FRAME STRAIGHT TYPE<7KJ> 6-LEAF 		8-98079-916-0 01 1 1012-1504 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF 		8-98079-916-0 01 1 1012-1504 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 6.5-7.0TON(RPW) EXC. FRAME STRAIGHT TYPE<7KJ> 6-LEAF 		8-98079-916-0 01 1 1505- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 6.5-7.0TON(RPW) 6-LEAF 		8-98079-916-0 01 1 1505- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF 		8-98079-920-0 01 1 1009-1504 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 7.5-8.0TON(RPY) 6-LEAF 		8-98079-920-0 01 1 1505- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF 		8-98079-920-0 01 1 1505- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF 		8-98079-922-0 01 1 1009-1504 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 7.5-8.0TON(RPY) 6-LEAF 		8-98079-922-0 01 1 1505- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF 		8-98079-922-0 01 1 1505- ●
14 07.389 NUT; S/ABS,UPR
M10 T=8 		9-09640-020-0 02 1 1009- ● ● ● ● ● ●
17 07.388 BUSHING; RUBBER,S/ABS
TOKICO 		9-51631-603-0 04 1 1009- ● ● ● ● ● ●
18 07.347 WASHER; CENTERING,S/ABS
TOKICO 		8-94412-791-0 02 1 1009- ● ● ● ● ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) 		8-98098-125-0 02 1 1009-1011 ●
62 07.345 ABSORBER ASM; SHOCK,FRT 8-98098-125-0 02 1 1009-1011 ●
62 07.345 ABSORBER ASM; SHOCK,FRT
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-98098-125-0 02 1 1012-1303 ●
62 07.345 ABSORBER ASM; SHOCK,FRT 8-98098-125-0 02 1 1012-1303 ●
62 07.345 ABSORBER ASM; SHOCK,FRT
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-98232-671-1 02 1 1304- ●
62 07.345 ABSORBER ASM; SHOCK,FRT 8-98232-671-1 02 1 1304- ●
62 07.345 ABSORBER ASM; SHOCK,FRT 8-97376-928-1 02 1 1009-1011 ● ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT
G.V.W. 5.5-6.0TON(RPU) 		8-97376-928-1 02 1 1009-1011 ●
62 07.345 ABSORBER ASM; SHOCK,FRT 8-97376-928-1 02 1 1012-1504 ● ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97376-928-1 02 1 1012-1504 ●
62 07.345 ABSORBER ASM; SHOCK,FRT
G.V.W. 5.5-6.0TON(RPU) FRAME STRAIGHT TYPE<7KJ> 		8-97376-928-1 02 1 1012-1504 ●
62 07.345 ABSORBER ASM; SHOCK,FRT 8-97376-928-1 02 1 1505- ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97376-928-1 02 1 1505- ●
62 07.345 ABSORBER ASM; SHOCK,FRT
G.V.W. 5.5-6.0TON(RPU) FRAME STRAIGHT TYPE<7KJ> 		8-97376-928-1 02 1 1505- ●
62 07.345 ABSORBER ASM; SHOCK,FRT
G.V.W. 6.5-7.0TON(RPW) 		8-97376-928-1 02 1 1505- ●
62 07.345 ABSORBER ASM; SHOCK,FRT 8-98080-130-1 02 1 1009-1504 ●
62 07.345 ABSORBER ASM; SHOCK,FRT
G.V.W. 7.5-8.0TON(RPY) 		8-98080-130-1 02 1 1505- ●
62 07.345 ABSORBER ASM; SHOCK,FRT 8-98080-130-1 02 1 1505- ●
65 07.347 WASHER; S/ABS
(C) OD=40 		9-51631-614-0 04 1 1009- ● ● ● ● ● ●
65 07.347 WASHER; S/ABS
(A) ID=21 OD=40 		0-91614-620-0 02 1 1009- ● ● ● ● ● ●
65 07.347 WASHER; S/ABS
(B) ID=15 		8-97360-056-0 02 1 1009- ● ● ● ● ● ●
68 07.388 BUSHING; S/ABS
TOKICO 		8-94382-149-0 02 1 1009- ● ● ● ● ● ●
103 07.347 NUT; S/ABS TO LWR LINK
07.833 M14 		0-91110-514-0 02 1 1009- ● ● ● ● ● ●
168 07.380 BRACKET; S/ABS,FRT SUSP
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-98015-001-0 01 1 1505- ● ● ● ●
168 07.380 BRACKET; S/ABS,FRT SUSP
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-98015-002-0 01 1 1505- ● ● ● ●
168 07.380 BRACKET; S/ABS,FRT SUSP 8-98006-958-1 01 1 1009-1504 ● ● ● ● ● ●
168 07.380 BRACKET; S/ABS,FRT SUSP
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-98006-958-1 01 1 1505- ● ● ● ●
168 07.380 BRACKET; S/ABS,FRT SUSP 8-98006-958-1 01 1 1505- ● ●
168 07.380 BRACKET; S/ABS,FRT SUSP 8-98006-959-1 01 1 1009-1504 ● ● ● ● ● ●
168 07.380 BRACKET; S/ABS,FRT SUSP
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-98006-959-1 01 1 1505- ● ● ● ●
168 07.380 BRACKET; S/ABS,FRT SUSP 8-98006-959-1 01 1 1505- ● ●
171 07.395 BOLT; S/ABS BRKT
09.003 M12X35 FLANGE 		0-28651-235-0 08 1 1009- ● ● ● ● ● ●
173 07.395 NUT; S/ABS
M12 		8-97360-126-0 08 1 1009- ● ● ● ● ● ●
183 07.436 SHACKLE; FRT SUSP 8-94110-399-3 04 1 1009- ● ● ● ● ● ●
188 07.436 RUBBER; CLAMP,U-BOLT,FRT SPR 8-98033-516-0 02 1 1009- ● ● ● ● ● ●
191 07.417 U-BOLT; FRT SPR
L=135 		9-51171-073-2 04 1 1009- ●
191 07.417 U-BOLT; FRT SPR
L=115 		8-94412-504-3 04 1 1009- ● ●
191 07.417 U-BOLT; FRT SPR
FRONT STABILIZER SHAFT<F59> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) L=125 		8-94119-671-5 04 1 1009-1011 ●
191 07.417 U-BOLT; FRT SPR
FRONT STABILIZER SHAFT<F59> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> L=125 		8-94119-671-5 04 1 1012- ●
191 07.417 U-BOLT; FRT SPR
FRONT STABILIZER SHAFT<F59> G.V.W. 5.5-6.0TON(RPU) EXC. FRAME STRAIGHT TYPE<7KJ> L=125 		8-94119-671-5 04 1 1012- ●
191 07.417 U-BOLT; FRT SPR
L=135 		5-51171-015-4 04 1 1009-1011 ●
191 07.417 U-BOLT; FRT SPR
FRONT STABILIZER SHAFT<F59> G.V.W. 6.5-7.0TON(RPW) EXC. FRAME STRAIGHT TYPE<7KJ> L=135 		5-51171-015-4 04 1 1012-1504 ●
191 07.417 U-BOLT; FRT SPR
L=135 		5-51171-015-4 04 1 1012-1504 ●
191 07.417 U-BOLT; FRT SPR
FRONT STABILIZER SHAFT<F59> G.V.W. 6.5-7.0TON(RPW) EXC. FRAME STRAIGHT TYPE<7KJ> L=135 		5-51171-015-4 04 1 1505- ●
191 07.417 U-BOLT; FRT SPR
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) L=135 		5-51171-015-4 04 1 1505- ●
191 07.417 U-BOLT; FRT SPR
L=165 		9-51171-075-1 04 1 1009- ●
192 07.436 PIECE; DIST
WHEEL BASE 3300MM(33W) 		8-97093-554-1 02 1 1009-1011 ●
192 07.436 PIECE; DIST 8-97093-554-1 02 1 1009-1011 ●
192 07.436 PIECE; DIST
WHEEL BASE 3300MM(33W) 		8-97093-554-1 02 1 1012-1304 ●
192 07.436 PIECE; DIST
WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97093-554-1 02 1 1012-1304 ●
192 07.436 PIECE; DIST 8-97093-554-1 02 1 1012-1304 ●
192 07.436 PIECE; DIST
WHEEL BASE 3300MM(33W) 		8-97093-554-1 02 1 1305- ●
192 07.436 PIECE; DIST
WHEEL BASE 3300MM(33W) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97093-554-1 02 1 1305- ●
192 07.436 PIECE; DIST 8-97093-554-1 02 1 1305- ●
193 07.417 NUT; U BOLT
M16 		8-97360-121-0 08 1 1009- ● ●
193 07.417 NUT; U BOLT
06.174 M14 FLANGE 		8-97360-124-0 08 1 1009- ● ● ● ●
197 07.427 PIN; FRT SPR,FRT
M16X122 FLANGE 		8-97360-110-0 06 1 1009- ● ● ● ● ● ●
201 07.427 NUT; PIN LK
M16 FLANGE 		8-97360-125-0 06 1 1009- ● ● ● ● ● ●
