4-36 — POWER STEERING CONTROL; ENGINE SIDE (#78316) — 24 parça

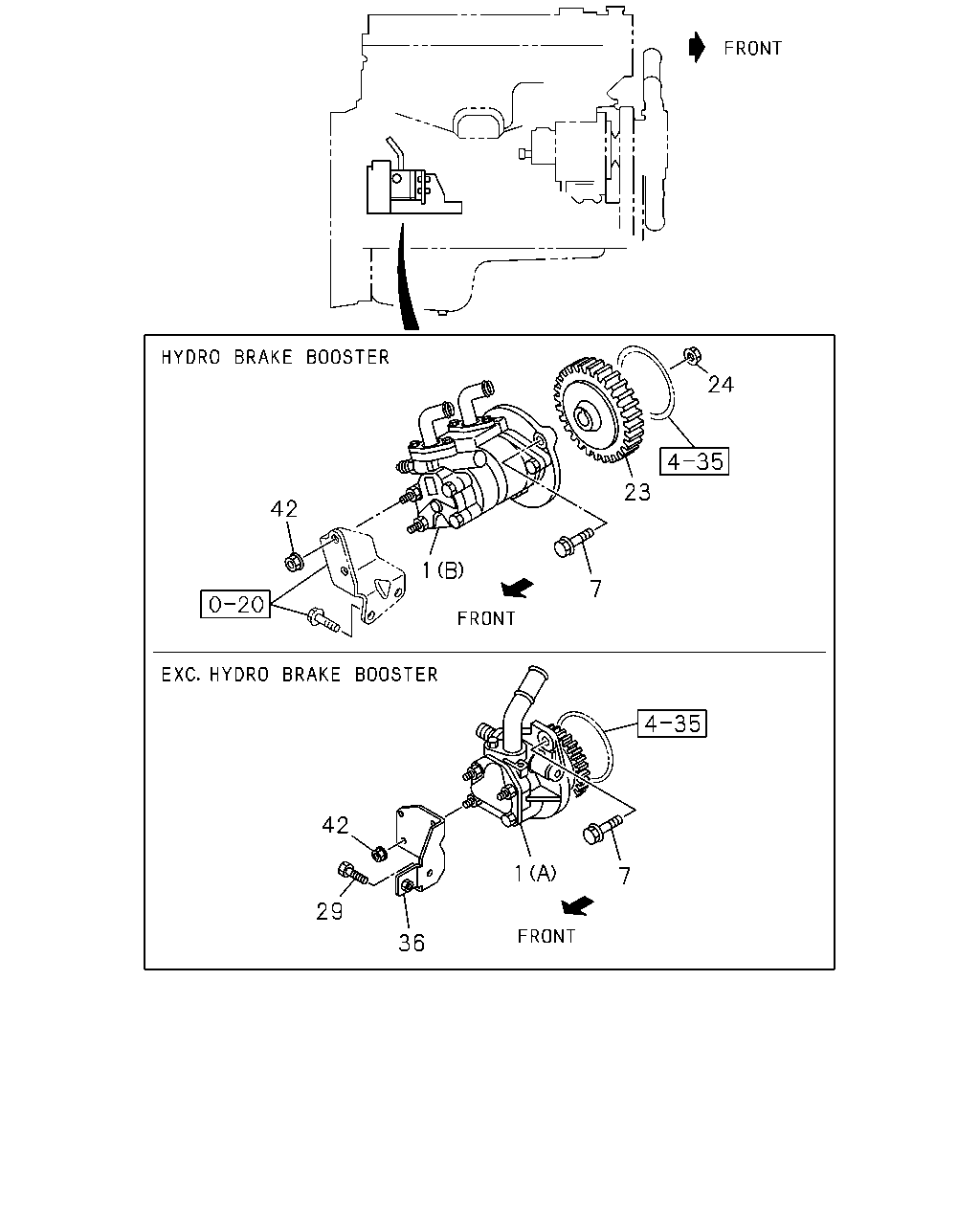

çizim 124354
24 23 7 1 42 42 29 36 1 7
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCS ENG(LFB) (C) 		8-98043-204-3 01 1 1009-1011 ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCS ENG(LFB) (C) 		8-98043-204-4 01 1 1012- ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98055-007-2 01 1 1009-1504 ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98055-007-2 01 1 1505- ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98006-793-4 01 1 1009-1504 ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98006-793-4 01 1 1505- ● ●
7 09.181 BOLT; OIL PUMP,P/S
00.780 M10X30 FLANGE 		0-28751-030-0 02 1 1009- ● ● ● ●
23 06.660 GEAR; OIL PUMP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) 		8-97114-550-1 01 1 1009-1504 ● ● ●
23 06.660 GEAR; OIL PUMP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) 		8-97114-550-1 01 1 1505- ● ● ● ●
24 06.673 NUT; GEAR,P/S PUMP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) 05.816 M12 FLANGE 		0-91180-212-0 01 1 1009-1504 ● ● ●
24 06.673 NUT; GEAR,P/S PUMP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) 05.816 M12 FLANGE 		0-91180-212-0 01 1 1505- ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. HYDRO BRAKE BOOSTER(7QQ) M14X20 FLANGE 		0-28851-420-0 01 1 1009-1504 ● ●
29 09.171 BOLT; BRKT,POWER STRG
4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) M14X20 FLANGE 		0-28851-420-0 01 1 1505- ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98036-532-0 01 1 1009-1504 ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98036-532-0 01 1 1505- ● ●
42 06.672 NUT; ADJ PLATE
01.062 M8 FLANGE 		0-91180-108-0 01 1 1009- ● ● ● ●

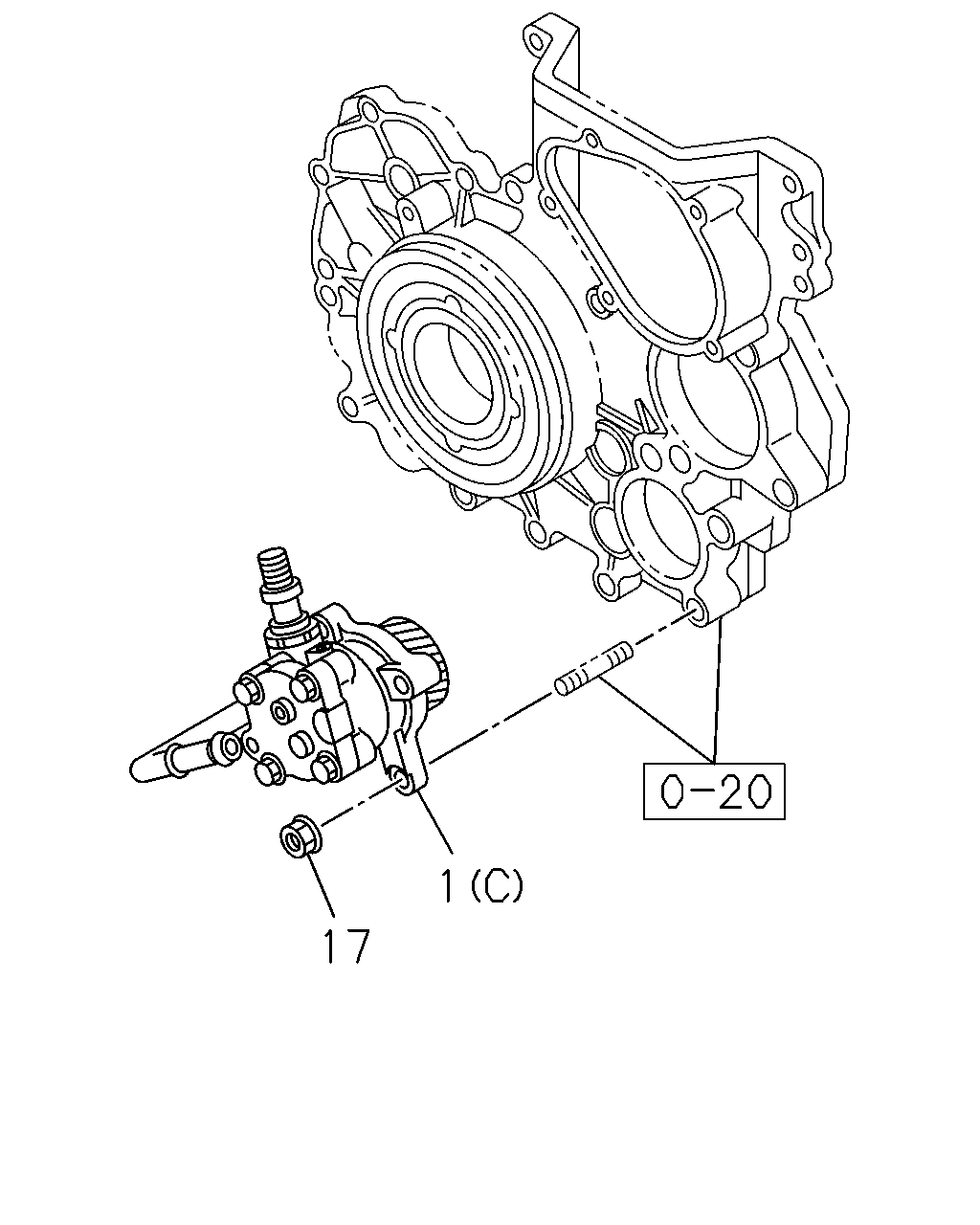

çizim 187177
17 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCS ENG(LFB) (C) 		8-98043-204-3 01 1 1009-1011 ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCS ENG(LFB) (C) 		8-98043-204-4 01 1 1012- ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98055-007-2 01 1 1009-1504 ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98055-007-2 01 1 1505- ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98006-793-4 01 1 1009-1504 ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98006-793-4 01 1 1505- ● ●
17 06.606 NUT; POWER STRG PUMP
4JJ1-TCS ENG(LFB) 01.540 M8 FLANGE 		0-91180-208-0 03 1 1009-1011 ● ●
17 06.606 NUT; POWER STRG PUMP
4JJ1-TCS ENG(LFB) 01.540 M8 FLANGE 		0-91180-208-0 03 1 1012- ● ● ●
