4-30 — STEERING WHEEL AND COWL (#78312) — 37 parça

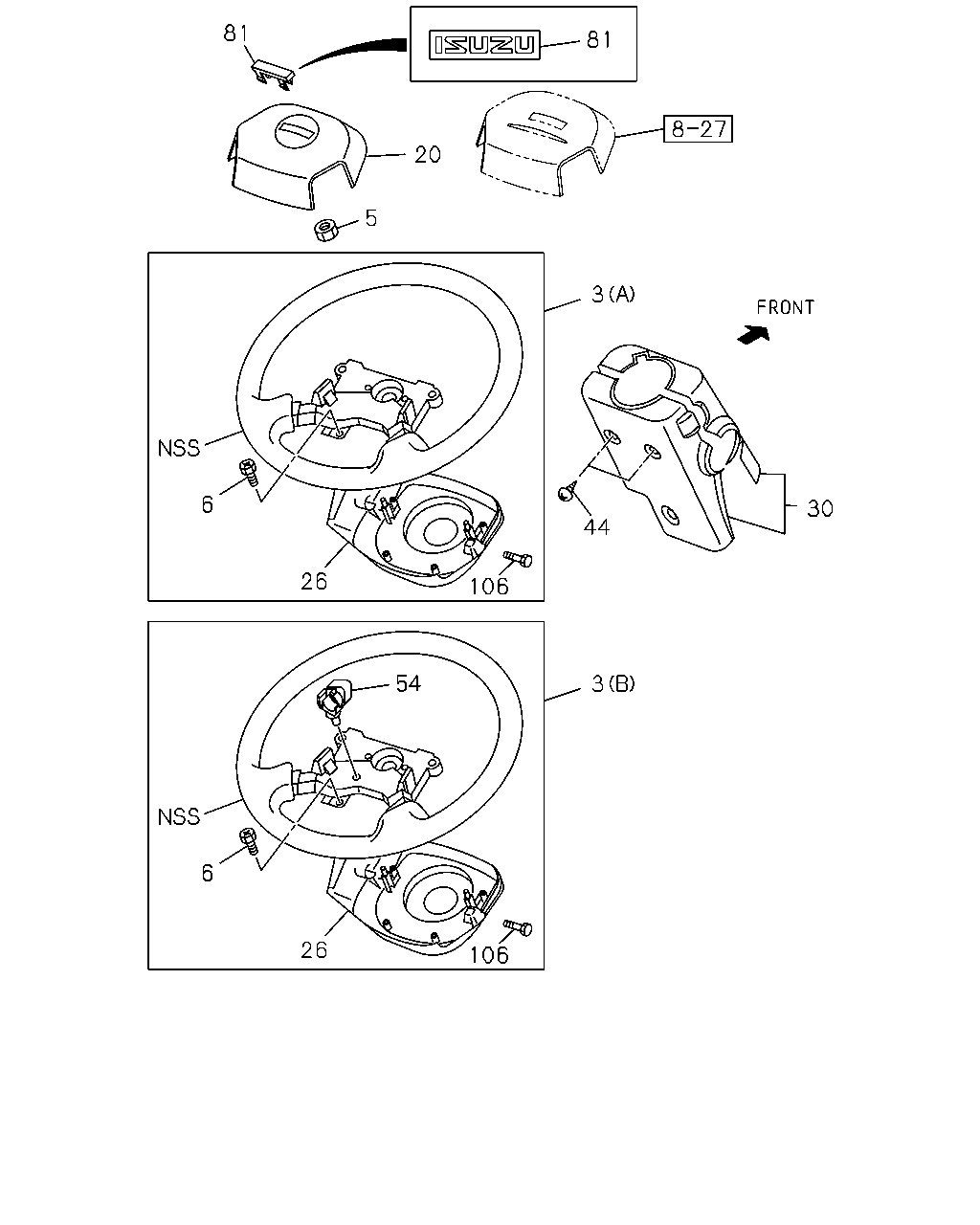

çizim 187172
81 81 20 5 3 30 44 3 106 26 6 54 106 26 6
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
3 06.513 WHEEL; STRG
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SPECIAL PACKAGE<7BB> (C) DARK GRAY 		8-97428-464-5 01 1 1407- ● ● ● ● ● ●
3 06.513 WHEEL; STRG
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY 		8-97421-977-0 01 1 1009-1210 ● ● ● ● ● ●
3 06.513 WHEEL; STRG
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) DARK GRAY 		8-97423-997-0 01 1 1211-1406 ● ● ● ● ● ●
3 06.513 WHEEL; STRG
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. SPECIAL PACKAGE<7BB> (B) DARK GRAY 		8-97423-997-0 01 1 1407- ● ● ● ● ● ●
3 06.513 WHEEL; STRG
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY 		8-97412-556-1 01 1 1009-1406 ● ● ● ● ● ●
3 06.513 WHEEL; STRG
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,SPECIAL PACKAGE<7BB> (A) DARK GRAY 		8-97412-556-1 01 1 1407- ● ● ● ● ● ●
5 06.515 NUT; STRG WHEEL TO SHAFT
M14 		0-91111-514-0 01 1 1009- ● ● ● ● ● ●
6 02.820 SCREW; HORN SPR CONTACT
M4X12 		8-97167-588-0 04 1 1009-1406 ● ● ● ● ● ●
6 02.820 SCREW; HORN SPR CONTACT
EXC. SPECIAL PACKAGE<7BB> M4X12 		8-97167-588-0 04 1 1407- ● ● ● ● ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY 		8-97405-985-1 01 1 1009-1406 ● ● ● ● ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,SPECIAL PACKAGE<7BB> DARK GRAY 		8-97405-985-1 01 1 1407- ● ● ● ● ● ●
26 06.514 COVER; STRG WHEEL,LWR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY 		8-97421-978-0 01 1 1009-1406 ● ● ● ● ● ●
26 06.514 COVER; STRG WHEEL,LWR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. SPECIAL PACKAGE<7BB> DARK GRAY 		8-97421-978-0 01 1 1407- ● ● ● ● ● ●
26 06.514 COVER; STRG WHEEL,LWR
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY 		8-97409-275-2 01 1 1009-1406 ● ● ● ● ● ●
26 06.514 COVER; STRG WHEEL,LWR
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,SPECIAL PACKAGE<7BB> DARK GRAY 		8-97409-275-2 01 1 1407- ● ● ● ● ● ●
30 06.518 COWL; STEERING
DARK GRAY 		8-97405-356-5 01 1 1009-1110 ● ● ● ● ● ●
30 06.518 COWL; STEERING
DARK GRAY 		8-97418-761-1 01 1 1111- ● ● ● ● ● ●
44 06.514 SCREW; STRG COWL
M5X12 		0-38050-512-0 03 1 1009- ● ● ● ● ● ●
54 02.559 CLIP; HARNESS
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98165-703-0 01 1 1211-1406 ● ● ● ● ● ●
54 02.559 CLIP; HARNESS
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. SPECIAL PACKAGE<7BB> 		8-98165-703-0 01 1 1407- ● ● ● ● ● ●
81 02.820 EMBLEM; STRG WHEEL
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY 		8-97405-986-0 01 1 1009-1406 ● ● ● ● ● ●
81 02.820 EMBLEM; STRG WHEEL
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,SPECIAL PACKAGE<7BB> DARK GRAY 		8-97405-986-0 01 1 1407- ● ● ● ● ● ●
106 05.453 BOLT; TORX 8-98231-397-0 02 1 1009-1406 ● ● ● ● ● ●
106 05.453 BOLT; TORX
EXC. SPECIAL PACKAGE<7BB> 		8-98231-397-0 02 1 1407- ● ● ● ● ● ●

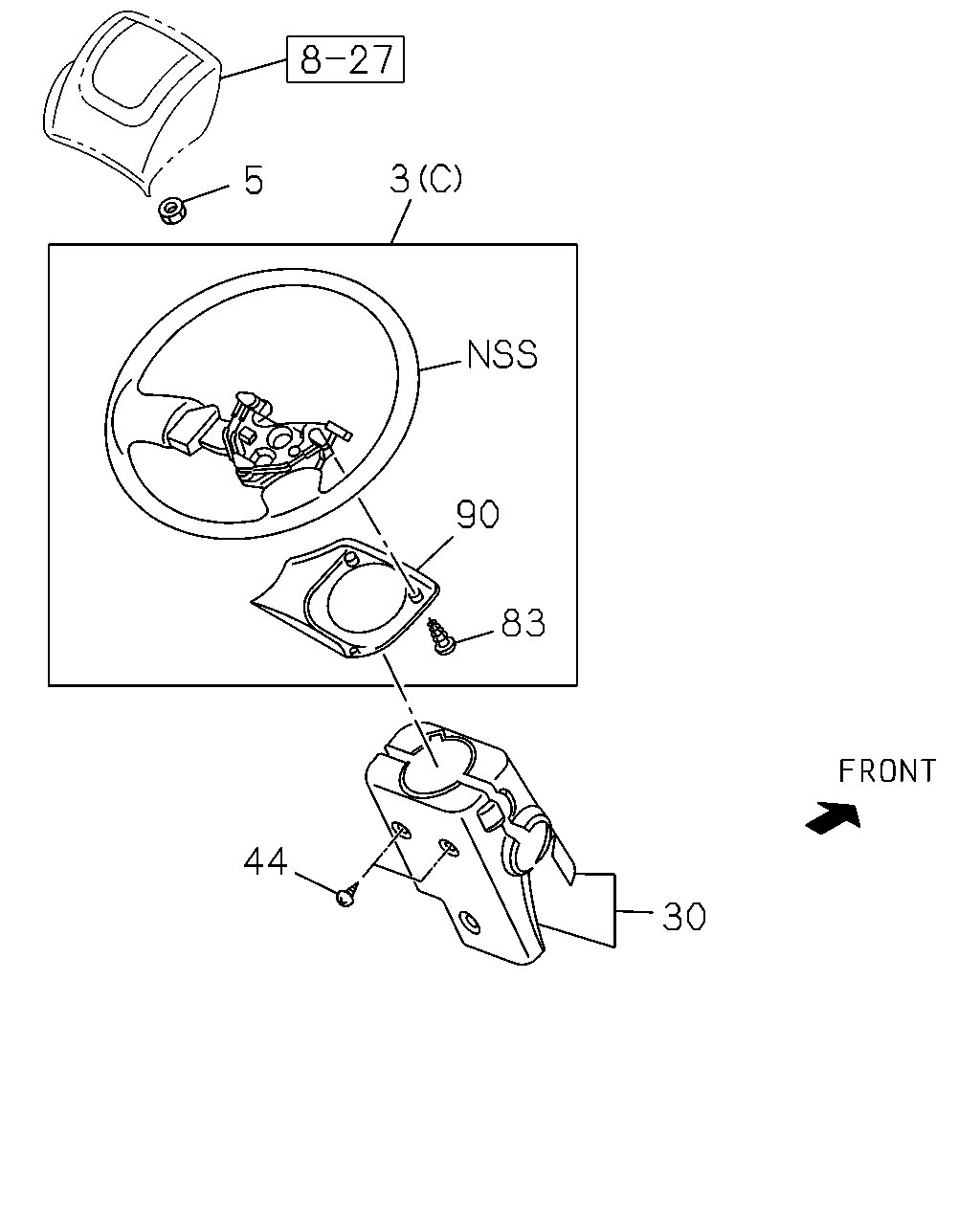

çizim 448913
5 3 90 83 30 44
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
3 06.513 WHEEL; STRG
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SPECIAL PACKAGE<7BB> (C) DARK GRAY 		8-97428-464-5 01 1 1407- ● ● ● ● ● ●
3 06.513 WHEEL; STRG
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY 		8-97421-977-0 01 1 1009-1210 ● ● ● ● ● ●
3 06.513 WHEEL; STRG
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) DARK GRAY 		8-97423-997-0 01 1 1211-1406 ● ● ● ● ● ●
3 06.513 WHEEL; STRG
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. SPECIAL PACKAGE<7BB> (B) DARK GRAY 		8-97423-997-0 01 1 1407- ● ● ● ● ● ●
3 06.513 WHEEL; STRG
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY 		8-97412-556-1 01 1 1009-1406 ● ● ● ● ● ●
3 06.513 WHEEL; STRG
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,SPECIAL PACKAGE<7BB> (A) DARK GRAY 		8-97412-556-1 01 1 1407- ● ● ● ● ● ●
5 06.515 NUT; STRG WHEEL TO SHAFT
M14 		0-91111-514-0 01 1 1009- ● ● ● ● ● ●
30 06.518 COWL; STEERING
DARK GRAY 		8-97405-356-5 01 1 1009-1110 ● ● ● ● ● ●
30 06.518 COWL; STEERING
DARK GRAY 		8-97418-761-1 01 1 1111- ● ● ● ● ● ●
44 06.514 SCREW; STRG COWL
M5X12 		0-38050-512-0 03 1 1009- ● ● ● ● ● ●
83 06.514 SCREW; LWR COVER TO WHEEL
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SPECIAL PACKAGE<7BB> 09.242 M4X10 TAPPING 		0-71240-410-0 03 1 1407-1503 ● ● ● ● ● ●
83 06.514 SCREW; LWR COVER TO WHEEL
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SPECIAL PACKAGE<7BB> M4X10 TAPPING 		8-98319-680-0 03 1 1504- ● ● ● ● ● ●
90 06.578 COVER ASM; STRG WHEEL,LWR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SPECIAL PACKAGE<7BB> DARK GRAY 		8-97465-726-2 01 1 1407- ● ● ● ● ● ●
