2-07 — CLUTCH BOOSTER; MINIPACK (#7831) — 92 parça

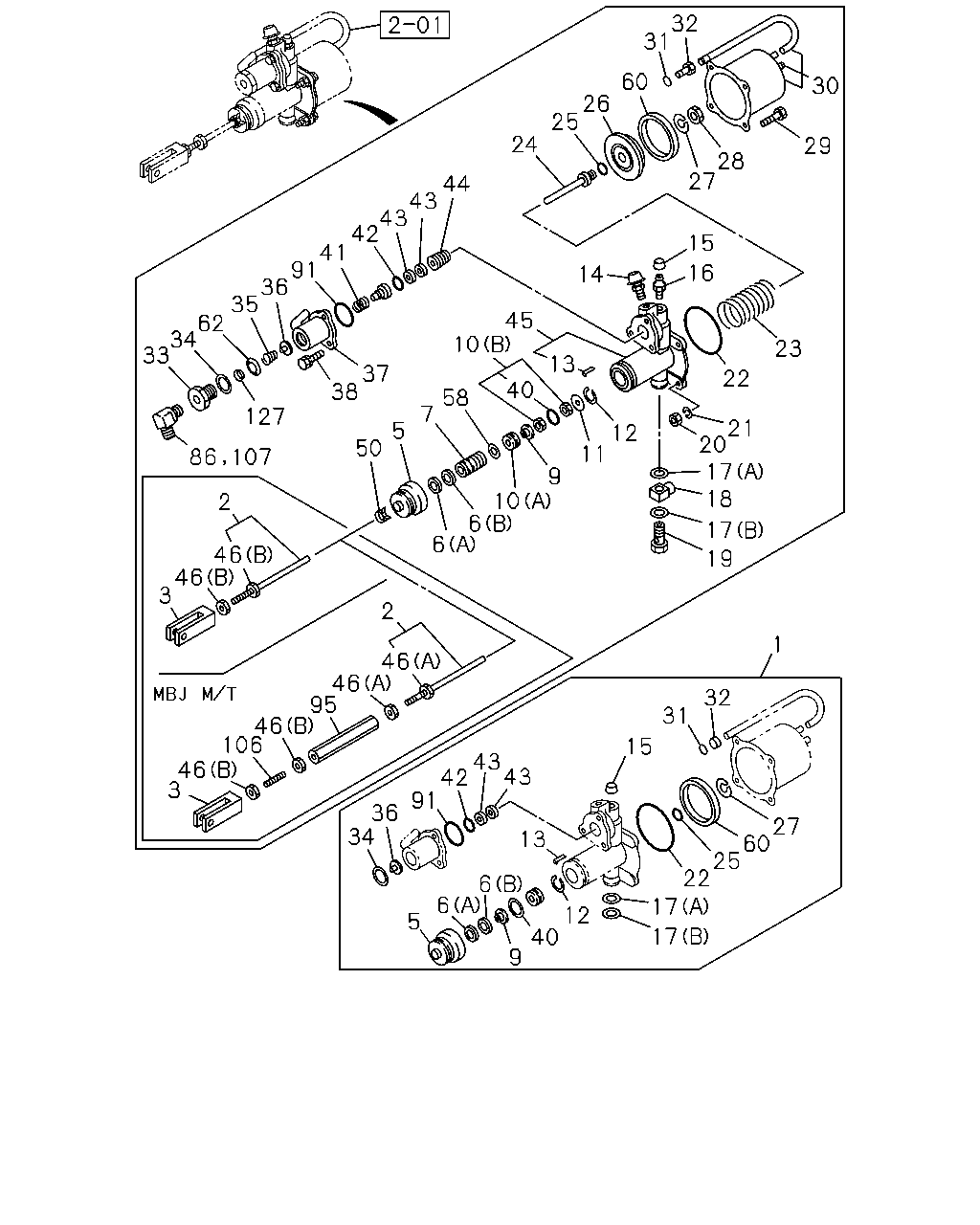

çizim 98870
32 31 60 30 26 25 24 29 28 27 44 43 43 42 41 91 36 35 62 34 33 15 16 14 45 10 23 13 37 38 22 40 58 7 127 21 20 17 18 5 12 50 11 9 10 6 2 17 6 46 46 3 19 2 1 46 46 95 46 106 46 3 32 31 15 43 91 36 34 13 27 60 25 22 17 6 6 12 40 9 5 17 86 107
BalonParca AdiParca NoAdetTipApplied Date A B
1 REPAIR KIT; CLU BOOSTER 1-31829-352-0 01 1 9905-0106 ●
1 REPAIR KIT; CLU BOOSTER 1-31829-542-0 01 1 0107-0307 ●
1 REPAIR KIT; CLU BOOSTER 1-31829-550-0 01 1 0308- ●
1 REPAIR KIT; CLU BOOSTER 1-31829-359-0 01 1 9905-0106 ●
1 REPAIR KIT; CLU BOOSTER 1-31829-539-0 01 1 0107- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-156-0 01 1 9905- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-157-0 01 1 9905- ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-186-0 01 1 9905-0106 ● ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-538-0 01 1 0107-0307 ● ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-186-0 01 1 0308- ● ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-174-0 01 1 9905- ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 9905- ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 9905- ● ●
7 PISTON; CLU BOOSTER 1-31821-013-0 01 1 9905-0106 ● ●
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 0107- ● ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 9905- ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-003-0 01 1 9905- ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-285-0 01 1 9905- ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-293-0 01 1 9905-0106 ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-428-0 01 1 0107- ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-107-0 01 1 9905- ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-108-0 01 1 9905- ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 9905- ● ●
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 9905-0106 ●
12 RING; RET,CLU BOOSTER 9-83315-315-0 01 1 9905-0106 ●
12 RING; RET,CLU BOOSTER 9-83315-315-0 01 1 0107- ● ●
13 PIN; SPR 1-31829-109-0 01 1 9905- ● ●
14 COVER; EXH,CLU BOOSTER 1-31829-102-0 01 1 9905-0106 ● ●
14 COVER; EXH,CLU BOOSTER 1-31829-365-0 01 1 0107-0307 ● ●
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 0308- ● ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 9905- ● ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 9905- ● ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 9905- ● ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 9905- ● ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 9905- ● ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 9905- ● ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER 9-83315-085-0 04 1 9905- ● ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=8.2 		9-09150-508-0 04 1 9905- ● ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-327-0 01 1 9905- ● ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-110-0 01 1 9905-0106 ● ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-358-0 01 1 0107- ● ●
24 ROD; PUSH,CLU BOOSTER 1-31829-340-0 01 1 9905- ●
24 ROD; PUSH,CLU BOOSTER 1-31829-112-0 01 1 9905- ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 9905- ● ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-057-0 01 1 9905-0106 ● ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-083-0 01 1 0107- ● ●
27 SPRING; CLU BOOSTER 1-31829-111-0 01 1 9905- ● ●
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 9905- ● ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 1-31829-015-0 04 1 9905- ● ●
30 SHELL; CYL,CLU BOOSTER 1-31811-026-0 01 1 9905-0106 ● ●
30 SHELL; CYL,CLU BOOSTER 1-31811-123-0 01 1 0107- ● ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-113-0 01 1 9905- ● ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-114-0 01 1 9905- ● ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-212-0 01 1 9905- ● ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 9905- ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-077-0 01 1 9905-0106 ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 0107- ● ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-016-0 01 1 9905-0106 ● ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 0107- ● ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-018-0 01 1 9905-0106 ● ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-089-0 01 1 0107-0307 ● ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-138-0 01 1 0308- ● ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 1-44519-022-0 03 1 9905-0106 ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 9905-0106 ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 0107- ● ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 9905- ● ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-420-0 01 1 9905- ● ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-123-0 01 1 9905- ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-143-0 01 1 9905- ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 9905- ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-019-0 01 1 9905-0307 ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-089-0 01 1 0308- ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-029-0 01 1 9905- ●
45 PLATE; END,CLU BOOSTER 1-31811-062-0 01 1 9905- ●
45 PLATE; END,CLU BOOSTER 1-31811-081-0 01 1 9905- ●
46 NUT; PUSH ROD,CLU BOOSTER
(B) 		1-31824-126-0 02 1 9905-0307 ●
46 NUT; PUSH ROD,CLU BOOSTER
(B) M10 		9-09111-410-0 02 1 9905-0307 ●
46 NUT; PUSH ROD,CLU BOOSTER
(B) M10 		9-09111-410-0 02 1 0308- ● ●
46 NUT; PUSH ROD,CLU BOOSTER
(A) LH THREAD 		9-83315-104-0 01 1 9905-0106 ●
46 NUT; PUSH ROD,CLU BOOSTER
(A) LH THREAD 		9-83315-104-0 02 1 0107- ●
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-168-0 01 1 9905- ● ●
58 WASHER; PISTON,CLU BOOSTER 1-31829-294-0 01 1 9905-0106 ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-066-0 01 1 9905-0106 ● ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-535-0 01 1 0107- ● ●
62 RETAINER; POPPET 1-31829-489-0 01 1 0107- ● ●
86 ELBOW ASM; CLU BOOSTER 1-09650-358-1 01 1 9905-0106 ●
86 ELBOW ASM; CLU BOOSTER
PT1/4 & M12 ELBOW 		1-09650-117-1 01 1 9905-0106 ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 9905- ● ●
95 BUCKLE; TURN,BOOSTER 1-31824-120-0 01 1 9905- ●
106 STUD; CLEVIS 9-88510-225-0 01 1 9905- ●
107 CONNECTOR; ELBOW 1-09650-358-1 01 1 0107- ● ●
127 FILTER; POPPET 1-31829-495-0 01 1 0107- ● ●
