◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51276 - NNR/NPR/NQR AUST/NZ EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-11 - FRONT HUB AND DRUM OR ROTOR ▶
4-11 — FRONT HUB AND DRUM OR ROTOR (#78309) — 114 parça

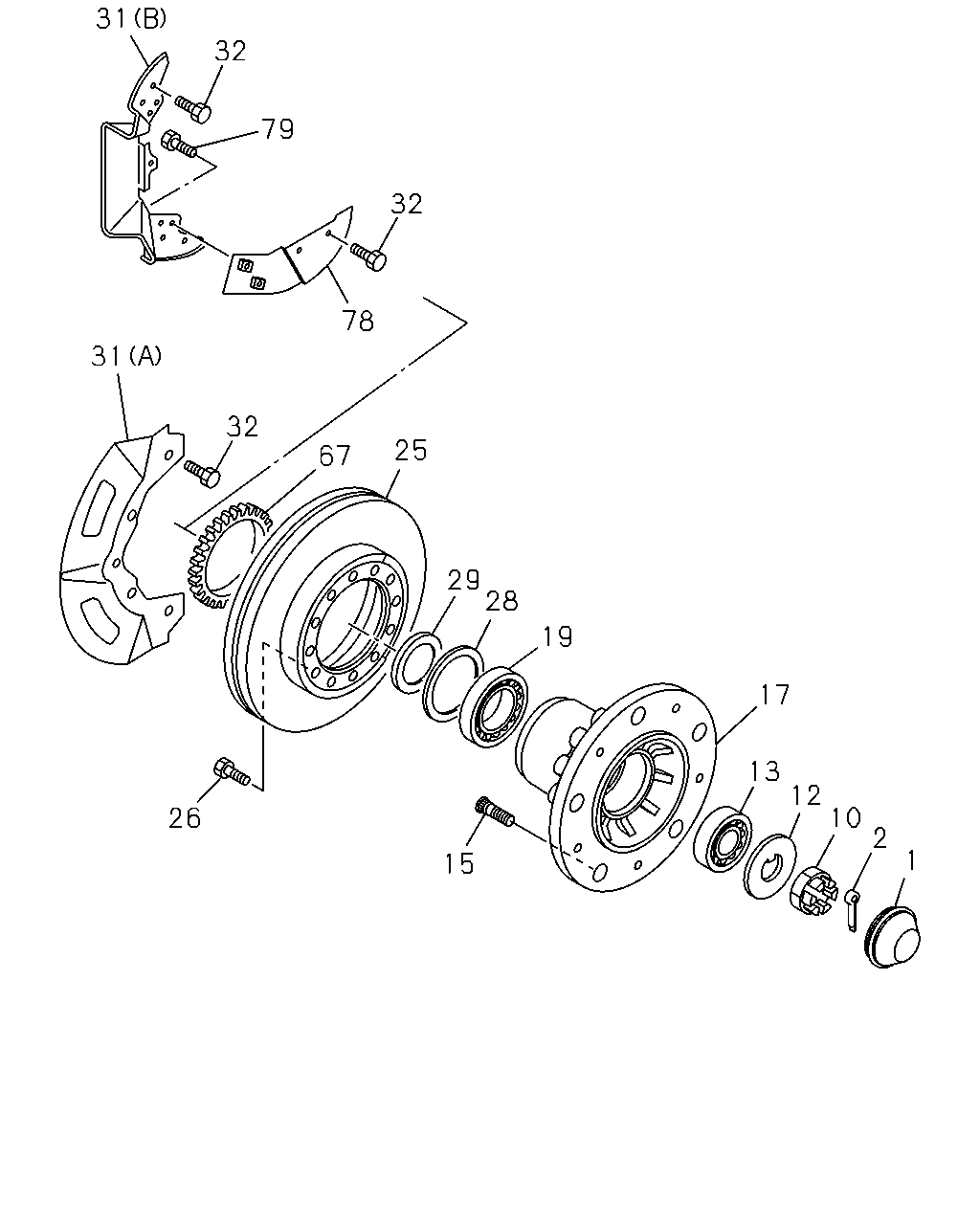

çizim 122530
32 79 32 31 31 32 78 67 25 29 28 19 17 13 12 10 2 1 15 26
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 06.330 CAP; HUB,FRT AXLE 8-97360-101-0 02 1 1009-1407 ● ● ● ● ● ●
1 06.330 CAP; HUB,FRT AXLE 8-98276-604-0 02 1 1408-1511 ● ● ● ● ● ●
1 06.330 CAP; HUB,FRT AXLE 8-98331-242-0 02 1 1512- ● ● ● ● ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		0-81125-040-0 02 1 1009- ● ● ● ● ● ●
10 05.812 NUT; FRT HUB BRG
06.022 		8-94247-357-1 02 1 1009- ● ● ● ● ● ●
12 06.321 WASHER; LK,FRT HUB BRG 8-94247-356-1 02 1 1009-1502 ● ● ● ● ● ●
12 06.321 WASHER; LK,FRT HUB BRG
05.812 		8-98282-435-0 02 1 1503- ● ● ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
NSK 		9-00093-172-0 02 1 1009- ● ● ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
BEST VALUE PARTS 		5-87610-134-0 02 1 1009- ● ● ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> M20X28,M22X50 RH THREAD 		8-97131-283-3 06 1 1505- ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> M20X28 LH THREAD,M22X50 RH THREAD 		8-97131-284-3 06 1 1505- ● ●
15 05.812 PIN; WHEEL,FRT AXLE
M18X46 RH THREAD 		8-98028-532-1 05 1 1009- ● ●
15 05.812 PIN; WHEEL,FRT AXLE
F&R195/85R16(MICHELIN)16X5.5J-116.5 5 -WHL/NUT(CVS),F&R195/85R16(BS BRAND)16X5.5J-116.5 5-WHL/NUT(CVU) M18X46 RH THREAD 		8-98028-532-1 05 1 1009- ●
15 05.812 PIN; WHEEL,FRT AXLE
M18X46 LH THREAD 		8-98028-533-1 05 1 1009- ● ●
15 05.812 PIN; WHEEL,FRT AXLE
F&R195/85R16(MICHELIN)16X5.5J-116.5 5 -WHL/NUT(CVS),F&R195/85R16(BS BRAND)16X5.5J-116.5 5-WHL/NUT(CVU) M18X46 LH THREAD 		8-98028-533-1 05 1 1009- ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT &RR TIRE 215-75R17.5 DISC 17.5-6-127S ILVER(CTV),F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV),F&R 215/75R17. 5(BS BRAND)17.5X6.00-127 SILVER(CVW) M20X53 RH THREAD 		8-97168-456-2 06 1 1009-1504 ●
15 05.812 PIN; WHEEL,FRT AXLE
M20X53 RH THREAD 		8-97168-456-2 06 1 1009-1504 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT &RR TIRE 215-75R17.5 DISC 17.5-6-127S ILVER(CTV),F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV),F&R 215/75R17. 5(BS BRAND)17.5X6.00-127 SILVER(CVW), F&R195/85R16(MICHELIN)16X5.5J-127 6-W HL/NUT(CYJ),F&R195/85R16(BS BRAND)16X5.5J-127 6-WHL/NUT(CYK) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) M20X53 RH THREAD 		8-97168-456-2 06 1 1505- ● ●
15 05.812 PIN; WHEEL,FRT AXLE
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) M20X53 RH THREAD 		8-97168-456-2 06 1 1505- ● ●
15 05.812 PIN; WHEEL,FRT AXLE
M20X53 RH THREAD 		8-97168-456-2 06 1 1505- ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT &RR TIRE 215-75R17.5 DISC 17.5-6-127S ILVER(CTV),F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV),F&R 215/75R17. 5(BS BRAND)17.5X6.00-127 SILVER(CVW) M20X53 LH THREAD 		8-97168-457-2 06 1 1009-1504 ●
15 05.812 PIN; WHEEL,FRT AXLE
M20X53 LH THREAD 		8-97168-457-2 06 1 1009-1504 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT &RR TIRE 215-75R17.5 DISC 17.5-6-127S ILVER(CTV),F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV),F&R 215/75R17. 5(BS BRAND)17.5X6.00-127 SILVER(CVW), F&R195/85R16(MICHELIN)16X5.5J-127 6-W HL/NUT(CYJ),F&R195/85R16(BS BRAND)16X5.5J-127 6-WHL/NUT(CYK) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) M20X53 LH THREAD 		8-97168-457-2 06 1 1505- ● ●
15 05.812 PIN; WHEEL,FRT AXLE
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) M20X53 LH THREAD 		8-97168-457-2 06 1 1505- ● ●
15 05.812 PIN; WHEEL,FRT AXLE
M20X53 LH THREAD 		8-97168-457-2 06 1 1505- ● ●
17 06.307 HUB; FRT AXLE
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97349-911-0 02 1 1505- ● ●
17 06.307 HUB; FRT AXLE 8-97035-160-0 02 1 1009- ● ●
17 06.307 HUB; FRT AXLE
F&R195/85R16(MICHELIN)16X5.5J-116.5 5 -WHL/NUT(CVS),F&R195/85R16(BS BRAND)16X5.5J-116.5 5-WHL/NUT(CVU) 		8-97035-160-0 02 1 1009- ●
17 06.307 HUB; FRT AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT &RR TIRE 215-75R17.5 DISC 17.5-6-127S ILVER(CTV),F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV),F&R 215/75R17. 5(BS BRAND)17.5X6.00-127 SILVER(CVW) 		8-97168-460-0 02 1 1009-1504 ●
17 06.307 HUB; FRT AXLE 8-97168-460-0 02 1 1009-1504 ● ● ●
17 06.307 HUB; FRT AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT &RR TIRE 215-75R17.5 DISC 17.5-6-127S ILVER(CTV),F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV),F&R 215/75R17. 5(BS BRAND)17.5X6.00-127 SILVER(CVW), F&R195/85R16(MICHELIN)16X5.5J-127 6-W HL/NUT(CYJ),F&R195/85R16(BS BRAND)16X5.5J-127 6-WHL/NUT(CYK) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) 		8-97168-460-0 02 1 1505- ● ●
17 06.307 HUB; FRT AXLE
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) 		8-97168-460-0 02 1 1505- ● ●
17 06.307 HUB; FRT AXLE 8-97168-460-0 02 1 1505- ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-94248-088-2 02 1 1009-1009 ● ● ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-98171-254-0 02 1 1010- ● ● ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
NSK 		9-00093-149-0 02 1 1009-1009 ● ● ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
BEST VALUE PARTS 		1-87610-134-0 02 1 1010- ● ● ● ● ● ●
25 05.809 ROTOR; DISC BRK,FRT 8-97387-229-0 02 1 1009- ● ● ●
25 05.809 ROTOR; DISC BRK,FRT
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) 		8-97387-229-0 02 1 1009- ●
25 05.809 ROTOR; DISC BRK,FRT
G.V.W. 7.5-8.0TON(RPY) 		8-98105-058-0 02 1 1009-1309 ●
25 05.809 ROTOR; DISC BRK,FRT
G.V.W. 7.5-8.0TON(RPY) 		8-98248-895-0 02 1 1310-1504 ●
25 05.809 ROTOR; DISC BRK,FRT
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) 		8-98248-895-0 02 1 1505- ● ●
25 05.809 ROTOR; DISC BRK,FRT 8-98006-395-0 02 1 1009- ● ●
26 05.812 BOLT; BRK,DISC TO HUB 8-94474-923-0 24 1 1009-1504 ● ● ● ● ● ●
26 05.812 BOLT; BRK,DISC TO HUB 8-94474-923-0 24 1 1505- ● ● ● ●
26 05.812 BOLT; BRK,DISC TO HUB
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) 		8-94474-923-0 24 1 1505- ● ●
26 05.812 BOLT; BRK,DISC TO HUB
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) 		8-94474-923-0 24 1 1505- ● ●
28 06.326 SEAL; OIL,FRT HUB 8-94248-117-1 02 1 1009- ● ● ● ● ● ●
29 06.326 DISTANCE PIECE; HUB BRKT
NTN 		8-97234-513-0 02 1 1009- ● ● ● ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
(A) 		8-98037-377-0 02 1 1009-1504 ● ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
(A) 		8-98037-377-0 02 1 1505- ● ●
31 04.665 COVER; DUST,FRT BRAKE
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (A) 		8-98037-377-0 02 1 1505- ● ●
31 04.665 COVER; DUST,FRT BRAKE
(B) 		8-97333-375-0 01 1 1009-1107 ● ●
31 04.665 COVER; DUST,FRT BRAKE
(B) 		8-98152-300-0 01 1 1108- ● ●
31 04.665 COVER; DUST,FRT BRAKE
(B) 		8-97333-376-0 01 1 1009-1107 ● ●
31 04.665 COVER; DUST,FRT BRAKE
(B) 		8-98152-301-0 01 1 1108- ● ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
02.343 M8X12 FLANGE 		0-28050-812-0 08 1 1009-1504 ● ● ● ● ● ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
02.343 M8X12 FLANGE 		0-28050-812-0 08 1 1505- ● ● ● ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) 02.343 M8X12 FLANGE 		0-28050-812-0 08 1 1505- ● ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) 02.343 M8X12 FLANGE 		0-28050-812-0 08 1 1505- ● ●
67 05.811 ROTOR; SENSOR
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97387-158-0 02 1 1505- ● ●
67 05.811 ROTOR; SENSOR 8-97387-159-0 02 1 1009-1504 ● ● ● ● ● ●
67 05.811 ROTOR; SENSOR 8-97387-159-0 02 1 1505- ● ● ● ●
67 05.811 ROTOR; SENSOR
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) 		8-97387-159-0 02 1 1505- ● ●
67 05.811 ROTOR; SENSOR
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) 		8-97387-159-0 02 1 1505- ● ●
78 04.665 BRACKET; DUST COVER 8-97207-172-1 01 1 1009- ● ●
78 04.665 BRACKET; DUST COVER 8-97207-173-1 01 1 1009- ● ●
79 04.665 BOLT; BRKT
02.343 M8X12 FLANGE 		0-28050-812-0 04 1 1009- ● ●

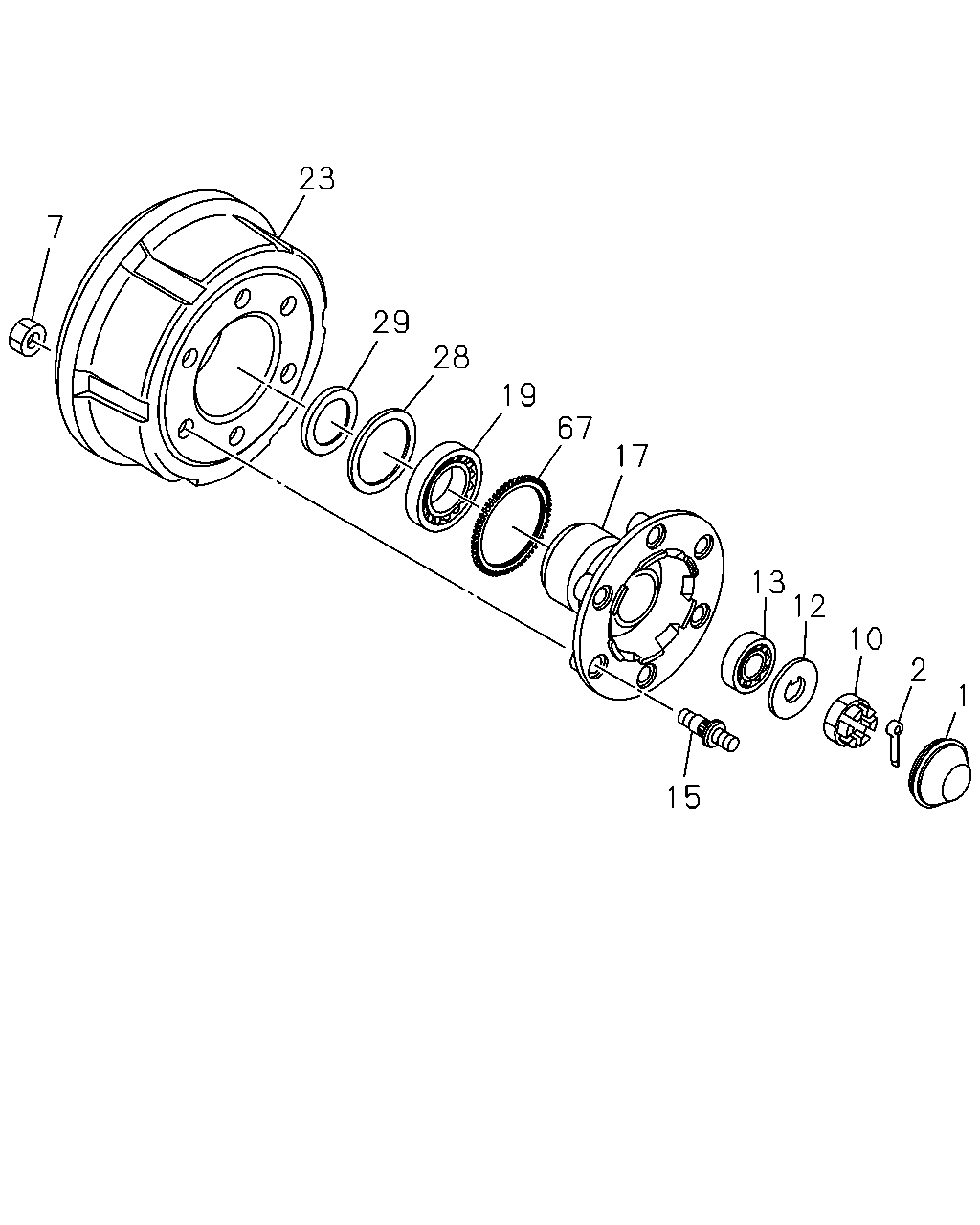

çizim 388584
29 23 7 28 67 19 17 13 2 10 12 15 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 06.330 CAP; HUB,FRT AXLE 8-97360-101-0 02 1 1009-1407 ● ● ● ● ● ●
1 06.330 CAP; HUB,FRT AXLE 8-98276-604-0 02 1 1408-1511 ● ● ● ● ● ●
1 06.330 CAP; HUB,FRT AXLE 8-98331-242-0 02 1 1512- ● ● ● ● ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		0-81125-040-0 02 1 1009- ● ● ● ● ● ●
7 05.812 NUT; FRT HUB
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 07.172 M22 		0-91110-522-0 12 1 1505- ● ●
10 05.812 NUT; FRT HUB BRG
06.022 		8-94247-357-1 02 1 1009- ● ● ● ● ● ●
12 06.321 WASHER; LK,FRT HUB BRG 8-94247-356-1 02 1 1009-1502 ● ● ● ● ● ●
12 06.321 WASHER; LK,FRT HUB BRG
05.812 		8-98282-435-0 02 1 1503- ● ● ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
NSK 		9-00093-172-0 02 1 1009- ● ● ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
BEST VALUE PARTS 		5-87610-134-0 02 1 1009- ● ● ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> M20X28,M22X50 RH THREAD 		8-97131-283-3 06 1 1505- ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> M20X28 LH THREAD,M22X50 RH THREAD 		8-97131-284-3 06 1 1505- ● ●
15 05.812 PIN; WHEEL,FRT AXLE
M18X46 RH THREAD 		8-98028-532-1 05 1 1009- ● ●
15 05.812 PIN; WHEEL,FRT AXLE
F&R195/85R16(MICHELIN)16X5.5J-116.5 5 -WHL/NUT(CVS),F&R195/85R16(BS BRAND)16X5.5J-116.5 5-WHL/NUT(CVU) M18X46 RH THREAD 		8-98028-532-1 05 1 1009- ●
15 05.812 PIN; WHEEL,FRT AXLE
M18X46 LH THREAD 		8-98028-533-1 05 1 1009- ● ●
15 05.812 PIN; WHEEL,FRT AXLE
F&R195/85R16(MICHELIN)16X5.5J-116.5 5 -WHL/NUT(CVS),F&R195/85R16(BS BRAND)16X5.5J-116.5 5-WHL/NUT(CVU) M18X46 LH THREAD 		8-98028-533-1 05 1 1009- ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT &RR TIRE 215-75R17.5 DISC 17.5-6-127S ILVER(CTV),F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV),F&R 215/75R17. 5(BS BRAND)17.5X6.00-127 SILVER(CVW) M20X53 RH THREAD 		8-97168-456-2 06 1 1009-1504 ●
15 05.812 PIN; WHEEL,FRT AXLE
M20X53 RH THREAD 		8-97168-456-2 06 1 1009-1504 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT &RR TIRE 215-75R17.5 DISC 17.5-6-127S ILVER(CTV),F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV),F&R 215/75R17. 5(BS BRAND)17.5X6.00-127 SILVER(CVW), F&R195/85R16(MICHELIN)16X5.5J-127 6-W HL/NUT(CYJ),F&R195/85R16(BS BRAND)16X5.5J-127 6-WHL/NUT(CYK) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) M20X53 RH THREAD 		8-97168-456-2 06 1 1505- ● ●
15 05.812 PIN; WHEEL,FRT AXLE
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) M20X53 RH THREAD 		8-97168-456-2 06 1 1505- ● ●
15 05.812 PIN; WHEEL,FRT AXLE
M20X53 RH THREAD 		8-97168-456-2 06 1 1505- ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT &RR TIRE 215-75R17.5 DISC 17.5-6-127S ILVER(CTV),F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV),F&R 215/75R17. 5(BS BRAND)17.5X6.00-127 SILVER(CVW) M20X53 LH THREAD 		8-97168-457-2 06 1 1009-1504 ●
15 05.812 PIN; WHEEL,FRT AXLE
M20X53 LH THREAD 		8-97168-457-2 06 1 1009-1504 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT &RR TIRE 215-75R17.5 DISC 17.5-6-127S ILVER(CTV),F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV),F&R 215/75R17. 5(BS BRAND)17.5X6.00-127 SILVER(CVW), F&R195/85R16(MICHELIN)16X5.5J-127 6-W HL/NUT(CYJ),F&R195/85R16(BS BRAND)16X5.5J-127 6-WHL/NUT(CYK) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) M20X53 LH THREAD 		8-97168-457-2 06 1 1505- ● ●
15 05.812 PIN; WHEEL,FRT AXLE
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) M20X53 LH THREAD 		8-97168-457-2 06 1 1505- ● ●
15 05.812 PIN; WHEEL,FRT AXLE
M20X53 LH THREAD 		8-97168-457-2 06 1 1505- ● ●
17 06.307 HUB; FRT AXLE
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97349-911-0 02 1 1505- ● ●
17 06.307 HUB; FRT AXLE 8-97035-160-0 02 1 1009- ● ●
17 06.307 HUB; FRT AXLE
F&R195/85R16(MICHELIN)16X5.5J-116.5 5 -WHL/NUT(CVS),F&R195/85R16(BS BRAND)16X5.5J-116.5 5-WHL/NUT(CVU) 		8-97035-160-0 02 1 1009- ●
17 06.307 HUB; FRT AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT &RR TIRE 215-75R17.5 DISC 17.5-6-127S ILVER(CTV),F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV),F&R 215/75R17. 5(BS BRAND)17.5X6.00-127 SILVER(CVW) 		8-97168-460-0 02 1 1009-1504 ●
17 06.307 HUB; FRT AXLE 8-97168-460-0 02 1 1009-1504 ● ● ●
17 06.307 HUB; FRT AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT &RR TIRE 215-75R17.5 DISC 17.5-6-127S ILVER(CTV),F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV),F&R 215/75R17. 5(BS BRAND)17.5X6.00-127 SILVER(CVW), F&R195/85R16(MICHELIN)16X5.5J-127 6-W HL/NUT(CYJ),F&R195/85R16(BS BRAND)16X5.5J-127 6-WHL/NUT(CYK) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) 		8-97168-460-0 02 1 1505- ● ●
17 06.307 HUB; FRT AXLE
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) 		8-97168-460-0 02 1 1505- ● ●
17 06.307 HUB; FRT AXLE 8-97168-460-0 02 1 1505- ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-94248-088-2 02 1 1009-1009 ● ● ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-98171-254-0 02 1 1010- ● ● ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
NSK 		9-00093-149-0 02 1 1009-1009 ● ● ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
BEST VALUE PARTS 		1-87610-134-0 02 1 1010- ● ● ● ● ● ●
23 05.809 DRUM; BRK,FRT
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97188-115-0 02 1 1505- ● ●
28 06.326 SEAL; OIL,FRT HUB 8-94248-117-1 02 1 1009- ● ● ● ● ● ●
29 06.326 DISTANCE PIECE; HUB BRKT
NTN 		8-97234-513-0 02 1 1009- ● ● ● ● ● ●
67 05.811 ROTOR; SENSOR
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97387-158-0 02 1 1505- ● ●
67 05.811 ROTOR; SENSOR 8-97387-159-0 02 1 1009-1504 ● ● ● ● ● ●
67 05.811 ROTOR; SENSOR 8-97387-159-0 02 1 1505- ● ● ● ●
67 05.811 ROTOR; SENSOR
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) 		8-97387-159-0 02 1 1505- ● ●
67 05.811 ROTOR; SENSOR
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) 		8-97387-159-0 02 1 1505- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
