◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51276 - NNR/NPR/NQR AUST/NZ EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-10 - FRONT AXLE ▶
4-10 — FRONT AXLE (#78308) — 93 parça

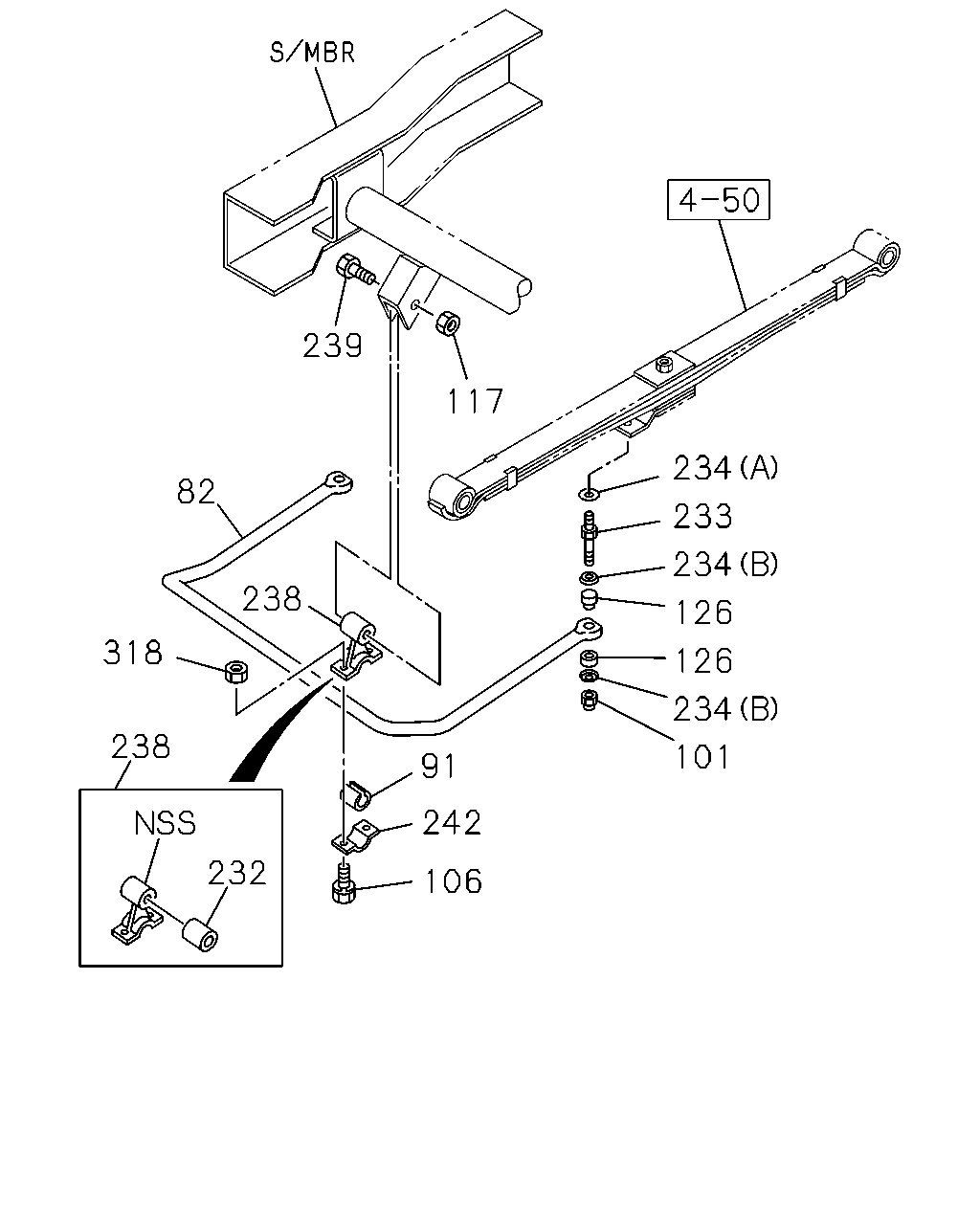

çizim 122551
234 234 233 126 234 101 126 91 242 106 232 238 318 82 238 239 117
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
82 07.241 BAR; STAB,FRT SUSP 8-98006-957-0 01 1 1009- ● ● ● ● ●
82 07.241 BAR; STAB,FRT SUSP
FRONT STABILIZER SHAFT<F59> 		8-98006-957-0 01 1 1009- ●
91 07.243 BUSHING; RUBBER,STAB BAR 8-94342-187-0 02 1 1009- ● ● ● ● ●
91 07.243 BUSHING; RUBBER,STAB BAR
FRONT STABILIZER SHAFT<F59> 		8-94342-187-0 02 1 1009- ●
101 07.242 NUT; STAB BAR
M12 LOCK NUT 		0-91370-012-0 02 1 1009- ● ● ● ● ●
101 07.242 NUT; STAB BAR
FRONT STABILIZER SHAFT<F59> M12 LOCK NUT 		0-91370-012-0 02 1 1009- ●
106 06.216 BOLT; CAP FIX
00.029 M10X25 FLANGE 		0-28651-025-0 04 1 1009- ● ● ● ● ●
106 06.216 BOLT; CAP FIX
FRONT STABILIZER SHAFT<F59> 00.029 M10X25 FLANGE 		0-28651-025-0 04 1 1009- ●
117 06.174 NUT; STAB BAR BUSHING
M14 FLANGE 		8-97360-124-0 02 1 1009- ● ● ● ● ●
117 06.174 NUT; STAB BAR BUSHING
FRONT STABILIZER SHAFT<F59> M14 FLANGE 		8-97360-124-0 02 1 1009- ●
126 07.243 RUBBER; MTG,STAB BAR 8-94342-083-0 04 1 1009- ● ● ● ● ●
126 07.243 RUBBER; MTG,STAB BAR
FRONT STABILIZER SHAFT<F59> 		8-94342-083-0 04 1 1009- ●
232 07.243 BUSHING; LINK ROD 8-97239-911-0 02 1 1009- ● ● ● ● ●
232 07.243 BUSHING; LINK ROD
FRONT STABILIZER SHAFT<F59> 		8-97239-911-0 02 1 1009- ●
233 07.242 STUD; STABILIZER 8-97360-120-0 02 1 1009- ● ● ● ● ●
233 07.242 STUD; STABILIZER
FRONT STABILIZER SHAFT<F59> 		8-97360-120-0 02 1 1009- ●
234 07.242 WASHER; STAB
05.605 (A) ID=14.2 		0-91510-514-0 02 1 1009- ● ● ● ● ●
234 07.242 WASHER; STAB
FRONT STABILIZER SHAFT<F59> 05.605 (A) ID=14.2 		0-91510-514-0 02 1 1009- ●
234 07.242 WASHER; STAB
(B) ID=12.5 		8-97360-055-0 04 1 1009- ● ● ● ● ●
234 07.242 WASHER; STAB
FRONT STABILIZER SHAFT<F59> (B) ID=12.5 		8-97360-055-0 04 1 1009- ●
238 07.240 ROD LINK ASM; STABILIZER,FRT 8-97239-907-0 02 1 1009- ● ● ● ● ●
238 07.240 ROD LINK ASM; STABILIZER,FRT
FRONT STABILIZER SHAFT<F59> 		8-97239-907-0 02 1 1009- ●
239 07.242 BOLT; LINK ROD
M14X70 FLANGE 		0-28851-470-0 02 1 1009- ● ● ● ● ●
239 07.242 BOLT; LINK ROD
FRONT STABILIZER SHAFT<F59> M14X70 FLANGE 		0-28851-470-0 02 1 1009- ●
242 07.242 CAP; LINK ROD 8-94178-430-2 02 1 1009- ● ● ● ● ●
242 07.242 CAP; LINK ROD
FRONT STABILIZER SHAFT<F59> 		8-94178-430-2 02 1 1009- ●
318 07.242 NUT; CAP FIX
03.162 M10 FLANGE 		0-91180-110-0 04 1 1009- ● ● ● ● ●
318 07.242 NUT; CAP FIX
FRONT STABILIZER SHAFT<F59> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1009- ●

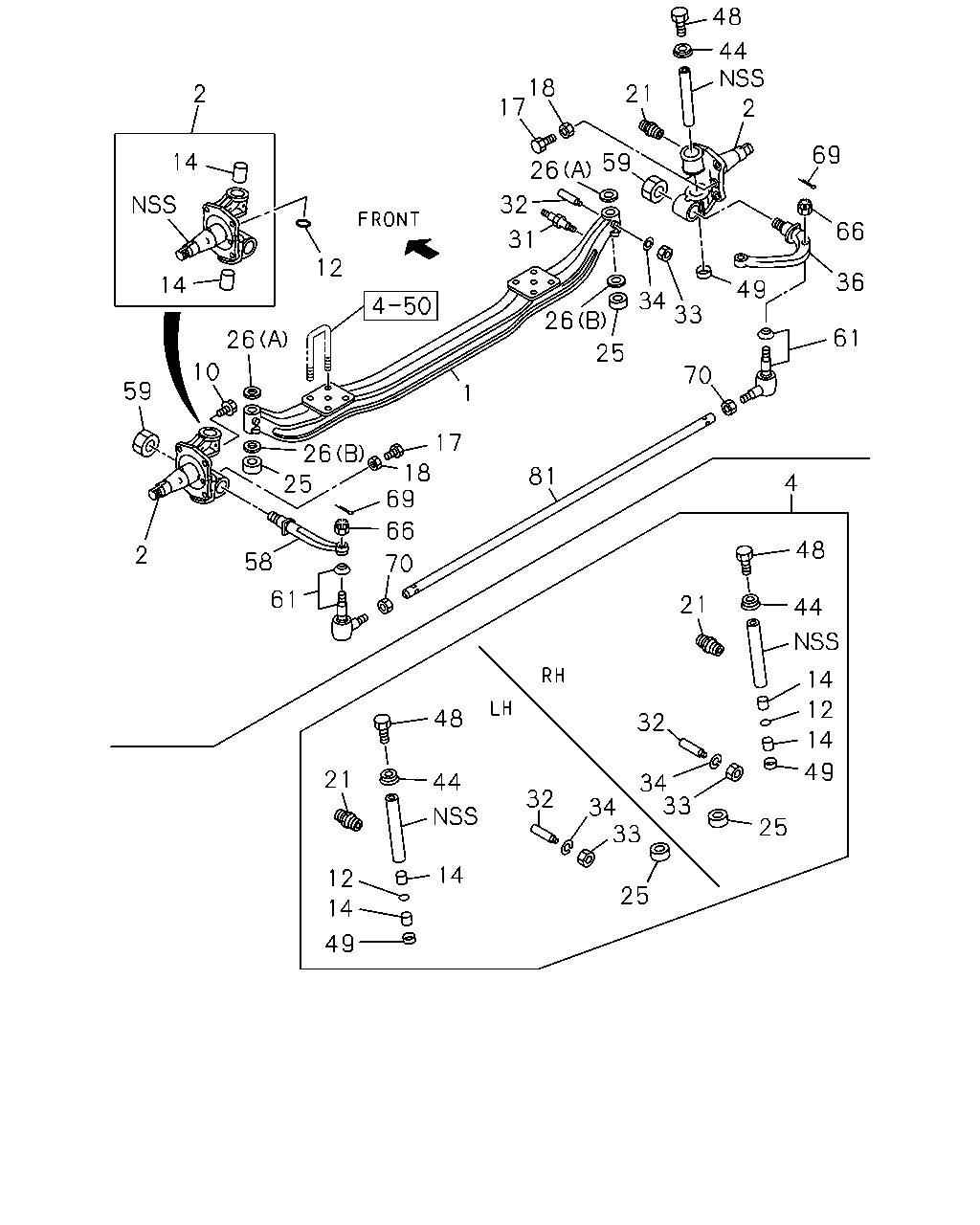

çizim 187179
48 2 44 21 17 18 26 59 32 2 14 14 12 26 10 59 2 58 61 25 26 17 1 18 81 69 70 66 25 26 34 33 49 69 66 36 61 70 4 48 44 21 31 48 44 14 12 14 21 49 32 34 33 34 32 33 25 25 49 12 14 14
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 06.008 AXLE; FRT 8-98038-384-3 01 1 1009- ● ● ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-98009-941-1 01 1 1505- ● ●
2 06.020 KNUCKLE; FRT AXLE
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-98009-942-1 01 1 1505- ● ●
2 06.020 KNUCKLE; FRT AXLE 8-97261-549-2 01 1 1009-1504 ● ● ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE 8-97261-549-2 01 1 1505- ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) 		8-97261-549-2 01 1 1505- ● ●
2 06.020 KNUCKLE; FRT AXLE
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) 		8-97261-549-2 01 1 1505- ● ●
2 06.020 KNUCKLE; FRT AXLE 8-97261-550-2 01 1 1009-1504 ● ● ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE 8-97261-550-2 01 1 1505- ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) 		8-97261-550-2 01 1 1505- ● ●
2 06.020 KNUCKLE; FRT AXLE
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) 		8-97261-550-2 01 1 1505- ● ●
4 06.203 KING PIN KIT
FRAME STRAIGHT TYPE<7KJ> 		5-87832-220-2 01 1 1403- ●
4 06.203 KING PIN KIT 5-87832-220-2 01 1 1403- ● ● ●
4 06.203 KING PIN KIT 5-87832-219-2 01 1 1009-1402 ● ● ● ● ● ●
4 06.203 KING PIN KIT 5-87832-219-2 01 1 1403- ● ●
4 06.203 KING PIN KIT
EXC. FRAME STRAIGHT TYPE<7KJ> 		5-87832-219-2 01 1 1403- ●
10 06.009 PLUG; PLATE,KNUCKLE 8-97360-117-0 01 1 1009- ● ● ● ● ● ●
12 06.021 GASKET; KNUCKLE 8-98084-500-0 02 1 1009- ● ● ● ● ● ●
14 06.021 BUSHING; KING PIN
DAIDO WO/NOTCH 		8-94107-672-3 04 1 1009- ● ● ● ● ● ●
17 06.009 BOLT; STOPPER KNUCKLE
M12X24 EYE-BOLT 		8-97360-059-0 03 1 1009- ● ● ● ● ● ●
18 06.216 NUT; STOPPER BOLT,KNUCKLE
04.439 M12 		0-91111-512-0 03 1 1009- ● ● ● ● ● ●
21 06.166 NIPPLE; GREASE,KING PIN
05.601 M6 STRAIGHT 		0-90301-406-0 04 1 1009- ● ● ● ● ● ●
25 06.210 BEARING; THRUST,KING PIN
06.021 OD=54 ID=30.2 T=13.8 		8-94248-883-2 02 1 1009-1402 ● ● ● ● ● ●
25 06.210 BEARING; THRUST,KING PIN
06.021 OD=54 ID=30.2 T=13.8 		8-94248-883-2 02 1 1403- ● ●
25 06.210 BEARING; THRUST,KING PIN
EXC. FRAME STRAIGHT TYPE<7KJ> 06.021 OD=54 ID=30.2 T=13.8 		8-94248-883-2 02 1 1403- ●
25 06.210 BEARING; THRUST,KING PIN
FRAME STRAIGHT TYPE<7KJ> 06.021 OD=54 ID=30.2 T=13.8 		8-94248-883-2 01 1 1403- ●
25 06.210 BEARING; THRUST,KING PIN
06.021 OD=54 ID=30.2 T=13.8 		8-94248-883-2 01 1 1403- ● ● ●
25 06.210 BEARING; THRUST,KING PIN
FRAME STRAIGHT TYPE<7KJ> OD=51.6 ID=30.5 T=15.6 		8-97141-943-1 01 1 1403- ●
25 06.210 BEARING; THRUST,KING PIN
OD=51.6 ID=30.5 T=15.6 		8-97141-943-1 01 1 1403- ● ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.50 		8-94162-574-0 AR 1 1009- ● ● ● ● ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.55 		8-94162-575-0 AR 1 1009- ● ● ● ● ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.60 		8-94162-576-0 AR 1 1009- ● ● ● ● ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.65 		8-94162-577-0 AR 1 1009- ● ● ● ● ● ●
26 06.022 SHIM; KING PIN,BRG
05.460 (B) T=1.95 		8-94168-490-0 02 1 1009-1402 ● ● ● ● ● ●
26 06.022 SHIM; KING PIN,BRG
05.460 (B) T=1.95 		8-94168-490-0 01 1 1403- ● ● ● ● ● ●
26 06.022 SHIM; KING PIN,BRG
05.460 (B) T=1.95 		8-94168-490-0 01 1 1403- ● ●
26 06.022 SHIM; KING PIN,BRG
EXC. FRAME STRAIGHT TYPE<7KJ> 05.460 (B) T=1.95 		8-94168-490-0 01 1 1403- ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.70 		8-94174-352-0 AR 1 1009- ● ● ● ● ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.80 		8-94174-354-0 AR 1 1009- ● ● ● ● ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.90 		8-94174-356-0 AR 1 1009- ● ● ● ● ● ●
31 07.347 PIN; S/ABS,LWR 8-97145-460-0 02 1 1009- ● ● ● ● ● ●
32 06.216 BOLT; KEY,KING PIN 8-97141-945-2 02 1 1009- ● ● ● ● ● ●
33 06.216 NUT; KEY BOLT
00.833 M10 		0-91110-510-0 02 1 1009- ● ● ● ● ● ●
34 06.216 WASHER; LK,KEY BOLT
06.606 ID=10.2 		0-91510-510-0 02 1 1009- ● ● ● ● ● ●
36 06.103 ARM; KNUCKLE 8-97226-688-4 01 1 1009-1504 ● ●
36 06.103 ARM; KNUCKLE
F&R195/85R16(MICHELIN)16X5.5J-116.5 5 -WHL/NUT(CVS),F&R195/85R16(BS BRAND)16X5.5J-116.5 5-WHL/NUT(CVU) 		8-97226-688-4 01 1 1009-1504 ●
36 06.103 ARM; KNUCKLE 8-97226-688-5 01 1 1505- ● ●
36 06.103 ARM; KNUCKLE
F&R195/85R16(MICHELIN)16X5.5J-116.5 5 -WHL/NUT(CVS),F&R195/85R16(BS BRAND)16X5.5J-116.5 5-WHL/NUT(CVU),F&R195/85 R16(MICHELIN)16X5.5J-127 6-WHL/NUT(CYJ),F&R195/85R16(BS BRAND)16X5.5J-1276-WHL/NUT(CYK) 		8-97226-688-5 01 1 1505- ●
36 06.103 ARM; KNUCKLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT &RR TIRE 215-75R17.5 DISC 17.5-6-127S ILVER(CTV),F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV),F&R 215/75R17. 5(BS BRAND)17.5X6.00-127 SILVER(CVW) 		8-97202-776-5 01 1 1009- ●
36 06.103 ARM; KNUCKLE 8-97202-776-5 01 1 1009- ● ● ●
44 06.225 COVER; KING PIN
OD=36 		8-97360-023-0 02 1 1009- ● ● ● ● ● ●
48 06.225 BOLT; COVER
M10X12 FLANGE 		0-28051-012-0 02 1 1009- ● ● ● ● ● ●
49 06.225 CAP; KNUCKLE 8-97360-024-0 02 1 1009- ● ● ● ● ● ●
58 06.103 ARM; TIE ROD 8-97138-304-2 01 1 1009- ● ● ● ● ● ●
59 06.104 NUT; TIE ROD ARM 8-97360-123-0 02 1 1009- ● ● ● ● ● ●
61 06.233 ROD END; TIE ROD 8-97142-100-1 01 1 1009-1310 ● ● ● ● ● ●
61 06.233 ROD END; TIE ROD 8-97107-348-2 01 1 1311- ● ● ● ● ● ●
61 06.233 ROD END; TIE ROD 8-97142-101-1 01 1 1009-1310 ● ● ● ● ● ●
61 06.233 ROD END; TIE ROD 8-97107-349-2 01 1 1311- ● ● ● ● ● ●
66 06.234 NUT; TIE ROD END
M16 SLOTTED 		0-91116-516-0 02 1 1009-1204 ● ● ● ● ● ●
66 06.234 NUT; TIE ROD END
06.216 M16 SLOTTED 		8-98049-689-0 02 1 1205- ● ● ● ● ● ●
69 06.255 PIN; SPLIT,TIE ROD END
OD=3.7 L=20 		0-81124-020-0 02 1 1009- ● ● ● ● ● ●
70 06.234 NUT; TIE ROD END
M20 LH THREAD 		8-94254-726-0 01 1 1009- ● ● ● ● ● ●
70 06.234 NUT; TIE ROD END
M20 RH THREAD 		8-98043-530-0 01 1 1009- ● ● ● ● ● ●
81 06.230 ROD; TIE 8-97061-869-0 01 1 1009- ● ● ● ● ● ●
