3-52 — BRAKE PIPING; OIL,FRONT (#78303) — 180 parça

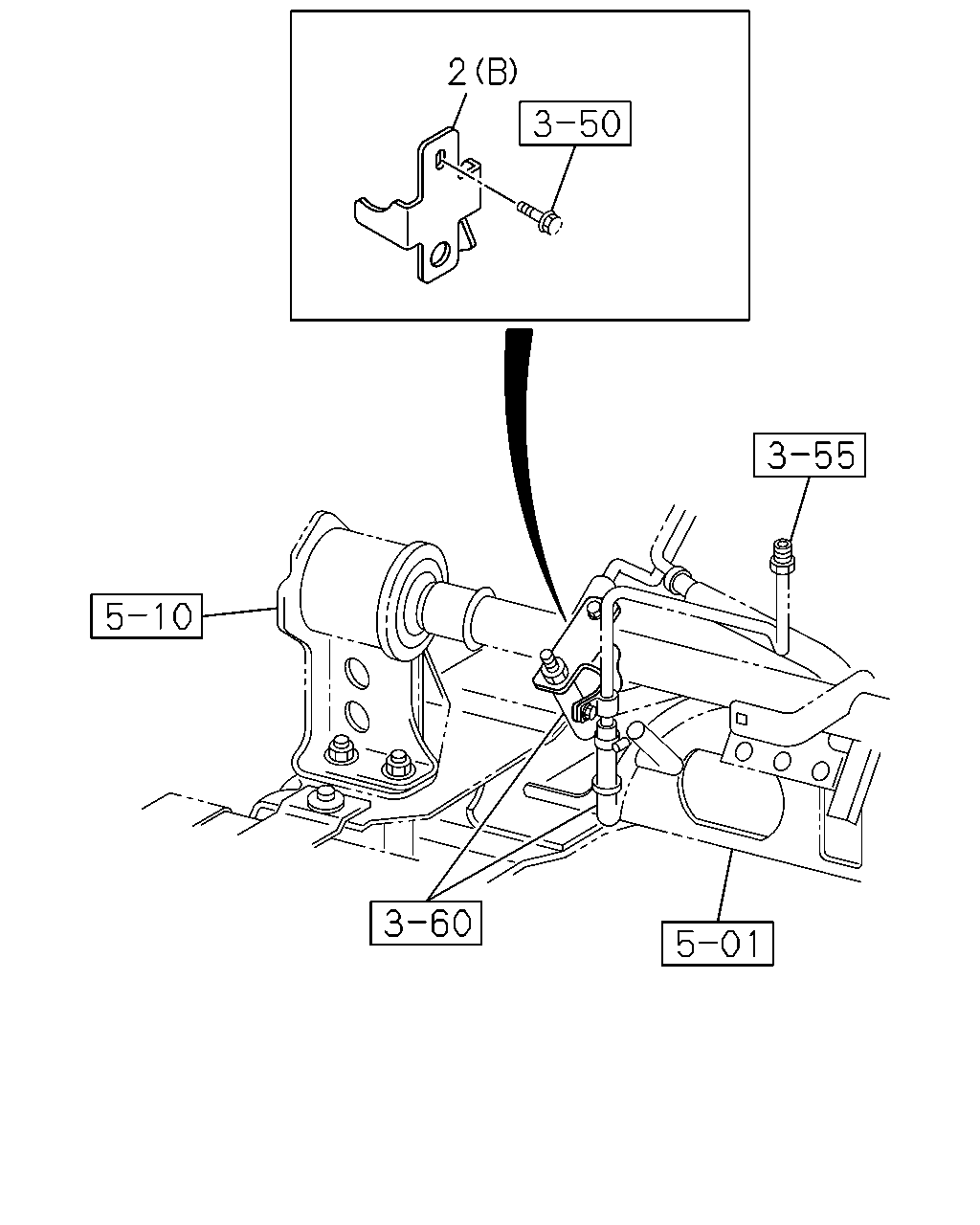

çizim 119672
2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-98047-527-1 01 1 1009-1011 ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-98047-527-1 01 1 1012-1504 ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98047-527-1 01 1 1012-1504 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (A) 		8-98047-527-1 01 1 1505- ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98047-527-1 01 1 1505- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-98047-528-1 01 1 1009-1011 ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-98047-528-1 01 1 1012-1504 ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98047-528-1 01 1 1012-1504 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (A) 		8-98047-528-1 01 1 1505- ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98047-528-1 01 1 1505- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98136-577-0 01 1 1009-1504 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(B) 		8-98136-577-0 01 1 1009-1504 ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98136-577-0 01 1 1505- ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(B) 		8-98136-577-0 01 1 1505- ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-97365-776-3 01 1 1009-1011 ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97365-776-3 01 1 1012-1504 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-97365-776-3 01 1 1012-1504 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97365-776-3 01 1 1505- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (A) 		8-97365-776-3 01 1 1505- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-97365-778-3 01 1 1009-1011 ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97365-778-3 01 1 1012-1504 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-97365-778-3 01 1 1012-1504 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97365-778-3 01 1 1505- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (A) 		8-97365-778-3 01 1 1505- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-97365-777-3 01 1 1009- ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-97365-779-3 01 1 1009- ● ●

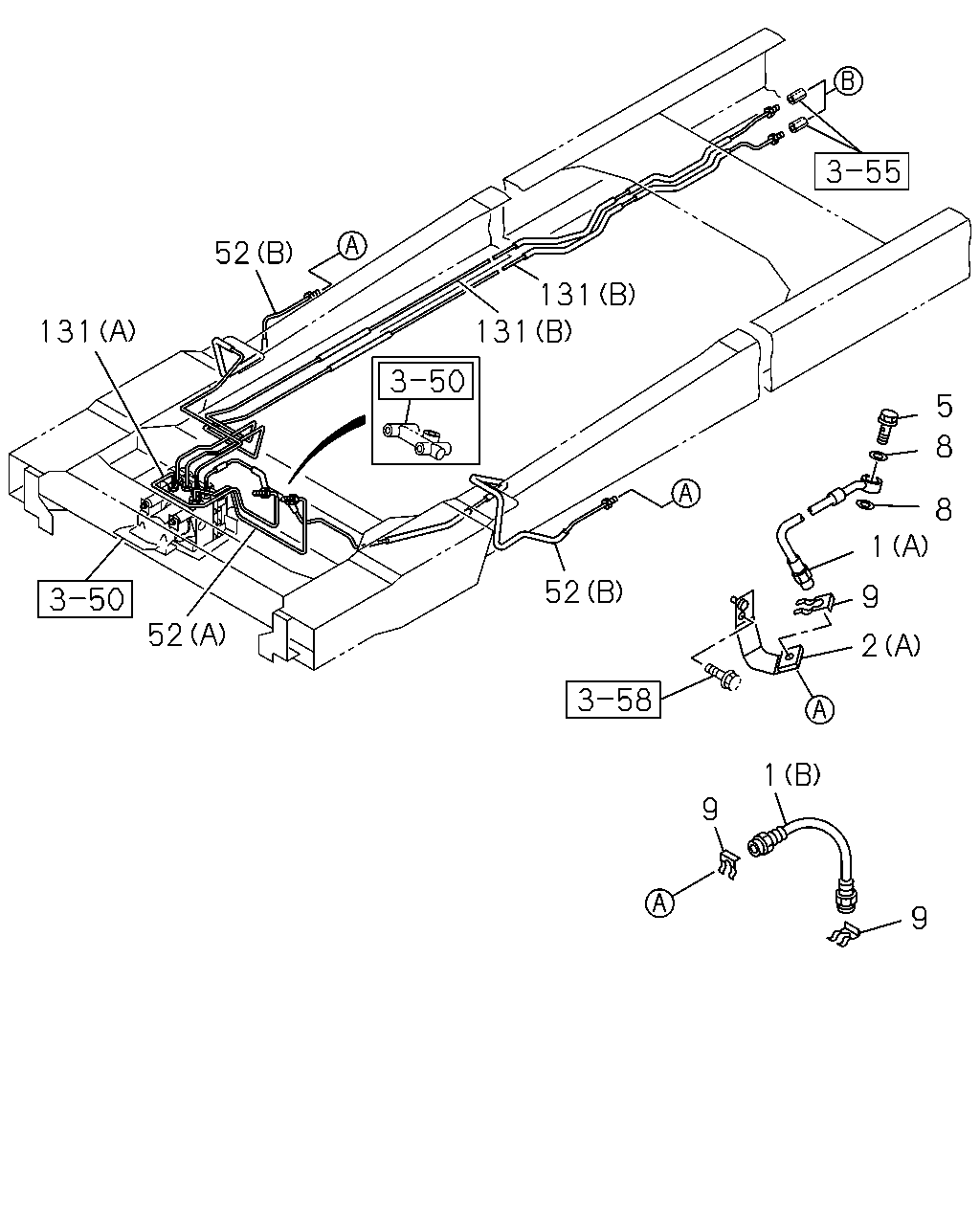

çizim 119714
52 131 131 131 52 52 9 2 1 9 9 1 8 8 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.680 HOSE; FLEX,FRT BRK
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-97039-543-1 02 1 1505- ● ●
1 04.680 HOSE; FLEX,FRT BRK
(A) 		8-97365-481-1 02 1 1009-1504 ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
(A) 		8-97365-481-1 02 1 1505- ● ●
1 04.680 HOSE; FLEX,FRT BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (A) 		8-97365-481-1 02 1 1505- ● ●
1 04.680 HOSE; FLEX,FRT BRK
(A) 		8-97365-482-1 02 1 1009- ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-98047-527-1 01 1 1009-1011 ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-98047-527-1 01 1 1012-1504 ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98047-527-1 01 1 1012-1504 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (A) 		8-98047-527-1 01 1 1505- ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98047-527-1 01 1 1505- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-98047-528-1 01 1 1009-1011 ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-98047-528-1 01 1 1012-1504 ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98047-528-1 01 1 1012-1504 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (A) 		8-98047-528-1 01 1 1505- ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98047-528-1 01 1 1505- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98136-577-0 01 1 1009-1504 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(B) 		8-98136-577-0 01 1 1009-1504 ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98136-577-0 01 1 1505- ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(B) 		8-98136-577-0 01 1 1505- ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-97365-776-3 01 1 1009-1011 ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97365-776-3 01 1 1012-1504 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-97365-776-3 01 1 1012-1504 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97365-776-3 01 1 1505- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (A) 		8-97365-776-3 01 1 1505- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-97365-778-3 01 1 1009-1011 ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97365-778-3 01 1 1012-1504 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-97365-778-3 01 1 1012-1504 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97365-778-3 01 1 1505- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (A) 		8-97365-778-3 01 1 1505- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-97365-777-3 01 1 1009- ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-97365-779-3 01 1 1009- ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
M10X22 		8-98014-005-0 02 1 1009-1504 ● ● ● ● ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
M10X22 		8-98014-005-0 02 1 1505- ● ● ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> M10X22 		8-98014-005-0 02 1 1505- ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1009-1504 ● ● ● ● ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1505- ● ● ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1505- ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 1009-1504 ● ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 1505- ● ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97360-054-0 02 1 1505- ● ●
52 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98053-032-1 01 1 1505- ● ●
52 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98053-033-1 01 1 1505- ● ●
52 04.685 PIPE; BRK
(A) 4WAY TO HU,FRONT 		8-97389-369-1 01 1 1009- ● ● ● ● ● ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98046-877-2 01 1 1009-1011 ● ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98046-877-2 01 1 1012-1504 ● ●
52 04.685 PIPE; BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98046-877-2 01 1 1012-1504 ●
52 04.685 PIPE; BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98046-877-2 01 1 1505- ● ●
52 04.685 PIPE; BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98046-877-2 01 1 1505- ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98046-878-1 01 1 1009-1011 ● ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98046-878-1 01 1 1012-1504 ● ●
52 04.685 PIPE; BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98046-878-1 01 1 1012-1504 ●
52 04.685 PIPE; BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98046-878-1 01 1 1505- ● ●
52 04.685 PIPE; BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98046-878-1 01 1 1505- ●
52 04.685 PIPE; BRK
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98036-162-0 01 1 1009-1504 ●
52 04.685 PIPE; BRK
(C) 		8-98036-162-0 01 1 1009-1504 ● ●
52 04.685 PIPE; BRK
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98036-162-0 01 1 1505- ● ●
52 04.685 PIPE; BRK
(C) 		8-98036-162-0 01 1 1505- ● ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98033-765-2 01 1 1009-1011 ● ● ● ●
52 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98033-765-2 01 1 1012-1504 ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98033-765-2 01 1 1012-1504 ● ● ●
52 04.685 PIPE; BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98033-765-2 01 1 1505- ● ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98033-765-2 01 1 1505- ● ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98033-766-4 01 1 1009-1011 ● ● ● ●
52 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98033-766-4 01 1 1012-1504 ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98033-766-4 01 1 1012-1504 ● ● ●
52 04.685 PIPE; BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98033-766-4 01 1 1505- ● ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98033-766-4 01 1 1505- ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
(A) 4WAY TO HU,REAR 		8-97389-372-2 01 1 1009- ● ● ● ● ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
(B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-97389-420-1 01 1 1009-1011 ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
(B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-97389-420-1 01 1 1012-1106 ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-97389-420-1 01 1 1012-1106 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
(B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-98192-805-0 01 1 1107- ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-98192-805-0 01 1 1107- ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
(B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-97389-425-1 01 1 1009-1011 ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
(B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-97389-425-1 01 1 1012-1106 ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-97389-425-1 01 1 1012-1106 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
(B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-98192-818-0 01 1 1107- ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-98192-818-0 01 1 1107- ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
04.686 (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-98033-767-1 01 1 1009-1011 ● ● ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
FRAME STRAIGHT TYPE<7KJ> 04.686 (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-98033-767-1 01 1 1012- ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
04.686 (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-98033-767-1 01 1 1012- ● ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
04.686 (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-98033-768-1 01 1 1009-1011 ● ● ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
FRAME STRAIGHT TYPE<7KJ> 04.686 (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-98033-768-1 01 1 1012- ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
04.686 (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-98033-768-1 01 1 1012- ● ● ●

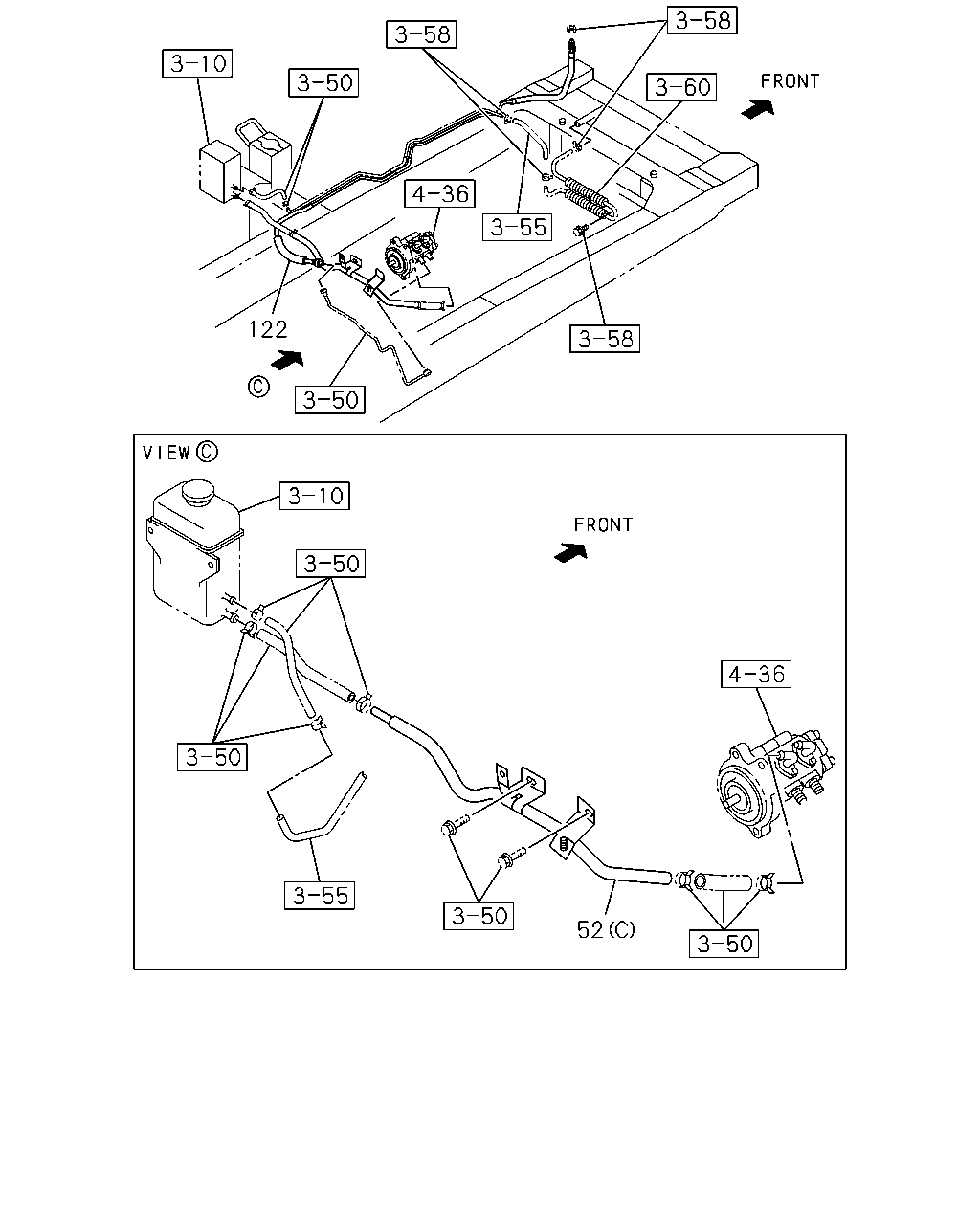

çizim 187285
122 52
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
52 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98053-032-1 01 1 1505- ● ●
52 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98053-033-1 01 1 1505- ● ●
52 04.685 PIPE; BRK
(A) 4WAY TO HU,FRONT 		8-97389-369-1 01 1 1009- ● ● ● ● ● ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98046-877-2 01 1 1009-1011 ● ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98046-877-2 01 1 1012-1504 ● ●
52 04.685 PIPE; BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98046-877-2 01 1 1012-1504 ●
52 04.685 PIPE; BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98046-877-2 01 1 1505- ● ●
52 04.685 PIPE; BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98046-877-2 01 1 1505- ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98046-878-1 01 1 1009-1011 ● ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98046-878-1 01 1 1012-1504 ● ●
52 04.685 PIPE; BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98046-878-1 01 1 1012-1504 ●
52 04.685 PIPE; BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98046-878-1 01 1 1505- ● ●
52 04.685 PIPE; BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98046-878-1 01 1 1505- ●
52 04.685 PIPE; BRK
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98036-162-0 01 1 1009-1504 ●
52 04.685 PIPE; BRK
(C) 		8-98036-162-0 01 1 1009-1504 ● ●
52 04.685 PIPE; BRK
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98036-162-0 01 1 1505- ● ●
52 04.685 PIPE; BRK
(C) 		8-98036-162-0 01 1 1505- ● ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98033-765-2 01 1 1009-1011 ● ● ● ●
52 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98033-765-2 01 1 1012-1504 ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98033-765-2 01 1 1012-1504 ● ● ●
52 04.685 PIPE; BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98033-765-2 01 1 1505- ● ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98033-765-2 01 1 1505- ● ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98033-766-4 01 1 1009-1011 ● ● ● ●
52 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98033-766-4 01 1 1012-1504 ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98033-766-4 01 1 1012-1504 ● ● ●
52 04.685 PIPE; BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98033-766-4 01 1 1505- ● ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98033-766-4 01 1 1505- ● ●
122 04.685 PIPE ASM; BRK,2 WAY
HYDRO BRAKE BOOSTER(7QQ) L=1839 		8-98136-573-0 01 1 1009- ●
122 04.685 PIPE ASM; BRK,2 WAY
L=1839 		8-98136-573-0 01 1 1009- ●
122 04.685 PIPE ASM; BRK,2 WAY
L=1958 		8-98136-574-0 01 1 1009-1504 ●
122 04.685 PIPE ASM; BRK,2 WAY
HYDRO BRAKE BOOSTER(7QQ) L=1958 		8-98136-574-0 01 1 1505- ●
122 04.685 PIPE ASM; BRK,2 WAY
L=1958 		8-98136-574-0 01 1 1505- ●

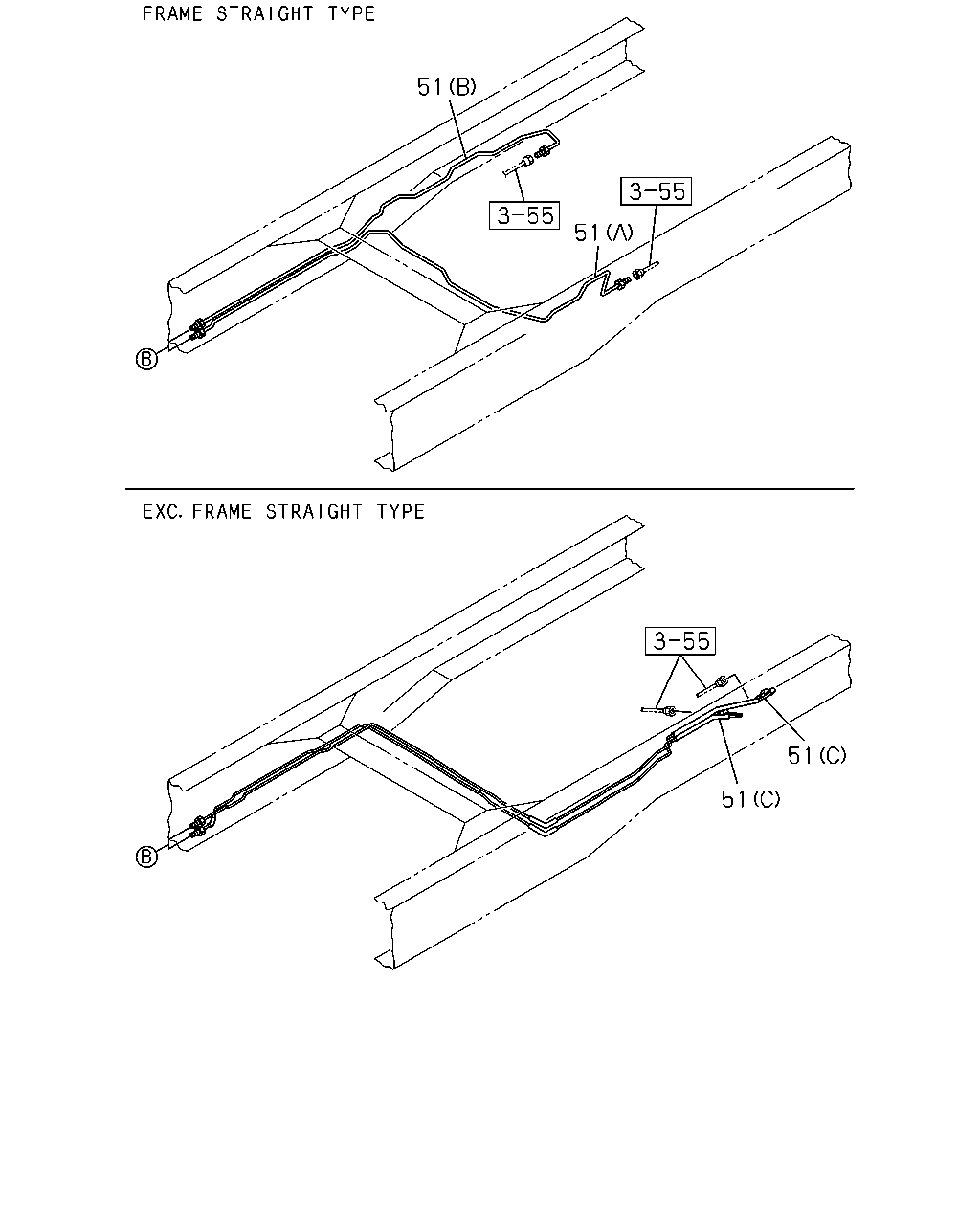

çizim 187290
51 51 51 51
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
51 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) (C) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-519-1 01 1 1009-1011 ●
51 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) (C) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-519-1 01 1 1012- ●
51 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-519-1 01 1 1012- ●
51 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-532-1 01 1 1009-1011 ●
51 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-532-1 01 1 1012- ●
51 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-532-1 01 1 1012- ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) (C) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-520-1 01 1 1009-1011 ●
51 04.685 PIPE; BRK
(C) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-520-1 01 1 1009-1011 ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) (C) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-520-1 01 1 1012- ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-520-1 01 1 1012- ●
51 04.685 PIPE; BRK
(C) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-520-1 01 1 1012- ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-533-1 01 1 1009-1011 ●
51 04.685 PIPE; BRK
(C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-533-1 01 1 1009-1011 ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-533-1 01 1 1012- ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-533-1 01 1 1012- ●
51 04.685 PIPE; BRK
(C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-533-1 01 1 1012- ●
51 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-776-1 01 1 1009-1011 ●
51 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-776-1 01 1 1012- ●
51 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-545-0 01 1 1009-1011 ●
51 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-545-0 01 1 1012- ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-777-1 01 1 1009-1011 ● ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-777-1 01 1 1012- ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-777-1 01 1 1012- ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98041-055-0 01 1 1009-1011 ● ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98041-055-0 01 1 1012- ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98041-055-0 01 1 1012- ●
51 04.685 PIPE; BRK
WHEEL BASE 4100MM(41W) (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98041-057-0 01 1 1009-1011 ●
51 04.685 PIPE; BRK
(B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98041-057-0 01 1 1009-1011 ●
51 04.685 PIPE; BRK
WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98041-057-0 01 1 1012- ●
51 04.685 PIPE; BRK
(B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98041-057-0 01 1 1012- ●
51 04.685 PIPE; BRK
WHEEL BASE 4100MM(41W) (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98041-058-0 01 1 1009-1011 ●
51 04.685 PIPE; BRK
(A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98041-058-0 01 1 1009-1011 ●
51 04.685 PIPE; BRK
WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98041-058-0 01 1 1012- ●
51 04.685 PIPE; BRK
(A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98041-058-0 01 1 1012- ●
51 04.685 PIPE; BRK
WHEEL BASE 4400MM(44W) (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-779-1 01 1 1009- ●
51 04.685 PIPE; BRK
(A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-779-1 01 1 1009- ●
51 04.685 PIPE; BRK
WHEEL BASE 4400MM(44W) (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98047-143-0 01 1 1009- ●
51 04.685 PIPE; BRK
(B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98047-143-0 01 1 1009- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
