3-31 — BRAKE MASTER VAC AND BRAKE BOOSTER (#78301) — 72 parça

1 3 23 11 12 15 24 16 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.901 MASTER VAC ASM; BRK EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52>	8-97162-798-1	01	1	1505-	●	●
1	04.901 MASTER VAC ASM; BRK EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTER(7QQ)	8-97162-798-1	01	1	1505-			●
1	04.901 MASTER VAC ASM; BRK	8-97162-800-1	01	1	1009-1504	●	●		●
1	04.901 MASTER VAC ASM; BRK EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97162-800-1	01	1	1009-1504			●
1	04.901 MASTER VAC ASM; BRK 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52>	8-97162-800-1	01	1	1505-	●	●
1	04.901 MASTER VAC ASM; BRK 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97162-800-1	01	1	1505-			●	●
3	04.906 RETAINER; FRT SHELL,M/VAC	9-83315-319-0	01	1	1009-1504	●	●		●
3	04.906 RETAINER; FRT SHELL,M/VAC EXC. HYDRO BRAKE BOOSTER(7QQ)	9-83315-319-0	01	1	1009-1504			●
3	04.906 RETAINER; FRT SHELL,M/VAC	9-83315-319-0	01	1	1505-	●	●
3	04.906 RETAINER; FRT SHELL,M/VAC EXC. HYDRO BRAKE BOOSTER(7QQ)	9-83315-319-0	01	1	1505-			●	●
11	04.906 FILTER; M/VAC	8-97205-576-0	01	1	1009-1504	●	●		●
11	04.906 FILTER; M/VAC EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97205-576-0	01	1	1009-1504			●
11	04.906 FILTER; M/VAC	8-97205-576-0	01	1	1505-	●	●
11	04.906 FILTER; M/VAC EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97205-576-0	01	1	1505-			●	●
12	04.906 SILENCER; M/VAC	8-97205-577-0	01	1	1009-1504	●	●		●
12	04.906 SILENCER; M/VAC EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97205-577-0	01	1	1009-1504			●
12	04.906 SILENCER; M/VAC	8-97205-577-0	01	1	1505-	●	●
12	04.906 SILENCER; M/VAC EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97205-577-0	01	1	1505-			●	●
15	04.906 RETAINER; GUARD,M/VAC	8-94375-083-0	01	1	1009-1504	●	●		●
15	04.906 RETAINER; GUARD,M/VAC EXC. HYDRO BRAKE BOOSTER(7QQ)	8-94375-083-0	01	1	1009-1504			●
15	04.906 RETAINER; GUARD,M/VAC	8-94375-083-0	01	1	1505-	●	●
15	04.906 RETAINER; GUARD,M/VAC EXC. HYDRO BRAKE BOOSTER(7QQ)	8-94375-083-0	01	1	1505-			●	●
16	04.662 NUT; VLV ROD,M/VAC M10	1-52139-008-0	01	1	1009-1504	●	●		●
16	04.662 NUT; VLV ROD,M/VAC EXC. HYDRO BRAKE BOOSTER(7QQ) M10	1-52139-008-0	01	1	1009-1504			●
16	04.662 NUT; VLV ROD,M/VAC M10	1-52139-008-0	01	1	1505-	●	●
16	04.662 NUT; VLV ROD,M/VAC EXC. HYDRO BRAKE BOOSTER(7QQ) M10	1-52139-008-0	01	1	1505-			●	●
17	04.662 CLEVIS; YOKE,M/VAC	8-97224-610-0	01	1	1009-1504	●	●		●
17	04.662 CLEVIS; YOKE,M/VAC EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97224-610-0	01	1	1009-1504			●
17	04.662 CLEVIS; YOKE,M/VAC	8-97224-610-0	01	1	1505-	●	●
17	04.662 CLEVIS; YOKE,M/VAC EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97224-610-0	01	1	1505-			●	●
23	04.910 SEAL; M/VAC EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52>	8-97261-943-0	01	1	1505-	●	●
23	04.910 SEAL; M/VAC EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTER(7QQ)	8-97261-943-0	01	1	1505-			●
23	04.910 SEAL; M/VAC	8-97079-350-0	01	1	1009-1504	●	●		●
23	04.910 SEAL; M/VAC EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97079-350-0	01	1	1009-1504			●
23	04.910 SEAL; M/VAC 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52>	8-97079-350-0	01	1	1505-	●	●
23	04.910 SEAL; M/VAC 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97079-350-0	01	1	1505-			●	●
24	04.906 GUARD; VLV BODY,M/VAC	8-97205-578-0	01	1	1009-1504	●	●		●
24	04.906 GUARD; VLV BODY,M/VAC EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97205-578-0	01	1	1009-1504			●
24	04.906 GUARD; VLV BODY,M/VAC	8-97205-578-0	01	1	1505-	●	●
24	04.906 GUARD; VLV BODY,M/VAC EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97205-578-0	01	1	1505-			●	●

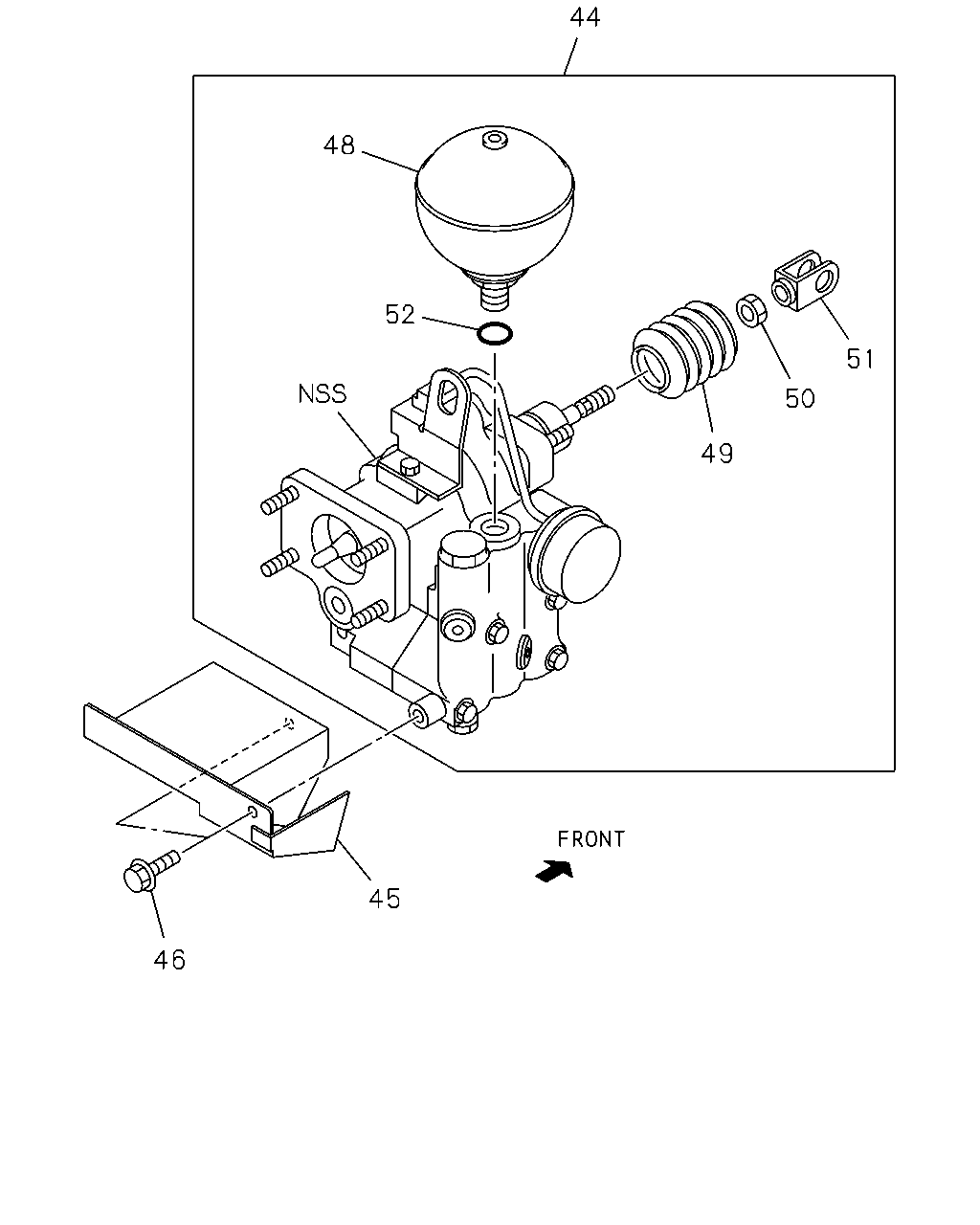

48 44 52 49 50 51 45 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C	D	E	F
44	04.901 BOOSTER; HYDRAULIC BRK HYDRO BRAKE BOOSTER(7QQ)	8-98031-414-0	01	1	1009-1504	●
44	04.901 BOOSTER; HYDRAULIC BRK	8-98031-414-0	01	1	1009-1504			●	●
44	04.901 BOOSTER; HYDRAULIC BRK HYDRO BRAKE BOOSTER(7QQ)	8-98031-414-0	01	1	1505-	●	●
44	04.901 BOOSTER; HYDRAULIC BRK	8-98031-414-0	01	1	1505-			●	●
45	04.901 PROTECTOR; HEAT HYDRO BRAKE BOOSTER(7QQ)	8-98031-415-1	01	1	1009-1504	●
45	04.901 PROTECTOR; HEAT	8-98031-415-1	01	1	1009-1504			●	●
45	04.901 PROTECTOR; HEAT HYDRO BRAKE BOOSTER(7QQ)	8-98031-415-1	01	1	1505-	●	●
45	04.901 PROTECTOR; HEAT	8-98031-415-1	01	1	1505-			●	●
46	04.901 BOLT; HEAT PROTECTOR HYDRO BRAKE BOOSTER(7QQ) 03.671 M6X10 FLANGE	0-28050-610-0	02	1	1009-1504	●
46	04.901 BOLT; HEAT PROTECTOR 03.671 M6X10 FLANGE	0-28050-610-0	02	1	1009-1504			●	●
46	04.901 BOLT; HEAT PROTECTOR HYDRO BRAKE BOOSTER(7QQ) 03.671 M6X10 FLANGE	0-28050-610-0	02	1	1505-	●	●
46	04.901 BOLT; HEAT PROTECTOR 03.671 M6X10 FLANGE	0-28050-610-0	02	1	1505-			●	●
48	04.906 ACCUMULATOR; HYDRO BOOSTER HYDRO BRAKE BOOSTER(7QQ)	8-98038-346-0	01	1	1009-1504	●
48	04.906 ACCUMULATOR; HYDRO BOOSTER	8-98038-346-0	01	1	1009-1504			●	●
48	04.906 ACCUMULATOR; HYDRO BOOSTER HYDRO BRAKE BOOSTER(7QQ)	8-98038-346-0	01	1	1505-	●	●
48	04.906 ACCUMULATOR; HYDRO BOOSTER	8-98038-346-0	01	1	1505-			●	●
49	04.906 GUARD; HYDRO BRK BOOSTER HYDRO BRAKE BOOSTER(7QQ)	8-97191-043-0	01	1	1009-1504	●
49	04.906 GUARD; HYDRO BRK BOOSTER	8-97191-043-0	01	1	1009-1504			●	●
49	04.906 GUARD; HYDRO BRK BOOSTER HYDRO BRAKE BOOSTER(7QQ)	8-97191-043-0	01	1	1505-	●	●
49	04.906 GUARD; HYDRO BRK BOOSTER	8-97191-043-0	01	1	1505-			●	●
50	04.906 NUT; HYDRO BRK BOOSTER HYDRO BRAKE BOOSTER(7QQ)	8-98038-349-0	01	1	1009-1504	●
50	04.906 NUT; HYDRO BRK BOOSTER	8-98038-349-0	01	1	1009-1504			●	●
50	04.906 NUT; HYDRO BRK BOOSTER HYDRO BRAKE BOOSTER(7QQ)	8-98038-349-0	01	1	1505-	●	●
50	04.906 NUT; HYDRO BRK BOOSTER	8-98038-349-0	01	1	1505-			●	●
51	04.906 CLEVIS; HYDRO BRK BOOSTER HYDRO BRAKE BOOSTER(7QQ)	8-98038-347-0	01	1	1009-1504	●
51	04.906 CLEVIS; HYDRO BRK BOOSTER	8-98038-347-0	01	1	1009-1504			●	●
51	04.906 CLEVIS; HYDRO BRK BOOSTER HYDRO BRAKE BOOSTER(7QQ)	8-98038-347-0	01	1	1505-	●	●
51	04.906 CLEVIS; HYDRO BRK BOOSTER	8-98038-347-0	01	1	1505-			●	●
52	04.906 GASKET; HYDRO BRK BOOSTER HYDRO BRAKE BOOSTER(7QQ) 04.910	8-97191-038-0	01	1	1009-1504	●
52	04.906 GASKET; HYDRO BRK BOOSTER 04.910	8-97191-038-0	01	1	1009-1504			●	●
52	04.906 GASKET; HYDRO BRK BOOSTER HYDRO BRAKE BOOSTER(7QQ) 04.910	8-97191-038-0	01	1	1505-	●	●
52	04.906 GASKET; HYDRO BRK BOOSTER 04.910	8-97191-038-0	01	1	1505-			●	●
