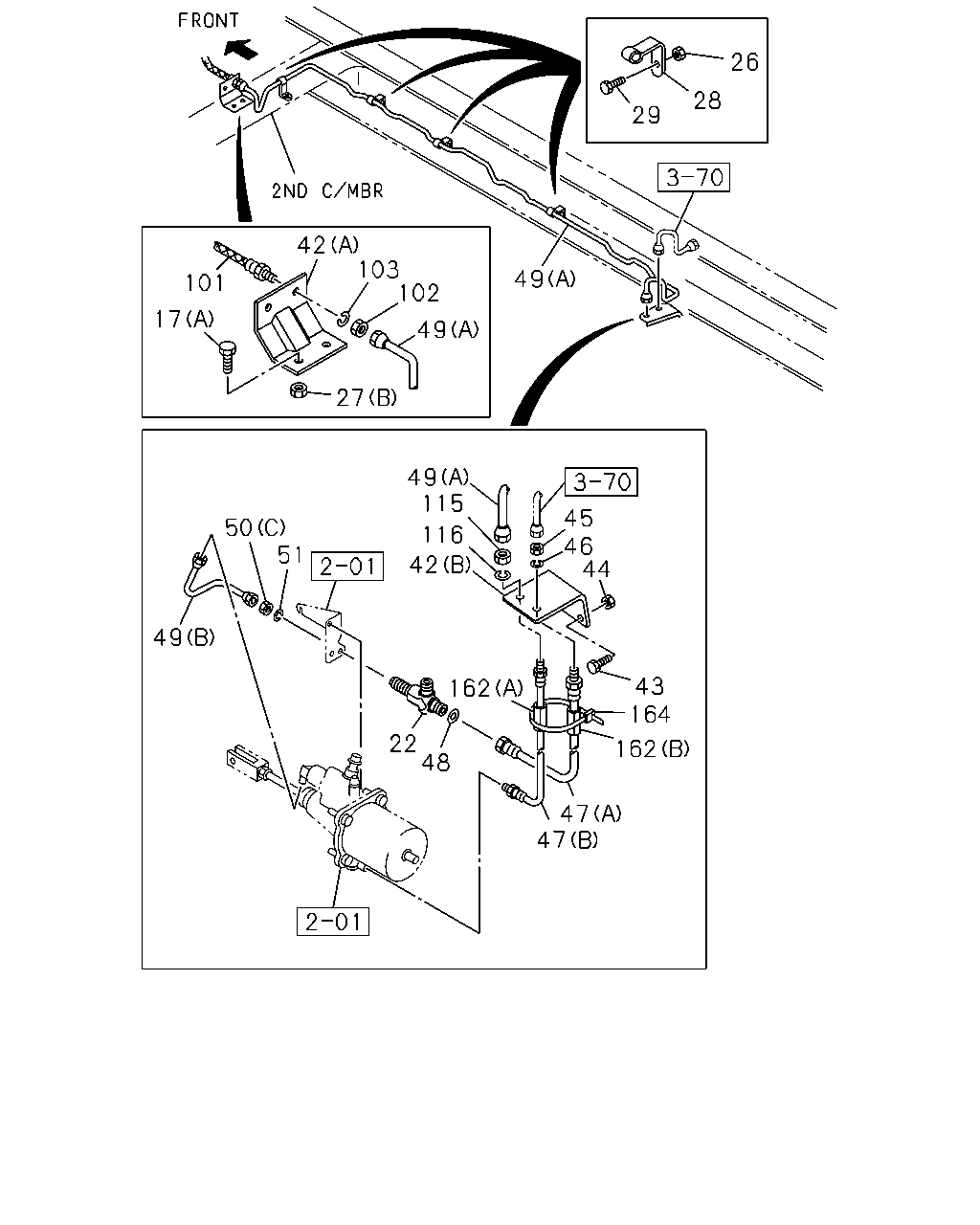

2-05 — CLUTCH PIPING (#7830) — 100 parça

26 28 29 42 103 102 49 101 17 49 27 49 115 45 46 44 50 51 116 42 49 43 164 162 22 48 162 47 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9905-0512	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9905-	●	●
22	UNION; CLU PIPE M12 3-WAY	9-09228-706-1	01	1	9905-0607	●
22	UNION; CLU PIPE M12 3-WAY	0-92138-706-0	01	1	0608-	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	9905-0602	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	0603-	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9905-0602	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9905-	●	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	9905-	●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	03	1	9905-0512	●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	03	1	0601-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	9905-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47477-944-0	01	1	9905-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	9905-0512	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9905-0602	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	9905-	●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	02	1	9905-		●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	9-09150-512-0	01	1	9905-0603	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-512-0	01	1	0604-	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	9-09150-512-0	02	1	9905-0603		●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-512-0	02	1	0604-		●
47	HOSE; FLEX,CLU CONT FTR(FT****) (A) L=420	1-09363-633-0	01	1	0302-	●
47	HOSE; FLEX,CLU CONT FTR(FT****) (B) L=415	1-09364-490-0	01	1	0302-	●
47	HOSE; FLEX,CLU CONT FSR(FS****) (A) L=430	1-09363-623-0	01	1	9905-	●
47	HOSE; FLEX,CLU CONT FRR(FR****) (A) L=560	1-09363-689-0	01	1	9905-	●
47	HOSE; FLEX,CLU CONT FRR(FR****) (B) L=470	1-09364-692-0	01	1	9905-	●
47	HOSE; FLEX,CLU CONT FSR(FS****) (B) L=500	1-09364-329-0	01	1	9905-9908	●
47	HOSE; FLEX,CLU CONT FSR(FS****) (B) L=430	1-09364-725-0	01	1	9909-	●
47	HOSE; FLEX,CLU CONT (A) L=430	1-09363-726-0	01	1	9905-9908		●
47	HOSE; FLEX,CLU CONT (A) L=360	1-09363-658-0	01	1	9909-		●
47	HOSE; FLEX,CLU CONT (B) L=300	1-09364-547-0	01	1	9905-		●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	9905-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FTR(FT****) (A) SERVICED BY L=3000	1-47426-397-0	01	1	0302-	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (B) L=204	1-49117-400-0	01	1	9905-0301	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (B) L=204	1-49117-400-0	01	1	0302-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FRR(FR****) (A) SERVICED BY L=3300	1-47426-398-0	01	1	9905-	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FSR(FS****) (A) SERVICED BY L=3000	1-47426-397-0	01	1	9905-9908	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A) SERVICED BY L=3000	1-47426-397-0	01	1	9905-9908		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FSR(FS****) (A) L=2851 SERVICED BY L=3000	1-47426-397-0	01	1	9909-	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A) L=2851 SERVICED BY L=3000	1-47426-397-0	01	1	9909-		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (B) L=216	1-47493-418-1	01	1	9905-		●
50	NUT; UNION (C) M12	9-09840-280-0	01	1	9905-	●
50	NUT; UNION (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	9905-	●	●
50	NUT; UNION (A) M14	9-99111-414-0	01	1	9905-0512	●	●
50	NUT; UNION (A) M14	0-91111-514-0	01	1	0601-	●	●
51	WASHER; LK ID=12.2	9-09150-512-0	01	1	9905-0603	●
51	WASHER; LK ID=12.2	0-91510-512-0	01	1	0604-	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE FTR(FT****) L=430	1-09364-859-1	01	1	0302-	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=460	1-09365-070-1	01	1	9905-0301	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE FRR(FR**) FSR(FS**) L=460	1-09365-070-1	01	1	0302-	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=460	1-09365-070-1	01	1	0302-		●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9905-0512	●	●
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9905-0603	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9905-0512	●	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9905-0603	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-	●	●
162	COVER; RUBBER,FLEX HOSE (A) ID=17 OD=21 L=40	1-09337-012-0	01	1	9905-	●	●
162	COVER; RUBBER,FLEX HOSE (B) ID=9.5 OD=14.5 L=120	9-09913-202-1	01	1	9905-	●	●
164	CLIP; BAND,FLEX HOSE L=140	5-09707-031-1	01	1	9905-	●	●

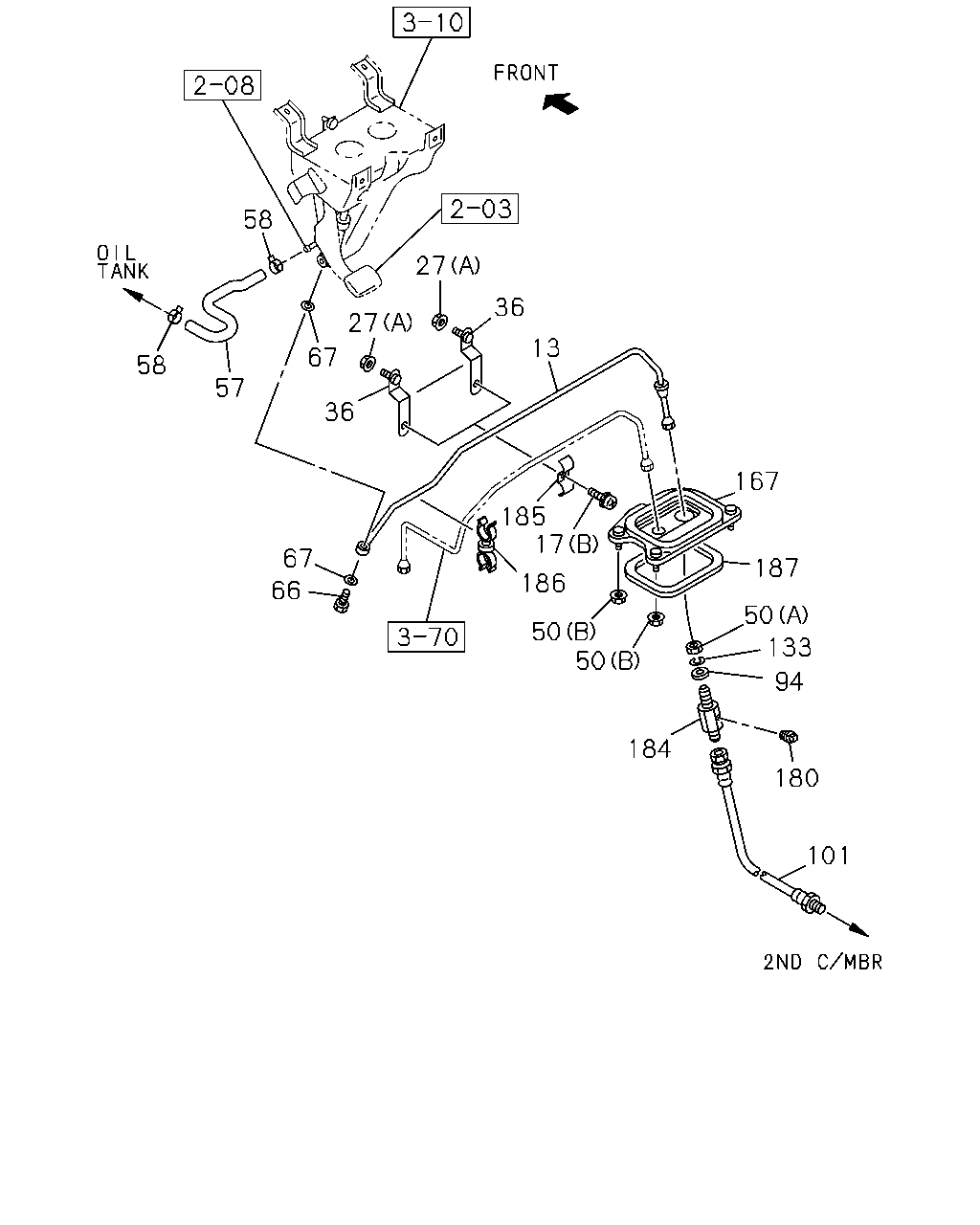

58 27 36 27 13 67 58 57 36 167 185 17 67 187 186 66 50 50 50 133 94 184 180 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL	1-47429-143-0	01	1	9905-	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9905-0512	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9905-	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9905-0602	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9905-	●	●
36	BRACKET; CLIP	1-79738-186-1	02	1	9905-	●	●
50	NUT; UNION (C) M12	9-09840-280-0	01	1	9905-	●
50	NUT; UNION (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	9905-	●	●
50	NUT; UNION (A) M14	9-99111-414-0	01	1	9905-0512	●	●
50	NUT; UNION (A) M14	0-91111-514-0	01	1	0601-	●	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47427-312-0	01	1	9905-	●	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	9905-	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9905-	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	9905-	●	●
94	WASHER; PL,UNION ID=15	9-09160-514-0	01	1	9905-0605	●	●
94	WASHER; PL,UNION ID=15	0-91610-514-0	01	1	0606-	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE FTR(FT****) L=430	1-09364-859-1	01	1	0302-	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=460	1-09365-070-1	01	1	9905-0301	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE FRR(FR**) FSR(FS**) L=460	1-09365-070-1	01	1	0302-	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=460	1-09365-070-1	01	1	0302-		●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	9905-0603	●	●
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	0604-	●	●
167	BRACKET; UNION	1-79738-204-2	01	1	9905-9911	●	●
167	BRACKET; UNION	1-79738-845-1	01	1	9912-	●	●
180	PLUG; PIPE	9-09204-510-0	01	1	9905-	●	●
184	UNION; FLEX HOSE	1-09656-679-0	01	1	9905-	●	●
185	CLIP; BRKT ID=5 & 8	5-09700-165-0	02	1	9905-	●	●
186	HOLDER; CLIP ID=6 & 4.8	8-94313-325-0	01	1	9905-0301	●
186	HOLDER; CLIP FRR(FR****) ID=6 & 4.8	8-94313-325-0	01	1	0302-	●
186	HOLDER; CLIP FSR(FS**) FTR(FT**) AIR SUSP D/SEAT<A56> ID=6 & 4.8	8-94313-325-0	01	1	0302-	●
186	HOLDER; CLIP AIR SUSP D/SEAT<A56> ID=6 & 4.8	8-94313-325-0	01	1	0302-		●
187	SEAL; BRKT	1-79738-190-0	01	1	9905-	●	●
