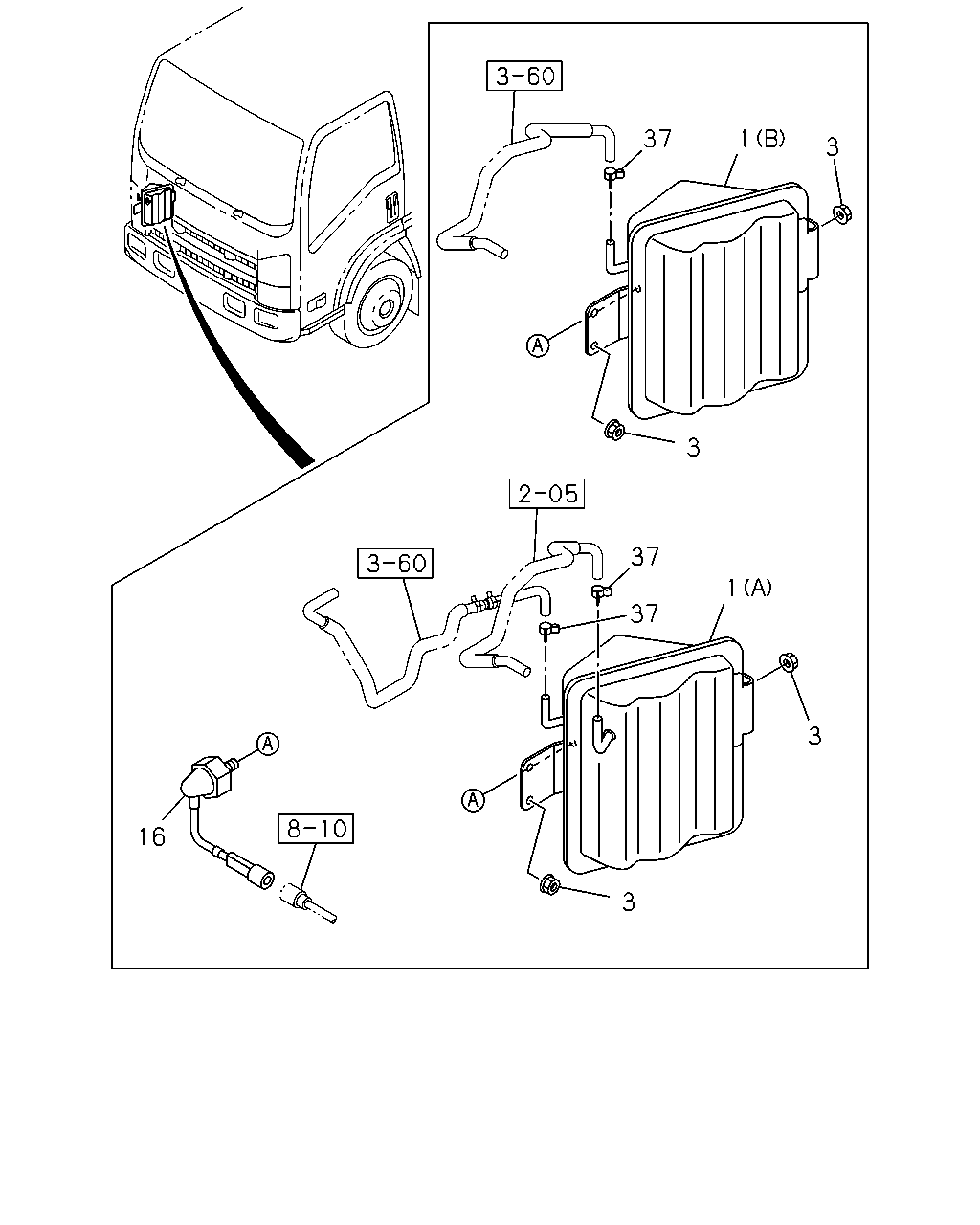

3-21 — VACUUM TANK (#78299) — 46 parça

3 1 37 3 1 3 3 16 37 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) (A)	8-98009-121-2	01	1	1009-1504	●	●	●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98009-121-2	01	1	1009-1504				●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) (A)	8-98009-121-2	01	1	1505-	●	●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98009-121-2	01	1	1505-			●	●
1	04.902 TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH(S2T) (B)	8-98009-122-2	01	1	1009-1504	●	●	●
1	04.902 TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B)	8-98009-122-2	01	1	1009-1504				●
1	04.902 TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH(S2T) (B)	8-98009-122-2	01	1	1505-	●	●
1	04.902 TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B)	8-98009-122-2	01	1	1505-			●	●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (C)	8-98032-291-0	01	1	1009-1504				●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) (C)	8-98032-291-0	01	1	1009-1504					●	●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (C)	8-98032-291-0	01	1	1505-			●	●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) (C)	8-98032-291-0	01	1	1505-					●	●
3	04.902 NUT; VAC TANK TO BRKT 04.785	8-98008-071-0	03	1	1009-	●	●	●	●	●	●
16	04.906 SWITCH; VAC	8-98049-417-0	01	1	1009-1504	●	●	●
16	04.906 SWITCH; VAC EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98049-417-0	01	1	1009-1504				●
16	04.906 SWITCH; VAC	8-98049-417-0	01	1	1505-	●	●
16	04.906 SWITCH; VAC EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98049-417-0	01	1	1505-			●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) 04.681 ID=15.5	8-94367-944-0	02	1	1009-1504	●	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.681 ID=15.5	8-94367-944-0	02	1	1009-1504				●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) 04.681 ID=15.5	8-94367-944-0	02	1	1505-	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.681 ID=15.5	8-94367-944-0	02	1	1505-			●	●
37	04.902 CLIP; RUBBER HOSE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.681 ID=15.5	8-94367-944-0	01	1	1009-1505	●	●	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.681 ID=15.5	8-94367-944-0	01	1	1009-1505				●	●	●
37	04.902 CLIP; RUBBER HOSE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.681 ID=15.5	8-94367-944-0	01	1	1506-	●	●	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.681 ID=15.5	8-94367-944-0	01	1	1506-			●	●	●	●

37 1 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) (A)	8-98009-121-2	01	1	1009-1504	●	●	●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98009-121-2	01	1	1009-1504				●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) (A)	8-98009-121-2	01	1	1505-	●	●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98009-121-2	01	1	1505-			●	●
1	04.902 TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH(S2T) (B)	8-98009-122-2	01	1	1009-1504	●	●	●
1	04.902 TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B)	8-98009-122-2	01	1	1009-1504				●
1	04.902 TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH(S2T) (B)	8-98009-122-2	01	1	1505-	●	●
1	04.902 TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B)	8-98009-122-2	01	1	1505-			●	●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (C)	8-98032-291-0	01	1	1009-1504				●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) (C)	8-98032-291-0	01	1	1009-1504					●	●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (C)	8-98032-291-0	01	1	1505-			●	●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) (C)	8-98032-291-0	01	1	1505-					●	●
3	04.902 NUT; VAC TANK TO BRKT 04.785	8-98008-071-0	03	1	1009-	●	●	●	●	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) 04.681 ID=15.5	8-94367-944-0	02	1	1009-1504	●	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.681 ID=15.5	8-94367-944-0	02	1	1009-1504				●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) 04.681 ID=15.5	8-94367-944-0	02	1	1505-	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.681 ID=15.5	8-94367-944-0	02	1	1505-			●	●
37	04.902 CLIP; RUBBER HOSE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.681 ID=15.5	8-94367-944-0	01	1	1009-1505	●	●	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.681 ID=15.5	8-94367-944-0	01	1	1009-1505				●	●	●
37	04.902 CLIP; RUBBER HOSE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.681 ID=15.5	8-94367-944-0	01	1	1506-	●	●	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.681 ID=15.5	8-94367-944-0	01	1	1506-			●	●	●	●
