◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51276 - NNR/NPR/NQR AUST/NZ EURO5 ▶ 3 - Brakes, Brake System ▶ 3-15 - ANTILOCK BRAKE SYSTEM(A.B.S.) ▶
3-15 — ANTILOCK BRAKE SYSTEM(A.B.S.) (#78298) — 222 parça

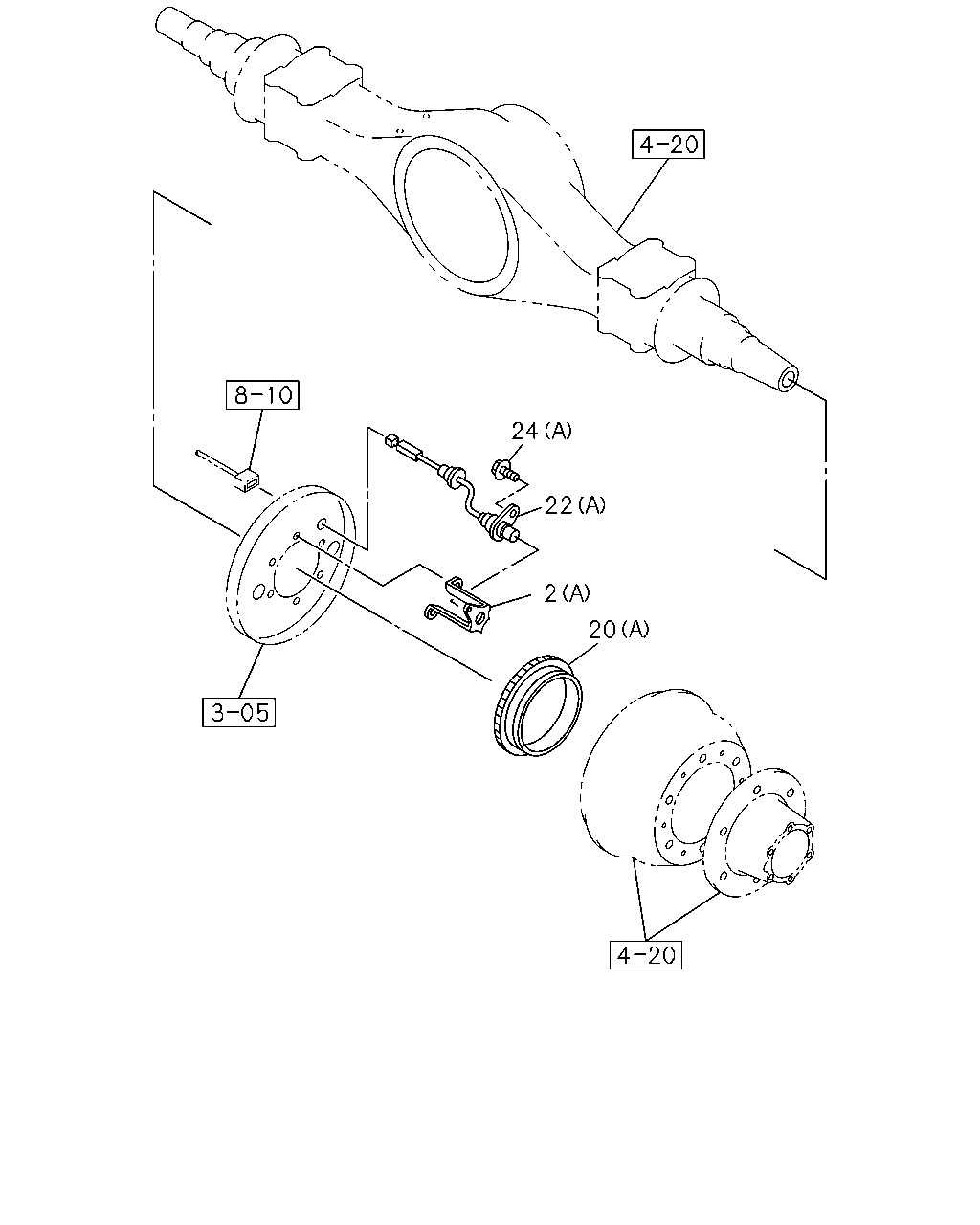

çizim 115402
24 22 2 20
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 04.730 BRACKET; SENSOR
4 WHEEL DISC BRAKE<JF9> (B) 		8-98045-222-0 02 1 1505- ● ● ● ●
2 04.730 BRACKET; SENSOR
(A) 		8-98000-019-2 02 1 1009-1504 ● ● ●
2 04.730 BRACKET; SENSOR
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) (A) 		8-98000-019-2 02 1 1009-1504 ●
2 04.730 BRACKET; SENSOR
EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-98000-019-2 02 1 1505- ● ●
2 04.730 BRACKET; SENSOR
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-98000-019-2 02 1 1505- ● ●
2 04.730 BRACKET; SENSOR
G.V.W. 7.5-8.0TON(RPY) (A) 		8-98002-440-1 02 1 1009-1504 ●
2 04.730 BRACKET; SENSOR
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-98002-440-1 02 1 1505- ● ●
2 04.730 BRACKET; SENSOR
(A) 		8-98002-441-1 02 1 1009- ● ●
20 04.710 ROTOR; SENSOR
G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9> (B) 		8-98207-952-0 02 1 1505- ● ●
20 04.710 ROTOR; SENSOR
(A) 		8-97234-459-3 02 1 1009-1011 ● ●
20 04.710 ROTOR; SENSOR
(A) 		8-97234-459-3 02 1 1012-1211 ● ●
20 04.710 ROTOR; SENSOR
4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/9(HC6) G.V.W. 5.5-6.0TON(RPU) (A) 		8-97234-459-3 02 1 1012-1211 ●
20 04.710 ROTOR; SENSOR
(A) 		8-97234-459-3 02 1 1212-1504 ● ●
20 04.710 ROTOR; SENSOR
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 5.5-6.0TON(RPU) (A) 		8-97234-459-3 02 1 1212-1504 ●
20 04.710 ROTOR; SENSOR
EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-97234-459-3 02 1 1505- ● ●
20 04.710 ROTOR; SENSOR
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-97234-459-3 02 1 1505- ●
20 04.710 ROTOR; SENSOR
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) (A) 		8-97206-774-4 02 1 1009-1011 ●
20 04.710 ROTOR; SENSOR
(A) 		8-97206-774-4 02 1 1009-1011 ●
20 04.710 ROTOR; SENSOR
4JJ1-TCS ENG(LFB) G.V.W. 6.5-7.0TON(RPW) (A) 		8-97206-774-4 02 1 1012-1504 ●
20 04.710 ROTOR; SENSOR
4HK1-TCN ENG(RDQ) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) (A) 		8-97206-774-4 02 1 1012-1504 ●
20 04.710 ROTOR; SENSOR
(A) 		8-97206-774-4 02 1 1012-1504 ●
20 04.710 ROTOR; SENSOR
G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-97206-774-4 02 1 1505- ● ●
20 04.710 ROTOR; SENSOR
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-97206-774-4 02 1 1505- ●
20 04.710 ROTOR; SENSOR
G.V.W. 7.5-8.0TON(RPY) (A) 		8-97206-775-3 02 1 1009-1504 ●
20 04.710 ROTOR; SENSOR
(A) 		8-97206-775-3 02 1 1009-1504 ● ●
20 04.710 ROTOR; SENSOR
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-97206-775-3 02 1 1505- ● ●
20 04.710 ROTOR; SENSOR
(A) 		8-97206-775-3 02 1 1505- ● ●
20 04.710 ROTOR; SENSOR
4 WHEEL DISC BRAKE<JF9> 05.809 (B) 		8-98187-136-0 02 1 1505-1511 ● ●
20 04.710 ROTOR; SENSOR
4 WHEEL DISC BRAKE<JF9> (B) 		8-98312-785-0 02 1 1512- ● ●
20 04.710 ROTOR; SENSOR
4 WHEEL DISC BRAKE<JF9> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) (B) 		8-98207-952-0 02 1 1505- ● ●
22 04.710 SENSOR; SPEED
REAR AXLE HEAVY DUTY 292MM(G73) (A) 		8-98244-877-0 02 1 1402-1504 ●
22 04.710 SENSOR; SPEED
REAR AXLE HEAVY DUTY 292MM(G73) EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-98244-877-0 02 1 1505- ●
22 04.710 SENSOR; SPEED
4 WHEEL DISC BRAKE<JF9> (C) 		8-98012-753-1 02 1 1505- ● ● ● ●
22 04.710 SENSOR; SPEED
(A) 		8-97388-899-0 02 1 1009-1011 ● ●
22 04.710 SENSOR; SPEED
(A) 		8-97388-899-0 02 1 1012-1211 ● ●
22 04.710 SENSOR; SPEED
4JJ1-TCS ENG(LFB) (A) 		8-97388-899-0 02 1 1012-1211 ●
22 04.710 SENSOR; SPEED
(A) 		8-97388-899-1 02 1 1212-1401 ● ●
22 04.710 SENSOR; SPEED
REAR AXLE HEAVY DUTY 292MM(G73) (A) 		8-97388-899-1 02 1 1212-1401 ●
22 04.710 SENSOR; SPEED
(A) 		8-98219-351-0 02 1 1402-1504 ● ●
22 04.710 SENSOR; SPEED
EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-98219-351-0 02 1 1505- ● ●
22 04.710 SENSOR; SPEED
(A) 		8-98002-215-0 02 1 1009-1011 ● ●
22 04.710 SENSOR; SPEED
4HK1-TCN ENG(RDQ) (A) 		8-98002-215-1 02 1 1012-1401 ●
22 04.710 SENSOR; SPEED
(A) 		8-98002-215-1 02 1 1012-1401 ●
22 04.710 SENSOR; SPEED
4HK1-TCN ENG(RDQ) 04.110 (A) 		8-98219-354-0 02 1 1402-1504 ●
22 04.710 SENSOR; SPEED
04.110 (A) 		8-98219-354-0 02 1 1402-1504 ●
22 04.710 SENSOR; SPEED
4HK1-TCN ENG(RDQ) EXC. 4 WHEEL DISC BRAKE<JF9> 04.110 (A) 		8-98219-354-0 02 1 1505- ●
22 04.710 SENSOR; SPEED
EXC. 4 WHEEL DISC BRAKE<JF9> 04.110 (A) 		8-98219-354-0 02 1 1505- ●
22 04.710 SENSOR; SPEED
(A) 		8-98002-216-1 02 1 1009-1401 ● ●
22 04.710 SENSOR; SPEED
(A) 		8-98219-355-0 02 1 1402- ● ●
22 04.710 SENSOR; SPEED
(B) 		8-98006-184-0 01 1 1009-1308 ● ● ● ● ● ●
22 04.710 SENSOR; SPEED
(B) 		8-98006-184-0 01 1 1309-1408 ● ● ● ●
22 04.710 SENSOR; SPEED
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98006-184-0 01 1 1309-1408 ● ●
22 04.710 SENSOR; SPEED
(B) 		8-98219-391-0 01 1 1409-1504 ● ● ● ●
22 04.710 SENSOR; SPEED
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98219-391-0 01 1 1409-1504 ● ●
22 04.710 SENSOR; SPEED
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98219-391-0 01 1 1505- ● ● ● ●
22 04.710 SENSOR; SPEED
(B) 		8-98219-391-0 01 1 1505- ● ●
22 04.710 SENSOR; SPEED
(B) 		8-98006-185-0 01 1 1009-1308 ● ● ● ● ● ●
22 04.710 SENSOR; SPEED
(B) 		8-98006-185-0 01 1 1309-1408 ● ● ● ●
22 04.710 SENSOR; SPEED
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98006-185-0 01 1 1309-1408 ● ●
22 04.710 SENSOR; SPEED
(B) 		8-98219-392-0 01 1 1409-1504 ● ● ● ●
22 04.710 SENSOR; SPEED
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98219-392-0 01 1 1409-1504 ● ●
22 04.710 SENSOR; SPEED
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98219-392-0 01 1 1505- ● ● ● ●
22 04.710 SENSOR; SPEED
(B) 		8-98219-392-0 01 1 1505- ● ●
22 04.710 SENSOR; SPEED
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98006-186-0 01 1 1309-1408 ● ●
22 04.710 SENSOR; SPEED
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98219-393-0 01 1 1409-1504 ● ●
22 04.710 SENSOR; SPEED
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98219-393-0 01 1 1505- ● ● ● ●
22 04.710 SENSOR; SPEED
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98006-187-0 01 1 1309-1408 ● ●
22 04.710 SENSOR; SPEED
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98219-394-0 01 1 1409-1504 ● ●
22 04.710 SENSOR; SPEED
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98219-394-0 01 1 1505- ● ● ● ●
24 04.730 BOLT; SENSOR
03.671 (A) M6X10 FLANGE 		0-28050-610-0 02 1 1009-1401 ● ● ● ● ● ●
24 04.730 BOLT; SENSOR
09.242 (A) M6X16 FLANGE 		0-28050-616-0 02 1 1402- ● ● ● ● ● ●
24 04.730 BOLT; SENSOR
03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 1009-1310 ● ● ● ● ● ●
24 04.730 BOLT; SENSOR
09.242 (B) M6X16 FLANGE 		0-28050-616-0 02 1 1311- ● ● ● ● ● ●
24 04.730 BOLT; SENSOR
02.343 (C) M8X12 FLANGE 		0-28050-812-0 02 1 1009- ● ● ● ● ● ●
24 04.730 BOLT; SENSOR
06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 1009- ● ● ● ● ● ●
24 04.730 BOLT; SENSOR
06.225 (D) M10X12 FLANGE 		0-28051-012-0 02 1 1009-1308 ● ● ● ● ● ●
24 04.730 BOLT; SENSOR
06.225 (D) M10X12 FLANGE 		0-28051-012-0 02 1 1309-1504 ● ● ● ●
24 04.730 BOLT; SENSOR
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 06.225 (D) M10X12 FLANGE 		0-28051-012-0 02 1 1309-1504 ● ●
24 04.730 BOLT; SENSOR
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 06.225 (D) M10X12 FLANGE 		0-28051-012-0 02 1 1505- ● ● ● ●
24 04.730 BOLT; SENSOR
06.225 (D) M10X12 FLANGE 		0-28051-012-0 02 1 1505- ● ●
24 04.730 BOLT; SENSOR
4 WHEEL DISC BRAKE<JF9> 01.251 (E) M6X12 HEX SOCKET 		0-58330-612-0 12 1 1505- ● ● ●
24 04.730 BOLT; SENSOR
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL DISC BRAKE<JF9> 01.251 (E) M6X12 HEX SOCKET 		0-58330-612-0 12 1 1505- ●

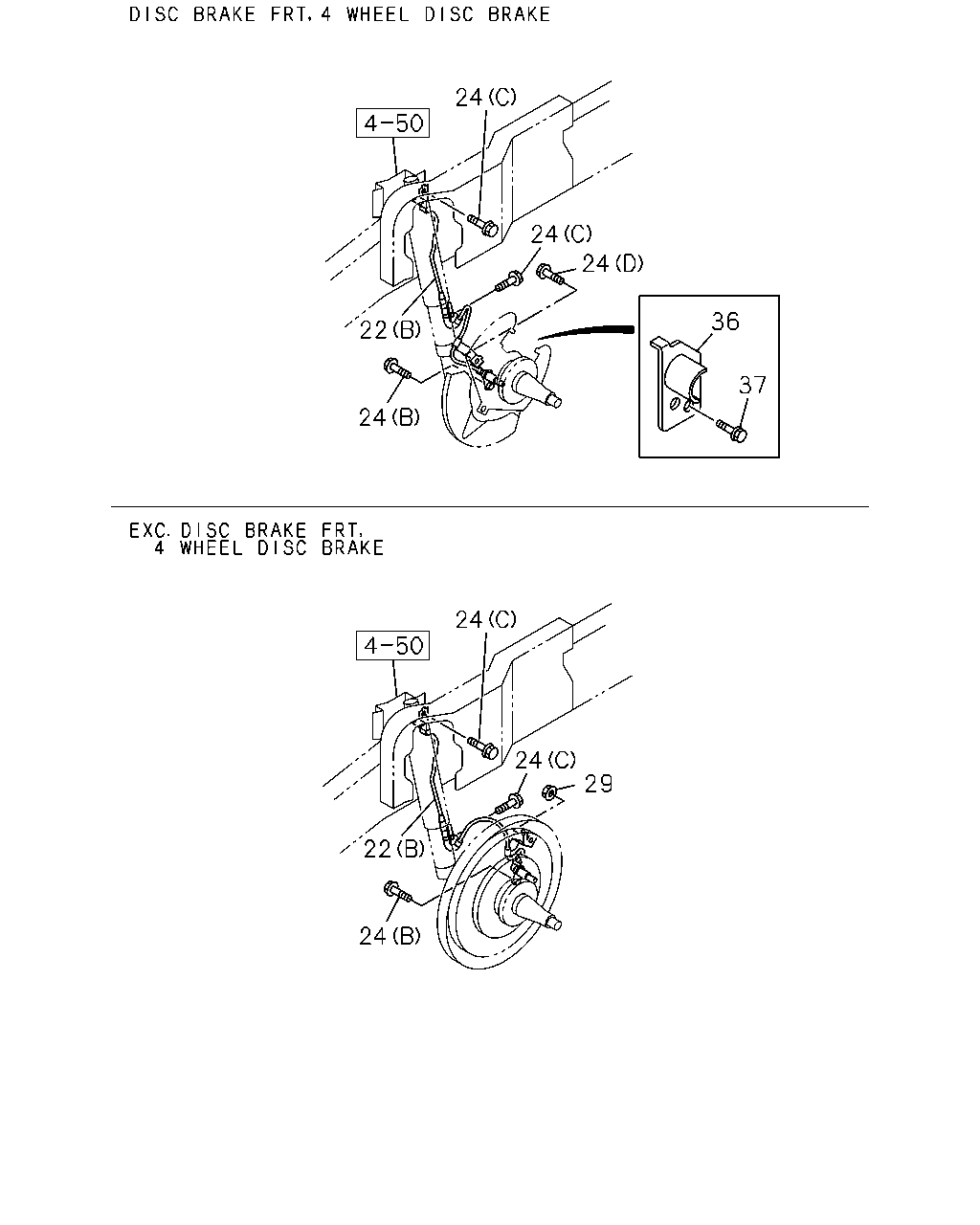

çizim 115655
24 24 36 24 22 37 24 24 24 29 22 24
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
22 04.710 SENSOR; SPEED
REAR AXLE HEAVY DUTY 292MM(G73) (A) 		8-98244-877-0 02 1 1402-1504 ●
22 04.710 SENSOR; SPEED
REAR AXLE HEAVY DUTY 292MM(G73) EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-98244-877-0 02 1 1505- ●
22 04.710 SENSOR; SPEED
4 WHEEL DISC BRAKE<JF9> (C) 		8-98012-753-1 02 1 1505- ● ● ● ●
22 04.710 SENSOR; SPEED
(A) 		8-97388-899-0 02 1 1009-1011 ● ●
22 04.710 SENSOR; SPEED
(A) 		8-97388-899-0 02 1 1012-1211 ● ●
22 04.710 SENSOR; SPEED
4JJ1-TCS ENG(LFB) (A) 		8-97388-899-0 02 1 1012-1211 ●
22 04.710 SENSOR; SPEED
(A) 		8-97388-899-1 02 1 1212-1401 ● ●
22 04.710 SENSOR; SPEED
REAR AXLE HEAVY DUTY 292MM(G73) (A) 		8-97388-899-1 02 1 1212-1401 ●
22 04.710 SENSOR; SPEED
(A) 		8-98219-351-0 02 1 1402-1504 ● ●
22 04.710 SENSOR; SPEED
EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-98219-351-0 02 1 1505- ● ●
22 04.710 SENSOR; SPEED
(A) 		8-98002-215-0 02 1 1009-1011 ● ●
22 04.710 SENSOR; SPEED
4HK1-TCN ENG(RDQ) (A) 		8-98002-215-1 02 1 1012-1401 ●
22 04.710 SENSOR; SPEED
(A) 		8-98002-215-1 02 1 1012-1401 ●
22 04.710 SENSOR; SPEED
4HK1-TCN ENG(RDQ) 04.110 (A) 		8-98219-354-0 02 1 1402-1504 ●
22 04.710 SENSOR; SPEED
04.110 (A) 		8-98219-354-0 02 1 1402-1504 ●
22 04.710 SENSOR; SPEED
4HK1-TCN ENG(RDQ) EXC. 4 WHEEL DISC BRAKE<JF9> 04.110 (A) 		8-98219-354-0 02 1 1505- ●
22 04.710 SENSOR; SPEED
EXC. 4 WHEEL DISC BRAKE<JF9> 04.110 (A) 		8-98219-354-0 02 1 1505- ●
22 04.710 SENSOR; SPEED
(A) 		8-98002-216-1 02 1 1009-1401 ● ●
22 04.710 SENSOR; SPEED
(A) 		8-98219-355-0 02 1 1402- ● ●
22 04.710 SENSOR; SPEED
(B) 		8-98006-184-0 01 1 1009-1308 ● ● ● ● ● ●
22 04.710 SENSOR; SPEED
(B) 		8-98006-184-0 01 1 1309-1408 ● ● ● ●
22 04.710 SENSOR; SPEED
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98006-184-0 01 1 1309-1408 ● ●
22 04.710 SENSOR; SPEED
(B) 		8-98219-391-0 01 1 1409-1504 ● ● ● ●
22 04.710 SENSOR; SPEED
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98219-391-0 01 1 1409-1504 ● ●
22 04.710 SENSOR; SPEED
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98219-391-0 01 1 1505- ● ● ● ●
22 04.710 SENSOR; SPEED
(B) 		8-98219-391-0 01 1 1505- ● ●
22 04.710 SENSOR; SPEED
(B) 		8-98006-185-0 01 1 1009-1308 ● ● ● ● ● ●
22 04.710 SENSOR; SPEED
(B) 		8-98006-185-0 01 1 1309-1408 ● ● ● ●
22 04.710 SENSOR; SPEED
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98006-185-0 01 1 1309-1408 ● ●
22 04.710 SENSOR; SPEED
(B) 		8-98219-392-0 01 1 1409-1504 ● ● ● ●
22 04.710 SENSOR; SPEED
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98219-392-0 01 1 1409-1504 ● ●
22 04.710 SENSOR; SPEED
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98219-392-0 01 1 1505- ● ● ● ●
22 04.710 SENSOR; SPEED
(B) 		8-98219-392-0 01 1 1505- ● ●
22 04.710 SENSOR; SPEED
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98006-186-0 01 1 1309-1408 ● ●
22 04.710 SENSOR; SPEED
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98219-393-0 01 1 1409-1504 ● ●
22 04.710 SENSOR; SPEED
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98219-393-0 01 1 1505- ● ● ● ●
22 04.710 SENSOR; SPEED
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98006-187-0 01 1 1309-1408 ● ●
22 04.710 SENSOR; SPEED
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98219-394-0 01 1 1409-1504 ● ●
22 04.710 SENSOR; SPEED
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98219-394-0 01 1 1505- ● ● ● ●
24 04.730 BOLT; SENSOR
03.671 (A) M6X10 FLANGE 		0-28050-610-0 02 1 1009-1401 ● ● ● ● ● ●
24 04.730 BOLT; SENSOR
09.242 (A) M6X16 FLANGE 		0-28050-616-0 02 1 1402- ● ● ● ● ● ●
24 04.730 BOLT; SENSOR
03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 1009-1310 ● ● ● ● ● ●
24 04.730 BOLT; SENSOR
09.242 (B) M6X16 FLANGE 		0-28050-616-0 02 1 1311- ● ● ● ● ● ●
24 04.730 BOLT; SENSOR
02.343 (C) M8X12 FLANGE 		0-28050-812-0 02 1 1009- ● ● ● ● ● ●
24 04.730 BOLT; SENSOR
06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 1009- ● ● ● ● ● ●
24 04.730 BOLT; SENSOR
06.225 (D) M10X12 FLANGE 		0-28051-012-0 02 1 1009-1308 ● ● ● ● ● ●
24 04.730 BOLT; SENSOR
06.225 (D) M10X12 FLANGE 		0-28051-012-0 02 1 1309-1504 ● ● ● ●
24 04.730 BOLT; SENSOR
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 06.225 (D) M10X12 FLANGE 		0-28051-012-0 02 1 1309-1504 ● ●
24 04.730 BOLT; SENSOR
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 06.225 (D) M10X12 FLANGE 		0-28051-012-0 02 1 1505- ● ● ● ●
24 04.730 BOLT; SENSOR
06.225 (D) M10X12 FLANGE 		0-28051-012-0 02 1 1505- ● ●
24 04.730 BOLT; SENSOR
4 WHEEL DISC BRAKE<JF9> 01.251 (E) M6X12 HEX SOCKET 		0-58330-612-0 12 1 1505- ● ● ●
24 04.730 BOLT; SENSOR
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL DISC BRAKE<JF9> 01.251 (E) M6X12 HEX SOCKET 		0-58330-612-0 12 1 1505- ●
29 04.730 NUT
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1309-1504 ● ●
29 04.730 NUT
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1505- ● ● ● ●
36 04.710 PROTECTOR; SENSOR
04.337 		8-98188-198-0 01 1 1108- ● ●
36 04.710 PROTECTOR; SENSOR
04.337 		8-98188-199-0 01 1 1108- ● ●
37 04.710 BOLT; PROTECTOR
03.671 M6X10 FLANGE 		0-28050-610-0 02 1 1108- ● ●

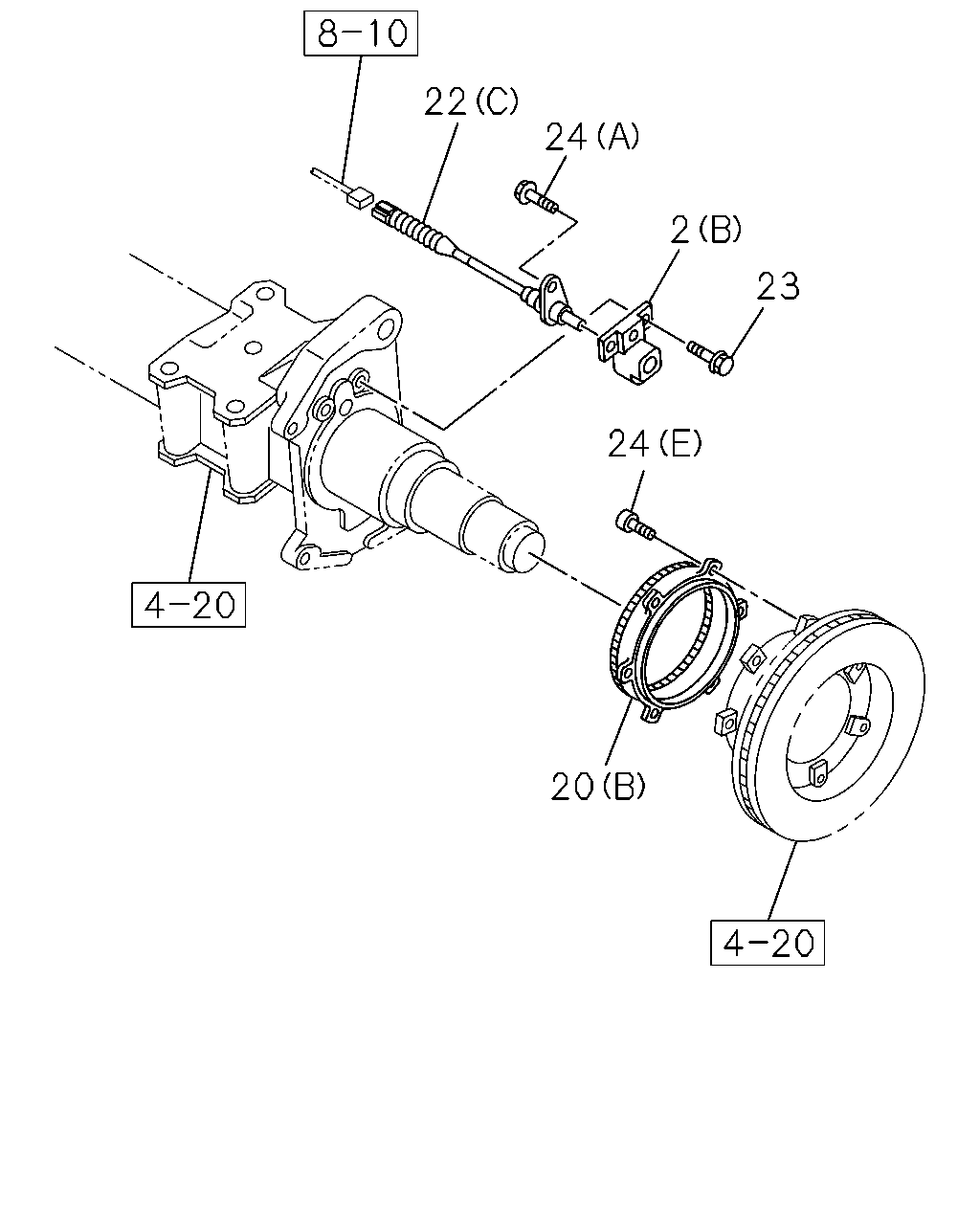

çizim 331574
24 23 2 24 22 20
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 04.730 BRACKET; SENSOR
4 WHEEL DISC BRAKE<JF9> (B) 		8-98045-222-0 02 1 1505- ● ● ● ●
2 04.730 BRACKET; SENSOR
(A) 		8-98000-019-2 02 1 1009-1504 ● ● ●
2 04.730 BRACKET; SENSOR
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) (A) 		8-98000-019-2 02 1 1009-1504 ●
2 04.730 BRACKET; SENSOR
EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-98000-019-2 02 1 1505- ● ●
2 04.730 BRACKET; SENSOR
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-98000-019-2 02 1 1505- ● ●
2 04.730 BRACKET; SENSOR
G.V.W. 7.5-8.0TON(RPY) (A) 		8-98002-440-1 02 1 1009-1504 ●
2 04.730 BRACKET; SENSOR
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-98002-440-1 02 1 1505- ● ●
2 04.730 BRACKET; SENSOR
(A) 		8-98002-441-1 02 1 1009- ● ●
20 04.710 ROTOR; SENSOR
G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9> (B) 		8-98207-952-0 02 1 1505- ● ●
20 04.710 ROTOR; SENSOR
(A) 		8-97234-459-3 02 1 1009-1011 ● ●
20 04.710 ROTOR; SENSOR
(A) 		8-97234-459-3 02 1 1012-1211 ● ●
20 04.710 ROTOR; SENSOR
4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/9(HC6) G.V.W. 5.5-6.0TON(RPU) (A) 		8-97234-459-3 02 1 1012-1211 ●
20 04.710 ROTOR; SENSOR
(A) 		8-97234-459-3 02 1 1212-1504 ● ●
20 04.710 ROTOR; SENSOR
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 5.5-6.0TON(RPU) (A) 		8-97234-459-3 02 1 1212-1504 ●
20 04.710 ROTOR; SENSOR
EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-97234-459-3 02 1 1505- ● ●
20 04.710 ROTOR; SENSOR
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-97234-459-3 02 1 1505- ●
20 04.710 ROTOR; SENSOR
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) (A) 		8-97206-774-4 02 1 1009-1011 ●
20 04.710 ROTOR; SENSOR
(A) 		8-97206-774-4 02 1 1009-1011 ●
20 04.710 ROTOR; SENSOR
4JJ1-TCS ENG(LFB) G.V.W. 6.5-7.0TON(RPW) (A) 		8-97206-774-4 02 1 1012-1504 ●
20 04.710 ROTOR; SENSOR
4HK1-TCN ENG(RDQ) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) (A) 		8-97206-774-4 02 1 1012-1504 ●
20 04.710 ROTOR; SENSOR
(A) 		8-97206-774-4 02 1 1012-1504 ●
20 04.710 ROTOR; SENSOR
G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-97206-774-4 02 1 1505- ● ●
20 04.710 ROTOR; SENSOR
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 5.5-6.0TON(RPU) EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-97206-774-4 02 1 1505- ●
20 04.710 ROTOR; SENSOR
G.V.W. 7.5-8.0TON(RPY) (A) 		8-97206-775-3 02 1 1009-1504 ●
20 04.710 ROTOR; SENSOR
(A) 		8-97206-775-3 02 1 1009-1504 ● ●
20 04.710 ROTOR; SENSOR
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-97206-775-3 02 1 1505- ● ●
20 04.710 ROTOR; SENSOR
(A) 		8-97206-775-3 02 1 1505- ● ●
20 04.710 ROTOR; SENSOR
4 WHEEL DISC BRAKE<JF9> 05.809 (B) 		8-98187-136-0 02 1 1505-1511 ● ●
20 04.710 ROTOR; SENSOR
4 WHEEL DISC BRAKE<JF9> (B) 		8-98312-785-0 02 1 1512- ● ●
20 04.710 ROTOR; SENSOR
4 WHEEL DISC BRAKE<JF9> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) (B) 		8-98207-952-0 02 1 1505- ● ●
22 04.710 SENSOR; SPEED
REAR AXLE HEAVY DUTY 292MM(G73) (A) 		8-98244-877-0 02 1 1402-1504 ●
22 04.710 SENSOR; SPEED
REAR AXLE HEAVY DUTY 292MM(G73) EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-98244-877-0 02 1 1505- ●
22 04.710 SENSOR; SPEED
4 WHEEL DISC BRAKE<JF9> (C) 		8-98012-753-1 02 1 1505- ● ● ● ●
22 04.710 SENSOR; SPEED
(A) 		8-97388-899-0 02 1 1009-1011 ● ●
22 04.710 SENSOR; SPEED
(A) 		8-97388-899-0 02 1 1012-1211 ● ●
22 04.710 SENSOR; SPEED
4JJ1-TCS ENG(LFB) (A) 		8-97388-899-0 02 1 1012-1211 ●
22 04.710 SENSOR; SPEED
(A) 		8-97388-899-1 02 1 1212-1401 ● ●
22 04.710 SENSOR; SPEED
REAR AXLE HEAVY DUTY 292MM(G73) (A) 		8-97388-899-1 02 1 1212-1401 ●
22 04.710 SENSOR; SPEED
(A) 		8-98219-351-0 02 1 1402-1504 ● ●
22 04.710 SENSOR; SPEED
EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-98219-351-0 02 1 1505- ● ●
22 04.710 SENSOR; SPEED
(A) 		8-98002-215-0 02 1 1009-1011 ● ●
22 04.710 SENSOR; SPEED
4HK1-TCN ENG(RDQ) (A) 		8-98002-215-1 02 1 1012-1401 ●
22 04.710 SENSOR; SPEED
(A) 		8-98002-215-1 02 1 1012-1401 ●
22 04.710 SENSOR; SPEED
4HK1-TCN ENG(RDQ) 04.110 (A) 		8-98219-354-0 02 1 1402-1504 ●
22 04.710 SENSOR; SPEED
04.110 (A) 		8-98219-354-0 02 1 1402-1504 ●
22 04.710 SENSOR; SPEED
4HK1-TCN ENG(RDQ) EXC. 4 WHEEL DISC BRAKE<JF9> 04.110 (A) 		8-98219-354-0 02 1 1505- ●
22 04.710 SENSOR; SPEED
EXC. 4 WHEEL DISC BRAKE<JF9> 04.110 (A) 		8-98219-354-0 02 1 1505- ●
22 04.710 SENSOR; SPEED
(A) 		8-98002-216-1 02 1 1009-1401 ● ●
22 04.710 SENSOR; SPEED
(A) 		8-98219-355-0 02 1 1402- ● ●
22 04.710 SENSOR; SPEED
(B) 		8-98006-184-0 01 1 1009-1308 ● ● ● ● ● ●
22 04.710 SENSOR; SPEED
(B) 		8-98006-184-0 01 1 1309-1408 ● ● ● ●
22 04.710 SENSOR; SPEED
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98006-184-0 01 1 1309-1408 ● ●
22 04.710 SENSOR; SPEED
(B) 		8-98219-391-0 01 1 1409-1504 ● ● ● ●
22 04.710 SENSOR; SPEED
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98219-391-0 01 1 1409-1504 ● ●
22 04.710 SENSOR; SPEED
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98219-391-0 01 1 1505- ● ● ● ●
22 04.710 SENSOR; SPEED
(B) 		8-98219-391-0 01 1 1505- ● ●
22 04.710 SENSOR; SPEED
(B) 		8-98006-185-0 01 1 1009-1308 ● ● ● ● ● ●
22 04.710 SENSOR; SPEED
(B) 		8-98006-185-0 01 1 1309-1408 ● ● ● ●
22 04.710 SENSOR; SPEED
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98006-185-0 01 1 1309-1408 ● ●
22 04.710 SENSOR; SPEED
(B) 		8-98219-392-0 01 1 1409-1504 ● ● ● ●
22 04.710 SENSOR; SPEED
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98219-392-0 01 1 1409-1504 ● ●
22 04.710 SENSOR; SPEED
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98219-392-0 01 1 1505- ● ● ● ●
22 04.710 SENSOR; SPEED
(B) 		8-98219-392-0 01 1 1505- ● ●
22 04.710 SENSOR; SPEED
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98006-186-0 01 1 1309-1408 ● ●
22 04.710 SENSOR; SPEED
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98219-393-0 01 1 1409-1504 ● ●
22 04.710 SENSOR; SPEED
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98219-393-0 01 1 1505- ● ● ● ●
22 04.710 SENSOR; SPEED
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98006-187-0 01 1 1309-1408 ● ●
22 04.710 SENSOR; SPEED
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98219-394-0 01 1 1409-1504 ● ●
22 04.710 SENSOR; SPEED
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98219-394-0 01 1 1505- ● ● ● ●
23 04.710 BOLT; BRKT
4 WHEEL DISC BRAKE<JF9> 02.343 M8X12 FLANGE 		0-28050-812-0 04 1 1505- ● ● ● ●
24 04.730 BOLT; SENSOR
03.671 (A) M6X10 FLANGE 		0-28050-610-0 02 1 1009-1401 ● ● ● ● ● ●
24 04.730 BOLT; SENSOR
09.242 (A) M6X16 FLANGE 		0-28050-616-0 02 1 1402- ● ● ● ● ● ●
24 04.730 BOLT; SENSOR
03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 1009-1310 ● ● ● ● ● ●
24 04.730 BOLT; SENSOR
09.242 (B) M6X16 FLANGE 		0-28050-616-0 02 1 1311- ● ● ● ● ● ●
24 04.730 BOLT; SENSOR
02.343 (C) M8X12 FLANGE 		0-28050-812-0 02 1 1009- ● ● ● ● ● ●
24 04.730 BOLT; SENSOR
06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 1009- ● ● ● ● ● ●
24 04.730 BOLT; SENSOR
06.225 (D) M10X12 FLANGE 		0-28051-012-0 02 1 1009-1308 ● ● ● ● ● ●
24 04.730 BOLT; SENSOR
06.225 (D) M10X12 FLANGE 		0-28051-012-0 02 1 1309-1504 ● ● ● ●
24 04.730 BOLT; SENSOR
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 06.225 (D) M10X12 FLANGE 		0-28051-012-0 02 1 1309-1504 ● ●
24 04.730 BOLT; SENSOR
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 06.225 (D) M10X12 FLANGE 		0-28051-012-0 02 1 1505- ● ● ● ●
24 04.730 BOLT; SENSOR
06.225 (D) M10X12 FLANGE 		0-28051-012-0 02 1 1505- ● ●
24 04.730 BOLT; SENSOR
4 WHEEL DISC BRAKE<JF9> 01.251 (E) M6X12 HEX SOCKET 		0-58330-612-0 12 1 1505- ● ● ●
24 04.730 BOLT; SENSOR
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL DISC BRAKE<JF9> 01.251 (E) M6X12 HEX SOCKET 		0-58330-612-0 12 1 1505- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
