◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51276 - NNR/NPR/NQR AUST/NZ EURO5 ▶ 3 - Brakes, Brake System ▶ 3-11 - PARKING BRAKE CONTROL ▶
3-11 — PARKING BRAKE CONTROL (#78297) — 497 parça

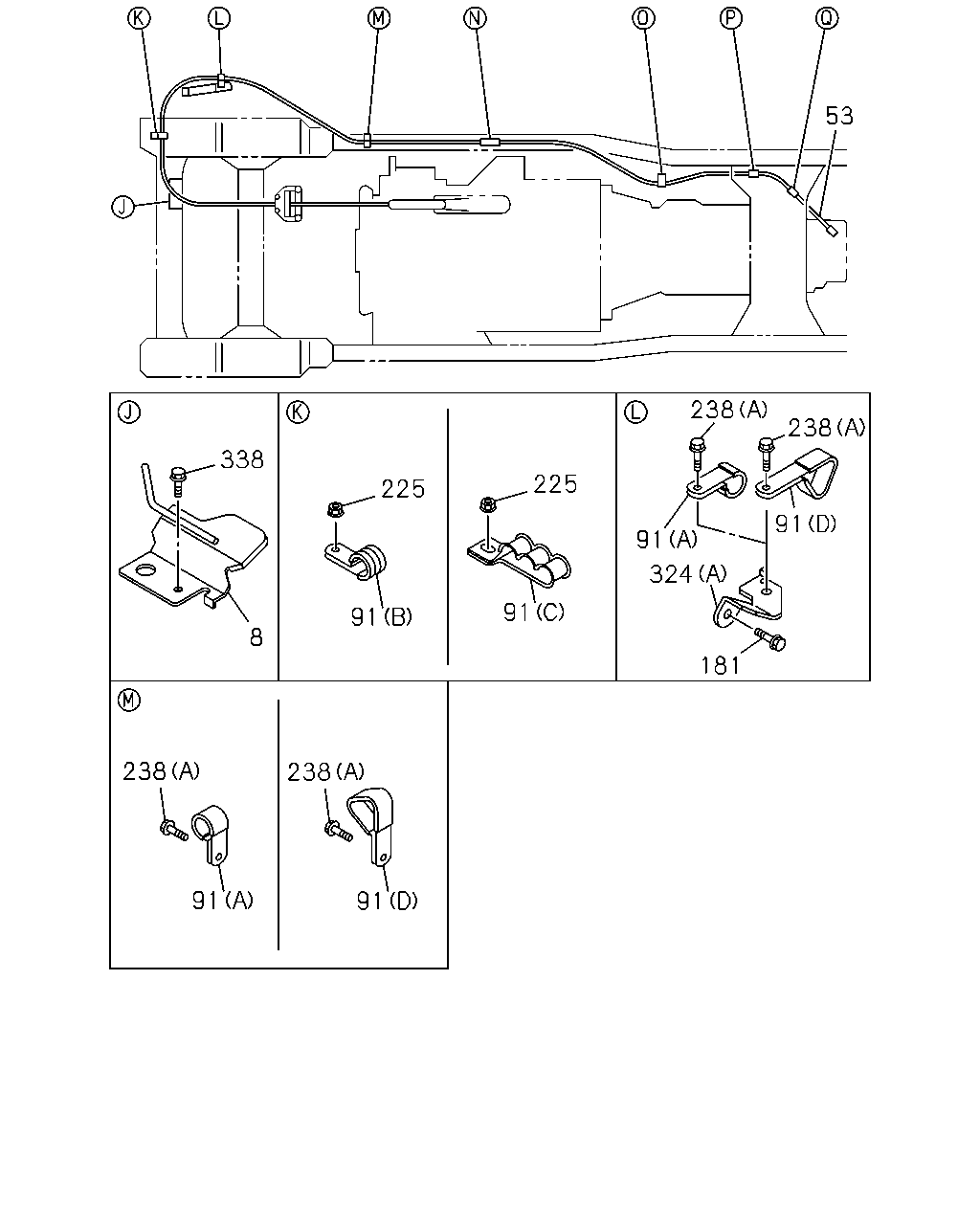

çizim 115437
225 91 91 225 338 8 238 238 91 91 181 324 91 238 238 91 53
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
8 04.592 GUIDE; PARKING BRK 8-98096-374-0 01 1 1009- ● ● ● ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98057-116-1 01 1 1112- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98057-116-1 01 1 1112- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98052-066-1 01 1 1009-1011 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98052-066-1 01 1 1012- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98052-066-1 01 1 1012- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98057-118-1 01 1 1009-1011 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98057-118-1 01 1 1012- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98057-118-1 01 1 1012- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98057-117-1 01 1 1009-1011 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98057-117-1 01 1 1012-1505 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98057-117-1 01 1 1012-1505 ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST),M/T MYY6E(Y5X) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98057-117-1 01 1 1506- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST),M/T MYY6E(Y5X) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98057-117-1 01 1 1506- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98079-119-2 01 1 1009-1011 ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98079-119-2 01 1 1012- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98144-780-1 01 1 1009-1011 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98144-780-1 01 1 1012- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98144-780-1 01 1 1012- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98041-315-3 01 1 1009-1011 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98041-315-3 01 1 1012-1505 ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98041-315-3 01 1 1012-1505 ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST),M/T MYY6E(Y5X) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98041-315-3 01 1 1506- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST),M/T MYY6E(Y5X) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98041-315-3 01 1 1506- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98041-316-3 01 1 1009- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98062-232-3 01 1 1009- ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.128 (B) ID=19 L=32 		1-09701-235-0 01 1 1009- ● ● ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) (G) ID=24 L=40 		1-09701-139-0 01 1 1009-1011 ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) (G) ID=24 L=40 		1-09701-139-0 01 1 1012- ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (G) ID=24 L=40 		1-09701-139-0 01 1 1012- ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98023-622-0 01 1 1009- ● ● ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (H) 		8-97036-332-1 01 1 1009-1011 ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (H) 		8-97036-332-1 01 1 1012- ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (H) 		8-97036-332-1 01 1 1012- ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) (F) 		8-98023-698-0 01 1 1009-1011 ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (F) 		8-98023-698-0 01 1 1012- ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) (F) 		8-98023-698-0 01 1 1012- ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (E) 		8-98023-697-0 01 1 1009-1011 ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (E) 		8-98023-697-0 01 1 1012- ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (E) 		8-98023-697-0 01 1 1012- ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (A) ID=13 L=28 		0-95235-255-0 01 1 1009-1011 ● ● ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (A) ID=13 L=28 		0-95235-255-0 01 1 1009-1011 ● ● ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (A) ID=13 L=28 		0-95235-255-0 01 1 1009-1011 ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (A) ID=13 L=28 		0-95235-255-0 01 1 1012- ● ● ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (A) ID=13 L=28 		0-95235-255-0 01 1 1012- ● ● ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (A) ID=13 L=28 		0-95235-255-0 01 1 1012- ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (A) ID=13 L=28 		0-95235-255-0 01 1 1012- ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D) 		8-97036-333-1 01 1 1009-1011 ● ● ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D) 		8-97036-333-1 01 1 1009-1011 ● ● ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D) 		8-97036-333-1 01 1 1009-1011 ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D) 		8-97036-333-1 01 1 1012- ● ● ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D) 		8-97036-333-1 01 1 1012- ● ● ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D) 		8-97036-333-1 01 1 1012- ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D) 		8-97036-333-1 01 1 1012- ● ● ●
181 04.785 BOLT; BRKT
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1009- ● ● ● ● ● ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1009-1011 ● ● ● ●
181 04.785 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1012- ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1012- ● ● ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1009- ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 02 1 1009-1011 ● ● ● ●
225 04.785 NUT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ● ● ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1009-1011 ● ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1009-1011 ● ● ● ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1009-1011 ● ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ● ● ●
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ● ●
238 04.785 BOLT; CLIP TO BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1009-1011 ● ● ● ●
238 04.785 BOLT; CLIP TO BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1009-1011 ● ●
238 04.785 BOLT; CLIP TO BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1009-1011 ● ●
238 04.785 BOLT; CLIP TO BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ● ● ●
238 04.785 BOLT; CLIP TO BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ●
238 04.785 BOLT; CLIP TO BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1012- ●
238 04.785 BOLT; CLIP TO BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1012- ●
238 04.785 BOLT; CLIP TO BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 03 1 1009-1011 ● ● ● ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 03 1 1012- ●
238 04.785 BOLT; CLIP TO BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 03 1 1012- ● ● ●
238 04.785 BOLT; CLIP TO BRKT
00.029 (B) M10X30 FLANGE 		0-28651-030-0 01 1 1009-1011 ● ● ● ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X30 FLANGE 		0-28651-030-0 01 1 1012- ●
238 04.785 BOLT; CLIP TO BRKT
00.029 (B) M10X30 FLANGE 		0-28651-030-0 01 1 1012- ● ● ●
324 04.785 BRACKET
(A) 		8-98034-115-0 01 1 1009- ● ● ● ● ● ●
324 04.785 BRACKET
04.047 (B) 		8-98034-185-1 01 1 1009-1011 ● ● ● ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> 04.047 (B) 		8-98034-185-1 01 1 1012- ●
324 04.785 BRACKET
04.047 (B) 		8-98034-185-1 01 1 1012- ● ● ●
324 04.785 BRACKET
(D) 		8-98087-330-1 01 1 1009-1011 ● ● ● ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98087-330-1 01 1 1012- ●
324 04.785 BRACKET
(D) 		8-98087-330-1 01 1 1012- ● ● ●
324 04.785 BRACKET
(C) 		8-98099-516-0 01 1 1009-1011 ● ● ● ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (C) 		8-98099-516-0 01 1 1012-1508 ●
324 04.785 BRACKET
(C) 		8-98099-516-0 01 1 1012-1508 ● ● ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (C) 		8-98216-763-1 01 1 1509- ●
324 04.785 BRACKET
(C) 		8-98216-763-1 01 1 1509- ● ● ●
324 04.785 BRACKET
(E) 		8-98014-921-0 01 1 1009- ●
338 04.785 SCREW; GUIDE
16.069 M8X35 FLANGE 		8-98046-876-0 01 1 1009- ● ● ● ● ● ●

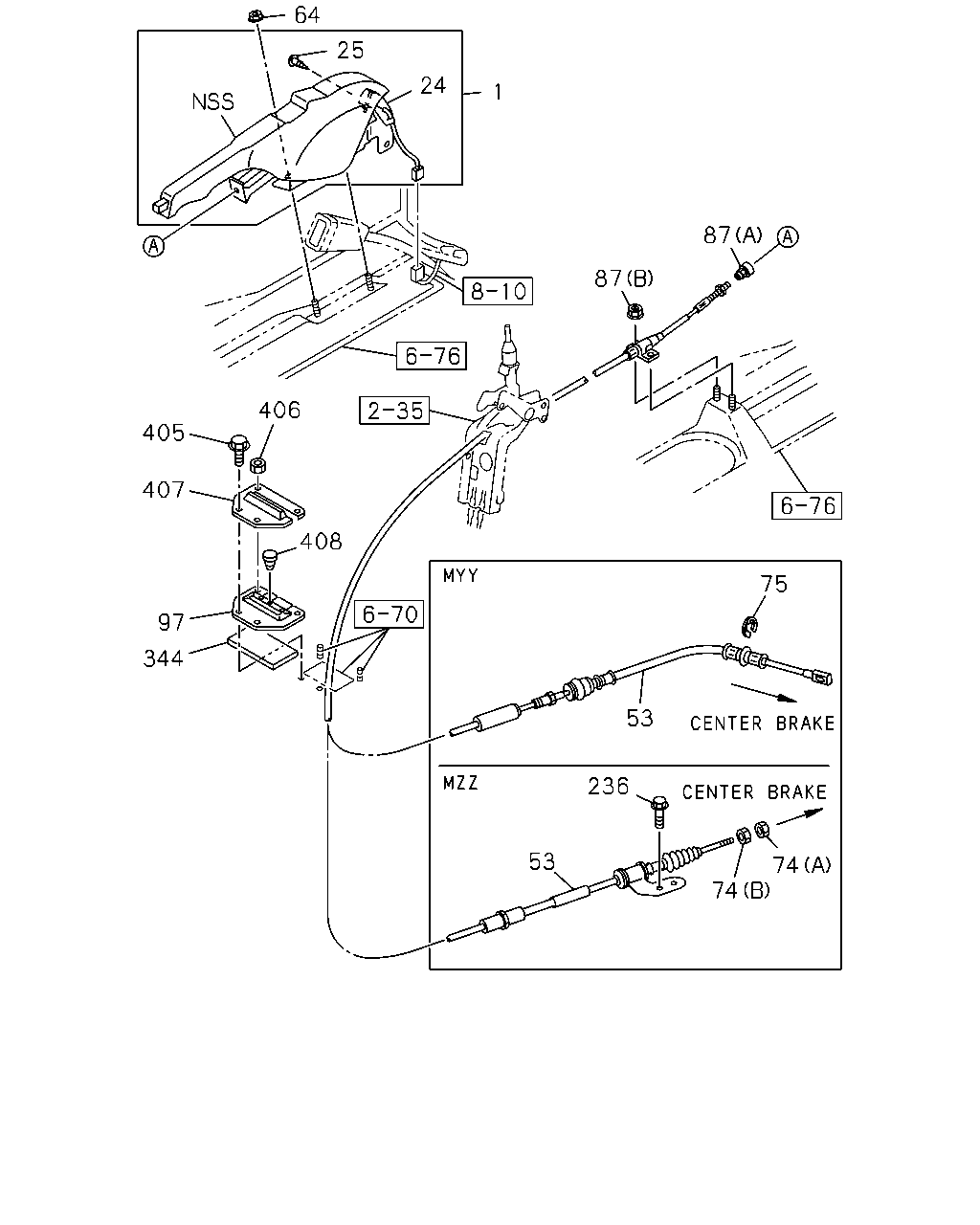

çizim 115569
64 25 24 1 87 87 75 74 74 236 53 53 344 97 407 405 408 406
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97405-353-0 01 1 1009-1303 ● ● ● ● ● ●
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97426-513-0 01 1 1304- ● ● ● ● ● ●
24 04.589 SWITCH ASM; PARK BRK 8-97995-828-1 01 1 1009-1303 ● ● ● ● ● ●
24 04.589 SWITCH ASM; PARK BRK 8-98238-611-0 01 1 1304- ● ● ● ● ● ●
25 04.589 SCREW; SW,PARKING BRK 8-98152-463-0 01 1 1009- ● ● ● ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98057-116-1 01 1 1112- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98057-116-1 01 1 1112- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98052-066-1 01 1 1009-1011 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98052-066-1 01 1 1012- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98052-066-1 01 1 1012- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98057-118-1 01 1 1009-1011 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98057-118-1 01 1 1012- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98057-118-1 01 1 1012- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98057-117-1 01 1 1009-1011 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98057-117-1 01 1 1012-1505 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98057-117-1 01 1 1012-1505 ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST),M/T MYY6E(Y5X) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98057-117-1 01 1 1506- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST),M/T MYY6E(Y5X) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98057-117-1 01 1 1506- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98079-119-2 01 1 1009-1011 ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98079-119-2 01 1 1012- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98144-780-1 01 1 1009-1011 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98144-780-1 01 1 1012- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98144-780-1 01 1 1012- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98041-315-3 01 1 1009-1011 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98041-315-3 01 1 1012-1505 ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98041-315-3 01 1 1012-1505 ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST),M/T MYY6E(Y5X) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98041-315-3 01 1 1506- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST),M/T MYY6E(Y5X) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98041-315-3 01 1 1506- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98041-316-3 01 1 1009- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98062-232-3 01 1 1009- ● ●
64 04.595 NUT; PARKING BRK
16.682 M8 LOCK NUT FLANGE 		0-91380-008-0 02 1 1009- ● ● ● ● ● ●
74 04.785 NUT; CONT WIRE
M/T MZZ6F(RSR) 02.334 (A) M8 		0-91110-508-0 01 1 1009- ● ●
74 04.785 NUT; CONT WIRE
M/T MZZ6F(RSR) (B) M8 FLANGE 		9-46259-016-0 01 1 1009- ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
M/T MYY5T(RSM),M/T MYY6S(RST) ID=12 		0-91805-512-0 01 1 1009-1505 ● ● ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
M/T MYY5T(RSM),M/T MYY6S(RST),M/T MYY6E(Y5X) ID=12 		0-91805-512-0 01 1 1506- ● ● ● ●
87 04.785 NUT
TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1009-1011 ● ●
87 04.785 NUT
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1009-1011 ● ●
87 04.785 NUT
TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1012- ● ●
87 04.785 NUT
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1012- ● ●
87 04.785 NUT
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1012- ●
87 04.785 NUT
01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1009- ● ● ● ● ● ●
87 04.785 NUT
(A) M6 		8-98034-313-1 01 1 1009- ● ● ● ● ● ●
97 04.785 GROMMET; PARKING BRK CABLE
04.010 		8-97065-212-1 01 1 1009- ● ● ● ● ● ●
236 04.785 BOLT; BRKT TO FRAME
M/T MZZ6F(RSR) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1009- ● ●
344 04.595 GASKET; DASH LWR
04.047 		8-97096-753-0 01 1 1009- ● ●
344 04.595 GASKET; DASH LWR
MANUAL TILT CAB<RWZ> 04.047 		8-97096-753-0 01 1 1009- ●
405 04.785 BOLT; GROMMET
00.785 M6X20 FLANGE 		0-28450-620-0 02 1 1009- ● ● ● ● ● ●
406 04.785 NUT; GROMMET
01.062 M6 FLANGE 		0-91180-106-0 02 1 1009- ● ● ● ● ● ●
407 04.785 RETAINER; GROMMET
04.047 		1-33657-674-0 01 1 1009- ● ● ● ● ● ●
408 04.785 CAP; GROMMET
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.010 		8-97371-108-0 02 1 1009- ● ● ● ● ● ●

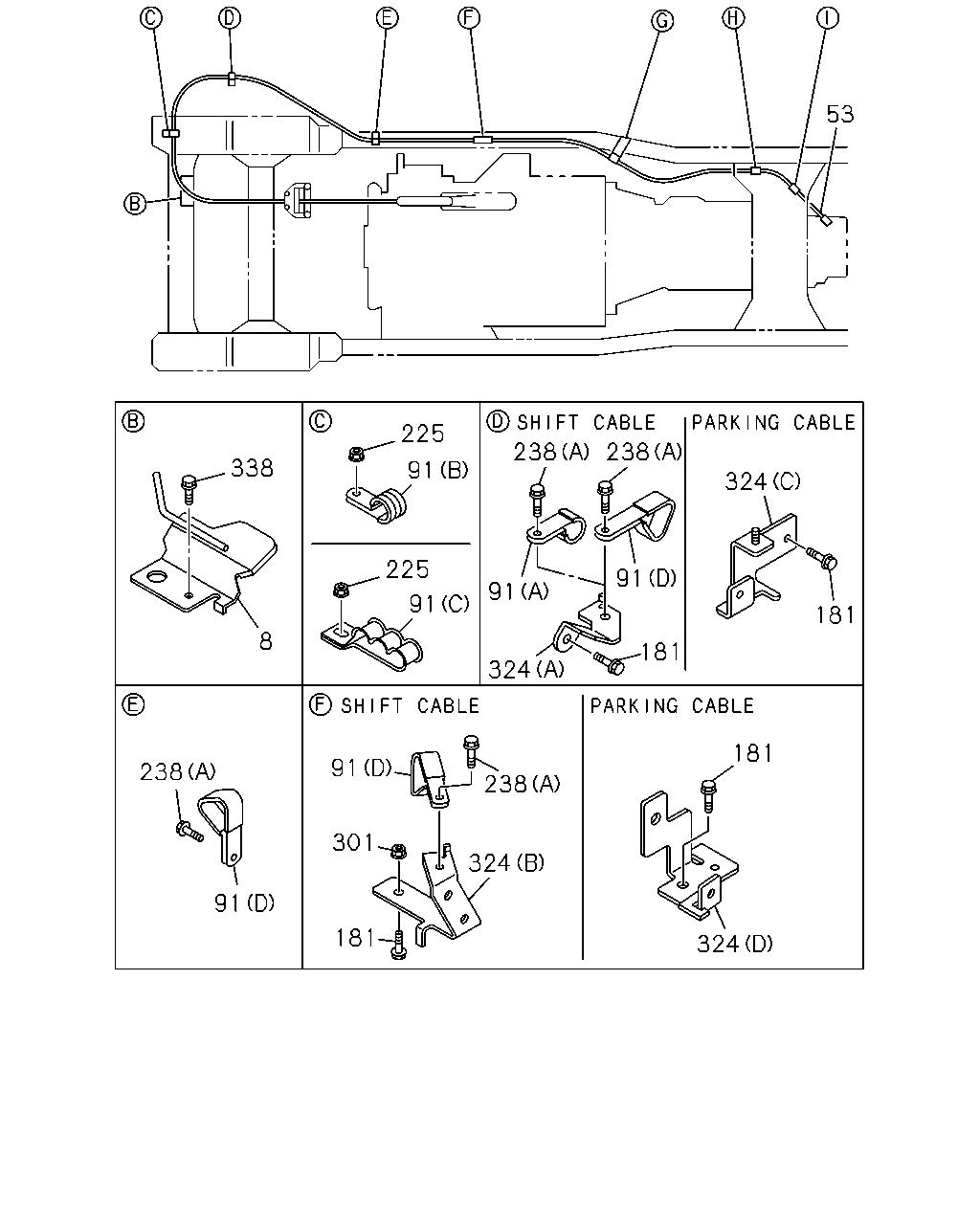

çizim 115614
91 338 225 238 238 324 181 91 181 91 225 91 324 181 324 324 238 91 301 181 91 238 53 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
8 04.592 GUIDE; PARKING BRK 8-98096-374-0 01 1 1009- ● ● ● ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98057-116-1 01 1 1112- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98057-116-1 01 1 1112- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98052-066-1 01 1 1009-1011 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98052-066-1 01 1 1012- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98052-066-1 01 1 1012- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98057-118-1 01 1 1009-1011 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98057-118-1 01 1 1012- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98057-118-1 01 1 1012- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98057-117-1 01 1 1009-1011 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98057-117-1 01 1 1012-1505 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98057-117-1 01 1 1012-1505 ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST),M/T MYY6E(Y5X) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98057-117-1 01 1 1506- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST),M/T MYY6E(Y5X) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98057-117-1 01 1 1506- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98079-119-2 01 1 1009-1011 ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98079-119-2 01 1 1012- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98144-780-1 01 1 1009-1011 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98144-780-1 01 1 1012- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98144-780-1 01 1 1012- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98041-315-3 01 1 1009-1011 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98041-315-3 01 1 1012-1505 ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98041-315-3 01 1 1012-1505 ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST),M/T MYY6E(Y5X) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98041-315-3 01 1 1506- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST),M/T MYY6E(Y5X) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98041-315-3 01 1 1506- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98041-316-3 01 1 1009- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98062-232-3 01 1 1009- ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.128 (B) ID=19 L=32 		1-09701-235-0 01 1 1009- ● ● ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) (G) ID=24 L=40 		1-09701-139-0 01 1 1009-1011 ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) (G) ID=24 L=40 		1-09701-139-0 01 1 1012- ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (G) ID=24 L=40 		1-09701-139-0 01 1 1012- ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98023-622-0 01 1 1009- ● ● ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (H) 		8-97036-332-1 01 1 1009-1011 ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (H) 		8-97036-332-1 01 1 1012- ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (H) 		8-97036-332-1 01 1 1012- ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) (F) 		8-98023-698-0 01 1 1009-1011 ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (F) 		8-98023-698-0 01 1 1012- ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) (F) 		8-98023-698-0 01 1 1012- ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (E) 		8-98023-697-0 01 1 1009-1011 ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (E) 		8-98023-697-0 01 1 1012- ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (E) 		8-98023-697-0 01 1 1012- ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (A) ID=13 L=28 		0-95235-255-0 01 1 1009-1011 ● ● ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (A) ID=13 L=28 		0-95235-255-0 01 1 1009-1011 ● ● ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (A) ID=13 L=28 		0-95235-255-0 01 1 1009-1011 ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (A) ID=13 L=28 		0-95235-255-0 01 1 1012- ● ● ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (A) ID=13 L=28 		0-95235-255-0 01 1 1012- ● ● ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (A) ID=13 L=28 		0-95235-255-0 01 1 1012- ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (A) ID=13 L=28 		0-95235-255-0 01 1 1012- ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D) 		8-97036-333-1 01 1 1009-1011 ● ● ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D) 		8-97036-333-1 01 1 1009-1011 ● ● ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D) 		8-97036-333-1 01 1 1009-1011 ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D) 		8-97036-333-1 01 1 1012- ● ● ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D) 		8-97036-333-1 01 1 1012- ● ● ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D) 		8-97036-333-1 01 1 1012- ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D) 		8-97036-333-1 01 1 1012- ● ● ●
181 04.785 BOLT; BRKT
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1009- ● ● ● ● ● ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1009-1011 ● ● ● ●
181 04.785 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1012- ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1012- ● ● ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1009- ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 02 1 1009-1011 ● ● ● ●
225 04.785 NUT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ● ● ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1009-1011 ● ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1009-1011 ● ● ● ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1009-1011 ● ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ● ● ●
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ● ●
238 04.785 BOLT; CLIP TO BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1009-1011 ● ● ● ●
238 04.785 BOLT; CLIP TO BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1009-1011 ● ●
238 04.785 BOLT; CLIP TO BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1009-1011 ● ●
238 04.785 BOLT; CLIP TO BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ● ● ●
238 04.785 BOLT; CLIP TO BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ●
238 04.785 BOLT; CLIP TO BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1012- ●
238 04.785 BOLT; CLIP TO BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1012- ●
238 04.785 BOLT; CLIP TO BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 03 1 1009-1011 ● ● ● ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 03 1 1012- ●
238 04.785 BOLT; CLIP TO BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 03 1 1012- ● ● ●
238 04.785 BOLT; CLIP TO BRKT
00.029 (B) M10X30 FLANGE 		0-28651-030-0 01 1 1009-1011 ● ● ● ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X30 FLANGE 		0-28651-030-0 01 1 1012- ●
238 04.785 BOLT; CLIP TO BRKT
00.029 (B) M10X30 FLANGE 		0-28651-030-0 01 1 1012- ● ● ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
01.062 M8 FLANGE 		0-91180-108-0 01 1 1009-1011 ● ● ● ● ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ● ● ●
324 04.785 BRACKET
(A) 		8-98034-115-0 01 1 1009- ● ● ● ● ● ●
324 04.785 BRACKET
04.047 (B) 		8-98034-185-1 01 1 1009-1011 ● ● ● ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> 04.047 (B) 		8-98034-185-1 01 1 1012- ●
324 04.785 BRACKET
04.047 (B) 		8-98034-185-1 01 1 1012- ● ● ●
324 04.785 BRACKET
(D) 		8-98087-330-1 01 1 1009-1011 ● ● ● ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98087-330-1 01 1 1012- ●
324 04.785 BRACKET
(D) 		8-98087-330-1 01 1 1012- ● ● ●
324 04.785 BRACKET
(C) 		8-98099-516-0 01 1 1009-1011 ● ● ● ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (C) 		8-98099-516-0 01 1 1012-1508 ●
324 04.785 BRACKET
(C) 		8-98099-516-0 01 1 1012-1508 ● ● ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (C) 		8-98216-763-1 01 1 1509- ●
324 04.785 BRACKET
(C) 		8-98216-763-1 01 1 1509- ● ● ●
324 04.785 BRACKET
(E) 		8-98014-921-0 01 1 1009- ●
338 04.785 SCREW; GUIDE
16.069 M8X35 FLANGE 		8-98046-876-0 01 1 1009- ● ● ● ● ● ●

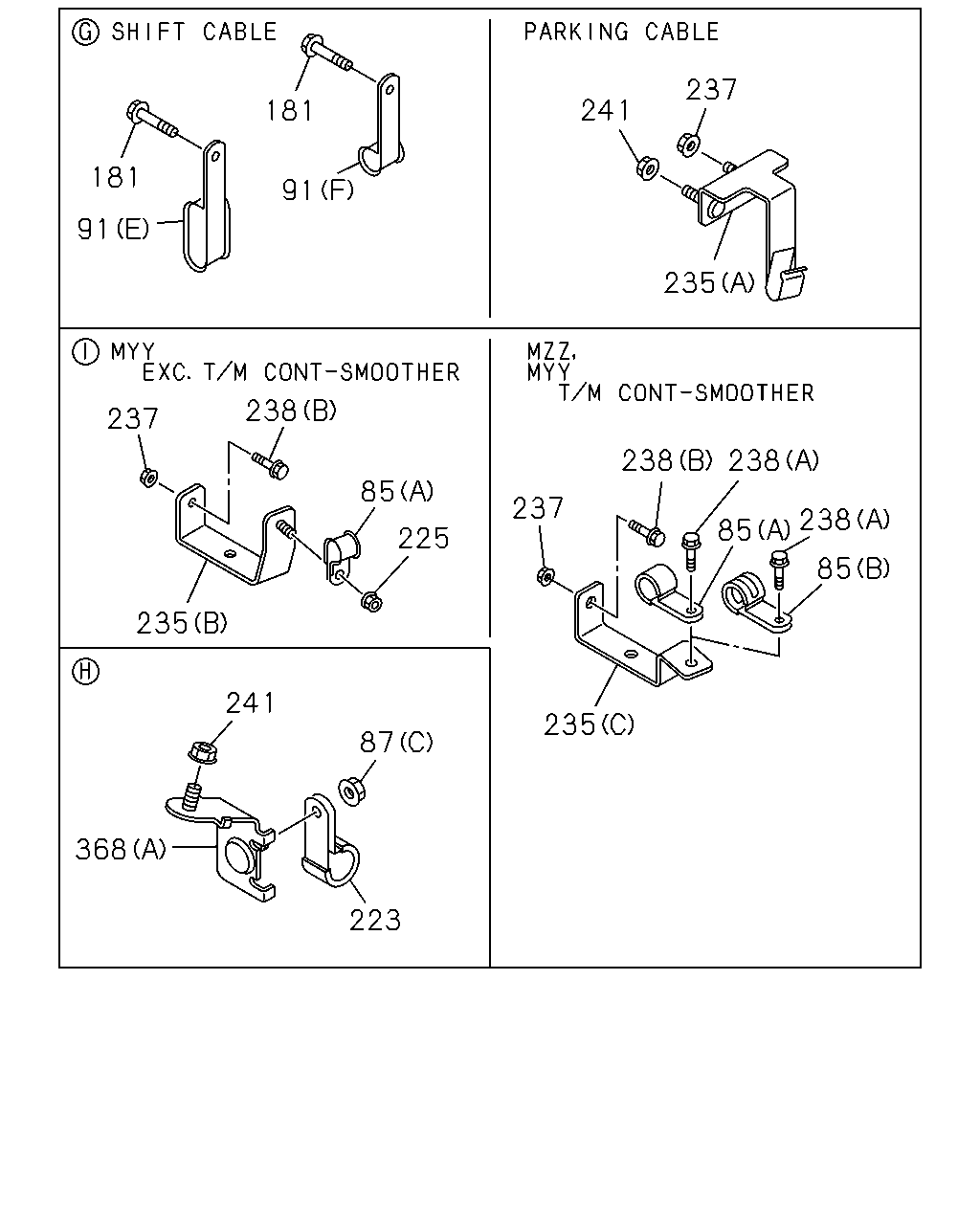

çizim 115617
181 91 181 91 241 237 235 238 237 85 225 235 237 238 238 238 85 235 87 241 223 368 85
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
85 04.785 CLIP; BRKT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=14.5 L=20 		1-09701-012-0 01 1 1009-1011 ● ●
85 04.785 CLIP; BRKT
M/T MYY5T(RSM),M/T MYY6S(RST) (A) ID=14.5 L=20 		1-09701-012-0 01 1 1009-1011 ● ●
85 04.785 CLIP; BRKT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=14.5 L=20 		1-09701-012-0 01 1 1012-1505 ● ●
85 04.785 CLIP; BRKT
M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> (A) ID=14.5 L=20 		1-09701-012-0 01 1 1012-1505 ● ●
85 04.785 CLIP; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=14.5 L=20 		1-09701-012-0 01 1 1012-1505 ●
85 04.785 CLIP; BRKT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=14.5 L=20 		1-09701-012-0 01 1 1506- ● ●
85 04.785 CLIP; BRKT
M/T MYY5T(RSM),M/T MYY6S(RST),M/T MYY6E(Y5X) FRAME STRAIGHT TYPE<7KJ> (A) ID=14.5 L=20 		1-09701-012-0 01 1 1506- ● ●
85 04.785 CLIP; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=14.5 L=20 		1-09701-012-0 01 1 1506- ●
85 04.785 CLIP; BRKT
M/T MZZ6F(RSR) (B) ID=13 L=20 		0-95235-236-0 01 1 1009- ● ●
87 04.785 NUT
TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1009-1011 ● ●
87 04.785 NUT
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1009-1011 ● ●
87 04.785 NUT
TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1012- ● ●
87 04.785 NUT
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1012- ● ●
87 04.785 NUT
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1012- ●
87 04.785 NUT
01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1009- ● ● ● ● ● ●
87 04.785 NUT
(A) M6 		8-98034-313-1 01 1 1009- ● ● ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.128 (B) ID=19 L=32 		1-09701-235-0 01 1 1009- ● ● ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) (G) ID=24 L=40 		1-09701-139-0 01 1 1009-1011 ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) (G) ID=24 L=40 		1-09701-139-0 01 1 1012- ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (G) ID=24 L=40 		1-09701-139-0 01 1 1012- ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98023-622-0 01 1 1009- ● ● ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (H) 		8-97036-332-1 01 1 1009-1011 ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (H) 		8-97036-332-1 01 1 1012- ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (H) 		8-97036-332-1 01 1 1012- ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) (F) 		8-98023-698-0 01 1 1009-1011 ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (F) 		8-98023-698-0 01 1 1012- ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) (F) 		8-98023-698-0 01 1 1012- ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (E) 		8-98023-697-0 01 1 1009-1011 ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (E) 		8-98023-697-0 01 1 1012- ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (E) 		8-98023-697-0 01 1 1012- ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (A) ID=13 L=28 		0-95235-255-0 01 1 1009-1011 ● ● ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (A) ID=13 L=28 		0-95235-255-0 01 1 1009-1011 ● ● ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (A) ID=13 L=28 		0-95235-255-0 01 1 1009-1011 ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (A) ID=13 L=28 		0-95235-255-0 01 1 1012- ● ● ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (A) ID=13 L=28 		0-95235-255-0 01 1 1012- ● ● ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (A) ID=13 L=28 		0-95235-255-0 01 1 1012- ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (A) ID=13 L=28 		0-95235-255-0 01 1 1012- ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D) 		8-97036-333-1 01 1 1009-1011 ● ● ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D) 		8-97036-333-1 01 1 1009-1011 ● ● ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D) 		8-97036-333-1 01 1 1009-1011 ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D) 		8-97036-333-1 01 1 1012- ● ● ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D) 		8-97036-333-1 01 1 1012- ● ● ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D) 		8-97036-333-1 01 1 1012- ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D) 		8-97036-333-1 01 1 1012- ● ● ●
181 04.785 BOLT; BRKT
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1009- ● ● ● ● ● ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1009-1011 ● ● ● ●
181 04.785 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1012- ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1012- ● ● ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1009- ●
223 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.799 ID=13 L=20 		1-09701-138-1 01 1 1009-1011 ● ●
223 04.785 CLIP; PARKING BRK CABLE
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) 00.799 ID=13 L=20 		1-09701-138-1 01 1 1009-1011 ● ●
223 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.799 ID=13 L=20 		1-09701-138-1 01 1 1012- ● ●
223 04.785 CLIP; PARKING BRK CABLE
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 00.799 ID=13 L=20 		1-09701-138-1 01 1 1012- ● ●
223 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 00.799 ID=13 L=20 		1-09701-138-1 01 1 1012- ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 02 1 1009-1011 ● ● ● ●
225 04.785 NUT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ● ● ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1009-1011 ● ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1009-1011 ● ● ● ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1009-1011 ● ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ● ● ●
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98034-410-3 01 1 1009-1011 ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98034-410-3 01 1 1012- ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98034-410-3 01 1 1012- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98033-907-0 01 1 1009-1011 ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MZZ6F(RSR) (C) 		8-98033-907-0 01 1 1009-1011 ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98033-907-0 01 1 1009-1011 ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98033-907-0 01 1 1012- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MZZ6F(RSR) (C) 		8-98033-907-0 01 1 1012- ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98033-907-0 01 1 1012- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY5T(RSM),M/T MYY6S(RST) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98087-322-0 01 1 1009-1011 ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY6S(RST) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98087-322-0 01 1 1009-1011 ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98087-322-0 01 1 1012-1505 ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY6S(RST) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98087-322-0 01 1 1012-1505 ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY5T(RSM),M/T MYY6S(RST),M/T MYY6E(Y5X) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98087-322-0 01 1 1506- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY6S(RST),M/T MYY6E(Y5X) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98087-322-0 01 1 1506- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
(A) 		8-98074-995-0 01 1 1009-1011 ● ● ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98074-995-0 01 1 1012- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
(A) 		8-98074-995-0 01 1 1012- ● ● ●
237 04.785 NUT; BRKT TO FRAME
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1009-1011 ● ●
237 04.785 NUT; BRKT TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 01 1 1009-1011 ● ● ● ●
237 04.785 NUT; BRKT TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 01 1 1009-1011 ● ●
237 04.785 NUT; BRKT TO FRAME
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1012- ● ●
237 04.785 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1012- ●
237 04.785 NUT; BRKT TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1012- ●
237 04.785 NUT; BRKT TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 01 1 1012- ● ● ●
237 04.785 NUT; BRKT TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 01 1 1012- ● ●
237 04.785 NUT; BRKT TO FRAME
M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1009- ● ●
238 04.785 BOLT; CLIP TO BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1009-1011 ● ● ● ●
238 04.785 BOLT; CLIP TO BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1009-1011 ● ●
238 04.785 BOLT; CLIP TO BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1009-1011 ● ●
238 04.785 BOLT; CLIP TO BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ● ● ●
238 04.785 BOLT; CLIP TO BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ●
238 04.785 BOLT; CLIP TO BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1012- ●
238 04.785 BOLT; CLIP TO BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1012- ●
238 04.785 BOLT; CLIP TO BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 03 1 1009-1011 ● ● ● ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 03 1 1012- ●
238 04.785 BOLT; CLIP TO BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 03 1 1012- ● ● ●
238 04.785 BOLT; CLIP TO BRKT
00.029 (B) M10X30 FLANGE 		0-28651-030-0 01 1 1009-1011 ● ● ● ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X30 FLANGE 		0-28651-030-0 01 1 1012- ●
238 04.785 BOLT; CLIP TO BRKT
00.029 (B) M10X30 FLANGE 		0-28651-030-0 01 1 1012- ● ● ●
241 04.785 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1009-1011 ● ●
241 04.785 NUT; BRKT
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1009-1011 ● ●
241 04.785 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ●
241 04.785 NUT; BRKT
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ●
241 04.785 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
241 04.785 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 02 1 1009-1011 ● ● ● ●
241 04.785 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ●
241 04.785 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ● ● ●
368 04.785 BRACKET; T/M SIDE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97372-863-1 01 1 1009-1011 ● ●
368 04.785 BRACKET; T/M SIDE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97372-863-1 01 1 1012- ● ●
368 04.785 BRACKET; T/M SIDE
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97372-863-1 01 1 1012- ●
368 04.785 BRACKET; T/M SIDE
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98144-584-0 01 1 1009-1011 ● ●
368 04.785 BRACKET; T/M SIDE
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98144-584-0 01 1 1012- ●
368 04.785 BRACKET; T/M SIDE
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98144-584-0 01 1 1012- ●
çizim 187283
85 225 235 237 181 324 301 238 91 238 91 241 87 223 368
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
85 04.785 CLIP; BRKT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=14.5 L=20 		1-09701-012-0 01 1 1009-1011 ● ●
85 04.785 CLIP; BRKT
M/T MYY5T(RSM),M/T MYY6S(RST) (A) ID=14.5 L=20 		1-09701-012-0 01 1 1009-1011 ● ●
85 04.785 CLIP; BRKT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=14.5 L=20 		1-09701-012-0 01 1 1012-1505 ● ●
85 04.785 CLIP; BRKT
M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> (A) ID=14.5 L=20 		1-09701-012-0 01 1 1012-1505 ● ●
85 04.785 CLIP; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=14.5 L=20 		1-09701-012-0 01 1 1012-1505 ●
85 04.785 CLIP; BRKT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=14.5 L=20 		1-09701-012-0 01 1 1506- ● ●
85 04.785 CLIP; BRKT
M/T MYY5T(RSM),M/T MYY6S(RST),M/T MYY6E(Y5X) FRAME STRAIGHT TYPE<7KJ> (A) ID=14.5 L=20 		1-09701-012-0 01 1 1506- ● ●
85 04.785 CLIP; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=14.5 L=20 		1-09701-012-0 01 1 1506- ●
85 04.785 CLIP; BRKT
M/T MZZ6F(RSR) (B) ID=13 L=20 		0-95235-236-0 01 1 1009- ● ●
87 04.785 NUT
TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1009-1011 ● ●
87 04.785 NUT
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1009-1011 ● ●
87 04.785 NUT
TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1012- ● ●
87 04.785 NUT
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1012- ● ●
87 04.785 NUT
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1012- ●
87 04.785 NUT
01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1009- ● ● ● ● ● ●
87 04.785 NUT
(A) M6 		8-98034-313-1 01 1 1009- ● ● ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.128 (B) ID=19 L=32 		1-09701-235-0 01 1 1009- ● ● ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) (G) ID=24 L=40 		1-09701-139-0 01 1 1009-1011 ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) (G) ID=24 L=40 		1-09701-139-0 01 1 1012- ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (G) ID=24 L=40 		1-09701-139-0 01 1 1012- ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98023-622-0 01 1 1009- ● ● ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (H) 		8-97036-332-1 01 1 1009-1011 ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (H) 		8-97036-332-1 01 1 1012- ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (H) 		8-97036-332-1 01 1 1012- ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) (F) 		8-98023-698-0 01 1 1009-1011 ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (F) 		8-98023-698-0 01 1 1012- ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) (F) 		8-98023-698-0 01 1 1012- ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (E) 		8-98023-697-0 01 1 1009-1011 ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (E) 		8-98023-697-0 01 1 1012- ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (E) 		8-98023-697-0 01 1 1012- ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (A) ID=13 L=28 		0-95235-255-0 01 1 1009-1011 ● ● ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (A) ID=13 L=28 		0-95235-255-0 01 1 1009-1011 ● ● ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (A) ID=13 L=28 		0-95235-255-0 01 1 1009-1011 ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (A) ID=13 L=28 		0-95235-255-0 01 1 1012- ● ● ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (A) ID=13 L=28 		0-95235-255-0 01 1 1012- ● ● ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (A) ID=13 L=28 		0-95235-255-0 01 1 1012- ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (A) ID=13 L=28 		0-95235-255-0 01 1 1012- ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D) 		8-97036-333-1 01 1 1009-1011 ● ● ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D) 		8-97036-333-1 01 1 1009-1011 ● ● ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D) 		8-97036-333-1 01 1 1009-1011 ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D) 		8-97036-333-1 01 1 1012- ● ● ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D) 		8-97036-333-1 01 1 1012- ● ● ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D) 		8-97036-333-1 01 1 1012- ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D) 		8-97036-333-1 01 1 1012- ● ● ●
181 04.785 BOLT; BRKT
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1009- ● ● ● ● ● ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1009-1011 ● ● ● ●
181 04.785 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1012- ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1012- ● ● ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1009- ●
223 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.799 ID=13 L=20 		1-09701-138-1 01 1 1009-1011 ● ●
223 04.785 CLIP; PARKING BRK CABLE
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) 00.799 ID=13 L=20 		1-09701-138-1 01 1 1009-1011 ● ●
223 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.799 ID=13 L=20 		1-09701-138-1 01 1 1012- ● ●
223 04.785 CLIP; PARKING BRK CABLE
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 00.799 ID=13 L=20 		1-09701-138-1 01 1 1012- ● ●
223 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 00.799 ID=13 L=20 		1-09701-138-1 01 1 1012- ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 02 1 1009-1011 ● ● ● ●
225 04.785 NUT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ● ● ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1009-1011 ● ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1009-1011 ● ● ● ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1009-1011 ● ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ● ● ●
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98034-410-3 01 1 1009-1011 ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98034-410-3 01 1 1012- ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98034-410-3 01 1 1012- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98033-907-0 01 1 1009-1011 ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MZZ6F(RSR) (C) 		8-98033-907-0 01 1 1009-1011 ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98033-907-0 01 1 1009-1011 ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98033-907-0 01 1 1012- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MZZ6F(RSR) (C) 		8-98033-907-0 01 1 1012- ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98033-907-0 01 1 1012- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY5T(RSM),M/T MYY6S(RST) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98087-322-0 01 1 1009-1011 ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY6S(RST) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98087-322-0 01 1 1009-1011 ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98087-322-0 01 1 1012-1505 ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY6S(RST) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98087-322-0 01 1 1012-1505 ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY5T(RSM),M/T MYY6S(RST),M/T MYY6E(Y5X) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98087-322-0 01 1 1506- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY6S(RST),M/T MYY6E(Y5X) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98087-322-0 01 1 1506- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
(A) 		8-98074-995-0 01 1 1009-1011 ● ● ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98074-995-0 01 1 1012- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
(A) 		8-98074-995-0 01 1 1012- ● ● ●
237 04.785 NUT; BRKT TO FRAME
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1009-1011 ● ●
237 04.785 NUT; BRKT TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 01 1 1009-1011 ● ● ● ●
237 04.785 NUT; BRKT TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 01 1 1009-1011 ● ●
237 04.785 NUT; BRKT TO FRAME
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1012- ● ●
237 04.785 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1012- ●
237 04.785 NUT; BRKT TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1012- ●
237 04.785 NUT; BRKT TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 01 1 1012- ● ● ●
237 04.785 NUT; BRKT TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 01 1 1012- ● ●
237 04.785 NUT; BRKT TO FRAME
M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1009- ● ●
238 04.785 BOLT; CLIP TO BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1009-1011 ● ● ● ●
238 04.785 BOLT; CLIP TO BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1009-1011 ● ●
238 04.785 BOLT; CLIP TO BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1009-1011 ● ●
238 04.785 BOLT; CLIP TO BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ● ● ●
238 04.785 BOLT; CLIP TO BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ●
238 04.785 BOLT; CLIP TO BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1012- ●
238 04.785 BOLT; CLIP TO BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1012- ●
238 04.785 BOLT; CLIP TO BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 03 1 1009-1011 ● ● ● ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 03 1 1012- ●
238 04.785 BOLT; CLIP TO BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 03 1 1012- ● ● ●
238 04.785 BOLT; CLIP TO BRKT
00.029 (B) M10X30 FLANGE 		0-28651-030-0 01 1 1009-1011 ● ● ● ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X30 FLANGE 		0-28651-030-0 01 1 1012- ●
238 04.785 BOLT; CLIP TO BRKT
00.029 (B) M10X30 FLANGE 		0-28651-030-0 01 1 1012- ● ● ●
241 04.785 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1009-1011 ● ●
241 04.785 NUT; BRKT
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1009-1011 ● ●
241 04.785 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ●
241 04.785 NUT; BRKT
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ●
241 04.785 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
241 04.785 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 02 1 1009-1011 ● ● ● ●
241 04.785 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ●
241 04.785 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ● ● ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
01.062 M8 FLANGE 		0-91180-108-0 01 1 1009-1011 ● ● ● ● ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ● ● ●
324 04.785 BRACKET
(A) 		8-98034-115-0 01 1 1009- ● ● ● ● ● ●
324 04.785 BRACKET
04.047 (B) 		8-98034-185-1 01 1 1009-1011 ● ● ● ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> 04.047 (B) 		8-98034-185-1 01 1 1012- ●
324 04.785 BRACKET
04.047 (B) 		8-98034-185-1 01 1 1012- ● ● ●
324 04.785 BRACKET
(D) 		8-98087-330-1 01 1 1009-1011 ● ● ● ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98087-330-1 01 1 1012- ●
324 04.785 BRACKET
(D) 		8-98087-330-1 01 1 1012- ● ● ●
324 04.785 BRACKET
(C) 		8-98099-516-0 01 1 1009-1011 ● ● ● ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (C) 		8-98099-516-0 01 1 1012-1508 ●
324 04.785 BRACKET
(C) 		8-98099-516-0 01 1 1012-1508 ● ● ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (C) 		8-98216-763-1 01 1 1509- ●
324 04.785 BRACKET
(C) 		8-98216-763-1 01 1 1509- ● ● ●
324 04.785 BRACKET
(E) 		8-98014-921-0 01 1 1009- ●
368 04.785 BRACKET; T/M SIDE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97372-863-1 01 1 1009-1011 ● ●
368 04.785 BRACKET; T/M SIDE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97372-863-1 01 1 1012- ● ●
368 04.785 BRACKET; T/M SIDE
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97372-863-1 01 1 1012- ●
368 04.785 BRACKET; T/M SIDE
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98144-584-0 01 1 1009-1011 ● ●
368 04.785 BRACKET; T/M SIDE
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98144-584-0 01 1 1012- ●
368 04.785 BRACKET; T/M SIDE
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98144-584-0 01 1 1012- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
