Sayfa 3-05 - Isuzu EPC

3-05 — REAR WHEEL BRAKE (#78294) — 448 parça

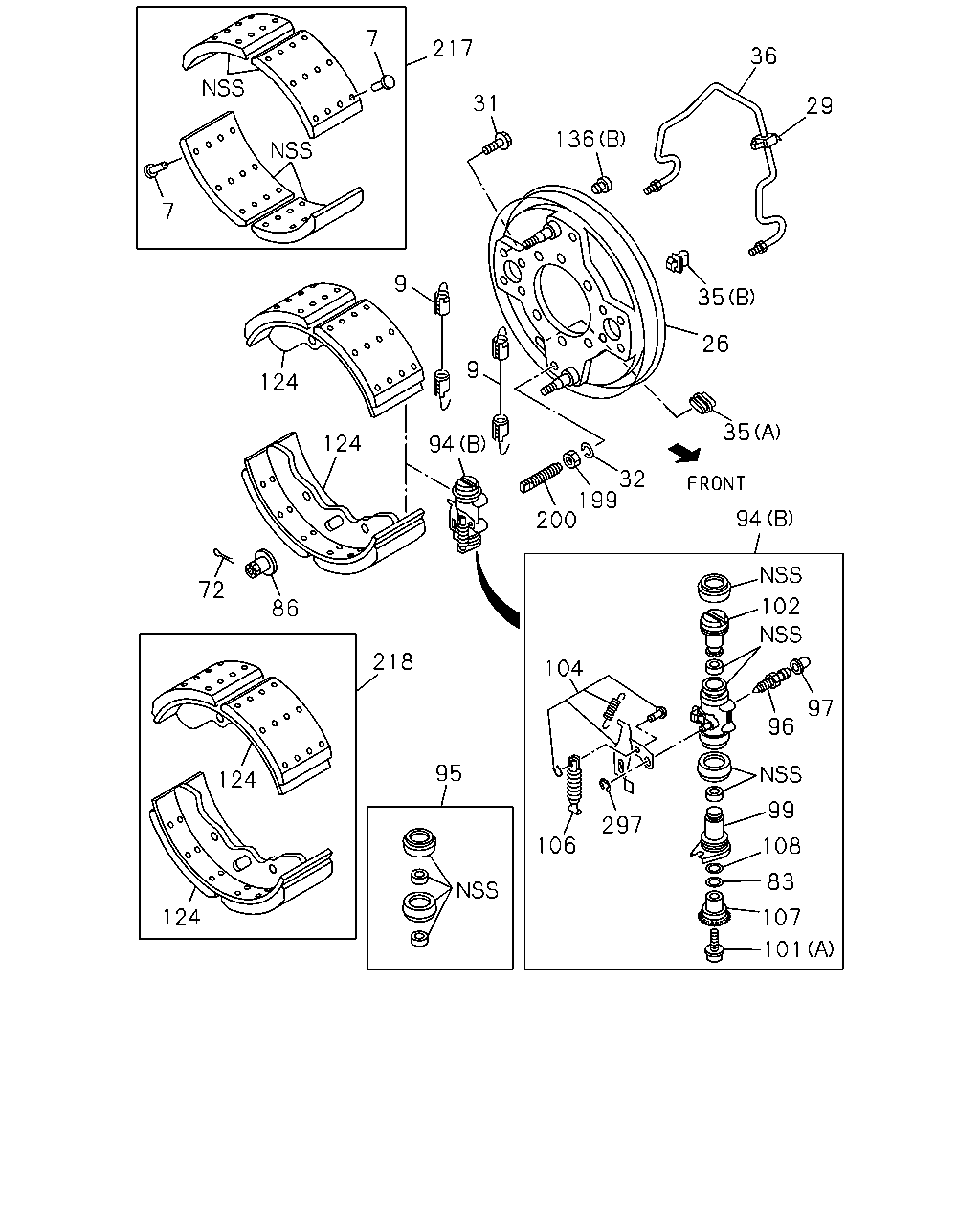

94 101 104 106 108 107 101 99 96 97 102 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
94	04.665 CYLINDER; WHEEL,RR BRK (A) REAR	8-97349-689-0	01	1	1009-1504	●	●
94	04.665 CYLINDER; WHEEL,RR BRK EXC. 4 WHEEL DISC BRAKE<JF9> (A) REAR	8-97349-689-0	01	1	1505-	●	●
94	04.665 CYLINDER; WHEEL,RR BRK (A) REAR	8-97349-690-0	01	1	1009-1504	●	●
94	04.665 CYLINDER; WHEEL,RR BRK EXC. 4 WHEEL DISC BRAKE<JF9> (A) REAR	8-97349-690-0	01	1	1505-	●	●
94	04.665 CYLINDER; WHEEL,RR BRK (A) FRONT	8-97349-691-0	01	1	1009-1504	●	●
94	04.665 CYLINDER; WHEEL,RR BRK EXC. 4 WHEEL DISC BRAKE<JF9> (A) FRONT	8-97349-691-0	01	1	1505-	●	●
94	04.665 CYLINDER; WHEEL,RR BRK (A) FRONT	8-97349-692-0	01	1	1009-1504	●	●
94	04.665 CYLINDER; WHEEL,RR BRK EXC. 4 WHEEL DISC BRAKE<JF9> (A) FRONT	8-97349-692-0	01	1	1505-	●	●
94	04.665 CYLINDER; WHEEL,RR BRK G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) (A) REAR	8-97349-705-0	01	1	1009-1504			●
94	04.665 CYLINDER; WHEEL,RR BRK (A) REAR	8-97349-705-0	01	1	1009-1504				●
94	04.665 CYLINDER; WHEEL,RR BRK G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9> (A) REAR	8-97349-705-0	01	1	1505-			●	●
94	04.665 CYLINDER; WHEEL,RR BRK G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) (A) REAR	8-97349-706-0	01	1	1009-1504			●
94	04.665 CYLINDER; WHEEL,RR BRK (A) REAR	8-97349-706-0	01	1	1009-1504				●
94	04.665 CYLINDER; WHEEL,RR BRK G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9> (A) REAR	8-97349-706-0	01	1	1505-			●	●
94	04.665 CYLINDER; WHEEL,RR BRK G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) (A) FRONT	8-97349-707-0	01	1	1009-1504			●
94	04.665 CYLINDER; WHEEL,RR BRK (A) FRONT	8-97349-707-0	01	1	1009-1504				●
94	04.665 CYLINDER; WHEEL,RR BRK G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9> (A) FRONT	8-97349-707-0	01	1	1505-			●	●
94	04.665 CYLINDER; WHEEL,RR BRK G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) (A) FRONT	8-97349-708-0	01	1	1009-1504			●
94	04.665 CYLINDER; WHEEL,RR BRK (A) FRONT	8-97349-708-0	01	1	1009-1504				●
94	04.665 CYLINDER; WHEEL,RR BRK G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9> (A) FRONT	8-97349-708-0	01	1	1505-			●	●
94	04.665 CYLINDER; WHEEL,RR BRK G.V.W. 7.5-8.0TON(RPY) (A) REAR	8-97358-878-0	01	1	1009-1504			●
94	04.665 CYLINDER; WHEEL,RR BRK G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> (A) REAR	8-97358-878-0	01	1	1505-			●	●
94	04.665 CYLINDER; WHEEL,RR BRK G.V.W. 7.5-8.0TON(RPY) (A) REAR	8-97358-879-0	01	1	1009-1504			●
94	04.665 CYLINDER; WHEEL,RR BRK G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> (A) REAR	8-97358-879-0	01	1	1505-			●	●
94	04.665 CYLINDER; WHEEL,RR BRK G.V.W. 7.5-8.0TON(RPY) (A) FRONT	8-97358-880-0	01	1	1009-1504			●
94	04.665 CYLINDER; WHEEL,RR BRK G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> (A) FRONT	8-97358-880-0	01	1	1505-			●	●
94	04.665 CYLINDER; WHEEL,RR BRK G.V.W. 7.5-8.0TON(RPY) (A) FRONT	8-97358-881-0	01	1	1009-1504			●
94	04.665 CYLINDER; WHEEL,RR BRK G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> (A) FRONT	8-97358-881-0	01	1	1505-			●	●
94	04.665 CYLINDER; WHEEL,RR BRK (B) FRONT	8-97372-820-0	01	1	1009-1510					●	●
94	04.665 CYLINDER; WHEEL,RR BRK (B) FRONT	8-98317-282-0	01	1	1511-					●	●
94	04.665 CYLINDER; WHEEL,RR BRK (B) FRONT	8-97372-821-0	01	1	1009-1510					●	●
94	04.665 CYLINDER; WHEEL,RR BRK (B) FRONT	8-98317-280-0	01	1	1511-					●	●
94	04.665 CYLINDER; WHEEL,RR BRK (B) REAR	8-97372-822-0	01	1	1009-1510					●	●
94	04.665 CYLINDER; WHEEL,RR BRK (B) REAR	8-98317-281-0	01	1	1511-					●	●
94	04.665 CYLINDER; WHEEL,RR BRK (B) REAR	8-97372-823-0	01	1	1009-1510					●	●
94	04.665 CYLINDER; WHEEL,RR BRK (B) REAR	8-98317-278-0	01	1	1511-					●	●
95	04.665 CUP SET; RR WHEEL CYL	5-87831-622-0	01	1	1009-1504	●	●
95	04.665 CUP SET; RR WHEEL CYL EXC. 4 WHEEL DISC BRAKE<JF9>	5-87831-622-0	01	1	1505-	●	●
95	04.665 CUP SET; RR WHEEL CYL G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW)	5-87832-070-0	01	1	1009-1504			●
95	04.665 CUP SET; RR WHEEL CYL	5-87832-070-0	01	1	1009-1504				●
95	04.665 CUP SET; RR WHEEL CYL G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9>	5-87832-070-0	01	1	1505-			●	●
95	04.665 CUP SET; RR WHEEL CYL G.V.W. 7.5-8.0TON(RPY)	5-87832-051-0	02	1	1009-1504			●
95	04.665 CUP SET; RR WHEEL CYL G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>	5-87832-051-0	02	1	1505-			●	●
95	04.665 CUP SET; RR WHEEL CYL	5-87832-131-0	01	1	1009-1507					●	●
95	04.665 CUP SET; RR WHEEL CYL	5-87832-359-0	01	1	1508-					●	●
96	04.666 SCREW; BLEEDER,RR BRK	8-98050-476-0	02	1	1009-1504	●	●		●
96	04.666 SCREW; BLEEDER,RR BRK G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW)	8-98050-476-0	02	1	1009-1504			●
96	04.666 SCREW; BLEEDER,RR BRK EXC. 4 WHEEL DISC BRAKE<JF9>	8-98050-476-0	02	1	1505-	●	●
96	04.666 SCREW; BLEEDER,RR BRK G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9>	8-98050-476-0	02	1	1505-			●	●
96	04.666 SCREW; BLEEDER,RR BRK G.V.W. 7.5-8.0TON(RPY)	8-98050-477-0	02	1	1009-1504			●
96	04.666 SCREW; BLEEDER,RR BRK	8-98050-477-0	02	1	1009-1504					●	●
96	04.666 SCREW; BLEEDER,RR BRK G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>	8-98050-477-0	02	1	1505-			●	●
96	04.666 SCREW; BLEEDER,RR BRK	8-98050-477-0	02	1	1505-					●	●
97	04.666 CAP; BLEEDER,RR WHEEL CYL	8-98050-479-0	02	1	1009-1504	●	●	●	●	●	●
97	04.666 CAP; BLEEDER,RR WHEEL CYL EXC. 4 WHEEL DISC BRAKE<JF9>	8-98050-479-0	02	1	1505-	●	●	●	●	●	●
99	04.668 PISTON; RR WHEEL CYL	8-97349-727-0	02	1	1009-1504	●	●
99	04.668 PISTON; RR WHEEL CYL EXC. 4 WHEEL DISC BRAKE<JF9>	8-97349-727-0	02	1	1505-	●	●
99	04.668 PISTON; RR WHEEL CYL	8-97349-728-0	02	1	1009-1504	●	●
99	04.668 PISTON; RR WHEEL CYL EXC. 4 WHEEL DISC BRAKE<JF9>	8-97349-728-0	02	1	1505-	●	●
99	04.668 PISTON; RR WHEEL CYL G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW)	8-97349-729-0	02	1	1009-1504			●
99	04.668 PISTON; RR WHEEL CYL	8-97349-729-0	02	1	1009-1504				●
99	04.668 PISTON; RR WHEEL CYL G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9>	8-97349-729-0	02	1	1505-			●	●
99	04.668 PISTON; RR WHEEL CYL G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW)	8-97349-730-0	02	1	1009-1504			●
99	04.668 PISTON; RR WHEEL CYL	8-97349-730-0	02	1	1009-1504				●
99	04.668 PISTON; RR WHEEL CYL G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9>	8-97349-730-0	02	1	1505-			●	●
99	04.668 PISTON; RR WHEEL CYL G.V.W. 7.5-8.0TON(RPY)	8-97349-731-0	02	1	1009-1504			●
99	04.668 PISTON; RR WHEEL CYL G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>	8-97349-731-0	02	1	1505-			●	●
99	04.668 PISTON; RR WHEEL CYL G.V.W. 7.5-8.0TON(RPY)	8-97349-732-0	02	1	1009-1504			●
99	04.668 PISTON; RR WHEEL CYL G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>	8-97349-732-0	02	1	1505-			●	●
99	04.668 PISTON; RR WHEEL CYL	8-97372-831-0	02	1	1009-					●	●
99	04.668 PISTON; RR WHEEL CYL	8-97372-832-0	02	1	1009-					●	●
101	04.666 SCREW; ADJ,RR WHEEL CYL (B)	8-97349-747-0	04	1	1009-1504	●	●	●	●
101	04.666 SCREW; ADJ,RR WHEEL CYL EXC. 4 WHEEL DISC BRAKE<JF9> (B)	8-97349-747-0	04	1	1505-	●	●	●	●
101	04.666 SCREW; ADJ,RR WHEEL CYL (A) M12X30.2 RH THREAD	5-47622-003-1	02	1	1009-1504	●	●
101	04.666 SCREW; ADJ,RR WHEEL CYL EXC. 4 WHEEL DISC BRAKE<JF9> (A) M12X30.2 RH THREAD	5-47622-003-1	02	1	1505-	●	●
101	04.666 SCREW; ADJ,RR WHEEL CYL (A) M12X30.2 LH THREAD	5-47622-004-1	02	1	1009-1504	●	●
101	04.666 SCREW; ADJ,RR WHEEL CYL EXC. 4 WHEEL DISC BRAKE<JF9> (A) M12X30.2 LH THREAD	5-47622-004-1	02	1	1505-	●	●
101	04.666 SCREW; ADJ,RR WHEEL CYL (A)	8-97349-741-0	02	1	1009-1504			●	●
101	04.666 SCREW; ADJ,RR WHEEL CYL EXC. 4 WHEEL DISC BRAKE<JF9> (A)	8-97349-741-0	02	1	1505-			●	●
101	04.666 SCREW; ADJ,RR WHEEL CYL (A)	8-97349-742-0	02	1	1009-1504			●	●
101	04.666 SCREW; ADJ,RR WHEEL CYL EXC. 4 WHEEL DISC BRAKE<JF9> (A)	8-97349-742-0	02	1	1505-			●	●
101	04.666 SCREW; ADJ,RR WHEEL CYL (A)	8-97372-837-0	02	1	1009-					●	●
101	04.666 SCREW; ADJ,RR WHEEL CYL (A)	8-97372-838-0	02	1	1009-					●	●
102	04.668 PISTON; REAR WHEEL CYL D=25.4	8-94128-531-1	04	1	1009-1504	●	●
102	04.668 PISTON; REAR WHEEL CYL EXC. 4 WHEEL DISC BRAKE<JF9> D=25.4	8-94128-531-1	04	1	1505-	●	●
102	04.668 PISTON; REAR WHEEL CYL G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW)	8-97078-045-0	04	1	1009-1504			●
102	04.668 PISTON; REAR WHEEL CYL	8-97078-045-0	04	1	1009-1504				●
102	04.668 PISTON; REAR WHEEL CYL G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9>	8-97078-045-0	04	1	1505-			●	●
102	04.668 PISTON; REAR WHEEL CYL G.V.W. 7.5-8.0TON(RPY)	8-97332-043-0	04	1	1009-1504			●
102	04.668 PISTON; REAR WHEEL CYL G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>	8-97332-043-0	04	1	1505-			●	●
102	04.668 PISTON; REAR WHEEL CYL	8-97372-833-0	04	1	1009-					●	●
104	05.103 LEVER; ADJ	8-97349-743-0	02	1	1009-1504	●	●	●	●
104	05.103 LEVER; ADJ EXC. 4 WHEEL DISC BRAKE<JF9>	8-97349-743-0	02	1	1505-	●	●	●	●
104	05.103 LEVER; ADJ	8-97349-744-0	02	1	1009-1504	●	●	●	●
104	05.103 LEVER; ADJ EXC. 4 WHEEL DISC BRAKE<JF9>	8-97349-744-0	02	1	1505-	●	●	●	●
104	05.103 LEVER; ADJ	1-47619-133-0	02	1	1009-					●	●
104	05.103 LEVER; ADJ	1-47619-134-0	02	1	1009-					●	●
106	05.107 SPRING; ADJ LEVER	8-97349-745-0	04	1	1009-1504	●	●	●	●
106	05.107 SPRING; ADJ LEVER EXC. 4 WHEEL DISC BRAKE<JF9>	8-97349-745-0	04	1	1505-	●	●	●	●
106	05.107 SPRING; ADJ LEVER 04.665	1-09583-345-0	04	1	1009-					●	●
107	05.110 GEAR; ADJ,RR W/CYL	8-97349-737-0	02	1	1009-1504	●	●
107	05.110 GEAR; ADJ,RR W/CYL EXC. 4 WHEEL DISC BRAKE<JF9>	8-97349-737-0	02	1	1505-	●	●
107	05.110 GEAR; ADJ,RR W/CYL	8-97349-739-0	02	1	1009-1504	●	●
107	05.110 GEAR; ADJ,RR W/CYL EXC. 4 WHEEL DISC BRAKE<JF9>	8-97349-739-0	02	1	1505-	●	●
107	05.110 GEAR; ADJ,RR W/CYL G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW)	8-97349-738-0	02	1	1009-1504			●
107	05.110 GEAR; ADJ,RR W/CYL	8-97349-738-0	02	1	1009-1504				●
107	05.110 GEAR; ADJ,RR W/CYL G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9>	8-97349-738-0	02	1	1505-			●	●
107	05.110 GEAR; ADJ,RR W/CYL G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW)	8-97349-740-0	02	1	1009-1504			●
107	05.110 GEAR; ADJ,RR W/CYL	8-97349-740-0	02	1	1009-1504				●
107	05.110 GEAR; ADJ,RR W/CYL G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9>	8-97349-740-0	02	1	1505-			●	●
107	05.110 GEAR; ADJ,RR W/CYL G.V.W. 7.5-8.0TON(RPY) 04.665	8-97358-894-0	02	1	1009-1504			●
107	05.110 GEAR; ADJ,RR W/CYL G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 04.665	8-97358-894-0	02	1	1505-			●	●
107	05.110 GEAR; ADJ,RR W/CYL G.V.W. 7.5-8.0TON(RPY) 04.665	8-97358-895-0	02	1	1009-1504			●
107	05.110 GEAR; ADJ,RR W/CYL G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 04.665	8-97358-895-0	02	1	1505-			●	●
107	05.110 GEAR; ADJ,RR W/CYL	8-97372-835-0	02	1	1009-					●	●
107	05.110 GEAR; ADJ,RR W/CYL	8-97372-836-0	02	1	1009-					●	●
108	05.110 WASHER; THRUST,GEAR ADJ	8-97029-304-0	04	1	1009-1504	●	●
108	05.110 WASHER; THRUST,GEAR ADJ EXC. 4 WHEEL DISC BRAKE<JF9>	8-97029-304-0	04	1	1505-	●	●
108	05.110 WASHER; THRUST,GEAR ADJ	8-97349-736-0	04	1	1009-1504			●	●
108	05.110 WASHER; THRUST,GEAR ADJ EXC. 4 WHEEL DISC BRAKE<JF9>	8-97349-736-0	04	1	1505-			●	●
108	05.110 WASHER; THRUST,GEAR ADJ 05.020	1-47629-135-0	04	1	1009-					●	●

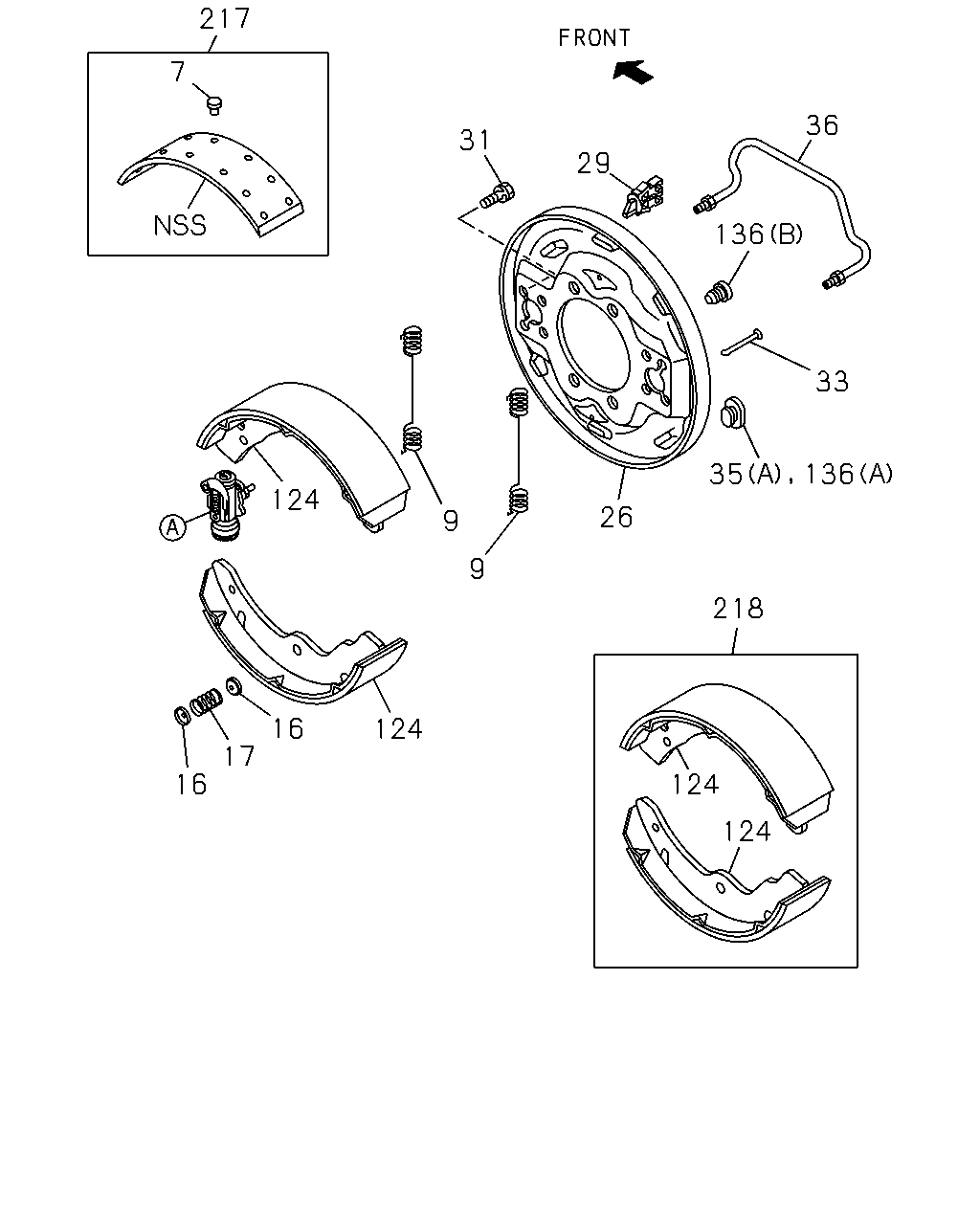

217 7 31 29 136 33 35 26 218 9 9 124 16 17 16 136 36 124 124 124

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
7	05.019 RIVET; LINING,RR BRK	1-09732-029-0	40	1	1009-1504	●	●
7	05.019 RIVET; LINING,RR BRK EXC. 4 WHEEL DISC BRAKE<JF9>	1-09732-029-0	40	1	1505-	●	●
7	05.019 RIVET; LINING,RR BRK G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW)	1-09732-029-0	48	1	1009-1504			●
7	05.019 RIVET; LINING,RR BRK	1-09732-029-0	48	1	1009-1504				●
7	05.019 RIVET; LINING,RR BRK G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9>	1-09732-029-0	48	1	1505-			●	●
7	05.019 RIVET; LINING,RR BRK G.V.W. 7.5-8.0TON(RPY)	1-09732-029-0	64	1	1009-1504			●
7	05.019 RIVET; LINING,RR BRK G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>	1-09732-029-0	64	1	1505-			●	●
7	05.019 RIVET; LINING,RR BRK	1-09732-029-0	96	1	1009-					●	●
9	05.026 SPRING; RETURN,BRK SHOE	5-09583-118-0	04	1	1009-1504	●	●
9	05.026 SPRING; RETURN,BRK SHOE EXC. 4 WHEEL DISC BRAKE<JF9>	5-09583-118-0	04	1	1505-	●	●
9	05.026 SPRING; RETURN,BRK SHOE G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW)	8-97022-087-0	04	1	1009-1504			●
9	05.026 SPRING; RETURN,BRK SHOE	8-97022-087-0	04	1	1009-1504				●
9	05.026 SPRING; RETURN,BRK SHOE G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9>	8-97022-087-0	04	1	1505-			●	●
9	05.026 SPRING; RETURN,BRK SHOE G.V.W. 7.5-8.0TON(RPY)	8-97122-869-0	04	1	1009-1504			●
9	05.026 SPRING; RETURN,BRK SHOE G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>	8-97122-869-0	04	1	1505-			●	●
9	05.026 SPRING; RETURN,BRK SHOE	1-09583-346-0	04	1	1009-					●	●
16	05.043 CUP; SHOE HOLDING	9-47165-096-0	08	1	1009-1504	●	●	●	●
16	05.043 CUP; SHOE HOLDING EXC. 4 WHEEL DISC BRAKE<JF9>	9-47165-096-0	08	1	1505-	●	●	●	●
17	04.043 SPRING; SHOE HOLD DOWN 05.043	5-09580-101-1	04	1	1009-1504	●	●	●	●
17	04.043 SPRING; SHOE HOLD DOWN EXC. 4 WHEEL DISC BRAKE<JF9> 05.043	5-09580-101-1	04	1	1505-	●	●	●	●
26	05.001 PLATE; BACK,RR BRK	8-97079-854-0	01	1	1009-1504	●	●
26	05.001 PLATE; BACK,RR BRK EXC. 4 WHEEL DISC BRAKE<JF9>	8-97079-854-0	01	1	1505-	●	●
26	05.001 PLATE; BACK,RR BRK	8-97079-855-0	01	1	1009-1504	●	●
26	05.001 PLATE; BACK,RR BRK EXC. 4 WHEEL DISC BRAKE<JF9>	8-97079-855-0	01	1	1505-	●	●
26	05.001 PLATE; BACK,RR BRK G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW)	8-97192-080-0	01	1	1009-1504			●
26	05.001 PLATE; BACK,RR BRK	8-97192-080-0	01	1	1009-1504				●
26	05.001 PLATE; BACK,RR BRK G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9>	8-97192-080-0	01	1	1505-			●	●
26	05.001 PLATE; BACK,RR BRK G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW)	8-97192-081-0	01	1	1009-1504			●
26	05.001 PLATE; BACK,RR BRK	8-97192-081-0	01	1	1009-1504				●
26	05.001 PLATE; BACK,RR BRK G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9>	8-97192-081-0	01	1	1505-			●	●
26	05.001 PLATE; BACK,RR BRK G.V.W. 7.5-8.0TON(RPY)	8-97207-157-0	01	1	1009-1504			●
26	05.001 PLATE; BACK,RR BRK G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>	8-97207-157-0	01	1	1505-			●	●
26	05.001 PLATE; BACK,RR BRK G.V.W. 7.5-8.0TON(RPY)	8-97207-158-0	01	1	1009-1504			●
26	05.001 PLATE; BACK,RR BRK G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>	8-97207-158-0	01	1	1505-			●	●
26	05.001 PLATE; BACK,RR BRK	8-97372-818-0	01	1	1009-					●	●
26	05.001 PLATE; BACK,RR BRK	8-97372-819-0	01	1	1009-					●	●
29	04.685 CLIP; PIPE,BRK	8-94128-306-0	02	1	1009-1504	●	●
29	04.685 CLIP; PIPE,BRK EXC. 4 WHEEL DISC BRAKE<JF9>	8-94128-306-0	02	1	1505-	●	●
29	04.685 CLIP; PIPE,BRK	8-97022-086-0	02	1	1009-1504			●	●
29	04.685 CLIP; PIPE,BRK EXC. 4 WHEEL DISC BRAKE<JF9>	8-97022-086-0	02	1	1505-			●	●
29	04.685 CLIP; PIPE,BRK	1-47143-008-0	02	1	1009-					●	●
31	04.665 BOLT; RR WHEEL CYL	5-09030-016-1	16	1	1009-1504	●	●
31	04.665 BOLT; RR WHEEL CYL EXC. 4 WHEEL DISC BRAKE<JF9>	5-09030-016-1	16	1	1505-	●	●
31	04.665 BOLT; RR WHEEL CYL	8-97081-305-0	16	1	1009-1504			●	●
31	04.665 BOLT; RR WHEEL CYL EXC. 4 WHEEL DISC BRAKE<JF9>	8-97081-305-0	16	1	1505-			●	●
31	04.665 BOLT; RR WHEEL CYL M12	1-47159-184-0	16	1	1009-					●	●
33	05.043 PIN; SHOE HOLD DOWN	5-47162-001-0	04	1	1009-1504	●	●
33	05.043 PIN; SHOE HOLD DOWN EXC. 4 WHEEL DISC BRAKE<JF9>	5-47162-001-0	04	1	1505-	●	●
33	05.043 PIN; SHOE HOLD DOWN G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW)	8-97022-089-0	04	1	1009-1504			●
33	05.043 PIN; SHOE HOLD DOWN	8-97022-089-0	04	1	1009-1504				●
33	05.043 PIN; SHOE HOLD DOWN G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9>	8-97022-089-0	04	1	1505-			●	●
33	05.043 PIN; SHOE HOLD DOWN G.V.W. 7.5-8.0TON(RPY)	8-97122-870-0	04	1	1009-1504			●
33	05.043 PIN; SHOE HOLD DOWN G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>	8-97122-870-0	04	1	1505-			●	●
35	05.002 GROMMET; CHECK HOLE (A)	8-94171-287-0	02	1	1009-1504	●	●
35	05.002 GROMMET; CHECK HOLE EXC. 4 WHEEL DISC BRAKE<JF9> (A)	8-94171-287-0	02	1	1505-	●	●
35	05.002 GROMMET; CHECK HOLE G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) (A)	8-97017-507-0	02	1	1009-1504			●
35	05.002 GROMMET; CHECK HOLE (A)	8-97017-507-0	02	1	1009-1504				●
35	05.002 GROMMET; CHECK HOLE G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9> (A)	8-97017-507-0	02	1	1505-			●	●
35	05.002 GROMMET; CHECK HOLE G.V.W. 7.5-8.0TON(RPY) (A)	8-97017-507-0	06	1	1009-1504			●
35	05.002 GROMMET; CHECK HOLE G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> (A)	8-97017-507-0	06	1	1505-			●	●
35	05.002 GROMMET; CHECK HOLE (A)	1-09333-033-0	04	1	1009-					●	●
35	05.002 GROMMET; CHECK HOLE (B)	9-09956-640-0	04	1	1009-					●	●
36	04.685 PIPE; OIL,RR BRK	8-94154-916-0	02	1	1009-1504	●	●
36	04.685 PIPE; OIL,RR BRK EXC. 4 WHEEL DISC BRAKE<JF9>	8-94154-916-0	02	1	1505-	●	●
36	04.685 PIPE; OIL,RR BRK	8-97192-215-0	02	1	1009-1504			●	●
36	04.685 PIPE; OIL,RR BRK EXC. 4 WHEEL DISC BRAKE<JF9>	8-97192-215-0	02	1	1505-			●	●
36	04.685 PIPE; OIL,RR BRK	8-97372-826-0	02	1	1009-					●	●
124	05.017 SHOE ASM; BRK,RR	8-97287-778-0	04	1	1009-1504	●	●
124	05.017 SHOE ASM; BRK,RR EXC. 4 WHEEL DISC BRAKE<JF9>	8-97287-778-0	04	1	1505-	●	●
124	05.017 SHOE ASM; BRK,RR G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW)	8-97201-061-0	04	1	1009-1504			●
124	05.017 SHOE ASM; BRK,RR	8-97201-061-0	04	1	1009-1504				●
124	05.017 SHOE ASM; BRK,RR G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9>	8-97201-061-0	04	1	1505-			●	●
124	05.017 SHOE ASM; BRK,RR G.V.W. 7.5-8.0TON(RPY)	8-97188-455-0	04	1	1009-1504			●
124	05.017 SHOE ASM; BRK,RR G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>	8-97188-455-0	04	1	1505-			●	●
124	05.017 SHOE ASM; BRK,RR	8-97373-425-0	04	1	1009-					●	●
136	05.002 GROMMET 04.670 (B)	1-47154-008-0	04	1	1009-1504	●	●	●	●	●	●
136	05.002 GROMMET EXC. 4 WHEEL DISC BRAKE<JF9> 04.670 (B)	1-47154-008-0	04	1	1505-	●	●	●	●	●	●
136	05.002 GROMMET (A)	8-94171-287-0	04	1	1009-1504	●	●
136	05.002 GROMMET EXC. 4 WHEEL DISC BRAKE<JF9> (A)	8-94171-287-0	04	1	1505-	●	●
136	05.002 GROMMET G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) (A)	8-97017-507-0	04	1	1009-1504			●
136	05.002 GROMMET (A)	8-97017-507-0	04	1	1009-1504				●
136	05.002 GROMMET G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9> (A)	8-97017-507-0	04	1	1505-			●	●
217	05.018 LINING KIT; RR BRK	5-87831-801-0	01	1	1009-1504	●	●
217	05.018 LINING KIT; RR BRK EXC. 4 WHEEL DISC BRAKE<JF9>	5-87831-801-0	01	1	1505-	●	●
217	05.018 LINING KIT; RR BRK G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW)	5-87831-774-0	01	1	1009-1504			●
217	05.018 LINING KIT; RR BRK	5-87831-774-0	01	1	1009-1504				●
217	05.018 LINING KIT; RR BRK G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9>	5-87831-774-0	01	1	1505-			●	●
217	05.018 LINING KIT; RR BRK G.V.W. 7.5-8.0TON(RPY)	5-87831-692-0	01	1	1009-1504			●
217	05.018 LINING KIT; RR BRK G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>	5-87831-692-0	01	1	1505-			●	●
217	05.018 LINING KIT; RR BRK	5-87832-134-0	01	1	1009-					●	●
217	05.018 LINING KIT; RR BRK BEST VALUE PARTS	5-87610-121-0	01	1	1009-1504	●	●
217	05.018 LINING KIT; RR BRK EXC. 4 WHEEL DISC BRAKE<JF9> BEST VALUE PARTS	5-87610-121-0	01	1	1505-	●	●
217	05.018 LINING KIT; RR BRK G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) BEST VALUE PARTS	5-87610-120-0	01	1	1009-1504			●
217	05.018 LINING KIT; RR BRK BEST VALUE PARTS	5-87610-120-0	01	1	1009-1504				●
217	05.018 LINING KIT; RR BRK G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9> BEST VALUE PARTS	5-87610-120-0	01	1	1505-			●	●
217	05.018 LINING KIT; RR BRK G.V.W. 7.5-8.0TON(RPY) BEST VALUE PARTS	5-87610-119-0	01	1	1009-1504			●
217	05.018 LINING KIT; RR BRK G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> BEST VALUE PARTS	5-87610-119-0	01	1	1505-			●	●
218	05.017 SHOE KIT; BRK,RR	5-87832-047-0	01	1	1009-1504	●	●
218	05.017 SHOE KIT; BRK,RR EXC. 4 WHEEL DISC BRAKE<JF9>	5-87832-047-0	01	1	1505-	●	●
218	05.017 SHOE KIT; BRK,RR G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW)	5-87831-775-0	01	1	1009-1504			●
218	05.017 SHOE KIT; BRK,RR	5-87831-775-0	01	1	1009-1504				●
218	05.017 SHOE KIT; BRK,RR G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9>	5-87831-775-0	01	1	1505-			●	●
218	05.017 SHOE KIT; BRK,RR G.V.W. 7.5-8.0TON(RPY)	5-87831-693-0	01	1	1009-1504			●
218	05.017 SHOE KIT; BRK,RR G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>	5-87831-693-0	01	1	1505-			●	●
218	05.017 SHOE KIT; BRK,RR	5-87832-132-0	01	1	1009-					●	●

29 36 136 31 217 7 7 9 124 124 72 86 218 95 124 124 104 106 297 102 97 96 99 108 83 101 107 26 35 32 199 200 94 9 94 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
7	05.019 RIVET; LINING,RR BRK	1-09732-029-0	40	1	1009-1504	●	●
7	05.019 RIVET; LINING,RR BRK EXC. 4 WHEEL DISC BRAKE<JF9>	1-09732-029-0	40	1	1505-	●	●
7	05.019 RIVET; LINING,RR BRK G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW)	1-09732-029-0	48	1	1009-1504			●
7	05.019 RIVET; LINING,RR BRK	1-09732-029-0	48	1	1009-1504				●
7	05.019 RIVET; LINING,RR BRK G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9>	1-09732-029-0	48	1	1505-			●	●
7	05.019 RIVET; LINING,RR BRK G.V.W. 7.5-8.0TON(RPY)	1-09732-029-0	64	1	1009-1504			●
7	05.019 RIVET; LINING,RR BRK G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>	1-09732-029-0	64	1	1505-			●	●
7	05.019 RIVET; LINING,RR BRK	1-09732-029-0	96	1	1009-					●	●
9	05.026 SPRING; RETURN,BRK SHOE	5-09583-118-0	04	1	1009-1504	●	●
9	05.026 SPRING; RETURN,BRK SHOE EXC. 4 WHEEL DISC BRAKE<JF9>	5-09583-118-0	04	1	1505-	●	●
9	05.026 SPRING; RETURN,BRK SHOE G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW)	8-97022-087-0	04	1	1009-1504			●
9	05.026 SPRING; RETURN,BRK SHOE	8-97022-087-0	04	1	1009-1504				●
9	05.026 SPRING; RETURN,BRK SHOE G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9>	8-97022-087-0	04	1	1505-			●	●
9	05.026 SPRING; RETURN,BRK SHOE G.V.W. 7.5-8.0TON(RPY)	8-97122-869-0	04	1	1009-1504			●
9	05.026 SPRING; RETURN,BRK SHOE G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>	8-97122-869-0	04	1	1505-			●	●
9	05.026 SPRING; RETURN,BRK SHOE	1-09583-346-0	04	1	1009-					●	●
26	05.001 PLATE; BACK,RR BRK	8-97079-854-0	01	1	1009-1504	●	●
26	05.001 PLATE; BACK,RR BRK EXC. 4 WHEEL DISC BRAKE<JF9>	8-97079-854-0	01	1	1505-	●	●
26	05.001 PLATE; BACK,RR BRK	8-97079-855-0	01	1	1009-1504	●	●
26	05.001 PLATE; BACK,RR BRK EXC. 4 WHEEL DISC BRAKE<JF9>	8-97079-855-0	01	1	1505-	●	●
26	05.001 PLATE; BACK,RR BRK G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW)	8-97192-080-0	01	1	1009-1504			●
26	05.001 PLATE; BACK,RR BRK	8-97192-080-0	01	1	1009-1504				●
26	05.001 PLATE; BACK,RR BRK G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9>	8-97192-080-0	01	1	1505-			●	●
26	05.001 PLATE; BACK,RR BRK G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW)	8-97192-081-0	01	1	1009-1504			●
26	05.001 PLATE; BACK,RR BRK	8-97192-081-0	01	1	1009-1504				●
26	05.001 PLATE; BACK,RR BRK G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9>	8-97192-081-0	01	1	1505-			●	●
26	05.001 PLATE; BACK,RR BRK G.V.W. 7.5-8.0TON(RPY)	8-97207-157-0	01	1	1009-1504			●
26	05.001 PLATE; BACK,RR BRK G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>	8-97207-157-0	01	1	1505-			●	●
26	05.001 PLATE; BACK,RR BRK G.V.W. 7.5-8.0TON(RPY)	8-97207-158-0	01	1	1009-1504			●
26	05.001 PLATE; BACK,RR BRK G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>	8-97207-158-0	01	1	1505-			●	●
26	05.001 PLATE; BACK,RR BRK	8-97372-818-0	01	1	1009-					●	●
26	05.001 PLATE; BACK,RR BRK	8-97372-819-0	01	1	1009-					●	●
29	04.685 CLIP; PIPE,BRK	8-94128-306-0	02	1	1009-1504	●	●
29	04.685 CLIP; PIPE,BRK EXC. 4 WHEEL DISC BRAKE<JF9>	8-94128-306-0	02	1	1505-	●	●
29	04.685 CLIP; PIPE,BRK	8-97022-086-0	02	1	1009-1504			●	●
29	04.685 CLIP; PIPE,BRK EXC. 4 WHEEL DISC BRAKE<JF9>	8-97022-086-0	02	1	1505-			●	●
29	04.685 CLIP; PIPE,BRK	1-47143-008-0	02	1	1009-					●	●
31	04.665 BOLT; RR WHEEL CYL	5-09030-016-1	16	1	1009-1504	●	●
31	04.665 BOLT; RR WHEEL CYL EXC. 4 WHEEL DISC BRAKE<JF9>	5-09030-016-1	16	1	1505-	●	●
31	04.665 BOLT; RR WHEEL CYL	8-97081-305-0	16	1	1009-1504			●	●
31	04.665 BOLT; RR WHEEL CYL EXC. 4 WHEEL DISC BRAKE<JF9>	8-97081-305-0	16	1	1505-			●	●
31	04.665 BOLT; RR WHEEL CYL M12	1-47159-184-0	16	1	1009-					●	●
32	05.056 WASHER; LK 03.634 ID=12.2	0-91510-512-0	04	1	1009-					●	●
35	05.002 GROMMET; CHECK HOLE (A)	8-94171-287-0	02	1	1009-1504	●	●
35	05.002 GROMMET; CHECK HOLE EXC. 4 WHEEL DISC BRAKE<JF9> (A)	8-94171-287-0	02	1	1505-	●	●
35	05.002 GROMMET; CHECK HOLE G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) (A)	8-97017-507-0	02	1	1009-1504			●
35	05.002 GROMMET; CHECK HOLE (A)	8-97017-507-0	02	1	1009-1504				●
35	05.002 GROMMET; CHECK HOLE G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9> (A)	8-97017-507-0	02	1	1505-			●	●
35	05.002 GROMMET; CHECK HOLE G.V.W. 7.5-8.0TON(RPY) (A)	8-97017-507-0	06	1	1009-1504			●
35	05.002 GROMMET; CHECK HOLE G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> (A)	8-97017-507-0	06	1	1505-			●	●
35	05.002 GROMMET; CHECK HOLE (A)	1-09333-033-0	04	1	1009-					●	●
35	05.002 GROMMET; CHECK HOLE (B)	9-09956-640-0	04	1	1009-					●	●
36	04.685 PIPE; OIL,RR BRK	8-94154-916-0	02	1	1009-1504	●	●
36	04.685 PIPE; OIL,RR BRK EXC. 4 WHEEL DISC BRAKE<JF9>	8-94154-916-0	02	1	1505-	●	●
36	04.685 PIPE; OIL,RR BRK	8-97192-215-0	02	1	1009-1504			●	●
36	04.685 PIPE; OIL,RR BRK EXC. 4 WHEEL DISC BRAKE<JF9>	8-97192-215-0	02	1	1505-			●	●
36	04.685 PIPE; OIL,RR BRK	8-97372-826-0	02	1	1009-					●	●
72	05.120 PIN; SPLIT 05.020	9-09874-040-0	04	1	1009-					●	●
83	05.130 WASHER; PL 05.020	1-47629-136-0	04	1	1009-					●	●
86	05.122 NUT; FLANGE 05.056	1-09440-003-0	04	1	1009-					●	●
94	04.665 CYLINDER; WHEEL,RR BRK (A) REAR	8-97349-689-0	01	1	1009-1504	●	●
94	04.665 CYLINDER; WHEEL,RR BRK EXC. 4 WHEEL DISC BRAKE<JF9> (A) REAR	8-97349-689-0	01	1	1505-	●	●
94	04.665 CYLINDER; WHEEL,RR BRK (A) REAR	8-97349-690-0	01	1	1009-1504	●	●
94	04.665 CYLINDER; WHEEL,RR BRK EXC. 4 WHEEL DISC BRAKE<JF9> (A) REAR	8-97349-690-0	01	1	1505-	●	●
94	04.665 CYLINDER; WHEEL,RR BRK (A) FRONT	8-97349-691-0	01	1	1009-1504	●	●
94	04.665 CYLINDER; WHEEL,RR BRK EXC. 4 WHEEL DISC BRAKE<JF9> (A) FRONT	8-97349-691-0	01	1	1505-	●	●
94	04.665 CYLINDER; WHEEL,RR BRK (A) FRONT	8-97349-692-0	01	1	1009-1504	●	●
94	04.665 CYLINDER; WHEEL,RR BRK EXC. 4 WHEEL DISC BRAKE<JF9> (A) FRONT	8-97349-692-0	01	1	1505-	●	●
94	04.665 CYLINDER; WHEEL,RR BRK G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) (A) REAR	8-97349-705-0	01	1	1009-1504			●
94	04.665 CYLINDER; WHEEL,RR BRK (A) REAR	8-97349-705-0	01	1	1009-1504				●
94	04.665 CYLINDER; WHEEL,RR BRK G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9> (A) REAR	8-97349-705-0	01	1	1505-			●	●
94	04.665 CYLINDER; WHEEL,RR BRK G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) (A) REAR	8-97349-706-0	01	1	1009-1504			●
94	04.665 CYLINDER; WHEEL,RR BRK (A) REAR	8-97349-706-0	01	1	1009-1504				●
94	04.665 CYLINDER; WHEEL,RR BRK G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9> (A) REAR	8-97349-706-0	01	1	1505-			●	●
94	04.665 CYLINDER; WHEEL,RR BRK G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) (A) FRONT	8-97349-707-0	01	1	1009-1504			●
94	04.665 CYLINDER; WHEEL,RR BRK (A) FRONT	8-97349-707-0	01	1	1009-1504				●
94	04.665 CYLINDER; WHEEL,RR BRK G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9> (A) FRONT	8-97349-707-0	01	1	1505-			●	●
94	04.665 CYLINDER; WHEEL,RR BRK G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) (A) FRONT	8-97349-708-0	01	1	1009-1504			●
94	04.665 CYLINDER; WHEEL,RR BRK (A) FRONT	8-97349-708-0	01	1	1009-1504				●
94	04.665 CYLINDER; WHEEL,RR BRK G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9> (A) FRONT	8-97349-708-0	01	1	1505-			●	●
94	04.665 CYLINDER; WHEEL,RR BRK G.V.W. 7.5-8.0TON(RPY) (A) REAR	8-97358-878-0	01	1	1009-1504			●
94	04.665 CYLINDER; WHEEL,RR BRK G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> (A) REAR	8-97358-878-0	01	1	1505-			●	●
94	04.665 CYLINDER; WHEEL,RR BRK G.V.W. 7.5-8.0TON(RPY) (A) REAR	8-97358-879-0	01	1	1009-1504			●
94	04.665 CYLINDER; WHEEL,RR BRK G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> (A) REAR	8-97358-879-0	01	1	1505-			●	●
94	04.665 CYLINDER; WHEEL,RR BRK G.V.W. 7.5-8.0TON(RPY) (A) FRONT	8-97358-880-0	01	1	1009-1504			●
94	04.665 CYLINDER; WHEEL,RR BRK G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> (A) FRONT	8-97358-880-0	01	1	1505-			●	●
94	04.665 CYLINDER; WHEEL,RR BRK G.V.W. 7.5-8.0TON(RPY) (A) FRONT	8-97358-881-0	01	1	1009-1504			●
94	04.665 CYLINDER; WHEEL,RR BRK G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> (A) FRONT	8-97358-881-0	01	1	1505-			●	●
94	04.665 CYLINDER; WHEEL,RR BRK (B) FRONT	8-97372-820-0	01	1	1009-1510					●	●
94	04.665 CYLINDER; WHEEL,RR BRK (B) FRONT	8-98317-282-0	01	1	1511-					●	●
94	04.665 CYLINDER; WHEEL,RR BRK (B) FRONT	8-97372-821-0	01	1	1009-1510					●	●
94	04.665 CYLINDER; WHEEL,RR BRK (B) FRONT	8-98317-280-0	01	1	1511-					●	●
94	04.665 CYLINDER; WHEEL,RR BRK (B) REAR	8-97372-822-0	01	1	1009-1510					●	●
94	04.665 CYLINDER; WHEEL,RR BRK (B) REAR	8-98317-281-0	01	1	1511-					●	●
94	04.665 CYLINDER; WHEEL,RR BRK (B) REAR	8-97372-823-0	01	1	1009-1510					●	●
94	04.665 CYLINDER; WHEEL,RR BRK (B) REAR	8-98317-278-0	01	1	1511-					●	●
95	04.665 CUP SET; RR WHEEL CYL	5-87831-622-0	01	1	1009-1504	●	●
95	04.665 CUP SET; RR WHEEL CYL EXC. 4 WHEEL DISC BRAKE<JF9>	5-87831-622-0	01	1	1505-	●	●
95	04.665 CUP SET; RR WHEEL CYL G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW)	5-87832-070-0	01	1	1009-1504			●
95	04.665 CUP SET; RR WHEEL CYL	5-87832-070-0	01	1	1009-1504				●
95	04.665 CUP SET; RR WHEEL CYL G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9>	5-87832-070-0	01	1	1505-			●	●
95	04.665 CUP SET; RR WHEEL CYL G.V.W. 7.5-8.0TON(RPY)	5-87832-051-0	02	1	1009-1504			●
95	04.665 CUP SET; RR WHEEL CYL G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>	5-87832-051-0	02	1	1505-			●	●
95	04.665 CUP SET; RR WHEEL CYL	5-87832-131-0	01	1	1009-1507					●	●
95	04.665 CUP SET; RR WHEEL CYL	5-87832-359-0	01	1	1508-					●	●
96	04.666 SCREW; BLEEDER,RR BRK	8-98050-476-0	02	1	1009-1504	●	●		●
96	04.666 SCREW; BLEEDER,RR BRK G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW)	8-98050-476-0	02	1	1009-1504			●
96	04.666 SCREW; BLEEDER,RR BRK EXC. 4 WHEEL DISC BRAKE<JF9>	8-98050-476-0	02	1	1505-	●	●
96	04.666 SCREW; BLEEDER,RR BRK G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9>	8-98050-476-0	02	1	1505-			●	●
96	04.666 SCREW; BLEEDER,RR BRK G.V.W. 7.5-8.0TON(RPY)	8-98050-477-0	02	1	1009-1504			●
96	04.666 SCREW; BLEEDER,RR BRK	8-98050-477-0	02	1	1009-1504					●	●
96	04.666 SCREW; BLEEDER,RR BRK G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>	8-98050-477-0	02	1	1505-			●	●
96	04.666 SCREW; BLEEDER,RR BRK	8-98050-477-0	02	1	1505-					●	●
97	04.666 CAP; BLEEDER,RR WHEEL CYL	8-98050-479-0	02	1	1009-1504	●	●	●	●	●	●
97	04.666 CAP; BLEEDER,RR WHEEL CYL EXC. 4 WHEEL DISC BRAKE<JF9>	8-98050-479-0	02	1	1505-	●	●	●	●	●	●
99	04.668 PISTON; RR WHEEL CYL	8-97349-727-0	02	1	1009-1504	●	●
99	04.668 PISTON; RR WHEEL CYL EXC. 4 WHEEL DISC BRAKE<JF9>	8-97349-727-0	02	1	1505-	●	●
99	04.668 PISTON; RR WHEEL CYL	8-97349-728-0	02	1	1009-1504	●	●
99	04.668 PISTON; RR WHEEL CYL EXC. 4 WHEEL DISC BRAKE<JF9>	8-97349-728-0	02	1	1505-	●	●
99	04.668 PISTON; RR WHEEL CYL G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW)	8-97349-729-0	02	1	1009-1504			●
99	04.668 PISTON; RR WHEEL CYL	8-97349-729-0	02	1	1009-1504				●
99	04.668 PISTON; RR WHEEL CYL G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9>	8-97349-729-0	02	1	1505-			●	●
99	04.668 PISTON; RR WHEEL CYL G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW)	8-97349-730-0	02	1	1009-1504			●
99	04.668 PISTON; RR WHEEL CYL	8-97349-730-0	02	1	1009-1504				●
99	04.668 PISTON; RR WHEEL CYL G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9>	8-97349-730-0	02	1	1505-			●	●
99	04.668 PISTON; RR WHEEL CYL G.V.W. 7.5-8.0TON(RPY)	8-97349-731-0	02	1	1009-1504			●
99	04.668 PISTON; RR WHEEL CYL G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>	8-97349-731-0	02	1	1505-			●	●
99	04.668 PISTON; RR WHEEL CYL G.V.W. 7.5-8.0TON(RPY)	8-97349-732-0	02	1	1009-1504			●
99	04.668 PISTON; RR WHEEL CYL G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>	8-97349-732-0	02	1	1505-			●	●
99	04.668 PISTON; RR WHEEL CYL	8-97372-831-0	02	1	1009-					●	●
99	04.668 PISTON; RR WHEEL CYL	8-97372-832-0	02	1	1009-					●	●
101	04.666 SCREW; ADJ,RR WHEEL CYL (B)	8-97349-747-0	04	1	1009-1504	●	●	●	●
101	04.666 SCREW; ADJ,RR WHEEL CYL EXC. 4 WHEEL DISC BRAKE<JF9> (B)	8-97349-747-0	04	1	1505-	●	●	●	●
101	04.666 SCREW; ADJ,RR WHEEL CYL (A) M12X30.2 RH THREAD	5-47622-003-1	02	1	1009-1504	●	●
101	04.666 SCREW; ADJ,RR WHEEL CYL EXC. 4 WHEEL DISC BRAKE<JF9> (A) M12X30.2 RH THREAD	5-47622-003-1	02	1	1505-	●	●
101	04.666 SCREW; ADJ,RR WHEEL CYL (A) M12X30.2 LH THREAD	5-47622-004-1	02	1	1009-1504	●	●
101	04.666 SCREW; ADJ,RR WHEEL CYL EXC. 4 WHEEL DISC BRAKE<JF9> (A) M12X30.2 LH THREAD	5-47622-004-1	02	1	1505-	●	●
101	04.666 SCREW; ADJ,RR WHEEL CYL (A)	8-97349-741-0	02	1	1009-1504			●	●
101	04.666 SCREW; ADJ,RR WHEEL CYL EXC. 4 WHEEL DISC BRAKE<JF9> (A)	8-97349-741-0	02	1	1505-			●	●
101	04.666 SCREW; ADJ,RR WHEEL CYL (A)	8-97349-742-0	02	1	1009-1504			●	●
101	04.666 SCREW; ADJ,RR WHEEL CYL EXC. 4 WHEEL DISC BRAKE<JF9> (A)	8-97349-742-0	02	1	1505-			●	●
101	04.666 SCREW; ADJ,RR WHEEL CYL (A)	8-97372-837-0	02	1	1009-					●	●
101	04.666 SCREW; ADJ,RR WHEEL CYL (A)	8-97372-838-0	02	1	1009-					●	●
102	04.668 PISTON; REAR WHEEL CYL D=25.4	8-94128-531-1	04	1	1009-1504	●	●
102	04.668 PISTON; REAR WHEEL CYL EXC. 4 WHEEL DISC BRAKE<JF9> D=25.4	8-94128-531-1	04	1	1505-	●	●
102	04.668 PISTON; REAR WHEEL CYL G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW)	8-97078-045-0	04	1	1009-1504			●
102	04.668 PISTON; REAR WHEEL CYL	8-97078-045-0	04	1	1009-1504				●
102	04.668 PISTON; REAR WHEEL CYL G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9>	8-97078-045-0	04	1	1505-			●	●
102	04.668 PISTON; REAR WHEEL CYL G.V.W. 7.5-8.0TON(RPY)	8-97332-043-0	04	1	1009-1504			●
102	04.668 PISTON; REAR WHEEL CYL G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>	8-97332-043-0	04	1	1505-			●	●
102	04.668 PISTON; REAR WHEEL CYL	8-97372-833-0	04	1	1009-					●	●
104	05.103 LEVER; ADJ	8-97349-743-0	02	1	1009-1504	●	●	●	●
104	05.103 LEVER; ADJ EXC. 4 WHEEL DISC BRAKE<JF9>	8-97349-743-0	02	1	1505-	●	●	●	●
104	05.103 LEVER; ADJ	8-97349-744-0	02	1	1009-1504	●	●	●	●
104	05.103 LEVER; ADJ EXC. 4 WHEEL DISC BRAKE<JF9>	8-97349-744-0	02	1	1505-	●	●	●	●
104	05.103 LEVER; ADJ	1-47619-133-0	02	1	1009-					●	●
104	05.103 LEVER; ADJ	1-47619-134-0	02	1	1009-					●	●
106	05.107 SPRING; ADJ LEVER	8-97349-745-0	04	1	1009-1504	●	●	●	●
106	05.107 SPRING; ADJ LEVER EXC. 4 WHEEL DISC BRAKE<JF9>	8-97349-745-0	04	1	1505-	●	●	●	●
106	05.107 SPRING; ADJ LEVER 04.665	1-09583-345-0	04	1	1009-					●	●
107	05.110 GEAR; ADJ,RR W/CYL	8-97349-737-0	02	1	1009-1504	●	●
107	05.110 GEAR; ADJ,RR W/CYL EXC. 4 WHEEL DISC BRAKE<JF9>	8-97349-737-0	02	1	1505-	●	●
107	05.110 GEAR; ADJ,RR W/CYL	8-97349-739-0	02	1	1009-1504	●	●
107	05.110 GEAR; ADJ,RR W/CYL EXC. 4 WHEEL DISC BRAKE<JF9>	8-97349-739-0	02	1	1505-	●	●
107	05.110 GEAR; ADJ,RR W/CYL G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW)	8-97349-738-0	02	1	1009-1504			●
107	05.110 GEAR; ADJ,RR W/CYL	8-97349-738-0	02	1	1009-1504				●
107	05.110 GEAR; ADJ,RR W/CYL G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9>	8-97349-738-0	02	1	1505-			●	●
107	05.110 GEAR; ADJ,RR W/CYL G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW)	8-97349-740-0	02	1	1009-1504			●
107	05.110 GEAR; ADJ,RR W/CYL	8-97349-740-0	02	1	1009-1504				●
107	05.110 GEAR; ADJ,RR W/CYL G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9>	8-97349-740-0	02	1	1505-			●	●
107	05.110 GEAR; ADJ,RR W/CYL G.V.W. 7.5-8.0TON(RPY) 04.665	8-97358-894-0	02	1	1009-1504			●
107	05.110 GEAR; ADJ,RR W/CYL G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 04.665	8-97358-894-0	02	1	1505-			●	●
107	05.110 GEAR; ADJ,RR W/CYL G.V.W. 7.5-8.0TON(RPY) 04.665	8-97358-895-0	02	1	1009-1504			●
107	05.110 GEAR; ADJ,RR W/CYL G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 04.665	8-97358-895-0	02	1	1505-			●	●
107	05.110 GEAR; ADJ,RR W/CYL	8-97372-835-0	02	1	1009-					●	●
107	05.110 GEAR; ADJ,RR W/CYL	8-97372-836-0	02	1	1009-					●	●
108	05.110 WASHER; THRUST,GEAR ADJ	8-97029-304-0	04	1	1009-1504	●	●
108	05.110 WASHER; THRUST,GEAR ADJ EXC. 4 WHEEL DISC BRAKE<JF9>	8-97029-304-0	04	1	1505-	●	●
108	05.110 WASHER; THRUST,GEAR ADJ	8-97349-736-0	04	1	1009-1504			●	●
108	05.110 WASHER; THRUST,GEAR ADJ EXC. 4 WHEEL DISC BRAKE<JF9>	8-97349-736-0	04	1	1505-			●	●
108	05.110 WASHER; THRUST,GEAR ADJ 05.020	1-47629-135-0	04	1	1009-					●	●
124	05.017 SHOE ASM; BRK,RR	8-97287-778-0	04	1	1009-1504	●	●
124	05.017 SHOE ASM; BRK,RR EXC. 4 WHEEL DISC BRAKE<JF9>	8-97287-778-0	04	1	1505-	●	●
124	05.017 SHOE ASM; BRK,RR G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW)	8-97201-061-0	04	1	1009-1504			●
124	05.017 SHOE ASM; BRK,RR	8-97201-061-0	04	1	1009-1504				●
124	05.017 SHOE ASM; BRK,RR G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9>	8-97201-061-0	04	1	1505-			●	●
124	05.017 SHOE ASM; BRK,RR G.V.W. 7.5-8.0TON(RPY)	8-97188-455-0	04	1	1009-1504			●
124	05.017 SHOE ASM; BRK,RR G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>	8-97188-455-0	04	1	1505-			●	●
124	05.017 SHOE ASM; BRK,RR	8-97373-425-0	04	1	1009-					●	●
136	05.002 GROMMET 04.670 (B)	1-47154-008-0	04	1	1009-1504	●	●	●	●	●	●
136	05.002 GROMMET EXC. 4 WHEEL DISC BRAKE<JF9> 04.670 (B)	1-47154-008-0	04	1	1505-	●	●	●	●	●	●
136	05.002 GROMMET (A)	8-94171-287-0	04	1	1009-1504	●	●
136	05.002 GROMMET EXC. 4 WHEEL DISC BRAKE<JF9> (A)	8-94171-287-0	04	1	1505-	●	●
136	05.002 GROMMET G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) (A)	8-97017-507-0	04	1	1009-1504			●
136	05.002 GROMMET (A)	8-97017-507-0	04	1	1009-1504				●
136	05.002 GROMMET G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9> (A)	8-97017-507-0	04	1	1505-			●	●
199	05.056 NUT	1-09400-100-0	04	1	1009-					●	●
200	05.056 BOLT	1-47162-050-0	04	1	1009-					●	●
217	05.018 LINING KIT; RR BRK	5-87831-801-0	01	1	1009-1504	●	●
217	05.018 LINING KIT; RR BRK EXC. 4 WHEEL DISC BRAKE<JF9>	5-87831-801-0	01	1	1505-	●	●
217	05.018 LINING KIT; RR BRK G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW)	5-87831-774-0	01	1	1009-1504			●
217	05.018 LINING KIT; RR BRK	5-87831-774-0	01	1	1009-1504				●
217	05.018 LINING KIT; RR BRK G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9>	5-87831-774-0	01	1	1505-			●	●
217	05.018 LINING KIT; RR BRK G.V.W. 7.5-8.0TON(RPY)	5-87831-692-0	01	1	1009-1504			●
217	05.018 LINING KIT; RR BRK G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>	5-87831-692-0	01	1	1505-			●	●
217	05.018 LINING KIT; RR BRK	5-87832-134-0	01	1	1009-					●	●
217	05.018 LINING KIT; RR BRK BEST VALUE PARTS	5-87610-121-0	01	1	1009-1504	●	●
217	05.018 LINING KIT; RR BRK EXC. 4 WHEEL DISC BRAKE<JF9> BEST VALUE PARTS	5-87610-121-0	01	1	1505-	●	●
217	05.018 LINING KIT; RR BRK G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) BEST VALUE PARTS	5-87610-120-0	01	1	1009-1504			●
217	05.018 LINING KIT; RR BRK BEST VALUE PARTS	5-87610-120-0	01	1	1009-1504				●
217	05.018 LINING KIT; RR BRK G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9> BEST VALUE PARTS	5-87610-120-0	01	1	1505-			●	●
217	05.018 LINING KIT; RR BRK G.V.W. 7.5-8.0TON(RPY) BEST VALUE PARTS	5-87610-119-0	01	1	1009-1504			●
217	05.018 LINING KIT; RR BRK G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> BEST VALUE PARTS	5-87610-119-0	01	1	1505-			●	●
218	05.017 SHOE KIT; BRK,RR	5-87832-047-0	01	1	1009-1504	●	●
218	05.017 SHOE KIT; BRK,RR EXC. 4 WHEEL DISC BRAKE<JF9>	5-87832-047-0	01	1	1505-	●	●
218	05.017 SHOE KIT; BRK,RR G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW)	5-87831-775-0	01	1	1009-1504			●
218	05.017 SHOE KIT; BRK,RR	5-87831-775-0	01	1	1009-1504				●
218	05.017 SHOE KIT; BRK,RR G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. 4 WHEEL DISC BRAKE<JF9>	5-87831-775-0	01	1	1505-			●	●
218	05.017 SHOE KIT; BRK,RR G.V.W. 7.5-8.0TON(RPY)	5-87831-693-0	01	1	1009-1504			●
218	05.017 SHOE KIT; BRK,RR G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>	5-87831-693-0	01	1	1505-			●	●
218	05.017 SHOE KIT; BRK,RR	5-87832-132-0	01	1	1009-					●	●
297	05.125 RING; SNAP 04.665	1-47629-263-0	04	1	1009-					●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
