Sayfa 2-85 - Isuzu EPC

2-85 — POWER TAKE OFF CONTROL (#78291) — 274 parça

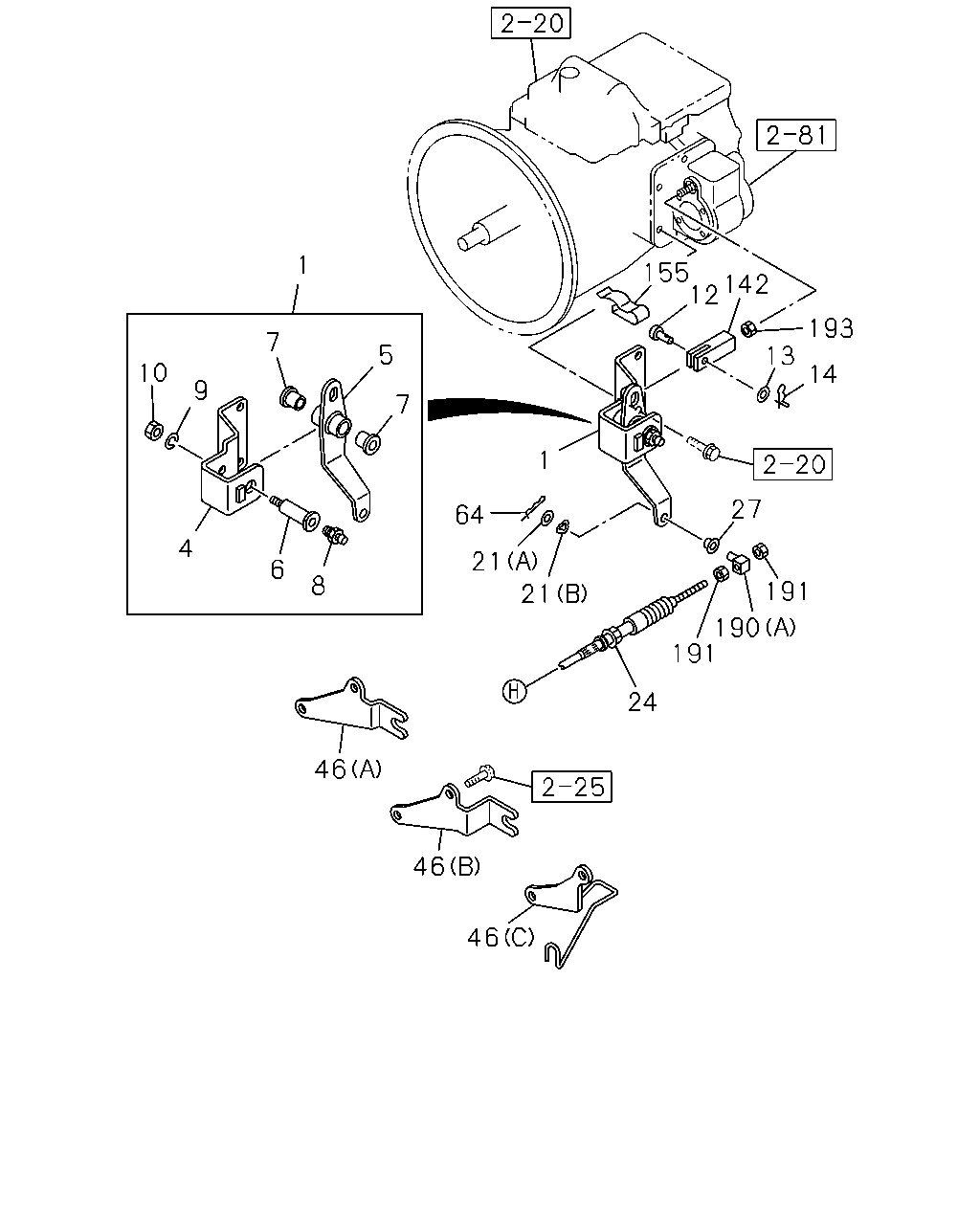

1 7 10 9 5 7 6 4 8 46 46 46 21 64 21 24 191 190 191 27 13 14 193 142 12 155 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66)	8-98032-714-0	01	1	1009-1009	●	●
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98032-714-0	01	1	1010-1107	●	●
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98150-089-1	01	1	1108-1505	●	●
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98150-089-1	01	1	1506-	●	●	●
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66)	8-98032-717-0	01	1	1009-1009	●	●
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98032-717-0	01	1	1010-1107	●	●
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98150-099-1	01	1	1108-1505	●	●
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98150-099-1	01	1	1506-	●	●	●
5	04.439 LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66)	8-98032-718-0	01	1	1009-1009	●	●
5	04.439 LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98032-718-0	01	1	1010-1505	●	●
5	04.439 LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98032-718-0	01	1	1506-	●	●	●
6	04.439 SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66)	8-98032-720-0	01	1	1009-1009	●	●
6	04.439 SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98032-720-0	01	1	1010-1107	●	●
6	04.439 SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98150-101-0	01	1	1108-1505	●	●
6	04.439 SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98150-101-0	01	1	1506-	●	●	●
7	04.439 BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66)	5-33659-053-0	02	1	1009-1009	●	●
7	04.439 BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	5-33659-053-0	02	1	1010-1505	●	●
7	04.439 BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	5-33659-053-0	02	1	1506-	●	●	●
8	04.439 NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	1009-1009	●	●
8	04.439 NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	1010-1505	●	●
8	04.439 NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	1506-	●	●	●
9	04.439 WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) ID=8.2	0-91510-508-0	01	1	1009-1009	●	●
9	04.439 WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) ID=8.2	0-91510-508-0	01	1	1010-1505	●	●
9	04.439 WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=8.2	0-91510-508-0	01	1	1506-	●	●	●
10	04.439 NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) 02.334 M8	0-91110-508-0	01	1	1009-1009	●	●
10	04.439 NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.334 M8	0-91110-508-0	01	1	1010-1505	●	●
10	04.439 NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 02.334 M8	0-91110-508-0	01	1	1506-	●	●	●
12	04.439 JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66)	8-98031-692-0	01	1	1009-1009	●	●
12	04.439 JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98031-692-0	01	1	1010-1505	●	●
12	04.439 JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98031-692-0	01	1	1506-	●	●	●
13	04.439 WASHER; PL,YOKE PTO TRANSMISSION SIDE(V66) ID=12.5 OD=22	0-91610-512-0	01	1	1009-1009	●	●
13	04.439 WASHER; PL,YOKE PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) ID=12.5 OD=22	0-91610-512-0	01	1	1010-1505	●	●
13	04.439 WASHER; PL,YOKE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=12.5 OD=22	0-91610-512-0	01	1	1506-	●	●	●
14	04.439 PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66)	8-97581-216-0	01	1	1009-1009	●	●
14	04.439 PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-97581-216-0	01	1	1010-1505	●	●
14	04.439 PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-97581-216-0	01	1	1506-	●	●	●
21	04.439 WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 02.277 (A) ID=8.4 OD=22	0-91614-708-0	01	1	1009-1505	●	●
21	04.439 WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 02.277 (A) ID=8.4 OD=22	0-91614-708-0	01	1	1506-	●	●	●
21	04.439 WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 04.037 (B) ID=8.5 T=0.3	5-09509-001-0	01	1	1009-1505	●	●
21	04.439 WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 04.037 (B) ID=8.5 T=0.3	5-09509-001-0	01	1	1506-	●	●	●
21	04.439 WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) 17.198 (C) ID=10.5	0-91610-510-0	01	1	1009-				●
24	04.439 CABLE; PTO CONT . 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) L=3532	8-98175-786-0	01	1	1012-1207	●	●
24	04.439 CABLE; PTO CONT . 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) L=3532	8-98223-294-0	01	1	1208-1505	●	●
24	04.439 CABLE; PTO CONT . 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) L=3532	8-98223-294-0	01	1	1506-1507	●	●	●
24	04.439 CABLE; PTO CONT . 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) L=3532	8-98328-272-1	01	1	1508-	●	●	●
24	04.439 CABLE; PTO CONT . 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3610	8-98085-639-1	01	1	1009-1207	●	●
24	04.439 CABLE; PTO CONT . 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3610	8-98223-345-0	01	1	1208-	●	●
24	04.439 CABLE; PTO CONT . 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3532	8-98085-640-1	01	1	1009-1011	●	●
24	04.439 CABLE; PTO CONT . 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3532	8-98085-640-1	01	1	1012-1207	●	●
24	04.439 CABLE; PTO CONT . 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3532	8-98223-344-0	01	1	1208-1505	●	●
24	04.439 CABLE; PTO CONT . 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3532	8-98223-344-0	01	1	1506-	●	●	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3680	8-98085-641-1	01	1	1009-1207	●	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3680	8-98223-353-0	01	1	1208-	●	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) L=3600	8-98146-349-0	01	1	1009-1207	●	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) L=3600	8-98223-300-1	01	1	1208-1505	●	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) L=3600	8-98223-300-1	01	1	1506-1507	●	●	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) L=3600	8-98328-268-1	01	1	1508-	●	●	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3602	8-98085-642-1	01	1	1009-1207	●	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3602	8-98223-352-0	01	1	1208-1505	●	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3602	8-98223-352-0	01	1	1506-	●	●	●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3904	8-98070-961-2	01	1	1009-1207				●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3904	8-98223-357-0	01	1	1208-				●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3844	8-98070-960-2	01	1	1009-1207				●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3844	8-98223-356-0	01	1	1208-				●
27	04.439 BUSHING; LEVER,PTO PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 04.042	8-94367-367-0	01	1	1009-1505	●	●
27	04.439 BUSHING; LEVER,PTO PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 04.042	8-94367-367-0	01	1	1506-	●	●	●
46	04.439 BRACKET; PTO,TRANS SIDE PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) (B)	8-98081-815-0	01	1	1009-	●	●
46	04.439 BRACKET; PTO,TRANS SIDE PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) (A)	8-98032-829-2	01	1	1009-1505	●	●
46	04.439 BRACKET; PTO,TRANS SIDE PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) (A)	8-98032-829-2	01	1	1506-	●	●	●
46	04.439 BRACKET; PTO,TRANS SIDE 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) (C)	8-98133-150-0	01	1	1009-1505	●	●
46	04.439 BRACKET; PTO,TRANS SIDE 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) (C)	8-98133-150-0	01	1	1506-	●	●	●
64	04.439 PIN; SNAP,CONT CABLE JOINT PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 00.833 L=27.7	8-94111-137-0	01	1	1009-1505	●	●
64	04.439 PIN; SNAP,CONT CABLE JOINT PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 00.833 L=27.7	8-94111-137-0	01	1	1506-	●	●	●
142	04.439 CLEVIS; CONT BOX PTO TRANSMISSION SIDE(V66)	8-98031-691-0	01	1	1009-1009	●	●
142	04.439 CLEVIS; CONT BOX PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98031-691-0	01	1	1010-1505	●	●
142	04.439 CLEVIS; CONT BOX PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98031-691-0	01	1	1506-	●	●	●
155	04.439 CLIP; CABLE PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.240 T=5.5	5-09709-047-0	01	1	1009-1009	●	●
155	04.439 CLIP; CABLE PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 01.240 T=5.5	5-09709-047-0	01	1	1010-1505	●	●
155	04.439 CLIP; CABLE PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 01.240 T=5.5	5-09709-047-0	01	1	1506-	●	●	●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 04.307 (A)	8-94366-842-2	01	1	1009-1505	●	●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 04.307 (A)	8-94366-842-2	01	1	1506-	●	●	●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (B)	8-98029-878-0	01	1	1009-1010	●	●		●
190	04.439 BOSS; LEVER,PTO DUMP CONTROL LEVER<RC4> (B)	8-98029-878-0	01	1	1011-	●	●		●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4> (B)	8-98029-878-0	01	1	1011-	●	●		●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (C)	0-82154-025-0	01	1	1009-				●
191	04.439 NUT; BOSS PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 03.330 M6	0-91110-506-0	02	1	1009-1505	●	●
191	04.439 NUT; BOSS PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 03.330 M6	0-91110-506-0	02	1	1506-	●	●	●
193	04.439 NUT PTO TRANSMISSION SIDE(V66) M12	0-91111-512-0	01	1	1009-1009	●	●
193	04.439 NUT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) M12	0-91111-512-0	01	1	1010-1505	●	●
193	04.439 NUT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M12	0-91111-512-0	01	1	1506-	●	●	●

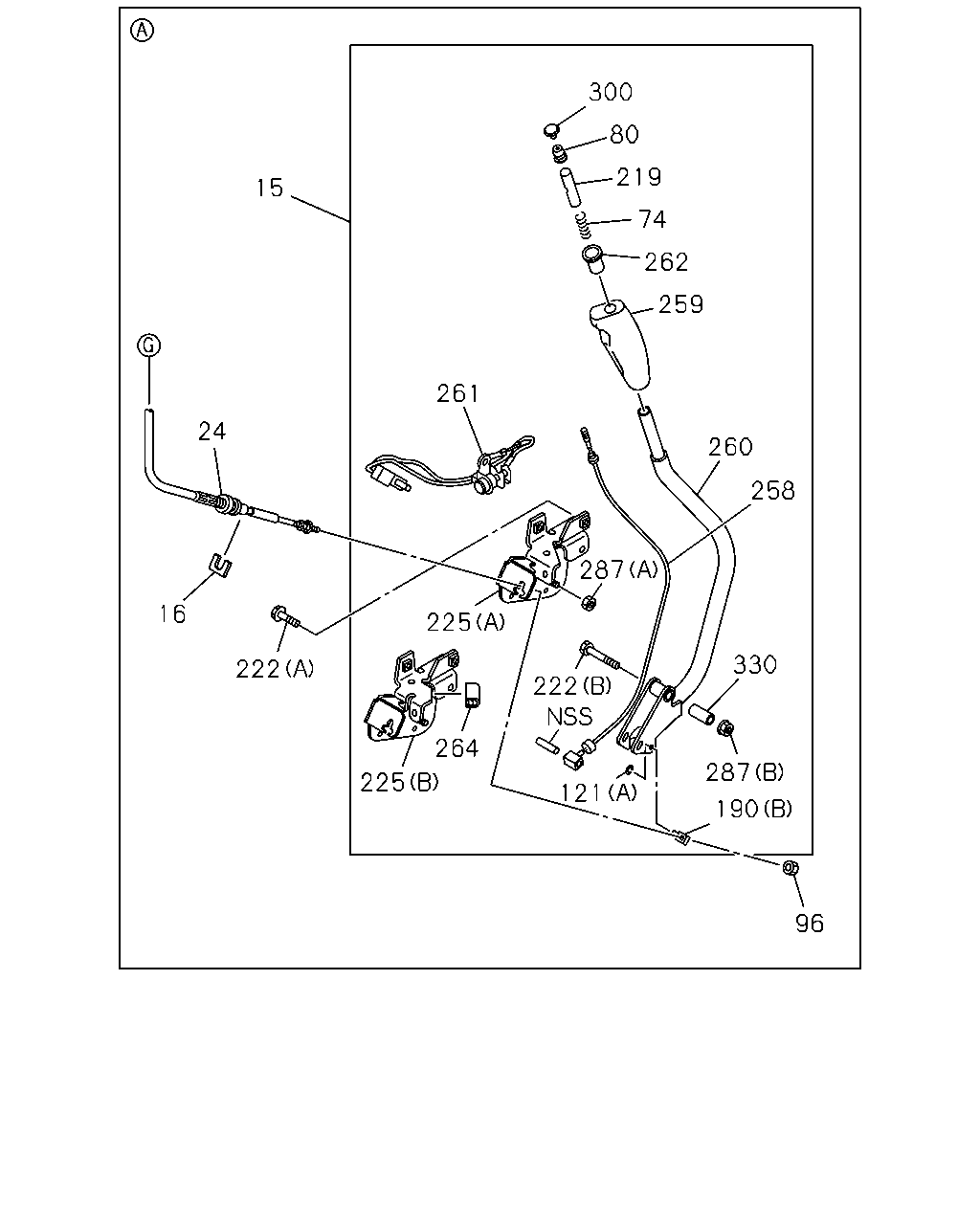

15 24 16 225 264 225 261 222 300 80 258 219 74 262 259 260 330 287 190 96 222 121 287

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
15	04.439 LEVER ASM; PTO CONT PTO MANUAL CONTROL(6WC)	8-98029-208-6	01	1	1009-1010	●	●		●
15	04.439 LEVER ASM; PTO CONT DUMP CONTROL LEVER<RC4>	8-98029-208-7	01	1	1011-1204	●	●		●
15	04.439 LEVER ASM; PTO CONT PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4>	8-98029-208-7	01	1	1011-1204	●	●		●
15	04.439 LEVER ASM; PTO CONT DUMP CONTROL LEVER<RC4>	8-98199-362-0	01	1	1205-	●	●		●
15	04.439 LEVER ASM; PTO CONT PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4>	8-98199-362-0	01	1	1205-	●	●		●
16	04.439 CLIP; CABLE,PTO PTO MANUAL CONTROL(6WC)	8-98050-126-0	01	1	1009-1505	●	●		●
16	04.439 CLIP; CABLE,PTO PTO MANUAL CONTROL(6WC)	8-98050-126-0	01	1	1506-	●	●	●	●
24	04.439 CABLE; PTO CONT . 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) L=3532	8-98175-786-0	01	1	1012-1207	●	●
24	04.439 CABLE; PTO CONT . 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) L=3532	8-98223-294-0	01	1	1208-1505	●	●
24	04.439 CABLE; PTO CONT . 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) L=3532	8-98223-294-0	01	1	1506-1507	●	●	●
24	04.439 CABLE; PTO CONT . 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) L=3532	8-98328-272-1	01	1	1508-	●	●	●
24	04.439 CABLE; PTO CONT . 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3610	8-98085-639-1	01	1	1009-1207	●	●
24	04.439 CABLE; PTO CONT . 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3610	8-98223-345-0	01	1	1208-	●	●
24	04.439 CABLE; PTO CONT . 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3532	8-98085-640-1	01	1	1009-1011	●	●
24	04.439 CABLE; PTO CONT . 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3532	8-98085-640-1	01	1	1012-1207	●	●
24	04.439 CABLE; PTO CONT . 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3532	8-98223-344-0	01	1	1208-1505	●	●
24	04.439 CABLE; PTO CONT . 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3532	8-98223-344-0	01	1	1506-	●	●	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3680	8-98085-641-1	01	1	1009-1207	●	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3680	8-98223-353-0	01	1	1208-	●	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) L=3600	8-98146-349-0	01	1	1009-1207	●	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) L=3600	8-98223-300-1	01	1	1208-1505	●	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) L=3600	8-98223-300-1	01	1	1506-1507	●	●	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) L=3600	8-98328-268-1	01	1	1508-	●	●	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3602	8-98085-642-1	01	1	1009-1207	●	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3602	8-98223-352-0	01	1	1208-1505	●	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3602	8-98223-352-0	01	1	1506-	●	●	●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3904	8-98070-961-2	01	1	1009-1207				●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3904	8-98223-357-0	01	1	1208-				●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3844	8-98070-960-2	01	1	1009-1207				●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3844	8-98223-356-0	01	1	1208-				●
74	04.439 SPRING; RETURN,CONT LEVER PTO MANUAL CONTROL(6WC)	8-98029-874-0	01	1	1009-1010	●	●		●
74	04.439 SPRING; RETURN,CONT LEVER DUMP CONTROL LEVER<RC4>	8-98029-874-0	01	1	1011-	●	●		●
74	04.439 SPRING; RETURN,CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4>	8-98029-874-0	01	1	1011-	●	●		●
80	04.439 COVER; CONT LEVER PTO MANUAL CONTROL(6WC)	8-97122-741-0	01	1	1009-1010	●	●		●
80	04.439 COVER; CONT LEVER DUMP CONTROL LEVER<RC4>	8-97122-741-0	01	1	1011-	●	●		●
80	04.439 COVER; CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4>	8-97122-741-0	01	1	1011-	●	●		●
96	04.439 NUT PTO MANUAL CONTROL(6WC) 03.330 M6	0-91110-506-0	01	1	1009-1505	●	●		●
96	04.439 NUT PTO MANUAL CONTROL(6WC) 03.330 M6	0-91110-506-0	01	1	1506-	●	●	●	●
121	04.439 RING; SNAP PTO MANUAL CONTROL(6WC) 03.485 (A) ID=4	0-91805-504-0	01	1	1009-1010	●	●		●
121	04.439 RING; SNAP DUMP CONTROL LEVER<RC4> 03.485 (A) ID=4	0-91805-504-0	01	1	1011-	●	●		●
121	04.439 RING; SNAP PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4> 03.485 (A) ID=4	0-91805-504-0	01	1	1011-	●	●		●
121	04.439 RING; SNAP PTO MANUAL CONTROL(6WC) (B) ID=8	0-91805-508-0	01	1	1009-				●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 04.307 (A)	8-94366-842-2	01	1	1009-1505	●	●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 04.307 (A)	8-94366-842-2	01	1	1506-	●	●	●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (B)	8-98029-878-0	01	1	1009-1010	●	●		●
190	04.439 BOSS; LEVER,PTO DUMP CONTROL LEVER<RC4> (B)	8-98029-878-0	01	1	1011-	●	●		●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4> (B)	8-98029-878-0	01	1	1011-	●	●		●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (C)	0-82154-025-0	01	1	1009-				●
219	04.439 KNOB; LEVER PTO MANUAL CONTROL(6WC)	8-97122-736-0	01	1	1009-1010	●	●		●
219	04.439 KNOB; LEVER DUMP CONTROL LEVER<RC4>	8-97122-736-0	01	1	1011-	●	●		●
219	04.439 KNOB; LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4>	8-97122-736-0	01	1	1011-	●	●		●
222	04.439 BOLT; LEVER PTO MANUAL CONTROL(6WC) (B) M8X60	0-10855-860-0	01	1	1009-1010	●	●		●
222	04.439 BOLT; LEVER DUMP CONTROL LEVER<RC4> (B) M8X60	0-10855-860-0	01	1	1011-	●	●		●
222	04.439 BOLT; LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4> (B) M8X60	0-10855-860-0	01	1	1011-	●	●		●
222	04.439 BOLT; LEVER PTO MANUAL CONTROL(6WC) 01.531 (A) M8X20 FLANGE	0-28650-820-0	03	1	1009-1010	●	●		●
222	04.439 BOLT; LEVER DUMP CONTROL LEVER<RC4> 01.531 (A) M8X20 FLANGE	0-28650-820-0	03	1	1011-	●	●		●
222	04.439 BOLT; LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4> 01.531 (A) M8X20 FLANGE	0-28650-820-0	03	1	1011-	●	●		●
225	04.439 BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC) (A)	8-98029-873-2	01	1	1009-1010	●	●		●
225	04.439 BRACKET; CONT LEVER DUMP CONTROL LEVER<RC4> (A)	8-98029-873-3	01	1	1011-1204	●	●		●
225	04.439 BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4> (A)	8-98029-873-3	01	1	1011-1204	●	●		●
225	04.439 BRACKET; CONT LEVER DUMP CONTROL LEVER<RC4> (B)	8-98152-960-1	01	1	1205-	●	●		●
225	04.439 BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4> (B)	8-98152-960-1	01	1	1205-	●	●		●
258	04.439 CABLE; DUMP CONT . PTO MANUAL CONTROL(6WC)	8-98029-877-1	01	1	1009-1010	●	●		●
258	04.439 CABLE; DUMP CONT . DUMP CONTROL LEVER<RC4>	8-98029-877-1	01	1	1011-	●	●		●
258	04.439 CABLE; DUMP CONT . PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4>	8-98029-877-1	01	1	1011-	●	●		●
259	04.439 GRIP; CONT LEVER PTO MANUAL CONTROL(6WC)	8-97141-653-0	01	1	1009-1010	●	●		●
259	04.439 GRIP; CONT LEVER DUMP CONTROL LEVER<RC4>	8-97141-653-0	01	1	1011-	●	●		●
259	04.439 GRIP; CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4>	8-97141-653-0	01	1	1011-	●	●		●
260	04.439 LEVER; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98030-057-2	01	1	1009-1010	●	●		●
260	04.439 LEVER; DUMP CONT DUMP CONTROL LEVER<RC4>	8-98030-057-2	01	1	1011-	●	●		●
260	04.439 LEVER; DUMP CONT PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4>	8-98030-057-2	01	1	1011-	●	●		●
261	04.439 SWITCH; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98081-918-0	01	1	1009-1010	●	●		●
261	04.439 SWITCH; DUMP CONT DUMP CONTROL LEVER<RC4>	8-98081-918-0	01	1	1011-	●	●		●
261	04.439 SWITCH; DUMP CONT PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4>	8-98081-918-0	01	1	1011-	●	●		●
262	04.439 RETAINER; SPRING PTO MANUAL CONTROL(6WC)	8-97129-397-0	01	1	1009-1010	●	●		●
262	04.439 RETAINER; SPRING DUMP CONTROL LEVER<RC4>	8-97129-397-0	01	1	1011-	●	●		●
262	04.439 RETAINER; SPRING PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4>	8-97129-397-0	01	1	1011-	●	●		●
264	04.439 PROTECTOR; EDGE DUMP CONTROL LEVER<RC4>	8-98211-652-0	01	1	1205-	●	●		●
264	04.439 PROTECTOR; EDGE PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4>	8-98211-652-0	01	1	1205-	●	●		●
287	04.439 NUT; SWITCH,CONT LEVER PTO MANUAL CONTROL(6WC) 03.330 (A) M6	0-91110-506-0	01	1	1009-1010	●	●		●
287	04.439 NUT; SWITCH,CONT LEVER DUMP CONTROL LEVER<RC4> 03.330 (A) M6	0-91110-506-0	01	1	1011-	●	●		●
287	04.439 NUT; SWITCH,CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4> 03.330 (A) M6	0-91110-506-0	01	1	1011-	●	●		●
287	04.439 NUT; SWITCH,CONT LEVER PTO MANUAL CONTROL(6WC) 01.540 (B) M8 FLANGE	0-91180-208-0	01	1	1009-1010	●	●		●
287	04.439 NUT; SWITCH,CONT LEVER DUMP CONTROL LEVER<RC4> 01.540 (B) M8 FLANGE	0-91180-208-0	01	1	1011-	●	●		●
287	04.439 NUT; SWITCH,CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4> 01.540 (B) M8 FLANGE	0-91180-208-0	01	1	1011-	●	●		●
300	04.439 CAP; KNOB PTO MANUAL CONTROL(6WC)	8-97122-740-0	01	1	1009-1010	●	●		●
300	04.439 CAP; KNOB DUMP CONTROL LEVER<RC4>	8-97122-740-0	01	1	1011-	●	●		●
300	04.439 CAP; KNOB PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4>	8-97122-740-0	01	1	1011-	●	●		●
330	04.439 COLOR; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98049-802-0	01	1	1009-1010	●	●		●
330	04.439 COLOR; DUMP CONT DUMP CONTROL LEVER<RC4>	8-98049-802-0	01	1	1011-	●	●		●
330	04.439 COLOR; DUMP CONT PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4>	8-98049-802-0	01	1	1011-	●	●		●

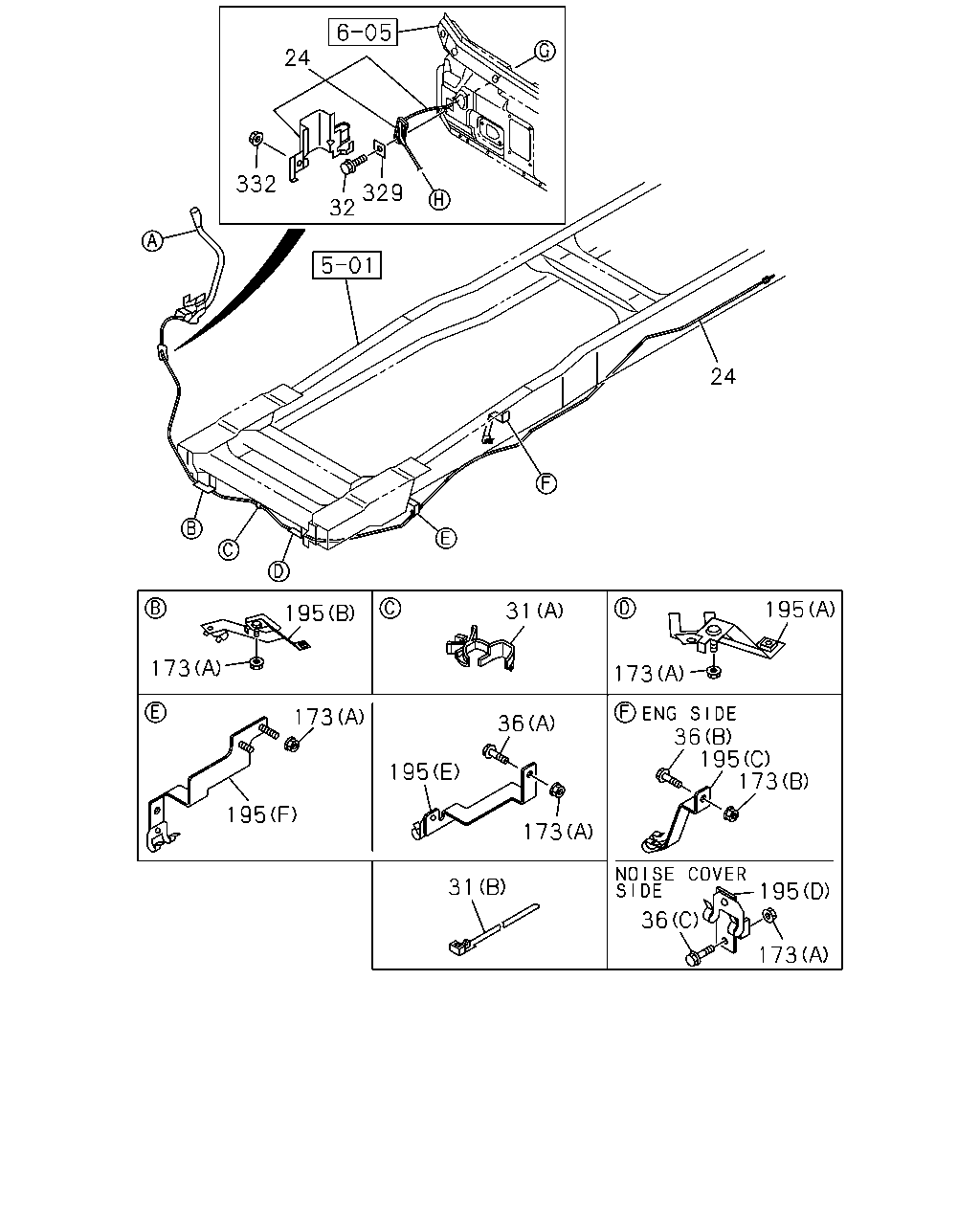

24 332 329 32 24 173 195 173 195 31 36 195 195 173 36 195 173 36 195 173 31 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
24	04.439 CABLE; PTO CONT . 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) L=3532	8-98175-786-0	01	1	1012-1207	●	●
24	04.439 CABLE; PTO CONT . 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) L=3532	8-98223-294-0	01	1	1208-1505	●	●
24	04.439 CABLE; PTO CONT . 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) L=3532	8-98223-294-0	01	1	1506-1507	●	●	●
24	04.439 CABLE; PTO CONT . 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) L=3532	8-98328-272-1	01	1	1508-	●	●	●
24	04.439 CABLE; PTO CONT . 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3610	8-98085-639-1	01	1	1009-1207	●	●
24	04.439 CABLE; PTO CONT . 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3610	8-98223-345-0	01	1	1208-	●	●
24	04.439 CABLE; PTO CONT . 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3532	8-98085-640-1	01	1	1009-1011	●	●
24	04.439 CABLE; PTO CONT . 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3532	8-98085-640-1	01	1	1012-1207	●	●
24	04.439 CABLE; PTO CONT . 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3532	8-98223-344-0	01	1	1208-1505	●	●
24	04.439 CABLE; PTO CONT . 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3532	8-98223-344-0	01	1	1506-	●	●	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3680	8-98085-641-1	01	1	1009-1207	●	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3680	8-98223-353-0	01	1	1208-	●	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) L=3600	8-98146-349-0	01	1	1009-1207	●	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) L=3600	8-98223-300-1	01	1	1208-1505	●	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) L=3600	8-98223-300-1	01	1	1506-1507	●	●	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) L=3600	8-98328-268-1	01	1	1508-	●	●	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3602	8-98085-642-1	01	1	1009-1207	●	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3602	8-98223-352-0	01	1	1208-1505	●	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3602	8-98223-352-0	01	1	1506-	●	●	●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3904	8-98070-961-2	01	1	1009-1207				●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3904	8-98223-357-0	01	1	1208-				●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3844	8-98070-960-2	01	1	1009-1207				●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3844	8-98223-356-0	01	1	1208-				●
31	04.439 CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) 02.559 (B) L=250	5-09707-030-1	01	1	1009-1505	●	●		●
31	04.439 CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) 02.559 (B) L=250	5-09707-030-1	01	1	1506-	●	●	●	●
31	04.439 CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) 02.559 (A) ID=16	8-97040-812-0	01	1	1009-1505	●	●		●
31	04.439 CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) 02.559 (A) ID=16	8-97040-812-0	01	1	1506-	●	●	●	●
31	04.439 CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) 02.559 (B) L=300	1-09707-001-1	02	1	1009-	●	●
32	04.439 BOLT; CLIP,CABLE PTO MANUAL CONTROL(6WC) M6X16 FLANGE	0-28060-616-0	02	1	1009-1505	●	●		●
32	04.439 BOLT; CLIP,CABLE PTO MANUAL CONTROL(6WC) M6X16 FLANGE	0-28060-616-0	02	1	1506-	●	●	●	●
36	04.439 BOLT; PTO BRKT 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1009-	●	●
36	04.439 BOLT; PTO BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1009-	●	●		●
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1009-				●
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1009-				●
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1009-1011	●	●		●
173	04.439 NUT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) PTO MANUAL CONTROL(6WC) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1009-1011				●
173	04.439 NUT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1012-	●	●		●
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1012-				●
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1012-				●
173	04.439 NUT; BRKT 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1012-	●	●
173	04.439 NUT; BRKT 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1009-	●	●
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1009-1505	●	●		●
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1506-	●	●	●	●
195	04.439 BRACKET; CONT CABLE 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) (A)	8-98049-570-1	01	1	1009-	●	●
195	04.439 BRACKET; CONT CABLE 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) (C)	8-98101-144-0	01	1	1009-	●	●
195	04.439 BRACKET; CONT CABLE 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) (F)	8-98101-145-0	01	1	1009-	●	●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) (B)	8-98098-618-0	01	1	1009-1505	●	●		●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) (B)	8-98098-618-0	01	1	1506-	●	●	●	●
195	04.439 BRACKET; CONT CABLE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) PTO MANUAL CONTROL(6WC) (E)	8-98102-494-0	01	1	1009-	●	●		●
195	04.439 BRACKET; CONT CABLE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) PTO MANUAL CONTROL(6WC) (A)	8-98102-495-1	01	1	1009-	●	●		●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98086-271-2	01	1	1009-				●
329	16.520 SEAL PTO MANUAL CONTROL(6WC) 08.845	8-97856-616-0	02	1	1009-1505	●	●		●
329	16.520 SEAL PTO MANUAL CONTROL(6WC) 08.845	8-97856-616-0	02	1	1506-	●	●	●	●
332	04.439 NUT; PTO CONT CABLE PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE	0-91180-106-0	01	1	1009-1505	●	●		●
332	04.439 NUT; PTO CONT CABLE PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE	0-91180-106-0	01	1	1506-	●	●	●	●

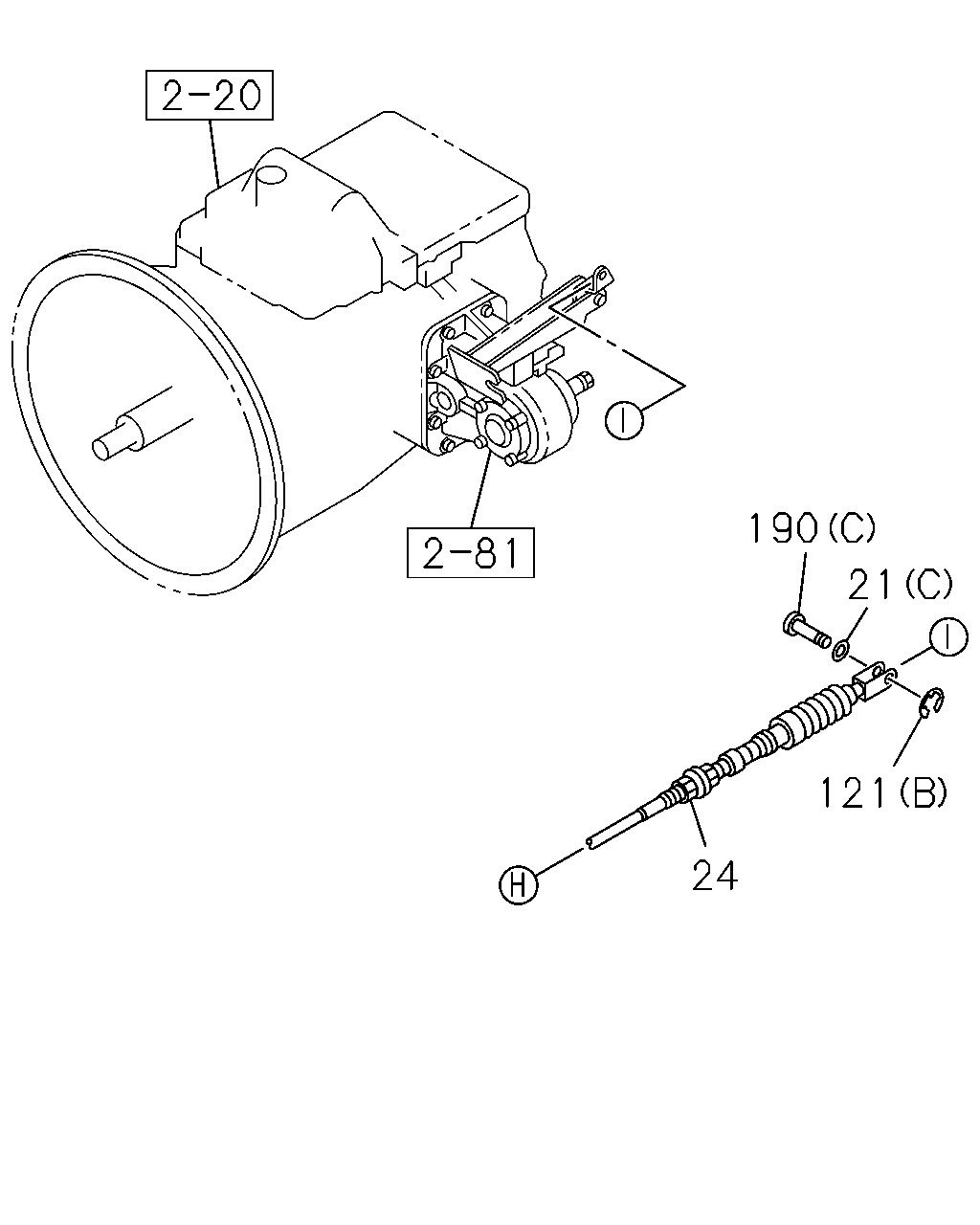

190 21 121 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
21	04.439 WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 02.277 (A) ID=8.4 OD=22	0-91614-708-0	01	1	1009-1505	●	●
21	04.439 WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 02.277 (A) ID=8.4 OD=22	0-91614-708-0	01	1	1506-	●	●	●
21	04.439 WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 04.037 (B) ID=8.5 T=0.3	5-09509-001-0	01	1	1009-1505	●	●
21	04.439 WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 04.037 (B) ID=8.5 T=0.3	5-09509-001-0	01	1	1506-	●	●	●
21	04.439 WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) 17.198 (C) ID=10.5	0-91610-510-0	01	1	1009-				●
24	04.439 CABLE; PTO CONT . 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) L=3532	8-98175-786-0	01	1	1012-1207	●	●
24	04.439 CABLE; PTO CONT . 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) L=3532	8-98223-294-0	01	1	1208-1505	●	●
24	04.439 CABLE; PTO CONT . 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) L=3532	8-98223-294-0	01	1	1506-1507	●	●	●
24	04.439 CABLE; PTO CONT . 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) L=3532	8-98328-272-1	01	1	1508-	●	●	●
24	04.439 CABLE; PTO CONT . 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3610	8-98085-639-1	01	1	1009-1207	●	●
24	04.439 CABLE; PTO CONT . 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3610	8-98223-345-0	01	1	1208-	●	●
24	04.439 CABLE; PTO CONT . 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3532	8-98085-640-1	01	1	1009-1011	●	●
24	04.439 CABLE; PTO CONT . 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3532	8-98085-640-1	01	1	1012-1207	●	●
24	04.439 CABLE; PTO CONT . 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3532	8-98223-344-0	01	1	1208-1505	●	●
24	04.439 CABLE; PTO CONT . 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3532	8-98223-344-0	01	1	1506-	●	●	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3680	8-98085-641-1	01	1	1009-1207	●	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3680	8-98223-353-0	01	1	1208-	●	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) L=3600	8-98146-349-0	01	1	1009-1207	●	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) L=3600	8-98223-300-1	01	1	1208-1505	●	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) L=3600	8-98223-300-1	01	1	1506-1507	●	●	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) L=3600	8-98328-268-1	01	1	1508-	●	●	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3602	8-98085-642-1	01	1	1009-1207	●	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3602	8-98223-352-0	01	1	1208-1505	●	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3602	8-98223-352-0	01	1	1506-	●	●	●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3904	8-98070-961-2	01	1	1009-1207				●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3904	8-98223-357-0	01	1	1208-				●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3844	8-98070-960-2	01	1	1009-1207				●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3844	8-98223-356-0	01	1	1208-				●
121	04.439 RING; SNAP PTO MANUAL CONTROL(6WC) 03.485 (A) ID=4	0-91805-504-0	01	1	1009-1010	●	●		●
121	04.439 RING; SNAP DUMP CONTROL LEVER<RC4> 03.485 (A) ID=4	0-91805-504-0	01	1	1011-	●	●		●
121	04.439 RING; SNAP PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4> 03.485 (A) ID=4	0-91805-504-0	01	1	1011-	●	●		●
121	04.439 RING; SNAP PTO MANUAL CONTROL(6WC) (B) ID=8	0-91805-508-0	01	1	1009-				●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 04.307 (A)	8-94366-842-2	01	1	1009-1505	●	●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 04.307 (A)	8-94366-842-2	01	1	1506-	●	●	●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (B)	8-98029-878-0	01	1	1009-1010	●	●		●
190	04.439 BOSS; LEVER,PTO DUMP CONTROL LEVER<RC4> (B)	8-98029-878-0	01	1	1011-	●	●		●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4> (B)	8-98029-878-0	01	1	1011-	●	●		●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (C)	0-82154-025-0	01	1	1009-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
