2-03 — CLUTCH PEDAL AND CONTROL (#7829) — 46 parça

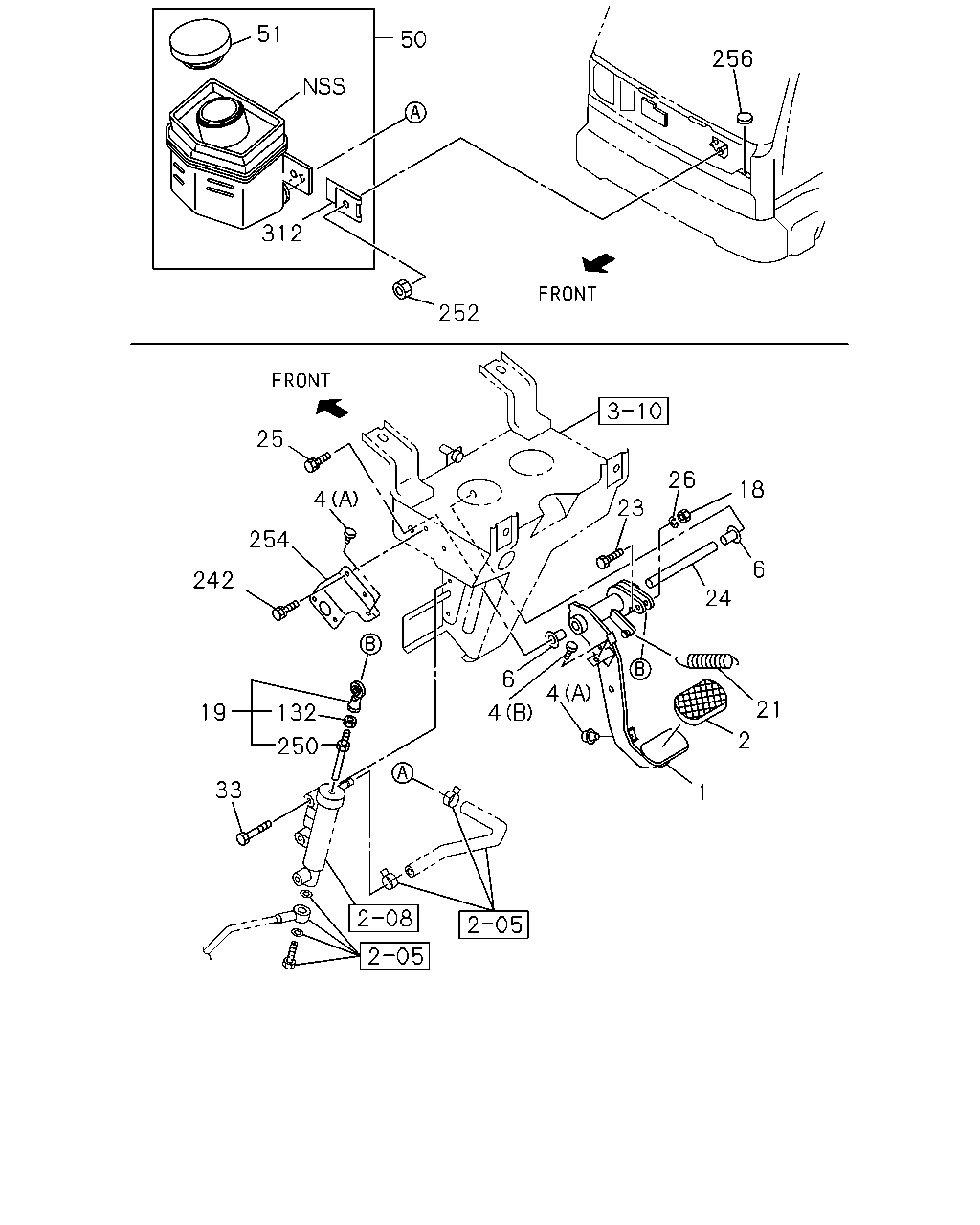

çizim 26724
51 50 256 312 252 25 26 18 4 23 254 6 242 24 6 4 21 19 132 4 2 250 33 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PEDAL; CLU 1-73908-079-3 01 1 9905-0301 ● ●
1 PEDAL; CLU 1-73908-079-3 01 1 0302- ● ● ●
2 COVER; CLU PEDAL 8-94204-810-0 01 1 9905-0103 ● ●
2 COVER; CLU PEDAL 8-97893-618-1 01 1 0104-0301 ● ●
2 COVER; CLU PEDAL 8-97893-618-1 01 1 0302- ● ● ●
4 STOPPER; CLU PEDAL
(A) 		1-47319-014-1 02 1 9905-0301 ● ●
4 STOPPER; CLU PEDAL
(A) 		1-47319-014-1 02 1 0302- ● ● ●
4 STOPPER; CLU PEDAL
(B) 		5-31419-003-0 01 1 9905-9905 ● ●
6 BUSHING; CLU PEDAL 1-09330-045-0 02 1 9905-0301 ● ●
6 BUSHING; CLU PEDAL 1-09330-045-0 02 1 0302- ● ● ●
18 NUT; PUSH ROD
M8 		0-91110-508-0 01 1 9905-0301 ● ●
18 NUT; PUSH ROD
M8 		0-91110-508-0 01 1 0302- ● ● ●
19 ROD ASM; PUSH,CLU 1-73908-332-0 01 1 9905-9905 ● ●
19 ROD ASM; PUSH,CLU 1-73996-144-1 01 1 9905-0301 ● ●
19 ROD ASM; PUSH,CLU 1-73996-144-1 01 1 0302- ● ● ●
21 SPRING; RETURN,CLU PEDAL 1-73908-265-0 01 1 9905-0301 ● ●
21 SPRING; RETURN,CLU PEDAL 1-73908-265-0 01 1 0302- ● ● ●
23 BOLT; PUSH ROD
M8X35 		0-10960-835-0 01 1 9905-0301 ● ●
23 BOLT; PUSH ROD
M8X35 		0-10960-835-0 01 1 0302- ● ● ●
24 SHAFT; CLU PEDAL 1-73998-936-1 01 1 9905-0301 ● ●
24 SHAFT; CLU PEDAL 1-73998-936-1 01 1 0302- ● ● ●
25 BOLT; PEDAL
M10X25 W/LK WASHER 		0-50051-025-0 02 1 9905-0301 ● ●
25 BOLT; PEDAL
M10X25 W/LK WASHER 		0-50051-025-0 02 1 0302- ● ● ●
26 WASHER; LK,PUSH ROD
ID=8.2 		0-91510-608-0 01 1 9905-0301 ● ●
26 WASHER; LK,PUSH ROD
ID=8.2 		0-91510-608-0 01 1 0302- ● ● ●
33 BOLT; CLU M/CYL TO BRKT
M10X60 FLANGE 		0-28081-060-0 02 1 9905-0301 ● ●
33 BOLT; CLU M/CYL TO BRKT
M10X60 FLANGE 		0-28081-060-0 02 1 0302-0512 ● ● ●
33 BOLT; CLU M/CYL TO BRKT
M10X60 FLANGE 		0-28051-060-0 02 1 0601- ● ● ●
50 TANK; OIL,CLU 1-47530-182-0 01 1 9905-0301 ● ●
50 TANK; OIL,CLU 1-47530-182-0 01 1 0302- ● ● ●
51 CAP; OIL TANK,CLU 8-94136-483-1 01 1 9905-0301 ● ●
51 CAP; OIL TANK,CLU 8-94136-483-1 01 1 0302- ● ● ●
132 NUT; LK,PUSH ROD
M8 		0-91110-508-0 01 1 9905-0301 ● ●
132 NUT; LK,PUSH ROD
M8 		0-91110-508-0 01 1 0302- ● ● ●
242 BOLT; BRKT,CLUTCH
M6X16 W/LK WASHER 		0-50540-616-0 02 1 9905-0301 ● ●
242 BOLT; BRKT,CLUTCH
M6X16 W/LK WASHER 		0-50540-616-0 02 1 0302- ● ● ●
250 ROD; PUSH,CLU 1-73996-219-0 01 1 9905-0301 ● ●
250 ROD; PUSH,CLU 1-73996-219-0 01 1 0302- ● ● ●
252 NUT; OIL TANK
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 9905-0301 ● ●
252 NUT; OIL TANK
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 0302- ● ● ●
254 BRACKET; CLU SENSOR 1-73998-979-5 01 1 9905-0301 ● ●
254 BRACKET; CLU SENSOR 1-73998-979-5 01 1 0302- ● ● ●
256 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 9905-0301 ● ●
256 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 0302- ● ● ●
312 PLATE; OIL TANK,CLU 1-21249-007-1 01 1 9905-0301 ● ●
312 PLATE; OIL TANK,CLU 1-21249-007-1 01 1 0302- ● ● ●
