2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#78286) — 42 parça

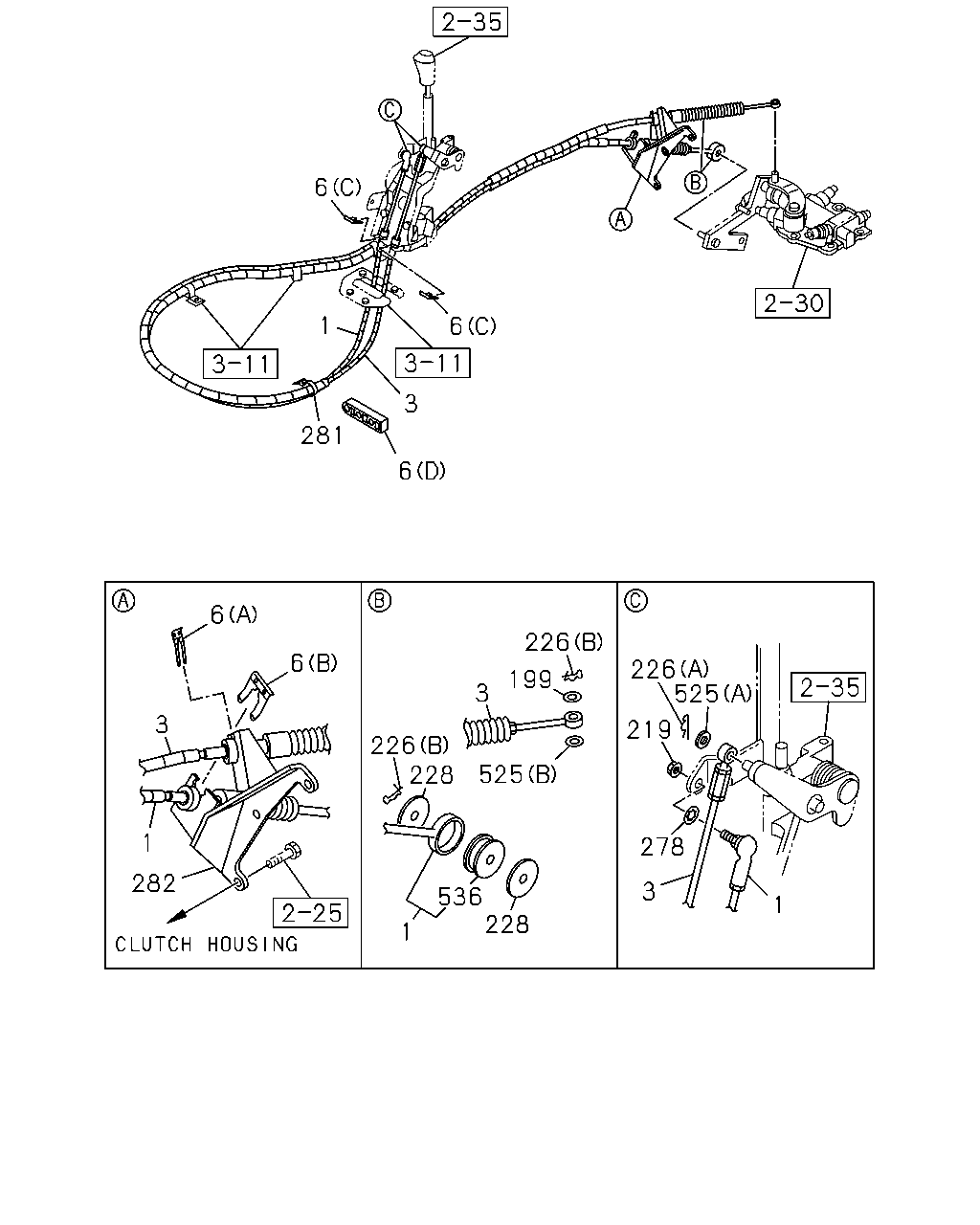

çizim 113765
6 6 3 281 6 3 6 282 226 226 525 228 536 228 199 3 226 525 219 278 3 1 1 1 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.854 CABLE; SHIFT,TRANS CONT
4JJ1-TCS ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3095 		8-98146-831-1 01 1 1009-1106 ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4JJ1-TCS ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3095 		8-98162-849-0 01 1 1107-1505 ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4JJ1-TCS ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3095 		8-98162-849-0 01 1 1506- ● ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3090 		8-98146-856-0 01 1 1009-1505 ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3090 		8-98146-856-0 01 1 1506- ● ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3116 		8-98146-876-0 01 1 1009- ●
3 00.852 CABLE; SELECT,TRANS CONT
4JJ1-TCS ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3190 		8-98151-017-1 01 1 1009-1505 ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4JJ1-TCS ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3190 		8-98151-017-1 01 1 1506- ● ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3202 		8-98025-442-3 01 1 1009-1505 ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3202 		8-98025-442-3 01 1 1506- ● ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3229 		8-98025-443-4 01 1 1009- ●
6 04.047 CLIP; CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.854 (A) ID=22.2 		1-09701-209-1 01 1 1009-1505 ● ● ●
6 04.047 CLIP; CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.854 (A) ID=22.2 		1-09701-209-1 01 1 1506- ● ● ● ●
6 04.047 CLIP; CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-97011-448-0 02 1 1009-1505 ● ● ●
6 04.047 CLIP; CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-97011-448-0 02 1 1506- ● ● ● ●
6 04.047 CLIP; CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=19.2 		8-97211-011-0 01 1 1009-1505 ● ● ●
6 04.047 CLIP; CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=19.2 		8-97211-011-0 01 1 1506- ● ● ● ●
6 04.047 CLIP; CABLE
EXC. MANUAL TILT CAB<RWZ>,TRANSMISSION CONTROL-SMOOTHER(8GF) 04.008 (D) 		8-97093-491-1 01 1 1009- ● ● ●
199 04.012 WASHER; PL,SELECT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.417 ID=8.4 OD=16 		0-91610-508-0 01 1 1009-1505 ● ● ●
199 04.012 WASHER; PL,SELECT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.417 ID=8.4 OD=16 		0-91610-508-0 01 1 1506- ● ● ● ●
219 04.047 NUT; FLANGE,SHAFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.037 M8 T=8.0 		8-94363-045-0 01 1 1009-1505 ● ● ●
219 04.047 NUT; FLANGE,SHAFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.037 M8 T=8.0 		8-94363-045-0 01 1 1506- ● ● ● ●
226 04.047 PIN; SHIFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.833 (A) L=27.7 		8-94111-137-0 01 1 1009-1505 ● ● ●
226 04.047 PIN; SHIFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.833 (A) L=27.7 		8-94111-137-0 01 1 1506- ● ● ● ●
226 04.047 PIN; SHIFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=23 		8-94170-378-0 02 1 1009-1505 ● ● ●
226 04.047 PIN; SHIFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=23 		8-94170-378-0 02 1 1506- ● ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=8.2 OD=40 		8-97182-975-0 02 1 1009-1505 ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=8.2 OD=40 		8-97182-975-0 02 1 1506- ● ● ● ●
278 00.854 WASHER; LK,SHIFT WIRE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=8.4 TOOTH LK INT 		0-91541-208-0 01 1 1009-1505 ● ● ●
278 00.854 WASHER; LK,SHIFT WIRE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=8.4 TOOTH LK INT 		0-91541-208-0 01 1 1506- ● ● ● ●
281 04.042 CLIP; BAND
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 L=140 		5-09707-031-1 01 1 1009-1505 ● ● ●
281 04.042 CLIP; BAND
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 L=140 		5-09707-031-1 01 1 1506- ● ● ● ●
282 04.010 BRACKET; TRANS SIDE
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97350-449-0 01 1 1009- ● ●
282 04.010 BRACKET; TRANS SIDE
4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98032-395-1 01 1 1009-1505 ● ●
282 04.010 BRACKET; TRANS SIDE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98032-395-1 01 1 1506- ● ● ●
282 04.010 BRACKET; TRANS SIDE
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98032-396-2 01 1 1009- ●
525 04.047 WASHER; SHIFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 06.056 (A) ID=8.4 OD=16 		0-91614-508-0 01 1 1009-1505 ● ● ●
525 04.047 WASHER; SHIFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 06.056 (A) ID=8.4 OD=16 		0-91614-508-0 01 1 1506- ● ● ● ●
525 04.047 WASHER; SHIFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.854 (B) ID=8.4 OD=14 		5-09550-002-0 01 1 1009-1505 ● ● ●
525 04.047 WASHER; SHIFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.854 (B) ID=8.4 OD=14 		5-09550-002-0 01 1 1506- ● ● ● ●
536 00.854 DAMPER; CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98097-681-0 01 1 1009-1505 ● ● ●
536 00.854 DAMPER; CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98097-681-0 01 1 1506- ● ● ● ●
