◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51276 - NNR/NPR/NQR AUST/NZ EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-03 - CLUTCH PEDAL AND CONTROL ▶
2-03 — CLUTCH PEDAL AND CONTROL (#78275) — 97 parça

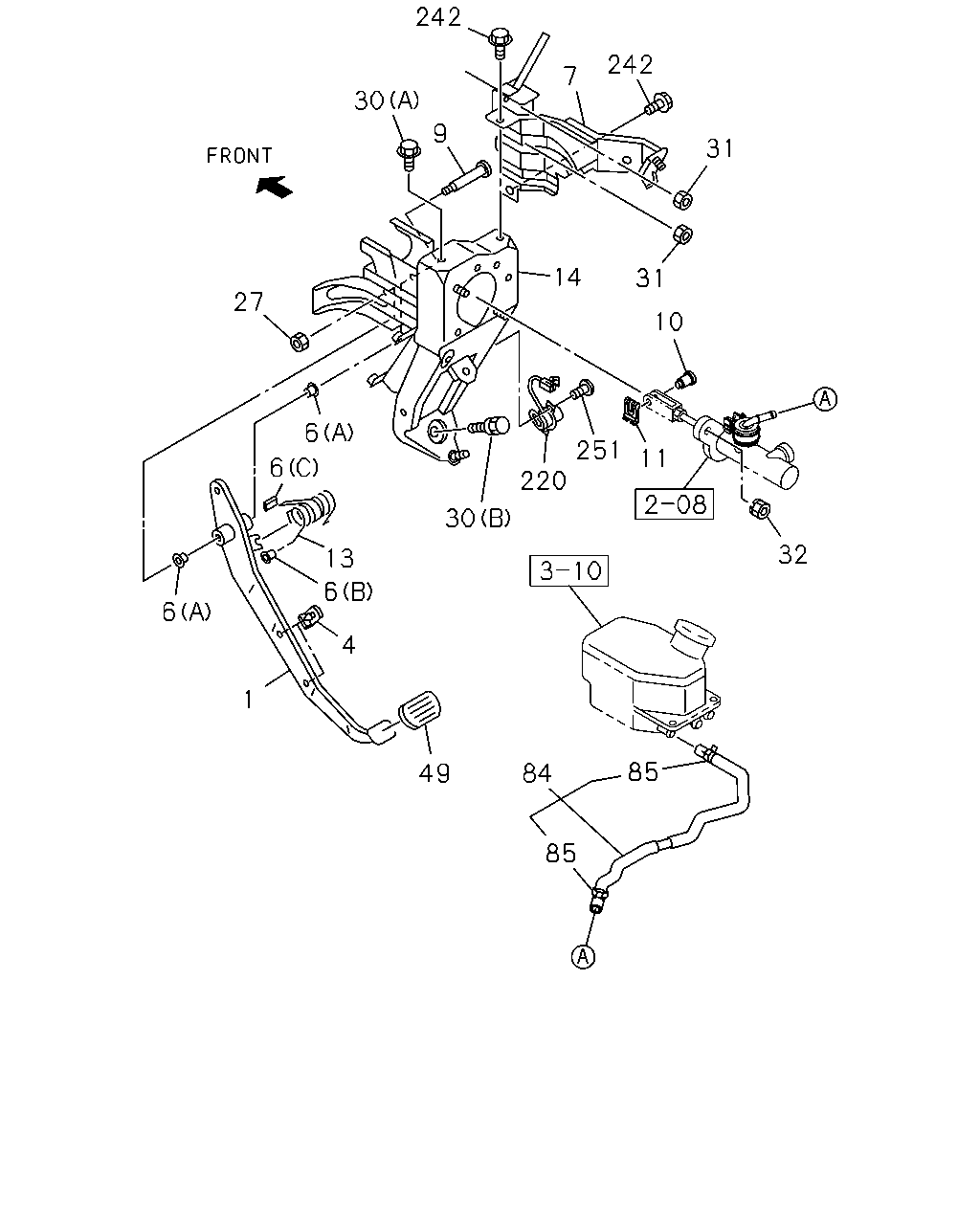

çizim 98883
242 7 242 31 31 14 9 30 27 6 6 6 13 6 4 1 49 84 85 85 30 251 220 32 11 10
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.830 PEDAL; CLU
4JJ1-TCS ENG(LFB) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-98034-753-0 01 1 1009-1011 ● ●
1 00.830 PEDAL; CLU
4JJ1-TCS ENG(LFB) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-98034-753-0 01 1 1012-1204 ● ● ●
1 00.830 PEDAL; CLU
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> 		8-98034-752-0 01 1 1009-1011 ● ●
1 00.830 PEDAL; CLU
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> 		8-98034-752-0 01 1 1012- ● ● ●
1 00.830 PEDAL; CLU
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		8-98002-484-0 01 1 1009- ● ● ● ● ● ●
1 00.830 PEDAL; CLU
H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98002-485-0 01 1 1009- ● ● ● ● ● ●
1 00.830 PEDAL; CLU
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-98034-755-0 01 1 1009-1204 ● ● ● ●
1 00.830 PEDAL; CLU
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> 		8-98034-754-0 01 1 1009- ● ● ● ●
4 00.829 STOPPER; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97853-534-1 02 1 1009- ● ● ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97853-619-0 02 1 1009-1204 ● ● ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> (B) 		8-97853-619-0 02 1 1205- ● ● ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-97853-620-0 01 1 1009-1204 ● ● ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> (C) 		8-97853-620-0 01 1 1205- ● ● ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.792 (A) 		8-94238-596-0 02 1 1009- ● ● ● ● ● ●
7 00.829 BRACKET; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98029-186-4 01 1 1009- ● ● ● ● ● ●
9 00.833 PIN; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634 		8-97866-667-0 01 1 1009- ● ● ● ● ● ●
10 00.833 PIN; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634 		8-98147-657-0 01 1 1009- ● ● ● ● ● ●
11 00.833 PIN; SNAP,PUSH ROD TO PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98007-161-0 01 1 1009- ● ● ● ● ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-98034-014-0 01 1 1009-1204 ● ● ● ● ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> 		8-98034-014-0 01 1 1205- ● ● ● ● ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98023-621-1 01 1 1009- ● ● ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-98034-751-0 01 1 1009-1204 ● ● ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> 		8-98034-750-0 01 1 1009- ● ● ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		8-98002-482-4 01 1 1009- ● ● ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98002-483-4 01 1 1009- ● ● ● ● ● ●
27 00.833 NUT; FULCRUM PIN
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634 M10 LOCK NUT FLANGE 		0-91380-010-0 01 1 1009- ● ● ● ● ● ●
30 00.829 BOLT; CLU MTG BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 07.833 (A) M10X25 FLANGE 		0-28661-025-0 01 1 1009-1204 ● ● ● ● ● ●
30 00.829 BOLT; CLU MTG BRKT
H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 07.833 (A) M10X25 FLANGE 		0-28661-025-0 01 1 1205- ● ● ● ● ● ●
30 00.829 BOLT; CLU MTG BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 07.833 (A) M10X25 FLANGE 		0-28661-025-0 01 1 1205- ● ● ● ● ● ●
30 00.829 BOLT; CLU MTG BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1009-1204 ● ● ● ● ● ●
30 00.829 BOLT; CLU MTG BRKT
H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1205- ● ● ● ● ● ●
30 00.829 BOLT; CLU MTG BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1205- ● ● ● ● ● ●
31 01.153 NUT; MTG BRKT TO BODY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 1009-1204 ● ● ● ● ● ●
31 01.153 NUT; MTG BRKT TO BODY
H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 1205- ● ● ● ● ● ●
31 01.153 NUT; MTG BRKT TO BODY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 1205- ● ● ● ● ● ●
32 00.777 NUT; BRKT TO CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 W/LK WASHER 		8-94279-050-0 02 1 1009- ● ● ● ● ● ●
49 00.829 RUBBER; PAD,CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97853-413-2 01 1 1009- ● ● ● ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98023-510-4 01 1 1009-1208 ● ● ● ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98218-205-1 01 1 1209- ● ● ● ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-98025-422-1 01 1 1009-1208 ● ● ● ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-98218-207-1 01 1 1209- ● ● ● ● ● ●
85 00.785 CLIP; HOSE TO M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.681 		8-98031-178-0 02 1 1009-1208 ● ● ● ● ● ●
85 00.785 CLIP; HOSE TO M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98168-080-0 02 1 1209- ● ● ● ● ● ●
220 04.329 SENSOR; CLUTCH
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-80250-014-0 01 1 1009-1204 ● ● ● ● ● ●
220 04.329 SENSOR; CLUTCH
H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-80250-014-0 01 1 1205- ● ● ● ● ● ●
242 00.785 BOLT; BRKT,CLUTCH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.604 M8X16 FLANGE 		0-28450-816-0 02 1 1009- ● ● ● ● ● ●
251 04.054 BOLT; SENSOR
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.500 M6X16 		0-52000-616-0 02 1 1009-1204 ● ● ● ● ● ●
251 04.054 BOLT; SENSOR
H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.500 M6X16 		0-52000-616-0 02 1 1205- ● ● ● ● ● ●

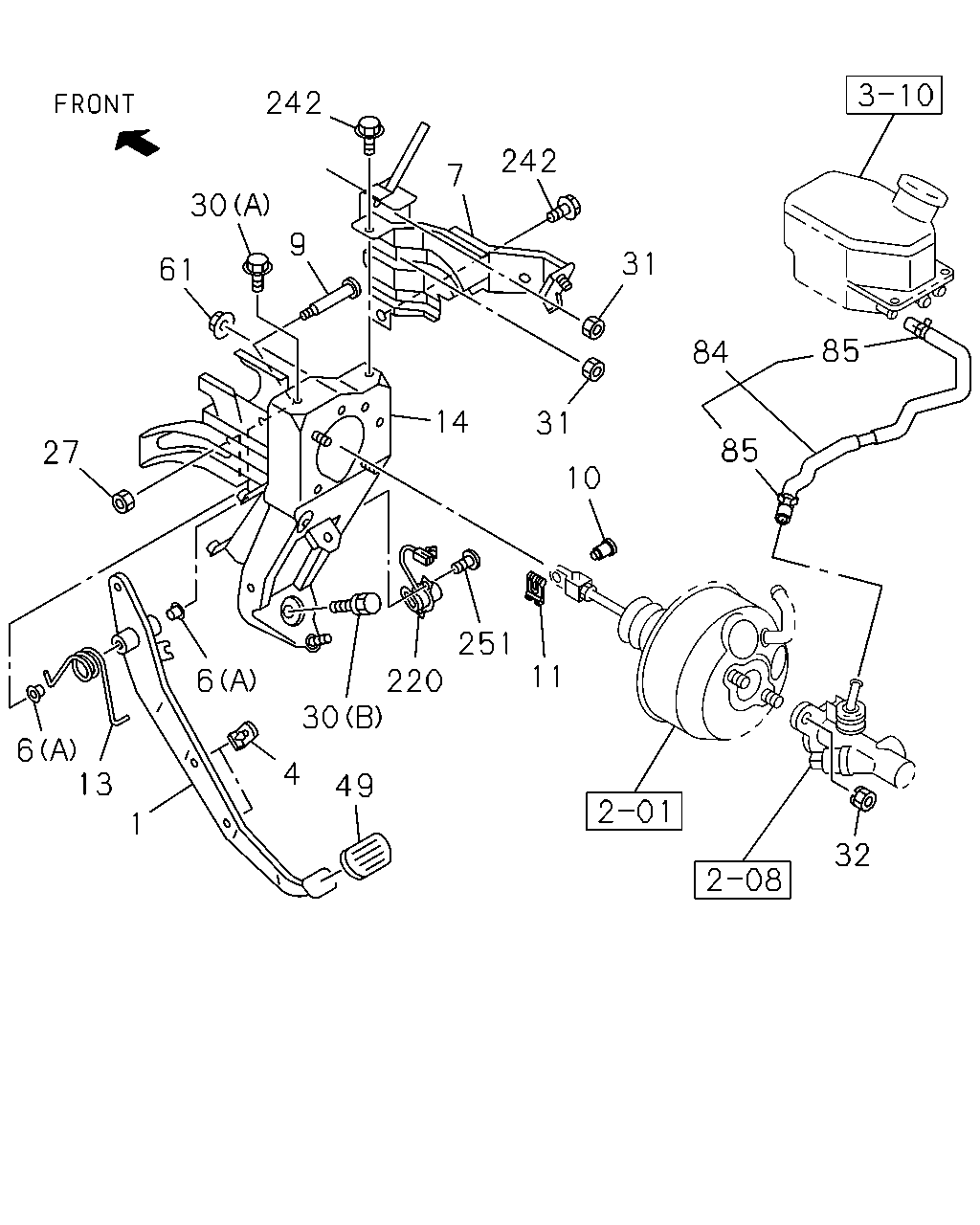

çizim 99424
242 30 61 9 27 6 13 1 49 4 6 30 220 251 11 10 14 31 31 242 32 85 84 85 7
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.830 PEDAL; CLU
4JJ1-TCS ENG(LFB) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-98034-753-0 01 1 1009-1011 ● ●
1 00.830 PEDAL; CLU
4JJ1-TCS ENG(LFB) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-98034-753-0 01 1 1012-1204 ● ● ●
1 00.830 PEDAL; CLU
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> 		8-98034-752-0 01 1 1009-1011 ● ●
1 00.830 PEDAL; CLU
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> 		8-98034-752-0 01 1 1012- ● ● ●
1 00.830 PEDAL; CLU
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		8-98002-484-0 01 1 1009- ● ● ● ● ● ●
1 00.830 PEDAL; CLU
H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98002-485-0 01 1 1009- ● ● ● ● ● ●
1 00.830 PEDAL; CLU
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-98034-755-0 01 1 1009-1204 ● ● ● ●
1 00.830 PEDAL; CLU
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> 		8-98034-754-0 01 1 1009- ● ● ● ●
4 00.829 STOPPER; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97853-534-1 02 1 1009- ● ● ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97853-619-0 02 1 1009-1204 ● ● ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> (B) 		8-97853-619-0 02 1 1205- ● ● ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-97853-620-0 01 1 1009-1204 ● ● ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> (C) 		8-97853-620-0 01 1 1205- ● ● ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.792 (A) 		8-94238-596-0 02 1 1009- ● ● ● ● ● ●
7 00.829 BRACKET; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98029-186-4 01 1 1009- ● ● ● ● ● ●
9 00.833 PIN; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634 		8-97866-667-0 01 1 1009- ● ● ● ● ● ●
10 00.833 PIN; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634 		8-98147-657-0 01 1 1009- ● ● ● ● ● ●
11 00.833 PIN; SNAP,PUSH ROD TO PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98007-161-0 01 1 1009- ● ● ● ● ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-98034-014-0 01 1 1009-1204 ● ● ● ● ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> 		8-98034-014-0 01 1 1205- ● ● ● ● ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98023-621-1 01 1 1009- ● ● ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-98034-751-0 01 1 1009-1204 ● ● ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> 		8-98034-750-0 01 1 1009- ● ● ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		8-98002-482-4 01 1 1009- ● ● ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98002-483-4 01 1 1009- ● ● ● ● ● ●
27 00.833 NUT; FULCRUM PIN
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634 M10 LOCK NUT FLANGE 		0-91380-010-0 01 1 1009- ● ● ● ● ● ●
30 00.829 BOLT; CLU MTG BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 07.833 (A) M10X25 FLANGE 		0-28661-025-0 01 1 1009-1204 ● ● ● ● ● ●
30 00.829 BOLT; CLU MTG BRKT
H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 07.833 (A) M10X25 FLANGE 		0-28661-025-0 01 1 1205- ● ● ● ● ● ●
30 00.829 BOLT; CLU MTG BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 07.833 (A) M10X25 FLANGE 		0-28661-025-0 01 1 1205- ● ● ● ● ● ●
30 00.829 BOLT; CLU MTG BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1009-1204 ● ● ● ● ● ●
30 00.829 BOLT; CLU MTG BRKT
H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1205- ● ● ● ● ● ●
30 00.829 BOLT; CLU MTG BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1205- ● ● ● ● ● ●
31 01.153 NUT; MTG BRKT TO BODY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 1009-1204 ● ● ● ● ● ●
31 01.153 NUT; MTG BRKT TO BODY
H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 1205- ● ● ● ● ● ●
31 01.153 NUT; MTG BRKT TO BODY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 1205- ● ● ● ● ● ●
32 00.777 NUT; BRKT TO CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 W/LK WASHER 		8-94279-050-0 02 1 1009- ● ● ● ● ● ●
49 00.829 RUBBER; PAD,CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97853-413-2 01 1 1009- ● ● ● ● ● ●
61 00.777 NUT; BOOSTER TO BRKT
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 W/LK WASHER 		8-94279-050-0 04 1 1009- ● ● ● ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98023-510-4 01 1 1009-1208 ● ● ● ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98218-205-1 01 1 1209- ● ● ● ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-98025-422-1 01 1 1009-1208 ● ● ● ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-98218-207-1 01 1 1209- ● ● ● ● ● ●
85 00.785 CLIP; HOSE TO M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.681 		8-98031-178-0 02 1 1009-1208 ● ● ● ● ● ●
85 00.785 CLIP; HOSE TO M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98168-080-0 02 1 1209- ● ● ● ● ● ●
220 04.329 SENSOR; CLUTCH
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-80250-014-0 01 1 1009-1204 ● ● ● ● ● ●
220 04.329 SENSOR; CLUTCH
H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-80250-014-0 01 1 1205- ● ● ● ● ● ●
242 00.785 BOLT; BRKT,CLUTCH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.604 M8X16 FLANGE 		0-28450-816-0 02 1 1009- ● ● ● ● ● ●
251 04.054 BOLT; SENSOR
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.500 M6X16 		0-52000-616-0 02 1 1009-1204 ● ● ● ● ● ●
251 04.054 BOLT; SENSOR
H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.500 M6X16 		0-52000-616-0 02 1 1205- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
