1-56 — EXHAUST BRAKE SYSTEM (#78273) — 93 parça

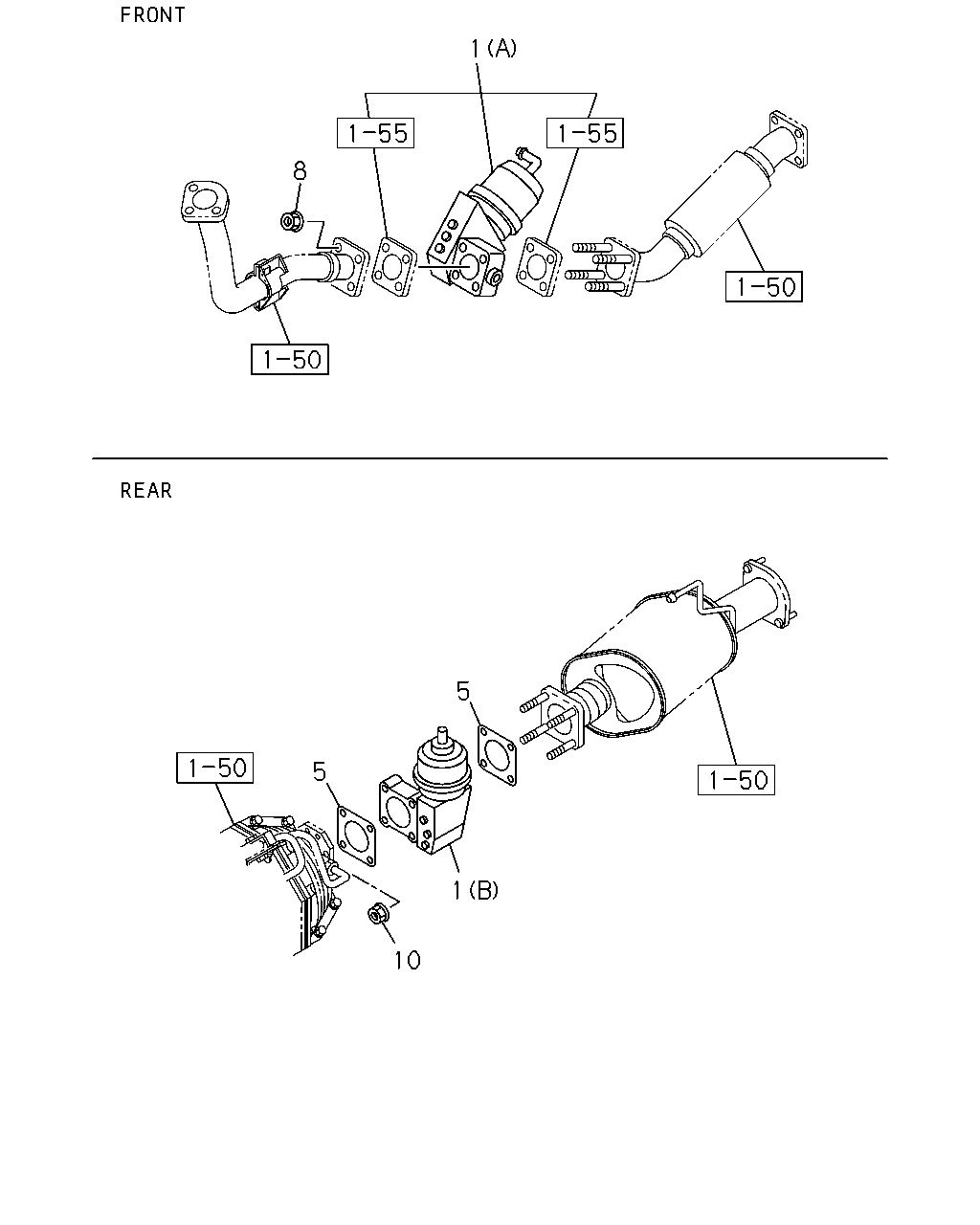

1 5 5 10 8 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.632 BRAKE UNIT; EXH (B)	8-97384-098-2	01	1	1009-1011	●	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB) (B)	8-97384-098-2	01	1	1012-1012	●	●	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB) (B)	8-98167-677-1	01	1	1101-1310	●	●	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB) (B)	8-98258-268-0	01	1	1311-	●	●	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ) (B)	8-98035-862-2	01	1	1009-1012			●
1	03.632 BRAKE UNIT; EXH (B)	8-98035-862-2	01	1	1009-1012				●	●	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ) (B)	8-98167-678-1	01	1	1101-1310			●
1	03.632 BRAKE UNIT; EXH (B)	8-98167-678-1	01	1	1101-1310				●	●	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ) (B)	8-98258-269-0	01	1	1311-			●
1	03.632 BRAKE UNIT; EXH (B)	8-98258-269-0	01	1	1311-				●	●	●
1	03.632 BRAKE UNIT; EXH (A)	8-98068-178-1	01	1	1009-1212	●	●	●	●	●	●
1	03.632 BRAKE UNIT; EXH (A)	8-98227-170-0	01	1	1301-	●	●	●	●	●	●
5	03.634 GASKET; EXH BRAKE UNIT 03.611 ID=64	8-97373-108-0	02	1	1009-	●	●	●	●	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1009-	●	●	●	●	●	●
10	03.634 NUT; BRKT,EXH BRAKE 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1009-	●	●	●	●	●	●

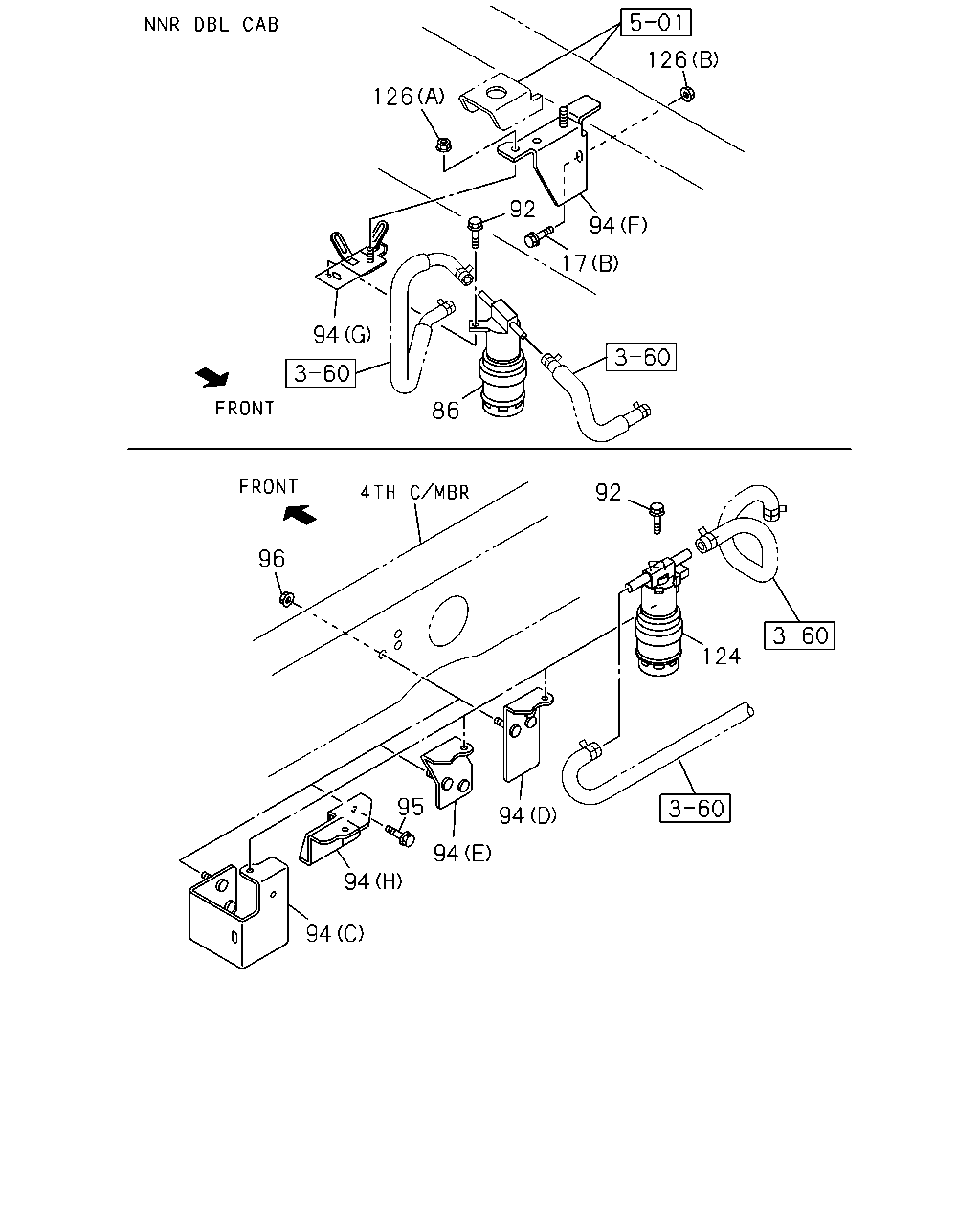

126 126 94 92 17 94 86 96 92 124 94 94 95 94 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
17	03.634 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1009-	●		●	●
17	03.634 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1009-		●
17	03.634 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1009-					●	●
86	03.636 VALVE; MAG,EXH BRK	8-98043-344-0	01	1	1009-	●	●	●	●	●	●
92	08.900 BOLT; MAG VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1009-	●	●	●	●	●	●
92	08.900 BOLT; MAG VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1009-	●	●	●	●	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE WHEEL BASE 2700MM(27W) (D)	8-97370-883-2	01	1	1009-1011	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (D)	8-97370-883-2	01	1	1012-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97370-883-2	01	1	1012-			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE WHEEL BASE 3300MM(33W) (E)	8-98032-122-0	01	1	1009-1011	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (E)	8-98032-122-0	01	1	1009-1011		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (E)	8-98032-122-0	01	1	1012-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-98032-122-0	01	1	1012-			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) (E)	8-98032-122-0	01	1	1012-		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (A)	8-98092-656-0	01	1	1009-1011	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (A)	8-98092-656-0	01	1	1012-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98092-656-0	01	1	1012-			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE WHEEL BASE 2700MM(27W) (H)	8-98125-497-0	01	1	1009-1011			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> (H)	8-98125-497-0	01	1	1012-			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (C)	8-98040-096-2	01	1	1009-1011			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (C)	8-98040-096-2	01	1	1009-1011				●	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (C)	8-98040-096-2	01	1	1012-			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (C)	8-98040-096-2	01	1	1012-				●	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (A)	8-98034-053-3	01	1	1009-1011			●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE FRAME STRAIGHT TYPE<7KJ> (A)	8-98034-053-3	01	1	1012-			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (A)	8-98034-053-3	01	1	1012-				●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (F)	8-97387-681-1	01	1	1009-		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (G)	8-98089-211-0	01	1	1009-		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (B)	8-98040-636-1	01	1	1009-					●	●
95	03.636 BOLT; BRKT,MAG VLV,EXH BRAKE WHEEL BASE 2700MM(27W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1009-1011			●
95	03.636 BOLT; BRKT,MAG VLV,EXH BRAKE WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1012-			●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE 01.062 M8 FLANGE	0-91180-108-0	02	1	1009-	●	●	●	●	●	●
124	03.636 VALVE; MAG,DPD EXH THROTTLE	8-98043-344-0	01	1	1009-	●	●	●	●	●	●
126	03.634 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1009-	●	●	●	●
126	03.634 NUT; BRKT 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1009-		●

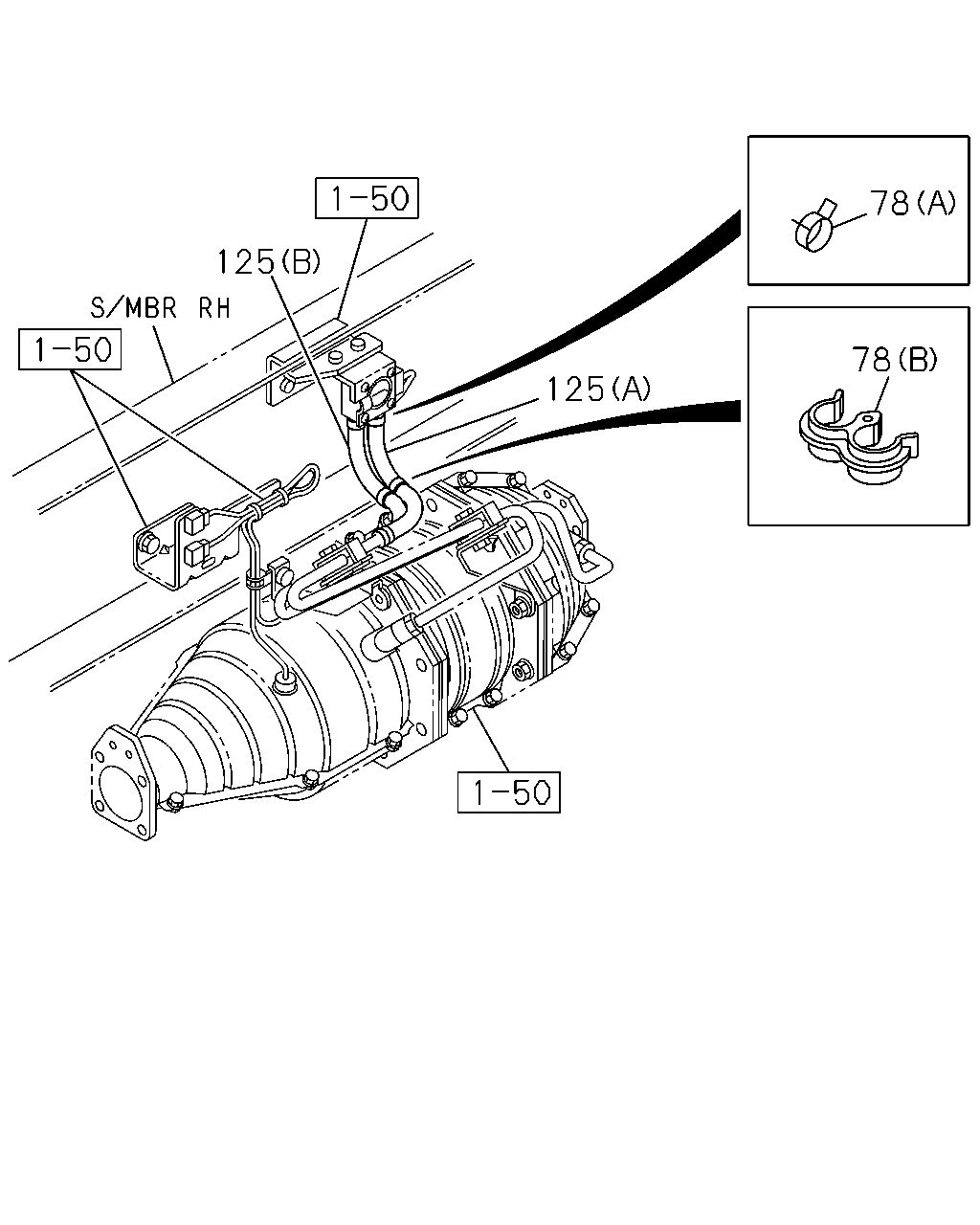

125 125 78 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
78	03.636 CLIP; HOSE 03.162 (A) ID=13	8-97329-627-0	04	1	1009-	●	●	●	●	●	●
78	03.636 CLIP; HOSE 03.162 (B)	8-97173-119-0	01	1	1009-1011	●	●
78	03.636 CLIP; HOSE 4JJ1-TCS ENG(LFB) 03.162 (B)	8-97173-119-0	01	1	1012-	●	●	●
125	03.630 HOSE; DPD (A)	8-98004-348-0	01	1	1009-1011	●	●
125	03.630 HOSE; DPD 4JJ1-TCS ENG(LFB) (A)	8-98004-348-0	01	1	1012-	●	●	●
125	03.630 HOSE; DPD (B)	8-98004-349-0	01	1	1009-1011	●	●
125	03.630 HOSE; DPD 4JJ1-TCS ENG(LFB) (B)	8-98004-349-0	01	1	1012-	●	●	●
125	03.630 HOSE; DPD 4HK1-TCN ENG(RDQ) 03.163 (B) L=200 SERVICED BY L=3000	0-01558-300-0	01	1	1009-			●
125	03.630 HOSE; DPD 03.163 (B) L=200 SERVICED BY L=3000	0-01558-300-0	01	1	1009-				●	●	●
125	03.630 HOSE; DPD 4HK1-TCN ENG(RDQ) (A) L=170	8-98068-068-0	01	1	1009-			●
125	03.630 HOSE; DPD (A) L=170	8-98068-068-0	01	1	1009-				●	●	●

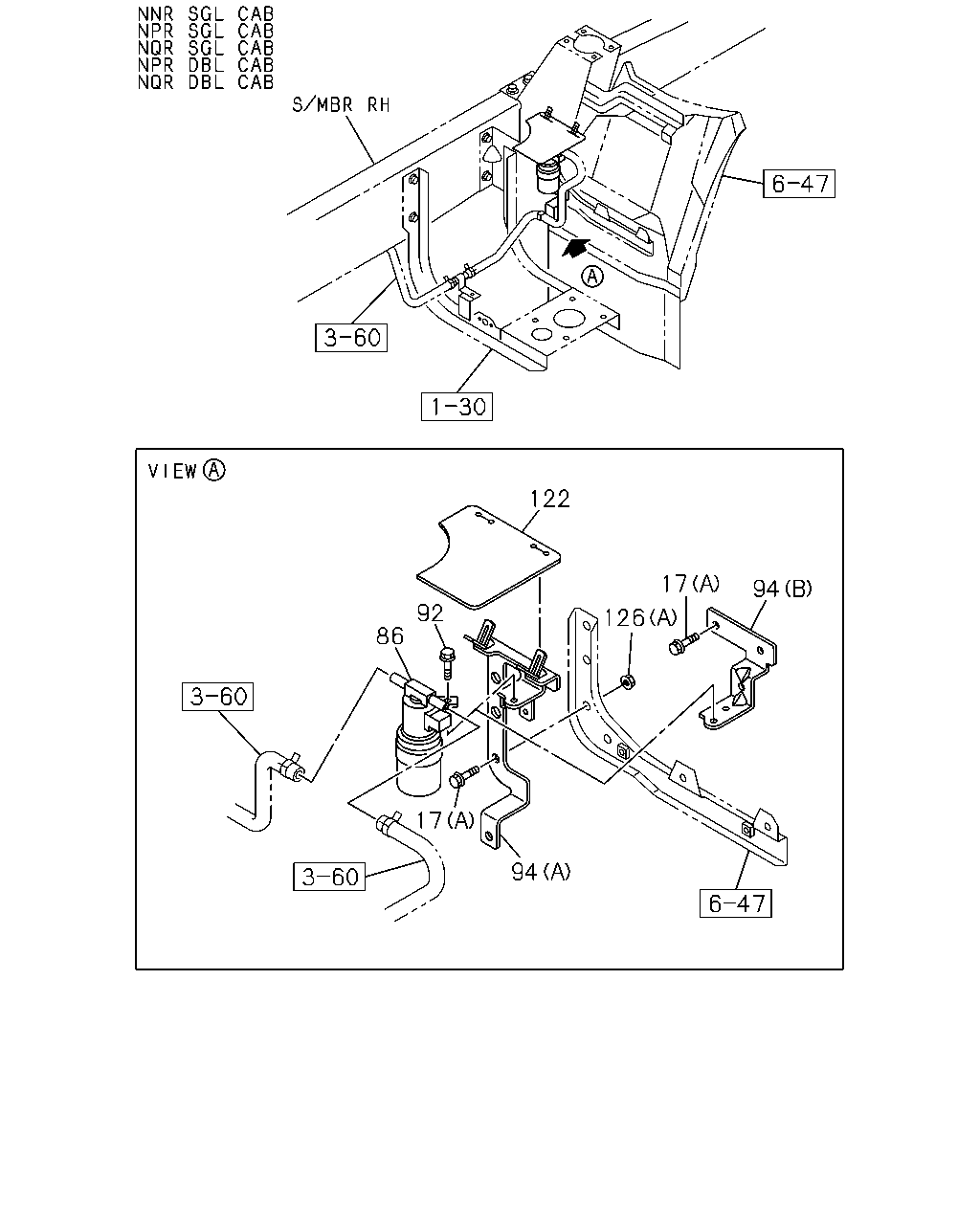

122 17 94 126 92 86 17 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
17	03.634 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1009-	●		●	●
17	03.634 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1009-		●
17	03.634 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1009-					●	●
86	03.636 VALVE; MAG,EXH BRK	8-98043-344-0	01	1	1009-	●	●	●	●	●	●
92	08.900 BOLT; MAG VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1009-	●	●	●	●	●	●
92	08.900 BOLT; MAG VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1009-	●	●	●	●	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE WHEEL BASE 2700MM(27W) (D)	8-97370-883-2	01	1	1009-1011	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (D)	8-97370-883-2	01	1	1012-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97370-883-2	01	1	1012-			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE WHEEL BASE 3300MM(33W) (E)	8-98032-122-0	01	1	1009-1011	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (E)	8-98032-122-0	01	1	1009-1011		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (E)	8-98032-122-0	01	1	1012-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-98032-122-0	01	1	1012-			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) (E)	8-98032-122-0	01	1	1012-		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (A)	8-98092-656-0	01	1	1009-1011	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (A)	8-98092-656-0	01	1	1012-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98092-656-0	01	1	1012-			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE WHEEL BASE 2700MM(27W) (H)	8-98125-497-0	01	1	1009-1011			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> (H)	8-98125-497-0	01	1	1012-			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (C)	8-98040-096-2	01	1	1009-1011			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (C)	8-98040-096-2	01	1	1009-1011				●	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (C)	8-98040-096-2	01	1	1012-			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (C)	8-98040-096-2	01	1	1012-				●	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (A)	8-98034-053-3	01	1	1009-1011			●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE FRAME STRAIGHT TYPE<7KJ> (A)	8-98034-053-3	01	1	1012-			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (A)	8-98034-053-3	01	1	1012-				●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (F)	8-97387-681-1	01	1	1009-		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (G)	8-98089-211-0	01	1	1009-		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (B)	8-98040-636-1	01	1	1009-					●	●
122	03.640 PROTECTOR; MAG VLV	8-98087-988-0	01	1	1009-	●		●	●
126	03.634 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1009-	●	●	●	●
126	03.634 NUT; BRKT 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1009-		●
