1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#78272) — 81 parça

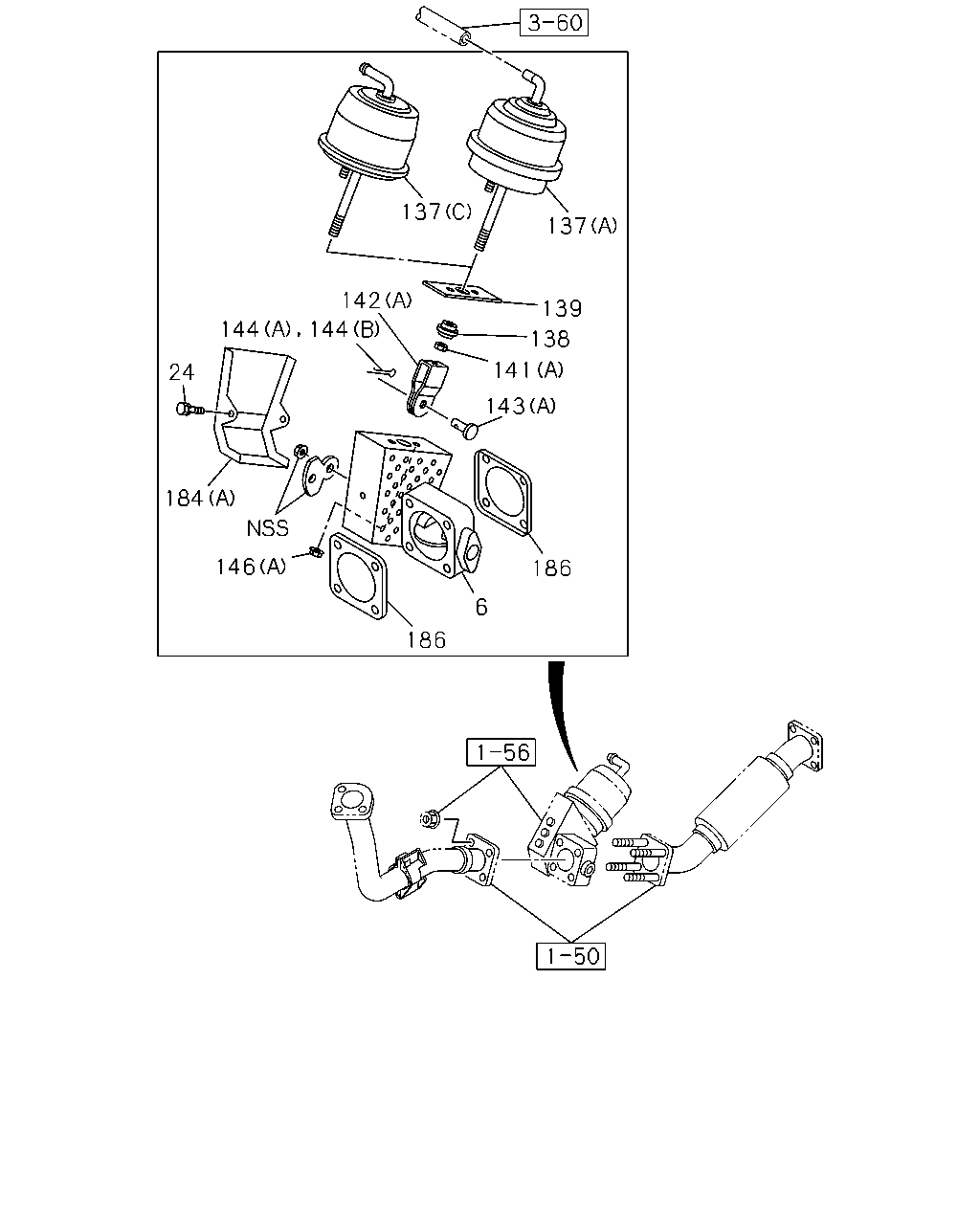

139 137 137 142 144 144 24 184 146 186 186 6 143 141 138

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
6	03.632 VALVE; EXH BRAKE	8-98069-291-0	01	1	1009-	●	●	●	●	●	●
24	03.634 BOLT; COVER 03.444	8-97065-029-0	02	1	1009-	●	●	●	●	●	●
24	03.634 BOLT; COVER 03.444	8-97065-029-0	02	1	1009-	●	●	●	●	●	●
137	03.634 CHAMBER; POWER (B)	8-98038-348-0	01	1	1009-1012	●	●	●	●	●	●
137	03.634 CHAMBER; POWER (B)	8-97985-132-0	01	1	1101-	●	●	●	●	●	●
137	03.634 CHAMBER; POWER (A)	8-98043-596-0	01	1	1009-1212	●	●	●	●	●	●
137	03.634 CHAMBER; POWER (C)	8-98229-058-0	01	1	1301-	●	●	●	●	●	●
138	03.634 BEARING; EXH BRK VLV FRONT	8-98231-608-0	01	1	1301-	●	●	●	●	●	●
138	03.634 BEARING; EXH BRK VLV	5-22189-004-0	01	1	1009-1212	●	●	●	●	●	●
138	03.634 BEARING; EXH BRK VLV	5-22189-004-0	01	1	1009-1212	●	●	●	●	●	●
138	03.634 BEARING; EXH BRK VLV REAR	5-22189-004-0	01	1	1301-	●	●	●	●	●	●
139	03.634 GASKET; EXH BRK VLV	8-94328-234-0	01	1	1009-	●	●	●	●	●	●
139	03.634 GASKET; EXH BRK VLV	8-94328-234-0	01	1	1009-	●	●	●	●	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV (B) REAR	8-97985-128-0	01	1	1101-	●	●	●	●	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 05.122 (A)	8-94311-428-0	01	1	1009-1012	●	●	●	●	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 05.122 (A)	8-94311-428-0	01	1	1009-1012	●	●	●	●	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 05.122 (A) FRONT	8-94311-428-0	01	1	1101-	●	●	●	●	●	●
142	03.636 CLEVIS; EXH BRK VLV (B) REAR	8-97985-133-0	01	1	1101-	●	●	●	●	●	●
142	03.636 CLEVIS; EXH BRK VLV (A)	8-97177-311-0	01	1	1009-1012	●	●	●	●	●	●
142	03.636 CLEVIS; EXH BRK VLV (A)	8-97177-311-0	01	1	1009-1012	●	●	●	●	●	●
142	03.636 CLEVIS; EXH BRK VLV (A) FRONT	8-97177-311-0	01	1	1101-1212	●	●	●	●	●	●
142	03.636 CLEVIS; EXH BRK VLV (A) FRONT	8-98231-609-0	01	1	1301-	●	●	●	●	●	●
143	03.636 PIN; EXH BRK VLV (B) REAR	8-97985-126-0	01	1	1101-	●	●	●	●	●	●
143	03.636 PIN; EXH BRK VLV (A)	8-94311-452-0	01	1	1009-1012	●	●	●	●	●	●
143	03.636 PIN; EXH BRK VLV (A)	8-94311-452-0	01	1	1009-1012	●	●	●	●	●	●
143	03.636 PIN; EXH BRK VLV (A) FRONT	8-94311-452-0	01	1	1101-1212	●	●	●	●	●	●
143	03.636 PIN; EXH BRK VLV (A) FRONT	8-98231-610-0	01	1	1301-	●	●	●	●	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV (B) REAR	8-97985-124-0	01	1	1101-1212	●	●	●	●	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV (B)	8-97985-124-0	01	1	1301-	●	●	●	●	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV (B)	8-97985-124-0	01	1	1301-	●	●	●	●	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV (A)	8-97029-428-0	01	1	1009-1012	●	●	●	●	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV (A)	8-97029-428-0	01	1	1009-1012	●	●	●	●	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV (A) FRONT	8-97029-428-0	01	1	1101-1212	●	●	●	●	●	●
146	03.634 NUT; EXH BRK VLV 07.633 (B) M8 FLANGE	0-91150-108-0	02	1	1009-1103	●	●	●	●	●	●
146	03.634 NUT; EXH BRK VLV 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1009-1103	●	●	●	●	●	●
146	03.634 NUT; EXH BRK VLV 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1104-	●	●	●	●	●	●
146	03.634 NUT; EXH BRK VLV 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1104-	●	●	●	●	●	●
184	03.634 COVER; BRKT (B)	8-98037-493-0	01	1	1009-	●	●	●	●	●	●
184	03.634 COVER; BRKT (A)	8-97370-068-0	01	1	1009-	●	●	●	●	●	●
186	03.611 GASKET; EXH BRK VLV,BODY	8-98022-713-0	02	1	1009-	●	●	●	●	●	●

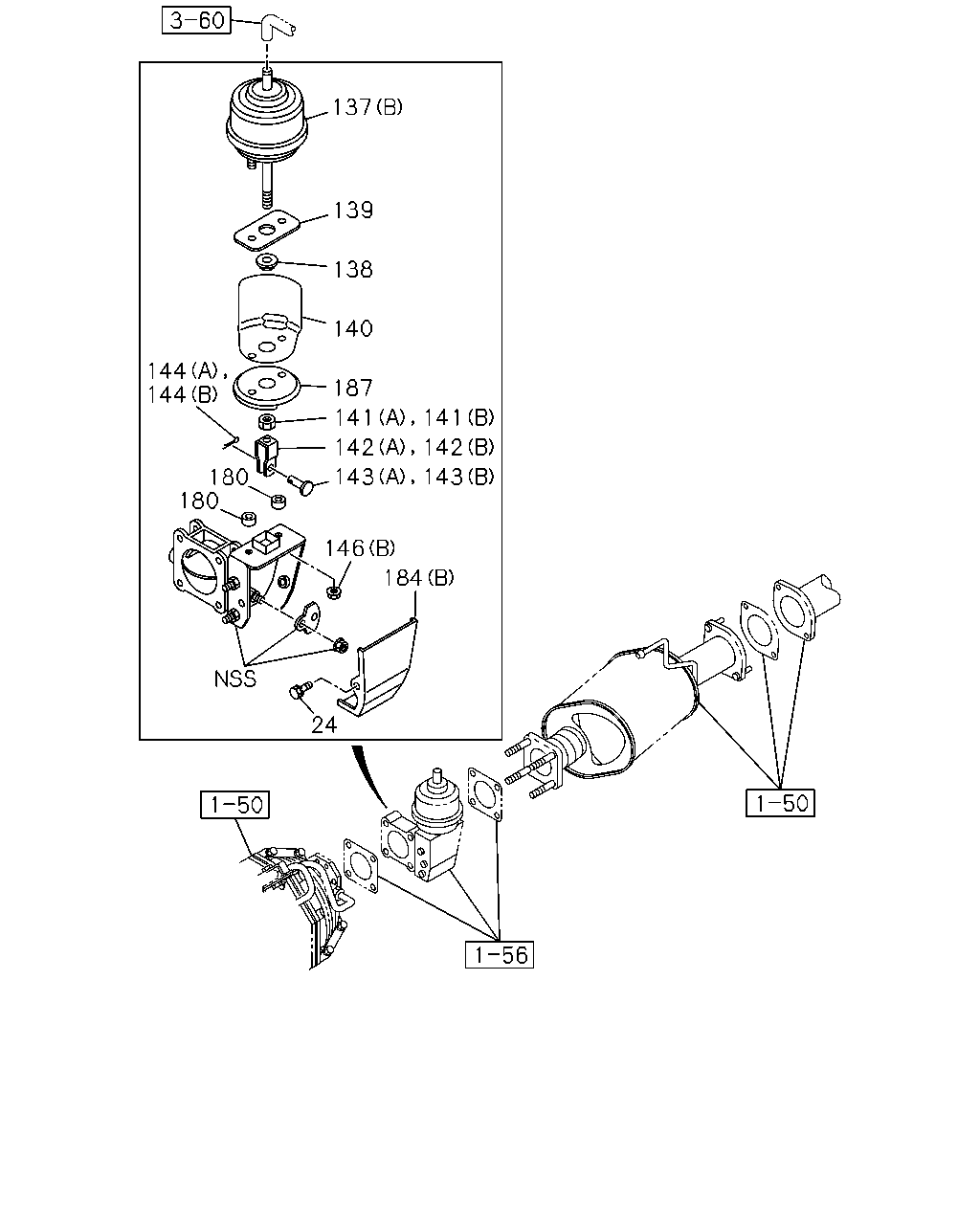

24 184 146 143 142 141 143 142 141 187 140 138 139 137 144 144 180 180

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
24	03.634 BOLT; COVER 03.444	8-97065-029-0	02	1	1009-	●	●	●	●	●	●
24	03.634 BOLT; COVER 03.444	8-97065-029-0	02	1	1009-	●	●	●	●	●	●
137	03.634 CHAMBER; POWER (B)	8-98038-348-0	01	1	1009-1012	●	●	●	●	●	●
137	03.634 CHAMBER; POWER (B)	8-97985-132-0	01	1	1101-	●	●	●	●	●	●
137	03.634 CHAMBER; POWER (A)	8-98043-596-0	01	1	1009-1212	●	●	●	●	●	●
137	03.634 CHAMBER; POWER (C)	8-98229-058-0	01	1	1301-	●	●	●	●	●	●
138	03.634 BEARING; EXH BRK VLV FRONT	8-98231-608-0	01	1	1301-	●	●	●	●	●	●
138	03.634 BEARING; EXH BRK VLV	5-22189-004-0	01	1	1009-1212	●	●	●	●	●	●
138	03.634 BEARING; EXH BRK VLV	5-22189-004-0	01	1	1009-1212	●	●	●	●	●	●
138	03.634 BEARING; EXH BRK VLV REAR	5-22189-004-0	01	1	1301-	●	●	●	●	●	●
139	03.634 GASKET; EXH BRK VLV	8-94328-234-0	01	1	1009-	●	●	●	●	●	●
139	03.634 GASKET; EXH BRK VLV	8-94328-234-0	01	1	1009-	●	●	●	●	●	●
140	03.634 INSULATOR; EXH BRK VLV	8-98037-494-0	01	1	1009-	●	●	●	●	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV (B) REAR	8-97985-128-0	01	1	1101-	●	●	●	●	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 05.122 (A)	8-94311-428-0	01	1	1009-1012	●	●	●	●	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 05.122 (A)	8-94311-428-0	01	1	1009-1012	●	●	●	●	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 05.122 (A) FRONT	8-94311-428-0	01	1	1101-	●	●	●	●	●	●
142	03.636 CLEVIS; EXH BRK VLV (B) REAR	8-97985-133-0	01	1	1101-	●	●	●	●	●	●
142	03.636 CLEVIS; EXH BRK VLV (A)	8-97177-311-0	01	1	1009-1012	●	●	●	●	●	●
142	03.636 CLEVIS; EXH BRK VLV (A)	8-97177-311-0	01	1	1009-1012	●	●	●	●	●	●
142	03.636 CLEVIS; EXH BRK VLV (A) FRONT	8-97177-311-0	01	1	1101-1212	●	●	●	●	●	●
142	03.636 CLEVIS; EXH BRK VLV (A) FRONT	8-98231-609-0	01	1	1301-	●	●	●	●	●	●
143	03.636 PIN; EXH BRK VLV (B) REAR	8-97985-126-0	01	1	1101-	●	●	●	●	●	●
143	03.636 PIN; EXH BRK VLV (A)	8-94311-452-0	01	1	1009-1012	●	●	●	●	●	●
143	03.636 PIN; EXH BRK VLV (A)	8-94311-452-0	01	1	1009-1012	●	●	●	●	●	●
143	03.636 PIN; EXH BRK VLV (A) FRONT	8-94311-452-0	01	1	1101-1212	●	●	●	●	●	●
143	03.636 PIN; EXH BRK VLV (A) FRONT	8-98231-610-0	01	1	1301-	●	●	●	●	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV (B) REAR	8-97985-124-0	01	1	1101-1212	●	●	●	●	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV (B)	8-97985-124-0	01	1	1301-	●	●	●	●	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV (B)	8-97985-124-0	01	1	1301-	●	●	●	●	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV (A)	8-97029-428-0	01	1	1009-1012	●	●	●	●	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV (A)	8-97029-428-0	01	1	1009-1012	●	●	●	●	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV (A) FRONT	8-97029-428-0	01	1	1101-1212	●	●	●	●	●	●
146	03.634 NUT; EXH BRK VLV 07.633 (B) M8 FLANGE	0-91150-108-0	02	1	1009-1103	●	●	●	●	●	●
146	03.634 NUT; EXH BRK VLV 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1009-1103	●	●	●	●	●	●
146	03.634 NUT; EXH BRK VLV 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1104-	●	●	●	●	●	●
146	03.634 NUT; EXH BRK VLV 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1104-	●	●	●	●	●	●
180	03.640 COLLAR; EXH BRK VLV 03.440	8-97018-597-0	02	1	1009-	●	●	●	●	●	●
184	03.634 COVER; BRKT (B)	8-98037-493-0	01	1	1009-	●	●	●	●	●	●
184	03.634 COVER; BRKT (A)	8-97370-068-0	01	1	1009-	●	●	●	●	●	●
187	03.685 PROTECTOR; EXH BRK VLV	8-98037-495-0	01	1	1009-	●	●	●	●	●	●
