1-50 — EXHAUST PIPE AND SILENCER (#78271) — 1056 parça

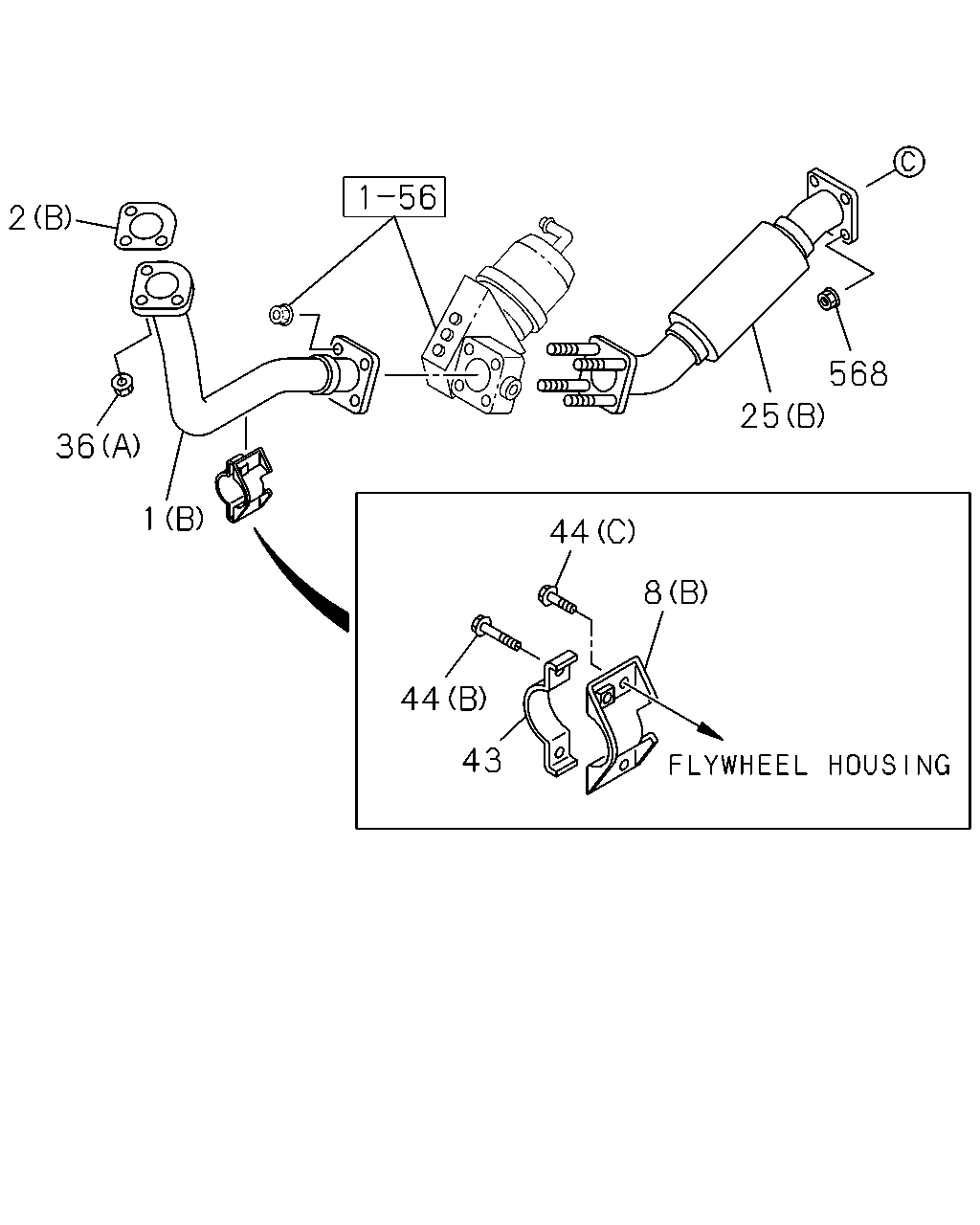

568 25 562 8 1 36 44 43 2

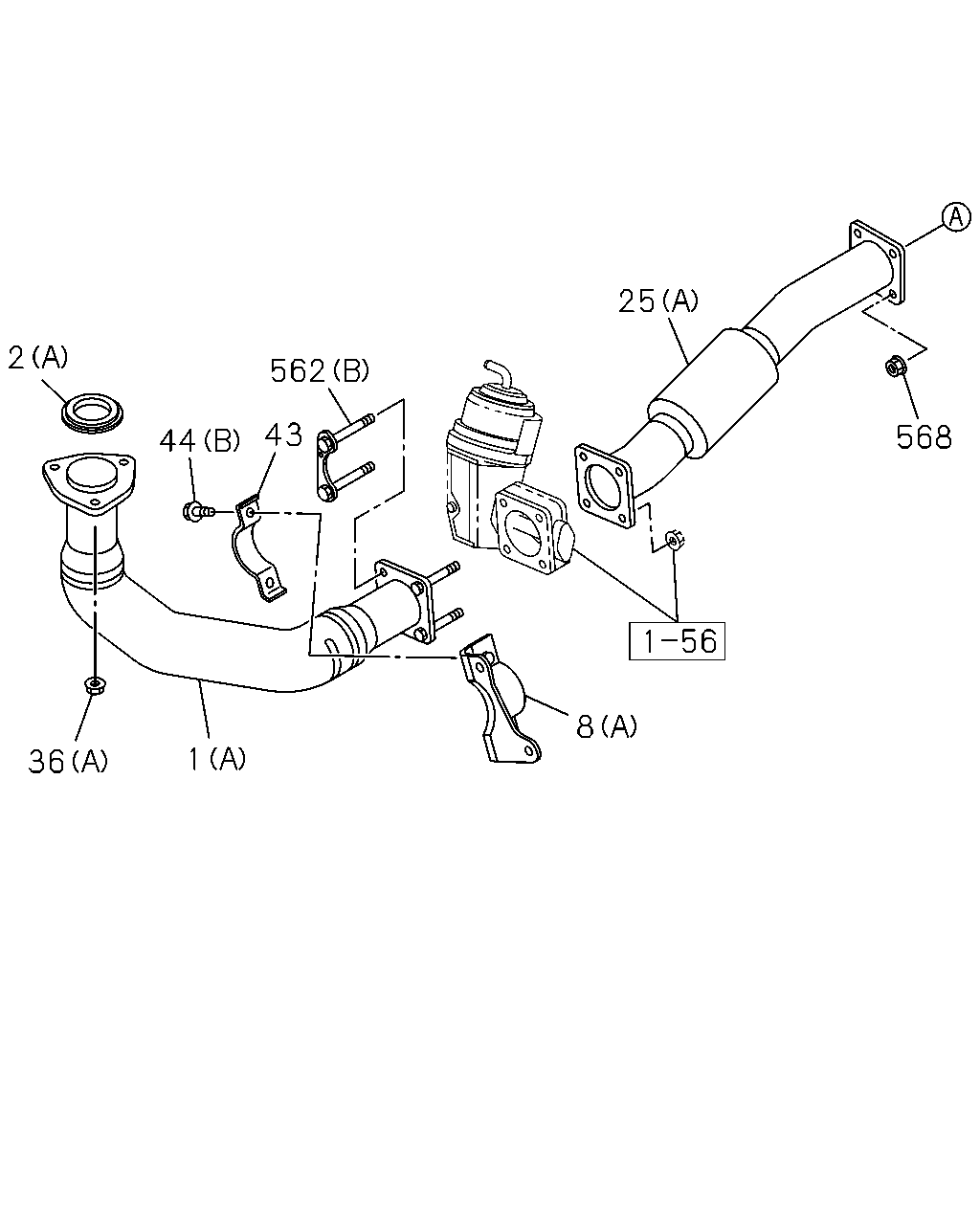

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.609 PIPE; EXH (B)	8-98026-060-0	01	1	1009-1011	●	●
1	03.609 PIPE; EXH 4JJ1-TCS ENG(LFB) (B)	8-98026-060-0	01	1	1012-	●	●	●
1	03.609 PIPE; EXH (A)	8-98006-765-2	01	1	1009-			●	●	●	●
2	03.611 GASKET; PIPE TO MANIF (B)	8-97384-590-0	01	1	1009-1011	●	●
2	03.611 GASKET; PIPE TO MANIF 4JJ1-TCS ENG(LFB) (B)	8-97384-590-0	01	1	1012-	●	●	●
2	03.611 GASKET; PIPE TO MANIF (A)	8-97381-455-0	01	1	1009-			●	●	●	●
8	03.704 BRACKET; EXH PIPE 03.613 (B)	8-98026-063-0	01	1	1009-1011	●	●
8	03.704 BRACKET; EXH PIPE 4JJ1-TCS ENG(LFB) 03.613 (B)	8-98026-063-0	01	1	1012-	●	●	●
8	03.704 BRACKET; EXH PIPE 03.613 (A)	8-98020-555-0	01	1	1009-			●	●	●	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER (B)	8-98026-062-2	01	1	1009-1011	●	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JJ1-TCS ENG(LFB) (B)	8-98026-062-2	01	1	1012-	●	●	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER (A)	8-98006-766-0	01	1	1009-			●	●	●	●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1009-	●	●	●	●	●	●
36	03.613 NUT; EXH PIPE WHEEL BASE 3300MM(33W) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1009-1011	●
36	03.613 NUT; EXH PIPE 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1009-1011		●
36	03.613 NUT; EXH PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1012-	●		●
36	03.613 NUT; EXH PIPE 4JJ1-TCS ENG(LFB) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1012-		●
36	03.613 NUT; EXH PIPE WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1009-			●	●
36	03.613 NUT; EXH PIPE 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1009-					●	●
43	03.611 CLAMP; EXH PIPE	8-97351-200-1	01	1	1009-	●	●	●	●	●	●
44	03.613 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	1009-	●	●	●	●	●	●
44	03.613 BOLT; BRKT 02.277 (A) M10X35 FLANGE	0-28651-035-0	02	1	1009-	●	●	●	●	●	●
44	03.613 BOLT; BRKT 02.042 (C) M10X25 FLANGE	0-28151-025-0	02	1	1009-1011	●	●
44	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) 02.042 (C) M10X25 FLANGE	0-28151-025-0	02	1	1012-	●	●	●
562	03.690 PLATE; STUD,BOLT 4JJ1-TCS ENG(LFB) (C)	8-97373-966-0	02	1	1009-1011	●	●
562	03.690 PLATE; STUD,BOLT 4JJ1-TCS ENG(LFB) (C)	8-97373-966-0	02	1	1012-	●	●	●
562	03.690 PLATE; STUD,BOLT 03.685 (A) M12X35	1-22131-963-0	02	1	1009-1203			●	●	●	●
562	03.690 PLATE; STUD,BOLT 4HK1-TCN ENG(RDQ) 03.613 (A)	1-22131-962-0	02	1	1204-1505			●
562	03.690 PLATE; STUD,BOLT 03.613 (A)	1-22131-962-0	02	1	1204-1505				●	●	●
562	03.690 PLATE; STUD,BOLT 03.613 (A)	1-22131-962-0	02	1	1506-			●	●	●	●
562	03.690 PLATE; STUD,BOLT (B)	8-98030-175-0	01	1	1009-			●	●	●	●
568	03.704 NUT; DPD 4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	04	1	1009-1011	●	●
568	03.704 NUT; DPD 4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	04	1	1012-	●	●	●
568	03.704 NUT; DPD 02.042 M12 FLANGE	0-91180-112-0	04	1	1009-			●	●	●	●

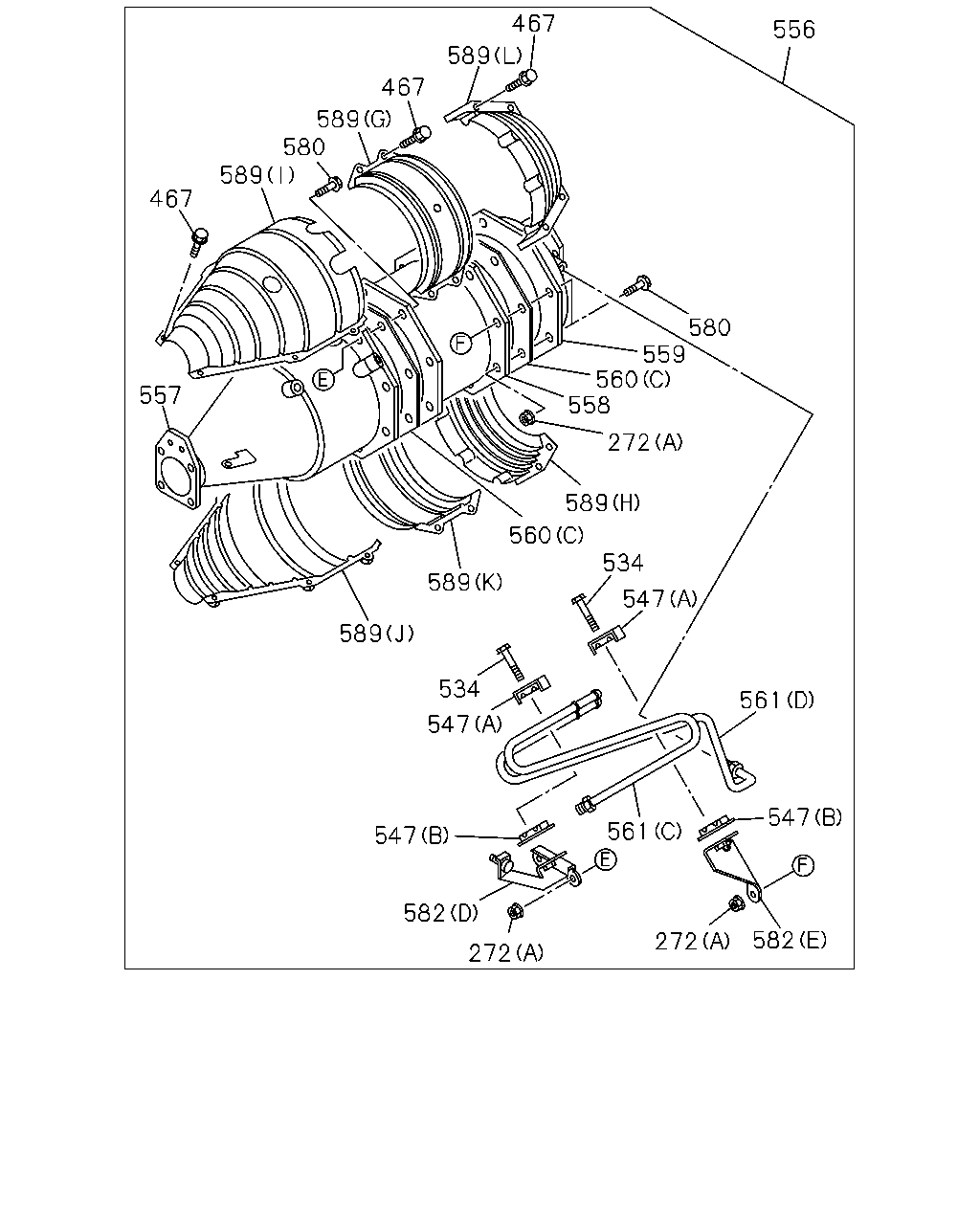

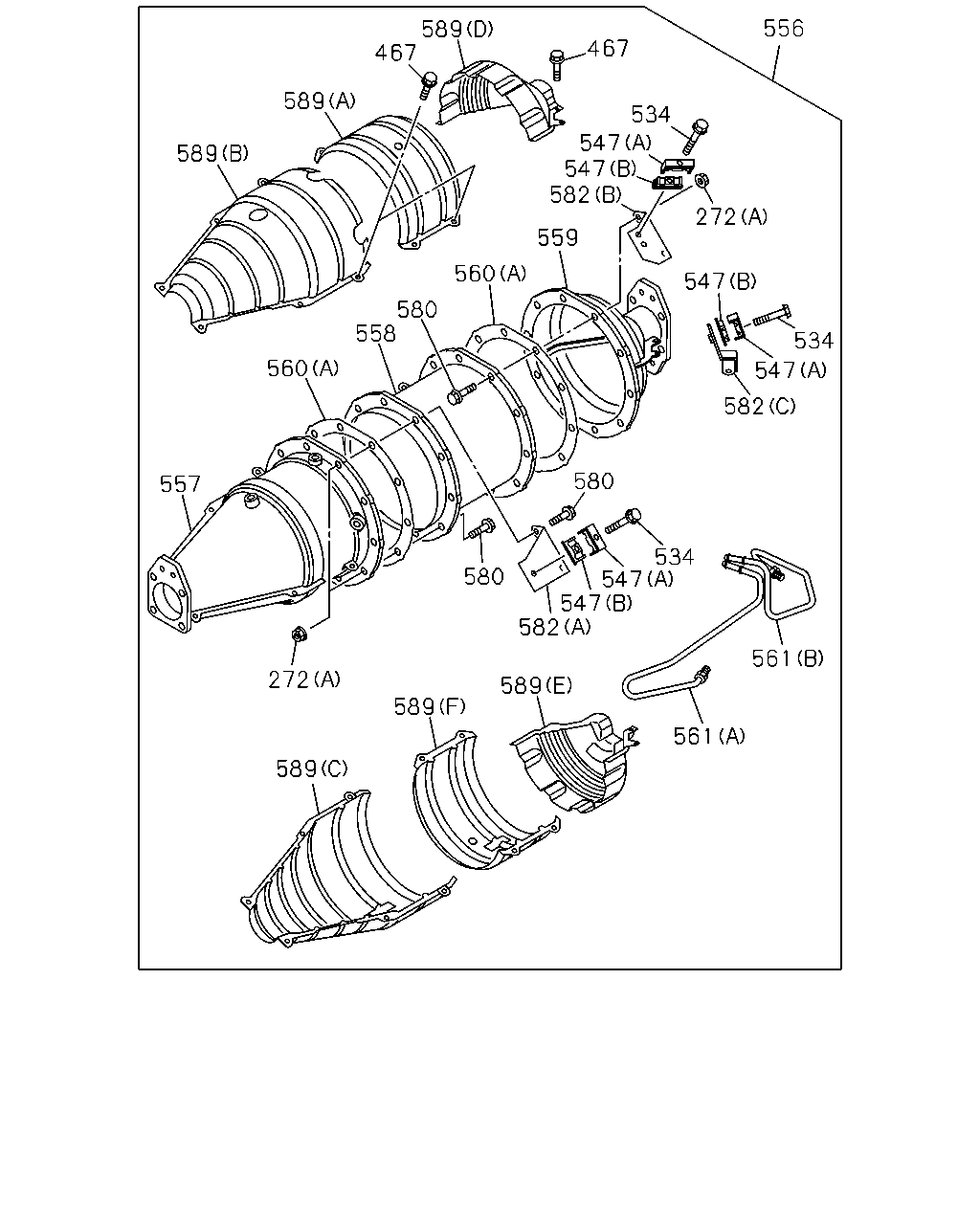

556 467 589 467 589 580 589 467 557 580 559 560 558 589 272 560 589 589 534 547 561 547 582 272 272 582 547 547 534 561

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F

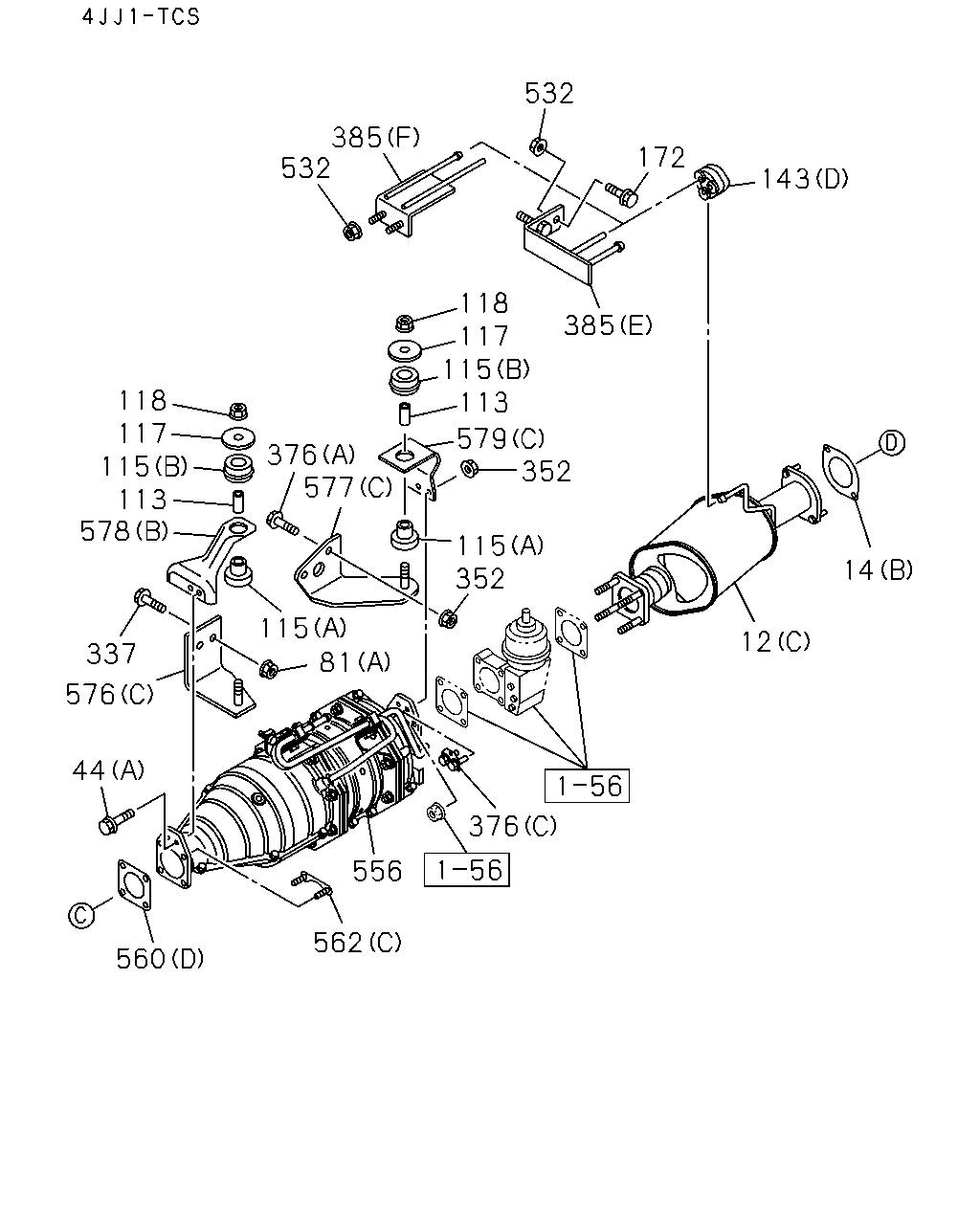

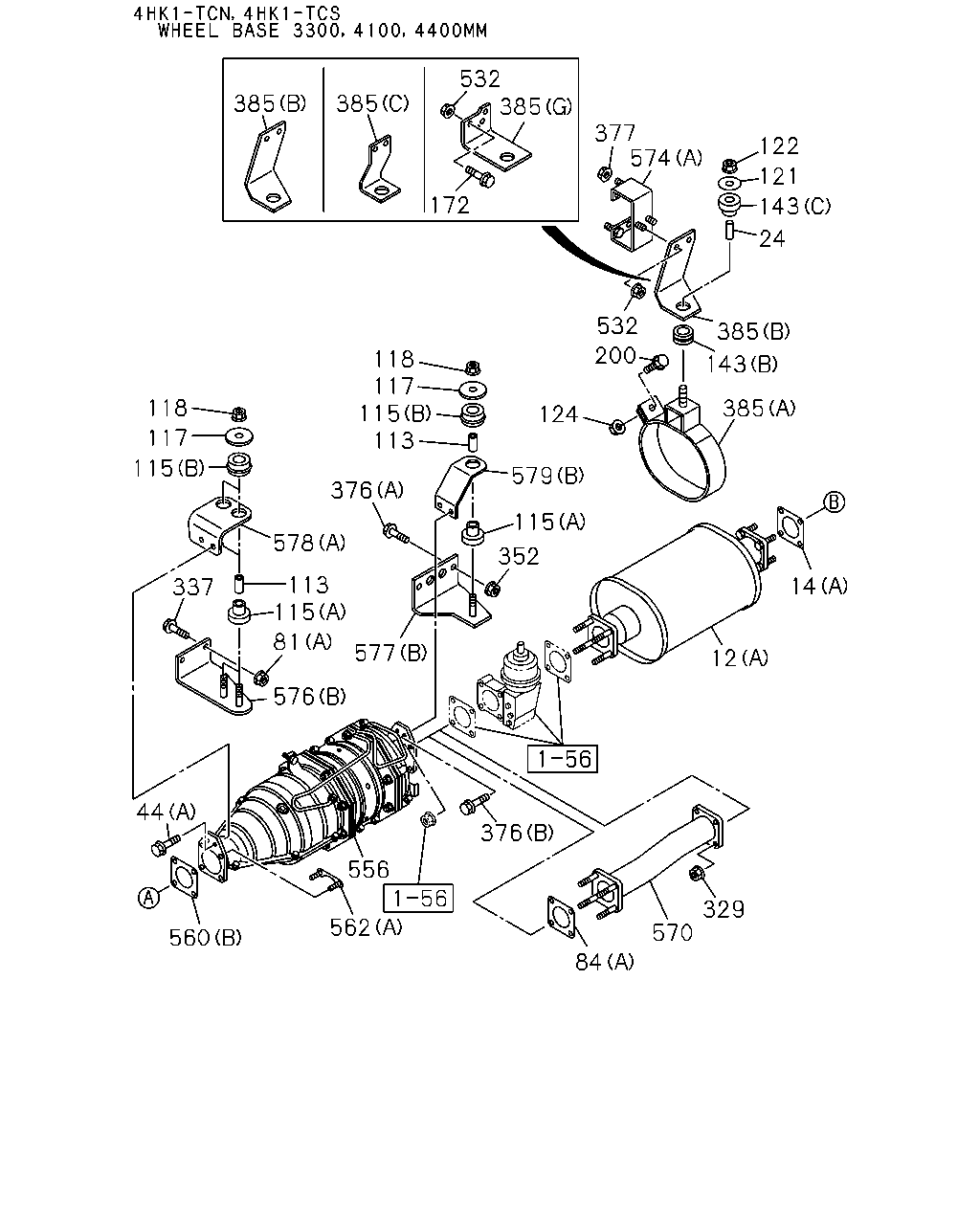

272	03.685 NUT; FLANGE 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1009-1011	●	●
272	03.685 NUT; FLANGE 4JJ1-TCS ENG(LFB) 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1012-	●	●	●
272	03.685 NUT; FLANGE 01.062 (A) M8 FLANGE	0-91180-108-0	16	1	1009-1011	●	●
272	03.685 NUT; FLANGE 4JJ1-TCS ENG(LFB) 01.062 (A) M8 FLANGE	0-91180-108-0	16	1	1012-	●	●	●
272	03.685 NUT; FLANGE 4HK1-TCN ENG(RDQ) 01.062 (A) M8 FLANGE	0-91180-108-0	20	1	1009-			●
272	03.685 NUT; FLANGE 01.062 (A) M8 FLANGE	0-91180-108-0	20	1	1009-				●	●	●
467	03.685 BOLT; PROTECTOR M6X16	8-98019-179-0	14	1	1009-	●	●	●	●	●	●
534	03.704 BOLT; CLIP 03.162 M6X35 FLANGE	0-28650-635-0	02	1	1009-1011	●	●
534	03.704 BOLT; CLIP 4JJ1-TCS ENG(LFB) 03.162 M6X35 FLANGE	0-28650-635-0	02	1	1012-	●	●	●
534	03.704 BOLT; CLIP 4HK1-TCN ENG(RDQ) 03.162 M6X35 FLANGE	0-28650-635-0	03	1	1009-			●
534	03.704 BOLT; CLIP 03.162 M6X35 FLANGE	0-28650-635-0	03	1	1009-				●	●	●
547	03.682 CLIP; PIPE (A) ID=7 & 7 L=22	8-97381-635-0	02	1	1009-1011	●	●
547	03.682 CLIP; PIPE 4JJ1-TCS ENG(LFB) (A) ID=7 & 7 L=22	8-97381-635-0	02	1	1012-	●	●	●
547	03.682 CLIP; PIPE (B) ID=7 & 7 L=22	8-97381-636-0	02	1	1009-1011	●	●
547	03.682 CLIP; PIPE 4JJ1-TCS ENG(LFB) (B) ID=7 & 7 L=22	8-97381-636-0	02	1	1012-	●	●	●
547	03.682 CLIP; PIPE 4HK1-TCN ENG(RDQ) (A) ID=7 & 7 L=22	8-97381-635-0	03	1	1009-			●
547	03.682 CLIP; PIPE (A) ID=7 & 7 L=22	8-97381-635-0	03	1	1009-				●	●	●
547	03.682 CLIP; PIPE 4HK1-TCN ENG(RDQ) (B) ID=7 & 7 L=22	8-97381-636-0	03	1	1009-			●
547	03.682 CLIP; PIPE (B) ID=7 & 7 L=22	8-97381-636-0	03	1	1009-				●	●	●
556	03.701 DPD ASM 4HK1-TCN ENG(RDQ)	8-98039-162-6	01	1	1009-1010			●
556	03.701 DPD ASM	8-98039-162-6	01	1	1009-1010				●	●	●
556	03.701 DPD ASM 4HK1-TCN ENG(RDQ)	8-98084-602-4	01	1	1011-			●
556	03.701 DPD ASM	8-98084-602-4	01	1	1011-				●	●	●
556	03.701 DPD ASM	8-98036-810-7	01	1	1009-1011	●	●
556	03.701 DPD ASM	8-98084-595-4	01	1	1012-1012	●	●
556	03.701 DPD ASM 4JJ1-TCS ENG(LFB)	8-98084-595-4	01	1	1012-	●	●	●
557	03.701 CATALYST ASM	8-98036-815-7	01	1	1009-1011	●	●
557	03.701 CATALYST ASM 4JJ1-TCS ENG(LFB)	8-98036-815-7	01	1	1012-	●	●	●
557	03.701 CATALYST ASM 4HK1-TCN ENG(RDQ)	8-97608-055-8	01	1	1009-			●
557	03.701 CATALYST ASM	8-97608-055-8	01	1	1009-				●	●	●
558	03.634 FILTER ASM	8-98032-908-2	01	1	1009-1011	●	●
558	03.634 FILTER ASM 4JJ1-TCS ENG(LFB)	8-98032-908-2	01	1	1012-	●	●	●
558	03.634 FILTER ASM 4HK1-TCN ENG(RDQ)	8-97608-057-3	01	1	1009-			●
558	03.634 FILTER ASM	8-97608-057-3	01	1	1009-				●	●	●
559	03.602 COVER; RR 4HK1-TCN ENG(RDQ)	8-97611-078-0	01	1	1009-1010			●
559	03.602 COVER; RR	8-97611-078-0	01	1	1009-1010				●	●	●
559	03.602 COVER; RR 4HK1-TCN ENG(RDQ)	8-97622-887-0	01	1	1011-			●
559	03.602 COVER; RR	8-97622-887-0	01	1	1011-				●	●	●
559	03.602 COVER; RR	8-98084-599-0	01	1	1009-1011	●	●
559	03.602 COVER; RR	8-98093-507-0	01	1	1012-1012	●	●
559	03.602 COVER; RR 4JJ1-TCS ENG(LFB)	8-98093-507-0	01	1	1012-	●	●	●
560	03.611 GASKET; DPD (C)	8-97331-947-0	02	1	1009-1011	●	●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB) (C)	8-97331-947-0	02	1	1012-	●	●	●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB) (D) ID=64	8-97373-108-0	01	1	1009-1011	●	●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB) (D) ID=64	8-97373-108-0	01	1	1012-	●	●	●
560	03.611 GASKET; DPD (B)	1-22116-040-0	01	1	1009-			●	●	●	●
560	03.611 GASKET; DPD 4HK1-TCN ENG(RDQ) (A)	8-97611-080-0	02	1	1009-1505			●
560	03.611 GASKET; DPD (A)	8-97611-080-0	02	1	1009-1505				●	●	●
560	03.611 GASKET; DPD (A)	8-97611-080-0	02	1	1506-			●	●	●	●
561	03.609 PIPE; DPD 4HK1-TCN ENG(RDQ) (A)	8-98039-239-0	01	1	1009-1010			●
561	03.609 PIPE; DPD (A)	8-98039-239-0	01	1	1009-1010				●	●	●
561	03.609 PIPE; DPD 4HK1-TCN ENG(RDQ) (A)	8-98084-603-0	01	1	1011-			●
561	03.609 PIPE; DPD (A)	8-98084-603-0	01	1	1011-				●	●	●
561	03.609 PIPE; DPD 4HK1-TCN ENG(RDQ) (B)	8-98039-241-0	01	1	1009-1010			●
561	03.609 PIPE; DPD (B)	8-98039-241-0	01	1	1009-1010				●	●	●
561	03.609 PIPE; DPD 4HK1-TCN ENG(RDQ) (B)	8-98084-604-0	01	1	1011-			●
561	03.609 PIPE; DPD (B)	8-98084-604-0	01	1	1011-				●	●	●
561	03.609 PIPE; DPD (C)	8-98032-910-0	01	1	1009-1011	●	●
561	03.609 PIPE; DPD (C)	8-98084-600-0	01	1	1012-1012	●	●
561	03.609 PIPE; DPD 4JJ1-TCS ENG(LFB) (C)	8-98084-600-0	01	1	1012-	●	●	●
561	03.609 PIPE; DPD (D)	8-98032-911-1	01	1	1009-1011	●	●
561	03.609 PIPE; DPD (D)	8-98084-601-0	01	1	1012-1012	●	●
561	03.609 PIPE; DPD 4JJ1-TCS ENG(LFB) (D)	8-98084-601-0	01	1	1012-	●	●	●
580	03.704 BOLT; FLANGE 01.060 M8X35 FLANGE	0-28650-835-0	16	1	1009-1011	●	●
580	03.704 BOLT; FLANGE 4JJ1-TCS ENG(LFB) 01.060 M8X35 FLANGE	0-28650-835-0	16	1	1012-	●	●	●
580	03.704 BOLT; FLANGE 4HK1-TCN ENG(RDQ) 01.060 M8X35 FLANGE	0-28650-835-0	20	1	1009-			●
580	03.704 BOLT; FLANGE 01.060 M8X35 FLANGE	0-28650-835-0	20	1	1009-				●	●	●
582	03.706 BRACKET; PIPE (D)	8-98032-919-0	01	1	1009-1011	●	●
582	03.706 BRACKET; PIPE 4JJ1-TCS ENG(LFB) (D)	8-98032-919-0	01	1	1012-	●	●	●
582	03.706 BRACKET; PIPE (E)	8-98032-920-0	01	1	1009-1011	●	●
582	03.706 BRACKET; PIPE 4JJ1-TCS ENG(LFB) (E)	8-98032-920-0	01	1	1012-	●	●	●
582	03.706 BRACKET; PIPE 4HK1-TCN ENG(RDQ) (A)	8-97611-083-0	01	1	1009-			●
582	03.706 BRACKET; PIPE (A)	8-97611-083-0	01	1	1009-				●	●	●
582	03.706 BRACKET; PIPE 4HK1-TCN ENG(RDQ) (B)	8-97611-084-0	01	1	1009-			●
582	03.706 BRACKET; PIPE (B)	8-97611-084-0	01	1	1009-				●	●	●
582	03.706 BRACKET; PIPE 4HK1-TCN ENG(RDQ) (C)	8-97611-085-0	01	1	1009-			●
582	03.706 BRACKET; PIPE (C)	8-97611-085-0	01	1	1009-				●	●	●
589	03.609 PROTECTOR; HEAT,DPD (G)	8-97383-660-0	01	1	1009-1011	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (G)	8-97383-660-0	01	1	1012-	●	●	●
589	03.609 PROTECTOR; HEAT,DPD (H)	8-97383-663-0	01	1	1009-1011	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (H)	8-97383-663-0	01	1	1012-	●	●	●
589	03.609 PROTECTOR; HEAT,DPD (I)	8-98032-921-0	01	1	1009-1011	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (I)	8-98032-921-0	01	1	1012-	●	●	●
589	03.609 PROTECTOR; HEAT,DPD (J)	8-98032-923-0	01	1	1009-1011	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (J)	8-98032-923-0	01	1	1012-	●	●	●
589	03.609 PROTECTOR; HEAT,DPD (K)	8-98032-924-0	01	1	1009-1011	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (K)	8-98032-924-0	01	1	1012-	●	●	●
589	03.609 PROTECTOR; HEAT,DPD (L)	8-98032-926-0	01	1	1009-1011	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (L)	8-98032-926-0	01	1	1012-	●	●	●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCN ENG(RDQ) (A)	8-97605-172-0	01	1	1009-			●
589	03.609 PROTECTOR; HEAT,DPD (A)	8-97605-172-0	01	1	1009-				●	●	●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCN ENG(RDQ) (B)	8-97611-086-0	01	1	1009-			●
589	03.609 PROTECTOR; HEAT,DPD (B)	8-97611-086-0	01	1	1009-				●	●	●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCN ENG(RDQ) (C)	8-97611-087-0	01	1	1009-			●
589	03.609 PROTECTOR; HEAT,DPD (C)	8-97611-087-0	01	1	1009-				●	●	●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCN ENG(RDQ) (D)	8-97611-088-0	01	1	1009-			●
589	03.609 PROTECTOR; HEAT,DPD (D)	8-97611-088-0	01	1	1009-				●	●	●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCN ENG(RDQ) (E)	8-97611-089-0	01	1	1009-			●
589	03.609 PROTECTOR; HEAT,DPD (E)	8-97611-089-0	01	1	1009-				●	●	●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCN ENG(RDQ) (F)	8-97613-390-0	01	1	1009-			●
589	03.609 PROTECTOR; HEAT,DPD (F)	8-97613-390-0	01	1	1009-				●	●	●

81 70 144 137 38 84 3 36 143 94 125 97 126 88 105 162 164 357 137 124 137 95 104 94 166 165 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F

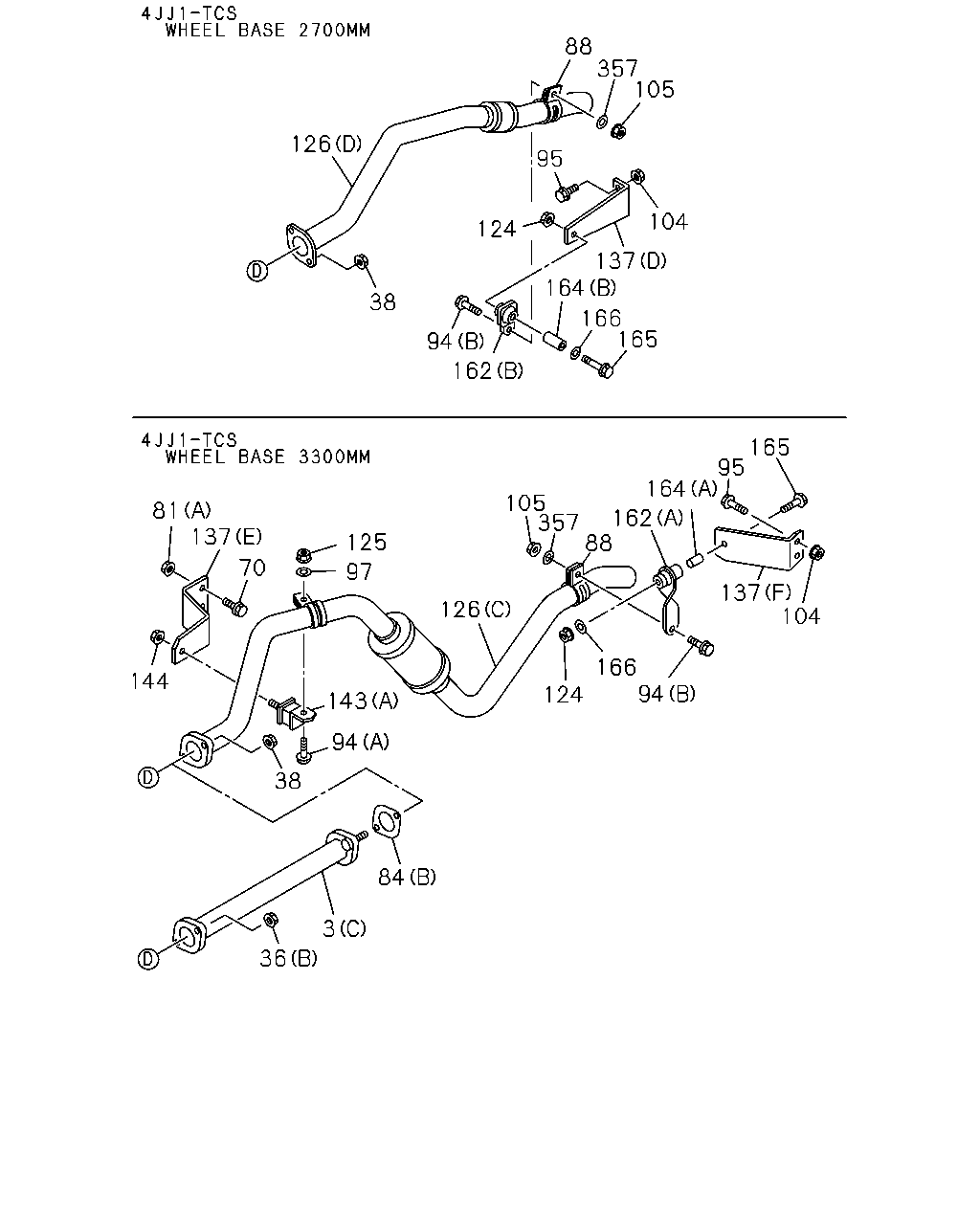

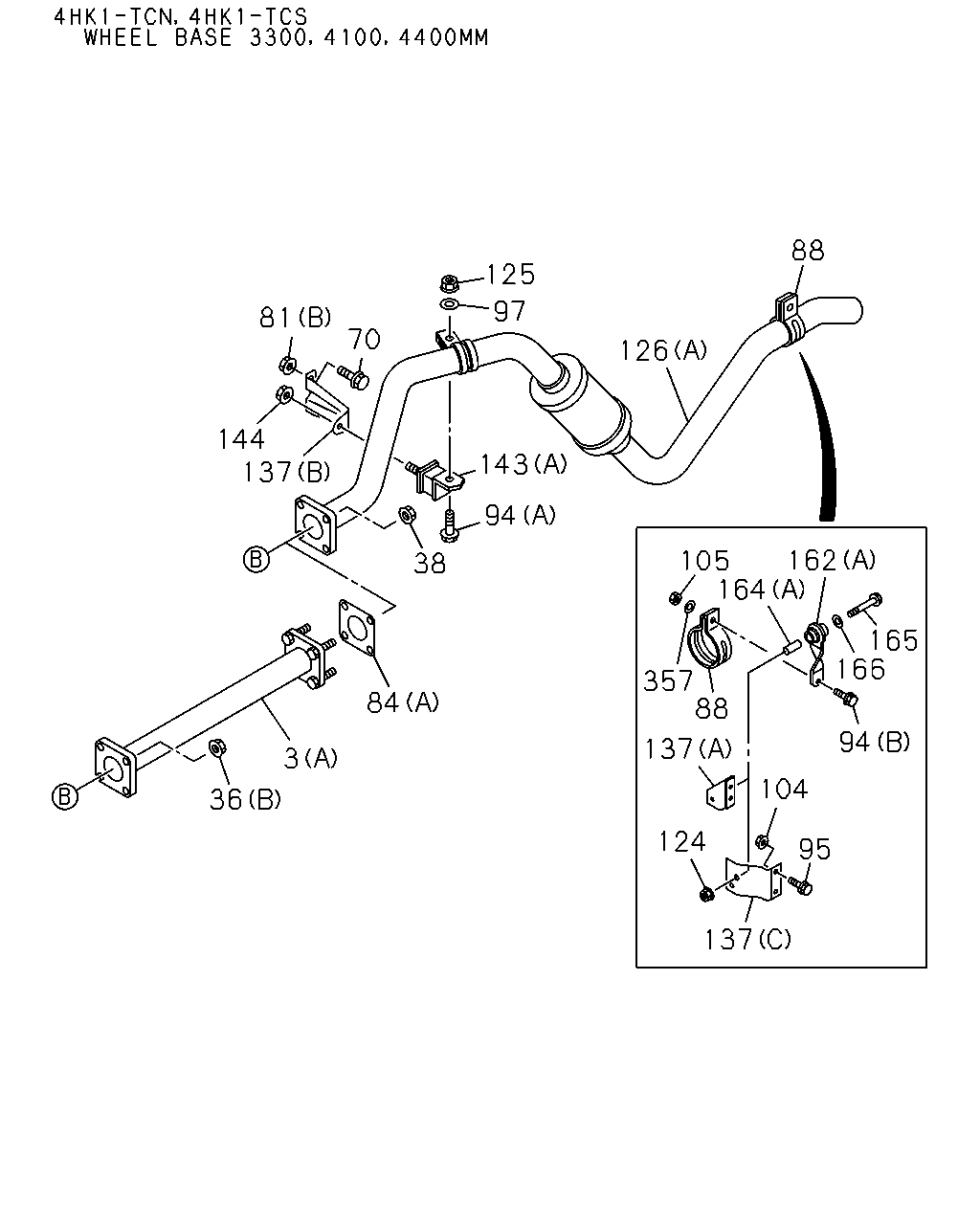

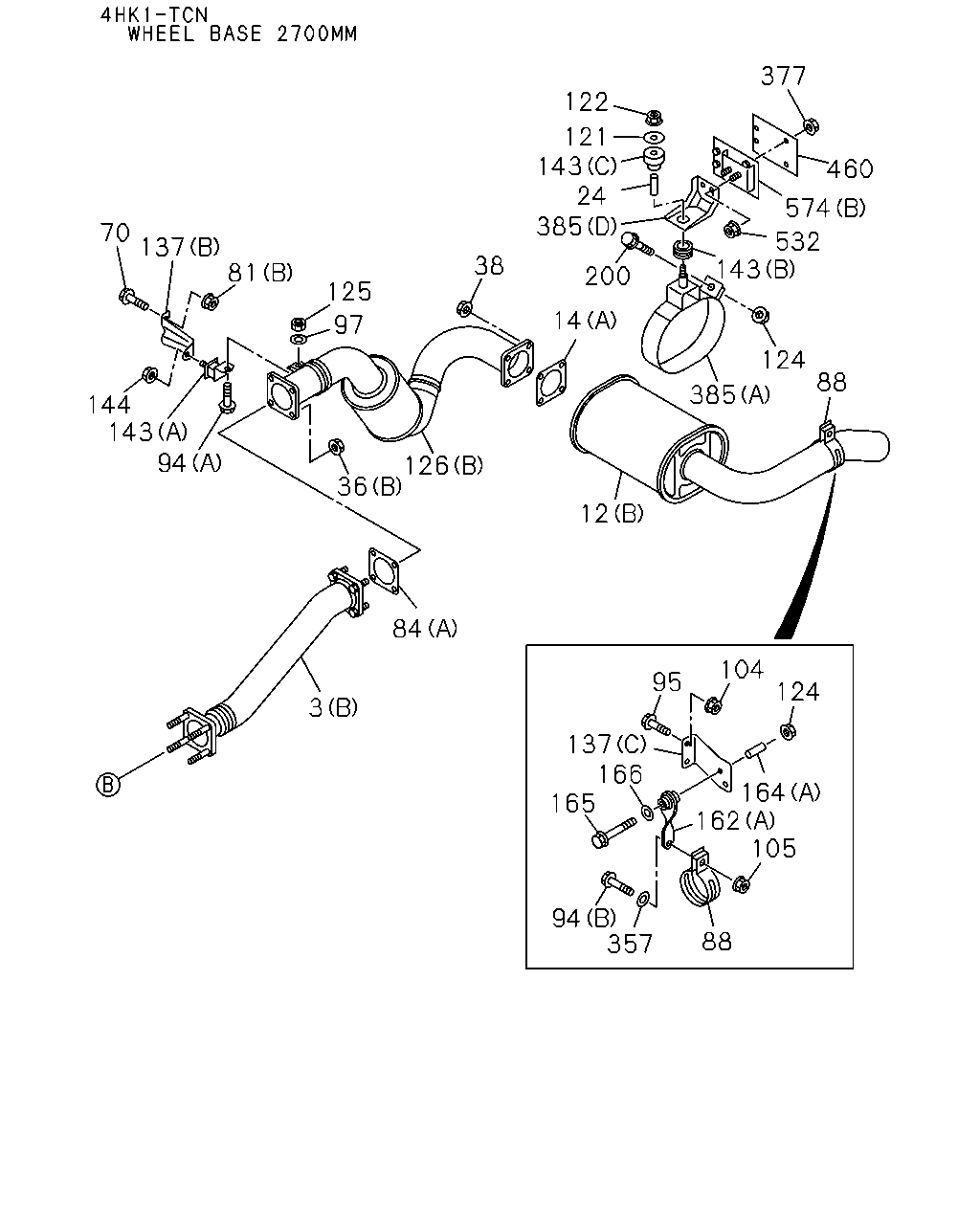

3	03.609 PIPE; EXH,CENTER WHEEL BASE 3300MM(33W) (C)	8-98005-237-0	01	1	1009-1011	●
3	03.609 PIPE; EXH,CENTER (C)	8-98005-237-0	01	1	1009-1011		●
3	03.609 PIPE; EXH,CENTER 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (C)	8-98005-237-0	01	1	1012-	●		●
3	03.609 PIPE; EXH,CENTER 4JJ1-TCS ENG(LFB) (C)	8-98005-237-0	01	1	1012-		●
3	03.609 PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (B)	8-98097-777-1	01	1	1009-			●
3	03.609 PIPE; EXH,CENTER WHEEL BASE 4100MM(41W) (A)	8-98099-061-0	01	1	1009-			●
3	03.609 PIPE; EXH,CENTER (A)	8-98099-061-0	01	1	1009-					●
3	03.609 PIPE; EXH,CENTER WHEEL BASE 4400MM(44W) (A)	8-98099-062-0	01	1	1009-				●
3	03.609 PIPE; EXH,CENTER (A)	8-98099-062-0	01	1	1009-						●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1009-	●	●	●	●	●	●
36	03.613 NUT; EXH PIPE WHEEL BASE 3300MM(33W) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1009-1011	●
36	03.613 NUT; EXH PIPE 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1009-1011		●
36	03.613 NUT; EXH PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1012-	●		●
36	03.613 NUT; EXH PIPE 4JJ1-TCS ENG(LFB) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1012-		●
36	03.613 NUT; EXH PIPE WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1009-			●	●
36	03.613 NUT; EXH PIPE 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1009-					●	●
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	02	1	1009-1011	●	●
38	00.002 NUT; SILENCER 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-	●	●	●
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	04	1	1009-			●	●	●	●
70	03.706 BOLT; BRKT WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1009-1011	●
70	03.706 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1009-1011		●
70	03.706 BOLT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1012-	●		●
70	03.706 BOLT; BRKT 4JJ1-TCS ENG(LFB) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1012-		●
70	03.706 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1009-			●	●	●	●
81	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1009-1011	●
81	03.704 NUT; BRKT 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1009-1011		●
81	03.704 NUT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1012-	●		●
81	03.704 NUT; BRKT 4JJ1-TCS ENG(LFB) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1012-		●
81	03.704 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1009-			●	●	●	●
84	03.611 GASKET; EXH PIPE WHEEL BASE 3300MM(33W) (B) ID=65	8-97148-757-1	01	1	1009-1011	●
84	03.611 GASKET; EXH PIPE (B) ID=65	8-97148-757-1	01	1	1009-1011		●
84	03.611 GASKET; EXH PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (B) ID=65	8-97148-757-1	01	1	1012-	●		●
84	03.611 GASKET; EXH PIPE 4JJ1-TCS ENG(LFB) (B) ID=65	8-97148-757-1	01	1	1012-		●
84	03.611 GASKET; EXH PIPE 03.704 (A) ID=85.8	1-22116-043-0	01	1	1009-			●	●	●	●
84	03.611 GASKET; EXH PIPE WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.704 (A) ID=85.8	1-22116-043-0	01	1	1009-			●	●
84	03.611 GASKET; EXH PIPE 03.704 (A) ID=85.8	1-22116-043-0	01	1	1009-					●	●
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	1009-1011	●	●
88	03.708 CLAMP; EXH PIPE WHEEL BASE 3300MM(33W)	8-97373-158-0	01	1	1009-1011	●
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	1009-1011		●
88	03.708 CLAMP; EXH PIPE 4JJ1-TCS ENG(LFB)	8-97373-158-0	01	1	1012-	●	●	●
88	03.708 CLAMP; EXH PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W)	8-97373-158-0	01	1	1012-	●		●
88	03.708 CLAMP; EXH PIPE 4JJ1-TCS ENG(LFB)	8-97373-158-0	01	1	1012-		●
88	03.708 CLAMP; EXH PIPE	8-98034-766-0	01	1	1009-			●	●	●	●
94	03.704 BOLT; CLAMP 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1009-	●	●	●	●	●	●
94	03.704 BOLT; CLAMP WHEEL BASE 3300MM(33W) 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	1009-	●
94	03.704 BOLT; CLAMP 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	1009-		●	●	●	●	●
95	03.708 BOLT; BRKT WHEEL BASE 2700MM(27W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1009-	●
95	03.708 BOLT; BRKT WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1009-			●	●
95	03.708 BOLT; BRKT WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1009-	●
95	03.708 BOLT; BRKT WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1009-			●	●
95	03.708 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1009-		●			●	●
97	03.708 WASHER; PL,CLAMP WHEEL BASE 3300MM(33W) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1009-	●
97	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1009-		●	●	●	●	●
104	03.704 NUT; BRKT WHEEL BASE 2700MM(27W) 01.062 M8 FLANGE	0-91180-108-0	02	1	1009-	●
104	03.704 NUT; BRKT WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE	0-91180-108-0	02	1	1009-			●	●
104	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1009-	●
104	03.704 NUT; BRKT WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1009-			●	●
104	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1009-		●			●	●
105	03.704 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	1009-	●	●	●	●	●	●
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	1009-	●	●	●	●	●	●
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	1009-			●	●	●	●
125	03.708 NUT; CLAMP WHEEL BASE 3300MM(33W) 00.833 M10	0-91110-510-0	01	1	1009-	●
125	03.708 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	1009-		●	●	●	●	●
126	03.705 PIPE; EXH,RR WHEEL BASE 2700MM(27W) (D)	8-98020-604-0	01	1	1009-1011	●
126	03.705 PIPE; EXH,RR 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (D)	8-98020-604-0	01	1	1012-	●		●
126	03.705 PIPE; EXH,RR WHEEL BASE 3300MM(33W) (C)	8-98079-101-0	01	1	1009-1011	●
126	03.705 PIPE; EXH,RR (C)	8-98079-101-0	01	1	1009-1011		●
126	03.705 PIPE; EXH,RR 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (C)	8-98079-101-0	01	1	1012-	●		●
126	03.705 PIPE; EXH,RR 4JJ1-TCS ENG(LFB) (C)	8-98079-101-0	01	1	1012-		●
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (B)	8-98097-778-1	01	1	1009-			●
126	03.705 PIPE; EXH,RR WHEEL BASE 3300MM(33W) (A)	8-98045-047-0	01	1	1009-			●	●
126	03.705 PIPE; EXH,RR WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A)	8-98099-064-0	01	1	1009-			●	●
126	03.705 PIPE; EXH,RR (A)	8-98099-064-0	01	1	1009-					●	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2700MM(27W) (D)	8-97387-256-1	01	1	1009-1011	●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (D)	8-97387-256-1	01	1	1012-	●		●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) (F)	8-98001-913-0	01	1	1009-1011	●
137	03.706 BRACKET; TAIL PIPE (F)	8-98001-913-0	01	1	1009-1011		●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (F)	8-98001-913-0	01	1	1012-	●		●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCS ENG(LFB) (F)	8-98001-913-0	01	1	1012-		●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) (E)	8-98019-904-2	01	1	1009-1011	●
137	03.706 BRACKET; TAIL PIPE (E)	8-98019-904-2	01	1	1009-1011		●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (E)	8-98019-904-2	01	1	1012-	●		●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCS ENG(LFB) (E)	8-98019-904-2	01	1	1012-		●
137	03.706 BRACKET; TAIL PIPE 03.613 (B)	8-97096-651-0	01	1	1009-			●	●	●	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (C)	8-97116-588-2	01	1	1009-			●	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A)	8-97185-801-0	01	1	1009-			●	●
137	03.706 BRACKET; TAIL PIPE (A)	8-97185-801-0	01	1	1009-					●	●
143	03.704 RUBBER; SUPPORT (D)	8-97080-694-0	01	1	1009-1011	●	●
143	03.704 RUBBER; SUPPORT 4JJ1-TCS ENG(LFB) (D)	8-97080-694-0	01	1	1012-	●	●	●
143	03.704 RUBBER; SUPPORT WHEEL BASE 3300MM(33W) (A)	8-98034-767-0	01	1	1009-	●
143	03.704 RUBBER; SUPPORT (A)	8-98034-767-0	01	1	1009-		●	●	●	●	●
143	03.704 RUBBER; SUPPORT (C)	8-94457-277-1	01	1	1009-			●	●	●	●
143	03.704 RUBBER; SUPPORT (B)	8-94457-278-1	01	1	1009-			●	●	●	●
144	03.613 NUT; MTG RUBBER WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE	0-91180-108-0	01	1	1009-	●
144	03.613 NUT; MTG RUBBER 01.062 M8 FLANGE	0-91180-108-0	01	1	1009-		●	●	●	●	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 2700MM(27W) (B) L=115	8-98032-151-0	01	1	1009-1011	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (B) L=115	8-98032-151-0	01	1	1012-	●		●
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 3300MM(33W) (A) L=115	8-98034-765-0	01	1	1009-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE (A) L=115	8-98034-765-0	01	1	1009-		●	●	●	●	●
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 2700MM(27W) (B) L=23	8-98006-011-0	01	1	1009-1011	●
164	03.706 COLLAR; DIST,TAIL PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (B) L=23	8-98006-011-0	01	1	1012-	●		●
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 3300MM(33W) (A) L=37.5	9-22151-217-0	01	1	1009-	●
164	03.706 COLLAR; DIST,TAIL PIPE (A) L=37.5	9-22151-217-0	01	1	1009-		●	●	●	●	●
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 2700MM(27W) 00.685 M10X45 FLANGE	0-28051-045-0	01	1	1009-1011	●
165	03.706 BOLT; SUPPORT RUBBER 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 00.685 M10X45 FLANGE	0-28051-045-0	01	1	1012-	●		●
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) M10X70 FLANGE	0-28051-070-0	01	1	1009-	●
165	03.706 BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28051-070-0	01	1	1009-		●	●	●	●	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1009-	●	●	●	●	●	●
357	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1009-	●	●	●	●	●	●

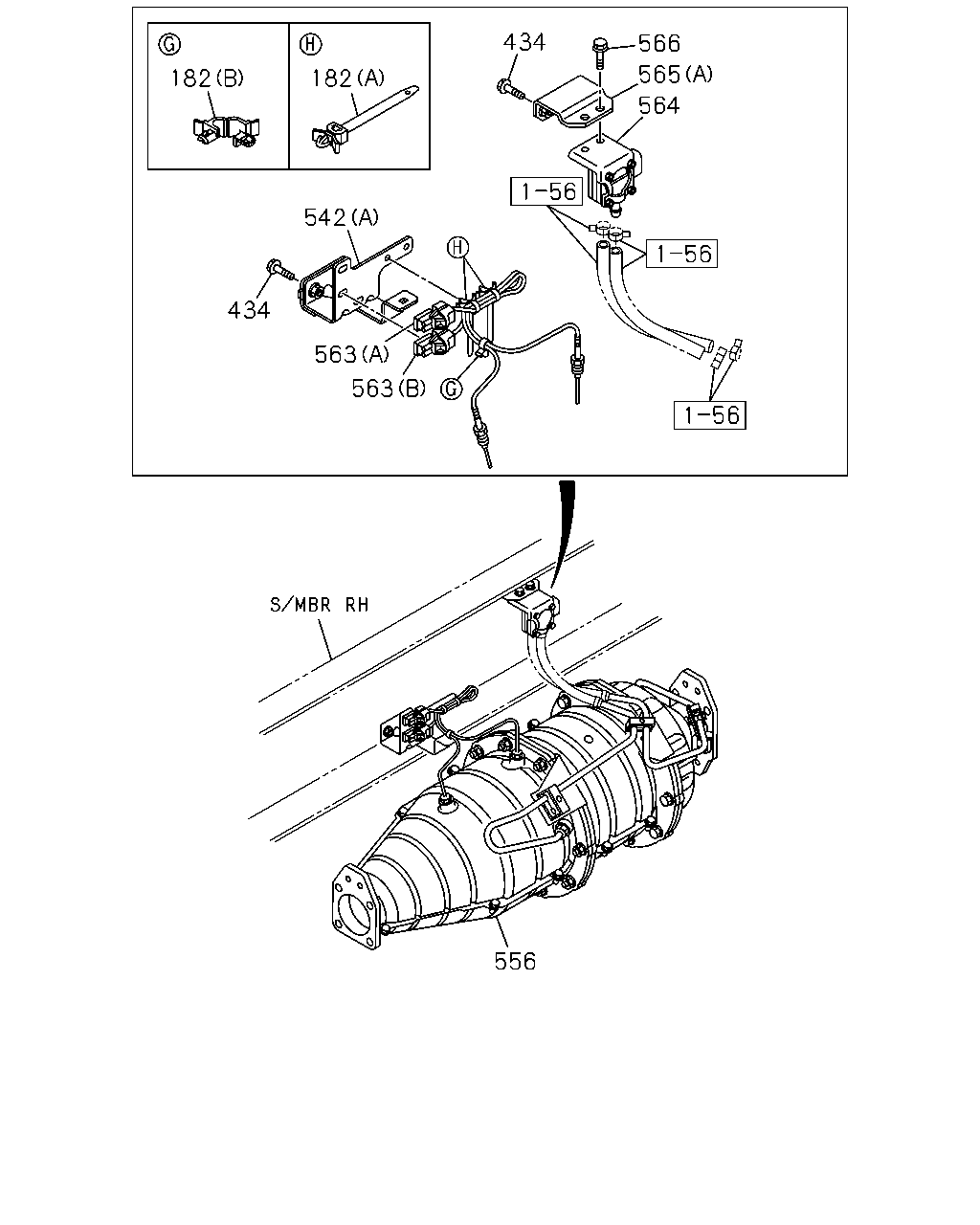

182 182 566 434 565 564 542 434 563 563 556

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
182	03.682 CLIP; HARNESS 02.587 (A) L=112	8-94232-618-0	02	1	1009-	●	●	●	●	●	●
182	03.682 CLIP; HARNESS (C) ID=7	8-98002-767-0	01	1	1009-1011	●	●
182	03.682 CLIP; HARNESS 4JJ1-TCS ENG(LFB) (C) ID=7	8-98002-767-0	01	1	1012-	●	●	●
182	03.682 CLIP; HARNESS 4HK1-TCN ENG(RDQ) (B) ID=7 L=7.5	8-97369-561-0	01	1	1009-			●
182	03.682 CLIP; HARNESS (B) ID=7 L=7.5	8-97369-561-0	01	1	1009-				●	●	●
434	03.613 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1009-1011	●	●
434	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1012-1503	●	●	●
434	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) 00.029 M10X30 FLANGE	0-28651-030-0	03	1	1504-	●	●	●
434	03.613 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1009-			●	●	●	●
434	03.613 BOLT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1009-			●
434	03.613 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1009-				●	●	●
434	03.613 BOLT; BRKT WHEEL BASE 2700MM(27W) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1009-			●
542	03.704 BRACKET (B)	8-98004-026-1	01	1	1009-1011	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (B)	8-98004-026-1	01	1	1012-	●	●	●
542	03.704 BRACKET (A)	8-98039-602-0	01	1	1009-			●	●	●	●
556	03.701 DPD ASM 4HK1-TCN ENG(RDQ)	8-98039-162-6	01	1	1009-1010			●
556	03.701 DPD ASM	8-98039-162-6	01	1	1009-1010				●	●	●
556	03.701 DPD ASM 4HK1-TCN ENG(RDQ)	8-98084-602-4	01	1	1011-			●
556	03.701 DPD ASM	8-98084-602-4	01	1	1011-				●	●	●
556	03.701 DPD ASM	8-98036-810-7	01	1	1009-1011	●	●
556	03.701 DPD ASM	8-98084-595-4	01	1	1012-1012	●	●
556	03.701 DPD ASM 4JJ1-TCS ENG(LFB)	8-98084-595-4	01	1	1012-	●	●	●
563	01.150 SENSOR; TEMPERATURE,DPD (A)	8-98004-329-0	01	1	1009-	●	●	●	●	●	●
563	01.150 SENSOR; TEMPERATURE,DPD (B)	8-98004-330-0	01	1	1009-	●	●	●	●	●	●
564	01.150 SENSOR; PRESSURE,DPD	8-97359-985-2	01	1	1009-	●	●	●	●	●	●
565	03.706 BRACKET; SENSOR,PRESSURE (B)	8-98012-396-0	01	1	1009-1011	●	●
565	03.706 BRACKET; SENSOR,PRESSURE 4JJ1-TCS ENG(LFB) (B)	8-98012-396-0	01	1	1012-1503	●	●	●
565	03.706 BRACKET; SENSOR,PRESSURE 4JJ1-TCS ENG(LFB) (B)	8-98303-548-0	01	1	1504-	●	●	●
565	03.706 BRACKET; SENSOR,PRESSURE WHEEL BASE 2700MM(27W) (A)	8-98058-423-0	01	1	1009-			●
565	03.706 BRACKET; SENSOR,PRESSURE WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (A)	8-98029-347-0	01	1	1009-			●
565	03.706 BRACKET; SENSOR,PRESSURE (A)	8-98029-347-0	01	1	1009-				●	●	●
566	03.706 BOLT; SENSOR 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1009-	●	●	●	●	●	●

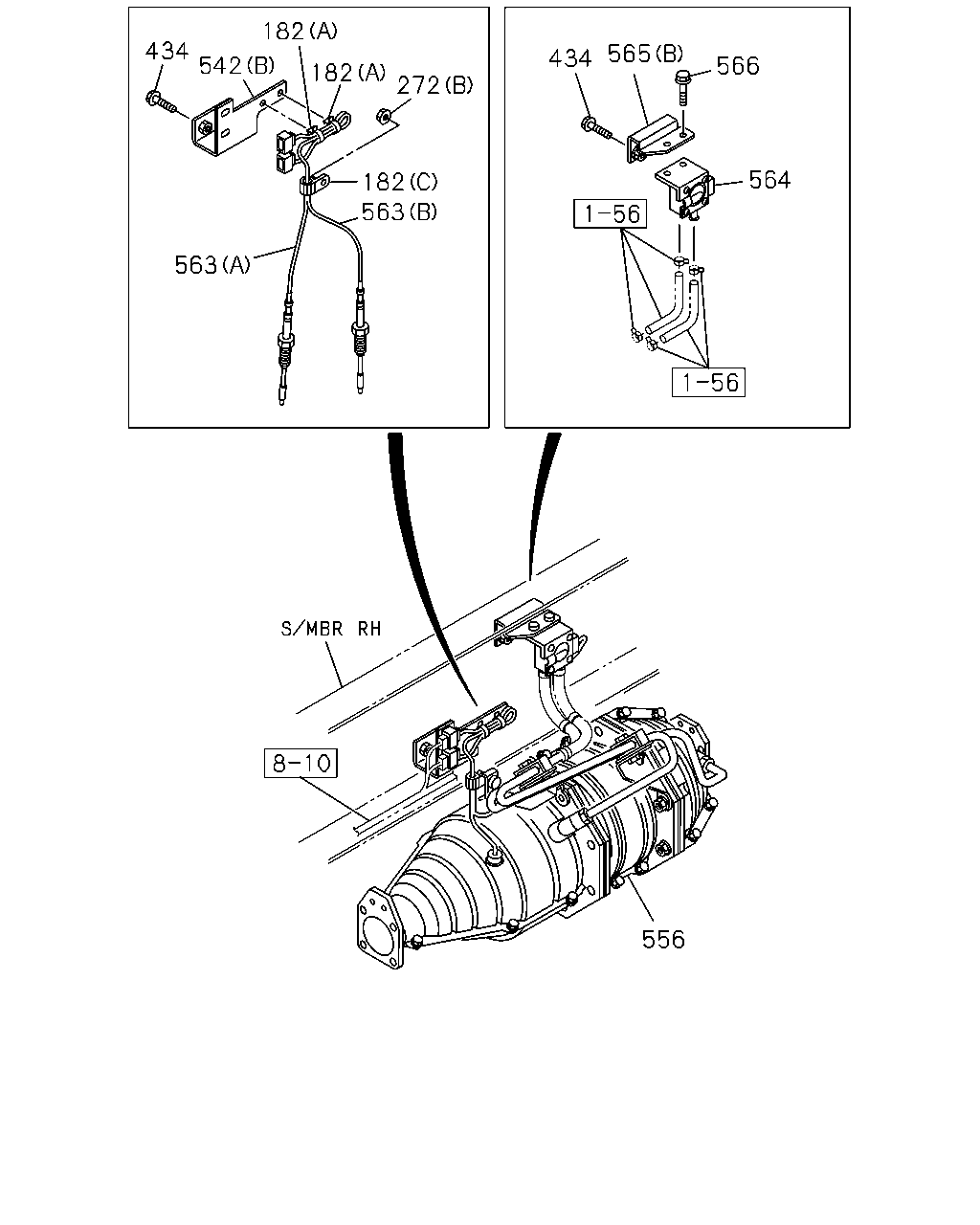

434 563 182 542 182 182 272 563 434 565 566 564 556

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
182	03.682 CLIP; HARNESS 02.587 (A) L=112	8-94232-618-0	02	1	1009-	●	●	●	●	●	●
182	03.682 CLIP; HARNESS (C) ID=7	8-98002-767-0	01	1	1009-1011	●	●
182	03.682 CLIP; HARNESS 4JJ1-TCS ENG(LFB) (C) ID=7	8-98002-767-0	01	1	1012-	●	●	●
182	03.682 CLIP; HARNESS 4HK1-TCN ENG(RDQ) (B) ID=7 L=7.5	8-97369-561-0	01	1	1009-			●
182	03.682 CLIP; HARNESS (B) ID=7 L=7.5	8-97369-561-0	01	1	1009-				●	●	●
272	03.685 NUT; FLANGE 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1009-1011	●	●
272	03.685 NUT; FLANGE 4JJ1-TCS ENG(LFB) 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1012-	●	●	●
272	03.685 NUT; FLANGE 01.062 (A) M8 FLANGE	0-91180-108-0	16	1	1009-1011	●	●
272	03.685 NUT; FLANGE 4JJ1-TCS ENG(LFB) 01.062 (A) M8 FLANGE	0-91180-108-0	16	1	1012-	●	●	●
272	03.685 NUT; FLANGE 4HK1-TCN ENG(RDQ) 01.062 (A) M8 FLANGE	0-91180-108-0	20	1	1009-			●
272	03.685 NUT; FLANGE 01.062 (A) M8 FLANGE	0-91180-108-0	20	1	1009-				●	●	●
434	03.613 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1009-1011	●	●
434	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1012-1503	●	●	●
434	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) 00.029 M10X30 FLANGE	0-28651-030-0	03	1	1504-	●	●	●
434	03.613 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1009-			●	●	●	●
434	03.613 BOLT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1009-			●
434	03.613 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1009-				●	●	●
434	03.613 BOLT; BRKT WHEEL BASE 2700MM(27W) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1009-			●
542	03.704 BRACKET (B)	8-98004-026-1	01	1	1009-1011	●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (B)	8-98004-026-1	01	1	1012-	●	●	●
542	03.704 BRACKET (A)	8-98039-602-0	01	1	1009-			●	●	●	●
556	03.701 DPD ASM 4HK1-TCN ENG(RDQ)	8-98039-162-6	01	1	1009-1010			●
556	03.701 DPD ASM	8-98039-162-6	01	1	1009-1010				●	●	●
556	03.701 DPD ASM 4HK1-TCN ENG(RDQ)	8-98084-602-4	01	1	1011-			●
556	03.701 DPD ASM	8-98084-602-4	01	1	1011-				●	●	●
556	03.701 DPD ASM	8-98036-810-7	01	1	1009-1011	●	●
556	03.701 DPD ASM	8-98084-595-4	01	1	1012-1012	●	●
556	03.701 DPD ASM 4JJ1-TCS ENG(LFB)	8-98084-595-4	01	1	1012-	●	●	●
563	01.150 SENSOR; TEMPERATURE,DPD (A)	8-98004-329-0	01	1	1009-	●	●	●	●	●	●
563	01.150 SENSOR; TEMPERATURE,DPD (B)	8-98004-330-0	01	1	1009-	●	●	●	●	●	●
564	01.150 SENSOR; PRESSURE,DPD	8-97359-985-2	01	1	1009-	●	●	●	●	●	●
565	03.706 BRACKET; SENSOR,PRESSURE (B)	8-98012-396-0	01	1	1009-1011	●	●
565	03.706 BRACKET; SENSOR,PRESSURE 4JJ1-TCS ENG(LFB) (B)	8-98012-396-0	01	1	1012-1503	●	●	●
565	03.706 BRACKET; SENSOR,PRESSURE 4JJ1-TCS ENG(LFB) (B)	8-98303-548-0	01	1	1504-	●	●	●
565	03.706 BRACKET; SENSOR,PRESSURE WHEEL BASE 2700MM(27W) (A)	8-98058-423-0	01	1	1009-			●
565	03.706 BRACKET; SENSOR,PRESSURE WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (A)	8-98029-347-0	01	1	1009-			●
565	03.706 BRACKET; SENSOR,PRESSURE (A)	8-98029-347-0	01	1	1009-				●	●	●
566	03.706 BOLT; SENSOR 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1009-	●	●	●	●	●	●

2 36 1 568 25 44 44 43 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.609 PIPE; EXH (B)	8-98026-060-0	01	1	1009-1011	●	●
1	03.609 PIPE; EXH 4JJ1-TCS ENG(LFB) (B)	8-98026-060-0	01	1	1012-	●	●	●
1	03.609 PIPE; EXH (A)	8-98006-765-2	01	1	1009-			●	●	●	●
2	03.611 GASKET; PIPE TO MANIF (B)	8-97384-590-0	01	1	1009-1011	●	●
2	03.611 GASKET; PIPE TO MANIF 4JJ1-TCS ENG(LFB) (B)	8-97384-590-0	01	1	1012-	●	●	●
2	03.611 GASKET; PIPE TO MANIF (A)	8-97381-455-0	01	1	1009-			●	●	●	●
8	03.704 BRACKET; EXH PIPE 03.613 (B)	8-98026-063-0	01	1	1009-1011	●	●
8	03.704 BRACKET; EXH PIPE 4JJ1-TCS ENG(LFB) 03.613 (B)	8-98026-063-0	01	1	1012-	●	●	●
8	03.704 BRACKET; EXH PIPE 03.613 (A)	8-98020-555-0	01	1	1009-			●	●	●	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER (B)	8-98026-062-2	01	1	1009-1011	●	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JJ1-TCS ENG(LFB) (B)	8-98026-062-2	01	1	1012-	●	●	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER (A)	8-98006-766-0	01	1	1009-			●	●	●	●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1009-	●	●	●	●	●	●
36	03.613 NUT; EXH PIPE WHEEL BASE 3300MM(33W) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1009-1011	●
36	03.613 NUT; EXH PIPE 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1009-1011		●
36	03.613 NUT; EXH PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1012-	●		●
36	03.613 NUT; EXH PIPE 4JJ1-TCS ENG(LFB) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1012-		●
36	03.613 NUT; EXH PIPE WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1009-			●	●
36	03.613 NUT; EXH PIPE 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1009-					●	●
43	03.611 CLAMP; EXH PIPE	8-97351-200-1	01	1	1009-	●	●	●	●	●	●
44	03.613 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	1009-	●	●	●	●	●	●
44	03.613 BOLT; BRKT 02.277 (A) M10X35 FLANGE	0-28651-035-0	02	1	1009-	●	●	●	●	●	●
44	03.613 BOLT; BRKT 02.042 (C) M10X25 FLANGE	0-28151-025-0	02	1	1009-1011	●	●
44	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) 02.042 (C) M10X25 FLANGE	0-28151-025-0	02	1	1012-	●	●	●
568	03.704 NUT; DPD 4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	04	1	1009-1011	●	●
568	03.704 NUT; DPD 4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	04	1	1012-	●	●	●
568	03.704 NUT; DPD 02.042 M12 FLANGE	0-91180-112-0	04	1	1009-			●	●	●	●

143 532 385 532 118 117 115 113 579 352 115 352 115 81 577 376 118 117 115 113 578 337 576 44 560 562 556 376 12 14 172 385

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
12	03.701 SILENCER ASM; EXH (C)	8-97387-244-1	01	1	1009-1011	●	●
12	03.701 SILENCER ASM; EXH 4JJ1-TCS ENG(LFB) (C)	8-97387-244-1	01	1	1012-1308	●	●	●
12	03.701 SILENCER ASM; EXH 4JJ1-TCS ENG(LFB) (C)	8-98254-780-0	01	1	1309-	●	●	●
12	03.701 SILENCER ASM; EXH 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (B)	8-98097-779-0	01	1	1009-			●
12	03.701 SILENCER ASM; EXH 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A)	8-98020-562-1	01	1	1009-			●
12	03.701 SILENCER ASM; EXH (A)	8-98020-562-1	01	1	1009-				●	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE 03.611 (B) ID=65	8-97148-757-1	01	1	1009-1011	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE 4JJ1-TCS ENG(LFB) 03.611 (B) ID=65	8-97148-757-1	01	1	1012-	●	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE (A) ID=85.8	1-22116-043-0	01	1	1009-			●	●	●	●
44	03.613 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	1009-	●	●	●	●	●	●
44	03.613 BOLT; BRKT 02.277 (A) M10X35 FLANGE	0-28651-035-0	02	1	1009-	●	●	●	●	●	●
44	03.613 BOLT; BRKT 02.042 (C) M10X25 FLANGE	0-28151-025-0	02	1	1009-1011	●	●
44	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) 02.042 (C) M10X25 FLANGE	0-28151-025-0	02	1	1012-	●	●	●
81	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1009-1011	●
81	03.704 NUT; BRKT 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1009-1011		●
81	03.704 NUT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1012-	●		●
81	03.704 NUT; BRKT 4JJ1-TCS ENG(LFB) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1012-		●
81	03.704 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1009-			●	●	●	●
113	03.704 COLLAR; DIST,MTG BRKT 4JJ1-TCS ENG(LFB) 03.706 L=37.5	9-22151-217-0	02	1	1009-1011	●	●
113	03.704 COLLAR; DIST,MTG BRKT 4JJ1-TCS ENG(LFB) 03.706 L=37.5	9-22151-217-0	02	1	1012-	●	●	●
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	03	1	1009-			●	●	●	●
115	03.704 RUBBER; MTG,SILENCER 4JJ1-TCS ENG(LFB) (A)	8-94457-277-1	02	1	1009-1011	●	●
115	03.704 RUBBER; MTG,SILENCER 4JJ1-TCS ENG(LFB) (A)	8-94457-277-1	02	1	1012-	●	●	●
115	03.704 RUBBER; MTG,SILENCER 4JJ1-TCS ENG(LFB) (B)	8-94457-278-1	02	1	1009-1011	●	●
115	03.704 RUBBER; MTG,SILENCER 4JJ1-TCS ENG(LFB) (B)	8-94457-278-1	02	1	1012-	●	●	●
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	03	1	1009-			●	●	●	●
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	03	1	1009-			●	●	●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT 4JJ1-TCS ENG(LFB) OD=55	9-09852-169-0	02	1	1009-1011	●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT 4JJ1-TCS ENG(LFB) OD=55	9-09852-169-0	02	1	1012-	●	●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	03	1	1009-			●	●	●	●
118	03.704 NUT; SILENCER MTG BRKT 4JJ1-TCS ENG(LFB) 07.874 M10 FLANGE	5-09440-006-0	02	1	1009-1011	●	●
118	03.704 NUT; SILENCER MTG BRKT 4JJ1-TCS ENG(LFB) 07.874 M10 FLANGE	5-09440-006-0	02	1	1012-	●	●	●
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	03	1	1009-			●	●	●	●
143	03.704 RUBBER; SUPPORT (D)	8-97080-694-0	01	1	1009-1011	●	●
143	03.704 RUBBER; SUPPORT 4JJ1-TCS ENG(LFB) (D)	8-97080-694-0	01	1	1012-	●	●	●
143	03.704 RUBBER; SUPPORT WHEEL BASE 3300MM(33W) (A)	8-98034-767-0	01	1	1009-	●
143	03.704 RUBBER; SUPPORT (A)	8-98034-767-0	01	1	1009-		●	●	●	●	●
143	03.704 RUBBER; SUPPORT (C)	8-94457-277-1	01	1	1009-			●	●	●	●
143	03.704 RUBBER; SUPPORT (B)	8-94457-278-1	01	1	1009-			●	●	●	●
172	03.708 BOLT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1012-			●
172	03.708 BOLT WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1009-1011	●
172	03.708 BOLT 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1009-1011		●
172	03.708 BOLT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1012-	●
172	03.708 BOLT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FUEL TANK 140 LITTER<N19> 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1012-			●
172	03.708 BOLT 4JJ1-TCS ENG(LFB) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1012-		●
172	03.708 BOLT WHEEL BASE 4400MM(44W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1009-				●
172	03.708 BOLT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1009-						●
337	03.706 BOLT; RUBBER,SUPPORT 02.277 M10X35 FLANGE	0-28651-035-0	02	1	1009-	●	●	●	●	●	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1009-	●	●	●	●	●	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1009-			●	●	●	●
376	03.708 BOLT; BRKT 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1009-	●	●	●	●	●	●
376	03.708 BOLT; BRKT 4JJ1-TCS ENG(LFB) 03.690 (C)	8-98005-985-0	01	1	1009-1011	●	●
376	03.708 BOLT; BRKT 4JJ1-TCS ENG(LFB) 03.690 (C)	8-98005-985-0	01	1	1012-	●	●	●
376	03.708 BOLT; BRKT 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	1009-			●	●	●	●
385	03.704 BRACKET; SILENCER MTG 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> (E)	8-98173-136-0	01	1	1012-			●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 2700MM(27W) (F)	8-98001-889-1	01	1	1009-1011	●
385	03.704 BRACKET; SILENCER MTG 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (F)	8-98001-889-1	01	1	1012-	●		●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 3300MM(33W) (E)	8-97387-251-1	01	1	1009-1011	●
385	03.704 BRACKET; SILENCER MTG (E)	8-97387-251-1	01	1	1009-1011		●
385	03.704 BRACKET; SILENCER MTG 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (E)	8-97387-251-1	01	1	1012-	●
385	03.704 BRACKET; SILENCER MTG 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FUEL TANK 140 LITTER<N19> (E)	8-97387-251-1	01	1	1012-			●
385	03.704 BRACKET; SILENCER MTG 4JJ1-TCS ENG(LFB) (E)	8-97387-251-1	01	1	1012-		●
385	03.704 BRACKET; SILENCER MTG (A)	8-98006-776-1	01	1	1009-			●	●	●	●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (D)	8-98122-620-0	01	1	1009-			●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 3300MM(33W) (C)	8-98006-774-0	01	1	1009-			●	●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 4100MM(41W) (B)	8-98073-376-0	01	1	1009-			●
385	03.704 BRACKET; SILENCER MTG (B)	8-98073-376-0	01	1	1009-					●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 4400MM(44W) (G)	8-98073-377-0	01	1	1009-				●
385	03.704 BRACKET; SILENCER MTG (G)	8-98073-377-0	01	1	1009-						●
532	03.704 NUT WHEEL BASE 2700MM(27W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1009-	●
532	03.704 NUT 03.162 M10 FLANGE	0-91180-110-0	02	1	1009-			●		●
532	03.704 NUT WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1009-				●
532	03.704 NUT WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	01	1	1009-1011	●
532	03.704 NUT 03.162 M10 FLANGE	0-91180-110-0	01	1	1009-1011		●
532	03.704 NUT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	01	1	1012-	●
532	03.704 NUT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FUEL TANK 140 LITTER<N19> 03.162 M10 FLANGE	0-91180-110-0	01	1	1012-			●
532	03.704 NUT 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	01	1	1012-		●
532	03.704 NUT WHEEL BASE 4400MM(44W) 01.062 M8 FLANGE	0-91180-108-0	02	1	1009-				●
532	03.704 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	1009-						●
556	03.701 DPD ASM 4HK1-TCN ENG(RDQ)	8-98039-162-6	01	1	1009-1010			●
556	03.701 DPD ASM	8-98039-162-6	01	1	1009-1010				●	●	●
556	03.701 DPD ASM 4HK1-TCN ENG(RDQ)	8-98084-602-4	01	1	1011-			●
556	03.701 DPD ASM	8-98084-602-4	01	1	1011-				●	●	●
556	03.701 DPD ASM	8-98036-810-7	01	1	1009-1011	●	●
556	03.701 DPD ASM	8-98084-595-4	01	1	1012-1012	●	●
556	03.701 DPD ASM 4JJ1-TCS ENG(LFB)	8-98084-595-4	01	1	1012-	●	●	●
560	03.611 GASKET; DPD (C)	8-97331-947-0	02	1	1009-1011	●	●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB) (C)	8-97331-947-0	02	1	1012-	●	●	●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB) (D) ID=64	8-97373-108-0	01	1	1009-1011	●	●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB) (D) ID=64	8-97373-108-0	01	1	1012-	●	●	●
560	03.611 GASKET; DPD (B)	1-22116-040-0	01	1	1009-			●	●	●	●
560	03.611 GASKET; DPD 4HK1-TCN ENG(RDQ) (A)	8-97611-080-0	02	1	1009-1505			●
560	03.611 GASKET; DPD (A)	8-97611-080-0	02	1	1009-1505				●	●	●
560	03.611 GASKET; DPD (A)	8-97611-080-0	02	1	1506-			●	●	●	●
562	03.690 PLATE; STUD,BOLT 4JJ1-TCS ENG(LFB) (C)	8-97373-966-0	02	1	1009-1011	●	●
562	03.690 PLATE; STUD,BOLT 4JJ1-TCS ENG(LFB) (C)	8-97373-966-0	02	1	1012-	●	●	●
562	03.690 PLATE; STUD,BOLT 03.685 (A) M12X35	1-22131-963-0	02	1	1009-1203			●	●	●	●
562	03.690 PLATE; STUD,BOLT 4HK1-TCN ENG(RDQ) 03.613 (A)	1-22131-962-0	02	1	1204-1505			●
562	03.690 PLATE; STUD,BOLT 03.613 (A)	1-22131-962-0	02	1	1204-1505				●	●	●
562	03.690 PLATE; STUD,BOLT 03.613 (A)	1-22131-962-0	02	1	1506-			●	●	●	●
562	03.690 PLATE; STUD,BOLT (B)	8-98030-175-0	01	1	1009-			●	●	●	●
576	03.706 BRACKET; DPD FRT TO FRAME 4JJ1-TCS ENG(LFB) (C)	8-97387-245-0	01	1	1009-1011	●	●
576	03.706 BRACKET; DPD FRT TO FRAME 4JJ1-TCS ENG(LFB) (C)	8-97387-245-0	01	1	1012-	●	●	●
576	03.706 BRACKET; DPD FRT TO FRAME WHEEL BASE 2700MM(27W) (A)	8-98122-616-0	01	1	1009-			●
576	03.706 BRACKET; DPD FRT TO FRAME WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B)	8-98006-770-0	01	1	1009-			●	●
576	03.706 BRACKET; DPD FRT TO FRAME (B)	8-98006-770-0	01	1	1009-					●	●
577	03.706 BRACKET; DPD RR TO FRAME (C)	8-97387-246-2	01	1	1009-1011	●	●
577	03.706 BRACKET; DPD RR TO FRAME 4JJ1-TCS ENG(LFB) (C)	8-97387-246-2	01	1	1012-	●	●	●
577	03.706 BRACKET; DPD RR TO FRAME WHEEL BASE 2700MM(27W) (A)	8-98124-656-0	01	1	1009-			●
577	03.706 BRACKET; DPD RR TO FRAME 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B)	8-98048-292-1	01	1	1009-			●
577	03.706 BRACKET; DPD RR TO FRAME (B)	8-98048-292-1	01	1	1009-				●	●	●
578	03.706 BRACKET; DPD FRT (B)	8-97387-248-1	01	1	1009-1011	●	●
578	03.706 BRACKET; DPD FRT 4JJ1-TCS ENG(LFB) (B)	8-97387-248-1	01	1	1012-	●	●	●
578	03.706 BRACKET; DPD FRT (A)	8-98048-296-0	01	1	1009-			●	●	●	●
579	03.704 BRACKET; DPD RR 4JJ1-TCS ENG(LFB) (C)	8-97387-249-1	01	1	1009-1011	●	●
579	03.704 BRACKET; DPD RR 4JJ1-TCS ENG(LFB) (C)	8-97387-249-1	01	1	1012-	●	●	●
579	03.704 BRACKET; DPD RR WHEEL BASE 2700MM(27W) (A)	8-98124-658-0	01	1	1009-			●
579	03.704 BRACKET; DPD RR 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B)	8-98048-300-1	01	1	1009-			●
579	03.704 BRACKET; DPD RR (B)	8-98048-300-1	01	1	1009-				●	●	●

556 534 467 547 272 547 547 534 582 559 547 582 580 560 580 558 560 557 272 589 589 589 561 561 534 547 547 582 580 589 467 589 589

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
272	03.685 NUT; FLANGE 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1009-1011	●	●
272	03.685 NUT; FLANGE 4JJ1-TCS ENG(LFB) 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1012-	●	●	●
272	03.685 NUT; FLANGE 01.062 (A) M8 FLANGE	0-91180-108-0	16	1	1009-1011	●	●
272	03.685 NUT; FLANGE 4JJ1-TCS ENG(LFB) 01.062 (A) M8 FLANGE	0-91180-108-0	16	1	1012-	●	●	●
272	03.685 NUT; FLANGE 4HK1-TCN ENG(RDQ) 01.062 (A) M8 FLANGE	0-91180-108-0	20	1	1009-			●
272	03.685 NUT; FLANGE 01.062 (A) M8 FLANGE	0-91180-108-0	20	1	1009-				●	●	●
467	03.685 BOLT; PROTECTOR M6X16	8-98019-179-0	14	1	1009-	●	●	●	●	●	●
534	03.704 BOLT; CLIP 03.162 M6X35 FLANGE	0-28650-635-0	02	1	1009-1011	●	●
534	03.704 BOLT; CLIP 4JJ1-TCS ENG(LFB) 03.162 M6X35 FLANGE	0-28650-635-0	02	1	1012-	●	●	●
534	03.704 BOLT; CLIP 4HK1-TCN ENG(RDQ) 03.162 M6X35 FLANGE	0-28650-635-0	03	1	1009-			●
534	03.704 BOLT; CLIP 03.162 M6X35 FLANGE	0-28650-635-0	03	1	1009-				●	●	●
547	03.682 CLIP; PIPE (A) ID=7 & 7 L=22	8-97381-635-0	02	1	1009-1011	●	●
547	03.682 CLIP; PIPE 4JJ1-TCS ENG(LFB) (A) ID=7 & 7 L=22	8-97381-635-0	02	1	1012-	●	●	●
547	03.682 CLIP; PIPE (B) ID=7 & 7 L=22	8-97381-636-0	02	1	1009-1011	●	●
547	03.682 CLIP; PIPE 4JJ1-TCS ENG(LFB) (B) ID=7 & 7 L=22	8-97381-636-0	02	1	1012-	●	●	●
547	03.682 CLIP; PIPE 4HK1-TCN ENG(RDQ) (A) ID=7 & 7 L=22	8-97381-635-0	03	1	1009-			●
547	03.682 CLIP; PIPE (A) ID=7 & 7 L=22	8-97381-635-0	03	1	1009-				●	●	●
547	03.682 CLIP; PIPE 4HK1-TCN ENG(RDQ) (B) ID=7 & 7 L=22	8-97381-636-0	03	1	1009-			●
547	03.682 CLIP; PIPE (B) ID=7 & 7 L=22	8-97381-636-0	03	1	1009-				●	●	●
556	03.701 DPD ASM 4HK1-TCN ENG(RDQ)	8-98039-162-6	01	1	1009-1010			●
556	03.701 DPD ASM	8-98039-162-6	01	1	1009-1010				●	●	●
556	03.701 DPD ASM 4HK1-TCN ENG(RDQ)	8-98084-602-4	01	1	1011-			●
556	03.701 DPD ASM	8-98084-602-4	01	1	1011-				●	●	●
556	03.701 DPD ASM	8-98036-810-7	01	1	1009-1011	●	●
556	03.701 DPD ASM	8-98084-595-4	01	1	1012-1012	●	●
556	03.701 DPD ASM 4JJ1-TCS ENG(LFB)	8-98084-595-4	01	1	1012-	●	●	●
557	03.701 CATALYST ASM	8-98036-815-7	01	1	1009-1011	●	●
557	03.701 CATALYST ASM 4JJ1-TCS ENG(LFB)	8-98036-815-7	01	1	1012-	●	●	●
557	03.701 CATALYST ASM 4HK1-TCN ENG(RDQ)	8-97608-055-8	01	1	1009-			●
557	03.701 CATALYST ASM	8-97608-055-8	01	1	1009-				●	●	●
558	03.634 FILTER ASM	8-98032-908-2	01	1	1009-1011	●	●
558	03.634 FILTER ASM 4JJ1-TCS ENG(LFB)	8-98032-908-2	01	1	1012-	●	●	●
558	03.634 FILTER ASM 4HK1-TCN ENG(RDQ)	8-97608-057-3	01	1	1009-			●
558	03.634 FILTER ASM	8-97608-057-3	01	1	1009-				●	●	●
559	03.602 COVER; RR 4HK1-TCN ENG(RDQ)	8-97611-078-0	01	1	1009-1010			●
559	03.602 COVER; RR	8-97611-078-0	01	1	1009-1010				●	●	●
559	03.602 COVER; RR 4HK1-TCN ENG(RDQ)	8-97622-887-0	01	1	1011-			●
559	03.602 COVER; RR	8-97622-887-0	01	1	1011-				●	●	●
559	03.602 COVER; RR	8-98084-599-0	01	1	1009-1011	●	●
559	03.602 COVER; RR	8-98093-507-0	01	1	1012-1012	●	●
559	03.602 COVER; RR 4JJ1-TCS ENG(LFB)	8-98093-507-0	01	1	1012-	●	●	●
560	03.611 GASKET; DPD (C)	8-97331-947-0	02	1	1009-1011	●	●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB) (C)	8-97331-947-0	02	1	1012-	●	●	●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB) (D) ID=64	8-97373-108-0	01	1	1009-1011	●	●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB) (D) ID=64	8-97373-108-0	01	1	1012-	●	●	●
560	03.611 GASKET; DPD (B)	1-22116-040-0	01	1	1009-			●	●	●	●
560	03.611 GASKET; DPD 4HK1-TCN ENG(RDQ) (A)	8-97611-080-0	02	1	1009-1505			●
560	03.611 GASKET; DPD (A)	8-97611-080-0	02	1	1009-1505				●	●	●
560	03.611 GASKET; DPD (A)	8-97611-080-0	02	1	1506-			●	●	●	●
561	03.609 PIPE; DPD 4HK1-TCN ENG(RDQ) (A)	8-98039-239-0	01	1	1009-1010			●
561	03.609 PIPE; DPD (A)	8-98039-239-0	01	1	1009-1010				●	●	●
561	03.609 PIPE; DPD 4HK1-TCN ENG(RDQ) (A)	8-98084-603-0	01	1	1011-			●
561	03.609 PIPE; DPD (A)	8-98084-603-0	01	1	1011-				●	●	●
561	03.609 PIPE; DPD 4HK1-TCN ENG(RDQ) (B)	8-98039-241-0	01	1	1009-1010			●
561	03.609 PIPE; DPD (B)	8-98039-241-0	01	1	1009-1010				●	●	●
561	03.609 PIPE; DPD 4HK1-TCN ENG(RDQ) (B)	8-98084-604-0	01	1	1011-			●
561	03.609 PIPE; DPD (B)	8-98084-604-0	01	1	1011-				●	●	●
561	03.609 PIPE; DPD (C)	8-98032-910-0	01	1	1009-1011	●	●
561	03.609 PIPE; DPD (C)	8-98084-600-0	01	1	1012-1012	●	●
561	03.609 PIPE; DPD 4JJ1-TCS ENG(LFB) (C)	8-98084-600-0	01	1	1012-	●	●	●
561	03.609 PIPE; DPD (D)	8-98032-911-1	01	1	1009-1011	●	●
561	03.609 PIPE; DPD (D)	8-98084-601-0	01	1	1012-1012	●	●
561	03.609 PIPE; DPD 4JJ1-TCS ENG(LFB) (D)	8-98084-601-0	01	1	1012-	●	●	●
580	03.704 BOLT; FLANGE 01.060 M8X35 FLANGE	0-28650-835-0	16	1	1009-1011	●	●
580	03.704 BOLT; FLANGE 4JJ1-TCS ENG(LFB) 01.060 M8X35 FLANGE	0-28650-835-0	16	1	1012-	●	●	●
580	03.704 BOLT; FLANGE 4HK1-TCN ENG(RDQ) 01.060 M8X35 FLANGE	0-28650-835-0	20	1	1009-			●
580	03.704 BOLT; FLANGE 01.060 M8X35 FLANGE	0-28650-835-0	20	1	1009-				●	●	●
582	03.706 BRACKET; PIPE (D)	8-98032-919-0	01	1	1009-1011	●	●
582	03.706 BRACKET; PIPE 4JJ1-TCS ENG(LFB) (D)	8-98032-919-0	01	1	1012-	●	●	●
582	03.706 BRACKET; PIPE (E)	8-98032-920-0	01	1	1009-1011	●	●
582	03.706 BRACKET; PIPE 4JJ1-TCS ENG(LFB) (E)	8-98032-920-0	01	1	1012-	●	●	●
582	03.706 BRACKET; PIPE 4HK1-TCN ENG(RDQ) (A)	8-97611-083-0	01	1	1009-			●
582	03.706 BRACKET; PIPE (A)	8-97611-083-0	01	1	1009-				●	●	●
582	03.706 BRACKET; PIPE 4HK1-TCN ENG(RDQ) (B)	8-97611-084-0	01	1	1009-			●
582	03.706 BRACKET; PIPE (B)	8-97611-084-0	01	1	1009-				●	●	●
582	03.706 BRACKET; PIPE 4HK1-TCN ENG(RDQ) (C)	8-97611-085-0	01	1	1009-			●
582	03.706 BRACKET; PIPE (C)	8-97611-085-0	01	1	1009-				●	●	●
589	03.609 PROTECTOR; HEAT,DPD (G)	8-97383-660-0	01	1	1009-1011	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (G)	8-97383-660-0	01	1	1012-	●	●	●
589	03.609 PROTECTOR; HEAT,DPD (H)	8-97383-663-0	01	1	1009-1011	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (H)	8-97383-663-0	01	1	1012-	●	●	●
589	03.609 PROTECTOR; HEAT,DPD (I)	8-98032-921-0	01	1	1009-1011	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (I)	8-98032-921-0	01	1	1012-	●	●	●
589	03.609 PROTECTOR; HEAT,DPD (J)	8-98032-923-0	01	1	1009-1011	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (J)	8-98032-923-0	01	1	1012-	●	●	●
589	03.609 PROTECTOR; HEAT,DPD (K)	8-98032-924-0	01	1	1009-1011	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (K)	8-98032-924-0	01	1	1012-	●	●	●
589	03.609 PROTECTOR; HEAT,DPD (L)	8-98032-926-0	01	1	1009-1011	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (L)	8-98032-926-0	01	1	1012-	●	●	●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCN ENG(RDQ) (A)	8-97605-172-0	01	1	1009-			●
589	03.609 PROTECTOR; HEAT,DPD (A)	8-97605-172-0	01	1	1009-				●	●	●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCN ENG(RDQ) (B)	8-97611-086-0	01	1	1009-			●
589	03.609 PROTECTOR; HEAT,DPD (B)	8-97611-086-0	01	1	1009-				●	●	●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCN ENG(RDQ) (C)	8-97611-087-0	01	1	1009-			●
589	03.609 PROTECTOR; HEAT,DPD (C)	8-97611-087-0	01	1	1009-				●	●	●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCN ENG(RDQ) (D)	8-97611-088-0	01	1	1009-			●
589	03.609 PROTECTOR; HEAT,DPD (D)	8-97611-088-0	01	1	1009-				●	●	●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCN ENG(RDQ) (E)	8-97611-089-0	01	1	1009-			●
589	03.609 PROTECTOR; HEAT,DPD (E)	8-97611-089-0	01	1	1009-				●	●	●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCN ENG(RDQ) (F)	8-97613-390-0	01	1	1009-			●
589	03.609 PROTECTOR; HEAT,DPD (F)	8-97613-390-0	01	1	1009-				●	●	●

118 117 115 113 376 118 117 115 578 337 113 115 576 81 352 577 579 352 115 329 570 84 556 562 560 44 376

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
44	03.613 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	1009-	●	●	●	●	●	●
44	03.613 BOLT; BRKT 02.277 (A) M10X35 FLANGE	0-28651-035-0	02	1	1009-	●	●	●	●	●	●
44	03.613 BOLT; BRKT 02.042 (C) M10X25 FLANGE	0-28151-025-0	02	1	1009-1011	●	●
44	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) 02.042 (C) M10X25 FLANGE	0-28151-025-0	02	1	1012-	●	●	●
81	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1009-1011	●
81	03.704 NUT; BRKT 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1009-1011		●
81	03.704 NUT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1012-	●		●
81	03.704 NUT; BRKT 4JJ1-TCS ENG(LFB) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1012-		●
81	03.704 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1009-			●	●	●	●
84	03.611 GASKET; EXH PIPE WHEEL BASE 3300MM(33W) (B) ID=65	8-97148-757-1	01	1	1009-1011	●
84	03.611 GASKET; EXH PIPE (B) ID=65	8-97148-757-1	01	1	1009-1011		●
84	03.611 GASKET; EXH PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (B) ID=65	8-97148-757-1	01	1	1012-	●		●
84	03.611 GASKET; EXH PIPE 4JJ1-TCS ENG(LFB) (B) ID=65	8-97148-757-1	01	1	1012-		●
84	03.611 GASKET; EXH PIPE 03.704 (A) ID=85.8	1-22116-043-0	01	1	1009-			●	●	●	●
84	03.611 GASKET; EXH PIPE WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.704 (A) ID=85.8	1-22116-043-0	01	1	1009-			●	●
84	03.611 GASKET; EXH PIPE 03.704 (A) ID=85.8	1-22116-043-0	01	1	1009-					●	●
113	03.704 COLLAR; DIST,MTG BRKT 4JJ1-TCS ENG(LFB) 03.706 L=37.5	9-22151-217-0	02	1	1009-1011	●	●
113	03.704 COLLAR; DIST,MTG BRKT 4JJ1-TCS ENG(LFB) 03.706 L=37.5	9-22151-217-0	02	1	1012-	●	●	●
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	03	1	1009-			●	●	●	●
115	03.704 RUBBER; MTG,SILENCER 4JJ1-TCS ENG(LFB) (A)	8-94457-277-1	02	1	1009-1011	●	●
115	03.704 RUBBER; MTG,SILENCER 4JJ1-TCS ENG(LFB) (A)	8-94457-277-1	02	1	1012-	●	●	●
115	03.704 RUBBER; MTG,SILENCER 4JJ1-TCS ENG(LFB) (B)	8-94457-278-1	02	1	1009-1011	●	●
115	03.704 RUBBER; MTG,SILENCER 4JJ1-TCS ENG(LFB) (B)	8-94457-278-1	02	1	1012-	●	●	●
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	03	1	1009-			●	●	●	●
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	03	1	1009-			●	●	●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT 4JJ1-TCS ENG(LFB) OD=55	9-09852-169-0	02	1	1009-1011	●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT 4JJ1-TCS ENG(LFB) OD=55	9-09852-169-0	02	1	1012-	●	●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	03	1	1009-			●	●	●	●
118	03.704 NUT; SILENCER MTG BRKT 4JJ1-TCS ENG(LFB) 07.874 M10 FLANGE	5-09440-006-0	02	1	1009-1011	●	●
118	03.704 NUT; SILENCER MTG BRKT 4JJ1-TCS ENG(LFB) 07.874 M10 FLANGE	5-09440-006-0	02	1	1012-	●	●	●
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	03	1	1009-			●	●	●	●
329	03.613 NUT; EXH PIPE TO PIPE 03.162 M10 FLANGE	0-91180-110-0	04	1	1009-			●	●	●	●
337	03.706 BOLT; RUBBER,SUPPORT 02.277 M10X35 FLANGE	0-28651-035-0	02	1	1009-	●	●	●	●	●	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1009-	●	●	●	●	●	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1009-			●	●	●	●
376	03.708 BOLT; BRKT 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1009-	●	●	●	●	●	●
376	03.708 BOLT; BRKT 4JJ1-TCS ENG(LFB) 03.690 (C)	8-98005-985-0	01	1	1009-1011	●	●
376	03.708 BOLT; BRKT 4JJ1-TCS ENG(LFB) 03.690 (C)	8-98005-985-0	01	1	1012-	●	●	●
376	03.708 BOLT; BRKT 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	1009-			●	●	●	●
556	03.701 DPD ASM 4HK1-TCN ENG(RDQ)	8-98039-162-6	01	1	1009-1010			●
556	03.701 DPD ASM	8-98039-162-6	01	1	1009-1010				●	●	●
556	03.701 DPD ASM 4HK1-TCN ENG(RDQ)	8-98084-602-4	01	1	1011-			●
556	03.701 DPD ASM	8-98084-602-4	01	1	1011-				●	●	●
556	03.701 DPD ASM	8-98036-810-7	01	1	1009-1011	●	●
556	03.701 DPD ASM	8-98084-595-4	01	1	1012-1012	●	●
556	03.701 DPD ASM 4JJ1-TCS ENG(LFB)	8-98084-595-4	01	1	1012-	●	●	●
560	03.611 GASKET; DPD (C)	8-97331-947-0	02	1	1009-1011	●	●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB) (C)	8-97331-947-0	02	1	1012-	●	●	●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB) (D) ID=64	8-97373-108-0	01	1	1009-1011	●	●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB) (D) ID=64	8-97373-108-0	01	1	1012-	●	●	●
560	03.611 GASKET; DPD (B)	1-22116-040-0	01	1	1009-			●	●	●	●
560	03.611 GASKET; DPD 4HK1-TCN ENG(RDQ) (A)	8-97611-080-0	02	1	1009-1505			●
560	03.611 GASKET; DPD (A)	8-97611-080-0	02	1	1009-1505				●	●	●
560	03.611 GASKET; DPD (A)	8-97611-080-0	02	1	1506-			●	●	●	●
562	03.690 PLATE; STUD,BOLT 4JJ1-TCS ENG(LFB) (C)	8-97373-966-0	02	1	1009-1011	●	●
562	03.690 PLATE; STUD,BOLT 4JJ1-TCS ENG(LFB) (C)	8-97373-966-0	02	1	1012-	●	●	●
562	03.690 PLATE; STUD,BOLT 03.685 (A) M12X35	1-22131-963-0	02	1	1009-1203			●	●	●	●
562	03.690 PLATE; STUD,BOLT 4HK1-TCN ENG(RDQ) 03.613 (A)	1-22131-962-0	02	1	1204-1505			●
562	03.690 PLATE; STUD,BOLT 03.613 (A)	1-22131-962-0	02	1	1204-1505				●	●	●
562	03.690 PLATE; STUD,BOLT 03.613 (A)	1-22131-962-0	02	1	1506-			●	●	●	●
562	03.690 PLATE; STUD,BOLT (B)	8-98030-175-0	01	1	1009-			●	●	●	●
570	03.704 ADAPTER; EXH PIPE	8-98073-373-0	01	1	1009-			●	●	●	●
576	03.706 BRACKET; DPD FRT TO FRAME 4JJ1-TCS ENG(LFB) (C)	8-97387-245-0	01	1	1009-1011	●	●
576	03.706 BRACKET; DPD FRT TO FRAME 4JJ1-TCS ENG(LFB) (C)	8-97387-245-0	01	1	1012-	●	●	●
576	03.706 BRACKET; DPD FRT TO FRAME WHEEL BASE 2700MM(27W) (A)	8-98122-616-0	01	1	1009-			●
576	03.706 BRACKET; DPD FRT TO FRAME WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B)	8-98006-770-0	01	1	1009-			●	●
576	03.706 BRACKET; DPD FRT TO FRAME (B)	8-98006-770-0	01	1	1009-					●	●
577	03.706 BRACKET; DPD RR TO FRAME (C)	8-97387-246-2	01	1	1009-1011	●	●
577	03.706 BRACKET; DPD RR TO FRAME 4JJ1-TCS ENG(LFB) (C)	8-97387-246-2	01	1	1012-	●	●	●
577	03.706 BRACKET; DPD RR TO FRAME WHEEL BASE 2700MM(27W) (A)	8-98124-656-0	01	1	1009-			●
577	03.706 BRACKET; DPD RR TO FRAME 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B)	8-98048-292-1	01	1	1009-			●
577	03.706 BRACKET; DPD RR TO FRAME (B)	8-98048-292-1	01	1	1009-				●	●	●
578	03.706 BRACKET; DPD FRT (B)	8-97387-248-1	01	1	1009-1011	●	●
578	03.706 BRACKET; DPD FRT 4JJ1-TCS ENG(LFB) (B)	8-97387-248-1	01	1	1012-	●	●	●
578	03.706 BRACKET; DPD FRT (A)	8-98048-296-0	01	1	1009-			●	●	●	●
579	03.704 BRACKET; DPD RR 4JJ1-TCS ENG(LFB) (C)	8-97387-249-1	01	1	1009-1011	●	●
579	03.704 BRACKET; DPD RR 4JJ1-TCS ENG(LFB) (C)	8-97387-249-1	01	1	1012-	●	●	●
579	03.704 BRACKET; DPD RR WHEEL BASE 2700MM(27W) (A)	8-98124-658-0	01	1	1009-			●
579	03.704 BRACKET; DPD RR 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B)	8-98048-300-1	01	1	1009-			●
579	03.704 BRACKET; DPD RR (B)	8-98048-300-1	01	1	1009-				●	●	●

122 121 143 24 385 200 14 38 125 70 137 81 97 144 143 36 94 126 84 3 12 385 124 88 143 532 574 460 377 104 95 137 165 94 357 88 105 162 164 124 166

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
3	03.609 PIPE; EXH,CENTER WHEEL BASE 3300MM(33W) (C)	8-98005-237-0	01	1	1009-1011	●
3	03.609 PIPE; EXH,CENTER (C)	8-98005-237-0	01	1	1009-1011		●
3	03.609 PIPE; EXH,CENTER 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (C)	8-98005-237-0	01	1	1012-	●		●
3	03.609 PIPE; EXH,CENTER 4JJ1-TCS ENG(LFB) (C)	8-98005-237-0	01	1	1012-		●
3	03.609 PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (B)	8-98097-777-1	01	1	1009-			●
3	03.609 PIPE; EXH,CENTER WHEEL BASE 4100MM(41W) (A)	8-98099-061-0	01	1	1009-			●
3	03.609 PIPE; EXH,CENTER (A)	8-98099-061-0	01	1	1009-					●
3	03.609 PIPE; EXH,CENTER WHEEL BASE 4400MM(44W) (A)	8-98099-062-0	01	1	1009-				●
3	03.609 PIPE; EXH,CENTER (A)	8-98099-062-0	01	1	1009-						●
12	03.701 SILENCER ASM; EXH (C)	8-97387-244-1	01	1	1009-1011	●	●
12	03.701 SILENCER ASM; EXH 4JJ1-TCS ENG(LFB) (C)	8-97387-244-1	01	1	1012-1308	●	●	●
12	03.701 SILENCER ASM; EXH 4JJ1-TCS ENG(LFB) (C)	8-98254-780-0	01	1	1309-	●	●	●
12	03.701 SILENCER ASM; EXH 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (B)	8-98097-779-0	01	1	1009-			●
12	03.701 SILENCER ASM; EXH 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A)	8-98020-562-1	01	1	1009-			●
12	03.701 SILENCER ASM; EXH (A)	8-98020-562-1	01	1	1009-				●	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE 03.611 (B) ID=65	8-97148-757-1	01	1	1009-1011	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE 4JJ1-TCS ENG(LFB) 03.611 (B) ID=65	8-97148-757-1	01	1	1012-	●	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE (A) ID=85.8	1-22116-043-0	01	1	1009-			●	●	●	●
24	03.613 COLLAR; DIST,CLAMP 03.706 L=37.5	9-22151-217-0	01	1	1009-			●	●	●	●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1009-	●	●	●	●	●	●
36	03.613 NUT; EXH PIPE WHEEL BASE 3300MM(33W) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1009-1011	●
36	03.613 NUT; EXH PIPE 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1009-1011		●
36	03.613 NUT; EXH PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1012-	●		●
36	03.613 NUT; EXH PIPE 4JJ1-TCS ENG(LFB) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1012-		●
36	03.613 NUT; EXH PIPE WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1009-			●	●
36	03.613 NUT; EXH PIPE 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1009-					●	●
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	02	1	1009-1011	●	●
38	00.002 NUT; SILENCER 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-	●	●	●
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	04	1	1009-			●	●	●	●
70	03.706 BOLT; BRKT WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1009-1011	●
70	03.706 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1009-1011		●
70	03.706 BOLT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1012-	●		●
70	03.706 BOLT; BRKT 4JJ1-TCS ENG(LFB) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1012-		●
70	03.706 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1009-			●	●	●	●
81	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1009-1011	●
81	03.704 NUT; BRKT 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1009-1011		●
81	03.704 NUT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1012-	●		●
81	03.704 NUT; BRKT 4JJ1-TCS ENG(LFB) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1012-		●
81	03.704 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1009-			●	●	●	●
84	03.611 GASKET; EXH PIPE WHEEL BASE 3300MM(33W) (B) ID=65	8-97148-757-1	01	1	1009-1011	●
84	03.611 GASKET; EXH PIPE (B) ID=65	8-97148-757-1	01	1	1009-1011		●
84	03.611 GASKET; EXH PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (B) ID=65	8-97148-757-1	01	1	1012-	●		●
84	03.611 GASKET; EXH PIPE 4JJ1-TCS ENG(LFB) (B) ID=65	8-97148-757-1	01	1	1012-		●
84	03.611 GASKET; EXH PIPE 03.704 (A) ID=85.8	1-22116-043-0	01	1	1009-			●	●	●	●
84	03.611 GASKET; EXH PIPE WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.704 (A) ID=85.8	1-22116-043-0	01	1	1009-			●	●
84	03.611 GASKET; EXH PIPE 03.704 (A) ID=85.8	1-22116-043-0	01	1	1009-					●	●
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	1009-1011	●	●
88	03.708 CLAMP; EXH PIPE WHEEL BASE 3300MM(33W)	8-97373-158-0	01	1	1009-1011	●
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	1009-1011		●
88	03.708 CLAMP; EXH PIPE 4JJ1-TCS ENG(LFB)	8-97373-158-0	01	1	1012-	●	●	●
88	03.708 CLAMP; EXH PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W)	8-97373-158-0	01	1	1012-	●		●
88	03.708 CLAMP; EXH PIPE 4JJ1-TCS ENG(LFB)	8-97373-158-0	01	1	1012-		●
88	03.708 CLAMP; EXH PIPE	8-98034-766-0	01	1	1009-			●	●	●	●
94	03.704 BOLT; CLAMP 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1009-	●	●	●	●	●	●
94	03.704 BOLT; CLAMP WHEEL BASE 3300MM(33W) 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	1009-	●
94	03.704 BOLT; CLAMP 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	1009-		●	●	●	●	●
95	03.708 BOLT; BRKT WHEEL BASE 2700MM(27W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1009-	●
95	03.708 BOLT; BRKT WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1009-			●	●
95	03.708 BOLT; BRKT WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1009-	●
95	03.708 BOLT; BRKT WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1009-			●	●
95	03.708 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1009-		●			●	●
97	03.708 WASHER; PL,CLAMP WHEEL BASE 3300MM(33W) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1009-	●
97	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1009-		●	●	●	●	●
104	03.704 NUT; BRKT WHEEL BASE 2700MM(27W) 01.062 M8 FLANGE	0-91180-108-0	02	1	1009-	●
104	03.704 NUT; BRKT WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE	0-91180-108-0	02	1	1009-			●	●
104	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1009-	●
104	03.704 NUT; BRKT WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1009-			●	●
104	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1009-		●			●	●
105	03.704 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	1009-	●	●	●	●	●	●
121	03.704 WASHER; PL,BRKT OD=55	9-09852-169-0	01	1	1009-			●	●	●	●
122	03.275 NUT; HANGER BRKT 07.874 M10 FLANGE	5-09440-006-0	01	1	1009-			●	●	●	●
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	1009-	●	●	●	●	●	●
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	1009-			●	●	●	●
125	03.708 NUT; CLAMP WHEEL BASE 3300MM(33W) 00.833 M10	0-91110-510-0	01	1	1009-	●
125	03.708 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	1009-		●	●	●	●	●
126	03.705 PIPE; EXH,RR WHEEL BASE 2700MM(27W) (D)	8-98020-604-0	01	1	1009-1011	●
126	03.705 PIPE; EXH,RR 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (D)	8-98020-604-0	01	1	1012-	●		●
126	03.705 PIPE; EXH,RR WHEEL BASE 3300MM(33W) (C)	8-98079-101-0	01	1	1009-1011	●
126	03.705 PIPE; EXH,RR (C)	8-98079-101-0	01	1	1009-1011		●
126	03.705 PIPE; EXH,RR 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (C)	8-98079-101-0	01	1	1012-	●		●
126	03.705 PIPE; EXH,RR 4JJ1-TCS ENG(LFB) (C)	8-98079-101-0	01	1	1012-		●
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (B)	8-98097-778-1	01	1	1009-			●
126	03.705 PIPE; EXH,RR WHEEL BASE 3300MM(33W) (A)	8-98045-047-0	01	1	1009-			●	●
126	03.705 PIPE; EXH,RR WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A)	8-98099-064-0	01	1	1009-			●	●
126	03.705 PIPE; EXH,RR (A)	8-98099-064-0	01	1	1009-					●	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2700MM(27W) (D)	8-97387-256-1	01	1	1009-1011	●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (D)	8-97387-256-1	01	1	1012-	●		●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) (F)	8-98001-913-0	01	1	1009-1011	●
137	03.706 BRACKET; TAIL PIPE (F)	8-98001-913-0	01	1	1009-1011		●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (F)	8-98001-913-0	01	1	1012-	●		●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCS ENG(LFB) (F)	8-98001-913-0	01	1	1012-		●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) (E)	8-98019-904-2	01	1	1009-1011	●
137	03.706 BRACKET; TAIL PIPE (E)	8-98019-904-2	01	1	1009-1011		●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (E)	8-98019-904-2	01	1	1012-	●		●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCS ENG(LFB) (E)	8-98019-904-2	01	1	1012-		●
137	03.706 BRACKET; TAIL PIPE 03.613 (B)	8-97096-651-0	01	1	1009-			●	●	●	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (C)	8-97116-588-2	01	1	1009-			●	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A)	8-97185-801-0	01	1	1009-			●	●
137	03.706 BRACKET; TAIL PIPE (A)	8-97185-801-0	01	1	1009-					●	●
143	03.704 RUBBER; SUPPORT (D)	8-97080-694-0	01	1	1009-1011	●	●
143	03.704 RUBBER; SUPPORT 4JJ1-TCS ENG(LFB) (D)	8-97080-694-0	01	1	1012-	●	●	●
143	03.704 RUBBER; SUPPORT WHEEL BASE 3300MM(33W) (A)	8-98034-767-0	01	1	1009-	●
143	03.704 RUBBER; SUPPORT (A)	8-98034-767-0	01	1	1009-		●	●	●	●	●
143	03.704 RUBBER; SUPPORT (C)	8-94457-277-1	01	1	1009-			●	●	●	●
143	03.704 RUBBER; SUPPORT (B)	8-94457-278-1	01	1	1009-			●	●	●	●
144	03.613 NUT; MTG RUBBER WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE	0-91180-108-0	01	1	1009-	●
144	03.613 NUT; MTG RUBBER 01.062 M8 FLANGE	0-91180-108-0	01	1	1009-		●	●	●	●	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 2700MM(27W) (B) L=115	8-98032-151-0	01	1	1009-1011	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (B) L=115	8-98032-151-0	01	1	1012-	●		●
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 3300MM(33W) (A) L=115	8-98034-765-0	01	1	1009-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE (A) L=115	8-98034-765-0	01	1	1009-		●	●	●	●	●
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 2700MM(27W) (B) L=23	8-98006-011-0	01	1	1009-1011	●
164	03.706 COLLAR; DIST,TAIL PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (B) L=23	8-98006-011-0	01	1	1012-	●		●
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 3300MM(33W) (A) L=37.5	9-22151-217-0	01	1	1009-	●
164	03.706 COLLAR; DIST,TAIL PIPE (A) L=37.5	9-22151-217-0	01	1	1009-		●	●	●	●	●
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 2700MM(27W) 00.685 M10X45 FLANGE	0-28051-045-0	01	1	1009-1011	●
165	03.706 BOLT; SUPPORT RUBBER 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 00.685 M10X45 FLANGE	0-28051-045-0	01	1	1012-	●		●
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) M10X70 FLANGE	0-28051-070-0	01	1	1009-	●
165	03.706 BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28051-070-0	01	1	1009-		●	●	●	●	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1009-	●	●	●	●	●	●
200	03.704 BOLT; SUPPORT RUBBER 00.685 M10X40 FLANGE	0-28051-040-0	01	1	1009-			●	●	●	●
357	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1009-	●	●	●	●	●	●
377	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) 01.062 M8 FLANGE	0-91180-108-0	04	1	1009-			●
377	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> 03.162 M10 FLANGE	0-91180-110-0	01	1	1009-			●
377	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	01	1	1009-				●
377	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) EXC. FUEL TANK 140 LITTER<N19> 03.162 M10 FLANGE	0-91180-110-0	02	1	1009-			●
377	03.704 NUT; BRKT WHEEL BASE 4100MM(41W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1009-			●
377	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1009-					●
385	03.704 BRACKET; SILENCER MTG 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> (E)	8-98173-136-0	01	1	1012-			●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 2700MM(27W) (F)	8-98001-889-1	01	1	1009-1011	●
385	03.704 BRACKET; SILENCER MTG 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (F)	8-98001-889-1	01	1	1012-	●		●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 3300MM(33W) (E)	8-97387-251-1	01	1	1009-1011	●
385	03.704 BRACKET; SILENCER MTG (E)	8-97387-251-1	01	1	1009-1011		●
385	03.704 BRACKET; SILENCER MTG 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (E)	8-97387-251-1	01	1	1012-	●
385	03.704 BRACKET; SILENCER MTG 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FUEL TANK 140 LITTER<N19> (E)	8-97387-251-1	01	1	1012-			●
385	03.704 BRACKET; SILENCER MTG 4JJ1-TCS ENG(LFB) (E)	8-97387-251-1	01	1	1012-		●
385	03.704 BRACKET; SILENCER MTG (A)	8-98006-776-1	01	1	1009-			●	●	●	●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (D)	8-98122-620-0	01	1	1009-			●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 3300MM(33W) (C)	8-98006-774-0	01	1	1009-			●	●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 4100MM(41W) (B)	8-98073-376-0	01	1	1009-			●
385	03.704 BRACKET; SILENCER MTG (B)	8-98073-376-0	01	1	1009-					●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 4400MM(44W) (G)	8-98073-377-0	01	1	1009-				●
385	03.704 BRACKET; SILENCER MTG (G)	8-98073-377-0	01	1	1009-						●
460	03.609 PLATE; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W)	8-98122-619-0	01	1	1009-			●
532	03.704 NUT WHEEL BASE 2700MM(27W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1009-	●
532	03.704 NUT 03.162 M10 FLANGE	0-91180-110-0	02	1	1009-			●		●
532	03.704 NUT WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1009-				●
532	03.704 NUT WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	01	1	1009-1011	●
532	03.704 NUT 03.162 M10 FLANGE	0-91180-110-0	01	1	1009-1011		●
532	03.704 NUT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	01	1	1012-	●
532	03.704 NUT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FUEL TANK 140 LITTER<N19> 03.162 M10 FLANGE	0-91180-110-0	01	1	1012-			●
532	03.704 NUT 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	01	1	1012-		●
532	03.704 NUT WHEEL BASE 4400MM(44W) 01.062 M8 FLANGE	0-91180-108-0	02	1	1009-				●
532	03.704 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	1009-						●
574	03.706 SPACER; DPD 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (B)	8-98122-618-0	01	1	1009-			●
574	03.706 SPACER; DPD WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> (A)	8-98078-962-1	01	1	1009-			●
574	03.706 SPACER; DPD WHEEL BASE 3300MM(33W) (A)	8-98078-962-1	01	1	1009-				●
574	03.706 SPACER; DPD WHEEL BASE 3300MM(33W) EXC. FUEL TANK 140 LITTER<N19> (A)	8-98044-774-0	01	1	1009-			●
574	03.706 SPACER; DPD WHEEL BASE 4100MM(41W) (A)	8-98044-774-0	01	1	1009-			●
574	03.706 SPACER; DPD (A)	8-98044-774-0	01	1	1009-					●

122 121 143 24 118 117 115 113 376 578 113 115 81 576 118 117 115 337 577 579 115 352 124 200 532 377 574 532 172 385 385 385 385 143 385 14 12 329 570 84 376 556 562 560 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
12	03.701 SILENCER ASM; EXH (C)	8-97387-244-1	01	1	1009-1011	●	●
12	03.701 SILENCER ASM; EXH 4JJ1-TCS ENG(LFB) (C)	8-97387-244-1	01	1	1012-1308	●	●	●
12	03.701 SILENCER ASM; EXH 4JJ1-TCS ENG(LFB) (C)	8-98254-780-0	01	1	1309-	●	●	●
12	03.701 SILENCER ASM; EXH 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (B)	8-98097-779-0	01	1	1009-			●
12	03.701 SILENCER ASM; EXH 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A)	8-98020-562-1	01	1	1009-			●
12	03.701 SILENCER ASM; EXH (A)	8-98020-562-1	01	1	1009-				●	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE 03.611 (B) ID=65	8-97148-757-1	01	1	1009-1011	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE 4JJ1-TCS ENG(LFB) 03.611 (B) ID=65	8-97148-757-1	01	1	1012-	●	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE (A) ID=85.8	1-22116-043-0	01	1	1009-			●	●	●	●
24	03.613 COLLAR; DIST,CLAMP 03.706 L=37.5	9-22151-217-0	01	1	1009-			●	●	●	●
44	03.613 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	1009-	●	●	●	●	●	●
44	03.613 BOLT; BRKT 02.277 (A) M10X35 FLANGE	0-28651-035-0	02	1	1009-	●	●	●	●	●	●
44	03.613 BOLT; BRKT 02.042 (C) M10X25 FLANGE	0-28151-025-0	02	1	1009-1011	●	●
44	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) 02.042 (C) M10X25 FLANGE	0-28151-025-0	02	1	1012-	●	●	●
81	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1009-1011	●
81	03.704 NUT; BRKT 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1009-1011		●
81	03.704 NUT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1012-	●		●
81	03.704 NUT; BRKT 4JJ1-TCS ENG(LFB) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1012-		●
81	03.704 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1009-			●	●	●	●
84	03.611 GASKET; EXH PIPE WHEEL BASE 3300MM(33W) (B) ID=65	8-97148-757-1	01	1	1009-1011	●
84	03.611 GASKET; EXH PIPE (B) ID=65	8-97148-757-1	01	1	1009-1011		●
84	03.611 GASKET; EXH PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (B) ID=65	8-97148-757-1	01	1	1012-	●		●
84	03.611 GASKET; EXH PIPE 4JJ1-TCS ENG(LFB) (B) ID=65	8-97148-757-1	01	1	1012-		●
84	03.611 GASKET; EXH PIPE 03.704 (A) ID=85.8	1-22116-043-0	01	1	1009-			●	●	●	●
84	03.611 GASKET; EXH PIPE WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.704 (A) ID=85.8	1-22116-043-0	01	1	1009-			●	●
84	03.611 GASKET; EXH PIPE 03.704 (A) ID=85.8	1-22116-043-0	01	1	1009-					●	●
113	03.704 COLLAR; DIST,MTG BRKT 4JJ1-TCS ENG(LFB) 03.706 L=37.5	9-22151-217-0	02	1	1009-1011	●	●
113	03.704 COLLAR; DIST,MTG BRKT 4JJ1-TCS ENG(LFB) 03.706 L=37.5	9-22151-217-0	02	1	1012-	●	●	●
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	03	1	1009-			●	●	●	●
115	03.704 RUBBER; MTG,SILENCER 4JJ1-TCS ENG(LFB) (A)	8-94457-277-1	02	1	1009-1011	●	●
115	03.704 RUBBER; MTG,SILENCER 4JJ1-TCS ENG(LFB) (A)	8-94457-277-1	02	1	1012-	●	●	●
115	03.704 RUBBER; MTG,SILENCER 4JJ1-TCS ENG(LFB) (B)	8-94457-278-1	02	1	1009-1011	●	●
115	03.704 RUBBER; MTG,SILENCER 4JJ1-TCS ENG(LFB) (B)	8-94457-278-1	02	1	1012-	●	●	●
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	03	1	1009-			●	●	●	●
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	03	1	1009-			●	●	●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT 4JJ1-TCS ENG(LFB) OD=55	9-09852-169-0	02	1	1009-1011	●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT 4JJ1-TCS ENG(LFB) OD=55	9-09852-169-0	02	1	1012-	●	●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	03	1	1009-			●	●	●	●
118	03.704 NUT; SILENCER MTG BRKT 4JJ1-TCS ENG(LFB) 07.874 M10 FLANGE	5-09440-006-0	02	1	1009-1011	●	●
118	03.704 NUT; SILENCER MTG BRKT 4JJ1-TCS ENG(LFB) 07.874 M10 FLANGE	5-09440-006-0	02	1	1012-	●	●	●
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	03	1	1009-			●	●	●	●
121	03.704 WASHER; PL,BRKT OD=55	9-09852-169-0	01	1	1009-			●	●	●	●
122	03.275 NUT; HANGER BRKT 07.874 M10 FLANGE	5-09440-006-0	01	1	1009-			●	●	●	●
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	1009-	●	●	●	●	●	●
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	1009-			●	●	●	●
143	03.704 RUBBER; SUPPORT (D)	8-97080-694-0	01	1	1009-1011	●	●
143	03.704 RUBBER; SUPPORT 4JJ1-TCS ENG(LFB) (D)	8-97080-694-0	01	1	1012-	●	●	●
143	03.704 RUBBER; SUPPORT WHEEL BASE 3300MM(33W) (A)	8-98034-767-0	01	1	1009-	●
143	03.704 RUBBER; SUPPORT (A)	8-98034-767-0	01	1	1009-		●	●	●	●	●
143	03.704 RUBBER; SUPPORT (C)	8-94457-277-1	01	1	1009-			●	●	●	●
143	03.704 RUBBER; SUPPORT (B)	8-94457-278-1	01	1	1009-			●	●	●	●
172	03.708 BOLT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1012-			●
172	03.708 BOLT WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1009-1011	●
172	03.708 BOLT 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1009-1011		●
172	03.708 BOLT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1012-	●
172	03.708 BOLT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FUEL TANK 140 LITTER<N19> 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1012-			●
172	03.708 BOLT 4JJ1-TCS ENG(LFB) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1012-		●
172	03.708 BOLT WHEEL BASE 4400MM(44W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1009-				●
172	03.708 BOLT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1009-						●
200	03.704 BOLT; SUPPORT RUBBER 00.685 M10X40 FLANGE	0-28051-040-0	01	1	1009-			●	●	●	●
329	03.613 NUT; EXH PIPE TO PIPE 03.162 M10 FLANGE	0-91180-110-0	04	1	1009-			●	●	●	●
337	03.706 BOLT; RUBBER,SUPPORT 02.277 M10X35 FLANGE	0-28651-035-0	02	1	1009-	●	●	●	●	●	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1009-	●	●	●	●	●	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1009-			●	●	●	●
376	03.708 BOLT; BRKT 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1009-	●	●	●	●	●	●
376	03.708 BOLT; BRKT 4JJ1-TCS ENG(LFB) 03.690 (C)	8-98005-985-0	01	1	1009-1011	●	●
376	03.708 BOLT; BRKT 4JJ1-TCS ENG(LFB) 03.690 (C)	8-98005-985-0	01	1	1012-	●	●	●
376	03.708 BOLT; BRKT 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	1009-			●	●	●	●
377	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) 01.062 M8 FLANGE	0-91180-108-0	04	1	1009-			●
377	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> 03.162 M10 FLANGE	0-91180-110-0	01	1	1009-			●
377	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	01	1	1009-				●
377	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) EXC. FUEL TANK 140 LITTER<N19> 03.162 M10 FLANGE	0-91180-110-0	02	1	1009-			●
377	03.704 NUT; BRKT WHEEL BASE 4100MM(41W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1009-			●
377	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1009-					●
385	03.704 BRACKET; SILENCER MTG 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> (E)	8-98173-136-0	01	1	1012-			●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 2700MM(27W) (F)	8-98001-889-1	01	1	1009-1011	●
385	03.704 BRACKET; SILENCER MTG 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (F)	8-98001-889-1	01	1	1012-	●		●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 3300MM(33W) (E)	8-97387-251-1	01	1	1009-1011	●
385	03.704 BRACKET; SILENCER MTG (E)	8-97387-251-1	01	1	1009-1011		●
385	03.704 BRACKET; SILENCER MTG 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (E)	8-97387-251-1	01	1	1012-	●
385	03.704 BRACKET; SILENCER MTG 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FUEL TANK 140 LITTER<N19> (E)	8-97387-251-1	01	1	1012-			●
385	03.704 BRACKET; SILENCER MTG 4JJ1-TCS ENG(LFB) (E)	8-97387-251-1	01	1	1012-		●
385	03.704 BRACKET; SILENCER MTG (A)	8-98006-776-1	01	1	1009-			●	●	●	●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (D)	8-98122-620-0	01	1	1009-			●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 3300MM(33W) (C)	8-98006-774-0	01	1	1009-			●	●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 4100MM(41W) (B)	8-98073-376-0	01	1	1009-			●
385	03.704 BRACKET; SILENCER MTG (B)	8-98073-376-0	01	1	1009-					●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 4400MM(44W) (G)	8-98073-377-0	01	1	1009-				●
385	03.704 BRACKET; SILENCER MTG (G)	8-98073-377-0	01	1	1009-						●
532	03.704 NUT WHEEL BASE 2700MM(27W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1009-	●
532	03.704 NUT 03.162 M10 FLANGE	0-91180-110-0	02	1	1009-			●		●
532	03.704 NUT WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1009-				●
532	03.704 NUT WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	01	1	1009-1011	●
532	03.704 NUT 03.162 M10 FLANGE	0-91180-110-0	01	1	1009-1011		●
532	03.704 NUT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	01	1	1012-	●
532	03.704 NUT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FUEL TANK 140 LITTER<N19> 03.162 M10 FLANGE	0-91180-110-0	01	1	1012-			●
532	03.704 NUT 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	01	1	1012-		●
532	03.704 NUT WHEEL BASE 4400MM(44W) 01.062 M8 FLANGE	0-91180-108-0	02	1	1009-				●
532	03.704 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	1009-						●
556	03.701 DPD ASM 4HK1-TCN ENG(RDQ)	8-98039-162-6	01	1	1009-1010			●
556	03.701 DPD ASM	8-98039-162-6	01	1	1009-1010				●	●	●
556	03.701 DPD ASM 4HK1-TCN ENG(RDQ)	8-98084-602-4	01	1	1011-			●
556	03.701 DPD ASM	8-98084-602-4	01	1	1011-				●	●	●
556	03.701 DPD ASM	8-98036-810-7	01	1	1009-1011	●	●
556	03.701 DPD ASM	8-98084-595-4	01	1	1012-1012	●	●
556	03.701 DPD ASM 4JJ1-TCS ENG(LFB)	8-98084-595-4	01	1	1012-	●	●	●
560	03.611 GASKET; DPD (C)	8-97331-947-0	02	1	1009-1011	●	●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB) (C)	8-97331-947-0	02	1	1012-	●	●	●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB) (D) ID=64	8-97373-108-0	01	1	1009-1011	●	●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB) (D) ID=64	8-97373-108-0	01	1	1012-	●	●	●
560	03.611 GASKET; DPD (B)	1-22116-040-0	01	1	1009-			●	●	●	●
560	03.611 GASKET; DPD 4HK1-TCN ENG(RDQ) (A)	8-97611-080-0	02	1	1009-1505			●
560	03.611 GASKET; DPD (A)	8-97611-080-0	02	1	1009-1505				●	●	●
560	03.611 GASKET; DPD (A)	8-97611-080-0	02	1	1506-			●	●	●	●
562	03.690 PLATE; STUD,BOLT 4JJ1-TCS ENG(LFB) (C)	8-97373-966-0	02	1	1009-1011	●	●
562	03.690 PLATE; STUD,BOLT 4JJ1-TCS ENG(LFB) (C)	8-97373-966-0	02	1	1012-	●	●	●
562	03.690 PLATE; STUD,BOLT 03.685 (A) M12X35	1-22131-963-0	02	1	1009-1203			●	●	●	●
562	03.690 PLATE; STUD,BOLT 4HK1-TCN ENG(RDQ) 03.613 (A)	1-22131-962-0	02	1	1204-1505			●
562	03.690 PLATE; STUD,BOLT 03.613 (A)	1-22131-962-0	02	1	1204-1505				●	●	●
562	03.690 PLATE; STUD,BOLT 03.613 (A)	1-22131-962-0	02	1	1506-			●	●	●	●
562	03.690 PLATE; STUD,BOLT (B)	8-98030-175-0	01	1	1009-			●	●	●	●
570	03.704 ADAPTER; EXH PIPE	8-98073-373-0	01	1	1009-			●	●	●	●
574	03.706 SPACER; DPD 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (B)	8-98122-618-0	01	1	1009-			●
574	03.706 SPACER; DPD WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> (A)	8-98078-962-1	01	1	1009-			●
574	03.706 SPACER; DPD WHEEL BASE 3300MM(33W) (A)	8-98078-962-1	01	1	1009-				●
574	03.706 SPACER; DPD WHEEL BASE 3300MM(33W) EXC. FUEL TANK 140 LITTER<N19> (A)	8-98044-774-0	01	1	1009-			●
574	03.706 SPACER; DPD WHEEL BASE 4100MM(41W) (A)	8-98044-774-0	01	1	1009-			●
574	03.706 SPACER; DPD (A)	8-98044-774-0	01	1	1009-					●
576	03.706 BRACKET; DPD FRT TO FRAME 4JJ1-TCS ENG(LFB) (C)	8-97387-245-0	01	1	1009-1011	●	●
576	03.706 BRACKET; DPD FRT TO FRAME 4JJ1-TCS ENG(LFB) (C)	8-97387-245-0	01	1	1012-	●	●	●
576	03.706 BRACKET; DPD FRT TO FRAME WHEEL BASE 2700MM(27W) (A)	8-98122-616-0	01	1	1009-			●
576	03.706 BRACKET; DPD FRT TO FRAME WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B)	8-98006-770-0	01	1	1009-			●	●
576	03.706 BRACKET; DPD FRT TO FRAME (B)	8-98006-770-0	01	1	1009-					●	●
577	03.706 BRACKET; DPD RR TO FRAME (C)	8-97387-246-2	01	1	1009-1011	●	●
577	03.706 BRACKET; DPD RR TO FRAME 4JJ1-TCS ENG(LFB) (C)	8-97387-246-2	01	1	1012-	●	●	●
577	03.706 BRACKET; DPD RR TO FRAME WHEEL BASE 2700MM(27W) (A)	8-98124-656-0	01	1	1009-			●
577	03.706 BRACKET; DPD RR TO FRAME 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B)	8-98048-292-1	01	1	1009-			●
577	03.706 BRACKET; DPD RR TO FRAME (B)	8-98048-292-1	01	1	1009-				●	●	●
578	03.706 BRACKET; DPD FRT (B)	8-97387-248-1	01	1	1009-1011	●	●
578	03.706 BRACKET; DPD FRT 4JJ1-TCS ENG(LFB) (B)	8-97387-248-1	01	1	1012-	●	●	●
578	03.706 BRACKET; DPD FRT (A)	8-98048-296-0	01	1	1009-			●	●	●	●
579	03.704 BRACKET; DPD RR 4JJ1-TCS ENG(LFB) (C)	8-97387-249-1	01	1	1009-1011	●	●
579	03.704 BRACKET; DPD RR 4JJ1-TCS ENG(LFB) (C)	8-97387-249-1	01	1	1012-	●	●	●
579	03.704 BRACKET; DPD RR WHEEL BASE 2700MM(27W) (A)	8-98124-658-0	01	1	1009-			●
579	03.704 BRACKET; DPD RR 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B)	8-98048-300-1	01	1	1009-			●
579	03.704 BRACKET; DPD RR (B)	8-98048-300-1	01	1	1009-				●	●	●

126 88 105 357 104 95 124 137 164 165 166 94 38 162 81 137 70 125 97 126 105 357 88 164 95 165 104 137 162 166 94 124 143 94 38 84 36 3 144

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
3	03.609 PIPE; EXH,CENTER WHEEL BASE 3300MM(33W) (C)	8-98005-237-0	01	1	1009-1011	●
3	03.609 PIPE; EXH,CENTER (C)	8-98005-237-0	01	1	1009-1011		●
3	03.609 PIPE; EXH,CENTER 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (C)	8-98005-237-0	01	1	1012-	●		●
3	03.609 PIPE; EXH,CENTER 4JJ1-TCS ENG(LFB) (C)	8-98005-237-0	01	1	1012-		●
3	03.609 PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (B)	8-98097-777-1	01	1	1009-			●
3	03.609 PIPE; EXH,CENTER WHEEL BASE 4100MM(41W) (A)	8-98099-061-0	01	1	1009-			●
3	03.609 PIPE; EXH,CENTER (A)	8-98099-061-0	01	1	1009-					●
3	03.609 PIPE; EXH,CENTER WHEEL BASE 4400MM(44W) (A)	8-98099-062-0	01	1	1009-				●
3	03.609 PIPE; EXH,CENTER (A)	8-98099-062-0	01	1	1009-						●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1009-	●	●	●	●	●	●
36	03.613 NUT; EXH PIPE WHEEL BASE 3300MM(33W) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1009-1011	●
36	03.613 NUT; EXH PIPE 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1009-1011		●
36	03.613 NUT; EXH PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1012-	●		●
36	03.613 NUT; EXH PIPE 4JJ1-TCS ENG(LFB) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1012-		●
36	03.613 NUT; EXH PIPE WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1009-			●	●
36	03.613 NUT; EXH PIPE 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1009-					●	●
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	02	1	1009-1011	●	●
38	00.002 NUT; SILENCER 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-	●	●	●
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	04	1	1009-			●	●	●	●
70	03.706 BOLT; BRKT WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1009-1011	●
70	03.706 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1009-1011		●
70	03.706 BOLT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1012-	●		●
70	03.706 BOLT; BRKT 4JJ1-TCS ENG(LFB) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1012-		●
70	03.706 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1009-			●	●	●	●
81	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1009-1011	●
81	03.704 NUT; BRKT 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1009-1011		●
81	03.704 NUT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1012-	●		●
81	03.704 NUT; BRKT 4JJ1-TCS ENG(LFB) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1012-		●
81	03.704 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1009-			●	●	●	●
84	03.611 GASKET; EXH PIPE WHEEL BASE 3300MM(33W) (B) ID=65	8-97148-757-1	01	1	1009-1011	●
84	03.611 GASKET; EXH PIPE (B) ID=65	8-97148-757-1	01	1	1009-1011		●
84	03.611 GASKET; EXH PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (B) ID=65	8-97148-757-1	01	1	1012-	●		●
84	03.611 GASKET; EXH PIPE 4JJ1-TCS ENG(LFB) (B) ID=65	8-97148-757-1	01	1	1012-		●
84	03.611 GASKET; EXH PIPE 03.704 (A) ID=85.8	1-22116-043-0	01	1	1009-			●	●	●	●
84	03.611 GASKET; EXH PIPE WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.704 (A) ID=85.8	1-22116-043-0	01	1	1009-			●	●
84	03.611 GASKET; EXH PIPE 03.704 (A) ID=85.8	1-22116-043-0	01	1	1009-					●	●
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	1009-1011	●	●
88	03.708 CLAMP; EXH PIPE WHEEL BASE 3300MM(33W)	8-97373-158-0	01	1	1009-1011	●
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	1009-1011		●
88	03.708 CLAMP; EXH PIPE 4JJ1-TCS ENG(LFB)	8-97373-158-0	01	1	1012-	●	●	●
88	03.708 CLAMP; EXH PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W)	8-97373-158-0	01	1	1012-	●		●
88	03.708 CLAMP; EXH PIPE 4JJ1-TCS ENG(LFB)	8-97373-158-0	01	1	1012-		●
88	03.708 CLAMP; EXH PIPE	8-98034-766-0	01	1	1009-			●	●	●	●
94	03.704 BOLT; CLAMP 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1009-	●	●	●	●	●	●
94	03.704 BOLT; CLAMP WHEEL BASE 3300MM(33W) 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	1009-	●
94	03.704 BOLT; CLAMP 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	1009-		●	●	●	●	●
95	03.708 BOLT; BRKT WHEEL BASE 2700MM(27W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1009-	●
95	03.708 BOLT; BRKT WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1009-			●	●
95	03.708 BOLT; BRKT WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1009-	●
95	03.708 BOLT; BRKT WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1009-			●	●
95	03.708 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1009-		●			●	●
97	03.708 WASHER; PL,CLAMP WHEEL BASE 3300MM(33W) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1009-	●
97	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1009-		●	●	●	●	●
104	03.704 NUT; BRKT WHEEL BASE 2700MM(27W) 01.062 M8 FLANGE	0-91180-108-0	02	1	1009-	●
104	03.704 NUT; BRKT WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE	0-91180-108-0	02	1	1009-			●	●
104	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1009-	●
104	03.704 NUT; BRKT WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1009-			●	●
104	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1009-		●			●	●
105	03.704 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	1009-	●	●	●	●	●	●
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	1009-	●	●	●	●	●	●
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	1009-			●	●	●	●
125	03.708 NUT; CLAMP WHEEL BASE 3300MM(33W) 00.833 M10	0-91110-510-0	01	1	1009-	●
125	03.708 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	1009-		●	●	●	●	●
126	03.705 PIPE; EXH,RR WHEEL BASE 2700MM(27W) (D)	8-98020-604-0	01	1	1009-1011	●
126	03.705 PIPE; EXH,RR 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (D)	8-98020-604-0	01	1	1012-	●		●
126	03.705 PIPE; EXH,RR WHEEL BASE 3300MM(33W) (C)	8-98079-101-0	01	1	1009-1011	●
126	03.705 PIPE; EXH,RR (C)	8-98079-101-0	01	1	1009-1011		●
126	03.705 PIPE; EXH,RR 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (C)	8-98079-101-0	01	1	1012-	●		●
126	03.705 PIPE; EXH,RR 4JJ1-TCS ENG(LFB) (C)	8-98079-101-0	01	1	1012-		●
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (B)	8-98097-778-1	01	1	1009-			●
126	03.705 PIPE; EXH,RR WHEEL BASE 3300MM(33W) (A)	8-98045-047-0	01	1	1009-			●	●
126	03.705 PIPE; EXH,RR WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A)	8-98099-064-0	01	1	1009-			●	●
126	03.705 PIPE; EXH,RR (A)	8-98099-064-0	01	1	1009-					●	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2700MM(27W) (D)	8-97387-256-1	01	1	1009-1011	●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (D)	8-97387-256-1	01	1	1012-	●		●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) (F)	8-98001-913-0	01	1	1009-1011	●
137	03.706 BRACKET; TAIL PIPE (F)	8-98001-913-0	01	1	1009-1011		●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (F)	8-98001-913-0	01	1	1012-	●		●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCS ENG(LFB) (F)	8-98001-913-0	01	1	1012-		●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) (E)	8-98019-904-2	01	1	1009-1011	●
137	03.706 BRACKET; TAIL PIPE (E)	8-98019-904-2	01	1	1009-1011		●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (E)	8-98019-904-2	01	1	1012-	●		●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCS ENG(LFB) (E)	8-98019-904-2	01	1	1012-		●
137	03.706 BRACKET; TAIL PIPE 03.613 (B)	8-97096-651-0	01	1	1009-			●	●	●	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (C)	8-97116-588-2	01	1	1009-			●	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A)	8-97185-801-0	01	1	1009-			●	●
137	03.706 BRACKET; TAIL PIPE (A)	8-97185-801-0	01	1	1009-					●	●
143	03.704 RUBBER; SUPPORT (D)	8-97080-694-0	01	1	1009-1011	●	●
143	03.704 RUBBER; SUPPORT 4JJ1-TCS ENG(LFB) (D)	8-97080-694-0	01	1	1012-	●	●	●
143	03.704 RUBBER; SUPPORT WHEEL BASE 3300MM(33W) (A)	8-98034-767-0	01	1	1009-	●
143	03.704 RUBBER; SUPPORT (A)	8-98034-767-0	01	1	1009-		●	●	●	●	●
143	03.704 RUBBER; SUPPORT (C)	8-94457-277-1	01	1	1009-			●	●	●	●
143	03.704 RUBBER; SUPPORT (B)	8-94457-278-1	01	1	1009-			●	●	●	●
144	03.613 NUT; MTG RUBBER WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE	0-91180-108-0	01	1	1009-	●
144	03.613 NUT; MTG RUBBER 01.062 M8 FLANGE	0-91180-108-0	01	1	1009-		●	●	●	●	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 2700MM(27W) (B) L=115	8-98032-151-0	01	1	1009-1011	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (B) L=115	8-98032-151-0	01	1	1012-	●		●
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 3300MM(33W) (A) L=115	8-98034-765-0	01	1	1009-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE (A) L=115	8-98034-765-0	01	1	1009-		●	●	●	●	●
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 2700MM(27W) (B) L=23	8-98006-011-0	01	1	1009-1011	●
164	03.706 COLLAR; DIST,TAIL PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (B) L=23	8-98006-011-0	01	1	1012-	●		●
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 3300MM(33W) (A) L=37.5	9-22151-217-0	01	1	1009-	●
164	03.706 COLLAR; DIST,TAIL PIPE (A) L=37.5	9-22151-217-0	01	1	1009-		●	●	●	●	●
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 2700MM(27W) 00.685 M10X45 FLANGE	0-28051-045-0	01	1	1009-1011	●
165	03.706 BOLT; SUPPORT RUBBER 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 00.685 M10X45 FLANGE	0-28051-045-0	01	1	1012-	●		●
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) M10X70 FLANGE	0-28051-070-0	01	1	1009-	●
165	03.706 BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28051-070-0	01	1	1009-		●	●	●	●	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1009-	●	●	●	●	●	●
357	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1009-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
