Sayfa 1-40 - Isuzu EPC

1-40 — FUEL TANK (#78269) — 392 parça

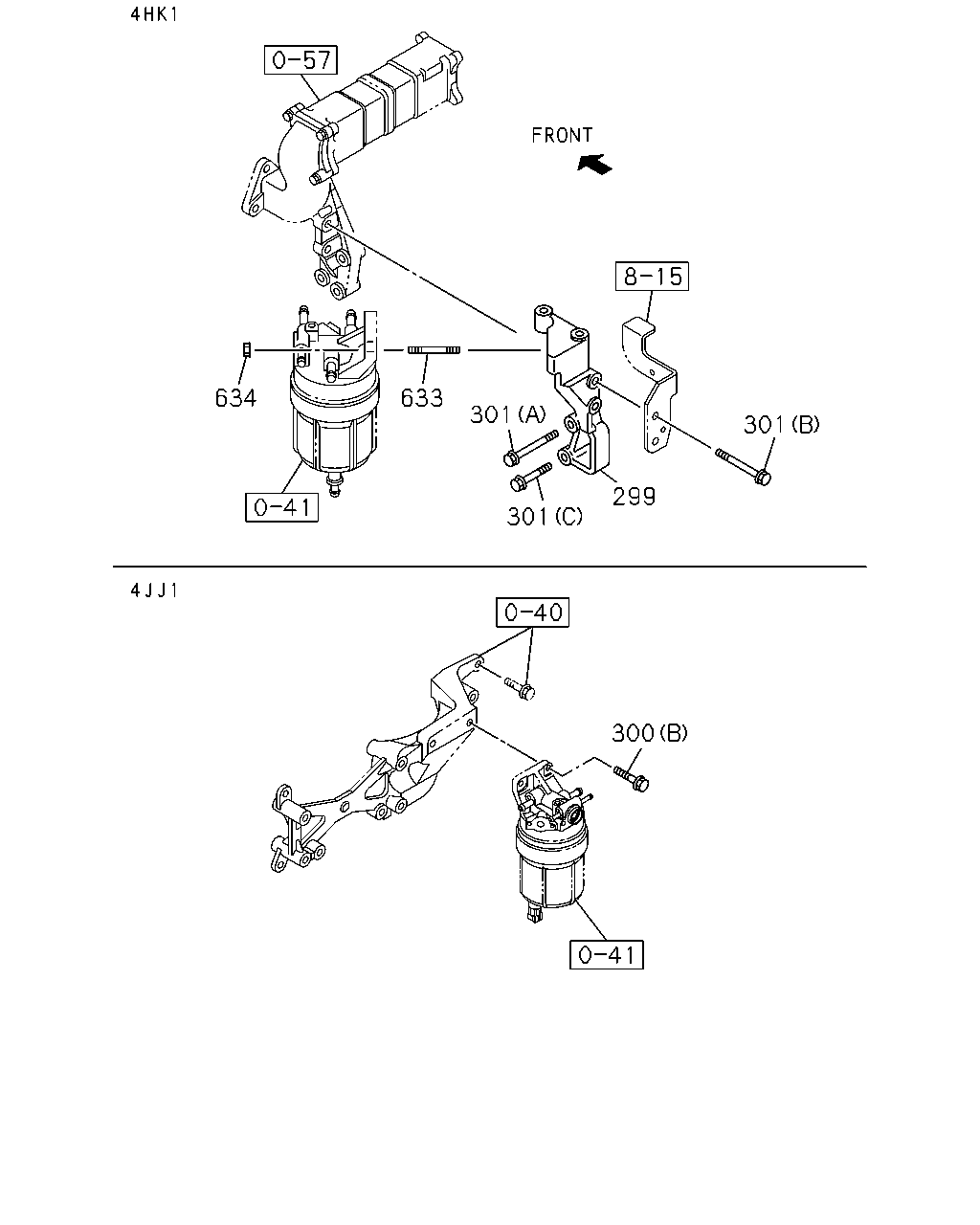

634 633 301 301 299 301 300

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
299	03.162 BRACKET; FUEL FILTER GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN)	8-98023-175-3	01	1	1009-	●	●	●	●
300	03.162 BOLT; BRKT TO BODY 4JJ1-TCS ENG(LFB) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1009-1011					●	●
300	03.162 BOLT; BRKT TO BODY 4JJ1-TCS ENG(LFB) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1012-	●				●	●
300	03.162 BOLT; BRKT TO BODY 03.613 (A) M10X40 FLANGE	0-28651-040-0	02	1	1009-					●	●
300	03.162 BOLT; BRKT TO BODY POOR QUALITY DIESEL FUEL(KF0) 03.613 (A) M10X40 FLANGE	0-28651-040-0	02	1	1009-	●	●	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 02.510 (A) M12X100 FLANGE	0-28151-200-0	01	1	1009-	●	●	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 00.685 (B) M12X50 FLANGE	0-28151-250-0	01	1	1009-	●	●	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 09.181 (C) M12X80	0-28151-280-0	01	1	1009-	●	●	●	●
633	03.162 STUD; BRKT TO SEDIMENTER GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 03.275 M8X25 L=37	0-41010-825-0	02	1	1009-	●	●	●	●
634	03.162 NUT; BRKT TO SEDIMENTER GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 01.062 M8 FLANGE	0-91180-108-0	02	1	1009-	●	●	●	●

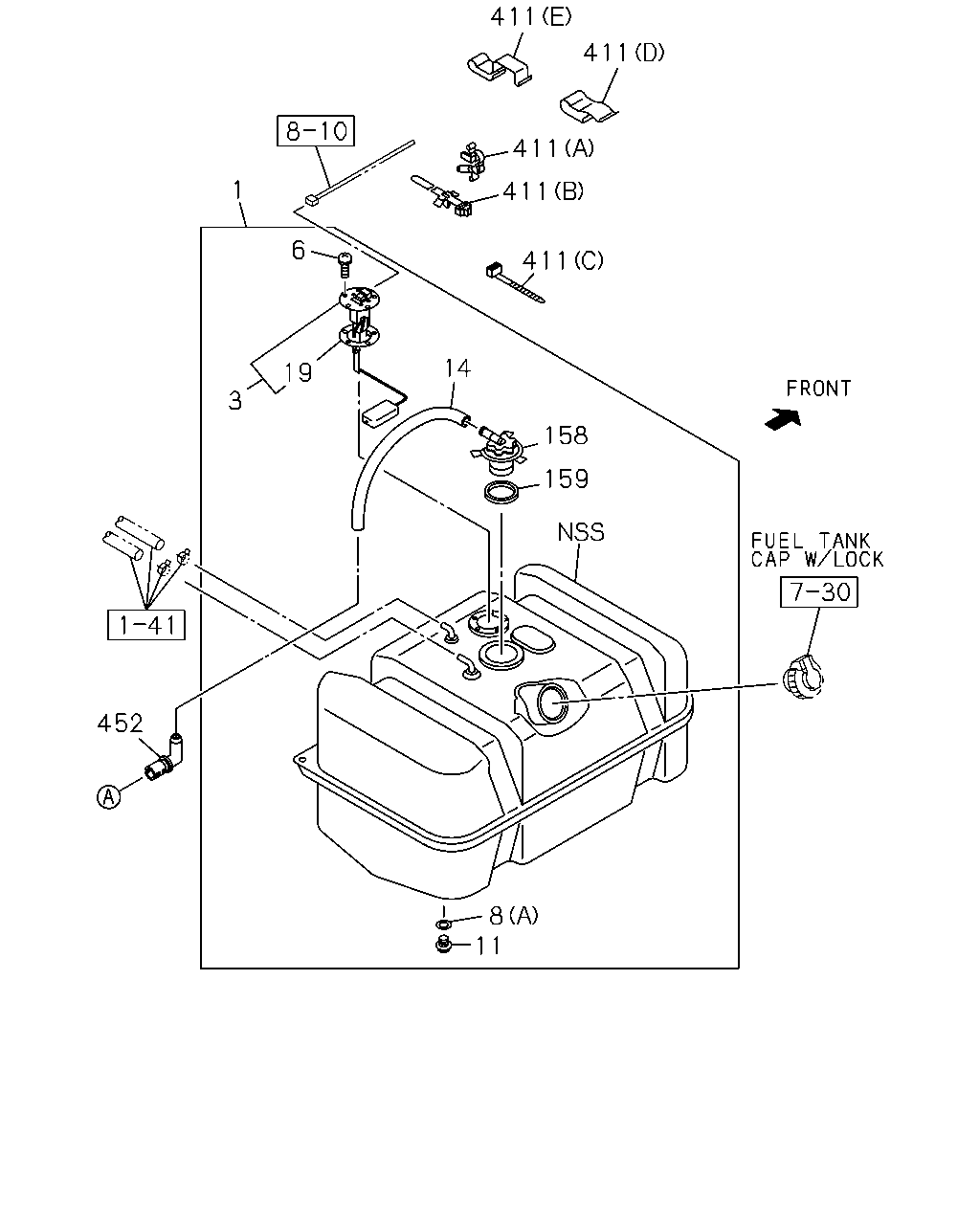

411 411 411 411 411 6 3 19 14 158 452 159 8 11 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.001 TANK; FUEL 756X482X376 100L	8-98062-738-4	01	1	1009-1507					●	●
1	03.001 TANK; FUEL FUEL TANK 100 LITTER<N02> 756X482X376 100L	8-98062-738-4	01	1	1009-1507	●
1	03.001 TANK; FUEL 756X482X376 100L	8-98153-048-2	01	1	1508-					●	●
1	03.001 TANK; FUEL FUEL TANK 100 LITTER<N02> 756X482X376 100L	8-98153-048-2	01	1	1508-	●
1	03.001 TANK; FUEL FUEL TANK 140 LITTER<N19> 820X500X400 140L	8-98051-031-4	01	1	1009-	●
1	03.001 TANK; FUEL 820X500X400 140L	8-98051-031-4	01	1	1009-		●	●	●
3	03.107 UNIT; FUEL TANK,SUB	8-98056-705-0	01	1	1009-					●	●
3	03.107 UNIT; FUEL TANK,SUB FUEL TANK 100 LITTER<N02>	8-98056-705-0	01	1	1009-	●
3	03.107 UNIT; FUEL TANK,SUB FUEL TANK 140 LITTER<N19>	8-98065-304-0	01	1	1009-	●
3	03.107 UNIT; FUEL TANK,SUB	8-98065-304-0	01	1	1009-		●	●	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN M5X12 W/LK WASHER	0-36220-512-0	05	1	1009-	●	●	●	●	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 140 LITTER<N19> 06.673 (C) ID=18.2 OD=26.0	9-09571-418-0	01	1	1009-	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 06.673 (C) ID=18.2 OD=26.0	9-09571-418-0	01	1	1009-		●	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 03.107 (A) ID=14.2 OD=23.0	9-09572-014-0	01	1	1009-					●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 100 LITTER<N02> 03.107 (A) ID=14.2 OD=23.0	9-09572-014-0	01	1	1009-	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 140 LITTER<N19> (B) ID=30	8-98067-041-0	01	1	1009-	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK (B) ID=30	8-98067-041-0	01	1	1009-		●	●	●
11	03.890 PLUG; DRAIN,FUEL TANK 01.453 M14X14	9-09862-156-0	01	1	1009-					●	●
11	03.890 PLUG; DRAIN,FUEL TANK FUEL TANK 100 LITTER<N02> 01.453 M14X14	9-09862-156-0	01	1	1009-	●
11	03.890 PLUG; DRAIN,FUEL TANK FUEL TANK 140 LITTER<N19> M18	8-98068-006-0	01	1	1009-	●
11	03.890 PLUG; DRAIN,FUEL TANK M18	8-98068-006-0	01	1	1009-		●	●	●
14	03.163 HOSE; BREATHER,OUTLET L=420	8-98157-809-0	01	1	1009-					●	●
14	03.163 HOSE; BREATHER,OUTLET FUEL TANK 100 LITTER<N02> L=420	8-98157-809-0	01	1	1009-	●
14	03.163 HOSE; BREATHER,OUTLET FUEL TANK 140 LITTER<N19> L=460	8-98082-184-1	01	1	1009-	●
14	03.163 HOSE; BREATHER,OUTLET L=460	8-98082-184-1	01	1	1009-		●	●	●
19	03.112 GASKET; FUEL TANK UNIT	8-98051-797-0	01	1	1009-					●	●
19	03.112 GASKET; FUEL TANK UNIT FUEL TANK 100 LITTER<N02>	8-98051-797-0	01	1	1009-	●
19	03.112 GASKET; FUEL TANK UNIT FUEL TANK 140 LITTER<N19> ID=42 OD=71	5-83148-001-0	01	1	1009-	●
19	03.112 GASKET; FUEL TANK UNIT ID=42 OD=71	5-83148-001-0	01	1	1009-		●	●	●
158	03.164 VALVE; ROLL OVER & FLOAT	8-97179-645-0	01	1	1009-					●	●
158	03.164 VALVE; ROLL OVER & FLOAT FUEL TANK 100 LITTER<N02>	8-97179-645-0	01	1	1009-	●
158	03.164 VALVE; ROLL OVER & FLOAT FUEL TANK 140 LITTER<N19>	8-98095-223-0	01	1	1009-	●
158	03.164 VALVE; ROLL OVER & FLOAT	8-98095-223-0	01	1	1009-		●	●	●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE	8-97326-488-0	01	1	1009-					●	●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE FUEL TANK 100 LITTER<N02>	8-97326-488-0	01	1	1009-	●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE FUEL TANK 140 LITTER<N19> ID=45 OD=67	1-83149-003-0	01	1	1009-	●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE ID=45 OD=67	1-83149-003-0	01	1	1009-		●	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2700MM(27W) 06.525 (A) ID=5-12 L=18	1-09709-287-0	02	1	1009-1011					●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2700MM(27W) 06.525 (A) ID=5-12 L=18	1-09709-287-0	02	1	1012-					●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18	1-09709-287-0	02	1	1012-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1009-1101					●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1009-1101	●	●	●	●		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1102-					●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1102-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1102-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1102-		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1102-			●	●		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 03.162 (C) L=140	5-09707-031-1	01	1	1009-1011	●	●	●	●	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2700MM(27W) 03.162 (C) L=140	5-09707-031-1	01	1	1009-1011	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 03.162 (C) L=140	5-09707-031-1	01	1	1012-	●	●	●	●	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140	5-09707-031-1	01	1	1012-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (D) T=5.5	8-97371-951-0	02	1	1009-1011					●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (D) T=5.5	8-97371-951-0	02	1	1009-1011	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) (D) T=5.5	8-97371-951-0	02	1	1009-1011		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (D) T=5.5	8-97371-951-0	02	1	1012-					●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5	8-97371-951-0	02	1	1012-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5	8-97371-951-0	02	1	1012-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) (D) T=5.5	8-97371-951-0	02	1	1012-		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (B) L=170.3	1-09987-182-0	01	1	1009-1009					●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS EXC. FUEL TANK 140 LITTER<N19> (B) L=170.3	1-09987-182-0	01	1	1009-1009	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (B) L=170.3	1-09987-182-0	01	1	1009-1011					●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (B) L=170.3	1-09987-182-0	01	1	1012-					●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS EXC. FUEL TANK 140 LITTER<N19>,FRAME STRAIGHT TYPE<7KJ> (B) L=170.3	1-09987-182-0	01	1	1012-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (E) T=4.5 & 9	8-97371-947-0	01	1	1009-1011	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (E) T=4.5 & 9	8-97371-947-0	01	1	1009-1011		●	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9	8-97371-947-0	01	1	1012-1407	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (E) T=4.5 & 9	8-97371-947-0	01	1	1012-1407		●	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9	8-97371-947-0	01	1	1408-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9	8-97371-947-0	01	1	1408-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (E) T=4.5 & 9	8-97371-947-0	01	1	1408-		●	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) (E) T=4.5 & 9	8-97371-947-0	01	1	1408-		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (E) T=4.5 & 9	8-97371-947-0	01	1	1408-			●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> (D) T=5.5	8-97371-951-0	04	1	1009-1011	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 4400MM(44W) (D) T=5.5	8-97371-951-0	04	1	1009-1011		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> (D) T=5.5	8-97371-951-0	04	1	1012-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 4400MM(44W) (D) T=5.5	8-97371-951-0	04	1	1012-		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> (D) T=5.5	8-97371-951-0	03	1	1009-1011	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 4400MM(44W) (D) T=5.5	8-97371-951-0	03	1	1009-1011		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> (D) T=5.5	8-97371-951-0	03	1	1012-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 4400MM(44W) (D) T=5.5	8-97371-951-0	03	1	1012-		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (E) T=4.5 & 9	8-97371-947-0	02	1	1009-1011	●	●	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9	8-97371-947-0	02	1	1012-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (E) T=4.5 & 9	8-97371-947-0	02	1	1012-		●	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (D) T=10.5	8-97371-950-0	03	1	1009-			●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (D) T=10.5	8-97371-950-0	04	1	1009-				●
452	03.028 BREATHER; FUEL TANK	8-97357-261-0	01	1	1009-					●	●
452	03.028 BREATHER; FUEL TANK FUEL TANK 100 LITTER<N02>	8-97357-261-0	01	1	1009-	●

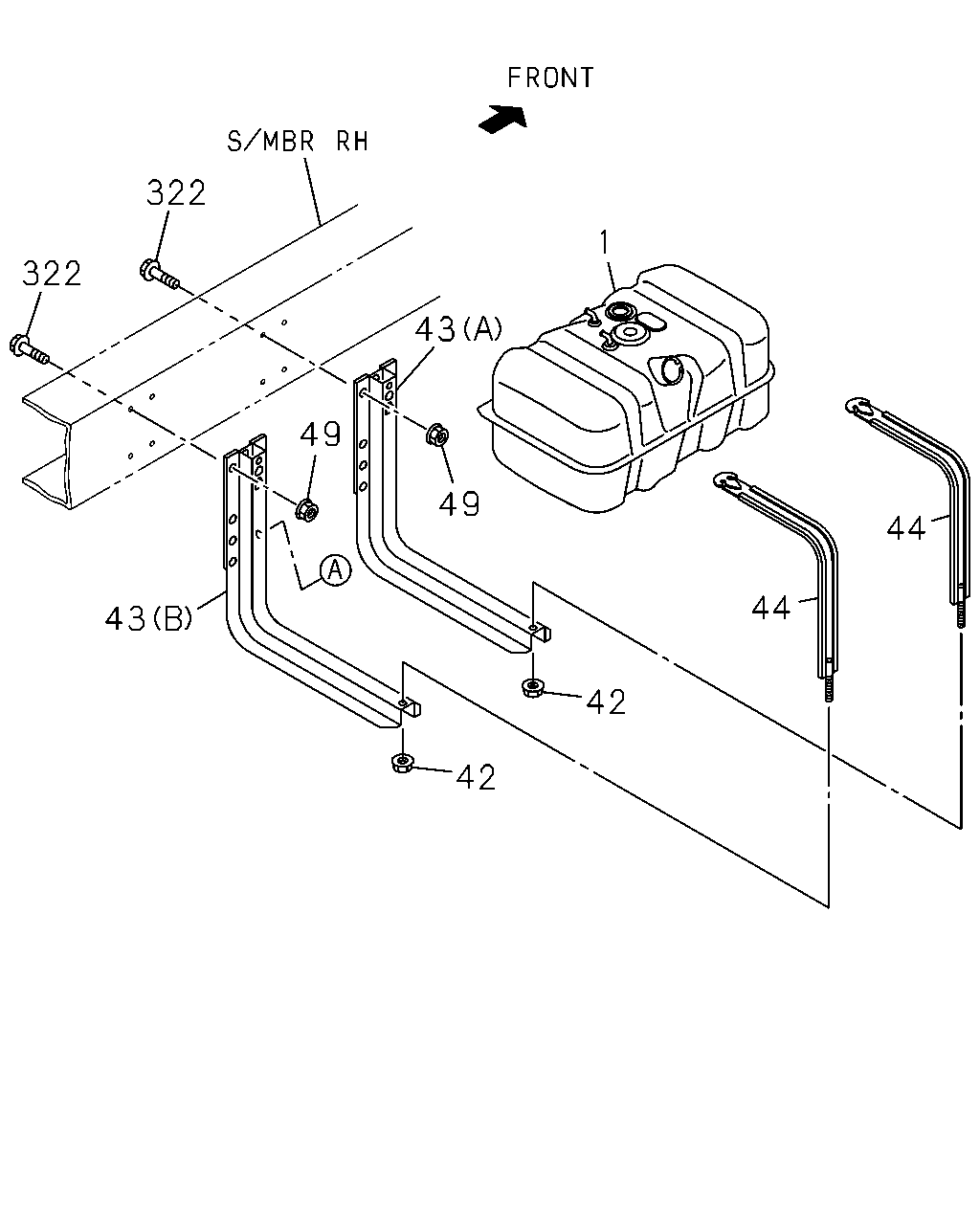

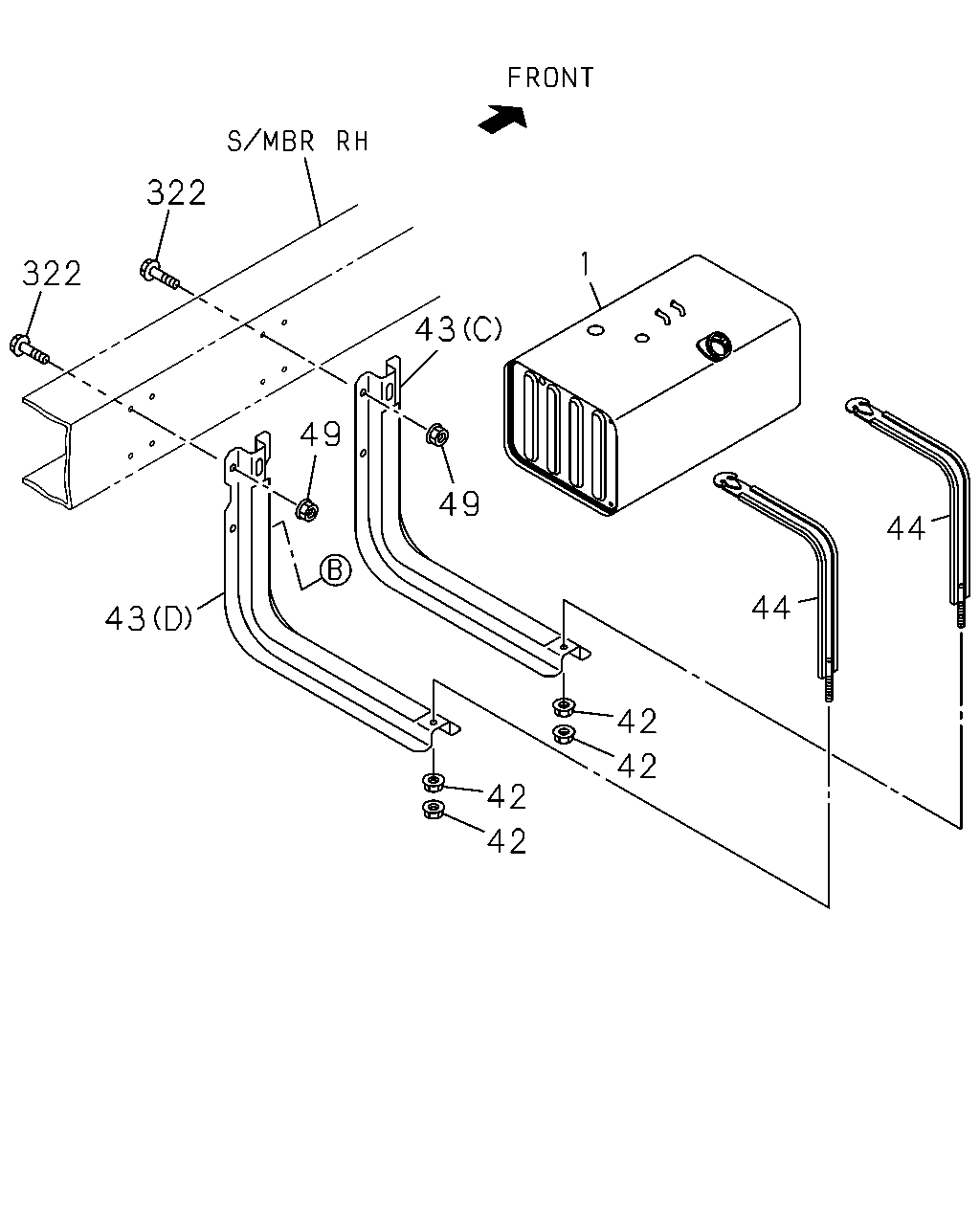

322 322 43 42 42 49 43 49 44 44 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.001 TANK; FUEL 756X482X376 100L	8-98062-738-4	01	1	1009-1507					●	●
1	03.001 TANK; FUEL FUEL TANK 100 LITTER<N02> 756X482X376 100L	8-98062-738-4	01	1	1009-1507	●
1	03.001 TANK; FUEL 756X482X376 100L	8-98153-048-2	01	1	1508-					●	●
1	03.001 TANK; FUEL FUEL TANK 100 LITTER<N02> 756X482X376 100L	8-98153-048-2	01	1	1508-	●
1	03.001 TANK; FUEL FUEL TANK 140 LITTER<N19> 820X500X400 140L	8-98051-031-4	01	1	1009-	●
1	03.001 TANK; FUEL 820X500X400 140L	8-98051-031-4	01	1	1009-		●	●	●
42	03.023 NUT; SUPPORT BELT M8 FLANGE	9-09130-408-0	02	1	1009-					●	●
42	03.023 NUT; SUPPORT BELT FUEL TANK 100 LITTER<N02> M8 FLANGE	9-09130-408-0	02	1	1009-	●
42	03.023 NUT; SUPPORT BELT FUEL TANK 140 LITTER<N19> 00.833 M10	0-91110-510-0	04	1	1009-	●
42	03.023 NUT; SUPPORT BELT 00.833 M10	0-91110-510-0	04	1	1009-		●	●	●
43	03.015 BRACKET; FUEL TANK FUEL TANK 140 LITTER<N19> (D)	8-98127-229-0	01	1	1009-	●
43	03.015 BRACKET; FUEL TANK (D)	8-98127-229-0	01	1	1009-		●	●	●
43	03.015 BRACKET; FUEL TANK (A)	8-97384-060-5	01	1	1009-					●	●
43	03.015 BRACKET; FUEL TANK FUEL TANK 100 LITTER<N02> (A)	8-97384-060-5	01	1	1009-	●
43	03.015 BRACKET; FUEL TANK (B)	8-97384-062-6	01	1	1009-					●	●
43	03.015 BRACKET; FUEL TANK FUEL TANK 100 LITTER<N02> (B)	8-97384-062-6	01	1	1009-	●
43	03.015 BRACKET; FUEL TANK FUEL TANK 140 LITTER<N19> (C)	8-98049-768-1	01	1	1009-	●
43	03.015 BRACKET; FUEL TANK (C)	8-98049-768-1	01	1	1009-		●	●	●
44	03.023 BAND; FUEL TANK L=795	8-97384-080-2	02	1	1009-					●	●
44	03.023 BAND; FUEL TANK FUEL TANK 100 LITTER<N02> L=795	8-97384-080-2	02	1	1009-	●
44	03.023 BAND; FUEL TANK FUEL TANK 140 LITTER<N19> L=925	8-98049-769-1	02	1	1009-	●
44	03.023 BAND; FUEL TANK L=925	8-98049-769-1	02	1	1009-		●	●	●
49	03.023 NUT; BRKT WHEEL BASE 2700MM(27W) 04.085 M10 FLANGE	0-91180-210-0	08	1	1009-1011	●	●	●	●	●	●
49	03.023 NUT; BRKT WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.085 M10 FLANGE	0-91180-210-0	08	1	1009-1011	●
49	03.023 NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.085 M10 FLANGE	0-91180-210-0	08	1	1009-1011	●
49	03.023 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	08	1	1009-1011		●	●	●		●
49	03.023 NUT; BRKT WHEEL BASE 2700MM(27W) 04.085 M10 FLANGE	0-91180-210-0	08	1	1012-1204					●
49	03.023 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	08	1	1012-1204	●	●	●	●		●
49	03.023 NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	08	1	1205-	●	●			●
49	03.023 NUT; BRKT WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> EXC. FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	08	1	1205-	●	●			●
49	03.023 NUT; BRKT WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.085 M10 FLANGE	0-91180-210-0	08	1	1205-	●				●
49	03.023 NUT; BRKT WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> EXC. FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	08	1	1205-	●				●
49	03.023 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	08	1	1205-			●	●		●
49	03.023 NUT; BRKT WHEEL BASE 3300MM(33W) 04.085 M10 FLANGE	0-91180-210-0	09	1	1009-1011					●
49	03.023 NUT; BRKT WHEEL BASE 3300MM(33W) 04.085 M10 FLANGE	0-91180-210-0	09	1	1012-					●
49	03.023 NUT; BRKT WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> EXC. FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	09	1	1012-	●
49	03.023 NUT; BRKT WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER(8GF) 04.085 M10 FLANGE	0-91180-210-0	07	1	1009-1011	●
49	03.023 NUT; BRKT WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 04.085 M10 FLANGE	0-91180-210-0	07	1	1012-	●
322	03.895 BOLT; BRKT FIX 03.613 M10X40 FLANGE	0-28661-040-0	08	1	1009-1011		●	●	●	●	●
322	03.895 BOLT; BRKT FIX WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) 03.613 M10X40 FLANGE	0-28661-040-0	08	1	1009-1011	●
322	03.895 BOLT; BRKT FIX 03.613 M10X40 FLANGE	0-28661-040-0	08	1	1012-1204	●	●	●	●	●	●
322	03.895 BOLT; BRKT FIX WHEEL BASE 3300MM(33W) 03.613 M10X40 FLANGE	0-28661-040-0	08	1	1205-	●	●			●	●
322	03.895 BOLT; BRKT FIX WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> EXC. FRAME STRAIGHT TYPE<7KJ> 03.613 M10X40 FLANGE	0-28661-040-0	08	1	1205-	●				●
322	03.895 BOLT; BRKT FIX WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 03.613 M10X40 FLANGE	0-28661-040-0	08	1	1205-	●	●	●	●
322	03.895 BOLT; BRKT FIX WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.613 M10X40 FLANGE	0-28661-040-0	06	1	1009-1011	●
322	03.895 BOLT; BRKT FIX WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.613 M10X40 FLANGE	0-28661-040-0	06	1	1012-	●
322	03.895 BOLT; BRKT FIX WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.613 M10X40 FLANGE	0-28661-040-0	07	1	1009-1011	●
322	03.895 BOLT; BRKT FIX WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.613 M10X40 FLANGE	0-28661-040-0	07	1	1012-	●

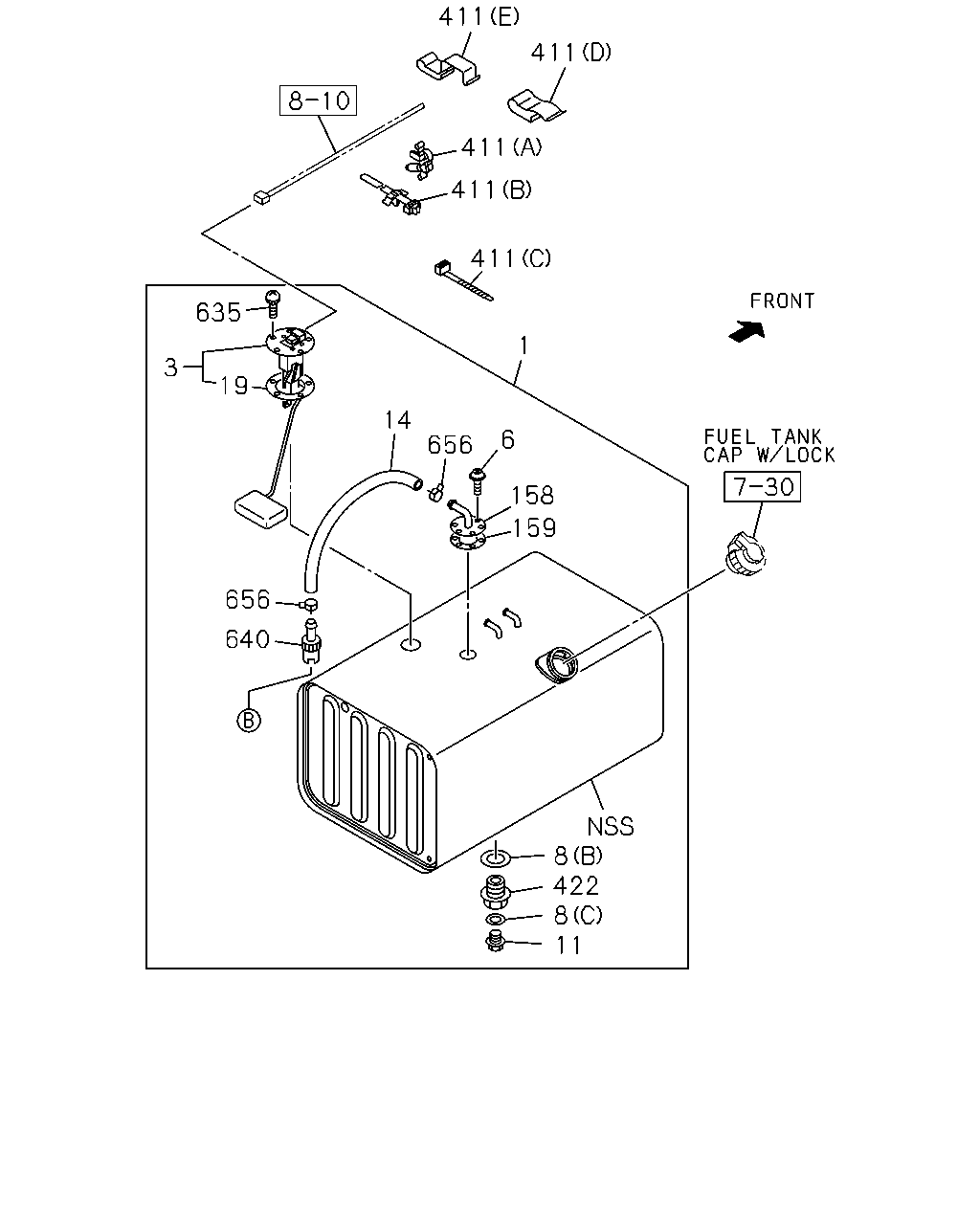

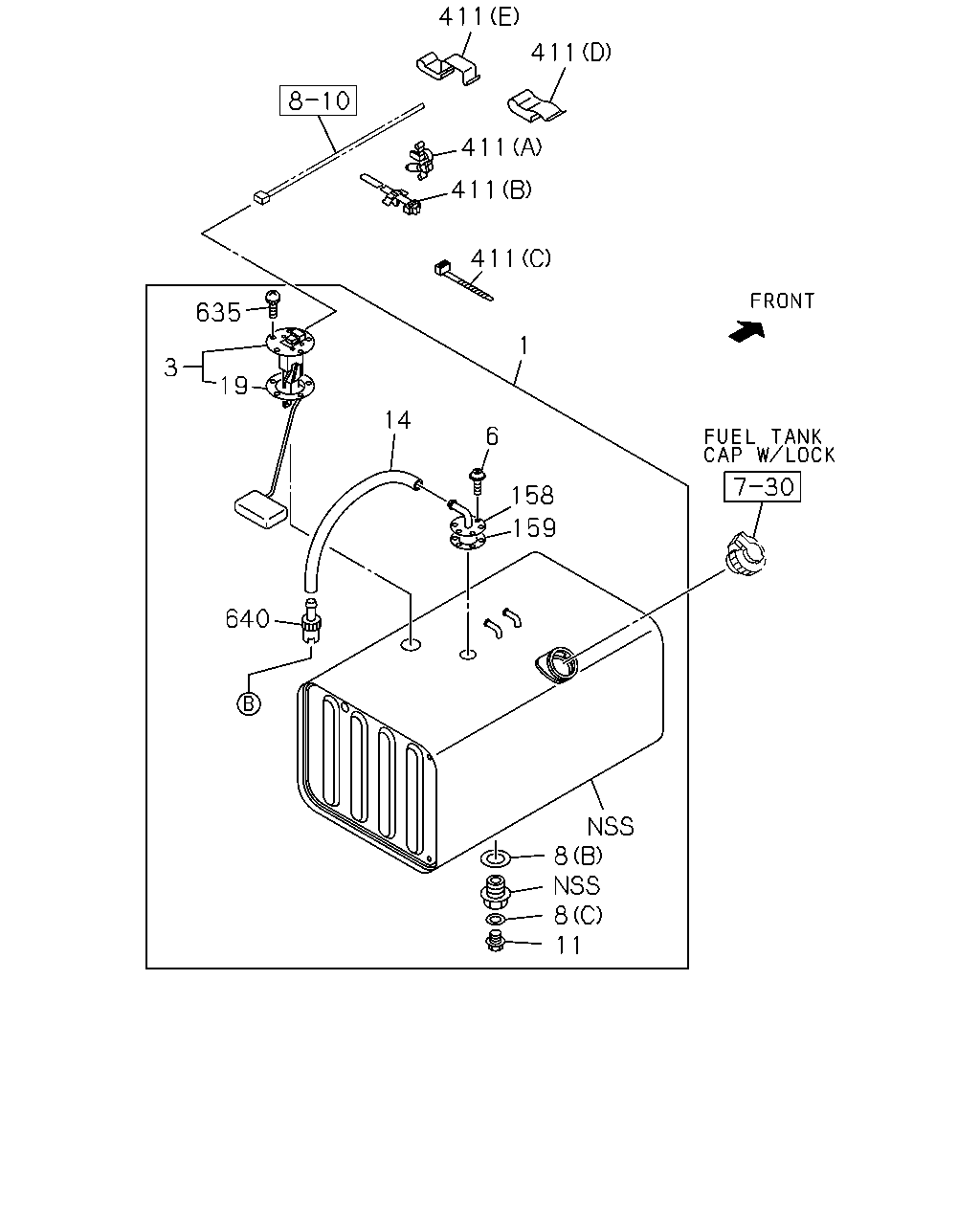

1 6 411 411 411 411 411 3 19 635 14 158 159 640 11 8 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.001 TANK; FUEL 756X482X376 100L	8-98062-738-4	01	1	1009-1507					●	●
1	03.001 TANK; FUEL FUEL TANK 100 LITTER<N02> 756X482X376 100L	8-98062-738-4	01	1	1009-1507	●
1	03.001 TANK; FUEL 756X482X376 100L	8-98153-048-2	01	1	1508-					●	●
1	03.001 TANK; FUEL FUEL TANK 100 LITTER<N02> 756X482X376 100L	8-98153-048-2	01	1	1508-	●
1	03.001 TANK; FUEL FUEL TANK 140 LITTER<N19> 820X500X400 140L	8-98051-031-4	01	1	1009-	●
1	03.001 TANK; FUEL 820X500X400 140L	8-98051-031-4	01	1	1009-		●	●	●
3	03.107 UNIT; FUEL TANK,SUB	8-98056-705-0	01	1	1009-					●	●
3	03.107 UNIT; FUEL TANK,SUB FUEL TANK 100 LITTER<N02>	8-98056-705-0	01	1	1009-	●
3	03.107 UNIT; FUEL TANK,SUB FUEL TANK 140 LITTER<N19>	8-98065-304-0	01	1	1009-	●
3	03.107 UNIT; FUEL TANK,SUB	8-98065-304-0	01	1	1009-		●	●	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN M5X12 W/LK WASHER	0-36220-512-0	05	1	1009-	●	●	●	●	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 140 LITTER<N19> 06.673 (C) ID=18.2 OD=26.0	9-09571-418-0	01	1	1009-	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 06.673 (C) ID=18.2 OD=26.0	9-09571-418-0	01	1	1009-		●	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 03.107 (A) ID=14.2 OD=23.0	9-09572-014-0	01	1	1009-					●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 100 LITTER<N02> 03.107 (A) ID=14.2 OD=23.0	9-09572-014-0	01	1	1009-	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 140 LITTER<N19> (B) ID=30	8-98067-041-0	01	1	1009-	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK (B) ID=30	8-98067-041-0	01	1	1009-		●	●	●
11	03.890 PLUG; DRAIN,FUEL TANK 01.453 M14X14	9-09862-156-0	01	1	1009-					●	●
11	03.890 PLUG; DRAIN,FUEL TANK FUEL TANK 100 LITTER<N02> 01.453 M14X14	9-09862-156-0	01	1	1009-	●
11	03.890 PLUG; DRAIN,FUEL TANK FUEL TANK 140 LITTER<N19> M18	8-98068-006-0	01	1	1009-	●
11	03.890 PLUG; DRAIN,FUEL TANK M18	8-98068-006-0	01	1	1009-		●	●	●
14	03.163 HOSE; BREATHER,OUTLET L=420	8-98157-809-0	01	1	1009-					●	●
14	03.163 HOSE; BREATHER,OUTLET FUEL TANK 100 LITTER<N02> L=420	8-98157-809-0	01	1	1009-	●
14	03.163 HOSE; BREATHER,OUTLET FUEL TANK 140 LITTER<N19> L=460	8-98082-184-1	01	1	1009-	●
14	03.163 HOSE; BREATHER,OUTLET L=460	8-98082-184-1	01	1	1009-		●	●	●
19	03.112 GASKET; FUEL TANK UNIT	8-98051-797-0	01	1	1009-					●	●
19	03.112 GASKET; FUEL TANK UNIT FUEL TANK 100 LITTER<N02>	8-98051-797-0	01	1	1009-	●
19	03.112 GASKET; FUEL TANK UNIT FUEL TANK 140 LITTER<N19> ID=42 OD=71	5-83148-001-0	01	1	1009-	●
19	03.112 GASKET; FUEL TANK UNIT ID=42 OD=71	5-83148-001-0	01	1	1009-		●	●	●
158	03.164 VALVE; ROLL OVER & FLOAT	8-97179-645-0	01	1	1009-					●	●
158	03.164 VALVE; ROLL OVER & FLOAT FUEL TANK 100 LITTER<N02>	8-97179-645-0	01	1	1009-	●
158	03.164 VALVE; ROLL OVER & FLOAT FUEL TANK 140 LITTER<N19>	8-98095-223-0	01	1	1009-	●
158	03.164 VALVE; ROLL OVER & FLOAT	8-98095-223-0	01	1	1009-		●	●	●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE	8-97326-488-0	01	1	1009-					●	●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE FUEL TANK 100 LITTER<N02>	8-97326-488-0	01	1	1009-	●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE FUEL TANK 140 LITTER<N19> ID=45 OD=67	1-83149-003-0	01	1	1009-	●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE ID=45 OD=67	1-83149-003-0	01	1	1009-		●	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2700MM(27W) 06.525 (A) ID=5-12 L=18	1-09709-287-0	02	1	1009-1011					●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2700MM(27W) 06.525 (A) ID=5-12 L=18	1-09709-287-0	02	1	1012-					●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18	1-09709-287-0	02	1	1012-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1009-1101					●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1009-1101	●	●	●	●		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1102-					●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1102-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1102-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1102-		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1102-			●	●		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 03.162 (C) L=140	5-09707-031-1	01	1	1009-1011	●	●	●	●	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2700MM(27W) 03.162 (C) L=140	5-09707-031-1	01	1	1009-1011	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 03.162 (C) L=140	5-09707-031-1	01	1	1012-	●	●	●	●	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140	5-09707-031-1	01	1	1012-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (D) T=5.5	8-97371-951-0	02	1	1009-1011					●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (D) T=5.5	8-97371-951-0	02	1	1009-1011	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) (D) T=5.5	8-97371-951-0	02	1	1009-1011		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (D) T=5.5	8-97371-951-0	02	1	1012-					●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5	8-97371-951-0	02	1	1012-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5	8-97371-951-0	02	1	1012-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) (D) T=5.5	8-97371-951-0	02	1	1012-		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (B) L=170.3	1-09987-182-0	01	1	1009-1009					●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS EXC. FUEL TANK 140 LITTER<N19> (B) L=170.3	1-09987-182-0	01	1	1009-1009	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (B) L=170.3	1-09987-182-0	01	1	1009-1011					●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (B) L=170.3	1-09987-182-0	01	1	1012-					●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS EXC. FUEL TANK 140 LITTER<N19>,FRAME STRAIGHT TYPE<7KJ> (B) L=170.3	1-09987-182-0	01	1	1012-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (E) T=4.5 & 9	8-97371-947-0	01	1	1009-1011	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (E) T=4.5 & 9	8-97371-947-0	01	1	1009-1011		●	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9	8-97371-947-0	01	1	1012-1407	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (E) T=4.5 & 9	8-97371-947-0	01	1	1012-1407		●	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9	8-97371-947-0	01	1	1408-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9	8-97371-947-0	01	1	1408-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (E) T=4.5 & 9	8-97371-947-0	01	1	1408-		●	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) (E) T=4.5 & 9	8-97371-947-0	01	1	1408-		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (E) T=4.5 & 9	8-97371-947-0	01	1	1408-			●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> (D) T=5.5	8-97371-951-0	04	1	1009-1011	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 4400MM(44W) (D) T=5.5	8-97371-951-0	04	1	1009-1011		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> (D) T=5.5	8-97371-951-0	04	1	1012-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 4400MM(44W) (D) T=5.5	8-97371-951-0	04	1	1012-		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> (D) T=5.5	8-97371-951-0	03	1	1009-1011	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 4400MM(44W) (D) T=5.5	8-97371-951-0	03	1	1009-1011		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> (D) T=5.5	8-97371-951-0	03	1	1012-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 4400MM(44W) (D) T=5.5	8-97371-951-0	03	1	1012-		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (E) T=4.5 & 9	8-97371-947-0	02	1	1009-1011	●	●	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9	8-97371-947-0	02	1	1012-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (E) T=4.5 & 9	8-97371-947-0	02	1	1012-		●	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (D) T=10.5	8-97371-950-0	03	1	1009-			●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (D) T=10.5	8-97371-950-0	04	1	1009-				●
635	03.001 SCREW; ROLL OVER & FLOAT VALVE FUEL TANK 140 LITTER<N19> 02.361 M5X10 W/LK WASHER	0-36220-510-0	05	1	1009-	●
635	03.001 SCREW; ROLL OVER & FLOAT VALVE 02.361 M5X10 W/LK WASHER	0-36220-510-0	05	1	1009-		●	●	●
640	03.164 VENTILATOR; HOSE,BREATHER FUEL TANK 140 LITTER<N19>	8-98092-398-0	01	1	1009-	●
640	03.164 VENTILATOR; HOSE,BREATHER	8-98092-398-0	01	1	1009-		●	●	●

411 411 411 411 411 635 3 19 656 640 422 8 11 8 158 159 656 6 14 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.001 TANK; FUEL 756X482X376 100L	8-98062-738-4	01	1	1009-1507					●	●
1	03.001 TANK; FUEL FUEL TANK 100 LITTER<N02> 756X482X376 100L	8-98062-738-4	01	1	1009-1507	●
1	03.001 TANK; FUEL 756X482X376 100L	8-98153-048-2	01	1	1508-					●	●
1	03.001 TANK; FUEL FUEL TANK 100 LITTER<N02> 756X482X376 100L	8-98153-048-2	01	1	1508-	●
1	03.001 TANK; FUEL FUEL TANK 140 LITTER<N19> 820X500X400 140L	8-98051-031-4	01	1	1009-	●
1	03.001 TANK; FUEL 820X500X400 140L	8-98051-031-4	01	1	1009-		●	●	●
3	03.107 UNIT; FUEL TANK,SUB	8-98056-705-0	01	1	1009-					●	●
3	03.107 UNIT; FUEL TANK,SUB FUEL TANK 100 LITTER<N02>	8-98056-705-0	01	1	1009-	●
3	03.107 UNIT; FUEL TANK,SUB FUEL TANK 140 LITTER<N19>	8-98065-304-0	01	1	1009-	●
3	03.107 UNIT; FUEL TANK,SUB	8-98065-304-0	01	1	1009-		●	●	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN M5X12 W/LK WASHER	0-36220-512-0	05	1	1009-	●	●	●	●	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 140 LITTER<N19> 06.673 (C) ID=18.2 OD=26.0	9-09571-418-0	01	1	1009-	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 06.673 (C) ID=18.2 OD=26.0	9-09571-418-0	01	1	1009-		●	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 03.107 (A) ID=14.2 OD=23.0	9-09572-014-0	01	1	1009-					●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 100 LITTER<N02> 03.107 (A) ID=14.2 OD=23.0	9-09572-014-0	01	1	1009-	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 140 LITTER<N19> (B) ID=30	8-98067-041-0	01	1	1009-	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK (B) ID=30	8-98067-041-0	01	1	1009-		●	●	●
11	03.890 PLUG; DRAIN,FUEL TANK 01.453 M14X14	9-09862-156-0	01	1	1009-					●	●
11	03.890 PLUG; DRAIN,FUEL TANK FUEL TANK 100 LITTER<N02> 01.453 M14X14	9-09862-156-0	01	1	1009-	●
11	03.890 PLUG; DRAIN,FUEL TANK FUEL TANK 140 LITTER<N19> M18	8-98068-006-0	01	1	1009-	●
11	03.890 PLUG; DRAIN,FUEL TANK M18	8-98068-006-0	01	1	1009-		●	●	●
14	03.163 HOSE; BREATHER,OUTLET L=420	8-98157-809-0	01	1	1009-					●	●
14	03.163 HOSE; BREATHER,OUTLET FUEL TANK 100 LITTER<N02> L=420	8-98157-809-0	01	1	1009-	●
14	03.163 HOSE; BREATHER,OUTLET FUEL TANK 140 LITTER<N19> L=460	8-98082-184-1	01	1	1009-	●
14	03.163 HOSE; BREATHER,OUTLET L=460	8-98082-184-1	01	1	1009-		●	●	●
19	03.112 GASKET; FUEL TANK UNIT	8-98051-797-0	01	1	1009-					●	●
19	03.112 GASKET; FUEL TANK UNIT FUEL TANK 100 LITTER<N02>	8-98051-797-0	01	1	1009-	●
19	03.112 GASKET; FUEL TANK UNIT FUEL TANK 140 LITTER<N19> ID=42 OD=71	5-83148-001-0	01	1	1009-	●
19	03.112 GASKET; FUEL TANK UNIT ID=42 OD=71	5-83148-001-0	01	1	1009-		●	●	●
158	03.164 VALVE; ROLL OVER & FLOAT	8-97179-645-0	01	1	1009-					●	●
158	03.164 VALVE; ROLL OVER & FLOAT FUEL TANK 100 LITTER<N02>	8-97179-645-0	01	1	1009-	●
158	03.164 VALVE; ROLL OVER & FLOAT FUEL TANK 140 LITTER<N19>	8-98095-223-0	01	1	1009-	●
158	03.164 VALVE; ROLL OVER & FLOAT	8-98095-223-0	01	1	1009-		●	●	●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE	8-97326-488-0	01	1	1009-					●	●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE FUEL TANK 100 LITTER<N02>	8-97326-488-0	01	1	1009-	●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE FUEL TANK 140 LITTER<N19> ID=45 OD=67	1-83149-003-0	01	1	1009-	●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE ID=45 OD=67	1-83149-003-0	01	1	1009-		●	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2700MM(27W) 06.525 (A) ID=5-12 L=18	1-09709-287-0	02	1	1009-1011					●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2700MM(27W) 06.525 (A) ID=5-12 L=18	1-09709-287-0	02	1	1012-					●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18	1-09709-287-0	02	1	1012-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1009-1101					●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1009-1101	●	●	●	●		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1102-					●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1102-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1102-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1102-		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	1102-			●	●		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 03.162 (C) L=140	5-09707-031-1	01	1	1009-1011	●	●	●	●	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2700MM(27W) 03.162 (C) L=140	5-09707-031-1	01	1	1009-1011	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 03.162 (C) L=140	5-09707-031-1	01	1	1012-	●	●	●	●	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140	5-09707-031-1	01	1	1012-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (D) T=5.5	8-97371-951-0	02	1	1009-1011					●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (D) T=5.5	8-97371-951-0	02	1	1009-1011	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) (D) T=5.5	8-97371-951-0	02	1	1009-1011		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (D) T=5.5	8-97371-951-0	02	1	1012-					●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5	8-97371-951-0	02	1	1012-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5	8-97371-951-0	02	1	1012-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) (D) T=5.5	8-97371-951-0	02	1	1012-		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (B) L=170.3	1-09987-182-0	01	1	1009-1009					●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS EXC. FUEL TANK 140 LITTER<N19> (B) L=170.3	1-09987-182-0	01	1	1009-1009	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (B) L=170.3	1-09987-182-0	01	1	1009-1011					●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (B) L=170.3	1-09987-182-0	01	1	1012-					●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS EXC. FUEL TANK 140 LITTER<N19>,FRAME STRAIGHT TYPE<7KJ> (B) L=170.3	1-09987-182-0	01	1	1012-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (E) T=4.5 & 9	8-97371-947-0	01	1	1009-1011	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (E) T=4.5 & 9	8-97371-947-0	01	1	1009-1011		●	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9	8-97371-947-0	01	1	1012-1407	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (E) T=4.5 & 9	8-97371-947-0	01	1	1012-1407		●	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9	8-97371-947-0	01	1	1408-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9	8-97371-947-0	01	1	1408-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (E) T=4.5 & 9	8-97371-947-0	01	1	1408-		●	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) (E) T=4.5 & 9	8-97371-947-0	01	1	1408-		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (E) T=4.5 & 9	8-97371-947-0	01	1	1408-			●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> (D) T=5.5	8-97371-951-0	04	1	1009-1011	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 4400MM(44W) (D) T=5.5	8-97371-951-0	04	1	1009-1011		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> (D) T=5.5	8-97371-951-0	04	1	1012-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 4400MM(44W) (D) T=5.5	8-97371-951-0	04	1	1012-		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> (D) T=5.5	8-97371-951-0	03	1	1009-1011	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 4400MM(44W) (D) T=5.5	8-97371-951-0	03	1	1009-1011		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> (D) T=5.5	8-97371-951-0	03	1	1012-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 4400MM(44W) (D) T=5.5	8-97371-951-0	03	1	1012-		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (E) T=4.5 & 9	8-97371-947-0	02	1	1009-1011	●	●	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9	8-97371-947-0	02	1	1012-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (E) T=4.5 & 9	8-97371-947-0	02	1	1012-		●	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (D) T=10.5	8-97371-950-0	03	1	1009-			●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (D) T=10.5	8-97371-950-0	04	1	1009-				●
422	03.023 PLUG; FUEL TANK FUEL TANK 140 LITTER<N19> 03.890 M30	8-98067-038-0	01	1	1504-	●
422	03.023 PLUG; FUEL TANK 03.890 M30	8-98067-038-0	01	1	1504-		●	●	●
635	03.001 SCREW; ROLL OVER & FLOAT VALVE FUEL TANK 140 LITTER<N19> 02.361 M5X10 W/LK WASHER	0-36220-510-0	05	1	1009-	●
635	03.001 SCREW; ROLL OVER & FLOAT VALVE 02.361 M5X10 W/LK WASHER	0-36220-510-0	05	1	1009-		●	●	●
640	03.164 VENTILATOR; HOSE,BREATHER FUEL TANK 140 LITTER<N19>	8-98092-398-0	01	1	1009-	●
640	03.164 VENTILATOR; HOSE,BREATHER	8-98092-398-0	01	1	1009-		●	●	●
656	03.023 CLAMP; FUEL TANK FUEL TANK 140 LITTER<N19>	8-98304-416-0	02	1	1504-	●
656	03.023 CLAMP; FUEL TANK	8-98304-416-0	02	1	1504-		●	●	●

43 322 322 43 49 49 42 42 42 42 44 44 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.001 TANK; FUEL 756X482X376 100L	8-98062-738-4	01	1	1009-1507					●	●
1	03.001 TANK; FUEL FUEL TANK 100 LITTER<N02> 756X482X376 100L	8-98062-738-4	01	1	1009-1507	●
1	03.001 TANK; FUEL 756X482X376 100L	8-98153-048-2	01	1	1508-					●	●
1	03.001 TANK; FUEL FUEL TANK 100 LITTER<N02> 756X482X376 100L	8-98153-048-2	01	1	1508-	●
1	03.001 TANK; FUEL FUEL TANK 140 LITTER<N19> 820X500X400 140L	8-98051-031-4	01	1	1009-	●
1	03.001 TANK; FUEL 820X500X400 140L	8-98051-031-4	01	1	1009-		●	●	●
42	03.023 NUT; SUPPORT BELT M8 FLANGE	9-09130-408-0	02	1	1009-					●	●
42	03.023 NUT; SUPPORT BELT FUEL TANK 100 LITTER<N02> M8 FLANGE	9-09130-408-0	02	1	1009-	●
42	03.023 NUT; SUPPORT BELT FUEL TANK 140 LITTER<N19> 00.833 M10	0-91110-510-0	04	1	1009-	●
42	03.023 NUT; SUPPORT BELT 00.833 M10	0-91110-510-0	04	1	1009-		●	●	●
43	03.015 BRACKET; FUEL TANK FUEL TANK 140 LITTER<N19> (D)	8-98127-229-0	01	1	1009-	●
43	03.015 BRACKET; FUEL TANK (D)	8-98127-229-0	01	1	1009-		●	●	●
43	03.015 BRACKET; FUEL TANK (A)	8-97384-060-5	01	1	1009-					●	●
43	03.015 BRACKET; FUEL TANK FUEL TANK 100 LITTER<N02> (A)	8-97384-060-5	01	1	1009-	●
43	03.015 BRACKET; FUEL TANK (B)	8-97384-062-6	01	1	1009-					●	●
43	03.015 BRACKET; FUEL TANK FUEL TANK 100 LITTER<N02> (B)	8-97384-062-6	01	1	1009-	●
43	03.015 BRACKET; FUEL TANK FUEL TANK 140 LITTER<N19> (C)	8-98049-768-1	01	1	1009-	●
43	03.015 BRACKET; FUEL TANK (C)	8-98049-768-1	01	1	1009-		●	●	●
44	03.023 BAND; FUEL TANK L=795	8-97384-080-2	02	1	1009-					●	●
44	03.023 BAND; FUEL TANK FUEL TANK 100 LITTER<N02> L=795	8-97384-080-2	02	1	1009-	●
44	03.023 BAND; FUEL TANK FUEL TANK 140 LITTER<N19> L=925	8-98049-769-1	02	1	1009-	●
44	03.023 BAND; FUEL TANK L=925	8-98049-769-1	02	1	1009-		●	●	●
49	03.023 NUT; BRKT WHEEL BASE 2700MM(27W) 04.085 M10 FLANGE	0-91180-210-0	08	1	1009-1011	●	●	●	●	●	●
49	03.023 NUT; BRKT WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.085 M10 FLANGE	0-91180-210-0	08	1	1009-1011	●
49	03.023 NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.085 M10 FLANGE	0-91180-210-0	08	1	1009-1011	●
49	03.023 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	08	1	1009-1011		●	●	●		●
49	03.023 NUT; BRKT WHEEL BASE 2700MM(27W) 04.085 M10 FLANGE	0-91180-210-0	08	1	1012-1204					●
49	03.023 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	08	1	1012-1204	●	●	●	●		●
49	03.023 NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	08	1	1205-	●	●			●
49	03.023 NUT; BRKT WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> EXC. FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	08	1	1205-	●	●			●
49	03.023 NUT; BRKT WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.085 M10 FLANGE	0-91180-210-0	08	1	1205-	●				●
49	03.023 NUT; BRKT WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> EXC. FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	08	1	1205-	●				●
49	03.023 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	08	1	1205-			●	●		●
49	03.023 NUT; BRKT WHEEL BASE 3300MM(33W) 04.085 M10 FLANGE	0-91180-210-0	09	1	1009-1011					●
49	03.023 NUT; BRKT WHEEL BASE 3300MM(33W) 04.085 M10 FLANGE	0-91180-210-0	09	1	1012-					●
49	03.023 NUT; BRKT WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> EXC. FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	09	1	1012-	●
49	03.023 NUT; BRKT WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER(8GF) 04.085 M10 FLANGE	0-91180-210-0	07	1	1009-1011	●
49	03.023 NUT; BRKT WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 04.085 M10 FLANGE	0-91180-210-0	07	1	1012-	●
322	03.895 BOLT; BRKT FIX 03.613 M10X40 FLANGE	0-28661-040-0	08	1	1009-1011		●	●	●	●	●
322	03.895 BOLT; BRKT FIX WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) 03.613 M10X40 FLANGE	0-28661-040-0	08	1	1009-1011	●
322	03.895 BOLT; BRKT FIX 03.613 M10X40 FLANGE	0-28661-040-0	08	1	1012-1204	●	●	●	●	●	●
322	03.895 BOLT; BRKT FIX WHEEL BASE 3300MM(33W) 03.613 M10X40 FLANGE	0-28661-040-0	08	1	1205-	●	●			●	●
322	03.895 BOLT; BRKT FIX WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> EXC. FRAME STRAIGHT TYPE<7KJ> 03.613 M10X40 FLANGE	0-28661-040-0	08	1	1205-	●				●
322	03.895 BOLT; BRKT FIX WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 03.613 M10X40 FLANGE	0-28661-040-0	08	1	1205-	●	●	●	●
322	03.895 BOLT; BRKT FIX WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.613 M10X40 FLANGE	0-28661-040-0	06	1	1009-1011	●
322	03.895 BOLT; BRKT FIX WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.613 M10X40 FLANGE	0-28661-040-0	06	1	1012-	●
322	03.895 BOLT; BRKT FIX WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.613 M10X40 FLANGE	0-28661-040-0	07	1	1009-1011	●
322	03.895 BOLT; BRKT FIX WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.613 M10X40 FLANGE	0-28661-040-0	07	1	1012-	●

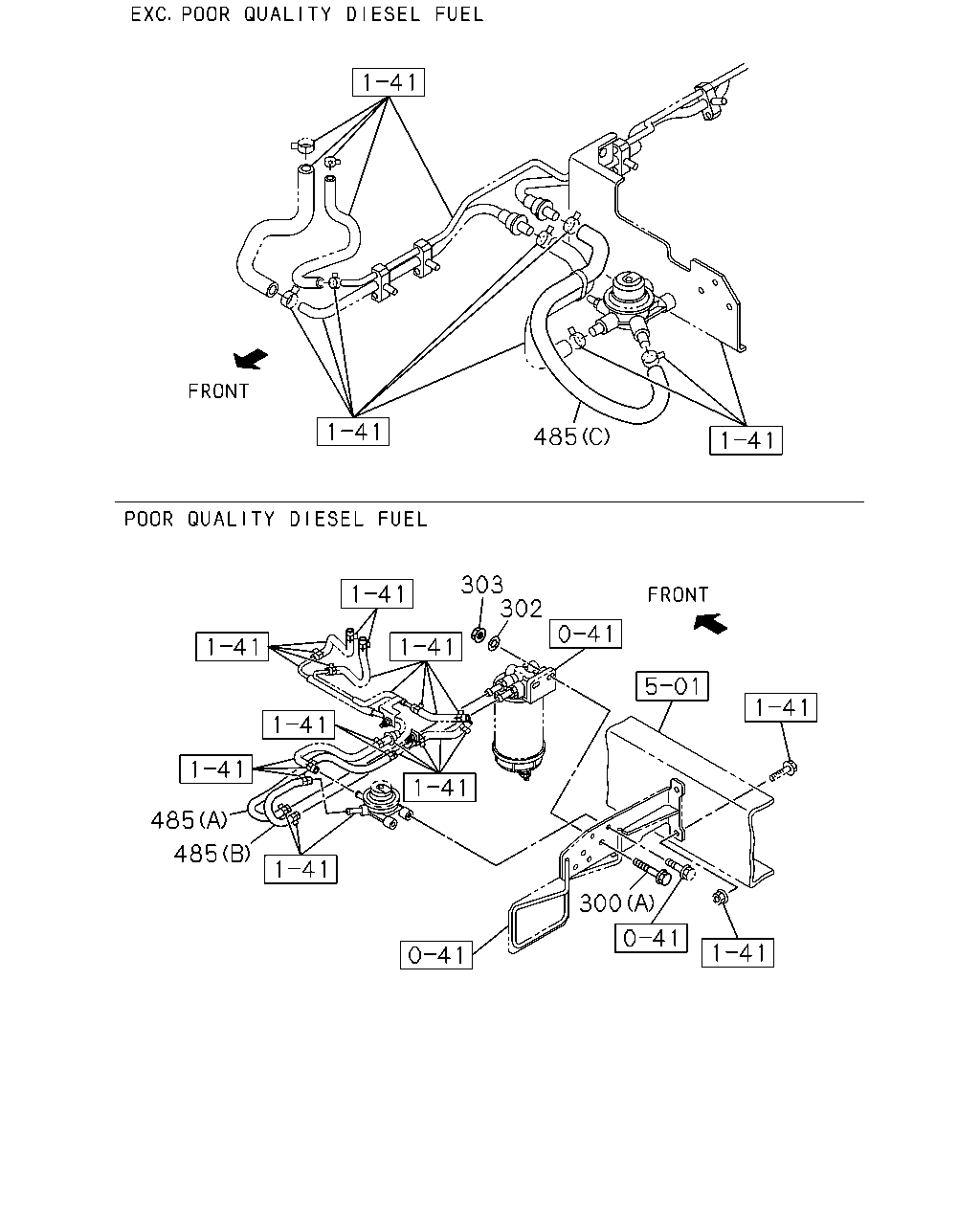

303 302 485 485 300 485

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
300	03.162 BOLT; BRKT TO BODY 4JJ1-TCS ENG(LFB) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1009-1011					●	●
300	03.162 BOLT; BRKT TO BODY 4JJ1-TCS ENG(LFB) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1012-	●				●	●
300	03.162 BOLT; BRKT TO BODY 03.613 (A) M10X40 FLANGE	0-28651-040-0	02	1	1009-					●	●
300	03.162 BOLT; BRKT TO BODY POOR QUALITY DIESEL FUEL(KF0) 03.613 (A) M10X40 FLANGE	0-28651-040-0	02	1	1009-	●	●	●	●
302	03.162 WASHER; PL,SEDIMENTER 04.085 ID=10.5 OD=26	0-91614-710-0	02	1	1009-					●	●
302	03.162 WASHER; PL,SEDIMENTER POOR QUALITY DIESEL FUEL(KF0) 04.085 ID=10.5 OD=26	0-91614-710-0	02	1	1009-	●	●	●	●
303	03.162 NUT; SEDIMENTER BRKT M10 FLANGE	0-91180-110-0	02	1	1009-					●	●
303	03.162 NUT; SEDIMENTER BRKT POOR QUALITY DIESEL FUEL(KF0) M10 FLANGE	0-91180-110-0	02	1	1009-	●	●	●	●
485	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) (B)	8-98138-300-0	01	1	1009-1011	●	●	●	●
485	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (B)	8-98138-300-0	01	1	1012-	●
485	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) (B)	8-98138-300-0	01	1	1012-		●	●	●
485	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) (A)	8-98139-112-1	01	1	1009-1011	●	●	●	●
485	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (A)	8-98139-112-1	01	1	1012-	●
485	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) (A)	8-98139-112-1	01	1	1012-		●	●	●
485	03.163 HOSE; FUEL EXC. POOR QUALITY DIESEL FUEL(KF0) (C)	8-98120-959-1	01	1	1009-1011	●	●	●	●
485	03.163 HOSE; FUEL FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0) (C)	8-98120-959-1	01	1	1012-	●
485	03.163 HOSE; FUEL EXC. POOR QUALITY DIESEL FUEL(KF0) (C)	8-98120-959-1	01	1	1012-		●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
