Isuzu WW
▶
TRUCKS
▶
NNR
▶
51276 - NNR/NPR/NQR AUST/NZ EURO5
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-35 - CHARGE AIR COOLER
▶

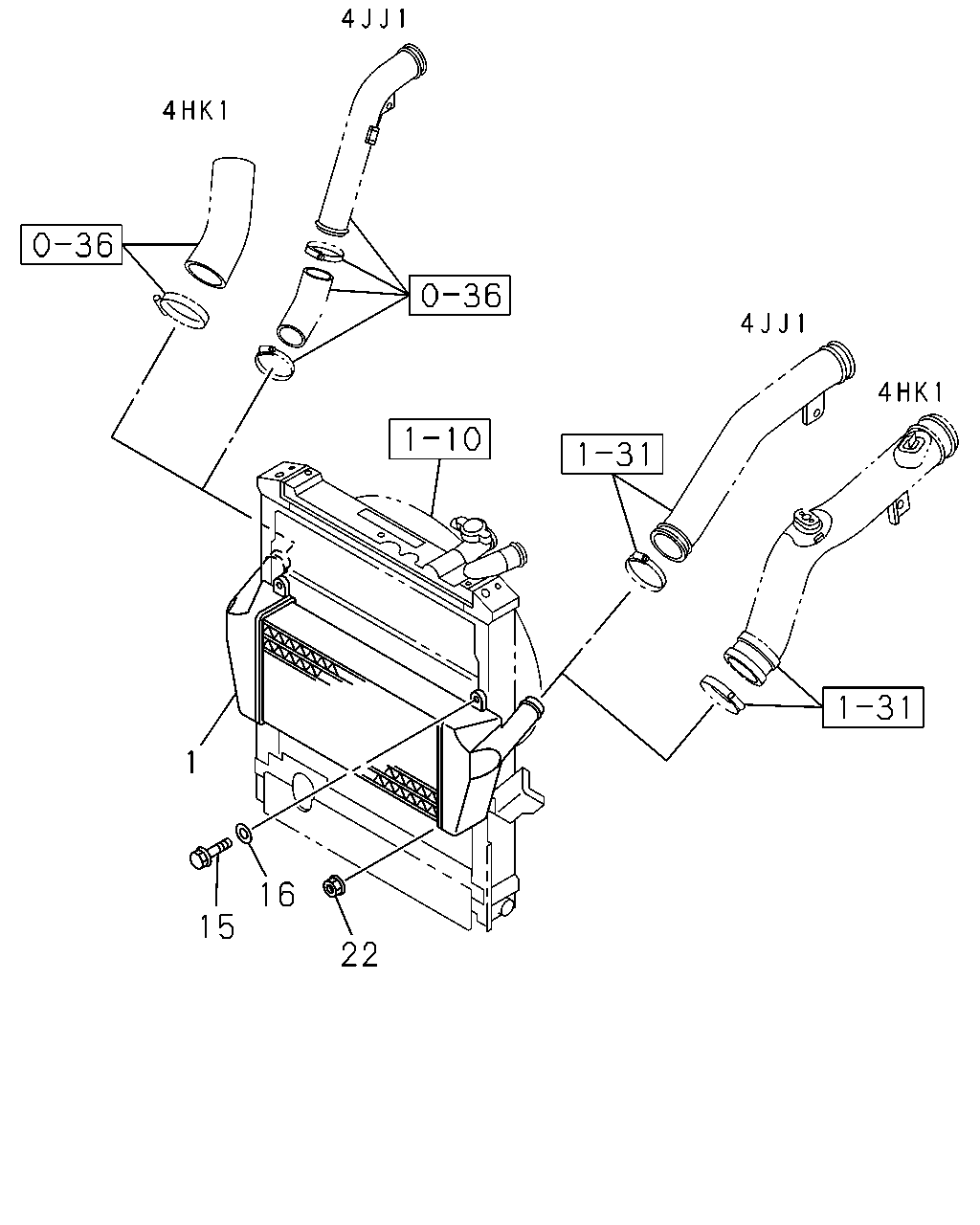

1-35 — CHARGE AIR COOLER
(#78268) — 9 parça
Tümü
A - NPR5SE
B - NPR5WE
C - NPR5SN
D - NPR5SS
E - NPR5WN
F - NPR5WS
1
15
22
16
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
1
03.374 COOLER; CHARGE AIR
8-98094-527-1
01
1
1009-1011
●
●
1
03.374 COOLER; CHARGE AIR
4JJ1-TCS ENG(LFB)
8-98094-527-1
01
1
1012-1507
●
●
●
1
03.374 COOLER; CHARGE AIR
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98094-527-1
01
1
1508-
●
●
●
1
03.374 COOLER; CHARGE AIR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
8-98006-479-1
01
1
1009-1507
●
●
●
●
1
03.374 COOLER; CHARGE AIR
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98006-479-1
01
1
1508-
●
●
1
03.374 COOLER; CHARGE AIR
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98006-479-1
01
1
1508-
●
●
15
03.374 BOLT; CHARGE AIR COOLER
03.275 M8X25 FLANGE
0-28050-825-0
02
1
1009-
●
●
●
●
●
●
16
03.374 WASHER; PL,CHARGE AIR COOLER
03.417 ID=8.4 OD=16
0-91610-508-0
02
1
1009-
●
●
●
●
●
●
22
03.374 NUT
01.062 M8 FLANGE
0-91180-108-0
02
1
1009-
●
●
●
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
