Sayfa 1-31 - Isuzu EPC

1-31 — AIR DUCT (#78267) — 644 parça

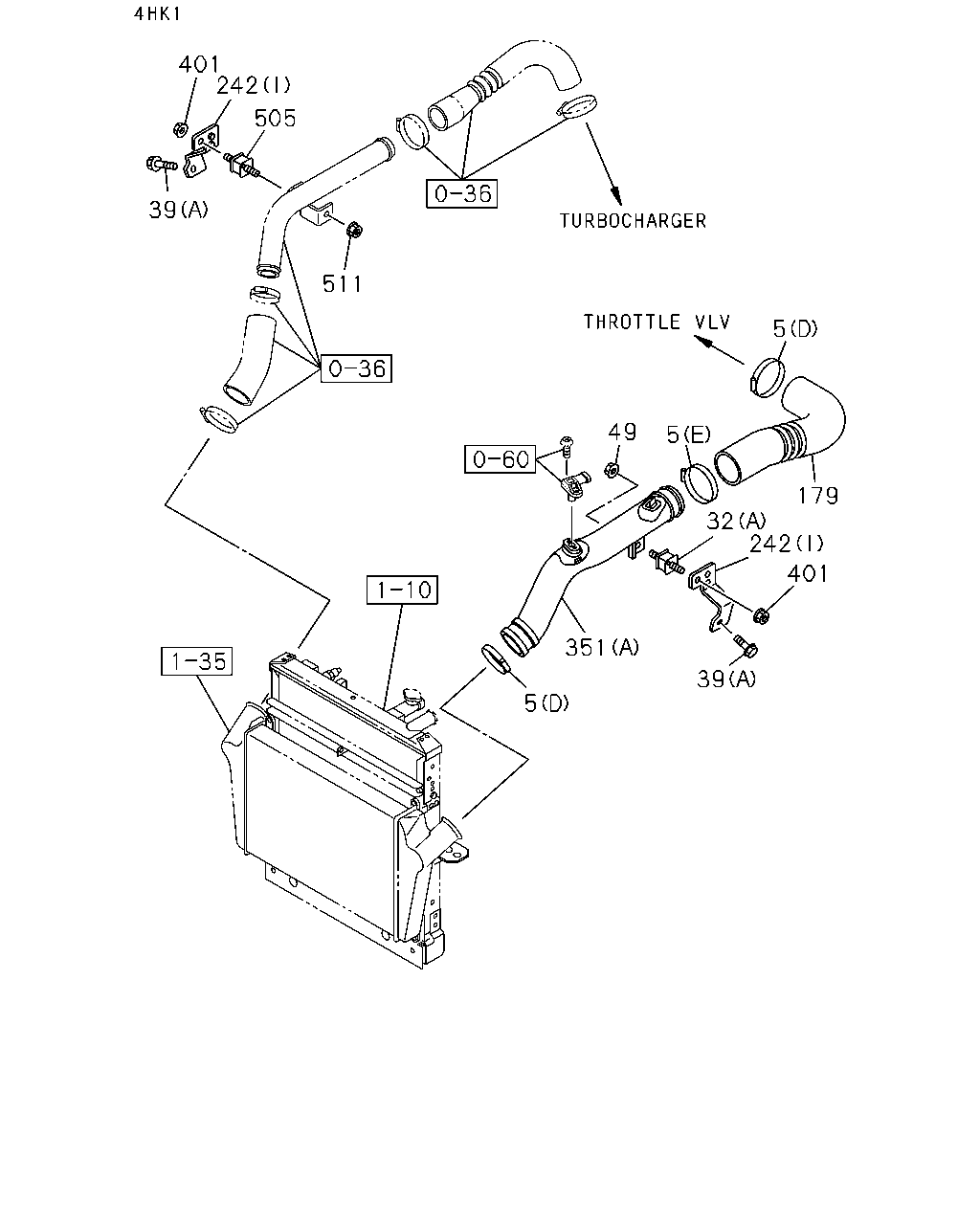

401 39 511 5 5 179 32 242 401 39 351 5 242 505 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
5	03.407 CLIP; AIR DUCT (E) ID=70-90	8-98122-372-0	01	1	1009-	●	●	●	●	●	●
5	03.407 CLIP; AIR DUCT (E) ID=70-90	8-98122-372-0	01	1	1009-				●
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1009-	●	●	●	●	●	●
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1009-	●	●	●	●	●	●
5	03.407 CLIP; AIR DUCT (G) ID=58-79	1-09707-136-0	01	1	1009-1011	●			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) (G) ID=58-79	1-09707-136-0	01	1	1012-	●	●		●
5	03.407 CLIP; AIR DUCT (F) ID=60-65	8-98096-418-0	01	1	1009-1011	●			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) (F) ID=60-65	8-98096-418-0	01	1	1012-	●	●		●
5	03.407 CLIP; AIR DUCT (D) ID=77-99	1-09707-141-0	02	1	1009-		●	●		●	●
5	03.407 CLIP; AIR DUCT (G) ID=58-79	1-09707-136-0	02	1	1009-				●
5	03.407 CLIP; AIR DUCT (B) ID=117	9-09915-075-1	01	1	1009-				●
5	03.407 CLIP; AIR DUCT (D) ID=77-99	1-09707-141-0	01	1	1009-1406					●	●
5	03.407 CLIP; AIR DUCT (E) ID=70-90	8-98122-372-0	02	1	1009-					●	●
5	03.407 CLIP; AIR DUCT (B) ID=112	9-09915-074-1	01	1	1009-					●	●
32	03.417 RUBBER; AIR DUCT MTG 01.277 (B) OD=32	8-94395-766-0	01	1	1009-1011	●			●
32	03.417 RUBBER; AIR DUCT MTG 4JJ1-TCS ENG(LFB) 01.277 (B) OD=32	8-94395-766-0	01	1	1012-	●	●		●
32	03.417 RUBBER; AIR DUCT MTG 03.265 (C) OD=23	8-97105-689-6	01	1	1009-1011	●			●
32	03.417 RUBBER; AIR DUCT MTG 4JJ1-TCS ENG(LFB) 03.265 (C) OD=23	8-97105-689-6	01	1	1012-	●	●		●
32	03.417 RUBBER; AIR DUCT MTG (A)	8-98036-826-0	01	1	1009-1106		●	●		●	●
32	03.417 RUBBER; AIR DUCT MTG (A)	8-97081-886-0	01	1	1107-		●	●		●	●
39	03.417 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1009-	●	●	●	●	●	●
39	03.417 BOLT; BRKT 03.613 (B) M8X14 FLANGE	8-97378-075-0	01	1	1009-1011	●			●
39	03.417 BOLT; BRKT 4JJ1-TCS ENG(LFB) 03.613 (B) M8X14 FLANGE	8-97378-075-0	01	1	1012-	●	●		●
49	03.417 NUT; AIR DUCT 01.062 M8 FLANGE	0-91180-108-0	01	1	1009-	●	●	●	●	●	●
179	03.417 HOSE; AIR INT	8-98050-920-2	01	1	1009-1011	●			●
179	03.417 HOSE; AIR INT 4JJ1-TCS ENG(LFB)	8-98050-920-2	01	1	1012-	●	●		●
179	03.417 HOSE; AIR INT	8-98117-928-2	01	1	1009-		●	●		●	●
242	03.417 BRACKET; AIR DUCT (A)	8-98004-416-0	01	1	1009-1510	●	●	●
242	03.417 BRACKET; AIR DUCT (A)	8-98145-112-1	01	1	1511-	●	●	●
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	1009-	●	●	●
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	1009-	●	●	●
242	03.417 BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	1009-	●	●	●
242	03.417 BRACKET; AIR DUCT (J)	8-98070-942-2	01	1	1009-1011	●			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) (J)	8-98070-942-2	01	1	1012-	●	●		●
242	03.417 BRACKET; AIR DUCT (K)	8-98070-943-0	01	1	1009-1011	●			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) (K)	8-98070-943-0	01	1	1012-	●	●		●
242	03.417 BRACKET; AIR DUCT (I)	8-98032-142-1	01	1	1009-		●	●		●	●
242	03.417 BRACKET; AIR DUCT (I)	8-98032-143-1	01	1	1009-		●	●		●	●
242	03.417 BRACKET; AIR DUCT (B)	8-98029-819-1	01	1	1009-				●
242	03.417 BRACKET; AIR DUCT (F)	8-98055-243-1	01	1	1009-				●	●	●
242	03.417 BRACKET; AIR DUCT (G)	8-98055-246-2	01	1	1009-				●	●	●
242	03.417 BRACKET; AIR DUCT (H)	8-98055-247-1	01	1	1009-				●	●	●
242	03.417 BRACKET; AIR DUCT (B)	8-98049-012-1	01	1	1009-					●	●
351	03.407 DUCT; AIR AIR CLEANER DUST INDICATOR<YD1> 03.417 (G)	8-98021-485-1	01	1	1009-					●	●
351	03.407 DUCT; AIR 03.417 (D)	8-98051-032-1	01	1	1009-1011	●			●
351	03.407 DUCT; AIR 4JJ1-TCS ENG(LFB) 03.417 (D)	8-98051-032-1	01	1	1012-	●	●		●
351	03.407 DUCT; AIR (A)	8-98105-722-1	01	1	1009-		●	●		●	●
351	03.407 DUCT; AIR (E)	8-98021-486-1	01	1	1009-				●
351	03.407 DUCT; AIR (F)	8-98070-864-0	01	1	1009-				●
351	03.407 DUCT; AIR (B)	8-98021-487-2	01	1	1009-1402					●	●
351	03.407 DUCT; AIR (B)	8-98272-699-0	01	1	1403-1406					●	●
351	03.407 DUCT; AIR (B)	8-98281-177-0	01	1	1407-					●	●
351	03.407 DUCT; AIR EXC. AIR CLEANER DUST INDICATOR<YD1> (C)	8-98070-862-1	01	1	1009-					●	●
401	03.403 NUT; BRKT,AIR INT 01.062 M8 FLANGE	0-91180-108-0	01	1	1009-	●	●	●	●	●	●
401	03.403 NUT; BRKT,AIR INT 01.062 M8 FLANGE	0-91180-108-0	01	1	1009-		●	●		●	●
505	03.406 RUBBER; MTG 03.417	8-98036-826-0	01	1	1009-1106	●	●	●	●	●	●
505	03.406 RUBBER; MTG 03.417	8-97081-886-0	01	1	1107-	●	●	●	●	●	●
511	03.417 NUT; PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	1009-	●	●	●	●	●	●

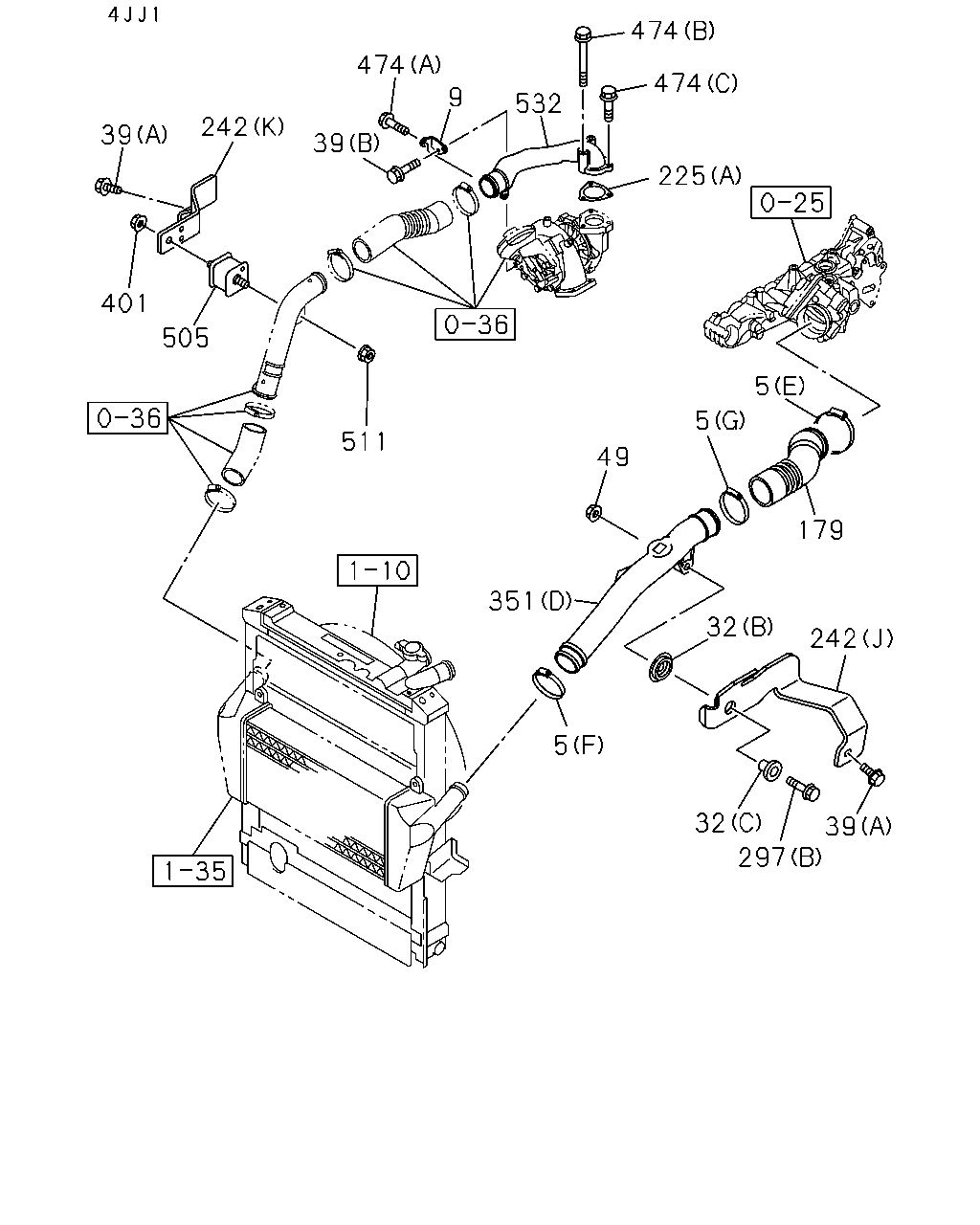

39 242 474 39 9 532 474 474 225 5 5 49 351 179 32 242 32 297 39 5 511 505 401

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
5	03.407 CLIP; AIR DUCT (E) ID=70-90	8-98122-372-0	01	1	1009-	●	●	●	●	●	●
5	03.407 CLIP; AIR DUCT (E) ID=70-90	8-98122-372-0	01	1	1009-				●
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1009-	●	●	●	●	●	●
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1009-	●	●	●	●	●	●
5	03.407 CLIP; AIR DUCT (G) ID=58-79	1-09707-136-0	01	1	1009-1011	●			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) (G) ID=58-79	1-09707-136-0	01	1	1012-	●	●		●
5	03.407 CLIP; AIR DUCT (F) ID=60-65	8-98096-418-0	01	1	1009-1011	●			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) (F) ID=60-65	8-98096-418-0	01	1	1012-	●	●		●
5	03.407 CLIP; AIR DUCT (D) ID=77-99	1-09707-141-0	02	1	1009-		●	●		●	●
5	03.407 CLIP; AIR DUCT (G) ID=58-79	1-09707-136-0	02	1	1009-				●
5	03.407 CLIP; AIR DUCT (B) ID=117	9-09915-075-1	01	1	1009-				●
5	03.407 CLIP; AIR DUCT (D) ID=77-99	1-09707-141-0	01	1	1009-1406					●	●
5	03.407 CLIP; AIR DUCT (E) ID=70-90	8-98122-372-0	02	1	1009-					●	●
5	03.407 CLIP; AIR DUCT (B) ID=112	9-09915-074-1	01	1	1009-					●	●
9	03.417 BRACKET; INT PIPE	8-98009-086-0	01	1	1009-1011	●			●
9	03.417 BRACKET; INT PIPE 4JJ1-TCS ENG(LFB)	8-98009-086-0	01	1	1012-	●	●		●
32	03.417 RUBBER; AIR DUCT MTG 01.277 (B) OD=32	8-94395-766-0	01	1	1009-1011	●			●
32	03.417 RUBBER; AIR DUCT MTG 4JJ1-TCS ENG(LFB) 01.277 (B) OD=32	8-94395-766-0	01	1	1012-	●	●		●
32	03.417 RUBBER; AIR DUCT MTG 03.265 (C) OD=23	8-97105-689-6	01	1	1009-1011	●			●
32	03.417 RUBBER; AIR DUCT MTG 4JJ1-TCS ENG(LFB) 03.265 (C) OD=23	8-97105-689-6	01	1	1012-	●	●		●
32	03.417 RUBBER; AIR DUCT MTG (A)	8-98036-826-0	01	1	1009-1106		●	●		●	●
32	03.417 RUBBER; AIR DUCT MTG (A)	8-97081-886-0	01	1	1107-		●	●		●	●
39	03.417 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1009-	●	●	●	●	●	●
39	03.417 BOLT; BRKT 03.613 (B) M8X14 FLANGE	8-97378-075-0	01	1	1009-1011	●			●
39	03.417 BOLT; BRKT 4JJ1-TCS ENG(LFB) 03.613 (B) M8X14 FLANGE	8-97378-075-0	01	1	1012-	●	●		●
49	03.417 NUT; AIR DUCT 01.062 M8 FLANGE	0-91180-108-0	01	1	1009-	●	●	●	●	●	●
179	03.417 HOSE; AIR INT	8-98050-920-2	01	1	1009-1011	●			●
179	03.417 HOSE; AIR INT 4JJ1-TCS ENG(LFB)	8-98050-920-2	01	1	1012-	●	●		●
179	03.417 HOSE; AIR INT	8-98117-928-2	01	1	1009-		●	●		●	●
225	03.417 GASKET; AIR PIPE 4HK1-TCN ENG(RDQ) FRIGID ZONE(YL3) 01.097 (B) ID=43.7	9-09561-344-0	01	1	1508-		●			●
225	03.417 GASKET; AIR PIPE 4HK1-TCS ENG(RJS) FRIGID ZONE(YL3) 01.097 (B) ID=43.7	9-09561-344-0	01	1	1508-			●			●
225	03.417 GASKET; AIR PIPE 03.270 (A) ID=47	8-97202-328-1	01	1	1009-1011	●			●
225	03.417 GASKET; AIR PIPE 4JJ1-TCS ENG(LFB) 03.270 (A) ID=47	8-97202-328-1	01	1	1012-	●	●		●
242	03.417 BRACKET; AIR DUCT (A)	8-98004-416-0	01	1	1009-1510	●	●	●
242	03.417 BRACKET; AIR DUCT (A)	8-98145-112-1	01	1	1511-	●	●	●
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	1009-	●	●	●
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	1009-	●	●	●
242	03.417 BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	1009-	●	●	●
242	03.417 BRACKET; AIR DUCT (J)	8-98070-942-2	01	1	1009-1011	●			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) (J)	8-98070-942-2	01	1	1012-	●	●		●
242	03.417 BRACKET; AIR DUCT (K)	8-98070-943-0	01	1	1009-1011	●			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) (K)	8-98070-943-0	01	1	1012-	●	●		●
242	03.417 BRACKET; AIR DUCT (I)	8-98032-142-1	01	1	1009-		●	●		●	●
242	03.417 BRACKET; AIR DUCT (I)	8-98032-143-1	01	1	1009-		●	●		●	●
242	03.417 BRACKET; AIR DUCT (B)	8-98029-819-1	01	1	1009-				●
242	03.417 BRACKET; AIR DUCT (F)	8-98055-243-1	01	1	1009-				●	●	●
242	03.417 BRACKET; AIR DUCT (G)	8-98055-246-2	01	1	1009-				●	●	●
242	03.417 BRACKET; AIR DUCT (H)	8-98055-247-1	01	1	1009-				●	●	●
242	03.417 BRACKET; AIR DUCT (B)	8-98049-012-1	01	1	1009-					●	●
297	03.417 BOLT; DUCT 00.685 (B) M8X40 FLANGE	0-28650-840-0	01	1	1009-1011	●			●
297	03.417 BOLT; DUCT 4JJ1-TCS ENG(LFB) 00.685 (B) M8X40 FLANGE	0-28650-840-0	01	1	1012-	●	●		●
297	03.417 BOLT; DUCT 02.277 (A) M10X35 FLANGE	0-28651-035-0	01	1	1009-				●	●	●
351	03.407 DUCT; AIR AIR CLEANER DUST INDICATOR<YD1> 03.417 (G)	8-98021-485-1	01	1	1009-					●	●
351	03.407 DUCT; AIR 03.417 (D)	8-98051-032-1	01	1	1009-1011	●			●
351	03.407 DUCT; AIR 4JJ1-TCS ENG(LFB) 03.417 (D)	8-98051-032-1	01	1	1012-	●	●		●
351	03.407 DUCT; AIR (A)	8-98105-722-1	01	1	1009-		●	●		●	●
351	03.407 DUCT; AIR (E)	8-98021-486-1	01	1	1009-				●
351	03.407 DUCT; AIR (F)	8-98070-864-0	01	1	1009-				●
351	03.407 DUCT; AIR (B)	8-98021-487-2	01	1	1009-1402					●	●
351	03.407 DUCT; AIR (B)	8-98272-699-0	01	1	1403-1406					●	●
351	03.407 DUCT; AIR (B)	8-98281-177-0	01	1	1407-					●	●
351	03.407 DUCT; AIR EXC. AIR CLEANER DUST INDICATOR<YD1> (C)	8-98070-862-1	01	1	1009-					●	●
401	03.403 NUT; BRKT,AIR INT 01.062 M8 FLANGE	0-91180-108-0	01	1	1009-	●	●	●	●	●	●
401	03.403 NUT; BRKT,AIR INT 01.062 M8 FLANGE	0-91180-108-0	01	1	1009-		●	●		●	●
474	03.417 BOLT; PIPE (B) M6X70 FLANGE	0-28050-670-0	02	1	1009-1011	●			●
474	03.417 BOLT; PIPE 4JJ1-TCS ENG(LFB) (B) M6X70 FLANGE	0-28050-670-0	02	1	1012-	●	●		●
474	03.417 BOLT; PIPE 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1009-1011	●			●
474	03.417 BOLT; PIPE 4JJ1-TCS ENG(LFB) 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1012-	●	●		●
474	03.417 BOLT; PIPE 03.680 (C) M6X30 FLANGE	0-28650-630-0	01	1	1009-1011	●			●
474	03.417 BOLT; PIPE 4JJ1-TCS ENG(LFB) 03.680 (C) M6X30 FLANGE	0-28650-630-0	01	1	1012-	●	●		●
505	03.406 RUBBER; MTG 03.417	8-98036-826-0	01	1	1009-1106	●	●	●	●	●	●
505	03.406 RUBBER; MTG 03.417	8-97081-886-0	01	1	1107-	●	●	●	●	●	●
511	03.417 NUT; PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	1009-	●	●	●	●	●	●
532	03.417 PIPE; INTAKE	8-97385-203-1	01	1	1009-1011	●			●
532	03.417 PIPE; INTAKE 4JJ1-TCS ENG(LFB)	8-97385-203-1	01	1	1012-1303	●	●		●
532	03.417 PIPE; INTAKE 4JJ1-TCS ENG(LFB)	8-98237-771-1	01	1	1304-	●	●		●

5 351 5 232 48 5 381 248 379 228 248 557

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
5	03.407 CLIP; AIR DUCT (E) ID=70-90	8-98122-372-0	01	1	1009-	●	●	●	●	●	●
5	03.407 CLIP; AIR DUCT (E) ID=70-90	8-98122-372-0	01	1	1009-				●
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1009-	●	●	●	●	●	●
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1009-	●	●	●	●	●	●
5	03.407 CLIP; AIR DUCT (G) ID=58-79	1-09707-136-0	01	1	1009-1011	●			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) (G) ID=58-79	1-09707-136-0	01	1	1012-	●	●		●
5	03.407 CLIP; AIR DUCT (F) ID=60-65	8-98096-418-0	01	1	1009-1011	●			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) (F) ID=60-65	8-98096-418-0	01	1	1012-	●	●		●
5	03.407 CLIP; AIR DUCT (D) ID=77-99	1-09707-141-0	02	1	1009-		●	●		●	●
5	03.407 CLIP; AIR DUCT (G) ID=58-79	1-09707-136-0	02	1	1009-				●
5	03.407 CLIP; AIR DUCT (B) ID=117	9-09915-075-1	01	1	1009-				●
5	03.407 CLIP; AIR DUCT (D) ID=77-99	1-09707-141-0	01	1	1009-1406					●	●
5	03.407 CLIP; AIR DUCT (E) ID=70-90	8-98122-372-0	02	1	1009-					●	●
5	03.407 CLIP; AIR DUCT (B) ID=112	9-09915-074-1	01	1	1009-					●	●
48	03.417 BOLT; AIR DUCT 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1009-				●	●	●
48	03.417 BOLT; AIR DUCT 02.277 (B) M10X35 FLANGE	0-28651-035-0	01	1	1009-					●	●
228	03.278 CLIP; PCV HOSE 4JJ1-TCS ENG(LFB) ID=24.5 H=29 L=25	8-98120-913-0	01	1	1009-1011	●			●
228	03.278 CLIP; PCV HOSE 4JJ1-TCS ENG(LFB) ID=24.5 H=29 L=25	8-98120-913-0	01	1	1012-	●	●		●
232	03.417 HOSE; CONN AIR CLEANER DUST INDICATOR<YD1> (F)	8-98000-233-3	01	1	1009-1402		●	●
232	03.417 HOSE; CONN AIR CLEANER DUST INDICATOR<YD1> (F)	8-98272-694-0	01	1	1403-1406		●	●
232	03.417 HOSE; CONN AIR CLEANER DUST INDICATOR<YD1> (H)	8-98281-173-0	01	1	1407-		●	●
232	03.417 HOSE; CONN (D)	8-98048-137-0	01	1	1009-1011	●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB) (D)	8-98048-137-0	01	1	1012-	●	●
232	03.417 HOSE; CONN (B)	8-98082-535-0	01	1	1009-1309	●	●	●	●	●	●
232	03.417 HOSE; CONN (B)	8-98231-785-0	01	1	1310-	●	●	●	●	●	●
232	03.417 HOSE; CONN MULTI INFORMATION DISPLAY<7NY> (A)	8-98079-860-0	01	1	1009-1402		●	●
232	03.417 HOSE; CONN MULTI INFORMATION DISPLAY<7NY> (A)	8-98272-700-0	01	1	1403-1406		●	●
232	03.417 HOSE; CONN MULTI INFORMATION DISPLAY<7NY> (G)	8-98281-178-0	01	1	1407-		●	●
232	03.417 HOSE; CONN EXC. AIR CLEANER DUST INDICATOR<YD1>, MULTI INFORMATION DISPLAY<7NY> (A)	8-98059-989-2	01	1	1009-1402		●	●
232	03.417 HOSE; CONN EXC. AIR CLEANER DUST INDICATOR<YD1>, MULTI INFORMATION DISPLAY<7NY> (A)	8-98272-698-0	01	1	1403-1406		●	●
232	03.417 HOSE; CONN EXC. AIR CLEANER DUST INDICATOR<YD1>, MULTI INFORMATION DISPLAY<7NY> (G)	8-98281-176-0	01	1	1407-		●	●
232	03.417 HOSE; CONN (E)	8-98021-072-2	01	1	1009-				●
232	03.417 HOSE; CONN TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98063-793-3	01	1	1009-					●	●
232	03.417 HOSE; CONN EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98094-582-2	01	1	1009-					●	●
248	03.417 CLIP; RUBBER HOSE 08.846 ID=21.7	8-97203-074-0	02	1	1009-1011	●			●
248	03.417 CLIP; RUBBER HOSE 4JJ1-TCS ENG(LFB) 08.846 ID=21.7	8-97203-074-0	02	1	1012-	●	●		●
351	03.407 DUCT; AIR AIR CLEANER DUST INDICATOR<YD1> 03.417 (G)	8-98021-485-1	01	1	1009-					●	●
351	03.407 DUCT; AIR 03.417 (D)	8-98051-032-1	01	1	1009-1011	●			●
351	03.407 DUCT; AIR 4JJ1-TCS ENG(LFB) 03.417 (D)	8-98051-032-1	01	1	1012-	●	●		●
351	03.407 DUCT; AIR (A)	8-98105-722-1	01	1	1009-		●	●		●	●
351	03.407 DUCT; AIR (E)	8-98021-486-1	01	1	1009-				●
351	03.407 DUCT; AIR (F)	8-98070-864-0	01	1	1009-				●
351	03.407 DUCT; AIR (B)	8-98021-487-2	01	1	1009-1402					●	●
351	03.407 DUCT; AIR (B)	8-98272-699-0	01	1	1403-1406					●	●
351	03.407 DUCT; AIR (B)	8-98281-177-0	01	1	1407-					●	●
351	03.407 DUCT; AIR EXC. AIR CLEANER DUST INDICATOR<YD1> (C)	8-98070-862-1	01	1	1009-					●	●
379	03.675 HOSE; RUBBER 4JJ1-TCS ENG(LFB)	8-98156-950-0	01	1	1009-1011	●			●
379	03.675 HOSE; RUBBER 4JJ1-TCS ENG(LFB)	8-98156-950-0	01	1	1012-	●	●		●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	02	1	1009-	●	●	●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	03	1	1009-	●	●	●	●	●	●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	03	1	1009-				●	●	●
381	03.417 NUT; BRKT,AIR DUCT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1009-				●	●	●
381	03.417 NUT; BRKT,AIR DUCT TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1009-					●	●
557	03.403 BOLT; HOSE CLIP 4JJ1-TCS ENG(LFB) 03.671 (B) M6X10 FLANGE	0-28050-610-0	01	1	1009-1011	●			●
557	03.403 BOLT; HOSE CLIP 4JJ1-TCS ENG(LFB) 03.671 (B) M6X10 FLANGE	0-28050-610-0	01	1	1012-	●	●		●
557	03.403 BOLT; HOSE CLIP 00.386 (A) M6X20 FLANGE	0-28050-620-0	03	1	1009-		●	●		●	●

381 381 242 389 242 381 232 530 381 389 381 64 242 389 314 317 314 317 5 232 281 314 61 317 409 40 26 5 35 242 557 248 228 248 379 287 174 175 232 287 557 225 174 175 554 287 232 287

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
5	03.407 CLIP; AIR DUCT (E) ID=70-90	8-98122-372-0	01	1	1009-	●	●	●	●	●	●
5	03.407 CLIP; AIR DUCT (E) ID=70-90	8-98122-372-0	01	1	1009-				●
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1009-	●	●	●	●	●	●
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1009-	●	●	●	●	●	●
5	03.407 CLIP; AIR DUCT (G) ID=58-79	1-09707-136-0	01	1	1009-1011	●			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) (G) ID=58-79	1-09707-136-0	01	1	1012-	●	●		●
5	03.407 CLIP; AIR DUCT (F) ID=60-65	8-98096-418-0	01	1	1009-1011	●			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) (F) ID=60-65	8-98096-418-0	01	1	1012-	●	●		●
5	03.407 CLIP; AIR DUCT (D) ID=77-99	1-09707-141-0	02	1	1009-		●	●		●	●
5	03.407 CLIP; AIR DUCT (G) ID=58-79	1-09707-136-0	02	1	1009-				●
5	03.407 CLIP; AIR DUCT (B) ID=117	9-09915-075-1	01	1	1009-				●
5	03.407 CLIP; AIR DUCT (D) ID=77-99	1-09707-141-0	01	1	1009-1406					●	●
5	03.407 CLIP; AIR DUCT (E) ID=70-90	8-98122-372-0	02	1	1009-					●	●
5	03.407 CLIP; AIR DUCT (B) ID=112	9-09915-074-1	01	1	1009-					●	●
26	03.417 DUCT; AIR INT (A)	8-98025-626-0	01	1	1009-	●	●	●
26	03.417 DUCT; AIR INT (B)	8-98025-627-0	01	1	1009-				●	●	●
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	1009-	●	●	●	●	●	●
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	1009-	●	●	●	●	●	●
61	03.417 BOLT; BRKT,AIR DUCT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1009-	●	●	●
61	03.417 BOLT; BRKT,AIR DUCT 02.277 M10X35 FLANGE	0-28651-035-0	01	1	1009-				●	●	●
64	03.417 BOLT; BRKT,AIR DUCT M8X16	0-52000-816-0	01	1	1009-	●	●	●
174	03.682 SENSOR; AIR FLOW CONT	8-98113-202-1	01	1	1009-1011	●			●
174	03.682 SENSOR; AIR FLOW CONT 4JJ1-TCS ENG(LFB)	8-98113-202-1	01	1	1012-	●	●		●
174	03.682 SENSOR; AIR FLOW CONT	8-97601-967-0	01	1	1009-		●	●		●	●
175	03.682 BOLT; AIR FLOW CONT SENSOR 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1009-	●	●	●	●	●	●
225	03.417 GASKET; AIR PIPE 4HK1-TCN ENG(RDQ) FRIGID ZONE(YL3) 01.097 (B) ID=43.7	9-09561-344-0	01	1	1508-		●			●
225	03.417 GASKET; AIR PIPE 4HK1-TCS ENG(RJS) FRIGID ZONE(YL3) 01.097 (B) ID=43.7	9-09561-344-0	01	1	1508-			●			●
225	03.417 GASKET; AIR PIPE 03.270 (A) ID=47	8-97202-328-1	01	1	1009-1011	●			●
225	03.417 GASKET; AIR PIPE 4JJ1-TCS ENG(LFB) 03.270 (A) ID=47	8-97202-328-1	01	1	1012-	●	●		●
228	03.278 CLIP; PCV HOSE 4JJ1-TCS ENG(LFB) ID=24.5 H=29 L=25	8-98120-913-0	01	1	1009-1011	●			●
228	03.278 CLIP; PCV HOSE 4JJ1-TCS ENG(LFB) ID=24.5 H=29 L=25	8-98120-913-0	01	1	1012-	●	●		●
232	03.417 HOSE; CONN AIR CLEANER DUST INDICATOR<YD1> (F)	8-98000-233-3	01	1	1009-1402		●	●
232	03.417 HOSE; CONN AIR CLEANER DUST INDICATOR<YD1> (F)	8-98272-694-0	01	1	1403-1406		●	●
232	03.417 HOSE; CONN AIR CLEANER DUST INDICATOR<YD1> (H)	8-98281-173-0	01	1	1407-		●	●
232	03.417 HOSE; CONN (D)	8-98048-137-0	01	1	1009-1011	●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB) (D)	8-98048-137-0	01	1	1012-	●	●
232	03.417 HOSE; CONN (B)	8-98082-535-0	01	1	1009-1309	●	●	●	●	●	●
232	03.417 HOSE; CONN (B)	8-98231-785-0	01	1	1310-	●	●	●	●	●	●
232	03.417 HOSE; CONN MULTI INFORMATION DISPLAY<7NY> (A)	8-98079-860-0	01	1	1009-1402		●	●
232	03.417 HOSE; CONN MULTI INFORMATION DISPLAY<7NY> (A)	8-98272-700-0	01	1	1403-1406		●	●
232	03.417 HOSE; CONN MULTI INFORMATION DISPLAY<7NY> (G)	8-98281-178-0	01	1	1407-		●	●
232	03.417 HOSE; CONN EXC. AIR CLEANER DUST INDICATOR<YD1>, MULTI INFORMATION DISPLAY<7NY> (A)	8-98059-989-2	01	1	1009-1402		●	●
232	03.417 HOSE; CONN EXC. AIR CLEANER DUST INDICATOR<YD1>, MULTI INFORMATION DISPLAY<7NY> (A)	8-98272-698-0	01	1	1403-1406		●	●
232	03.417 HOSE; CONN EXC. AIR CLEANER DUST INDICATOR<YD1>, MULTI INFORMATION DISPLAY<7NY> (G)	8-98281-176-0	01	1	1407-		●	●
232	03.417 HOSE; CONN (E)	8-98021-072-2	01	1	1009-				●
232	03.417 HOSE; CONN TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98063-793-3	01	1	1009-					●	●
232	03.417 HOSE; CONN EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98094-582-2	01	1	1009-					●	●
242	03.417 BRACKET; AIR DUCT (A)	8-98004-416-0	01	1	1009-1510	●	●	●
242	03.417 BRACKET; AIR DUCT (A)	8-98145-112-1	01	1	1511-	●	●	●
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	1009-	●	●	●
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	1009-	●	●	●
242	03.417 BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	1009-	●	●	●
242	03.417 BRACKET; AIR DUCT (J)	8-98070-942-2	01	1	1009-1011	●			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) (J)	8-98070-942-2	01	1	1012-	●	●		●
242	03.417 BRACKET; AIR DUCT (K)	8-98070-943-0	01	1	1009-1011	●			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) (K)	8-98070-943-0	01	1	1012-	●	●		●
242	03.417 BRACKET; AIR DUCT (I)	8-98032-142-1	01	1	1009-		●	●		●	●
242	03.417 BRACKET; AIR DUCT (I)	8-98032-143-1	01	1	1009-		●	●		●	●
242	03.417 BRACKET; AIR DUCT (B)	8-98029-819-1	01	1	1009-				●
242	03.417 BRACKET; AIR DUCT (F)	8-98055-243-1	01	1	1009-				●	●	●
242	03.417 BRACKET; AIR DUCT (G)	8-98055-246-2	01	1	1009-				●	●	●
242	03.417 BRACKET; AIR DUCT (H)	8-98055-247-1	01	1	1009-				●	●	●
242	03.417 BRACKET; AIR DUCT (B)	8-98049-012-1	01	1	1009-					●	●
248	03.417 CLIP; RUBBER HOSE 08.846 ID=21.7	8-97203-074-0	02	1	1009-1011	●			●
248	03.417 CLIP; RUBBER HOSE 4JJ1-TCS ENG(LFB) 08.846 ID=21.7	8-97203-074-0	02	1	1012-	●	●		●
281	03.417 DUCT; AIR,VERTICAL INT	8-98080-929-2	01	1	1009-	●	●	●
281	03.417 DUCT; AIR,VERTICAL INT	8-98061-757-2	01	1	1009-				●	●	●
287	03.417 CLIP; AIR DUCT 03.407 (C) ID=70-90	8-98122-372-0	01	1	1009-1011	●			●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) 03.407 (C) ID=70-90	8-98122-372-0	01	1	1012-	●	●
287	03.417 CLIP; AIR DUCT 03.407 (D) ID=117	9-09915-075-1	01	1	1009-1011	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) 03.407 (D) ID=117	9-09915-075-1	01	1	1012-	●	●
287	03.417 CLIP; AIR DUCT 03.407 (A) ID=77-99	1-09707-141-0	01	1	1009-1406		●	●
287	03.417 CLIP; AIR DUCT 03.407 (B) ID=112	9-09915-074-1	01	1	1009-		●	●
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1009-	●	●	●	●	●	●
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1009-	●	●	●	●	●	●
379	03.675 HOSE; RUBBER 4JJ1-TCS ENG(LFB)	8-98156-950-0	01	1	1009-1011	●			●
379	03.675 HOSE; RUBBER 4JJ1-TCS ENG(LFB)	8-98156-950-0	01	1	1012-	●	●		●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	02	1	1009-	●	●	●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	03	1	1009-	●	●	●	●	●	●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	03	1	1009-				●	●	●
381	03.417 NUT; BRKT,AIR DUCT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1009-				●	●	●
381	03.417 NUT; BRKT,AIR DUCT TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1009-					●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	1009-	●	●	●	●	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	1009-	●	●	●	●	●	●
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1009-	●	●	●	●	●	●
530	03.407 CLAMP; AIR DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) ID=77-99	1-09707-141-0	01	1	1407-		●	●		●	●
554	04.439 FLANGE; PIPE,PCV 4HK1-TCN ENG(RDQ) FRIGID ZONE(YL3)	8-98038-208-0	01	1	1508-		●			●
554	04.439 FLANGE; PIPE,PCV 4HK1-TCS ENG(RJS) FRIGID ZONE(YL3)	8-98038-208-0	01	1	1508-			●			●
557	03.403 BOLT; HOSE CLIP 4JJ1-TCS ENG(LFB) 03.671 (B) M6X10 FLANGE	0-28050-610-0	01	1	1009-1011	●			●
557	03.403 BOLT; HOSE CLIP 4JJ1-TCS ENG(LFB) 03.671 (B) M6X10 FLANGE	0-28050-610-0	01	1	1012-	●	●		●
557	03.403 BOLT; HOSE CLIP 00.386 (A) M6X20 FLANGE	0-28050-620-0	03	1	1009-		●	●		●	●

381 242 381 389 381 242 381 381 389 242 389 61 314 232 5 317 314 317 314 281 317 409 40 26 5 35 242 287 232 287 557 554 450 430 450 174 175 480 155 64 225 530 232

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
5	03.407 CLIP; AIR DUCT (E) ID=70-90	8-98122-372-0	01	1	1009-	●	●	●	●	●	●
5	03.407 CLIP; AIR DUCT (E) ID=70-90	8-98122-372-0	01	1	1009-				●
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1009-	●	●	●	●	●	●
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1009-	●	●	●	●	●	●
5	03.407 CLIP; AIR DUCT (G) ID=58-79	1-09707-136-0	01	1	1009-1011	●			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) (G) ID=58-79	1-09707-136-0	01	1	1012-	●	●		●
5	03.407 CLIP; AIR DUCT (F) ID=60-65	8-98096-418-0	01	1	1009-1011	●			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) (F) ID=60-65	8-98096-418-0	01	1	1012-	●	●		●
5	03.407 CLIP; AIR DUCT (D) ID=77-99	1-09707-141-0	02	1	1009-		●	●		●	●
5	03.407 CLIP; AIR DUCT (G) ID=58-79	1-09707-136-0	02	1	1009-				●
5	03.407 CLIP; AIR DUCT (B) ID=117	9-09915-075-1	01	1	1009-				●
5	03.407 CLIP; AIR DUCT (D) ID=77-99	1-09707-141-0	01	1	1009-1406					●	●
5	03.407 CLIP; AIR DUCT (E) ID=70-90	8-98122-372-0	02	1	1009-					●	●
5	03.407 CLIP; AIR DUCT (B) ID=112	9-09915-074-1	01	1	1009-					●	●
26	03.417 DUCT; AIR INT (A)	8-98025-626-0	01	1	1009-	●	●	●
26	03.417 DUCT; AIR INT (B)	8-98025-627-0	01	1	1009-				●	●	●
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	1009-	●	●	●	●	●	●
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	1009-	●	●	●	●	●	●
61	03.417 BOLT; BRKT,AIR DUCT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1009-	●	●	●
61	03.417 BOLT; BRKT,AIR DUCT 02.277 M10X35 FLANGE	0-28651-035-0	01	1	1009-				●	●	●
64	03.417 BOLT; BRKT,AIR DUCT M8X16	0-52000-816-0	01	1	1009-	●	●	●
155	03.417 BOLT; BRKT AIR CLEANER DUST INDICATOR<YD1> 09.242 M6X16 FLANGE	0-28050-616-0	02	1	1009-		●	●		●	●
174	03.682 SENSOR; AIR FLOW CONT	8-98113-202-1	01	1	1009-1011	●			●
174	03.682 SENSOR; AIR FLOW CONT 4JJ1-TCS ENG(LFB)	8-98113-202-1	01	1	1012-	●	●		●
174	03.682 SENSOR; AIR FLOW CONT	8-97601-967-0	01	1	1009-		●	●		●	●
175	03.682 BOLT; AIR FLOW CONT SENSOR 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1009-	●	●	●	●	●	●
225	03.417 GASKET; AIR PIPE 4HK1-TCN ENG(RDQ) FRIGID ZONE(YL3) 01.097 (B) ID=43.7	9-09561-344-0	01	1	1508-		●			●
225	03.417 GASKET; AIR PIPE 4HK1-TCS ENG(RJS) FRIGID ZONE(YL3) 01.097 (B) ID=43.7	9-09561-344-0	01	1	1508-			●			●
225	03.417 GASKET; AIR PIPE 03.270 (A) ID=47	8-97202-328-1	01	1	1009-1011	●			●
225	03.417 GASKET; AIR PIPE 4JJ1-TCS ENG(LFB) 03.270 (A) ID=47	8-97202-328-1	01	1	1012-	●	●		●
232	03.417 HOSE; CONN AIR CLEANER DUST INDICATOR<YD1> (F)	8-98000-233-3	01	1	1009-1402		●	●
232	03.417 HOSE; CONN AIR CLEANER DUST INDICATOR<YD1> (F)	8-98272-694-0	01	1	1403-1406		●	●
232	03.417 HOSE; CONN AIR CLEANER DUST INDICATOR<YD1> (H)	8-98281-173-0	01	1	1407-		●	●
232	03.417 HOSE; CONN (D)	8-98048-137-0	01	1	1009-1011	●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB) (D)	8-98048-137-0	01	1	1012-	●	●
232	03.417 HOSE; CONN (B)	8-98082-535-0	01	1	1009-1309	●	●	●	●	●	●
232	03.417 HOSE; CONN (B)	8-98231-785-0	01	1	1310-	●	●	●	●	●	●
232	03.417 HOSE; CONN MULTI INFORMATION DISPLAY<7NY> (A)	8-98079-860-0	01	1	1009-1402		●	●
232	03.417 HOSE; CONN MULTI INFORMATION DISPLAY<7NY> (A)	8-98272-700-0	01	1	1403-1406		●	●
232	03.417 HOSE; CONN MULTI INFORMATION DISPLAY<7NY> (G)	8-98281-178-0	01	1	1407-		●	●
232	03.417 HOSE; CONN EXC. AIR CLEANER DUST INDICATOR<YD1>, MULTI INFORMATION DISPLAY<7NY> (A)	8-98059-989-2	01	1	1009-1402		●	●
232	03.417 HOSE; CONN EXC. AIR CLEANER DUST INDICATOR<YD1>, MULTI INFORMATION DISPLAY<7NY> (A)	8-98272-698-0	01	1	1403-1406		●	●
232	03.417 HOSE; CONN EXC. AIR CLEANER DUST INDICATOR<YD1>, MULTI INFORMATION DISPLAY<7NY> (G)	8-98281-176-0	01	1	1407-		●	●
232	03.417 HOSE; CONN (E)	8-98021-072-2	01	1	1009-				●
232	03.417 HOSE; CONN TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98063-793-3	01	1	1009-					●	●
232	03.417 HOSE; CONN EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98094-582-2	01	1	1009-					●	●
242	03.417 BRACKET; AIR DUCT (A)	8-98004-416-0	01	1	1009-1510	●	●	●
242	03.417 BRACKET; AIR DUCT (A)	8-98145-112-1	01	1	1511-	●	●	●
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	1009-	●	●	●
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	1009-	●	●	●
242	03.417 BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	1009-	●	●	●
242	03.417 BRACKET; AIR DUCT (J)	8-98070-942-2	01	1	1009-1011	●			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) (J)	8-98070-942-2	01	1	1012-	●	●		●
242	03.417 BRACKET; AIR DUCT (K)	8-98070-943-0	01	1	1009-1011	●			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) (K)	8-98070-943-0	01	1	1012-	●	●		●
242	03.417 BRACKET; AIR DUCT (I)	8-98032-142-1	01	1	1009-		●	●		●	●
242	03.417 BRACKET; AIR DUCT (I)	8-98032-143-1	01	1	1009-		●	●		●	●
242	03.417 BRACKET; AIR DUCT (B)	8-98029-819-1	01	1	1009-				●
242	03.417 BRACKET; AIR DUCT (F)	8-98055-243-1	01	1	1009-				●	●	●
242	03.417 BRACKET; AIR DUCT (G)	8-98055-246-2	01	1	1009-				●	●	●
242	03.417 BRACKET; AIR DUCT (H)	8-98055-247-1	01	1	1009-				●	●	●
242	03.417 BRACKET; AIR DUCT (B)	8-98049-012-1	01	1	1009-					●	●
281	03.417 DUCT; AIR,VERTICAL INT	8-98080-929-2	01	1	1009-	●	●	●
281	03.417 DUCT; AIR,VERTICAL INT	8-98061-757-2	01	1	1009-				●	●	●
287	03.417 CLIP; AIR DUCT 03.407 (C) ID=70-90	8-98122-372-0	01	1	1009-1011	●			●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) 03.407 (C) ID=70-90	8-98122-372-0	01	1	1012-	●	●
287	03.417 CLIP; AIR DUCT 03.407 (D) ID=117	9-09915-075-1	01	1	1009-1011	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) 03.407 (D) ID=117	9-09915-075-1	01	1	1012-	●	●
287	03.417 CLIP; AIR DUCT 03.407 (A) ID=77-99	1-09707-141-0	01	1	1009-1406		●	●
287	03.417 CLIP; AIR DUCT 03.407 (B) ID=112	9-09915-074-1	01	1	1009-		●	●
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1009-	●	●	●	●	●	●
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1009-	●	●	●	●	●	●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	02	1	1009-	●	●	●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	03	1	1009-	●	●	●	●	●	●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	03	1	1009-				●	●	●
381	03.417 NUT; BRKT,AIR DUCT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1009-				●	●	●
381	03.417 NUT; BRKT,AIR DUCT TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1009-					●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	1009-	●	●	●	●	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	1009-	●	●	●	●	●	●
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1009-	●	●	●	●	●	●
430	03.417 HOSE; INDICATOR AIR CLEANER DUST INDICATOR<YD1> 08.962 L=350 SERVICED BY L=3000	0-04770-300-0	01	1	1009-		●	●
430	03.417 HOSE; INDICATOR AIR CLEANER DUST INDICATOR<YD1> 08.962 L=250 SERVICED BY L=3000	0-04770-300-0	01	1	1009-					●	●
450	03.417 CLAMP; HOSE AIR CLEANER DUST INDICATOR<YD1> 01.240 ID=12	8-98150-358-0	02	1	1009-		●	●		●	●
480	03.417 ADAPTER AIR CLEANER DUST INDICATOR<YD1>	8-98013-425-0	01	1	1009-		●	●		●	●
530	03.407 CLAMP; AIR DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) ID=77-99	1-09707-141-0	01	1	1407-		●	●		●	●
554	04.439 FLANGE; PIPE,PCV 4HK1-TCN ENG(RDQ) FRIGID ZONE(YL3)	8-98038-208-0	01	1	1508-		●			●
554	04.439 FLANGE; PIPE,PCV 4HK1-TCS ENG(RJS) FRIGID ZONE(YL3)	8-98038-208-0	01	1	1508-			●			●
557	03.403 BOLT; HOSE CLIP 4JJ1-TCS ENG(LFB) 03.671 (B) M6X10 FLANGE	0-28050-610-0	01	1	1009-1011	●			●
557	03.403 BOLT; HOSE CLIP 4JJ1-TCS ENG(LFB) 03.671 (B) M6X10 FLANGE	0-28050-610-0	01	1	1012-	●	●		●
557	03.403 BOLT; HOSE CLIP 00.386 (A) M6X20 FLANGE	0-28050-620-0	03	1	1009-		●	●		●	●

351 5 381 242 389 242 381 381 389 389 314 317 314 317 281 232 5 314 26 317 409 40 5 35 557 554 225 61 242 384 297 5 174 175 242 351 381 232 48 48 5 381 381 5 381

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
5	03.407 CLIP; AIR DUCT (E) ID=70-90	8-98122-372-0	01	1	1009-	●	●	●	●	●	●
5	03.407 CLIP; AIR DUCT (E) ID=70-90	8-98122-372-0	01	1	1009-				●
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1009-	●	●	●	●	●	●
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1009-	●	●	●	●	●	●
5	03.407 CLIP; AIR DUCT (G) ID=58-79	1-09707-136-0	01	1	1009-1011	●			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) (G) ID=58-79	1-09707-136-0	01	1	1012-	●	●		●
5	03.407 CLIP; AIR DUCT (F) ID=60-65	8-98096-418-0	01	1	1009-1011	●			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) (F) ID=60-65	8-98096-418-0	01	1	1012-	●	●		●
5	03.407 CLIP; AIR DUCT (D) ID=77-99	1-09707-141-0	02	1	1009-		●	●		●	●
5	03.407 CLIP; AIR DUCT (G) ID=58-79	1-09707-136-0	02	1	1009-				●
5	03.407 CLIP; AIR DUCT (B) ID=117	9-09915-075-1	01	1	1009-				●
5	03.407 CLIP; AIR DUCT (D) ID=77-99	1-09707-141-0	01	1	1009-1406					●	●
5	03.407 CLIP; AIR DUCT (E) ID=70-90	8-98122-372-0	02	1	1009-					●	●
5	03.407 CLIP; AIR DUCT (B) ID=112	9-09915-074-1	01	1	1009-					●	●
26	03.417 DUCT; AIR INT (A)	8-98025-626-0	01	1	1009-	●	●	●
26	03.417 DUCT; AIR INT (B)	8-98025-627-0	01	1	1009-				●	●	●
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	1009-	●	●	●	●	●	●
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	1009-	●	●	●	●	●	●
48	03.417 BOLT; AIR DUCT 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1009-				●	●	●
48	03.417 BOLT; AIR DUCT 02.277 (B) M10X35 FLANGE	0-28651-035-0	01	1	1009-					●	●
61	03.417 BOLT; BRKT,AIR DUCT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1009-	●	●	●
61	03.417 BOLT; BRKT,AIR DUCT 02.277 M10X35 FLANGE	0-28651-035-0	01	1	1009-				●	●	●
174	03.682 SENSOR; AIR FLOW CONT	8-98113-202-1	01	1	1009-1011	●			●
174	03.682 SENSOR; AIR FLOW CONT 4JJ1-TCS ENG(LFB)	8-98113-202-1	01	1	1012-	●	●		●
174	03.682 SENSOR; AIR FLOW CONT	8-97601-967-0	01	1	1009-		●	●		●	●
175	03.682 BOLT; AIR FLOW CONT SENSOR 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1009-	●	●	●	●	●	●
225	03.417 GASKET; AIR PIPE 4HK1-TCN ENG(RDQ) FRIGID ZONE(YL3) 01.097 (B) ID=43.7	9-09561-344-0	01	1	1508-		●			●
225	03.417 GASKET; AIR PIPE 4HK1-TCS ENG(RJS) FRIGID ZONE(YL3) 01.097 (B) ID=43.7	9-09561-344-0	01	1	1508-			●			●
225	03.417 GASKET; AIR PIPE 03.270 (A) ID=47	8-97202-328-1	01	1	1009-1011	●			●
225	03.417 GASKET; AIR PIPE 4JJ1-TCS ENG(LFB) 03.270 (A) ID=47	8-97202-328-1	01	1	1012-	●	●		●
232	03.417 HOSE; CONN AIR CLEANER DUST INDICATOR<YD1> (F)	8-98000-233-3	01	1	1009-1402		●	●
232	03.417 HOSE; CONN AIR CLEANER DUST INDICATOR<YD1> (F)	8-98272-694-0	01	1	1403-1406		●	●
232	03.417 HOSE; CONN AIR CLEANER DUST INDICATOR<YD1> (H)	8-98281-173-0	01	1	1407-		●	●
232	03.417 HOSE; CONN (D)	8-98048-137-0	01	1	1009-1011	●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB) (D)	8-98048-137-0	01	1	1012-	●	●
232	03.417 HOSE; CONN (B)	8-98082-535-0	01	1	1009-1309	●	●	●	●	●	●
232	03.417 HOSE; CONN (B)	8-98231-785-0	01	1	1310-	●	●	●	●	●	●
232	03.417 HOSE; CONN MULTI INFORMATION DISPLAY<7NY> (A)	8-98079-860-0	01	1	1009-1402		●	●
232	03.417 HOSE; CONN MULTI INFORMATION DISPLAY<7NY> (A)	8-98272-700-0	01	1	1403-1406		●	●
232	03.417 HOSE; CONN MULTI INFORMATION DISPLAY<7NY> (G)	8-98281-178-0	01	1	1407-		●	●
232	03.417 HOSE; CONN EXC. AIR CLEANER DUST INDICATOR<YD1>, MULTI INFORMATION DISPLAY<7NY> (A)	8-98059-989-2	01	1	1009-1402		●	●
232	03.417 HOSE; CONN EXC. AIR CLEANER DUST INDICATOR<YD1>, MULTI INFORMATION DISPLAY<7NY> (A)	8-98272-698-0	01	1	1403-1406		●	●
232	03.417 HOSE; CONN EXC. AIR CLEANER DUST INDICATOR<YD1>, MULTI INFORMATION DISPLAY<7NY> (G)	8-98281-176-0	01	1	1407-		●	●
232	03.417 HOSE; CONN (E)	8-98021-072-2	01	1	1009-				●
232	03.417 HOSE; CONN TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98063-793-3	01	1	1009-					●	●
232	03.417 HOSE; CONN EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98094-582-2	01	1	1009-					●	●
242	03.417 BRACKET; AIR DUCT (A)	8-98004-416-0	01	1	1009-1510	●	●	●
242	03.417 BRACKET; AIR DUCT (A)	8-98145-112-1	01	1	1511-	●	●	●
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	1009-	●	●	●
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	1009-	●	●	●
242	03.417 BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	1009-	●	●	●
242	03.417 BRACKET; AIR DUCT (J)	8-98070-942-2	01	1	1009-1011	●			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) (J)	8-98070-942-2	01	1	1012-	●	●		●
242	03.417 BRACKET; AIR DUCT (K)	8-98070-943-0	01	1	1009-1011	●			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) (K)	8-98070-943-0	01	1	1012-	●	●		●
242	03.417 BRACKET; AIR DUCT (I)	8-98032-142-1	01	1	1009-		●	●		●	●
242	03.417 BRACKET; AIR DUCT (I)	8-98032-143-1	01	1	1009-		●	●		●	●
242	03.417 BRACKET; AIR DUCT (B)	8-98029-819-1	01	1	1009-				●
242	03.417 BRACKET; AIR DUCT (F)	8-98055-243-1	01	1	1009-				●	●	●
242	03.417 BRACKET; AIR DUCT (G)	8-98055-246-2	01	1	1009-				●	●	●
242	03.417 BRACKET; AIR DUCT (H)	8-98055-247-1	01	1	1009-				●	●	●
242	03.417 BRACKET; AIR DUCT (B)	8-98049-012-1	01	1	1009-					●	●
281	03.417 DUCT; AIR,VERTICAL INT	8-98080-929-2	01	1	1009-	●	●	●
281	03.417 DUCT; AIR,VERTICAL INT	8-98061-757-2	01	1	1009-				●	●	●
297	03.417 BOLT; DUCT 00.685 (B) M8X40 FLANGE	0-28650-840-0	01	1	1009-1011	●			●
297	03.417 BOLT; DUCT 4JJ1-TCS ENG(LFB) 00.685 (B) M8X40 FLANGE	0-28650-840-0	01	1	1012-	●	●		●
297	03.417 BOLT; DUCT 02.277 (A) M10X35 FLANGE	0-28651-035-0	01	1	1009-				●	●	●
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1009-	●	●	●	●	●	●
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1009-	●	●	●	●	●	●
351	03.407 DUCT; AIR AIR CLEANER DUST INDICATOR<YD1> 03.417 (G)	8-98021-485-1	01	1	1009-					●	●
351	03.407 DUCT; AIR 03.417 (D)	8-98051-032-1	01	1	1009-1011	●			●
351	03.407 DUCT; AIR 4JJ1-TCS ENG(LFB) 03.417 (D)	8-98051-032-1	01	1	1012-	●	●		●
351	03.407 DUCT; AIR (A)	8-98105-722-1	01	1	1009-		●	●		●	●
351	03.407 DUCT; AIR (E)	8-98021-486-1	01	1	1009-				●
351	03.407 DUCT; AIR (F)	8-98070-864-0	01	1	1009-				●
351	03.407 DUCT; AIR (B)	8-98021-487-2	01	1	1009-1402					●	●
351	03.407 DUCT; AIR (B)	8-98272-699-0	01	1	1403-1406					●	●
351	03.407 DUCT; AIR (B)	8-98281-177-0	01	1	1407-					●	●
351	03.407 DUCT; AIR EXC. AIR CLEANER DUST INDICATOR<YD1> (C)	8-98070-862-1	01	1	1009-					●	●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	02	1	1009-	●	●	●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	03	1	1009-	●	●	●	●	●	●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	03	1	1009-				●	●	●
381	03.417 NUT; BRKT,AIR DUCT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1009-				●	●	●
381	03.417 NUT; BRKT,AIR DUCT TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1009-					●	●
384	03.417 NUT; AIR INT DUCT BRKT 03.162 M10 FLANGE	0-91180-110-0	01	1	1009-				●	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	1009-	●	●	●	●	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	1009-	●	●	●	●	●	●
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1009-	●	●	●	●	●	●
554	04.439 FLANGE; PIPE,PCV 4HK1-TCN ENG(RDQ) FRIGID ZONE(YL3)	8-98038-208-0	01	1	1508-		●			●
554	04.439 FLANGE; PIPE,PCV 4HK1-TCS ENG(RJS) FRIGID ZONE(YL3)	8-98038-208-0	01	1	1508-			●			●
557	03.403 BOLT; HOSE CLIP 4JJ1-TCS ENG(LFB) 03.671 (B) M6X10 FLANGE	0-28050-610-0	01	1	1009-1011	●			●
557	03.403 BOLT; HOSE CLIP 4JJ1-TCS ENG(LFB) 03.671 (B) M6X10 FLANGE	0-28050-610-0	01	1	1012-	●	●		●
557	03.403 BOLT; HOSE CLIP 00.386 (A) M6X20 FLANGE	0-28050-620-0	03	1	1009-		●	●		●	●

381 381 389 242 242 381 381 389 314 317 314 317 281 5 232 314 26 317 409 40 5 35 384 242 351 174 175 381 242 5 297 61 381 389

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
5	03.407 CLIP; AIR DUCT (E) ID=70-90	8-98122-372-0	01	1	1009-	●	●	●	●	●	●
5	03.407 CLIP; AIR DUCT (E) ID=70-90	8-98122-372-0	01	1	1009-				●
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1009-	●	●	●	●	●	●
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1009-	●	●	●	●	●	●
5	03.407 CLIP; AIR DUCT (G) ID=58-79	1-09707-136-0	01	1	1009-1011	●			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) (G) ID=58-79	1-09707-136-0	01	1	1012-	●	●		●
5	03.407 CLIP; AIR DUCT (F) ID=60-65	8-98096-418-0	01	1	1009-1011	●			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) (F) ID=60-65	8-98096-418-0	01	1	1012-	●	●		●
5	03.407 CLIP; AIR DUCT (D) ID=77-99	1-09707-141-0	02	1	1009-		●	●		●	●
5	03.407 CLIP; AIR DUCT (G) ID=58-79	1-09707-136-0	02	1	1009-				●
5	03.407 CLIP; AIR DUCT (B) ID=117	9-09915-075-1	01	1	1009-				●
5	03.407 CLIP; AIR DUCT (D) ID=77-99	1-09707-141-0	01	1	1009-1406					●	●
5	03.407 CLIP; AIR DUCT (E) ID=70-90	8-98122-372-0	02	1	1009-					●	●
5	03.407 CLIP; AIR DUCT (B) ID=112	9-09915-074-1	01	1	1009-					●	●
26	03.417 DUCT; AIR INT (A)	8-98025-626-0	01	1	1009-	●	●	●
26	03.417 DUCT; AIR INT (B)	8-98025-627-0	01	1	1009-				●	●	●
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	1009-	●	●	●	●	●	●
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	1009-	●	●	●	●	●	●
61	03.417 BOLT; BRKT,AIR DUCT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1009-	●	●	●
61	03.417 BOLT; BRKT,AIR DUCT 02.277 M10X35 FLANGE	0-28651-035-0	01	1	1009-				●	●	●
174	03.682 SENSOR; AIR FLOW CONT	8-98113-202-1	01	1	1009-1011	●			●
174	03.682 SENSOR; AIR FLOW CONT 4JJ1-TCS ENG(LFB)	8-98113-202-1	01	1	1012-	●	●		●
174	03.682 SENSOR; AIR FLOW CONT	8-97601-967-0	01	1	1009-		●	●		●	●
175	03.682 BOLT; AIR FLOW CONT SENSOR 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1009-	●	●	●	●	●	●
232	03.417 HOSE; CONN AIR CLEANER DUST INDICATOR<YD1> (F)	8-98000-233-3	01	1	1009-1402		●	●
232	03.417 HOSE; CONN AIR CLEANER DUST INDICATOR<YD1> (F)	8-98272-694-0	01	1	1403-1406		●	●
232	03.417 HOSE; CONN AIR CLEANER DUST INDICATOR<YD1> (H)	8-98281-173-0	01	1	1407-		●	●
232	03.417 HOSE; CONN (D)	8-98048-137-0	01	1	1009-1011	●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB) (D)	8-98048-137-0	01	1	1012-	●	●
232	03.417 HOSE; CONN (B)	8-98082-535-0	01	1	1009-1309	●	●	●	●	●	●
232	03.417 HOSE; CONN (B)	8-98231-785-0	01	1	1310-	●	●	●	●	●	●
232	03.417 HOSE; CONN MULTI INFORMATION DISPLAY<7NY> (A)	8-98079-860-0	01	1	1009-1402		●	●
232	03.417 HOSE; CONN MULTI INFORMATION DISPLAY<7NY> (A)	8-98272-700-0	01	1	1403-1406		●	●
232	03.417 HOSE; CONN MULTI INFORMATION DISPLAY<7NY> (G)	8-98281-178-0	01	1	1407-		●	●
232	03.417 HOSE; CONN EXC. AIR CLEANER DUST INDICATOR<YD1>, MULTI INFORMATION DISPLAY<7NY> (A)	8-98059-989-2	01	1	1009-1402		●	●
232	03.417 HOSE; CONN EXC. AIR CLEANER DUST INDICATOR<YD1>, MULTI INFORMATION DISPLAY<7NY> (A)	8-98272-698-0	01	1	1403-1406		●	●
232	03.417 HOSE; CONN EXC. AIR CLEANER DUST INDICATOR<YD1>, MULTI INFORMATION DISPLAY<7NY> (G)	8-98281-176-0	01	1	1407-		●	●
232	03.417 HOSE; CONN (E)	8-98021-072-2	01	1	1009-				●
232	03.417 HOSE; CONN TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98063-793-3	01	1	1009-					●	●
232	03.417 HOSE; CONN EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98094-582-2	01	1	1009-					●	●
242	03.417 BRACKET; AIR DUCT (A)	8-98004-416-0	01	1	1009-1510	●	●	●
242	03.417 BRACKET; AIR DUCT (A)	8-98145-112-1	01	1	1511-	●	●	●
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	1009-	●	●	●
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	1009-	●	●	●
242	03.417 BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	1009-	●	●	●
242	03.417 BRACKET; AIR DUCT (J)	8-98070-942-2	01	1	1009-1011	●			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) (J)	8-98070-942-2	01	1	1012-	●	●		●
242	03.417 BRACKET; AIR DUCT (K)	8-98070-943-0	01	1	1009-1011	●			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) (K)	8-98070-943-0	01	1	1012-	●	●		●
242	03.417 BRACKET; AIR DUCT (I)	8-98032-142-1	01	1	1009-		●	●		●	●
242	03.417 BRACKET; AIR DUCT (I)	8-98032-143-1	01	1	1009-		●	●		●	●
242	03.417 BRACKET; AIR DUCT (B)	8-98029-819-1	01	1	1009-				●
242	03.417 BRACKET; AIR DUCT (F)	8-98055-243-1	01	1	1009-				●	●	●
242	03.417 BRACKET; AIR DUCT (G)	8-98055-246-2	01	1	1009-				●	●	●
242	03.417 BRACKET; AIR DUCT (H)	8-98055-247-1	01	1	1009-				●	●	●
242	03.417 BRACKET; AIR DUCT (B)	8-98049-012-1	01	1	1009-					●	●
281	03.417 DUCT; AIR,VERTICAL INT	8-98080-929-2	01	1	1009-	●	●	●
281	03.417 DUCT; AIR,VERTICAL INT	8-98061-757-2	01	1	1009-				●	●	●
297	03.417 BOLT; DUCT 00.685 (B) M8X40 FLANGE	0-28650-840-0	01	1	1009-1011	●			●
297	03.417 BOLT; DUCT 4JJ1-TCS ENG(LFB) 00.685 (B) M8X40 FLANGE	0-28650-840-0	01	1	1012-	●	●		●
297	03.417 BOLT; DUCT 02.277 (A) M10X35 FLANGE	0-28651-035-0	01	1	1009-				●	●	●
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1009-	●	●	●	●	●	●
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1009-	●	●	●	●	●	●
351	03.407 DUCT; AIR AIR CLEANER DUST INDICATOR<YD1> 03.417 (G)	8-98021-485-1	01	1	1009-					●	●
351	03.407 DUCT; AIR 03.417 (D)	8-98051-032-1	01	1	1009-1011	●			●
351	03.407 DUCT; AIR 4JJ1-TCS ENG(LFB) 03.417 (D)	8-98051-032-1	01	1	1012-	●	●		●
351	03.407 DUCT; AIR (A)	8-98105-722-1	01	1	1009-		●	●		●	●
351	03.407 DUCT; AIR (E)	8-98021-486-1	01	1	1009-				●
351	03.407 DUCT; AIR (F)	8-98070-864-0	01	1	1009-				●
351	03.407 DUCT; AIR (B)	8-98021-487-2	01	1	1009-1402					●	●
351	03.407 DUCT; AIR (B)	8-98272-699-0	01	1	1403-1406					●	●
351	03.407 DUCT; AIR (B)	8-98281-177-0	01	1	1407-					●	●
351	03.407 DUCT; AIR EXC. AIR CLEANER DUST INDICATOR<YD1> (C)	8-98070-862-1	01	1	1009-					●	●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	02	1	1009-	●	●	●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	03	1	1009-	●	●	●	●	●	●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	03	1	1009-				●	●	●
381	03.417 NUT; BRKT,AIR DUCT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1009-				●	●	●
381	03.417 NUT; BRKT,AIR DUCT TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1009-					●	●
384	03.417 NUT; AIR INT DUCT BRKT 03.162 M10 FLANGE	0-91180-110-0	01	1	1009-				●	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	1009-	●	●	●	●	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	1009-	●	●	●	●	●	●
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1009-	●	●	●	●	●	●

351 5 232 381 48 48 5 381 242 175 174 5 351 242 61 155 480 384 450 430 450 554 225 557 35 297 409 40 5 317 314 232 5 281 317 314 317 314 389 381 389 381 381 242 389 242 381 5 381 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
5	03.407 CLIP; AIR DUCT (E) ID=70-90	8-98122-372-0	01	1	1009-	●	●	●	●	●	●
5	03.407 CLIP; AIR DUCT (E) ID=70-90	8-98122-372-0	01	1	1009-				●
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1009-	●	●	●	●	●	●
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1009-	●	●	●	●	●	●
5	03.407 CLIP; AIR DUCT (G) ID=58-79	1-09707-136-0	01	1	1009-1011	●			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) (G) ID=58-79	1-09707-136-0	01	1	1012-	●	●		●
5	03.407 CLIP; AIR DUCT (F) ID=60-65	8-98096-418-0	01	1	1009-1011	●			●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) (F) ID=60-65	8-98096-418-0	01	1	1012-	●	●		●
5	03.407 CLIP; AIR DUCT (D) ID=77-99	1-09707-141-0	02	1	1009-		●	●		●	●
5	03.407 CLIP; AIR DUCT (G) ID=58-79	1-09707-136-0	02	1	1009-				●
5	03.407 CLIP; AIR DUCT (B) ID=117	9-09915-075-1	01	1	1009-				●
5	03.407 CLIP; AIR DUCT (D) ID=77-99	1-09707-141-0	01	1	1009-1406					●	●
5	03.407 CLIP; AIR DUCT (E) ID=70-90	8-98122-372-0	02	1	1009-					●	●
5	03.407 CLIP; AIR DUCT (B) ID=112	9-09915-074-1	01	1	1009-					●	●
26	03.417 DUCT; AIR INT (A)	8-98025-626-0	01	1	1009-	●	●	●
26	03.417 DUCT; AIR INT (B)	8-98025-627-0	01	1	1009-				●	●	●
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	1009-	●	●	●	●	●	●
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	1009-	●	●	●	●	●	●
48	03.417 BOLT; AIR DUCT 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1009-				●	●	●
48	03.417 BOLT; AIR DUCT 02.277 (B) M10X35 FLANGE	0-28651-035-0	01	1	1009-					●	●
61	03.417 BOLT; BRKT,AIR DUCT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1009-	●	●	●
61	03.417 BOLT; BRKT,AIR DUCT 02.277 M10X35 FLANGE	0-28651-035-0	01	1	1009-				●	●	●
155	03.417 BOLT; BRKT AIR CLEANER DUST INDICATOR<YD1> 09.242 M6X16 FLANGE	0-28050-616-0	02	1	1009-		●	●		●	●
174	03.682 SENSOR; AIR FLOW CONT	8-98113-202-1	01	1	1009-1011	●			●
174	03.682 SENSOR; AIR FLOW CONT 4JJ1-TCS ENG(LFB)	8-98113-202-1	01	1	1012-	●	●		●
174	03.682 SENSOR; AIR FLOW CONT	8-97601-967-0	01	1	1009-		●	●		●	●
175	03.682 BOLT; AIR FLOW CONT SENSOR 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1009-	●	●	●	●	●	●
225	03.417 GASKET; AIR PIPE 4HK1-TCN ENG(RDQ) FRIGID ZONE(YL3) 01.097 (B) ID=43.7	9-09561-344-0	01	1	1508-		●			●
225	03.417 GASKET; AIR PIPE 4HK1-TCS ENG(RJS) FRIGID ZONE(YL3) 01.097 (B) ID=43.7	9-09561-344-0	01	1	1508-			●			●
225	03.417 GASKET; AIR PIPE 03.270 (A) ID=47	8-97202-328-1	01	1	1009-1011	●			●
225	03.417 GASKET; AIR PIPE 4JJ1-TCS ENG(LFB) 03.270 (A) ID=47	8-97202-328-1	01	1	1012-	●	●		●
232	03.417 HOSE; CONN AIR CLEANER DUST INDICATOR<YD1> (F)	8-98000-233-3	01	1	1009-1402		●	●
232	03.417 HOSE; CONN AIR CLEANER DUST INDICATOR<YD1> (F)	8-98272-694-0	01	1	1403-1406		●	●
232	03.417 HOSE; CONN AIR CLEANER DUST INDICATOR<YD1> (H)	8-98281-173-0	01	1	1407-		●	●
232	03.417 HOSE; CONN (D)	8-98048-137-0	01	1	1009-1011	●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB) (D)	8-98048-137-0	01	1	1012-	●	●
232	03.417 HOSE; CONN (B)	8-98082-535-0	01	1	1009-1309	●	●	●	●	●	●
232	03.417 HOSE; CONN (B)	8-98231-785-0	01	1	1310-	●	●	●	●	●	●
232	03.417 HOSE; CONN MULTI INFORMATION DISPLAY<7NY> (A)	8-98079-860-0	01	1	1009-1402		●	●
232	03.417 HOSE; CONN MULTI INFORMATION DISPLAY<7NY> (A)	8-98272-700-0	01	1	1403-1406		●	●
232	03.417 HOSE; CONN MULTI INFORMATION DISPLAY<7NY> (G)	8-98281-178-0	01	1	1407-		●	●
232	03.417 HOSE; CONN EXC. AIR CLEANER DUST INDICATOR<YD1>, MULTI INFORMATION DISPLAY<7NY> (A)	8-98059-989-2	01	1	1009-1402		●	●
232	03.417 HOSE; CONN EXC. AIR CLEANER DUST INDICATOR<YD1>, MULTI INFORMATION DISPLAY<7NY> (A)	8-98272-698-0	01	1	1403-1406		●	●
232	03.417 HOSE; CONN EXC. AIR CLEANER DUST INDICATOR<YD1>, MULTI INFORMATION DISPLAY<7NY> (G)	8-98281-176-0	01	1	1407-		●	●
232	03.417 HOSE; CONN (E)	8-98021-072-2	01	1	1009-				●
232	03.417 HOSE; CONN TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98063-793-3	01	1	1009-					●	●
232	03.417 HOSE; CONN EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98094-582-2	01	1	1009-					●	●
242	03.417 BRACKET; AIR DUCT (A)	8-98004-416-0	01	1	1009-1510	●	●	●
242	03.417 BRACKET; AIR DUCT (A)	8-98145-112-1	01	1	1511-	●	●	●
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	1009-	●	●	●
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	1009-	●	●	●
242	03.417 BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	1009-	●	●	●
242	03.417 BRACKET; AIR DUCT (J)	8-98070-942-2	01	1	1009-1011	●			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) (J)	8-98070-942-2	01	1	1012-	●	●		●
242	03.417 BRACKET; AIR DUCT (K)	8-98070-943-0	01	1	1009-1011	●			●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB) (K)	8-98070-943-0	01	1	1012-	●	●		●
242	03.417 BRACKET; AIR DUCT (I)	8-98032-142-1	01	1	1009-		●	●		●	●
242	03.417 BRACKET; AIR DUCT (I)	8-98032-143-1	01	1	1009-		●	●		●	●
242	03.417 BRACKET; AIR DUCT (B)	8-98029-819-1	01	1	1009-				●
242	03.417 BRACKET; AIR DUCT (F)	8-98055-243-1	01	1	1009-				●	●	●
242	03.417 BRACKET; AIR DUCT (G)	8-98055-246-2	01	1	1009-				●	●	●
242	03.417 BRACKET; AIR DUCT (H)	8-98055-247-1	01	1	1009-				●	●	●
242	03.417 BRACKET; AIR DUCT (B)	8-98049-012-1	01	1	1009-					●	●
281	03.417 DUCT; AIR,VERTICAL INT	8-98080-929-2	01	1	1009-	●	●	●
281	03.417 DUCT; AIR,VERTICAL INT	8-98061-757-2	01	1	1009-				●	●	●
297	03.417 BOLT; DUCT 00.685 (B) M8X40 FLANGE	0-28650-840-0	01	1	1009-1011	●			●
297	03.417 BOLT; DUCT 4JJ1-TCS ENG(LFB) 00.685 (B) M8X40 FLANGE	0-28650-840-0	01	1	1012-	●	●		●
297	03.417 BOLT; DUCT 02.277 (A) M10X35 FLANGE	0-28651-035-0	01	1	1009-				●	●	●
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1009-	●	●	●	●	●	●
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1009-	●	●	●	●	●	●
351	03.407 DUCT; AIR AIR CLEANER DUST INDICATOR<YD1> 03.417 (G)	8-98021-485-1	01	1	1009-					●	●
351	03.407 DUCT; AIR 03.417 (D)	8-98051-032-1	01	1	1009-1011	●			●
351	03.407 DUCT; AIR 4JJ1-TCS ENG(LFB) 03.417 (D)	8-98051-032-1	01	1	1012-	●	●		●
351	03.407 DUCT; AIR (A)	8-98105-722-1	01	1	1009-		●	●		●	●
351	03.407 DUCT; AIR (E)	8-98021-486-1	01	1	1009-				●
351	03.407 DUCT; AIR (F)	8-98070-864-0	01	1	1009-				●
351	03.407 DUCT; AIR (B)	8-98021-487-2	01	1	1009-1402					●	●
351	03.407 DUCT; AIR (B)	8-98272-699-0	01	1	1403-1406					●	●
351	03.407 DUCT; AIR (B)	8-98281-177-0	01	1	1407-					●	●
351	03.407 DUCT; AIR EXC. AIR CLEANER DUST INDICATOR<YD1> (C)	8-98070-862-1	01	1	1009-					●	●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	02	1	1009-	●	●	●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	03	1	1009-	●	●	●	●	●	●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	03	1	1009-				●	●	●
381	03.417 NUT; BRKT,AIR DUCT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1009-				●	●	●
381	03.417 NUT; BRKT,AIR DUCT TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1009-					●	●
384	03.417 NUT; AIR INT DUCT BRKT 03.162 M10 FLANGE	0-91180-110-0	01	1	1009-				●	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	1009-	●	●	●	●	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	1009-	●	●	●	●	●	●
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1009-	●	●	●	●	●	●
430	03.417 HOSE; INDICATOR AIR CLEANER DUST INDICATOR<YD1> 08.962 L=350 SERVICED BY L=3000	0-04770-300-0	01	1	1009-		●	●
430	03.417 HOSE; INDICATOR AIR CLEANER DUST INDICATOR<YD1> 08.962 L=250 SERVICED BY L=3000	0-04770-300-0	01	1	1009-					●	●
450	03.417 CLAMP; HOSE AIR CLEANER DUST INDICATOR<YD1> 01.240 ID=12	8-98150-358-0	02	1	1009-		●	●		●	●
480	03.417 ADAPTER AIR CLEANER DUST INDICATOR<YD1>	8-98013-425-0	01	1	1009-		●	●		●	●
554	04.439 FLANGE; PIPE,PCV 4HK1-TCN ENG(RDQ) FRIGID ZONE(YL3)	8-98038-208-0	01	1	1508-		●			●
554	04.439 FLANGE; PIPE,PCV 4HK1-TCS ENG(RJS) FRIGID ZONE(YL3)	8-98038-208-0	01	1	1508-			●			●
557	03.403 BOLT; HOSE CLIP 4JJ1-TCS ENG(LFB) 03.671 (B) M6X10 FLANGE	0-28050-610-0	01	1	1009-1011	●			●
557	03.403 BOLT; HOSE CLIP 4JJ1-TCS ENG(LFB) 03.671 (B) M6X10 FLANGE	0-28050-610-0	01	1	1012-	●	●		●
557	03.403 BOLT; HOSE CLIP 00.386 (A) M6X20 FLANGE	0-28050-620-0	03	1	1009-		●	●		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
