Sayfa 1-10 - Isuzu EPC

1-10 — RADIATOR (#78264) — 228 parça

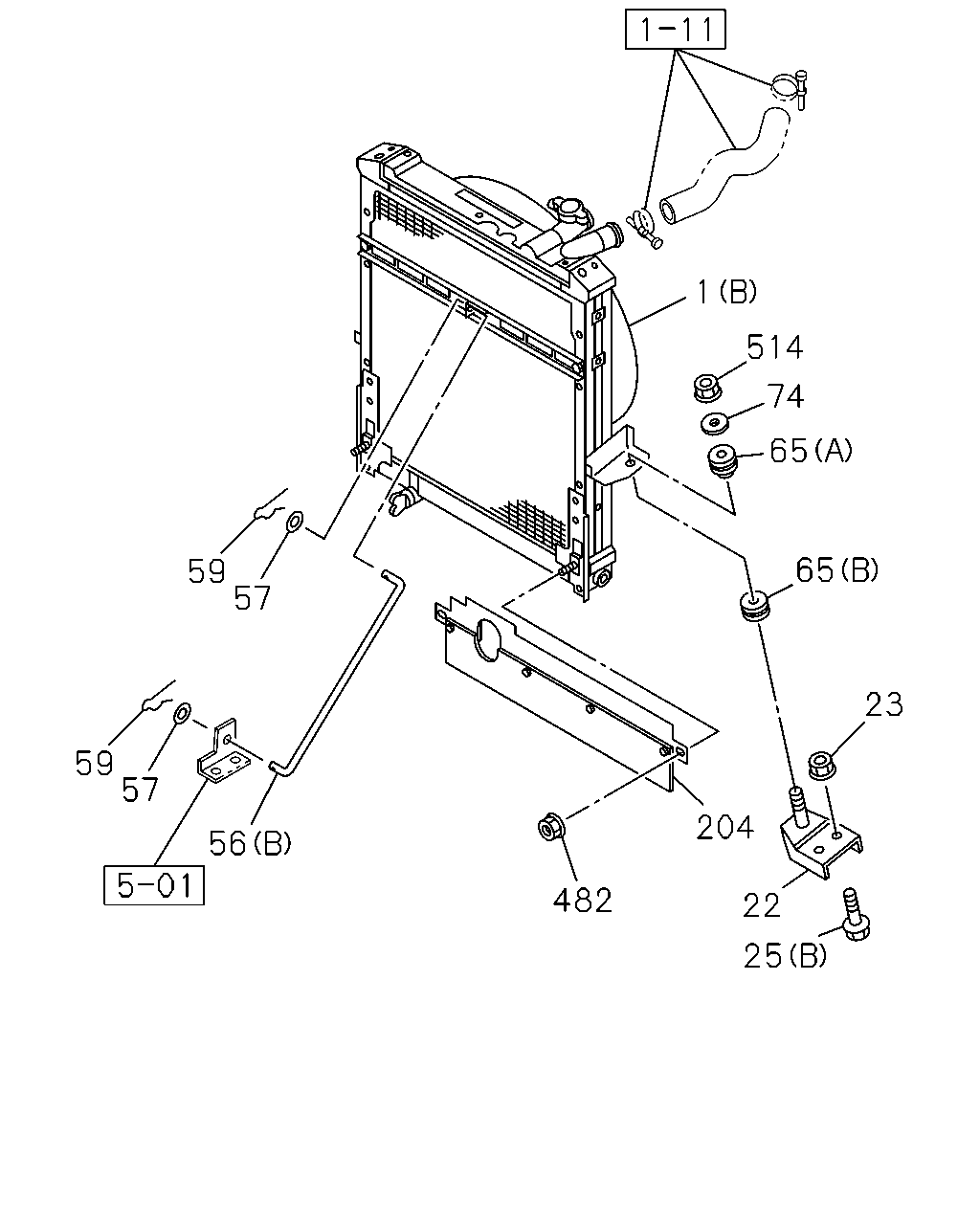

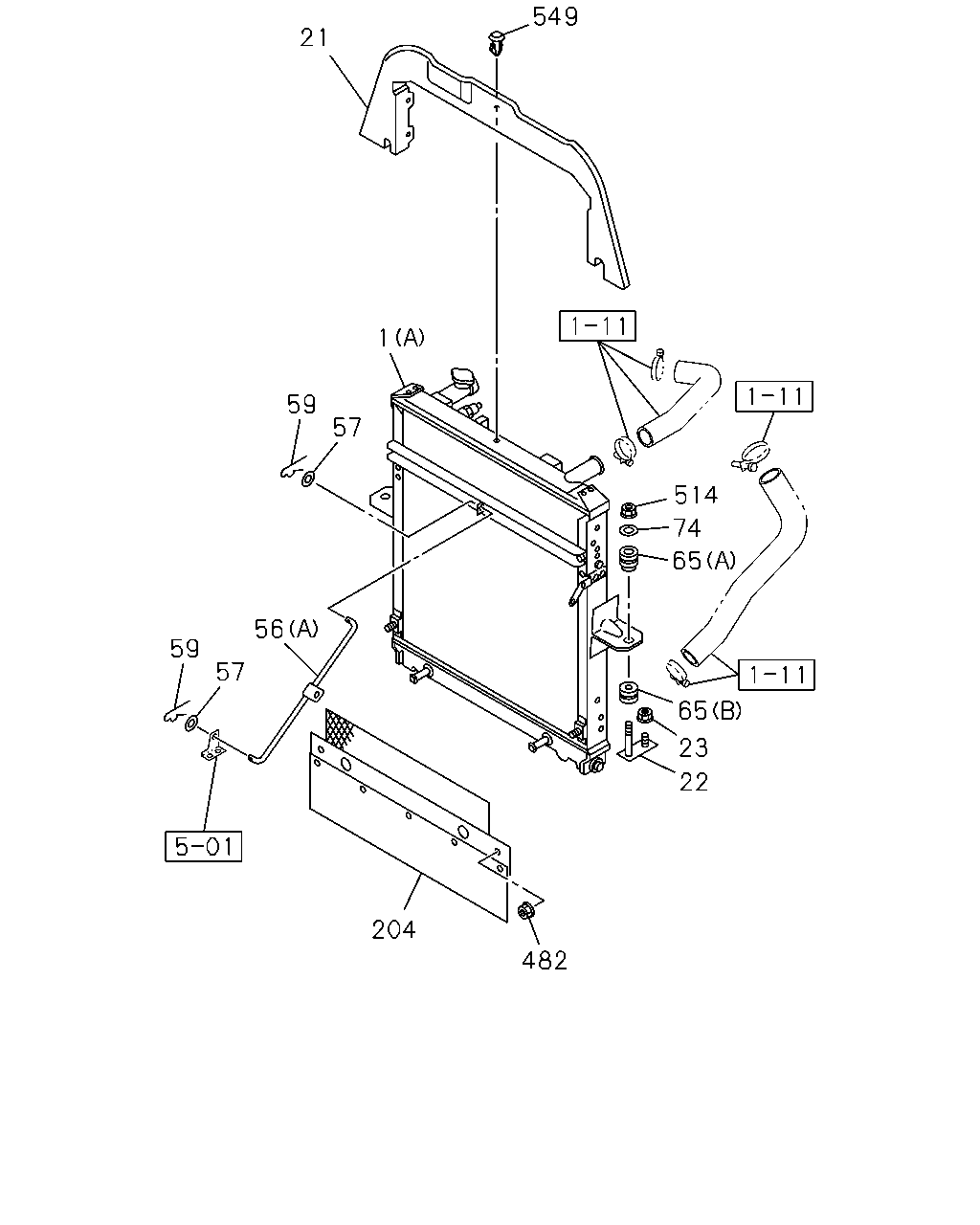

21 549 1 59 514 74 65 65 23 22 482 204 57 59 56 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98094-464-0	01	1	1009-1011	●	●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98094-464-0	01	1	1012-1410	●	●	●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98296-901-0	01	1	1411-	●	●	●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98094-463-0	01	1	1009-1011	●	●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98094-463-0	01	1	1012-1410	●	●	●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98296-900-0	01	1	1411-1507	●	●	●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98296-900-0	01	1	1508-	●	●	●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98095-594-0	01	1	1009-			●	●
1	01.219 RADIATOR ASM 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98095-594-0	01	1	1009-					●	●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98095-593-0	01	1	1009-1507			●	●
1	01.219 RADIATOR ASM 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98095-593-0	01	1	1009-1507					●	●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98095-593-0	01	1	1508-			●	●
1	01.219 RADIATOR ASM 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98095-593-0	01	1	1508-					●	●
21	01.276 SEAL; RAD	8-98025-371-0	01	1	1009-1011	●	●
21	01.276 SEAL; RAD 4JJ1-TCS ENG(LFB)	8-98025-371-0	01	1	1012-	●	●	●
22	01.270 BRACKET; RAD MTG	8-97387-640-0	01	1	1009-1011	●	●
22	01.270 BRACKET; RAD MTG 4JJ1-TCS ENG(LFB)	8-97387-640-0	01	1	1012-	●	●	●
22	01.270 BRACKET; RAD MTG	8-97387-641-0	01	1	1009-1011	●	●
22	01.270 BRACKET; RAD MTG 4JJ1-TCS ENG(LFB)	8-97387-641-0	01	1	1012-	●	●	●
22	01.270 BRACKET; RAD MTG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.277	8-97330-527-1	02	1	1009-			●	●	●	●
23	01.271 NUT; RAD MTG 03.162 M10 FLANGE	0-91180-110-0	04	1	1009-1011	●	●
23	01.271 NUT; RAD MTG 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	04	1	1012-	●	●	●
23	01.271 NUT; RAD MTG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	02	1	1009-			●	●	●	●
56	01.270 STAY; RAD (B)	8-97387-650-0	01	1	1009-1011	●	●
56	01.270 STAY; RAD 4JJ1-TCS ENG(LFB) (B)	8-97387-650-0	01	1	1012-	●	●	●
56	01.270 STAY; RAD (A)	8-98006-490-2	01	1	1009-			●	●	●	●
57	01.271 WASHER; PL,STAY 17.198 ID=10.5	0-91610-510-0	02	1	1009-	●	●	●	●	●	●
59	01.271 PIN; SNAP,STAY L=32.6	8-97359-052-0	02	1	1009-	●	●	●	●	●	●
65	01.271 INSULATOR; RAD 01.270 (A)	8-94249-346-0	02	1	1009-	●	●	●	●	●	●
65	01.271 INSULATOR; RAD 01.270 (B)	8-94249-347-0	02	1	1009-	●	●	●	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER ID=8.5 OD=36	8-97359-049-1	02	1	1009-	●	●	●	●	●	●
204	01.267 GUIDE ASM; AIR	8-97383-928-1	01	1	1009-1011	●	●
204	01.267 GUIDE ASM; AIR 4JJ1-TCS ENG(LFB)	8-97383-928-1	01	1	1012-	●	●	●
482	01.277 NUT; AIR GUIDE 01.062 M8 FLANGE	0-91180-108-0	02	1	1009-1011	●	●
482	01.277 NUT; AIR GUIDE 4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-	●	●	●
514	01.276 NUT; RAD 01.062 M8 FLANGE	0-91180-108-0	02	1	1009-	●	●	●	●	●	●
549	03.438 CLIP; SEAL,RAD 01.276	8-97228-568-0	05	1	1009-1011	●	●
549	03.438 CLIP; SEAL,RAD 4JJ1-TCS ENG(LFB) 01.276	8-97228-568-0	05	1	1012-	●	●	●

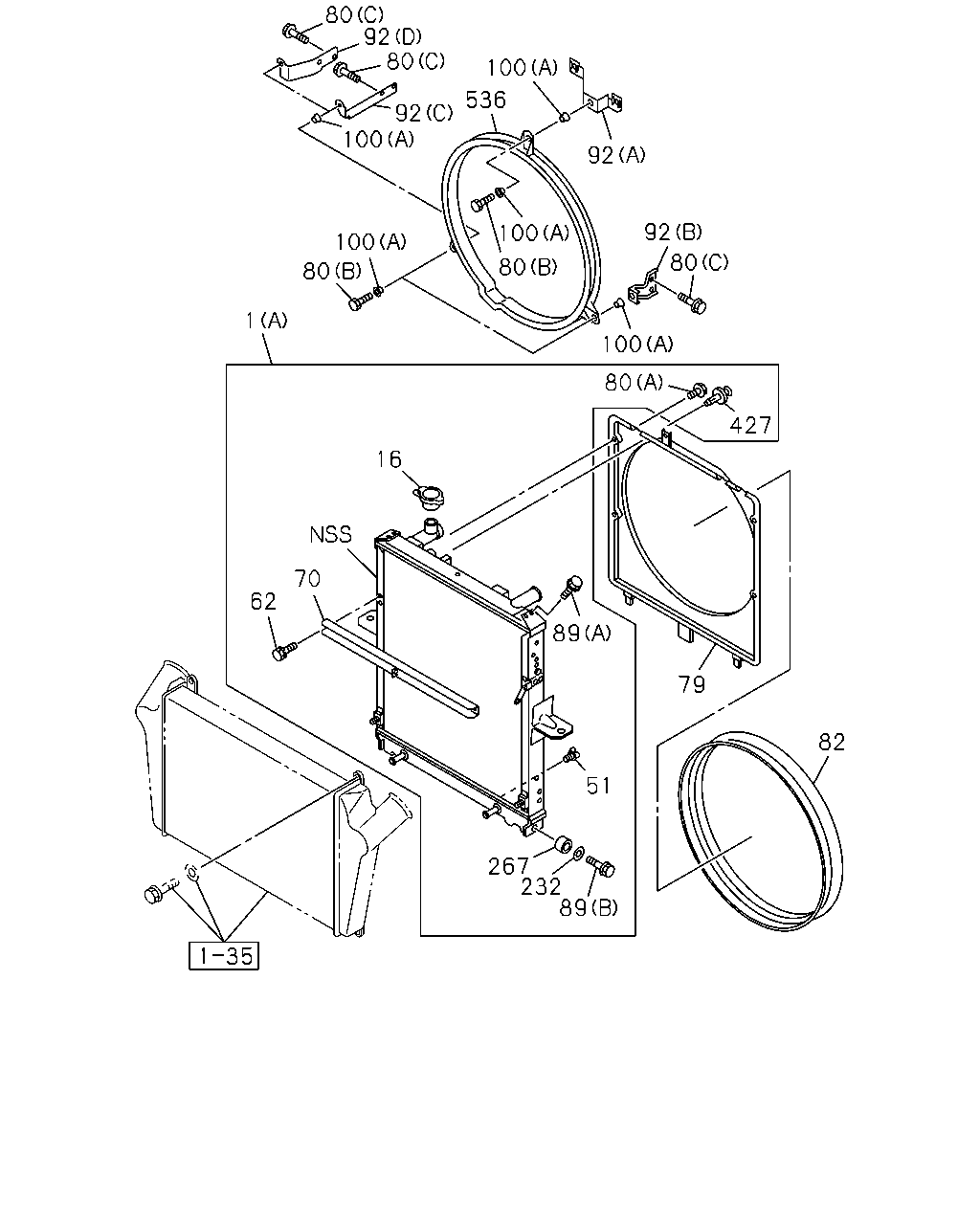

80 80 92 100 100 80 1 100 536 92 92 80 100 80 100 80 427 82 79 89 51 89 232 267 16 70 62 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98094-464-0	01	1	1009-1011	●	●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98094-464-0	01	1	1012-1410	●	●	●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98296-901-0	01	1	1411-	●	●	●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98094-463-0	01	1	1009-1011	●	●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98094-463-0	01	1	1012-1410	●	●	●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98296-900-0	01	1	1411-1507	●	●	●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98296-900-0	01	1	1508-	●	●	●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98095-594-0	01	1	1009-			●	●
1	01.219 RADIATOR ASM 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98095-594-0	01	1	1009-					●	●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98095-593-0	01	1	1009-1507			●	●
1	01.219 RADIATOR ASM 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98095-593-0	01	1	1009-1507					●	●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98095-593-0	01	1	1508-			●	●
1	01.219 RADIATOR ASM 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98095-593-0	01	1	1508-					●	●
16	01.203 CAP; RAD	8-97239-187-0	01	1	1009-	●	●	●	●	●	●
51	08.951 PLUG; DRAIN W/GASKET	8-97171-437-0	01	1	1009-	●	●	●	●	●	●
62	01.271 BOLT; STAY 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1009-	●	●	●	●	●	●
70	01.271 STAY; RAD	8-98114-297-0	01	1	1009-1011	●	●
70	01.271 STAY; RAD 4JJ1-TCS ENG(LFB)	8-98114-297-0	01	1	1012-1507	●	●	●
70	01.271 STAY; RAD 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98114-297-0	01	1	1508-	●	●	●
70	01.271 STAY; RAD 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98018-941-0	01	1	1009-1507			●	●	●	●
70	01.271 STAY; RAD 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98018-941-0	01	1	1508-			●	●
70	01.271 STAY; RAD 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98018-941-0	01	1	1508-					●	●
79	01.277 GUIDE; FAN,RAD	8-97387-081-1	01	1	1009-1011	●	●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCS ENG(LFB)	8-97387-081-1	01	1	1012-1410	●	●	●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCS ENG(LFB)	8-98234-712-0	01	1	1411-1507	●	●	●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98234-712-0	01	1	1508-	●	●	●
79	01.277 GUIDE; FAN,RAD 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98006-477-0	01	1	1009-1507			●	●	●	●
79	01.277 GUIDE; FAN,RAD 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98006-477-0	01	1	1508-			●	●
79	01.277 GUIDE; FAN,RAD 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98006-477-0	01	1	1508-					●	●
80	01.277 BOLT; FAN GUIDE 03.403 (B) M8X30 FLANGE	0-28650-830-0	03	1	1009-	●	●	●	●	●	●
80	01.277 BOLT; FAN GUIDE 01.428 (D) M8X130 FLANGE	0-28055-813-0	01	1	1009-1011	●	●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCS ENG(LFB) 01.428 (D) M8X130 FLANGE	0-28055-813-0	01	1	1012-	●	●	●
80	01.277 BOLT; FAN GUIDE (E) M6X12	8-98039-672-0	02	1	1009-1011	●	●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCS ENG(LFB) (E) M6X12	8-98039-672-0	02	1	1012-1410	●	●	●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCS ENG(LFB) (E) M6X12	8-98039-672-0	04	1	1411-1507	●	●	●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) M6X12	8-98039-672-0	04	1	1508-	●	●	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) M6X16	1-21559-481-0	04	1	1009-1507			●	●	●	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M6X16	1-21559-481-0	04	1	1508-			●	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M6X16	1-21559-481-0	04	1	1508-					●	●
80	01.277 BOLT; FAN GUIDE GENERATOR 24V80A(7YN) 03.417 (C) M10X20 FLANGE	0-28151-020-0	04	1	1009-			●	●	●	●
80	01.277 BOLT; FAN GUIDE EXC. GENERATOR 24V80A(7YN) 03.417 (C) M10X20 FLANGE	0-28151-020-0	02	1	1009-			●	●	●	●
82	01.277 COVER; FAN,RAD	8-97387-085-1	01	1	1009-1011	●	●
82	01.277 COVER; FAN,RAD 4JJ1-TCS ENG(LFB)	8-97387-085-1	01	1	1012-1507	●	●	●
82	01.277 COVER; FAN,RAD 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97387-085-1	01	1	1508-	●	●	●
82	01.277 COVER; FAN,RAD 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98006-478-0	01	1	1009-1507			●	●	●	●
82	01.277 COVER; FAN,RAD 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98006-478-0	01	1	1508-			●	●
82	01.277 COVER; FAN,RAD 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98006-478-0	01	1	1508-					●	●
89	01.277 BOLT 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1009-	●	●	●	●	●	●
89	01.277 BOLT 01.271 (B) M8X25 W/PL WASHER	1-21469-153-0	02	1	1009-	●	●	●	●	●	●
92	01.277 BRACKET; FAN GUIDE (E)	8-97381-550-1	01	1	1009-1011	●	●
92	01.277 BRACKET; FAN GUIDE 4JJ1-TCS ENG(LFB) (E)	8-97381-550-1	01	1	1012-1303	●	●	●
92	01.277 BRACKET; FAN GUIDE 4JJ1-TCS ENG(LFB) (E)	8-98237-770-0	01	1	1304-	●	●	●
92	01.277 BRACKET; FAN GUIDE (B)	8-97386-233-0	01	1	1009-			●	●	●	●
92	01.277 BRACKET; FAN GUIDE GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) (A)	8-97382-827-2	01	1	1009-			●	●	●	●
92	01.277 BRACKET; FAN GUIDE GENERATOR 24V80A(7YN) (D)	8-98032-526-0	01	1	1009-			●	●	●	●
92	01.277 BRACKET; FAN GUIDE EXC. GENERATOR 24V80A(7YN) (C)	8-97350-997-0	01	1	1009-			●	●	●	●
100	01.277 RUBBER; MTG (B) OD=32	8-94395-766-0	03	1	1009-1011	●	●
100	01.277 RUBBER; MTG 4JJ1-TCS ENG(LFB) (B) OD=32	8-94395-766-0	03	1	1012-	●	●	●
100	01.277 RUBBER; MTG (C) OD=32	8-98058-502-1	03	1	1009-1011	●	●
100	01.277 RUBBER; MTG 4JJ1-TCS ENG(LFB) (C) OD=32	8-98058-502-1	03	1	1012-	●	●	●
100	01.277 RUBBER; MTG (A)	1-09337-027-0	06	1	1009-			●	●	●	●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4JJ1-TCS ENG(LFB)	8-98141-232-0	02	1	1411-1507	●	●	●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98141-232-0	02	1	1508-	●	●	●
232	01.540 COLLAR; DIST,CUSHION RUBBER	1-87410-723-0	02	1	1009-1410	●	●	●	●	●	●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	1-87410-723-0	02	1	1411-1507			●	●	●	●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-87410-723-0	02	1	1508-			●	●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-87410-723-0	02	1	1508-					●	●
267	01.277 RUBBER; CUSHION	1-21467-023-0	02	1	1009-	●	●	●	●	●	●
427	01.240 CLIP; FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.277	1-09470-009-0	01	1	1009-1507			●	●	●	●
427	01.240 CLIP; FAN GUIDE 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.277	1-09470-009-0	01	1	1508-			●	●
427	01.240 CLIP; FAN GUIDE 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.277	1-09470-009-0	01	1	1508-					●	●
536	01.020 SHROUD; FAN 01.277	8-97350-995-0	01	1	1009-			●	●	●	●

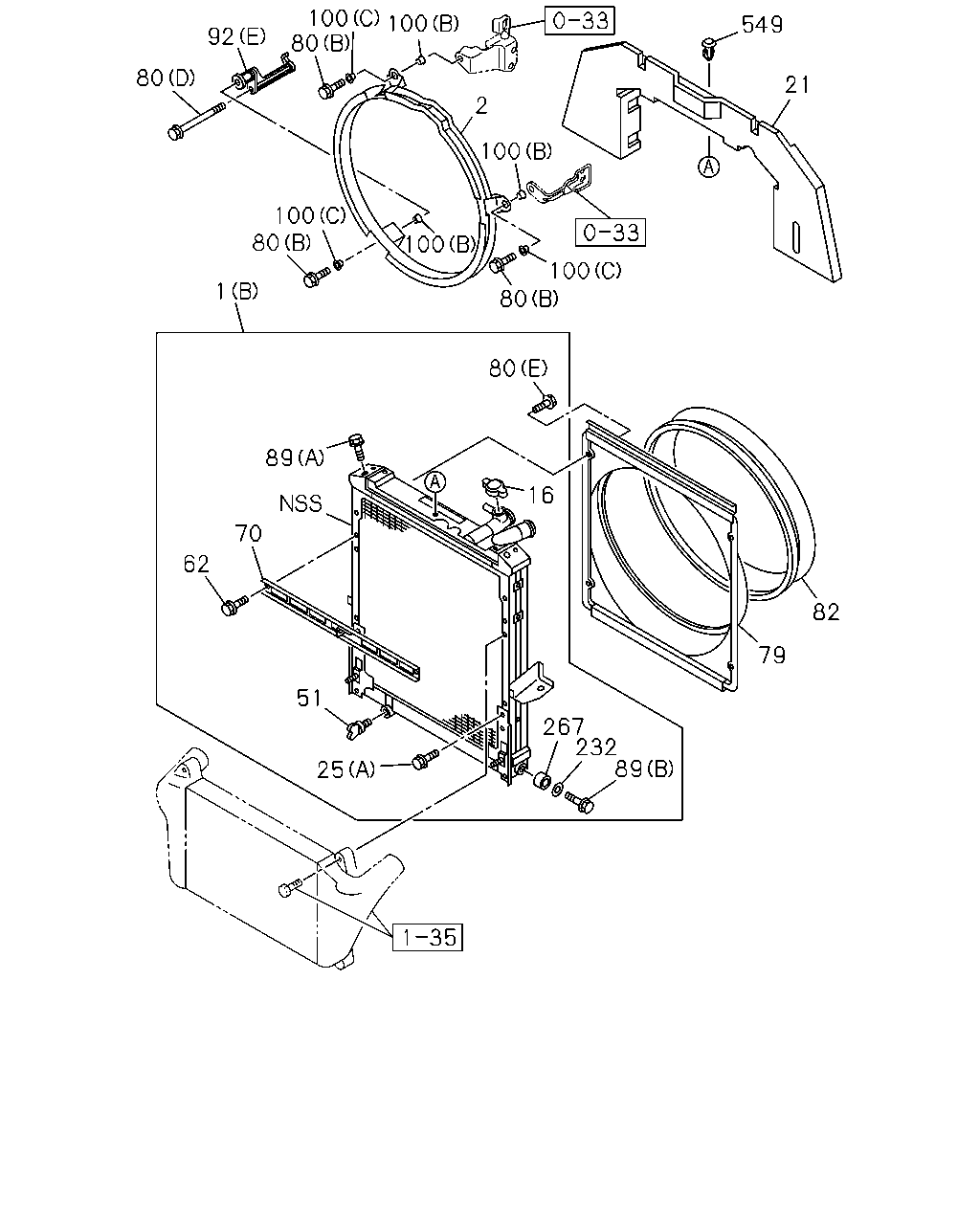

80 92 100 80 100 2 100 549 21 100 80 80 100 100 80 1 89 70 62 51 25 89 232 267 16 79 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98094-464-0	01	1	1009-1011	●	●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98094-464-0	01	1	1012-1410	●	●	●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98296-901-0	01	1	1411-	●	●	●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98094-463-0	01	1	1009-1011	●	●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98094-463-0	01	1	1012-1410	●	●	●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98296-900-0	01	1	1411-1507	●	●	●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98296-900-0	01	1	1508-	●	●	●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98095-594-0	01	1	1009-			●	●
1	01.219 RADIATOR ASM 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98095-594-0	01	1	1009-					●	●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98095-593-0	01	1	1009-1507			●	●
1	01.219 RADIATOR ASM 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98095-593-0	01	1	1009-1507					●	●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98095-593-0	01	1	1508-			●	●
1	01.219 RADIATOR ASM 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98095-593-0	01	1	1508-					●	●
2	01.277 GUIDE; FAN	8-98054-659-0	01	1	1009-1011	●	●
2	01.277 GUIDE; FAN 4JJ1-TCS ENG(LFB)	8-98054-659-0	01	1	1012-	●	●	●
16	01.203 CAP; RAD	8-97239-187-0	01	1	1009-	●	●	●	●	●	●
21	01.276 SEAL; RAD	8-98025-371-0	01	1	1009-1011	●	●
21	01.276 SEAL; RAD 4JJ1-TCS ENG(LFB)	8-98025-371-0	01	1	1012-	●	●	●
25	01.271 BOLT; BRKT 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1009-1011	●	●
25	01.271 BOLT; BRKT 4JJ1-TCS ENG(LFB) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1012-1507	●	●	●
25	01.271 BOLT; BRKT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1508-	●	●	●
25	01.271 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	04	1	1009-1011	●	●
25	01.271 BOLT; BRKT 4JJ1-TCS ENG(LFB) 00.029 (B) M10X30 FLANGE	0-28651-030-0	04	1	1012-	●	●	●
51	08.951 PLUG; DRAIN W/GASKET	8-97171-437-0	01	1	1009-	●	●	●	●	●	●
62	01.271 BOLT; STAY 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1009-	●	●	●	●	●	●
70	01.271 STAY; RAD	8-98114-297-0	01	1	1009-1011	●	●
70	01.271 STAY; RAD 4JJ1-TCS ENG(LFB)	8-98114-297-0	01	1	1012-1507	●	●	●
70	01.271 STAY; RAD 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98114-297-0	01	1	1508-	●	●	●
70	01.271 STAY; RAD 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98018-941-0	01	1	1009-1507			●	●	●	●
70	01.271 STAY; RAD 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98018-941-0	01	1	1508-			●	●
70	01.271 STAY; RAD 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98018-941-0	01	1	1508-					●	●
79	01.277 GUIDE; FAN,RAD	8-97387-081-1	01	1	1009-1011	●	●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCS ENG(LFB)	8-97387-081-1	01	1	1012-1410	●	●	●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCS ENG(LFB)	8-98234-712-0	01	1	1411-1507	●	●	●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98234-712-0	01	1	1508-	●	●	●
79	01.277 GUIDE; FAN,RAD 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98006-477-0	01	1	1009-1507			●	●	●	●
79	01.277 GUIDE; FAN,RAD 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98006-477-0	01	1	1508-			●	●
79	01.277 GUIDE; FAN,RAD 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98006-477-0	01	1	1508-					●	●
80	01.277 BOLT; FAN GUIDE 03.403 (B) M8X30 FLANGE	0-28650-830-0	03	1	1009-	●	●	●	●	●	●
80	01.277 BOLT; FAN GUIDE 01.428 (D) M8X130 FLANGE	0-28055-813-0	01	1	1009-1011	●	●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCS ENG(LFB) 01.428 (D) M8X130 FLANGE	0-28055-813-0	01	1	1012-	●	●	●
80	01.277 BOLT; FAN GUIDE (E) M6X12	8-98039-672-0	02	1	1009-1011	●	●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCS ENG(LFB) (E) M6X12	8-98039-672-0	02	1	1012-1410	●	●	●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCS ENG(LFB) (E) M6X12	8-98039-672-0	04	1	1411-1507	●	●	●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) M6X12	8-98039-672-0	04	1	1508-	●	●	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) M6X16	1-21559-481-0	04	1	1009-1507			●	●	●	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M6X16	1-21559-481-0	04	1	1508-			●	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M6X16	1-21559-481-0	04	1	1508-					●	●
80	01.277 BOLT; FAN GUIDE GENERATOR 24V80A(7YN) 03.417 (C) M10X20 FLANGE	0-28151-020-0	04	1	1009-			●	●	●	●
80	01.277 BOLT; FAN GUIDE EXC. GENERATOR 24V80A(7YN) 03.417 (C) M10X20 FLANGE	0-28151-020-0	02	1	1009-			●	●	●	●
82	01.277 COVER; FAN,RAD	8-97387-085-1	01	1	1009-1011	●	●
82	01.277 COVER; FAN,RAD 4JJ1-TCS ENG(LFB)	8-97387-085-1	01	1	1012-1507	●	●	●
82	01.277 COVER; FAN,RAD 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97387-085-1	01	1	1508-	●	●	●
82	01.277 COVER; FAN,RAD 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98006-478-0	01	1	1009-1507			●	●	●	●
82	01.277 COVER; FAN,RAD 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98006-478-0	01	1	1508-			●	●
82	01.277 COVER; FAN,RAD 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98006-478-0	01	1	1508-					●	●
89	01.277 BOLT 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1009-	●	●	●	●	●	●
89	01.277 BOLT 01.271 (B) M8X25 W/PL WASHER	1-21469-153-0	02	1	1009-	●	●	●	●	●	●
92	01.277 BRACKET; FAN GUIDE (E)	8-97381-550-1	01	1	1009-1011	●	●
92	01.277 BRACKET; FAN GUIDE 4JJ1-TCS ENG(LFB) (E)	8-97381-550-1	01	1	1012-1303	●	●	●
92	01.277 BRACKET; FAN GUIDE 4JJ1-TCS ENG(LFB) (E)	8-98237-770-0	01	1	1304-	●	●	●
92	01.277 BRACKET; FAN GUIDE (B)	8-97386-233-0	01	1	1009-			●	●	●	●
92	01.277 BRACKET; FAN GUIDE GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) (A)	8-97382-827-2	01	1	1009-			●	●	●	●
92	01.277 BRACKET; FAN GUIDE GENERATOR 24V80A(7YN) (D)	8-98032-526-0	01	1	1009-			●	●	●	●
92	01.277 BRACKET; FAN GUIDE EXC. GENERATOR 24V80A(7YN) (C)	8-97350-997-0	01	1	1009-			●	●	●	●
100	01.277 RUBBER; MTG (B) OD=32	8-94395-766-0	03	1	1009-1011	●	●
100	01.277 RUBBER; MTG 4JJ1-TCS ENG(LFB) (B) OD=32	8-94395-766-0	03	1	1012-	●	●	●
100	01.277 RUBBER; MTG (C) OD=32	8-98058-502-1	03	1	1009-1011	●	●
100	01.277 RUBBER; MTG 4JJ1-TCS ENG(LFB) (C) OD=32	8-98058-502-1	03	1	1012-	●	●	●
100	01.277 RUBBER; MTG (A)	1-09337-027-0	06	1	1009-			●	●	●	●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4JJ1-TCS ENG(LFB)	8-98141-232-0	02	1	1411-1507	●	●	●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98141-232-0	02	1	1508-	●	●	●
232	01.540 COLLAR; DIST,CUSHION RUBBER	1-87410-723-0	02	1	1009-1410	●	●	●	●	●	●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	1-87410-723-0	02	1	1411-1507			●	●	●	●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-87410-723-0	02	1	1508-			●	●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-87410-723-0	02	1	1508-					●	●
267	01.277 RUBBER; CUSHION	1-21467-023-0	02	1	1009-	●	●	●	●	●	●
549	03.438 CLIP; SEAL,RAD 01.276	8-97228-568-0	05	1	1009-1011	●	●
549	03.438 CLIP; SEAL,RAD 4JJ1-TCS ENG(LFB) 01.276	8-97228-568-0	05	1	1012-	●	●	●

1 514 65 65 23 74 204 22 25 482 57 59 59 57 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98094-464-0	01	1	1009-1011	●	●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98094-464-0	01	1	1012-1410	●	●	●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98296-901-0	01	1	1411-	●	●	●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98094-463-0	01	1	1009-1011	●	●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98094-463-0	01	1	1012-1410	●	●	●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98296-900-0	01	1	1411-1507	●	●	●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98296-900-0	01	1	1508-	●	●	●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98095-594-0	01	1	1009-			●	●
1	01.219 RADIATOR ASM 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98095-594-0	01	1	1009-					●	●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98095-593-0	01	1	1009-1507			●	●
1	01.219 RADIATOR ASM 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98095-593-0	01	1	1009-1507					●	●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98095-593-0	01	1	1508-			●	●
1	01.219 RADIATOR ASM 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98095-593-0	01	1	1508-					●	●
22	01.270 BRACKET; RAD MTG	8-97387-640-0	01	1	1009-1011	●	●
22	01.270 BRACKET; RAD MTG 4JJ1-TCS ENG(LFB)	8-97387-640-0	01	1	1012-	●	●	●
22	01.270 BRACKET; RAD MTG	8-97387-641-0	01	1	1009-1011	●	●
22	01.270 BRACKET; RAD MTG 4JJ1-TCS ENG(LFB)	8-97387-641-0	01	1	1012-	●	●	●
22	01.270 BRACKET; RAD MTG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.277	8-97330-527-1	02	1	1009-			●	●	●	●
23	01.271 NUT; RAD MTG 03.162 M10 FLANGE	0-91180-110-0	04	1	1009-1011	●	●
23	01.271 NUT; RAD MTG 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	04	1	1012-	●	●	●
23	01.271 NUT; RAD MTG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	02	1	1009-			●	●	●	●
25	01.271 BOLT; BRKT 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1009-1011	●	●
25	01.271 BOLT; BRKT 4JJ1-TCS ENG(LFB) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1012-1507	●	●	●
25	01.271 BOLT; BRKT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1508-	●	●	●
25	01.271 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	04	1	1009-1011	●	●
25	01.271 BOLT; BRKT 4JJ1-TCS ENG(LFB) 00.029 (B) M10X30 FLANGE	0-28651-030-0	04	1	1012-	●	●	●
56	01.270 STAY; RAD (B)	8-97387-650-0	01	1	1009-1011	●	●
56	01.270 STAY; RAD 4JJ1-TCS ENG(LFB) (B)	8-97387-650-0	01	1	1012-	●	●	●
56	01.270 STAY; RAD (A)	8-98006-490-2	01	1	1009-			●	●	●	●
57	01.271 WASHER; PL,STAY 17.198 ID=10.5	0-91610-510-0	02	1	1009-	●	●	●	●	●	●
59	01.271 PIN; SNAP,STAY L=32.6	8-97359-052-0	02	1	1009-	●	●	●	●	●	●
65	01.271 INSULATOR; RAD 01.270 (A)	8-94249-346-0	02	1	1009-	●	●	●	●	●	●
65	01.271 INSULATOR; RAD 01.270 (B)	8-94249-347-0	02	1	1009-	●	●	●	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER ID=8.5 OD=36	8-97359-049-1	02	1	1009-	●	●	●	●	●	●
204	01.267 GUIDE ASM; AIR	8-97383-928-1	01	1	1009-1011	●	●
204	01.267 GUIDE ASM; AIR 4JJ1-TCS ENG(LFB)	8-97383-928-1	01	1	1012-	●	●	●
482	01.277 NUT; AIR GUIDE 01.062 M8 FLANGE	0-91180-108-0	02	1	1009-1011	●	●
482	01.277 NUT; AIR GUIDE 4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-	●	●	●
514	01.276 NUT; RAD 01.062 M8 FLANGE	0-91180-108-0	02	1	1009-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
