1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#7826) — 78 parça

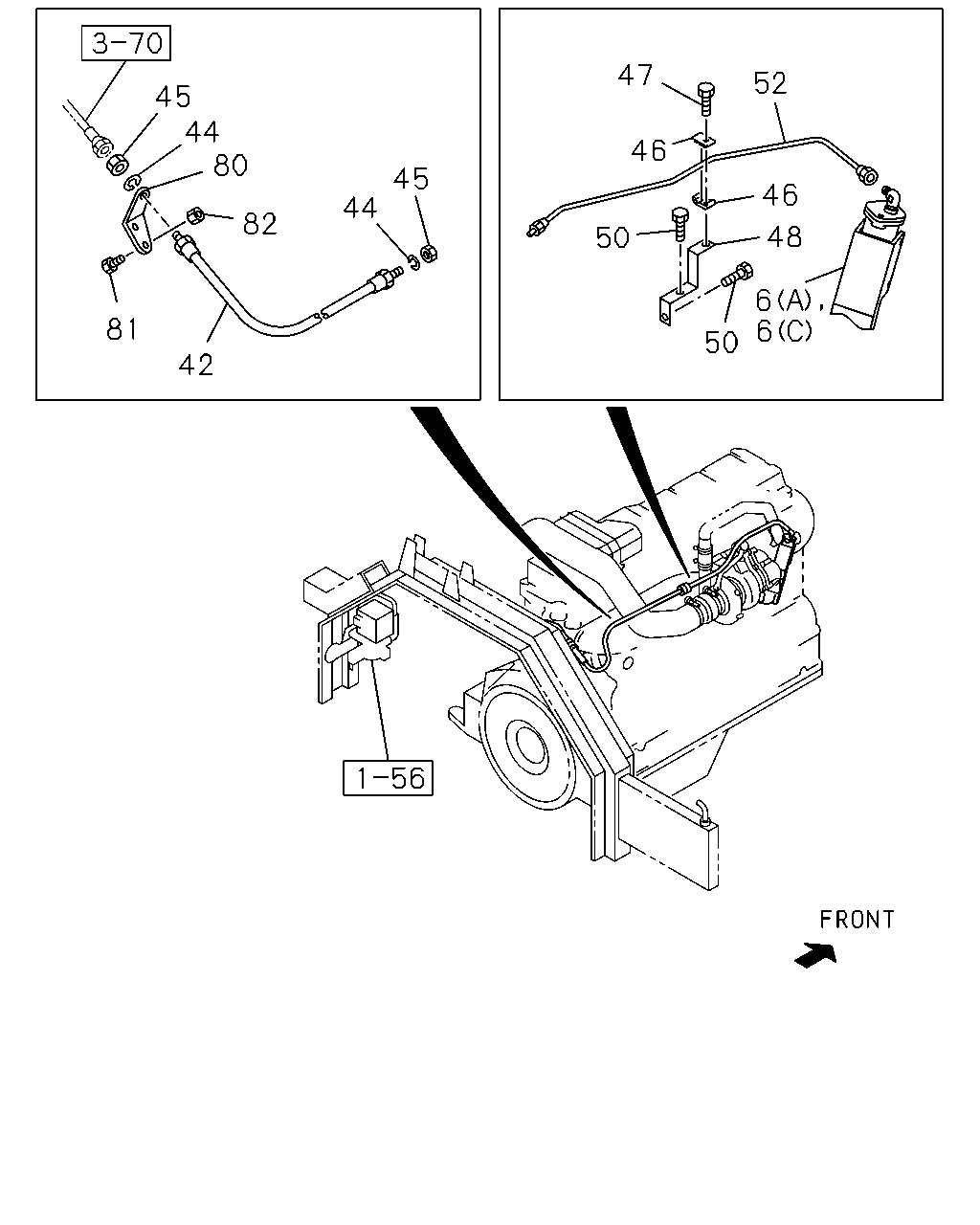

çizim 26922
47 52 45 44 80 46 45 46 44 82 48 50 6 6 81 50 42
BalonParca AdiParca NoAdetTipApplied Date A B
6 VALVE; EXH BRAKE
(B) 		1-22181-159-0 01 1 9905-0006 ● ●
6 VALVE; EXH BRAKE
(B) 		1-22181-168-0 01 1 0007-0211 ● ●
6 VALVE; EXH BRAKE
(A) 		8-94392-832-0 01 1 9905-0006 ● ●
6 VALVE; EXH BRAKE
(A) 		8-97601-468-2 01 1 0007-0211 ● ●
6 VALVE; EXH BRAKE
(C) 		8-97602-533-1 01 1 0212- ● ●
42 HOSE; FLEX,EXH BRK
L=350 		1-09363-651-0 01 1 9905- ● ●
44 WASHER; LK,FLEX HOSE
ID=12.2 		9-09150-512-0 02 1 9905-0603 ● ●
44 WASHER; LK,FLEX HOSE
ID=12.2 		0-91510-512-0 02 1 0604- ● ●
45 NUT; FLEX HOSE
M12 		9-09840-280-0 02 1 9905- ● ●
46 CLIP; AIR PIPE 1-09701-240-0 02 1 9905- ● ●
47 BOLT; CLIP
M6X35 FLANGE 		0-28680-635-0 01 1 9905-0512 ● ●
47 BOLT; CLIP
M6X35 FLANGE 		0-28650-635-0 01 1 0601- ● ●
48 BRACKET; AIR PIPE 8-97600-043-1 01 1 9905-9906 ● ●
48 BRACKET; AIR PIPE 8-97600-122-1 01 1 9907- ● ●
50 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 02 1 9905-0512 ● ●
50 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 02 1 0601- ● ●
52 PIPE ASM; AIR FLEX HOSE 8-97600-042-0 01 1 9905-0106 ● ●
52 PIPE ASM; AIR FLEX HOSE 8-97601-724-0 01 1 0107-0202 ● ●
52 PIPE ASM; AIR FLEX HOSE 8-97602-396-0 01 1 0203- ● ●
80 BRACKET; FLEX HOSE 1-47476-880-1 01 1 9905- ● ●
81 BOLT; HOSE BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 9905-0512 ● ●
81 BOLT; HOSE BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
82 NUT; HOSE BRKT
M8 FLANGE 		0-91150-108-0 02 1 9905-0602 ● ●
82 NUT; HOSE BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●

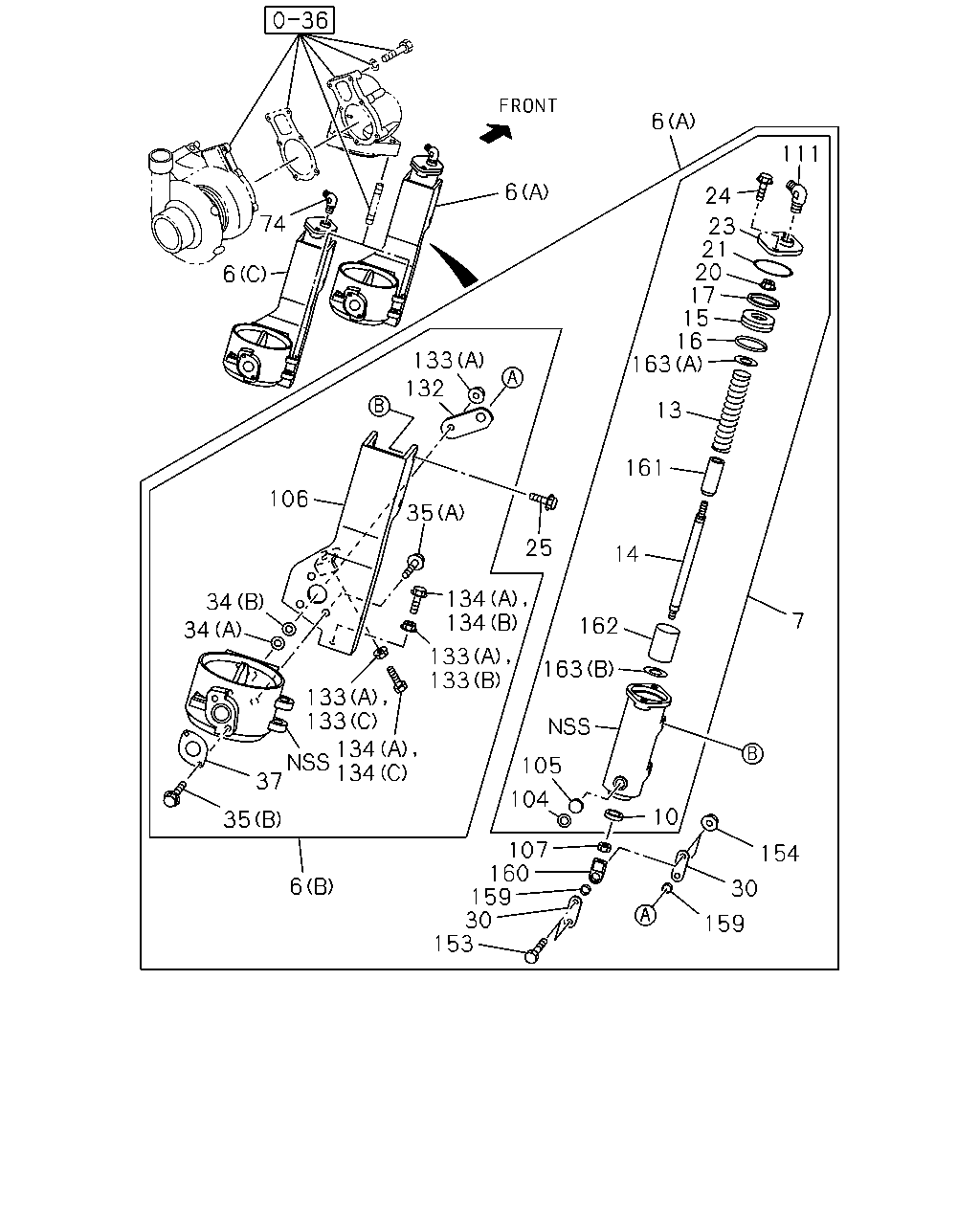

çizim 98864
6 111 6 24 74 23 21 20 17 15 16 163 6 133 132 13 161 106 35 25 14 134 134 34 34 7 162 133 133 163 133 133 134 134 37 105 104 10 35 107 160 159 30 153 154 6 30 159
BalonParca AdiParca NoAdetTipApplied Date A B
6 VALVE; EXH BRAKE
(B) 		1-22181-159-0 01 1 9905-0006 ● ●
6 VALVE; EXH BRAKE
(B) 		1-22181-168-0 01 1 0007-0211 ● ●
6 VALVE; EXH BRAKE
(A) 		8-94392-832-0 01 1 9905-0006 ● ●
6 VALVE; EXH BRAKE
(A) 		8-97601-468-2 01 1 0007-0211 ● ●
6 VALVE; EXH BRAKE
(C) 		8-97602-533-1 01 1 0212- ● ●
7 CYLINDER ASM; CONT 1-22190-654-0 01 1 9905-0006 ● ●
7 CYLINDER ASM; CONT 1-22190-658-0 01 1 0007-0211 ● ●
10 SEAL; DUST,CONT 1-22199-071-0 01 1 9905-0211 ● ●
13 SPRING; CONT CYL 1-22199-173-0 01 1 9905-0211 ● ●
14 SHAFT; CONT CYL 1-22199-208-0 01 1 9905-0006 ● ●
14 SHAFT; CONT CYL 1-22199-176-0 01 1 0007-0104 ● ●
14 SHAFT; CONT CYL 1-22199-208-0 01 1 0105-0211 ● ●
15 PLATE; CONT CYL 1-22199-168-0 01 1 9905-0211 ● ●
16 RING; WEAR,CONT CYL 1-22189-345-0 01 1 9905-0211 ● ●
17 GASKET; CONT CYL 1-22199-170-0 01 1 9905-0211 ● ●
20 NUT; CONT CYL
M8 FLANGE 		0-91150-108-0 01 1 9905-0006 ● ●
20 NUT; CONT CYL 1-09440-078-0 01 1 0007-0211 ● ●
21 GASKET; COVER 1-22199-171-0 01 1 9905-0211 ● ●
23 COVER; CONT CYL 1-22199-172-0 01 1 9905-0211 ● ●
24 BOLT; COVER 1-22199-174-0 02 1 9905-0211 ● ●
25 BOLT; CONT CYL 1-22199-210-0 02 1 9905-0006 ● ●
25 BOLT; CONT CYL 1-09000-745-0 02 1 0007-0211 ● ●
30 ROD; LINK,CONT CYL 1-22199-162-0 02 1 9905-0006 ● ●
30 ROD; LINK,CONT CYL 1-22199-162-0 01 1 0007-0211 ● ●
34 RING; SEAL
(B) 		1-22189-340-0 02 1 9905-0006 ● ●
34 RING; SEAL
(A) 		1-22189-343-0 02 1 9905-0006 ● ●
35 BOLT; PLATE FIX
(A) M10X20 		0-28021-020-0 03 1 9905-0006 ● ●
35 BOLT; PLATE FIX
(B) 		1-22199-174-0 02 1 9905-0006 ● ●
37 COVER; BODY 1-22189-344-0 01 1 9905-0006 ● ●
74 CONNECTOR; EXH BRK VLV
M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0212- ● ●
104 RING; RET 9-88510-331-0 01 1 9905-0211 ● ●
105 FILTER; CONT CYL 9-88510-330-0 01 1 9905-0211 ● ●
106 BRACKET; CONT CYL 1-22186-152-0 01 1 9905-0006 ● ●
107 NUT; CONT CYL
M10 		9-09111-410-0 01 1 9905-0211 ● ●
111 ELBOW; CONT CYL 1-09650-358-1 01 1 9905-0211 ● ●
132 LEVER; BRK VLV 1-22196-351-0 01 1 9905-0006 ● ●
133 NUT; LK
(A) M8 FLANGE 		0-91150-108-0 03 1 9905-0006 ● ●
133 NUT; LK
(B) 		1-09440-078-0 01 1 0007-0211 ● ●
133 NUT; LK
(C) 		1-09440-079-0 01 1 0007-0211 ● ●
134 BOLT; STOPPER
(A) 		1-22199-121-0 02 1 9905-0006 ● ●
134 BOLT; STOPPER
(B) 		1-22199-121-0 01 1 0007-0211 ● ●
134 BOLT; STOPPER
(C) 		1-09000-742-0 01 1 0007-0211 ● ●
153 BOLT; CLEVIS,CONT CYL 1-22199-211-0 02 1 9905-0006 ● ●
154 NUT; CLEVIS,CONT CYL
M8 FLANGE 		0-91150-108-0 02 1 9905-0006 ● ●
154 NUT; CLEVIS,CONT CYL 1-09440-078-0 02 1 0007-0211 ● ●
159 COLLAR; CONT CYL 1-22197-151-0 02 1 9905-0211 ● ●
160 JOINT; CONT CYL 1-22189-320-0 01 1 9905-0201 ● ●
160 JOINT; CONT CYL 1-22189-364-0 01 1 0202-0211 ● ●
161 PROTECTOR; CONT CYL 1-22199-146-0 01 1 9905-0211 ● ●
162 GUIDE; CONT CYL 1-22199-147-0 01 1 9905-0211 ● ●
163 WASHER; CONT CYL
(B) 		1-22199-148-0 01 1 9905-0211 ● ●
163 WASHER; CONT CYL
(A) 		1-22199-209-0 01 1 9905-0006 ● ●
163 WASHER; CONT CYL
(A) 		1-22199-179-0 01 1 0007-0104 ● ●
163 WASHER; CONT CYL
(A) 		1-22199-209-0 01 1 0105-0211 ● ●
