0-60 — ENGINE ELECTRICAL CONTROL PARTS (#78257) — 159 parça

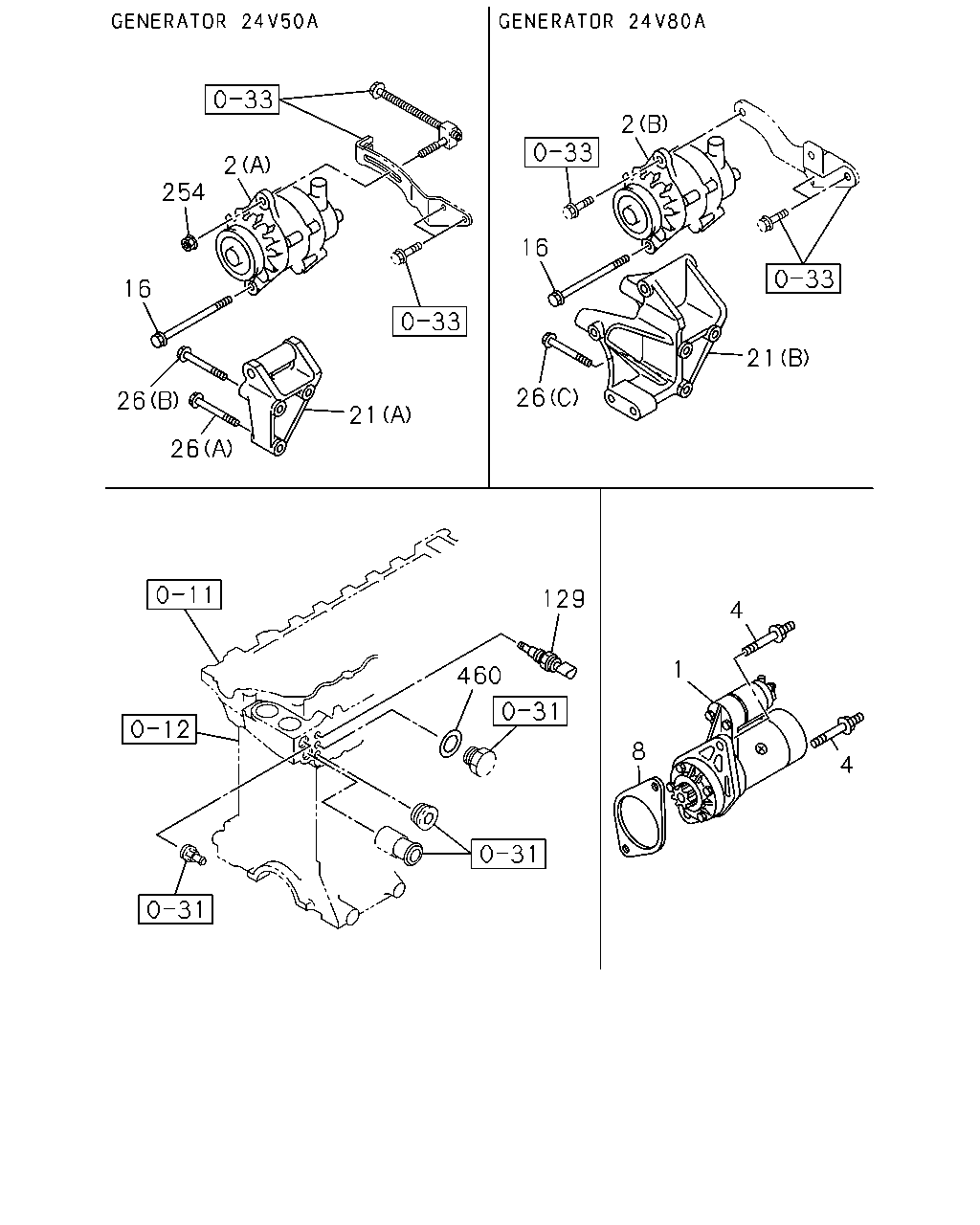

çizim 72664
254 2 16 26 26 21 2 16 26 21 129 460 4 1 8 4
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1009-1207 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1009-1207 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1208- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1208- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-97323-935-4 01 1 1009-1010 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98179-204-1 01 1 1011-1207 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98222-021-0 01 1 1208-1310 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98245-258-0 01 1 1311- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) (C) 24V 50A 		8-98029-887-2 01 1 1009- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) (C) 24V 80A 		8-98029-889-2 01 1 1009- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) (A) 24V 50A 		8-98075-026-0 01 1 1009- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) (B) 24V 80A 		8-98029-892-2 01 1 1009- ● ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 1009- ● ● ●
8 02.042 SPACER; STARTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97350-947-0 01 1 1009- ●
16 02.277 BOLT; GEN
M10X120 FLANGE 		0-28056-012-0 01 1 1009- ● ● ●
21 02.277 BRACKET; GEN
GENERATOR 24V50A(6QN) (A) 		8-97075-884-2 01 1 1009- ● ●
21 02.277 BRACKET; GEN
GENERATOR 24V80A(7YN) (B) 		8-98036-551-0 01 1 1009- ● ●
26 02.277 BOLT; GEN BRKT
GENERATOR 24V50A(6QN) 02.042 (A) M10X50 FLANGE 		0-28151-050-0 01 1 1009- ● ●
26 02.277 BOLT; GEN BRKT
GENERATOR 24V50A(6QN) (B) M10X70 FLANGE 		0-28151-070-0 02 1 1009- ● ●
26 02.277 BOLT; GEN BRKT
GENERATOR 24V80A(7YN) 01.062 (C) M10X90 FLANGE 		0-28151-090-0 03 1 1009- ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT 		8-98023-717-0 01 1 1009- ●
129 01.150 SENSOR; GLOW PLUG,THERMO
MITSUBISHI 		8-98023-883-0 01 1 1009-1503 ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NISHIDA 		8-98260-257-0 01 1 1504- ● ●
254 02.277 NUT; GEN BRKT
EXC. GENERATOR 24V80A(7YN) 01.540 M8 FLANGE 		0-91180-208-0 01 1 1009- ● ●
460 02.363 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). 04.868 ID=16.2 		1-09630-086-0 01 1 1009- ● ●
çizim 73261
393 393 393 393 393
BalonParca AdiParca NoAdetTipApplied Date A B C
393 02.343 BRACKET; HARNESS TO BODY
EXC. BATTERY 115E41L<8MA> (A) 		8-98018-903-0 01 1 1009-1101 ● ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2700MM(27W) EXC. BATTERY 115E41L<8MA> (A) 		8-98018-903-0 01 1 1009-1101 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W) EXC. BATTERY 115E41L<8MA> (A) 		8-98018-903-0 01 1 1102-1103 ● ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> (A) 		8-98018-903-0 01 1 1102-1103 ● ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2700MM(27W) EXC. BATTERY 115E41L<8MA> (A) 		8-98018-903-0 01 1 1102-1103 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W) EXC. BATTERY 115E41L<8MA> (J) 		8-98123-872-0 01 1 1104- ● ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> (J) 		8-98123-872-0 01 1 1104- ● ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2700MM(27W) EXC. BATTERY 115E41L<8MA> (J) 		8-98123-872-0 01 1 1104- ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 3300MM(33W) (H) 		8-98136-192-0 02 1 1009-1308 ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 3300MM(33W) (H) 		8-98245-494-0 02 1 1309- ●
393 02.343 BRACKET; HARNESS TO BODY
TRANSMISSION CONTROL-SMOOTHER(8GF) (F) 		8-98030-139-2 01 1 1009-1011 ●
393 02.343 BRACKET; HARNESS TO BODY
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>,BATTERY 115E41L<8MA> (F) 		8-98030-139-2 01 1 1012- ●
393 02.343 BRACKET; HARNESS TO BODY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G) 		8-98030-138-2 01 1 1009-1011 ●
393 02.343 BRACKET; HARNESS TO BODY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ>,BATTERY 115E41L<8MA> (G) 		8-98030-138-2 01 1 1012- ●
393 02.343 BRACKET; HARNESS TO BODY
BATTERY 115E41L<8MA> (B) 		8-98018-894-1 01 1 1009- ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) BATTERY 115E41L<8MA> 02.483 (E) 		8-98018-251-1 02 1 1009- ● ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> 02.483 (E) 		8-98018-251-1 02 1 1009- ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) EXC. BATTERY 115E41L<8MA> 02.483 (E) 		8-98018-251-1 01 1 1009-1101 ● ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) BATTERY 115E41L<8MA> 02.483 (E) 		8-98018-251-1 01 1 1009-1101 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EXC. BATTERY 115E41L<8MA> 02.483 (E) 		8-98018-251-1 01 1 1102- ● ●
393 02.343 BRACKET; HARNESS TO BODY
M/T MYY5T(RSM),M/T MZZ6F(RSR),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (I) 		8-98131-881-0 01 1 1009-1011 ● ●
393 02.343 BRACKET; HARNESS TO BODY
DUMP CONTROL LEVER<RC4> POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (I) 		8-98131-881-0 01 1 1012- ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98041-947-1 01 1 1009- ● ●
393 02.343 BRACKET; HARNESS TO BODY
M/T MYY5T(RSM),M/T MZZ6F(RSR),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (D) 		8-98041-946-1 01 1 1009-1211 ● ●
393 02.343 BRACKET; HARNESS TO BODY
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98041-946-1 01 1 1009-1211 ● ●
393 02.343 BRACKET; HARNESS TO BODY
POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CONTROL LEVER<RC4> (D) 		8-98041-946-1 01 1 1212- ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (D) 		8-98041-946-1 01 1 1212- ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98041-946-1 01 1 1212- ●
çizim 73381
10 46
BalonParca AdiParca NoAdetTipApplied Date A B C
10 02.100 RELAY; STARTER
24V 50A 		8-97264-947-0 01 1 1009- ● ● ●
46 02.510 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 1009- ● ● ●

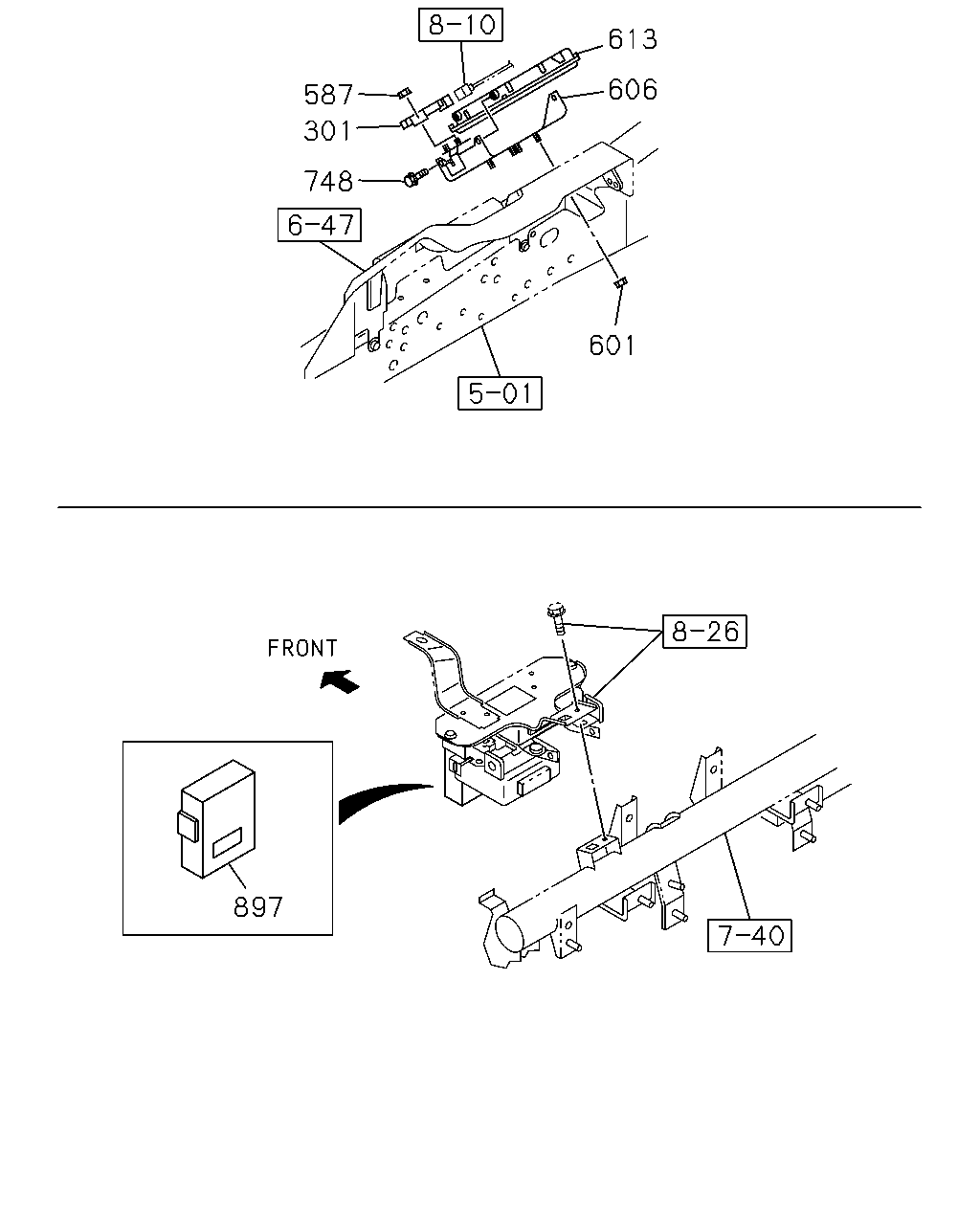

çizim 73499
587 748 301 613 606 601 897
BalonParca AdiParca NoAdetTipApplied Date A B C
301 02.510 RESISTOR; DROPPING 8-97357-613-0 01 1 1009- ● ● ●
587 03.671 NUT; RESISTOR & RELAY
01.062 M6 FLANGE 		0-91180-106-0 02 1 1009- ● ● ●
601 03.670 NUT; UNIT
04.115 M6 W/DISHED WASHER 		8-98029-921-0 04 1 1009- ● ● ●
606 03.680 BRACKET; CONT UNIT 8-98114-583-2 01 1 1009- ●
606 03.680 BRACKET; CONT UNIT 8-98145-011-2 01 1 1009- ● ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5 SPECIFICATION(NT5) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98122-105-5 01 1 1009- ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) AUSTRALIA EQUIPMENT(B13) EURO5 SPECIFICATION(NT5) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98167-033-2 01 1 1009-1503 ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) AUSTRALIA EQUIPMENT(B13) EURO5 SPECIFICATION(NT5) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98307-796-0 01 1 1504- ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) AUSTRALIA EQUIPMENT(B13) EURO5 SPECIFICATION(NT5) IMMOBILIZER SYSTEM(7KC) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98121-299-6 01 1 1009-1505 ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) AUSTRALIA EQUIPMENT(B13) EURO5 SPECIFICATION(NT5) IMMOBILIZER SYSTEM(7KC) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98307-735-0 01 1 1506- ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) AUSTRALIA EQUIPMENT(B13) EURO5 SPECIFICATION(NT5) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98121-298-6 01 1 1009-1505 ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) AUSTRALIA EQUIPMENT(B13) EURO5 SPECIFICATION(NT5) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98307-734-0 01 1 1506- ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) AUSTRALIA EQUIPMENT(B13) EURO5 SPECIFICATION(NT5) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98121-294-6 01 1 1009-1505 ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) AUSTRALIA EQUIPMENT(B13) EURO5 SPECIFICATION(NT5) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98307-722-0 01 1 1506- ●
613 03.670 CONTROL UNIT; ENG
DBL CAB(NP**W*) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5 SPECIFICATION(NT5) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98122-117-5 01 1 1009- ●
613 03.670 CONTROL UNIT; ENG
DBL CAB(NP**W*) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5 SPECIFICATION(NT5) IMMOBILIZER SYSTEM(7KC) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98122-111-4 01 1 1009- ●
613 03.670 CONTROL UNIT; ENG
DBL CAB(NP**W*) AUSTRALIA EQUIPMENT(B13) EURO5 SPECIFICATION(NT5) IMMOBILIZER SYSTEM(7KC) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98167-094-2 01 1 1009-1503 ●
613 03.670 CONTROL UNIT; ENG
DBL CAB(NP**W*) AUSTRALIA EQUIPMENT(B13) EURO5 SPECIFICATION(NT5) IMMOBILIZER SYSTEM(7KC) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98307-803-0 01 1 1504- ●
613 03.670 CONTROL UNIT; ENG
DBL CAB(NP**W*) AUSTRALIA EQUIPMENT(B13) EURO5 SPECIFICATION(NT5) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98167-098-2 01 1 1009-1505 ●
613 03.670 CONTROL UNIT; ENG
DBL CAB(NP**W*) AUSTRALIA EQUIPMENT(B13) EURO5 SPECIFICATION(NT5) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98307-757-0 01 1 1506- ●
613 03.670 CONTROL UNIT; ENG
DBL CAB(NP**W*) AUSTRALIA EQUIPMENT(B13) EURO5 SPECIFICATION(NT5) IMMOBILIZER SYSTEM(7KC) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98121-301-6 01 1 1009-1505 ●
613 03.670 CONTROL UNIT; ENG
DBL CAB(NP**W*) AUSTRALIA EQUIPMENT(B13) EURO5 SPECIFICATION(NT5) IMMOBILIZER SYSTEM(7KC) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98307-737-0 01 1 1506- ●
613 03.670 CONTROL UNIT; ENG
DBL CAB(NP**W*) AUSTRALIA EQUIPMENT(B13) EURO5 SPECIFICATION(NT5) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98121-300-6 01 1 1009-1505 ●
613 03.670 CONTROL UNIT; ENG
DBL CAB(NP**W*) AUSTRALIA EQUIPMENT(B13) EURO5 SPECIFICATION(NT5) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98307-736-0 01 1 1506- ●
613 03.670 CONTROL UNIT; ENG
DBL CAB(NP**W*) AUSTRALIA EQUIPMENT(B13) EURO5 SPECIFICATION(NT5) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98121-296-6 01 1 1009-1505 ●
613 03.670 CONTROL UNIT; ENG
DBL CAB(NP**W*) AUSTRALIA EQUIPMENT(B13) EURO5 SPECIFICATION(NT5) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98307-723-0 01 1 1506- ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) AUSTRALIA EQUIPMENT(B13) EURO5 SPECIFICATION(NT5) IMMOBILIZER SYSTEM(7KC) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98167-096-2 01 1 1009-1503 ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) AUSTRALIA EQUIPMENT(B13) EURO5 SPECIFICATION(NT5) IMMOBILIZER SYSTEM(7KC) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98307-805-0 01 1 1504- ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) AUSTRALIA EQUIPMENT(B13) EURO5 SPECIFICATION(NT5) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98167-097-2 01 1 1009-1503 ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) AUSTRALIA EQUIPMENT(B13) EURO5 SPECIFICATION(NT5) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98307-806-0 01 1 1504- ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5 SPECIFICATION(NT5) IMMOBILIZER SYSTEM(7KC) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98122-099-4 01 1 1009- ●
613 03.670 CONTROL UNIT; ENG
DBL CAB(NP**W*) AUSTRALIA EQUIPMENT(B13) EURO5 SPECIFICATION(NT5) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98167-095-2 01 1 1009-1503 ●
613 03.670 CONTROL UNIT; ENG
DBL CAB(NP**W*) AUSTRALIA EQUIPMENT(B13) EURO5 SPECIFICATION(NT5) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98307-804-0 01 1 1504- ●
748 02.500 BOLT; CONT UNIT
03.162 M6X12 FLANGE 		0-28050-612-0 03 1 1009- ● ● ●
897 02.510 DRM
EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98082-814-7 01 1 1009- ● ● ●

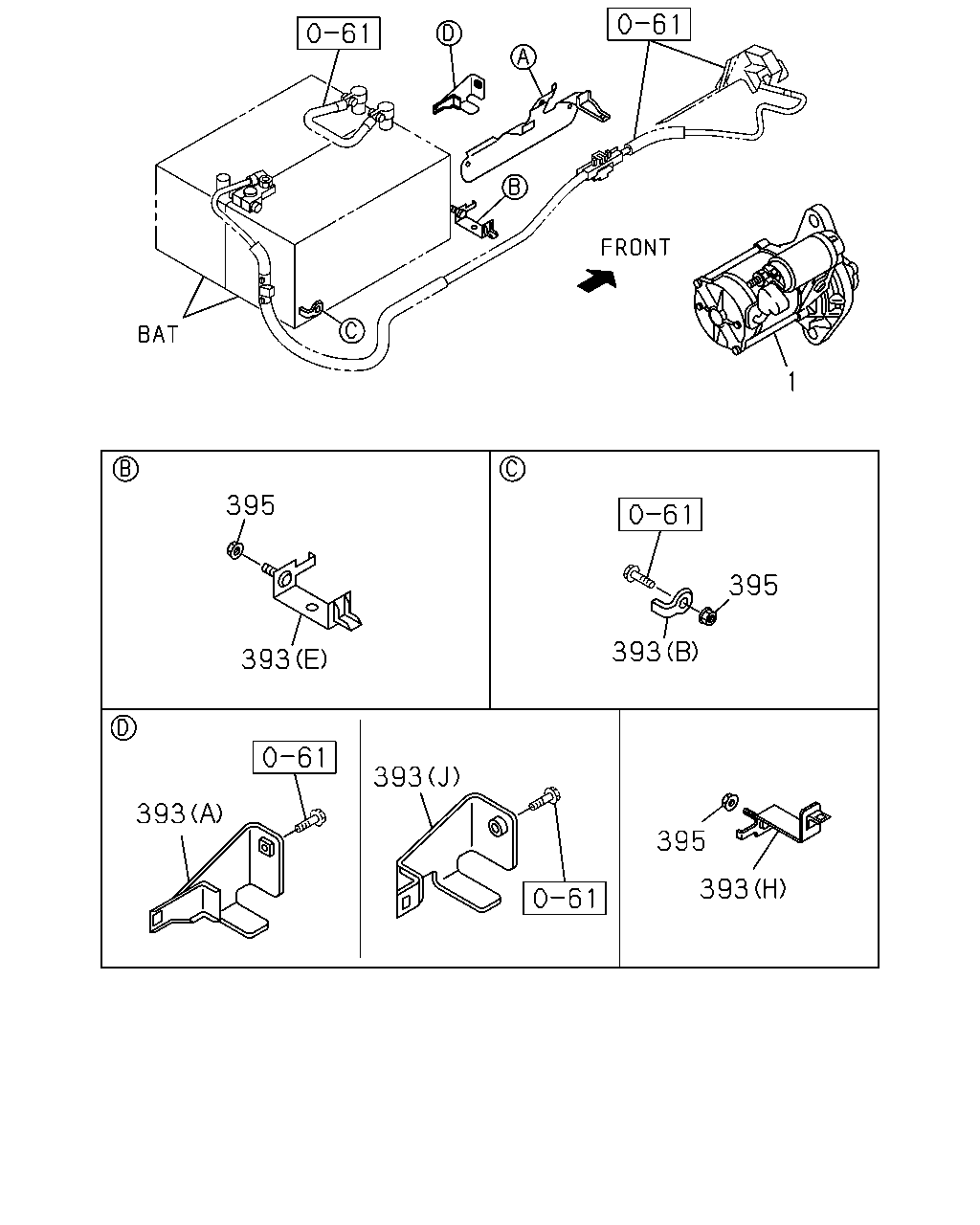

çizim 73503
395 393 393 395 395 393 393 393 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1009-1207 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1009-1207 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1208- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1208- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-97323-935-4 01 1 1009-1010 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98179-204-1 01 1 1011-1207 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98222-021-0 01 1 1208-1310 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98245-258-0 01 1 1311- ● ●
393 02.343 BRACKET; HARNESS TO BODY
EXC. BATTERY 115E41L<8MA> (A) 		8-98018-903-0 01 1 1009-1101 ● ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2700MM(27W) EXC. BATTERY 115E41L<8MA> (A) 		8-98018-903-0 01 1 1009-1101 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W) EXC. BATTERY 115E41L<8MA> (A) 		8-98018-903-0 01 1 1102-1103 ● ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> (A) 		8-98018-903-0 01 1 1102-1103 ● ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2700MM(27W) EXC. BATTERY 115E41L<8MA> (A) 		8-98018-903-0 01 1 1102-1103 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 2700MM(27W) EXC. BATTERY 115E41L<8MA> (J) 		8-98123-872-0 01 1 1104- ● ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> (J) 		8-98123-872-0 01 1 1104- ● ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2700MM(27W) EXC. BATTERY 115E41L<8MA> (J) 		8-98123-872-0 01 1 1104- ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 3300MM(33W) (H) 		8-98136-192-0 02 1 1009-1308 ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 3300MM(33W) (H) 		8-98245-494-0 02 1 1309- ●
393 02.343 BRACKET; HARNESS TO BODY
TRANSMISSION CONTROL-SMOOTHER(8GF) (F) 		8-98030-139-2 01 1 1009-1011 ●
393 02.343 BRACKET; HARNESS TO BODY
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>,BATTERY 115E41L<8MA> (F) 		8-98030-139-2 01 1 1012- ●
393 02.343 BRACKET; HARNESS TO BODY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G) 		8-98030-138-2 01 1 1009-1011 ●
393 02.343 BRACKET; HARNESS TO BODY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ>,BATTERY 115E41L<8MA> (G) 		8-98030-138-2 01 1 1012- ●
393 02.343 BRACKET; HARNESS TO BODY
BATTERY 115E41L<8MA> (B) 		8-98018-894-1 01 1 1009- ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) BATTERY 115E41L<8MA> 02.483 (E) 		8-98018-251-1 02 1 1009- ● ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> 02.483 (E) 		8-98018-251-1 02 1 1009- ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) EXC. BATTERY 115E41L<8MA> 02.483 (E) 		8-98018-251-1 01 1 1009-1101 ● ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) BATTERY 115E41L<8MA> 02.483 (E) 		8-98018-251-1 01 1 1009-1101 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EXC. BATTERY 115E41L<8MA> 02.483 (E) 		8-98018-251-1 01 1 1102- ● ●
393 02.343 BRACKET; HARNESS TO BODY
M/T MYY5T(RSM),M/T MZZ6F(RSR),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (I) 		8-98131-881-0 01 1 1009-1011 ● ●
393 02.343 BRACKET; HARNESS TO BODY
DUMP CONTROL LEVER<RC4> POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (I) 		8-98131-881-0 01 1 1012- ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98041-947-1 01 1 1009- ● ●
393 02.343 BRACKET; HARNESS TO BODY
M/T MYY5T(RSM),M/T MZZ6F(RSR),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (D) 		8-98041-946-1 01 1 1009-1211 ● ●
393 02.343 BRACKET; HARNESS TO BODY
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98041-946-1 01 1 1009-1211 ● ●
393 02.343 BRACKET; HARNESS TO BODY
POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CONTROL LEVER<RC4> (D) 		8-98041-946-1 01 1 1212- ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (D) 		8-98041-946-1 01 1 1212- ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98041-946-1 01 1 1212- ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1009- ● ●
395 02.343 NUT; BRKT FIX
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1009- ● ●
395 02.343 NUT; BRKT FIX
WHEEL BASE 3300MM(33W) EXC. BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1009- ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1009-1101 ● ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EXC. BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1102- ● ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1102- ● ●

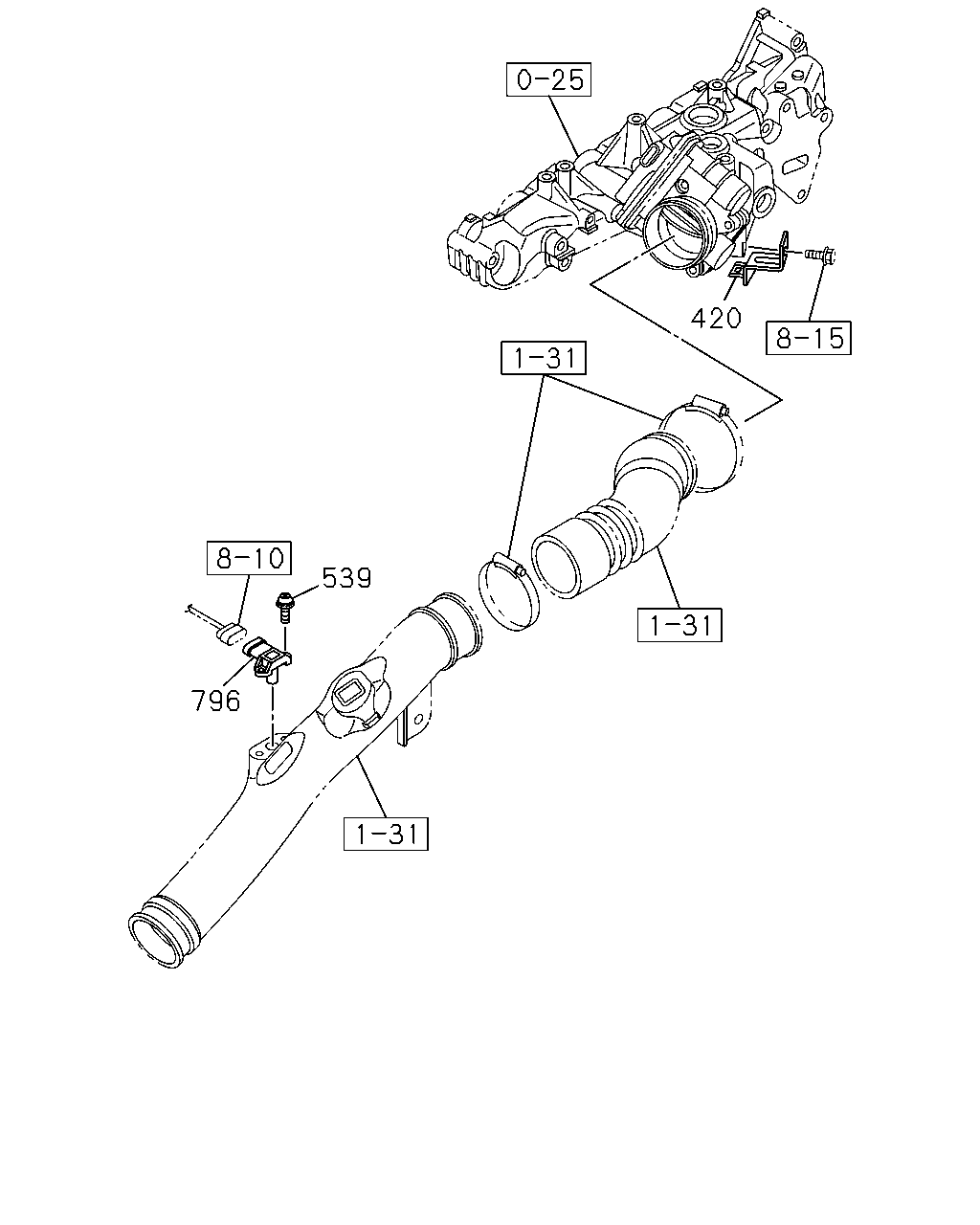

çizim 187238
420 539 796
BalonParca AdiParca NoAdetTipApplied Date A B C
420 02.183 BRACKET; HARNESS 8-98064-159-0 01 1 1009- ●
539 02.510 SCREW; SENSOR
M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1009- ● ● ●
796 01.150 SENSOR; MAP 8-98009-418-0 01 1 1009- ● ● ●

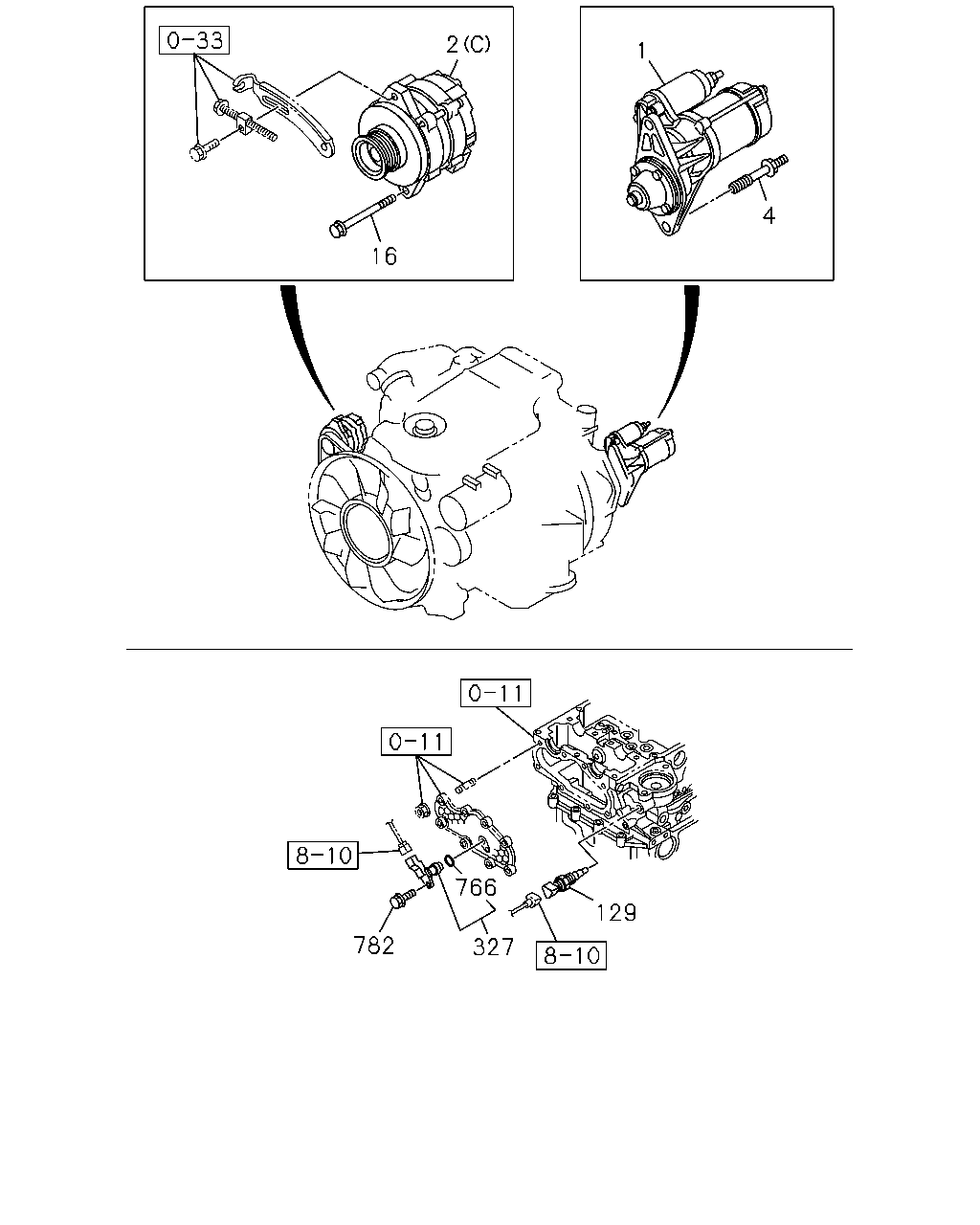

çizim 187239
16 2 1 4 766 129 327 782
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1009-1207 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1009-1207 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1208- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1208- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-97323-935-4 01 1 1009-1010 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98179-204-1 01 1 1011-1207 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98222-021-0 01 1 1208-1310 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98245-258-0 01 1 1311- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) (C) 24V 50A 		8-98029-887-2 01 1 1009- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) (C) 24V 80A 		8-98029-889-2 01 1 1009- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) (A) 24V 50A 		8-98075-026-0 01 1 1009- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) (B) 24V 80A 		8-98029-892-2 01 1 1009- ● ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 1009- ● ● ●
16 02.277 BOLT; GEN
M10X120 FLANGE 		0-28056-012-0 01 1 1009- ● ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT 		8-98023-717-0 01 1 1009- ●
129 01.150 SENSOR; GLOW PLUG,THERMO
MITSUBISHI 		8-98023-883-0 01 1 1009-1503 ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NISHIDA 		8-98260-257-0 01 1 1504- ● ●
327 02.361 SENSOR; CAMSHAFT POSITION 8-97312-108-1 01 1 1009- ●
766 02.363 GASKET; SENSOR
00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 1009- ●
782 02.510 BOLT; SENSOR
09.242 M6X16 FLANGE 		0-28050-616-0 01 1 1009- ●

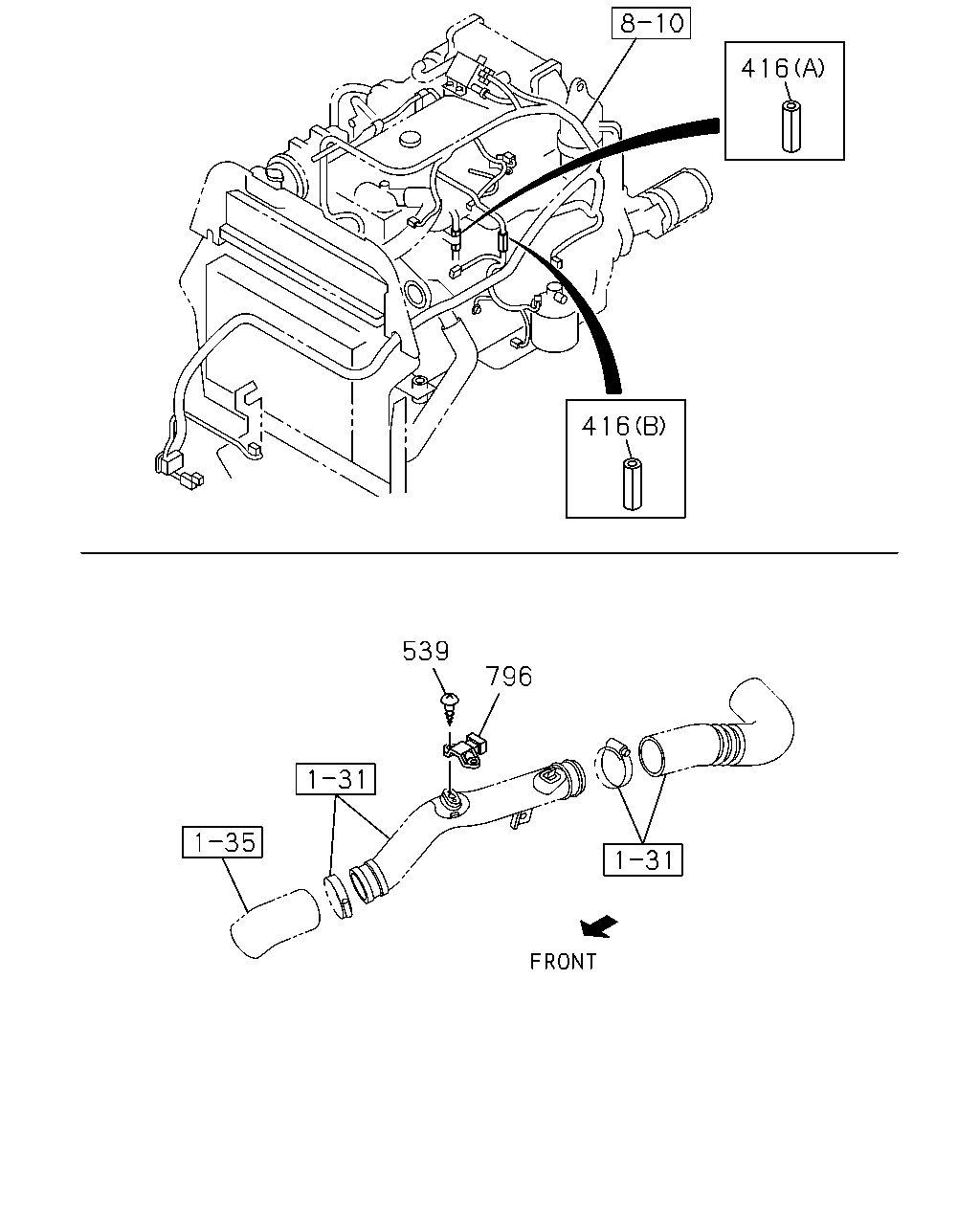

çizim 187241
539 796 416 416
BalonParca AdiParca NoAdetTipApplied Date A B C
416 02.530 SLEEVE; RUBBER
(A) ID=10 OD=14 L=30 		9-09956-682-0 01 1 1010- ● ●
416 02.530 SLEEVE; RUBBER
04.342 (B) ID=17 OD=21 L=40 		1-09337-012-0 01 1 1009- ● ●
539 02.510 SCREW; SENSOR
M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1009- ● ● ●
796 01.150 SENSOR; MAP 8-98009-418-0 01 1 1009- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
