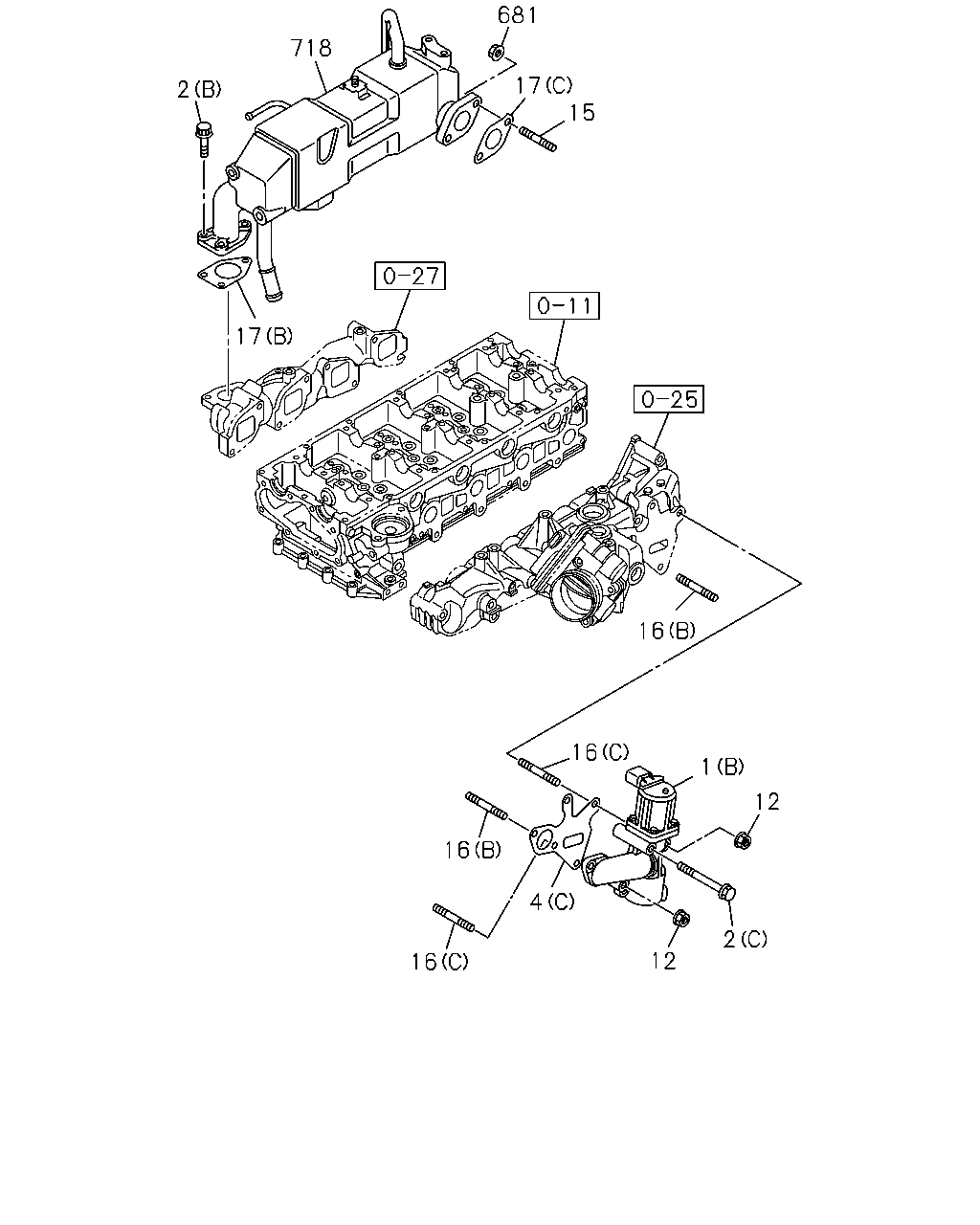

0-57 — EMISSION PIPING (#78256) — 85 parça

2 17 15 17 681 718 16 16 16 16 4 12 2 12 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.670 VALVE; EGR (B)	8-97381-560-7	01	1	1009-1403	●
1	03.670 VALVE; EGR (B)	8-98238-259-1	01	1	1404-	●
1	03.670 VALVE; EGR (A)	8-98098-257-5	01	1	1009-		●	●
2	03.670 BOLT; EGR VLV 01.252 (C) M8X80 FLANGE	0-28050-880-0	01	1	1009-	●
2	03.670 BOLT; EGR VLV 03.417 (B) M8X23 FLANGE	8-97378-077-0	03	1	1009-	●
2	03.670 BOLT; EGR VLV 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1009-		●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98094-528-2	01	1	1009-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97306-040-0	01	1	1009-		●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). 03.665 (B)	8-98036-507-0	01	1	1009-		●	●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91180-208-0	04	1	1009-	●
12	03.671 NUT; EGR VLV 01.062 M8 FLANGE	0-91180-108-0	02	1	1009-		●	●
15	03.670 STUD; EGR PIPE 03.275 M8X25 L=37	0-41010-825-0	02	1	1009-	●
16	03.275 STUD; EGR VLV (B) M8X25 L=41	0-40210-825-0	02	1	1009-	●
16	03.275 STUD; EGR VLV (C) M8X50 L=62	0-40210-850-0	02	1	1009-	●
16	03.275 STUD; EGR VLV 02.510 (A) M8X20 L=32	0-41010-820-0	02	1	1009-		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97357-684-3	01	1	1009-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98063-284-1	01	1	1009-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.680 (A) ID=51.5	8-98046-192-1	01	1	1009-		●	●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	1009-	●
718	03.337 COOLER; EGR	8-98063-283-8	01	1	1009-	●

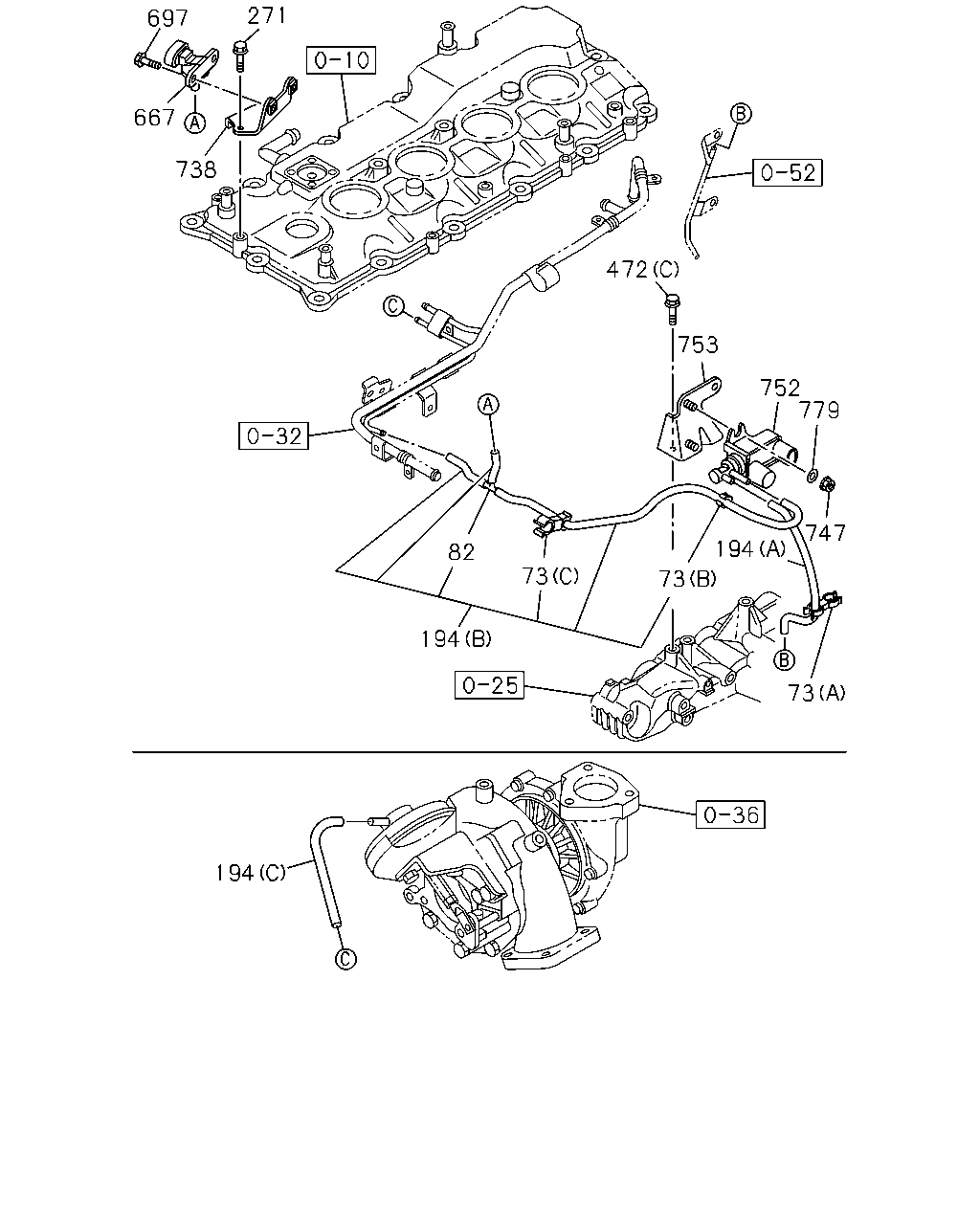

472 753 752 779 747 73 194 73 271 697 667 738 82 194 73 194

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
73	03.680 CLIP; VAC HOSE 00.854 (A) ID=11.8 & 7.5	1-09709-182-0	01	1	1009-	●
73	03.680 CLIP; VAC HOSE 04.342 (B) ID=8.3 & 10	8-94176-792-0	01	1	1009-	●
73	03.680 CLIP; VAC HOSE 03.162 (C) ID=13.2 & 7.5	8-94315-426-0	01	1	1009-	●
82	03.680 JOINT; 3 WAY 3WAY	8-98045-385-0	01	1	1009-	●
194	03.675 HOSE; VAC (A)	0-04420-270-0	01	1	1009-	●
194	03.675 HOSE; VAC (B)	8-98085-688-0	01	1	1009-	●
194	03.675 HOSE; VAC (C)	8-98107-557-0	01	1	1009-	●
271	03.675 BOLT; BRKT 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1009-	●
472	03.671 BOLT; BRKT 02.343 (C) M8X16 FLANGE	0-28050-816-0	02	1	1009-	●
472	03.671 BOLT; BRKT 02.277 (A) M8X25 FLANGE	0-28660-825-0	02	1	1009-		●	●
472	03.671 BOLT; BRKT 00.029 (B) M10X40 FLANGE	0-28751-040-0	02	1	1009-		●	●
667	03.670 SENSOR; VAC	8-98044-520-0	01	1	1009-	●
697	03.680 BOLT; SENSOR 03.162 M6X20 FLANGE	0-28650-620-0	02	1	1009-	●
738	03.675 BRACKET; SENSOR,VAC	8-98044-607-0	01	1	1009-	●
747	03.671 NUT; VAC REG VALVE 01.062 M8 FLANGE	0-91180-108-0	02	1	1009-	●
752	03.670 VALVE; EVRV	8-98116-259-0	01	1	1009-	●
753	03.670 BRACKET; VALVE	8-97381-571-1	01	1	1009-	●
779	03.671 WASHER; VALVE 06.168 ID=8.4 OD=18	0-91610-608-0	02	1	1009-	●

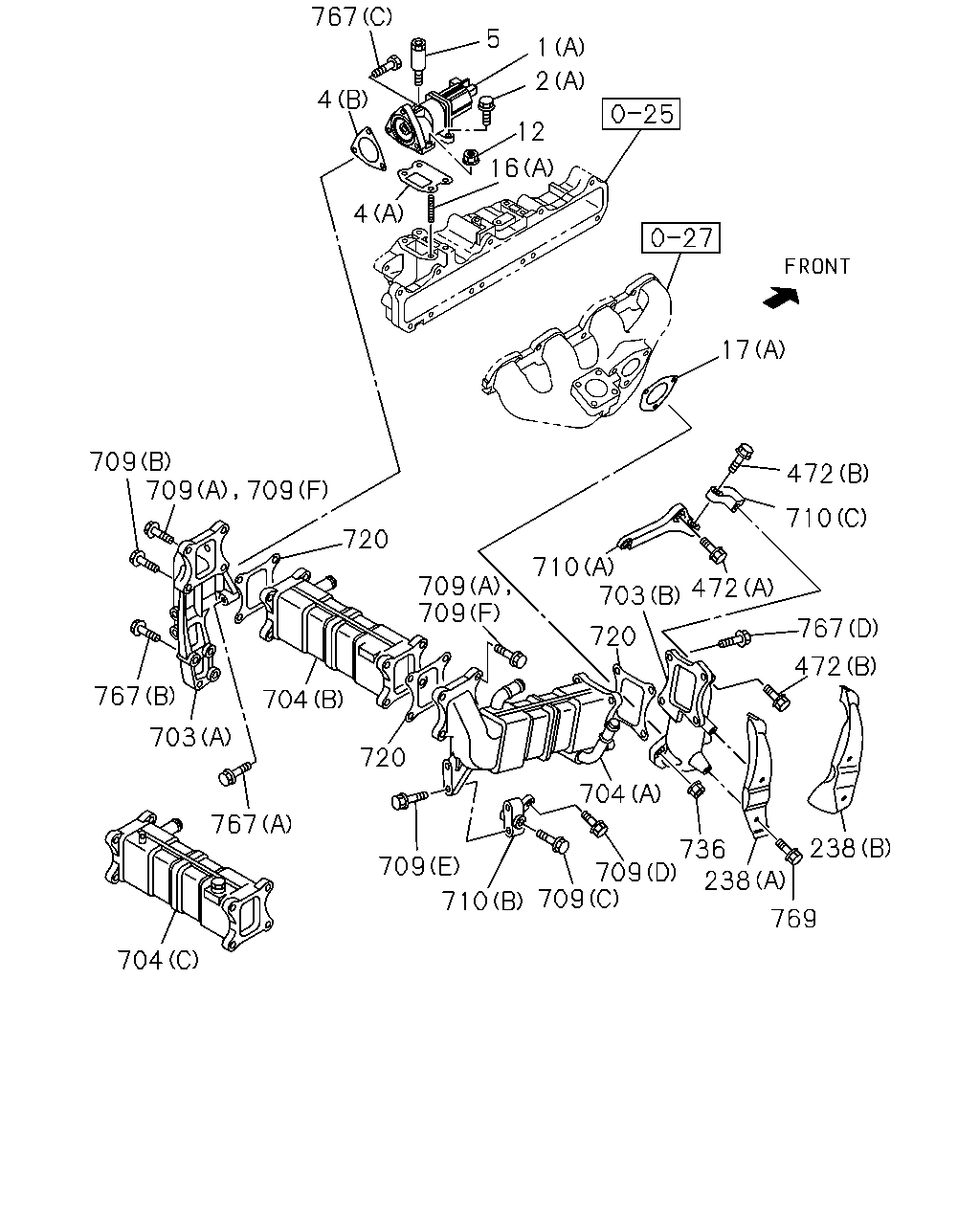

767 5 1 2 12 16 4 4 17 472 710 709 709 709 720 767 703 704 767 704 709 710 709 709 238 769 736 704 238 709 709 710 703 720 472 767 472 720

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.670 VALVE; EGR (B)	8-97381-560-7	01	1	1009-1403	●
1	03.670 VALVE; EGR (B)	8-98238-259-1	01	1	1404-	●
1	03.670 VALVE; EGR (A)	8-98098-257-5	01	1	1009-		●	●
2	03.670 BOLT; EGR VLV 01.252 (C) M8X80 FLANGE	0-28050-880-0	01	1	1009-	●
2	03.670 BOLT; EGR VLV 03.417 (B) M8X23 FLANGE	8-97378-077-0	03	1	1009-	●
2	03.670 BOLT; EGR VLV 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1009-		●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98094-528-2	01	1	1009-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97306-040-0	01	1	1009-		●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). 03.665 (B)	8-98036-507-0	01	1	1009-		●	●
5	03.670 ADAPTER ASM 00.269	8-97377-804-0	01	1	1009-		●	●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91180-208-0	04	1	1009-	●
12	03.671 NUT; EGR VLV 01.062 M8 FLANGE	0-91180-108-0	02	1	1009-		●	●
16	03.275 STUD; EGR VLV (B) M8X25 L=41	0-40210-825-0	02	1	1009-	●
16	03.275 STUD; EGR VLV (C) M8X50 L=62	0-40210-850-0	02	1	1009-	●
16	03.275 STUD; EGR VLV 02.510 (A) M8X20 L=32	0-41010-820-0	02	1	1009-		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97357-684-3	01	1	1009-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98063-284-1	01	1	1009-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.680 (A) ID=51.5	8-98046-192-1	01	1	1009-		●	●
238	03.330 PROTECTOR; HEAT,EGR (A)	8-98056-572-0	01	1	1009-1204		●	●
238	03.330 PROTECTOR; HEAT,EGR (B)	8-98176-249-0	01	1	1205-		●	●
472	03.671 BOLT; BRKT 02.343 (C) M8X16 FLANGE	0-28050-816-0	02	1	1009-	●
472	03.671 BOLT; BRKT 02.277 (A) M8X25 FLANGE	0-28660-825-0	02	1	1009-		●	●
472	03.671 BOLT; BRKT 00.029 (B) M10X40 FLANGE	0-28751-040-0	02	1	1009-		●	●
703	03.675 DUCT; EGR (B)	8-98115-663-0	01	1	1009-		●	●
703	03.675 DUCT; EGR (A)	8-98115-665-1	01	1	1009-		●	●
704	03.337 COOLER ASM; EGR (A)	8-98025-248-5	01	1	1009-		●	●
704	03.337 COOLER ASM; EGR (B)	8-98025-249-4	01	1	1009-1204		●	●
704	03.337 COOLER ASM; EGR (C)	8-98212-718-0	01	1	1205-		●	●
709	03.670 BOLT; EGR COOLER 03.680 (F) M8X30 FLANGE	0-28660-830-0	04	1	1111-1111		●	●
709	03.670 BOLT; EGR COOLER 03.680 (F) M8X30 FLANGE	0-28660-830-0	07	1	1111-		●	●
709	03.670 BOLT; EGR COOLER (B) M8X45 FLANGE	0-28060-845-0	01	1	1009-		●	●
709	03.670 BOLT; EGR COOLER 00.685 (C) M12X60 FLANGE	0-28151-260-0	01	1	1009-		●	●
709	03.670 BOLT; EGR COOLER 02.277 (D) M8X25 FLANGE	0-28660-825-0	01	1	1009-		●	●
709	03.670 BOLT; EGR COOLER 00.029 (E) M10X40 FLANGE	0-28751-040-0	02	1	1009-		●	●
709	03.670 BOLT; EGR COOLER 03.417 (A) M8X28 FLANGE	8-98043-528-0	07	1	1009-1110		●	●
709	03.670 BOLT; EGR COOLER 03.417 (A) M8X28 FLANGE	8-98043-528-0	03	1	1111-1111		●	●
710	03.337 BRACKET; EGR COOLER 03.680 (A)	8-98025-253-2	01	1	1009-		●	●
710	03.337 BRACKET; EGR COOLER (B)	8-98025-254-1	01	1	1009-		●	●
710	03.337 BRACKET; EGR COOLER (C)	8-98055-940-1	01	1	1009-		●	●
720	03.680 GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE).	8-98149-353-0	03	1	1009-1302		●	●
720	03.680 GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE).	8-98200-753-0	03	1	1303-		●	●
736	03.675 NUT; DUCT,EGR VLV 03.613 M8 FLANGE	8-97061-401-1	03	1	1009-		●	●
767	03.670 BOLT; DUCT,EGR 09.173 (A) M8X45 FLANGE	0-28050-845-0	02	1	1009-		●	●
767	03.670 BOLT; DUCT,EGR 00.685 (B) M12X50 FLANGE	0-28151-250-0	02	1	1009-		●	●
767	03.670 BOLT; DUCT,EGR 03.403 (C) M8X30 FLANGE	0-28650-830-0	01	1	1009-		●	●
767	03.670 BOLT; DUCT,EGR 03.417 (D) M8X28 FLANGE	8-98043-528-0	04	1	1009-		●	●
769	01.750 BOLT; HEAT PROTECTOR 03.602 M6X12 W/PL WASHER	8-98054-289-0	04	1	1009-		●	●
