◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51276 - NNR/NPR/NQR AUST/NZ EURO5 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-41 - FUEL FILTER AND BRACKET ▶
0-41 — FUEL FILTER AND BRACKET (#78251) — 30 parça

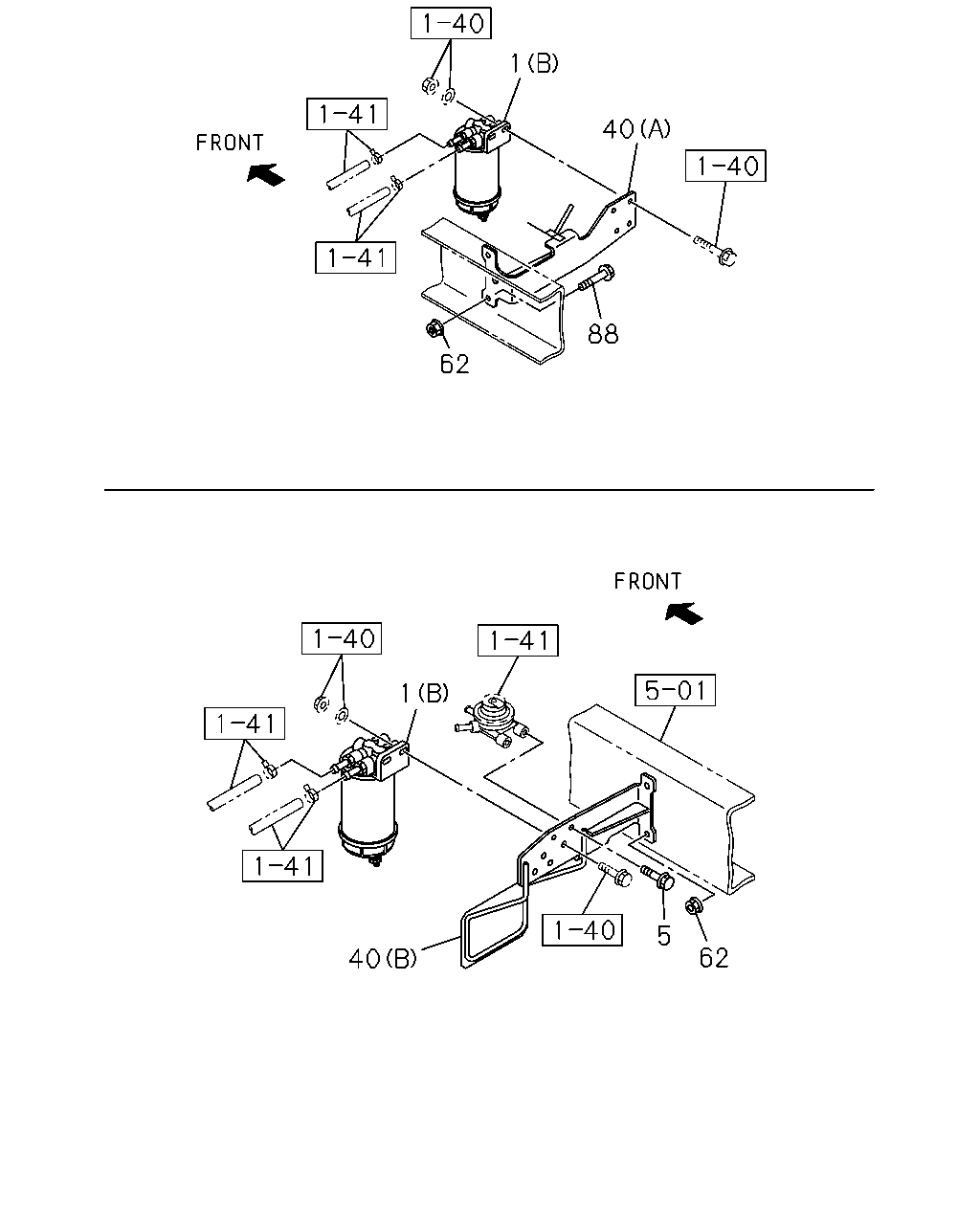

çizim 63435
1 40 88 62 1 5 62 40
BalonParca AdiParca NoAdetTipApplied Date A B C
1 03.890 FILTER ASM; FUEL
(A) 		8-98162-903-3 01 1 1009- ● ● ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-980-1 01 1 1009- ● ● ●
5 03.890 BOLT; FUEL FILTER
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1009- ● ● ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 2700MM(27W) POOR QUALITY DIESEL FUEL(KF0) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98121-708-0 01 1 1009- ●
40 03.890 BRACKET; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98107-354-3 01 1 1009- ● ● ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98107-354-3 01 1 1009- ●
62 03.895 NUT; FUEL FILTER
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1009- ●
88 03.895 BOLT; BRKT,FUEL FILTER
WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1009- ● ● ●
88 03.895 BOLT; BRKT,FUEL FILTER
WHEEL BASE 2700MM(27W) POOR QUALITY DIESEL FUEL(KF0) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1009- ●

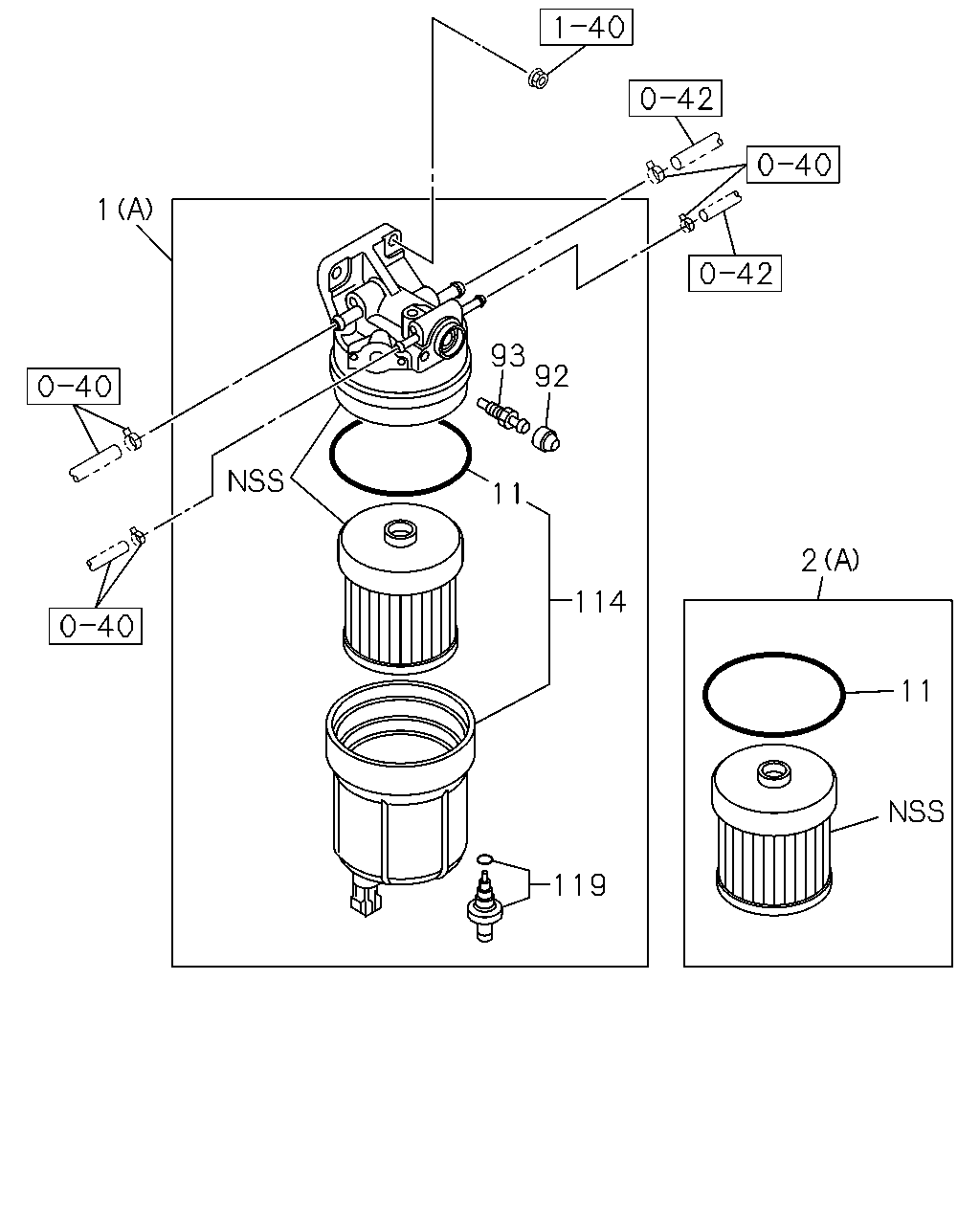

çizim 187231
1 93 11 114 92 119 2 11
BalonParca AdiParca NoAdetTipApplied Date A B C
1 03.890 FILTER ASM; FUEL
(A) 		8-98162-903-3 01 1 1009- ● ● ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-980-1 01 1 1009- ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98162-897-0 01 1 1009-1112 ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-983-0 01 1 1009- ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98203-599-0 01 1 1201- ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) BEST VALUE PARTS 		1-87610-093-1 01 1 1201- ● ● ●
11 03.890 GASKET; CASE TO BODY,FUEL FILTER 8-98037-015-0 01 1 1009-1112 ● ● ●
11 03.890 GASKET; CASE TO BODY,FUEL FILTER 8-98203-600-0 01 1 1201- ● ● ●
92 03.417 CAP; FUEL FILTER 8-98034-314-0 01 1 1009- ● ● ●
93 03.890 CONNECTOR; FUEL FILTER
M8X10 		8-98034-312-0 01 1 1009- ● ● ●
114 03.890 CASE ASM; FUEL FILTER 8-98039-987-1 01 1 1009- ● ● ●
119 03.890 PLUG; DRAIN,FUEL FILTER 8-98037-095-0 01 1 1009- ● ● ●

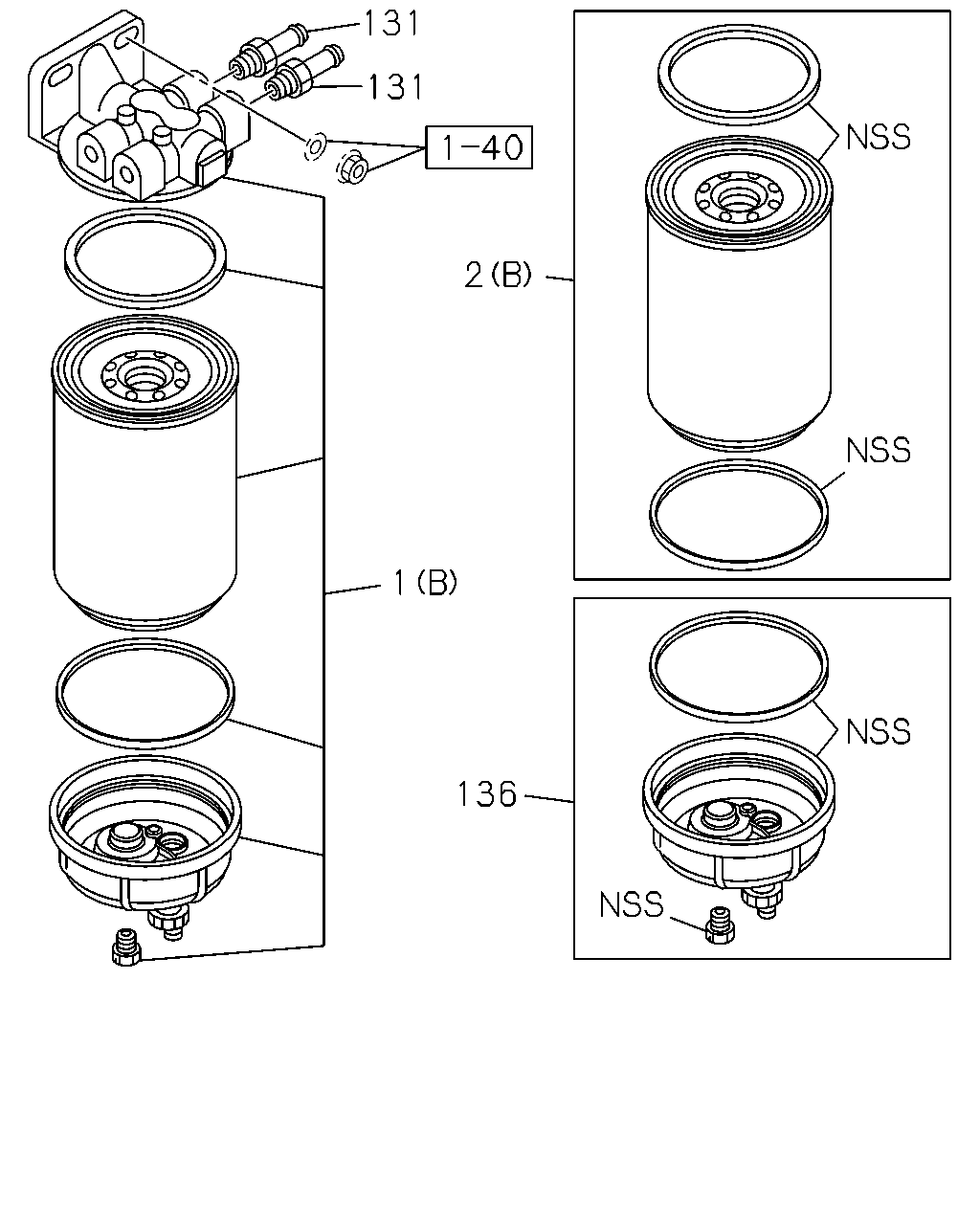

çizim 187234
131 131 2 1 136
BalonParca AdiParca NoAdetTipApplied Date A B C
1 03.890 FILTER ASM; FUEL
(A) 		8-98162-903-3 01 1 1009- ● ● ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-980-1 01 1 1009- ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98162-897-0 01 1 1009-1112 ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-983-0 01 1 1009- ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98203-599-0 01 1 1201- ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) BEST VALUE PARTS 		1-87610-093-1 01 1 1201- ● ● ●
131 03.890 PIPE; FILTER
POOR QUALITY DIESEL FUEL(KF0) NPTF3/8-18 OD=10 		8-98122-953-0 02 1 1009- ● ● ●
136 03.890 CAP KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) 		8-98096-004-0 01 1 1009-1408 ● ● ●
136 03.890 CAP KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) 		8-98279-324-0 01 1 1409- ● ● ●
