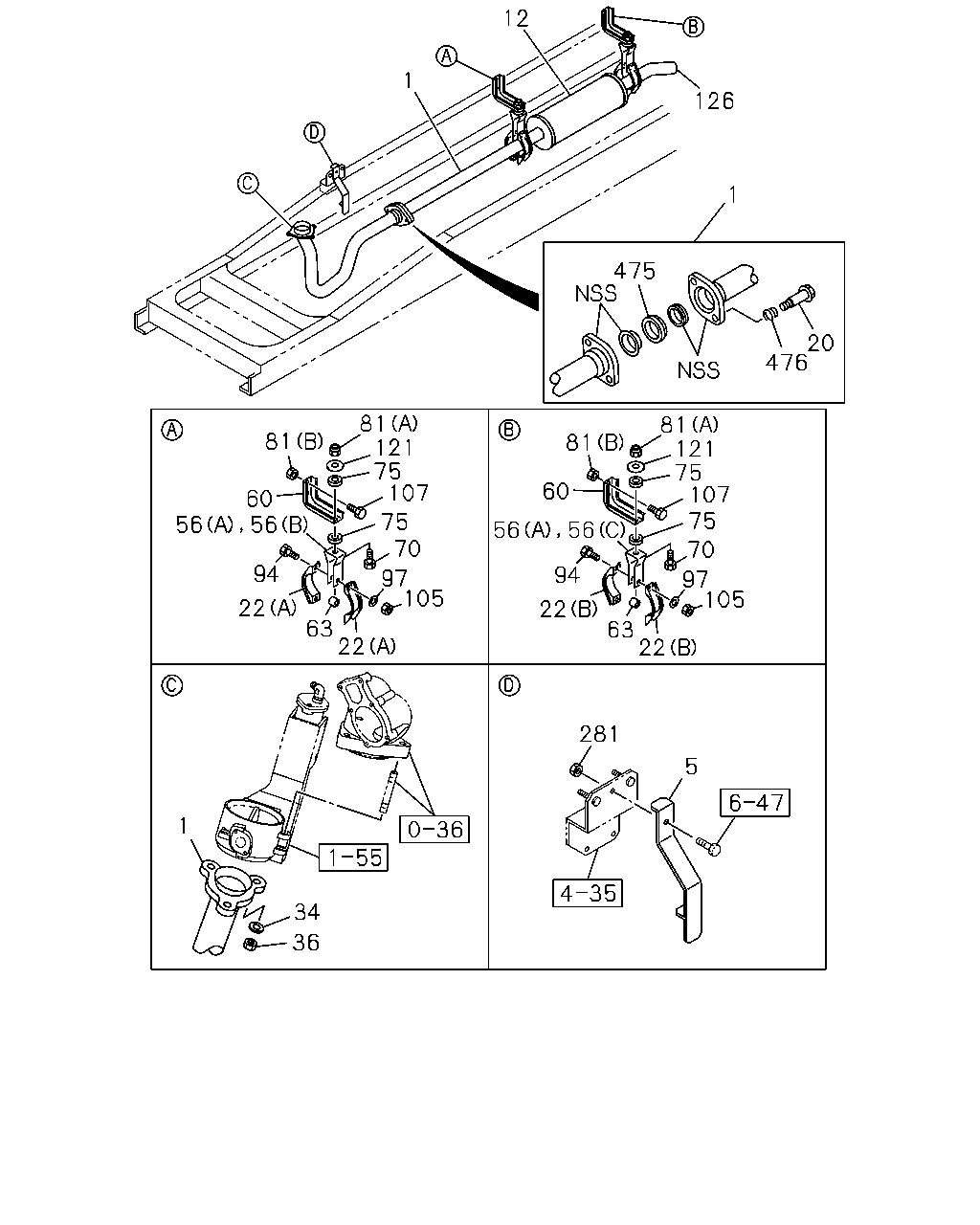

1-50 — EXHAUST PIPE AND SILENCER (#7825) — 68 parça

12 1 126 1 475 20 476 81 121 75 107 81 121 75 107 75 81 81 60 60 56 56 75 70 56 56 70 94 94 97 105 97 105 22 22 63 22 63 22 281 5 1 34 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH FTR(FT****)	1-22123-215-1	01	1	0302-0302	●
1	PIPE; EXH FTR(FT****)	1-22123-707-1	01	1	0303-0504	●
1	PIPE; EXH FTR(FT****) EXC. ANTI NOISE EQUIPMENT ECE<SLK>	1-22123-707-1	01	1	0505-	●
1	PIPE; EXH FTR(FT****) ANTI NOISE EQUIPMENT ECE<SLK>	1-22123-903-0	01	1	0505-	●
1	PIPE; EXH FRR(FR**) FSR(FS**) ANTI NOISE EQUIPMENT ECE<SLK>	1-22123-902-0	01	1	0505-	●
1	PIPE; EXH ANTI NOISE EQUIPMENT ECE<SLK>	1-22123-902-0	01	1	0505-		●
1	PIPE; EXH	1-22123-070-5	01	1	9905-0301	●	●
1	PIPE; EXH FRR(FR**) FSR(FS**)	1-22123-070-5	01	1	0302-0504	●
1	PIPE; EXH	1-22123-070-5	01	1	0302-0504		●
1	PIPE; EXH FRR(FR**) FSR(FS**) EXC. ANTI NOISE EQUIPMENT ECE<SLK>	1-22123-070-5	01	1	0505-	●
1	PIPE; EXH EXC. ANTI NOISE EQUIPMENT ECE<SLK>	1-22123-070-5	01	1	0505-		●
5	PROTECTOR; HEAT	1-33659-231-0	01	1	0012-	●	●
12	SILENCER ASM; EXH	1-22140-723-2	01	1	9905-	●	●
20	BOLT; FLANGE,EXH PIPE M10X49.8	8-97039-586-0	02	1	9905-	●	●
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	9905-	●	●
22	CLAMP; EXH PIPE (B) ID=94-98	1-22133-237-0	02	1	9905-	●	●
34	WASHER; EXH PIPE FTR(FT****) ID=13 OD=26 DISH	1-09556-002-0	03	1	0302-0410	●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09500-030-0	01	1	9905-0301	●	●
34	WASHER; EXH PIPE FRR(FR**) FSR(FS**) ID=13 OD=24 DISH	1-09500-030-0	01	1	0302-0410	●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09500-030-0	01	1	0302-0410		●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09500-030-0	03	1	0411-	●	●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	02	1	9905-0301	●	●
34	WASHER; EXH PIPE FRR(FR**) FSR(FS**) ID=13 OD=26 DISH	1-09556-002-0	02	1	0302-0410	●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	02	1	0302-0410		●
36	NUT; EXH PIPE M12	1-09400-010-0	03	1	9905-	●	●
56	BRACKET; CLAMP,EXH PIPE FTR(FT****) (B) H=112	1-22139-043-0	01	1	0302-	●
56	BRACKET; CLAMP,EXH PIPE FTR(FT****) (C)	1-22139-082-0	01	1	0302-	●
56	BRACKET; CLAMP,EXH PIPE (A)	1-22139-082-0	02	1	9905-0301	●	●
56	BRACKET; CLAMP,EXH PIPE FRR(FR**) FSR(FS**) (A)	1-22139-082-0	02	1	0302-	●
56	BRACKET; CLAMP,EXH PIPE (A)	1-22139-082-0	02	1	0302-		●
60	BRACKET; FRAME TO BRKT FTR(FT****)	1-22151-512-3	02	1	0302-	●
60	BRACKET; FRAME TO BRKT	1-22151-679-1	02	1	9905-0301	●	●
60	BRACKET; FRAME TO BRKT FRR(FR**) FSR(FS**)	1-22151-679-1	02	1	0302-	●
60	BRACKET; FRAME TO BRKT	1-22151-679-1	02	1	0302-		●
63	TUBE; DIST,BRKT L=11	1-22139-026-0	02	1	9905-	●	●
70	BOLT; BRKT M10X50	0-10806-050-0	02	1	9905-0512	●	●
70	BOLT; BRKT M10X50	0-10856-050-0	02	1	0601-	●	●
75	RUBBER; SUPPORT,BRKT OD=30	1-22159-106-1	04	1	9905-	●	●
81	NUT; BRKT FTR(FT****) (B) M10 FLANGE	0-91150-210-0	04	1	0302-0602	●
81	NUT; BRKT FTR(FT****) (B) M10 FLANGE	0-91180-210-0	04	1	0603-	●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	01	1	0206-0301	●	●
81	NUT; BRKT FRR(FR**) FSR(FS**) (B) M10 FLANGE	0-91150-210-0	01	1	0302-0602	●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	01	1	0302-0602		●
81	NUT; BRKT FRR(FR**) FSR(FS**) (B) M10 FLANGE	0-91180-210-0	01	1	0603-	●
81	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	0603-		●
81	NUT; BRKT FRR(FR****) (B) M10 FLANGE	0-91150-210-0	02	1	9905-0602	●
81	NUT; BRKT FRR(FR****) (B) M10 FLANGE	0-91180-210-0	02	1	0603-	●
81	NUT; BRKT (A) M10 LOCK NUT	9-09131-510-0	02	1	9905-0603	●	●
81	NUT; BRKT (A) M10 LOCK NUT	0-91370-010-0	02	1	0604-	●	●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	04	1	9905-	●	●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	04	1	9905-	●	●
105	NUT; CLAMP M10	9-09110-510-0	04	1	9905-0512	●	●
105	NUT; CLAMP M10	0-91110-510-0	04	1	0601-	●	●
107	BOLT; BRKT FTR(FT****) M10X35 FLANGE	0-28681-035-0	04	1	0302-0512	●
107	BOLT; BRKT FTR(FT****) M10X35 FLANGE	0-28651-035-0	04	1	0601-	●
107	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	04	1	9905-0301	●	●
107	BOLT; BRKT FRR(FR**) FSR(FS**) M10X30 FLANGE	0-28681-030-0	04	1	0302-0512	●
107	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	04	1	0302-0512		●
107	BOLT; BRKT FRR(FR**) FSR(FS**) M10X30 FLANGE	0-28651-030-0	04	1	0601-	●
107	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	04	1	0601-		●
121	WASHER; PL,BRKT ID=10.5 OD=32	9-09164-810-0	02	1	9905-0605	●	●
121	WASHER; PL,BRKT ID=10.5 OD=32	0-91614-810-0	02	1	0606-	●	●
126	PIPE; EXH,RR OD=94	1-22126-059-0	01	1	9905-0009	●	●
126	PIPE; EXH,RR OD=94	1-22126-331-0	01	1	0010-	●	●
281	NUT; HEAT PROTECTOR M8 FLANGE	0-91150-108-0	01	1	0012-0602	●	●
281	NUT; HEAT PROTECTOR M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE OD=112	1-22119-294-0	01	1	9905-	●	●
476	SPRING; VIBNON,EXH PIPE	8-94141-851-0	02	1	9905-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
