0-11 — CYLINDER HEAD (#78234) — 108 parça

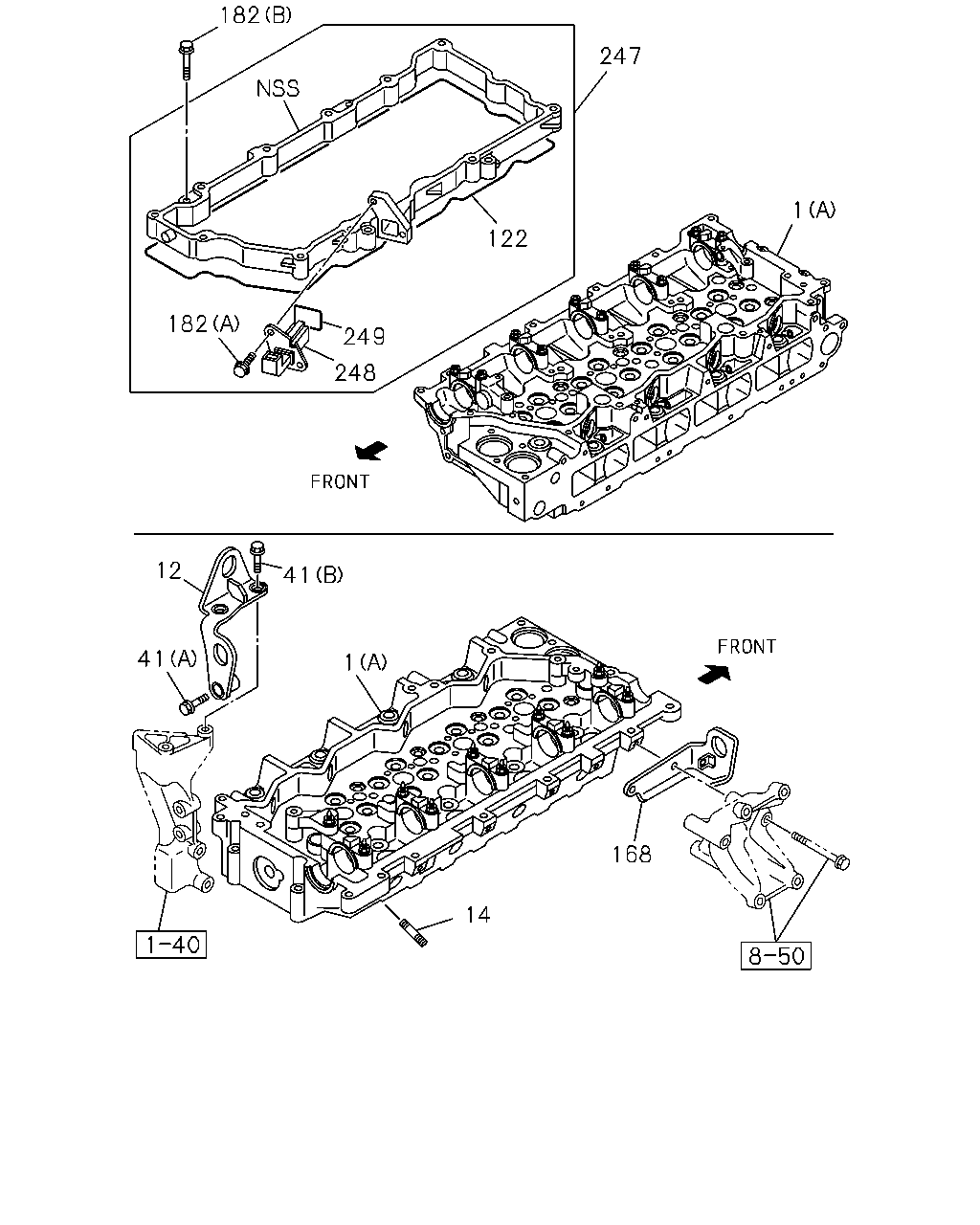

çizim 25014
1 249 248 182 182 247 122 41 12 41 1 168 14
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.269 HEAD ASM; CYL
(B) 		8-98074-596-4 01 1 1009-1301 ●
1 00.269 HEAD ASM; CYL
(B) 		8-98223-080-2 01 1 1302- ●
1 00.269 HEAD ASM; CYL
(A) 		8-98170-619-0 01 1 1009- ● ●
12 00.004 HANGER; ENG,RR 8-98074-691-1 01 1 1009- ● ●
14 03.275 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 02 1 1009- ● ●
41 09.181 BOLT; ENG HANGER
03.162 (B) M12X20 FLANGE 		0-28151-220-0 02 1 1009- ● ●
41 09.181 BOLT; ENG HANGER
(A) M12X80 		0-28151-280-0 01 1 1009- ● ●
122 00.206 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97331-360-1 01 1 1009- ● ●
168 00.004 HANGER; ENG,FRT 8-98032-250-1 01 1 1009- ● ●
182 00.206 BOLT; CASE
02.343 (A) M8X12 FLANGE 		0-28050-812-0 02 1 1009- ● ●
182 00.206 BOLT; CASE
09.173 (B) M8X45 FLANGE 		0-28050-845-0 04 1 1009- ● ●
247 00.269 CASE; CYL HEAD,C/H COVER 8-97331-362-1 01 1 1009- ● ●
248 02.251 CONNECTOR
01.150 		8-94390-858-1 01 1 1009- ● ●
249 03.300 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENGINE). 01.152 		8-94391-310-0 01 1 1009- ● ●

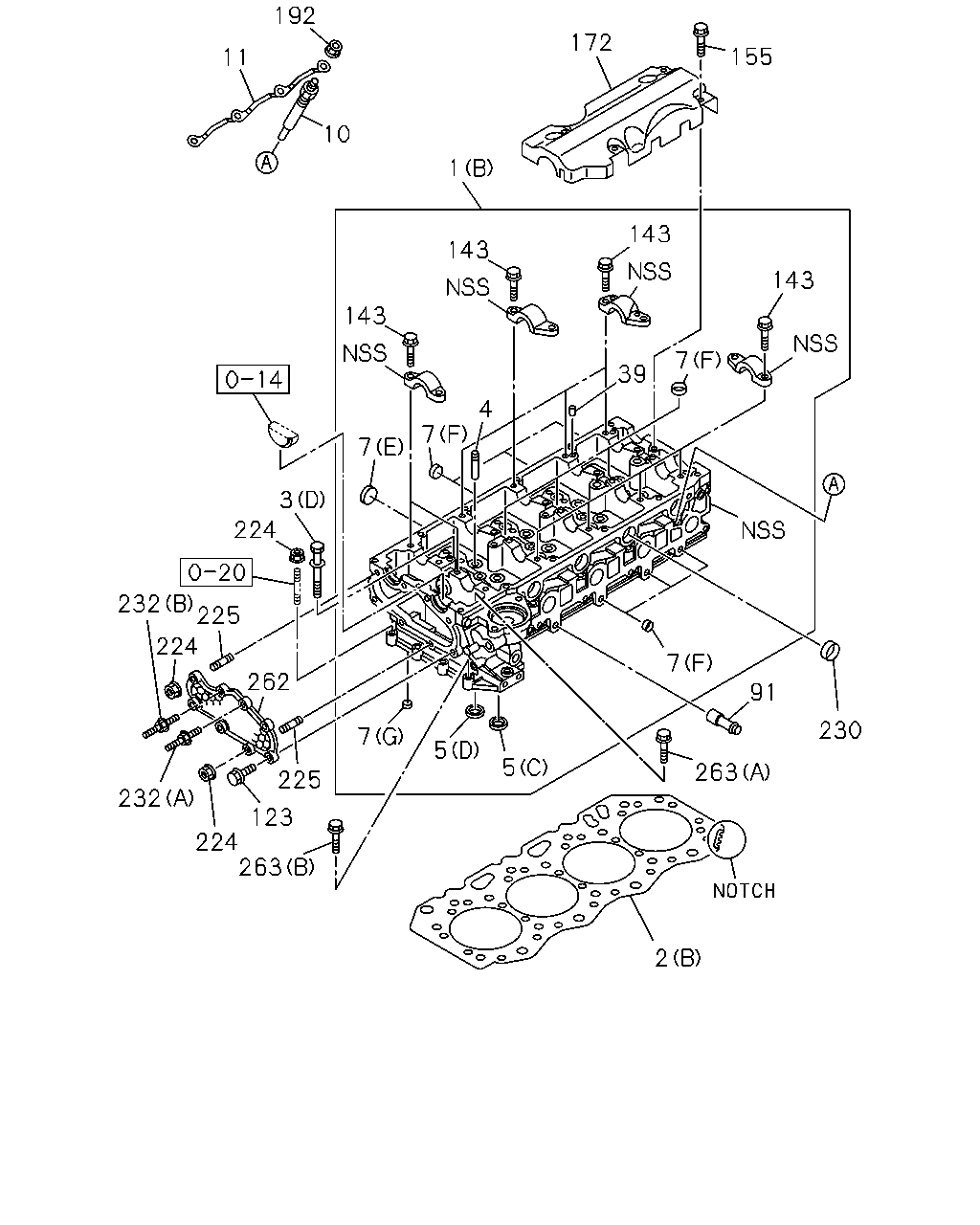

çizim 187218
155 172 192 11 10 143 143 143 3 224 232 225 224 232 224 263 225 123 262 5 7 5 7 3 263 91 143 1 4 7 7 7 39 230
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.269 HEAD ASM; CYL
(B) 		8-98074-596-4 01 1 1009-1301 ●
1 00.269 HEAD ASM; CYL
(B) 		8-98223-080-2 01 1 1302- ●
1 00.269 HEAD ASM; CYL
(A) 		8-98170-619-0 01 1 1009- ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(D) M11X114 		8-97144-583-2 18 1 1009-1108 ●
3 00.293 BOLT; CYL HD TO BLOCK
(D) M11X114 W/WASHER 		8-98201-019-0 18 1 1109- ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 1009- ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 1009- ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 1009-1503 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-98260-005-0 18 1 1504- ● ●
4 00.283 GUIDE; VLV
L=42 		8-94239-423-0 16 1 1009- ●
4 00.283 GUIDE; VLV
L=57 		8-97376-719-2 16 1 1009- ● ●
5 00.253 SEAT; VLV INSERT
(C) INLET ID=29 OD=35 		8-97311-378-0 08 1 1009- ●
5 00.253 SEAT; VLV INSERT
(D) EXHAUST ID=26 OD=32 		8-97311-379-0 08 1 1009- ●
5 00.253 SEAT; VLV INSERT
(A) INLET ID=32 OD=38 		8-98028-874-0 08 1 1009- ● ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST ID=31 OD=38 		8-98028-875-0 08 1 1009- ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (E) OD=32 		1-09600-012-2 02 1 1009- ●
7 00.253 CUP; SEALING,CYL HEAD
(F) OD=18 		5-11219-008-0 13 1 1009- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (G) OD=14 		5-11219-011-0 07 1 1009- ●
7 00.253 CUP; SEALING,CYL HEAD
00.293 (D) OD=25 		1-09600-016-0 04 1 1009- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=16 		5-11129-006-0 05 1 1009- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=32 		8-97096-821-0 05 1 1009- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=20 		9-11129-128-0 07 1 1009- ● ●
10 02.270 PLUG; GLOW
NGK 		8-94390-777-6 04 1 1009- ● ● ●
11 02.251 CONNECTOR; GLOW PLUG 8-98014-335-0 01 1 1009- ●
11 02.251 CONNECTOR; GLOW PLUG 8-97332-358-2 01 1 1009- ● ●
39 00.413 DOWEL; CAP,CM/SHF 8-97329-129-1 20 1 1009- ●
91 08.846 PIPE; HTR
01.251 		8-94343-211-1 01 1 1009- ●
123 00.206 BOLT; COVER
M8X20 FLANGE 		8-97366-632-0 04 1 1009- ●
143 02.251 BOLT; FIX
00.685 M8X40 FLANGE 		0-28650-840-0 20 1 1009- ●
155 00.349 BOLT; BAFFLE PLATE
M6X10 HEX SOCKET 		0-58330-610-0 04 1 1009- ●
172 00.207 PLATE; BAFFLE,CYL HD 8-98016-865-0 01 1 1009- ●
192 00.349 NUT; GLOW PLUG
02.559 M4 FLANGE 		8-97368-853-0 04 1 1009- ● ● ●
224 00.349 NUT; COVER
01.540 M8 FLANGE 		0-91180-208-0 04 1 1009- ●
225 00.349 STUD; COVER
M8X15.5 L=33.5 		8-98017-062-0 02 1 1009- ●
230 03.300 GASKET; SLEEVE,INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.306 OD=30 		1-09639-034-0 04 1 1009- ●
232 00.413 STUD; CAM,CARRIER
(B) M6X12 M8X17 L=37 		8-97375-460-0 01 1 1009- ●
232 00.413 STUD; CAM,CARRIER
(A) M8X15 M8X17 L=40 		8-98166-373-0 01 1 1009- ●
262 00.206 COVER; CYL HEAD 8-97355-516-4 01 1 1009- ●
263 00.293 BOLT; CYL HD
04.686 (A) M8X60 FLANGE 		0-28050-860-0 01 1 1009- ●
263 00.293 BOLT; CYL HD
01.060 (B) M8X35 FLANGE 		0-28650-835-0 03 1 1009- ●

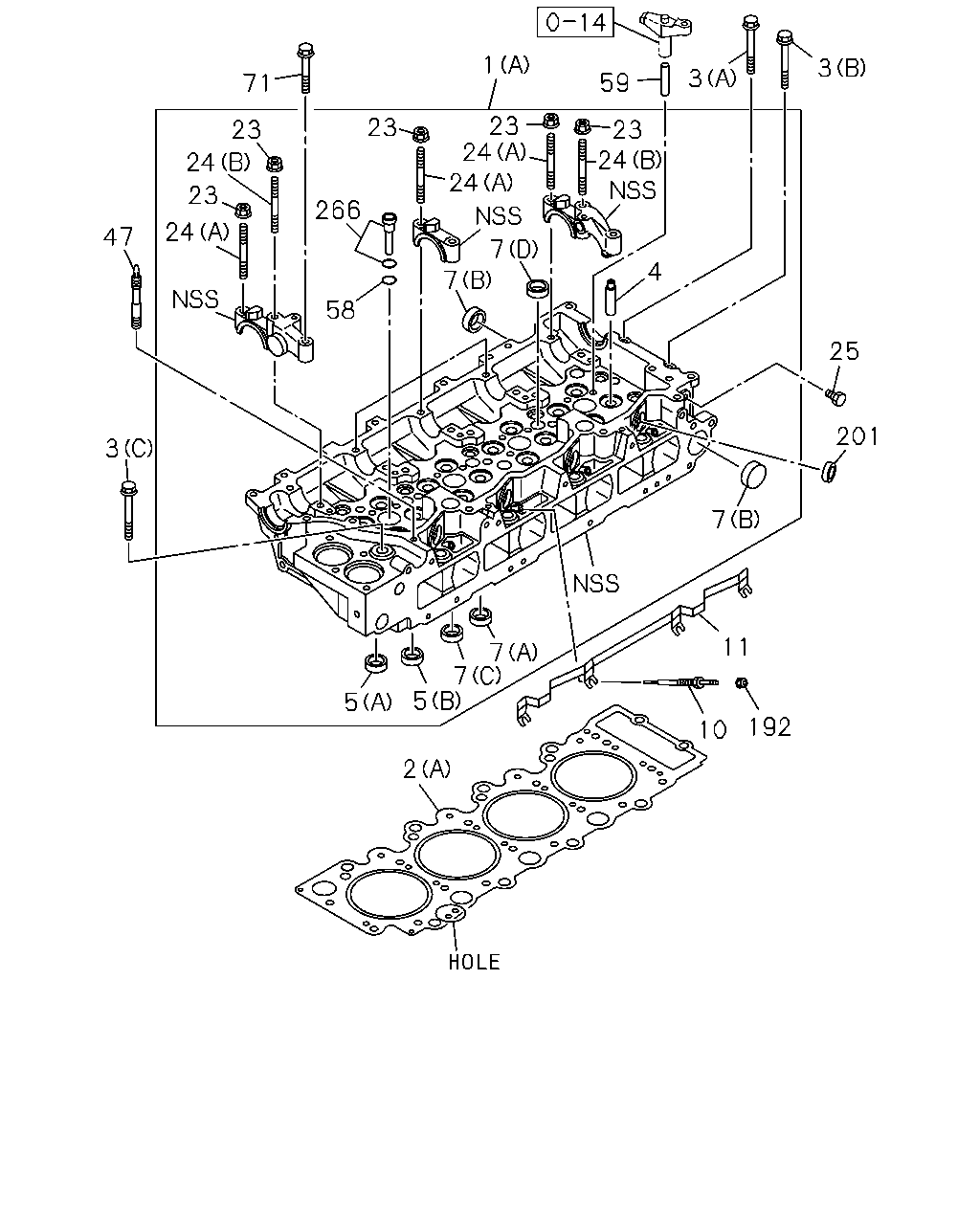

çizim 187219
3 25 201 7 192 10 11 2 5 5 7 7 3 47 24 71 23 24 23 58 266 23 23 3 59 24 23 4 7 7 24 24 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.269 HEAD ASM; CYL
(B) 		8-98074-596-4 01 1 1009-1301 ●
1 00.269 HEAD ASM; CYL
(B) 		8-98223-080-2 01 1 1302- ●
1 00.269 HEAD ASM; CYL
(A) 		8-98170-619-0 01 1 1009- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) GRADE A T=1.05 1-NOTCH 		8-98135-953-0 01 1 1009-1108 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) GRADE A T=1.05 1-NOTCH 		8-97328-866-2 01 1 1109-1304 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) GRADE A T=1.05 1-NOTCH 		8-98241-037-0 01 1 1305-1411 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) GRADE A T=1.14 1-NOTCH 		8-98291-683-0 01 1 1412- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) GRADE B T=1.10 2-NOTCH 		8-98135-954-0 01 1 1009-1108 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) GRADE B T=1.10 2-NOTCH 		8-97328-867-2 01 1 1109-1304 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) GRADE B T=1.10 2-NOTCH 		8-98241-038-0 01 1 1305-1411 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) GRADE B T=1.19 2-NOTCH 		8-98291-684-0 01 1 1412- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) GRADE C T=1.15 3-NOTCH 		8-98135-955-0 01 1 1009-1108 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) GRADE C T=1.15 3-NOTCH 		8-97328-868-2 01 1 1109-1304 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) GRADE C T=1.15 3-NOTCH 		8-98241-039-0 01 1 1305-1411 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) GRADE C T=1.24 3-NOTCH 		8-98291-685-0 01 1 1412- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) GRADE A T=1.475 NON-HOLE 		8-98055-540-0 01 1 1009-1505 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) GRADE A T=1.475 NON-HOLE 		8-98288-501-0 01 1 1506- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) GRADE B T=1.525 1-HOLE 		8-98055-541-0 01 1 1009-1505 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) GRADE B T=1.525 1-HOLE 		8-98288-502-0 01 1 1506- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) GRADE C T=1.575 2-HOLE 		8-98055-542-0 01 1 1009-1505 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) GRADE C T=1.575 2-HOLE 		8-98288-503-0 01 1 1506- ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(D) M11X114 		8-97144-583-2 18 1 1009-1108 ●
3 00.293 BOLT; CYL HD TO BLOCK
(D) M11X114 W/WASHER 		8-98201-019-0 18 1 1109- ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 1009- ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 1009- ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 1009-1503 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-98260-005-0 18 1 1504- ● ●
4 00.283 GUIDE; VLV
L=42 		8-94239-423-0 16 1 1009- ●
4 00.283 GUIDE; VLV
L=57 		8-97376-719-2 16 1 1009- ● ●
5 00.253 SEAT; VLV INSERT
(C) INLET ID=29 OD=35 		8-97311-378-0 08 1 1009- ●
5 00.253 SEAT; VLV INSERT
(D) EXHAUST ID=26 OD=32 		8-97311-379-0 08 1 1009- ●
5 00.253 SEAT; VLV INSERT
(A) INLET ID=32 OD=38 		8-98028-874-0 08 1 1009- ● ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST ID=31 OD=38 		8-98028-875-0 08 1 1009- ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (E) OD=32 		1-09600-012-2 02 1 1009- ●
7 00.253 CUP; SEALING,CYL HEAD
(F) OD=18 		5-11219-008-0 13 1 1009- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (G) OD=14 		5-11219-011-0 07 1 1009- ●
7 00.253 CUP; SEALING,CYL HEAD
00.293 (D) OD=25 		1-09600-016-0 04 1 1009- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=16 		5-11129-006-0 05 1 1009- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=32 		8-97096-821-0 05 1 1009- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=20 		9-11129-128-0 07 1 1009- ● ●
10 02.270 PLUG; GLOW
NGK 		8-94390-777-6 04 1 1009- ● ● ●
11 02.251 CONNECTOR; GLOW PLUG 8-98014-335-0 01 1 1009- ●
11 02.251 CONNECTOR; GLOW PLUG 8-97332-358-2 01 1 1009- ● ●
23 00.349 NUT; CAM BRKT
01.540 M8 FLANGE 		0-91180-208-0 10 1 1009- ● ●
24 00.413 STUD; CM/SHF BRKT
(B) M8X54 L=79 		8-94322-512-2 02 1 1009- ● ●
24 00.413 STUD; CM/SHF BRKT
(A) M8X41 L=66 		8-94322-513-2 08 1 1009- ● ●
25 00.293 PLUG; CYL HD
00.309 M8X10 		8-98003-416-0 01 1 1009- ● ●
47 00.413 STUD; CYL HD
01.073 M8X60 L=72 		0-49140-860-0 02 1 1009- ● ●
58 00.289 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=26.4 		8-97604-916-0 04 1 1009- ● ●
59 00.283 GUIDE; BRIDGE 8-97381-603-1 08 1 1009- ● ●
71 00.413 BOLT; CAM BRKT
03.162 M8X35 FLANGE 		0-28050-835-0 02 1 1009- ● ●
192 00.349 NUT; GLOW PLUG
02.559 M4 FLANGE 		8-97368-853-0 04 1 1009- ● ● ●
201 03.306 GASKET; SLEEVE,INJ PUMP
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=30 		1-09639-034-0 04 1 1009- ● ●
266 00.293 SLEEVE ASM; NOZZLE HOLDER 8-98018-462-0 04 1 1009- ● ●
