9-01 — TOOLS (#78230) — 30 parça

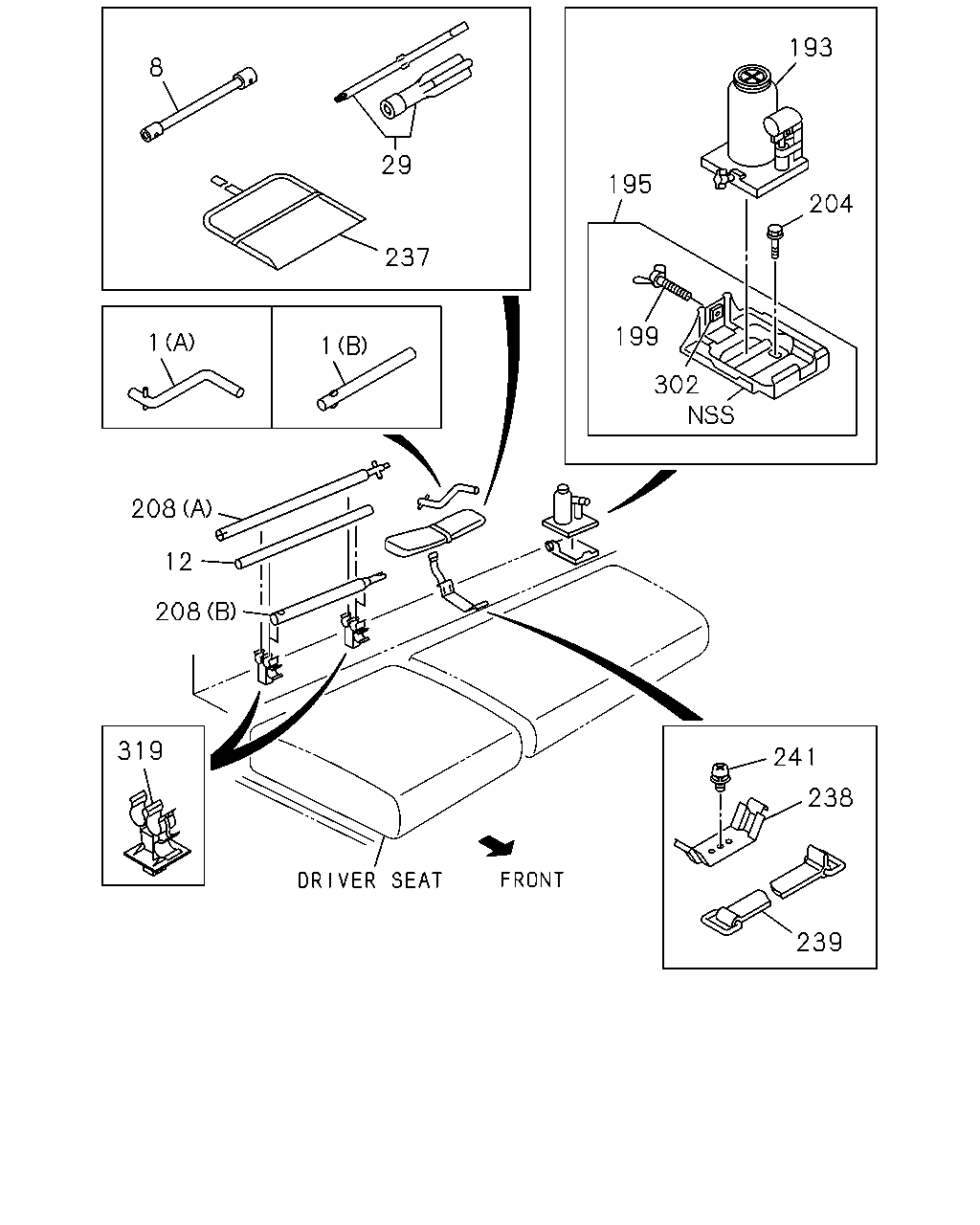

çizim 14469
241 238 239 199 302 204 193 195 29 237 8 1 1 208 12 208 319
BalonParca AdiParca NoAdetTipApplied Date A B
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> (A) 		8-97218-985-0 01 1 1009- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER<P10> (A) 		8-97218-985-0 01 1 1009- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
EXC. SPARE WHEEL CARRIER<P10> 08.821 (B) L=280 		1-85515-007-0 01 1 1009-1108 ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> 08.821 (B) L=280 		1-85515-007-0 01 1 1009-1108 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
EXC. SPARE WHEEL CARRIER<P10> (B) L=280 		8-98181-251-0 01 1 1109- ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> (B) L=280 		8-98181-251-0 01 1 1109- ●
8 08.821 WRENCH; WHEEL
B=41X19 L=330 		8-94386-490-1 01 1 1009- ● ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> 08.820 OD=25 L=480 		1-85116-011-0 01 1 1009-1407 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
SPARE WHEEL CARRIER<P10> 08.820 OD=25 L=480 		1-85116-011-0 01 1 1009-1407 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> OD=25 L=480 		8-98257-407-0 01 1 1408- ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
SPARE WHEEL CARRIER<P10> OD=25 L=480 		8-98257-407-0 01 1 1408- ●
29 08.821 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 01 1 1009- ● ●
193 08.820 JACK ASM
4TON 		8-94438-020-3 01 1 1009- ● ●
195 08.820 BRACKET; JACK 8-98034-916-0 01 1 1009- ● ●
199 08.820 BOLT; JACK
M8X50 WING 		8-98005-537-0 01 1 1009- ● ●
204 08.820 BOLT; BRKT,JACK
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1009- ● ●
208 08.820 HANDLE; JACK
WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> (A) L=642 		8-97217-800-0 01 1 1009-1108 ●
208 08.820 HANDLE; JACK
SPARE WHEEL CARRIER<P10> (A) L=642 		8-97217-800-0 01 1 1009-1108 ●
208 08.820 HANDLE; JACK
WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> (A) L=642 		8-98181-477-0 01 1 1109- ●
208 08.820 HANDLE; JACK
SPARE WHEEL CARRIER<P10> (A) L=642 		8-98181-477-0 01 1 1109- ●
208 08.820 HANDLE; JACK
EXC. SPARE WHEEL CARRIER<P10> (B) L=580 		1-85515-005-1 01 1 1009-1108 ● ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> (B) L=580 		1-85515-005-1 01 1 1009-1108 ●
208 08.820 HANDLE; JACK
EXC. SPARE WHEEL CARRIER<P10> (B) L=580 		8-98181-249-0 01 1 1109- ● ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> (B) L=580 		8-98181-249-0 01 1 1109- ●
237 08.821 BAG; TOOL 8-97130-903-1 01 1 1009- ● ●
238 08.820 SUPPORT; TOOL BAG 8-97994-977-0 01 1 1009- ● ●
239 08.820 BAND; TOOL BAG
L=100 		5-73997-026-1 01 1 1009- ● ●
241 08.820 SCREW; TOOL BAG SUPPORT
16.570 M6X16 		0-38050-616-0 01 1 1009- ● ●
302 08.820 NUT; JACK BRKT 8-98021-556-0 01 1 1009- ● ●
319 08.821 CLIP; TOOL BAR 8-97853-077-2 02 1 1009- ● ●
