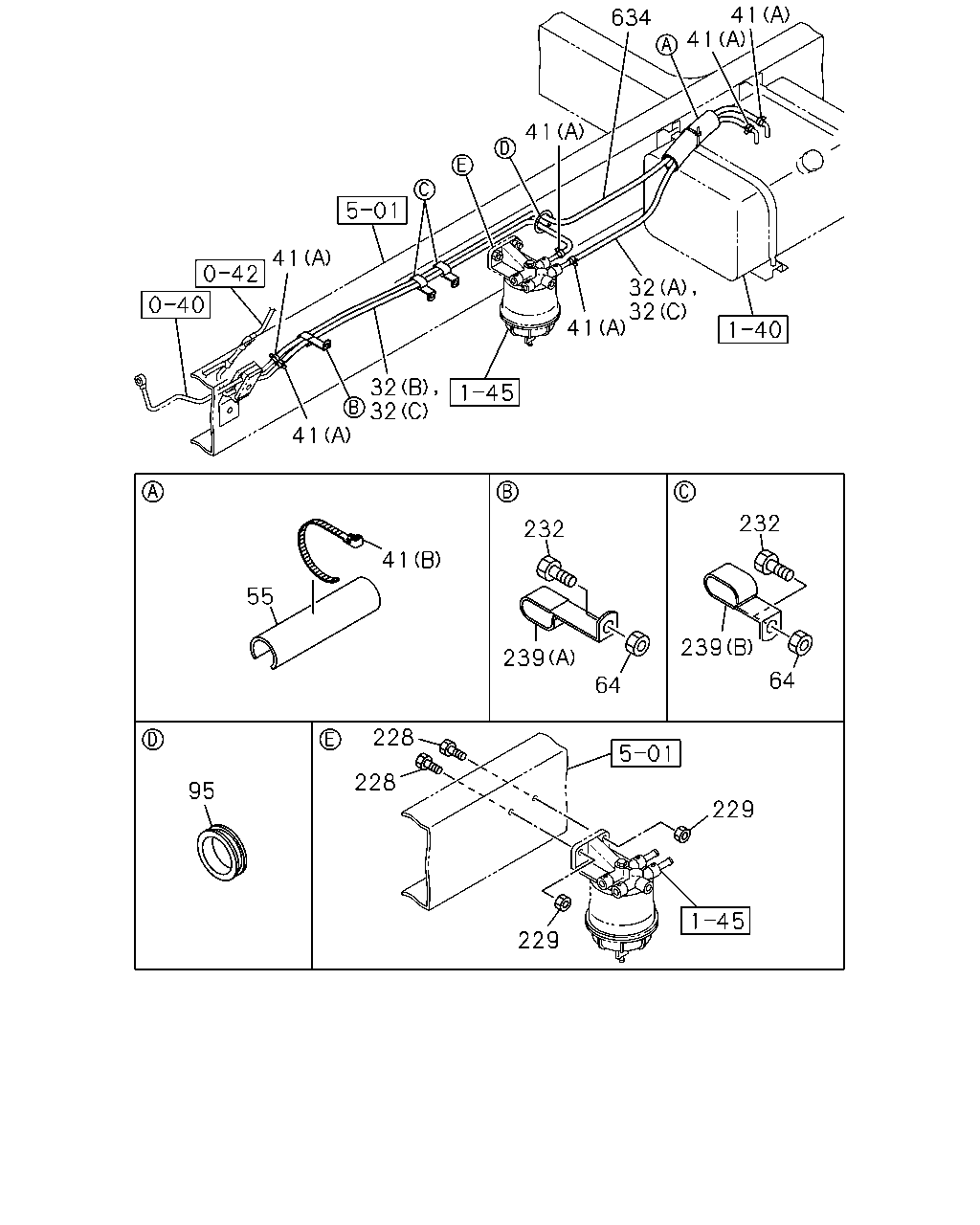

32 |
PIPE; DELIVERY,FUEL TANK
FTR(FT****)
(A)
L=760
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0302- |
● |
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FTR(FT****)
(B)
L=1350
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0302- |
● |
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FRR(FR****)
(C)
L=1050
SERVICED BY L=3000
|
0-01260-300-0 |
02 |
1 |
9905- |
● |
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FSR(FS****)
(A)
L=980
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9905- |
● |
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
(A)
L=980
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9905- |
|
● |
| |
32 |
PIPE; DELIVERY,FUEL TANK
FSR(FS****)
(B)
L=1100
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9905- |
● |
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
(B)
L=1100
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9905- |
|
● |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(A)
ID=14
|
1-09704-102-0 |
06 |
1 |
9905- |
● |
● |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(B)
L=250
|
5-09707-030-1 |
01 |
1 |
9905- |
● |
● |
| |
55 |
COVER; PIPE,FUEL TANK
FTR(FT****)
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
01 |
1 |
0302- |
● |
|
| |
55 |
COVER; PIPE,FUEL TANK
L=1300
|
1-09360-677-1 |
01 |
1 |
9905-0301 |
● |
● |
| |
55 |
COVER; PIPE,FUEL TANK
FRR(FR****)
FSR(FS****)
L=500
SERVICED BY L=1300
|
1-09360-677-1 |
01 |
1 |
0302- |
● |
|
| |
55 |
COVER; PIPE,FUEL TANK
L=500
SERVICED BY L=1300
|
1-09360-677-1 |
01 |
1 |
0302- |
|
● |
| |
64 |
NUT; CLIP
FTR(FT****)
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
0302-0602 |
● |
|
| |
64 |
NUT; CLIP
FTR(FT****)
M8 FLANGE
|
0-91180-108-0 |
03 |
1 |
0603- |
● |
|
| |
64 |
NUT; CLIP
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9905-0301 |
● |
● |
| |
64 |
NUT; CLIP
FRR(FR****)
FSR(FS****)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0302-0602 |
● |
|
| |
64 |
NUT; CLIP
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0302-0602 |
|
● |
| |
64 |
NUT; CLIP
FRR(FR****)
FSR(FS****)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
● |
|
| |
64 |
NUT; CLIP
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
|
● |
| |
95 |
BUSHING; PIPE,FUEL TANK
FTR(FT****)
ID=28 OD=35 T=25
|
1-09332-011-1 |
01 |
1 |
0302- |
● |
|
| |
95 |
BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17
|
9-09956-256-2 |
01 |
1 |
9905-0301 |
● |
● |
| |
95 |
BUSHING; PIPE,FUEL TANK
FRR(FR****)
FSR(FS****)
ID=28 OD=35 T=17
|
9-09956-256-2 |
01 |
1 |
0302- |
● |
|
| |
95 |
BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17
|
9-09956-256-2 |
01 |
1 |
0302- |
|
● |
| |
228 |
BOLT; BRKT,SEDIMENTER
M10X40 FLANGE
|
0-28681-040-0 |
02 |
1 |
9905-0512 |
● |
● |
| |
228 |
BOLT; BRKT,SEDIMENTER
M10X40 FLANGE
|
0-28651-040-0 |
02 |
1 |
0601- |
● |
● |
| |
229 |
NUT; BRKT,FUEL FILTER
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
9905-0602 |
● |
● |
| |
229 |
NUT; BRKT,FUEL FILTER
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0603- |
● |
● |
| |
232 |
BOLT; CLIP,PIPE
FTR(FT****)
M8X30 FLANGE
|
0-28680-830-0 |
03 |
1 |
0302-0512 |
● |
|
| |
232 |
BOLT; CLIP,PIPE
FTR(FT****)
M8X30 FLANGE
|
0-28650-830-0 |
03 |
1 |
0601- |
● |
|
| |
232 |
BOLT; CLIP,PIPE
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
9905-0301 |
● |
● |
| |
232 |
BOLT; CLIP,PIPE
FRR(FR****)
FSR(FS****)
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
0302-0512 |
● |
|
| |
232 |
BOLT; CLIP,PIPE
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
0302-0512 |
|
● |
| |
232 |
BOLT; CLIP,PIPE
FRR(FR****)
FSR(FS****)
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
0601- |
● |
|
| |
232 |
BOLT; CLIP,PIPE
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
0601- |
|
● |
| |
239 |
CLIP; FUEL PIPE
FTR(FT****)
(B)
ID=14X2 H=30 L=25
|
1-09701-101-0 |
02 |
1 |
0302- |
● |
|
| |
239 |
CLIP; FUEL PIPE
(A)
ID=13X2 H=25 L=50
|
1-09700-777-0 |
01 |
1 |
9905-9907 |
● |
● |
| |
239 |
CLIP; FUEL PIPE
(A)
M13X2 H=20 L=60
|
1-09701-280-0 |
01 |
1 |
9908- |
● |
● |
| |
239 |
CLIP; FUEL PIPE
(B)
ID=14X2 H=30 L=25
|
1-09701-101-0 |
01 |
1 |
9905-0301 |
● |
● |
| |
239 |
CLIP; FUEL PIPE
FRR(FR****)
FSR(FS****)
(B)
ID=14X2 H=30 L=25
|
1-09701-101-0 |
01 |
1 |
0302- |
● |
|
| |
239 |
CLIP; FUEL PIPE
(B)
ID=14X2 H=30 L=25
|
1-09701-101-0 |
01 |
1 |
0302- |
|
● |
| |
634 |
HOSE; RUBBER RETURN
L=1750
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
9905- |
● |
● |
