◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51275 - NLR/NMR(85) AUST/NZ EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-75 - CONDENSER ▶
8-75 — CONDENSER (#78227) — 10 parça

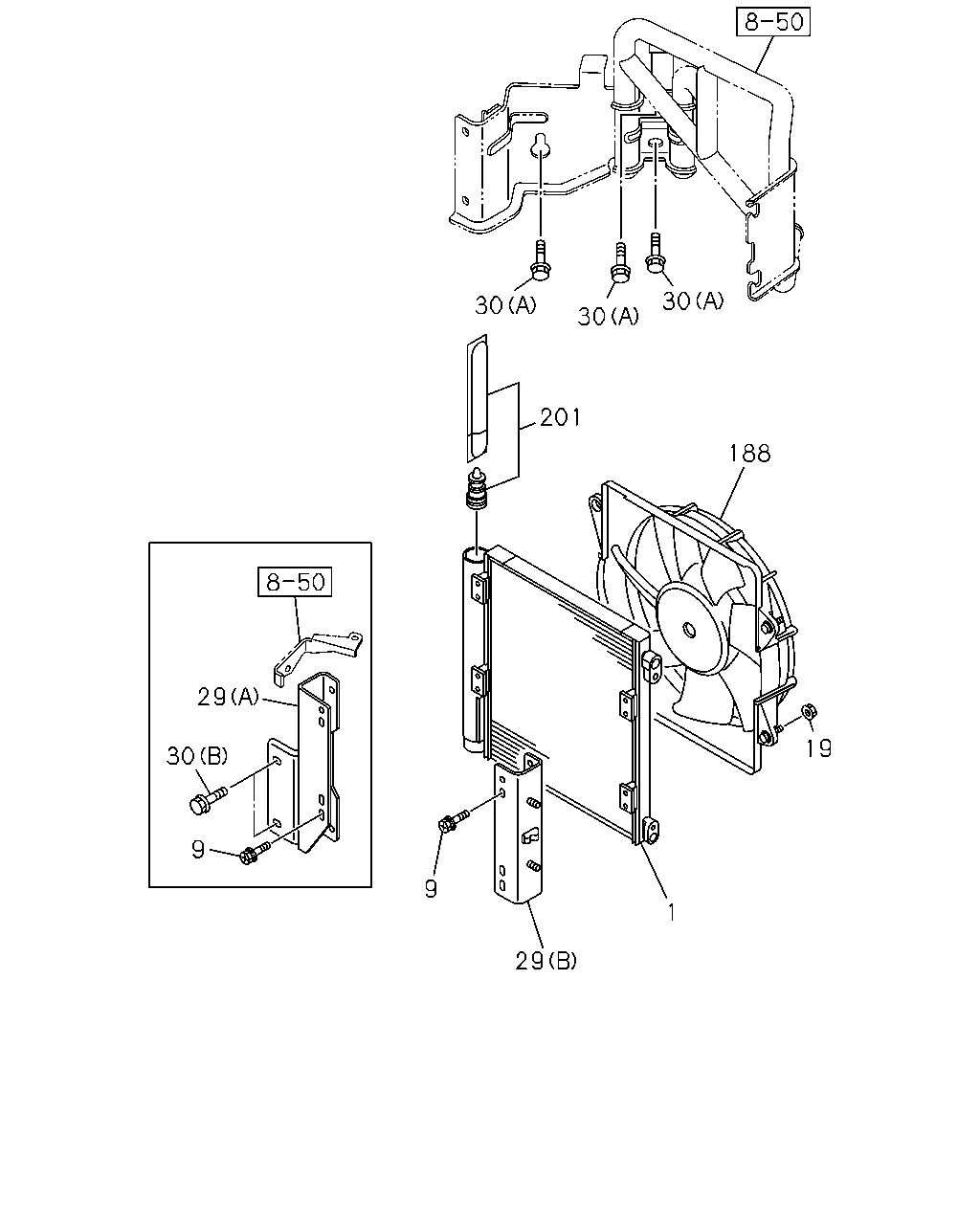

çizim 158350
188 201 19 1 29 9 9 30 29 30 30 30
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.190 CONDENSER; A/C
AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 		8-98133-042-1 01 1 1009- ● ●
9 09.190 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) M6X14 		8-98041-899-0 08 1 1009- ● ●
19 09.190 NUT; BRKT
AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) M6 		1-83539-354-0 04 1 1009- ● ●
29 09.190 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) (B) 		8-98133-044-0 01 1 1009- ● ●
29 09.190 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) (A) 		8-98164-999-0 01 1 1009- ● ●
30 09.190 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 02 1 1009- ● ●
30 09.190 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 00.029 (A) M10X30 FLANGE 		0-28651-030-0 03 1 1009- ● ●
188 09.215 BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 		8-98133-043-0 01 1 1009- ● ●
201 09.195 DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 		1-83535-097-0 01 1 1009-1409 ● ●
201 09.195 DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 		8-98282-482-0 01 1 1410- ● ●
