8-60 — HEATER UNIT; FRONT (#78223) — 97 parça

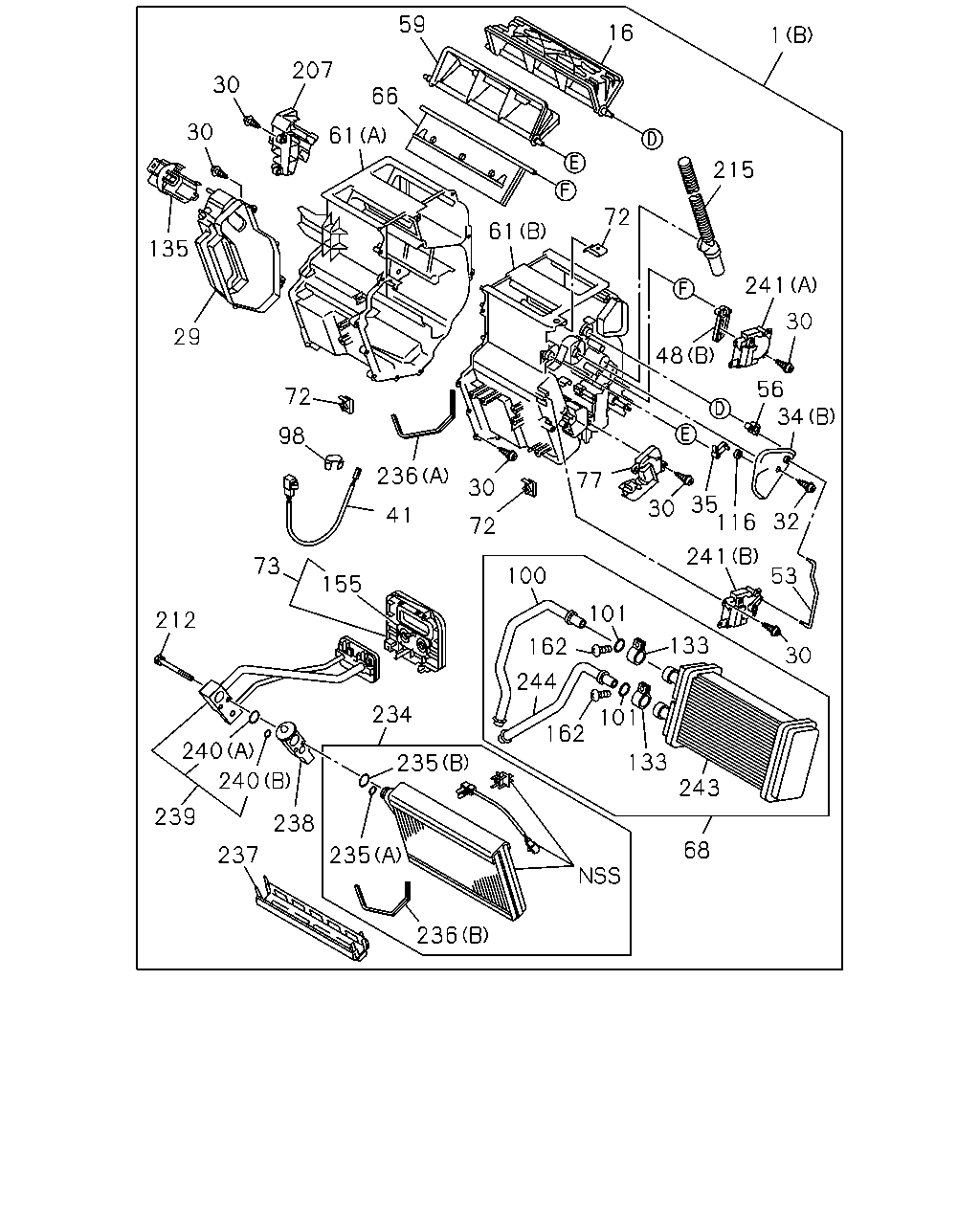

30 207 59 66 61 30 135 29 72 98 236 73 155 41 72 77 30 48 61 72 215 16 1 241 30 56 34 35 30 116 32 241 53 30 133 101 100 162 244 101 162 133 243 68 236 235 238 235 234 237 240 239 240 212

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) (A)	8-98021-972-4	01	1	1009-	●	●
1	08.845 HEATER UNIT FULLAUTO AIR CONDITIONER(C68) (B)	8-98021-973-4	01	1	1009-	●	●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68)	8-98047-387-0	01	1	1009-	●	●
29	08.857 COVER; HTR UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68)	8-98074-119-0	01	1	1009-	●	●
30	08.845 SCREW; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING	8-97957-708-0	27	1	1009-	●	●
30	08.845 SCREW; HTR UNIT FULLAUTO AIR CONDITIONER(C68) 08.852 M4X16 TAPPING	8-97957-708-0	31	1	1009-	●	●
32	08.852 SCREW; HTR UNIT FULLAUTO AIR CONDITIONER(C68) M4X16	8-98047-416-0	01	1	1009-	●	●
34	09.786 LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-389-0	01	1	1009-	●	●
34	09.786 LEVER; SHUTTER,HTR UNIT FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-467-0	01	1	1009-	●	●
35	08.852 LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68)	8-98047-392-0	01	1	1009-	●	●
41	08.852 THERMOSTAT; HTR UNIT FULLAUTO AIR CONDITIONER(C68)	8-98047-475-0	01	1	1009-	●	●
48	09.786 LEVER; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-391-0	01	1	1009-	●	●
48	09.786 LEVER; HTR UNIT FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-468-0	01	1	1009-	●	●
53	08.866 ROD; SHUTTER LEVER FULLAUTO AIR CONDITIONER(C68)	8-98047-469-0	01	1	1009-	●	●
56	09.786 LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68)	8-98047-393-0	01	1	1009-	●	●
59	08.845 SHUTTER; HTR UNIT,SIDE AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68)	8-98047-386-0	01	1	1009-	●	●
61	08.854 CASE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-375-0	01	1	1009-	●	●
61	08.854 CASE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) (A)	8-98047-376-0	01	1	1009-	●	●
61	08.854 CASE; HTR UNIT FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-465-0	01	1	1009-	●	●
66	09.786 SHUTTER; HTR UNIT,CENTER LWR AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68)	8-98047-385-0	01	1	1009-	●	●
68	08.854 CORE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68)	8-98047-380-0	01	1	1009-	●	●
72	08.845 NUT; CASE,HTR UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) M6	8-98047-428-0	03	1	1009-	●	●
73	08.845 PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68)	8-98074-118-0	01	1	1009-	●	●
77	08.857 COVER; HTR CASE AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68)	8-98047-414-0	01	1	1009-	●	●
98	08.854 CLIP; HTR UNIT FULLAUTO AIR CONDITIONER(C68)	8-98047-477-0	01	1	1009-	●	●
100	08.854 PIPE; CORE,HTR UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68)	8-98072-528-0	01	1	1009-	●	●
101	08.845 GASKET; CORE,HTR UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68)	8-98072-531-0	02	1	1009-	●	●
116	08.854 BUSHING; LEVER FULLAUTO AIR CONDITIONER(C68)	8-98045-897-0	01	1	1009-	●	●
133	08.845 CLIP; PIPE AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68)	8-98072-530-0	02	1	1009-	●	●
135	08.854 COVER; HTR AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68)	8-98047-384-0	01	1	1009-	●	●
155	09.260 GROMMET; HTR UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68)	8-98047-431-0	01	1	1009-	●	●
162	08.845 SCREW; CLIP FIX AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68)	8-98072-529-0	02	1	1009-	●	●
207	08.845 CLAMP; HTR UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68)	8-98047-379-0	01	1	1009-	●	●
212	09.262 BOLT; HTR UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) M5X61	8-98047-415-0	02	1	1009-	●	●
215	08.854 DUCT ASM; SUB FULLAUTO AIR CONDITIONER(C68)	8-98047-476-0	01	1	1009-	●	●
234	08.854 EVAPORATOR ASM; HEATER AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68)	8-98074-116-1	01	1	1009-	●	●
235	08.845 GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 09.260 (A) ID=11.7	8-97095-907-0	01	1	1009-	●	●
235	08.845 GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 09.225 (B) ID=14.5	8-97095-908-0	01	1	1009-	●	●
236	08.855 GASKET; HEATER AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) (A)	8-98047-420-0	01	1	1009-	●	●
236	08.855 GASKET; HEATER AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) (B)	8-98047-421-0	01	1	1009-	●	●
237	08.855 INSULATOR; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68)	8-98047-382-0	01	1	1009-	●	●
238	08.845 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68)	8-98047-383-0	01	1	1009-	●	●
239	08.846 TUBE ASM; HEATER AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68)	8-98074-115-0	01	1	1009-	●	●
240	08.845 GASKET; HEATER AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 09.225 (B) ID=7.4	8-97095-906-0	01	1	1009-	●	●
240	08.845 GASKET; HEATER AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 09.225 (A) ID=14.5	8-97095-908-0	01	1	1009-	●	●
241	08.855 MOTOR ASM; SERVO FULLAUTO AIR CONDITIONER(C68) (A)	8-98047-473-0	01	1	1009-	●	●
241	08.855 MOTOR ASM; SERVO FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-474-0	01	1	1009-	●	●
243	08.854 CORE AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 01.656	8-98048-508-0	01	1	1009-	●	●
244	08.854 PIPE; INLET AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68)	8-98048-510-0	01	1	1009-	●	●

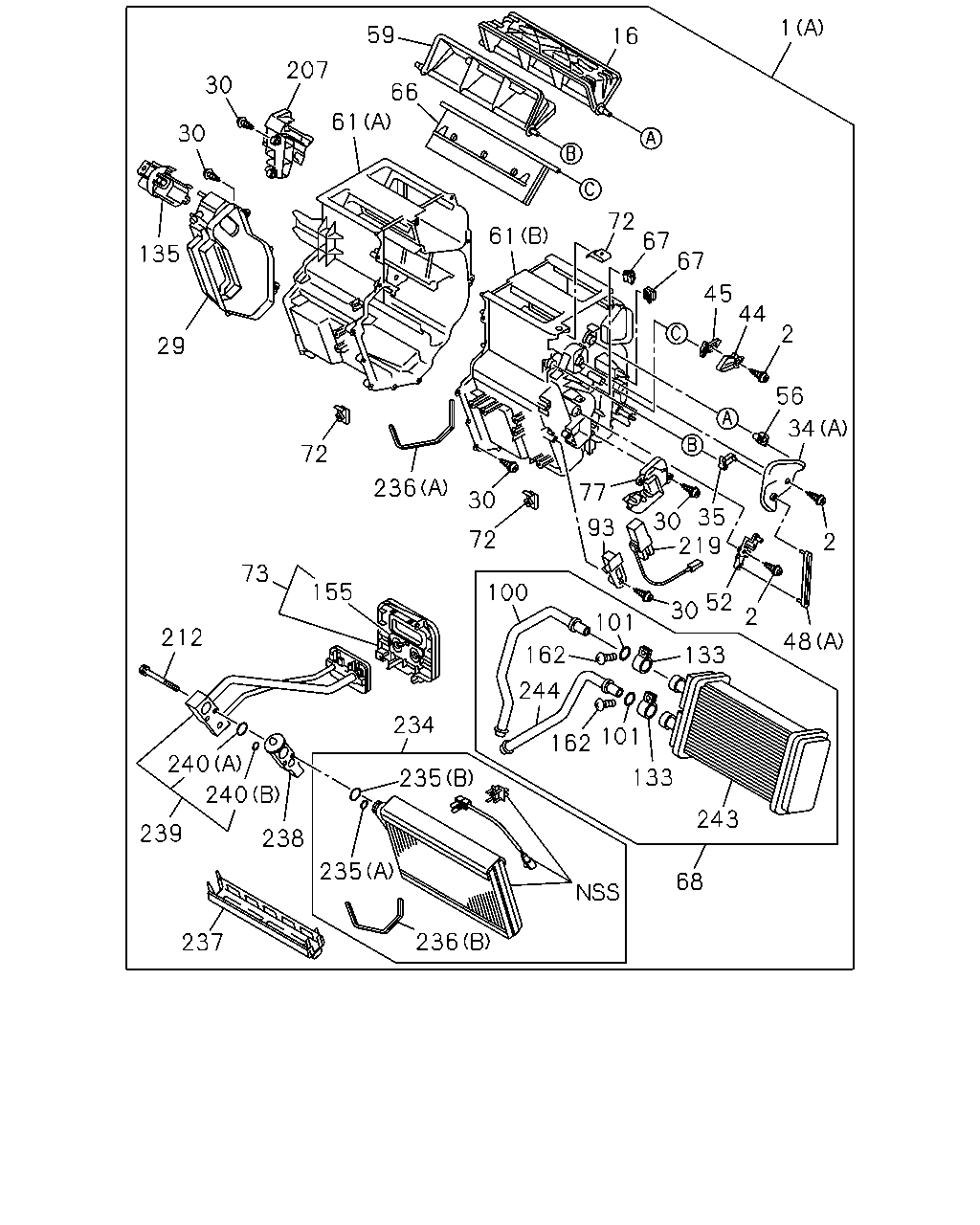

237 238 240 240 239 212 234 235 235 236 155 73 100 101 133 243 133 101 162 244 162 48 2 52 30 2 34 56 2 44 45 67 67 72 61 77 93 30 35 219 72 30 236 72 29 135 30 30 207 59 66 61 16 1 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) (A)	8-98021-972-4	01	1	1009-	●	●
1	08.845 HEATER UNIT FULLAUTO AIR CONDITIONER(C68) (B)	8-98021-973-4	01	1	1009-	●	●
2	08.854 SCREW; LEVER AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-98047-416-0	03	1	1009-	●	●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68)	8-98047-387-0	01	1	1009-	●	●
29	08.857 COVER; HTR UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68)	8-98074-119-0	01	1	1009-	●	●
30	08.845 SCREW; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING	8-97957-708-0	27	1	1009-	●	●
30	08.845 SCREW; HTR UNIT FULLAUTO AIR CONDITIONER(C68) 08.852 M4X16 TAPPING	8-97957-708-0	31	1	1009-	●	●
34	09.786 LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-389-0	01	1	1009-	●	●
34	09.786 LEVER; SHUTTER,HTR UNIT FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-467-0	01	1	1009-	●	●
35	08.852 LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68)	8-98047-392-0	01	1	1009-	●	●
44	08.852 LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-394-0	01	1	1009-	●	●
45	09.786 LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-395-0	01	1	1009-	●	●
48	09.786 LEVER; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-391-0	01	1	1009-	●	●
48	09.786 LEVER; HTR UNIT FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-468-0	01	1	1009-	●	●
52	08.852 LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-390-0	01	1	1009-	●	●
56	09.786 LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68)	8-98047-393-0	01	1	1009-	●	●
59	08.845 SHUTTER; HTR UNIT,SIDE AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68)	8-98047-386-0	01	1	1009-	●	●
61	08.854 CASE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-375-0	01	1	1009-	●	●
61	08.854 CASE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) (A)	8-98047-376-0	01	1	1009-	●	●
61	08.854 CASE; HTR UNIT FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-465-0	01	1	1009-	●	●
66	09.786 SHUTTER; HTR UNIT,CENTER LWR AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68)	8-98047-385-0	01	1	1009-	●	●
67	08.854 CLIP; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-417-0	02	1	1009-	●	●
68	08.854 CORE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68)	8-98047-380-0	01	1	1009-	●	●
72	08.845 NUT; CASE,HTR UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) M6	8-98047-428-0	03	1	1009-	●	●
73	08.845 PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68)	8-98074-118-0	01	1	1009-	●	●
77	08.857 COVER; HTR CASE AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68)	8-98047-414-0	01	1	1009-	●	●
93	08.845 PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-427-0	01	1	1009-	●	●
100	08.854 PIPE; CORE,HTR UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68)	8-98072-528-0	01	1	1009-	●	●
101	08.845 GASKET; CORE,HTR UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68)	8-98072-531-0	02	1	1009-	●	●
133	08.845 CLIP; PIPE AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68)	8-98072-530-0	02	1	1009-	●	●
135	08.854 COVER; HTR AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68)	8-98047-384-0	01	1	1009-	●	●
155	09.260 GROMMET; HTR UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68)	8-98047-431-0	01	1	1009-	●	●
162	08.845 SCREW; CLIP FIX AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68)	8-98072-529-0	02	1	1009-	●	●
207	08.845 CLAMP; HTR UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68)	8-98047-379-0	01	1	1009-	●	●
212	09.262 BOLT; HTR UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) M5X61	8-98047-415-0	02	1	1009-	●	●
219	08.854 AMPLIFIER; HEATER UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-429-0	01	1	1009-	●	●
234	08.854 EVAPORATOR ASM; HEATER AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68)	8-98074-116-1	01	1	1009-	●	●
235	08.845 GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 09.260 (A) ID=11.7	8-97095-907-0	01	1	1009-	●	●
235	08.845 GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 09.225 (B) ID=14.5	8-97095-908-0	01	1	1009-	●	●
236	08.855 GASKET; HEATER AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) (A)	8-98047-420-0	01	1	1009-	●	●
236	08.855 GASKET; HEATER AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) (B)	8-98047-421-0	01	1	1009-	●	●
237	08.855 INSULATOR; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68)	8-98047-382-0	01	1	1009-	●	●
238	08.845 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68)	8-98047-383-0	01	1	1009-	●	●
239	08.846 TUBE ASM; HEATER AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68)	8-98074-115-0	01	1	1009-	●	●
240	08.845 GASKET; HEATER AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 09.225 (B) ID=7.4	8-97095-906-0	01	1	1009-	●	●
240	08.845 GASKET; HEATER AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 09.225 (A) ID=14.5	8-97095-908-0	01	1	1009-	●	●
243	08.854 CORE AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 01.656	8-98048-508-0	01	1	1009-	●	●
244	08.854 PIPE; INLET AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68)	8-98048-510-0	01	1	1009-	●	●
