1-40 — FUEL TANK (#7822) — 160 parça

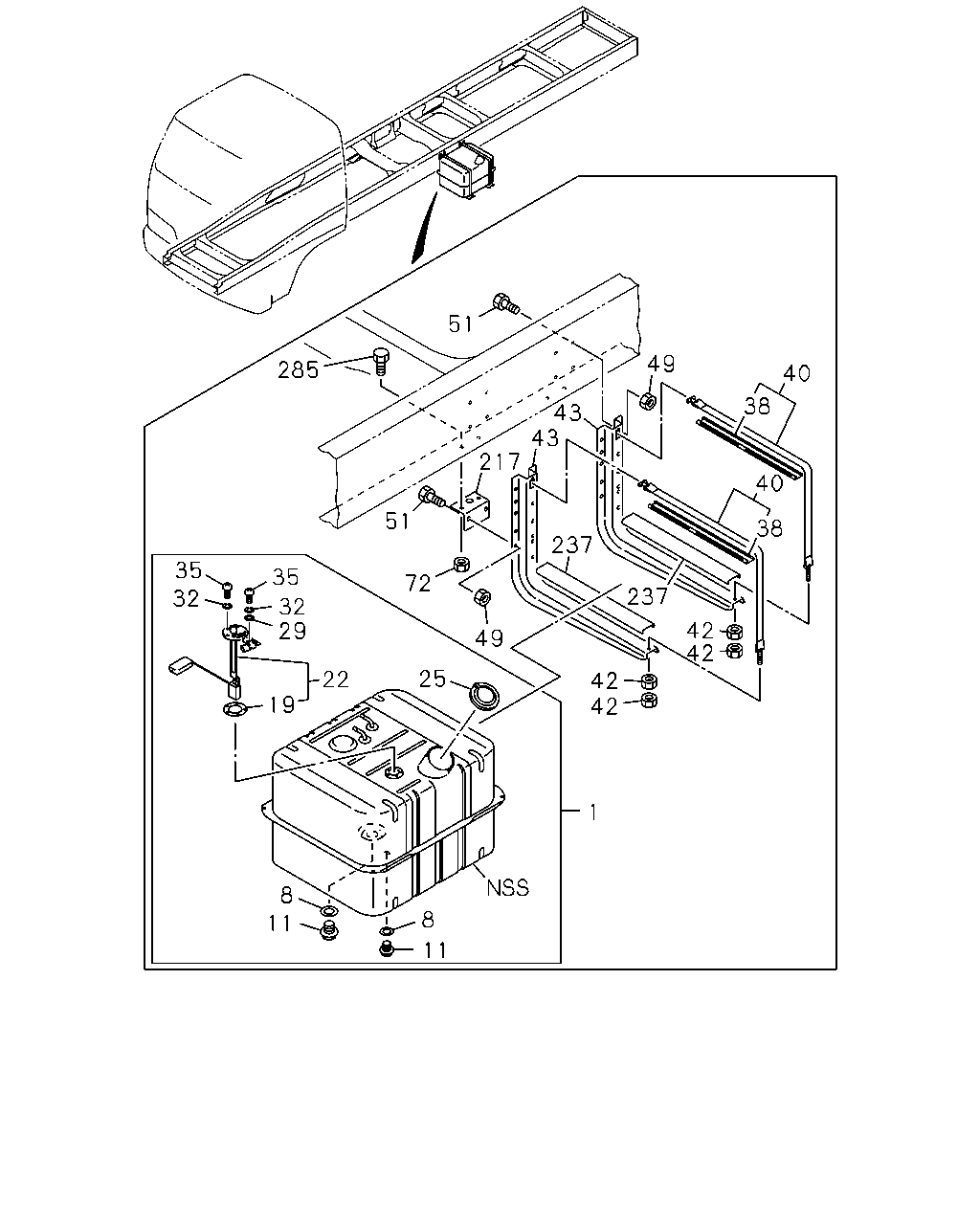

51 43 43 49 285 40 38 217 40 51 38 237 35 32 35 72 237 32 29 42 42 49 25 22 42 42 19 1 8 8 11 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL FTR(FT****) 720X610X496 200L	1-22401-192-2	01	1	0302-	●
1	TANK; FUEL 1220X533X323 200L	1-22400-995-2	01	1	9905-0301	●	●
1	TANK; FUEL FRR(FR**) FSR(FS**) 1220X533X323 200L	1-22400-995-2	01	1	0302-	●
1	TANK; FUEL 1220X533X323 200L	1-22400-995-2	01	1	0302-		●
8	GASKET; DRAIN PLUG,FUEL TANK FTR(FT****) ID=14.2 OD=23.0	9-09572-014-0	02	1	0302-	●
8	GASKET; DRAIN PLUG,FUEL TANK T=2.0	9-09923-030-0	01	1	9905-0301	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FRR(FR**) FSR(FS**) T=2.0	9-09923-030-0	01	1	0302-0509	●
8	GASKET; DRAIN PLUG,FUEL TANK T=2.0	9-09923-030-0	01	1	0302-0509		●
8	GASKET; DRAIN PLUG,FUEL TANK FRR(FR**) FSR(FS**) T=2.0	8-98030-375-0	01	1	0510-	●
8	GASKET; DRAIN PLUG,FUEL TANK T=2.0	8-98030-375-0	01	1	0510-		●
11	PLUG; DRAIN,FUEL TANK FTR(FT****) M14X14	9-09862-156-0	02	1	0302-	●
11	PLUG; DRAIN,FUEL TANK	1-09604-052-0	01	1	9905-0301	●	●
11	PLUG; DRAIN,FUEL TANK FRR(FR**) FSR(FS**)	1-09604-052-0	01	1	0302-	●
11	PLUG; DRAIN,FUEL TANK	1-09604-052-0	01	1	0302-		●
19	GASKET; FUEL TANK UNIT	5-83148-001-0	01	1	9905-	●	●
19	GASKET; FUEL TANK UNIT FTR(FT****)	9-83135-003-0	01	1	0302-	●
19	GASKET; FUEL TANK UNIT ID=42	9-83135-011-0	01	1	9905-0301	●	●
19	GASKET; FUEL TANK UNIT FRR(FR**) FSR(FS**) ID=42	9-83135-011-0	01	1	0302-	●
19	GASKET; FUEL TANK UNIT ID=42	9-83135-011-0	01	1	0302-		●
22	UNIT; FUEL TANK FTR(FT****)	1-83141-124-0	01	1	0302-	●
22	UNIT; FUEL TANK	1-83141-084-1	01	1	9905-0301	●	●
22	UNIT; FUEL TANK FRR(FR**) FSR(FS**)	1-83141-084-1	01	1	0302-	●
22	UNIT; FUEL TANK	1-83141-084-1	01	1	0302-		●
25	CAP; FILLER,FUEL TANK FTR(FT****)	1-22440-067-0	01	1	0302-0309	●
25	CAP; FILLER,FUEL TANK FTR(FT****)	1-22440-070-0	01	1	0310-0404	●
25	CAP; FILLER,FUEL TANK FTR(FT****)	1-22440-046-1	01	1	0405-	●
25	CAP; FILLER,FUEL TANK	1-22440-028-0	01	1	9905-0301	●	●
25	CAP; FILLER,FUEL TANK FRR(FR**) FSR(FS**)	1-22440-028-0	01	1	0302-	●
25	CAP; FILLER,FUEL TANK	1-22440-028-0	01	1	0302-		●
29	WASHER; PL,FUEL TANK UNIT ID=5.3	9-09160-505-0	01	1	9905-0605	●	●
29	WASHER; PL,FUEL TANK UNIT ID=5.3	0-91610-505-0	01	1	0606-	●	●
32	WASHER; LK,FUEL TANK UNIT FTR(FT****) ID=5.1	9-09150-505-0	05	1	0302-0603	●
32	WASHER; LK,FUEL TANK UNIT FTR(FT****) ID=5.1	0-91510-505-0	05	1	0604-	●
32	WASHER; LK,FUEL TANK UNIT ID=5.1	9-09150-505-0	01	1	9905-0301	●	●
32	WASHER; LK,FUEL TANK UNIT FRR(FR**) FSR(FS**) ID=5.1	9-09150-505-0	01	1	0302-0501	●
32	WASHER; LK,FUEL TANK UNIT ID=5.1	9-09150-505-0	01	1	0302-0501		●
35	SCREW; FUEL TANK UNIT FRR(FR**) FSR(FS**) M5X10 W/LK WASHER	9-03910-510-0	05	1	0502-0604	●
35	SCREW; FUEL TANK UNIT M5X10 W/LK WASHER	9-03910-510-0	05	1	0502-0604		●
35	SCREW; FUEL TANK UNIT FRR(FR**) FSR(FS**) M5X10 W/LK WASHER	0-36220-510-0	05	1	0605-	●
35	SCREW; FUEL TANK UNIT M5X10 W/LK WASHER	0-36220-510-0	05	1	0605-		●
35	SCREW; FUEL TANK UNIT M5X10	9-93497-510-0	05	1	9905-0501	●	●
35	SCREW; FUEL TANK UNIT FTR(FT****) M5X10	9-93497-510-0	05	1	0502-0604	●
35	SCREW; FUEL TANK UNIT FTR(FT****) M5X10	0-34218-510-0	05	1	0605-	●
38	INSULATION; SUPPORT BELT FTR(FT****) L=650	1-22553-022-1	02	1	0302-	●
38	INSULATION; SUPPORT BELT L=540	1-22553-014-2	02	1	9905-0301	●	●
38	INSULATION; SUPPORT BELT FRR(FR**) FSR(FS**) L=540	1-22553-014-2	02	1	0302-	●
38	INSULATION; SUPPORT BELT L=540	1-22553-014-2	02	1	0302-		●
40	BELT; SUPPORT,FUEL TANK FTR(FT****) L=1030	1-22550-204-2	02	1	0302-	●
40	BELT; SUPPORT,FUEL TANK L=775	1-22550-211-2	02	1	9905-0112	●	●
40	BELT; SUPPORT,FUEL TANK L=790	1-22550-186-2	02	1	0201-0301	●	●
40	BELT; SUPPORT,FUEL TANK FRR(FR**) FSR(FS**) L=790	1-22550-186-2	02	1	0302-	●
40	BELT; SUPPORT,FUEL TANK L=790	1-22550-186-2	02	1	0302-		●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	9905-0512	●	●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	0601-	●	●
43	BRACKET; FUEL TANK FTR(FT****)	1-53461-279-4	02	1	0302-	●
43	BRACKET; FUEL TANK	1-53461-206-1	02	1	9905-0301	●	●
43	BRACKET; FUEL TANK FRR(FR**) FSR(FS**)	1-53461-206-1	02	1	0302-	●
43	BRACKET; FUEL TANK	1-53461-206-1	02	1	0302-		●
49	NUT; BRKT FTR(FT****) M12	9-99110-512-0	06	1	0302-0304	●
49	NUT; BRKT FTR(FT****) M12 FLANGE	0-91150-212-0	06	1	0305-0602	●
49	NUT; BRKT FTR(FT****) M12 FLANGE	0-91180-212-0	06	1	0603-	●
49	NUT; BRKT M12 FLANGE	0-91150-212-0	12	1	9905-0301	●	●
49	NUT; BRKT FRR(FR**) FSR(FS**) M12 FLANGE	0-91150-212-0	12	1	0302-0602	●
49	NUT; BRKT M12 FLANGE	0-91150-212-0	12	1	0302-0602		●
49	NUT; BRKT FRR(FR**) FSR(FS**) M12 FLANGE	0-91180-212-0	12	1	0603-	●
49	NUT; BRKT M12 FLANGE	0-91180-212-0	12	1	0603-		●
51	BOLT; BRKT TO FRAME FTR(FT****) M12X40 FLANGE	0-28681-240-0	12	1	0302-0304	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28681-235-0	12	1	9905-0301	●	●
51	BOLT; BRKT TO FRAME FRR(FR**) FSR(FS**) M12X35 FLANGE	0-28681-235-0	12	1	0302-0304	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28681-235-0	12	1	0302-0304		●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28681-235-0	12	1	0305-0512	●	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28651-235-0	12	1	0601-	●	●
72	NUT; BRKT FTR(FT****) M12 FLANGE	0-91150-212-0	04	1	0302-0602	●
72	NUT; BRKT FTR(FT****) M12 FLANGE	0-91180-212-0	04	1	0603-	●
217	BRACKET; FUEL TANK,LOW FTR(FT****)	1-53461-283-2	02	1	0302-	●
237	GASKET; BRKT TO FUEL TANK FTR(FT****) L=580	1-22553-003-0	02	1	0302-	●
237	GASKET; BRKT TO FUEL TANK L=480	1-22553-002-0	02	1	9905-0301	●	●
237	GASKET; BRKT TO FUEL TANK FRR(FR**) FSR(FS**) L=480	1-22553-002-0	02	1	0302-	●
237	GASKET; BRKT TO FUEL TANK L=480	1-22553-002-0	02	1	0302-		●
285	BOLT; BRKT FTR(FT****) M12X40 FLANGE	0-28681-240-0	04	1	0302-0512	●
285	BOLT; BRKT FTR(FT****) M12X40 FLANGE	0-28651-240-0	04	1	0601-	●

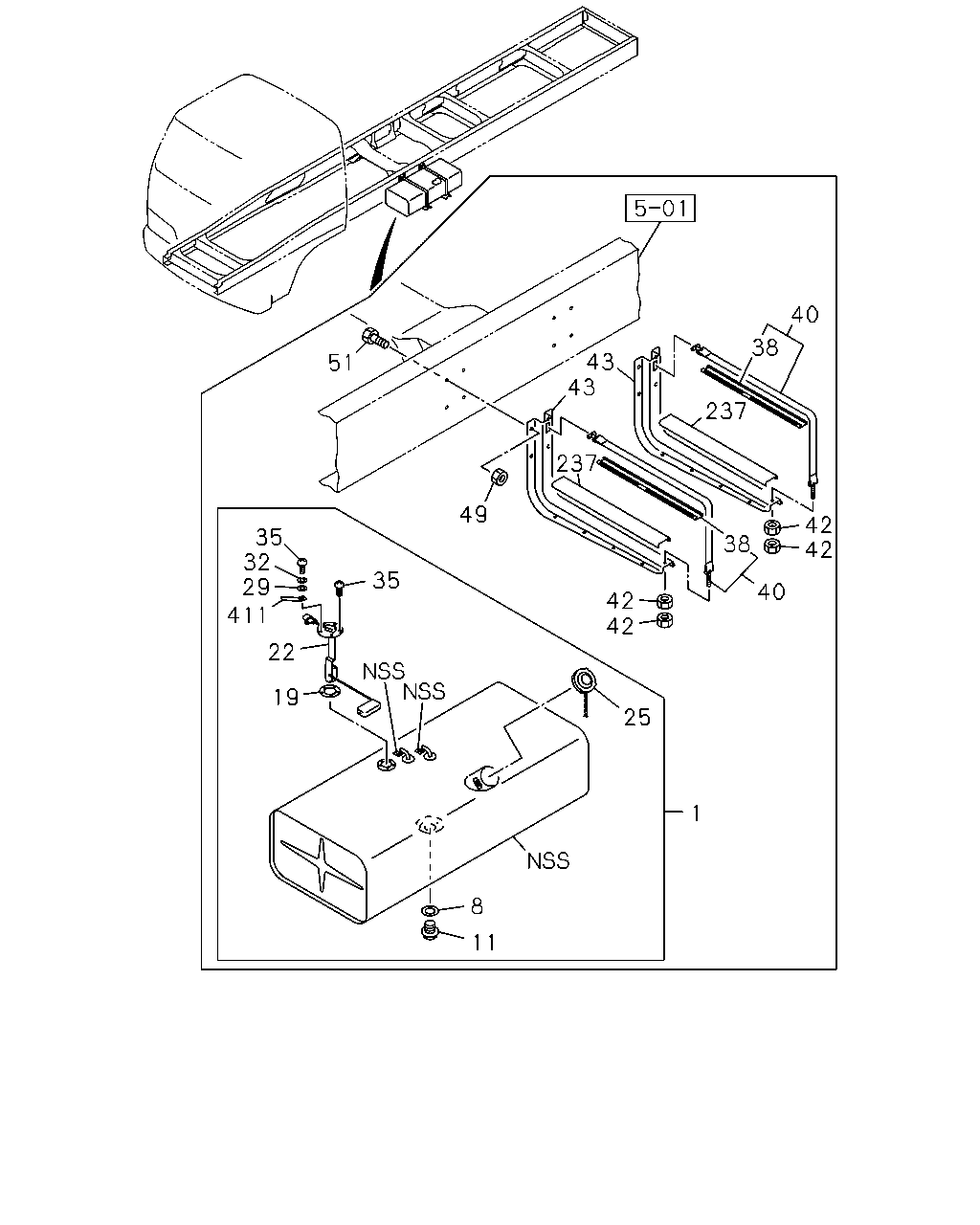

40 38 43 43 51 237 237 49 42 42 35 32 29 38 35 40 42 42 411 22 19 25 1 8 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL FTR(FT****) 720X610X496 200L	1-22401-192-2	01	1	0302-	●
1	TANK; FUEL 1220X533X323 200L	1-22400-995-2	01	1	9905-0301	●	●
1	TANK; FUEL FRR(FR**) FSR(FS**) 1220X533X323 200L	1-22400-995-2	01	1	0302-	●
1	TANK; FUEL 1220X533X323 200L	1-22400-995-2	01	1	0302-		●
8	GASKET; DRAIN PLUG,FUEL TANK FTR(FT****) ID=14.2 OD=23.0	9-09572-014-0	02	1	0302-	●
8	GASKET; DRAIN PLUG,FUEL TANK T=2.0	9-09923-030-0	01	1	9905-0301	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FRR(FR**) FSR(FS**) T=2.0	9-09923-030-0	01	1	0302-0509	●
8	GASKET; DRAIN PLUG,FUEL TANK T=2.0	9-09923-030-0	01	1	0302-0509		●
8	GASKET; DRAIN PLUG,FUEL TANK FRR(FR**) FSR(FS**) T=2.0	8-98030-375-0	01	1	0510-	●
8	GASKET; DRAIN PLUG,FUEL TANK T=2.0	8-98030-375-0	01	1	0510-		●
11	PLUG; DRAIN,FUEL TANK FTR(FT****) M14X14	9-09862-156-0	02	1	0302-	●
11	PLUG; DRAIN,FUEL TANK	1-09604-052-0	01	1	9905-0301	●	●
11	PLUG; DRAIN,FUEL TANK FRR(FR**) FSR(FS**)	1-09604-052-0	01	1	0302-	●
11	PLUG; DRAIN,FUEL TANK	1-09604-052-0	01	1	0302-		●
19	GASKET; FUEL TANK UNIT	5-83148-001-0	01	1	9905-	●	●
19	GASKET; FUEL TANK UNIT FTR(FT****)	9-83135-003-0	01	1	0302-	●
19	GASKET; FUEL TANK UNIT ID=42	9-83135-011-0	01	1	9905-0301	●	●
19	GASKET; FUEL TANK UNIT FRR(FR**) FSR(FS**) ID=42	9-83135-011-0	01	1	0302-	●
19	GASKET; FUEL TANK UNIT ID=42	9-83135-011-0	01	1	0302-		●
22	UNIT; FUEL TANK FTR(FT****)	1-83141-124-0	01	1	0302-	●
22	UNIT; FUEL TANK	1-83141-084-1	01	1	9905-0301	●	●
22	UNIT; FUEL TANK FRR(FR**) FSR(FS**)	1-83141-084-1	01	1	0302-	●
22	UNIT; FUEL TANK	1-83141-084-1	01	1	0302-		●
25	CAP; FILLER,FUEL TANK FTR(FT****)	1-22440-067-0	01	1	0302-0309	●
25	CAP; FILLER,FUEL TANK FTR(FT****)	1-22440-070-0	01	1	0310-0404	●
25	CAP; FILLER,FUEL TANK FTR(FT****)	1-22440-046-1	01	1	0405-	●
25	CAP; FILLER,FUEL TANK	1-22440-028-0	01	1	9905-0301	●	●
25	CAP; FILLER,FUEL TANK FRR(FR**) FSR(FS**)	1-22440-028-0	01	1	0302-	●
25	CAP; FILLER,FUEL TANK	1-22440-028-0	01	1	0302-		●
29	WASHER; PL,FUEL TANK UNIT ID=5.3	9-09160-505-0	01	1	9905-0605	●	●
29	WASHER; PL,FUEL TANK UNIT ID=5.3	0-91610-505-0	01	1	0606-	●	●
32	WASHER; LK,FUEL TANK UNIT FTR(FT****) ID=5.1	9-09150-505-0	05	1	0302-0603	●
32	WASHER; LK,FUEL TANK UNIT FTR(FT****) ID=5.1	0-91510-505-0	05	1	0604-	●
32	WASHER; LK,FUEL TANK UNIT ID=5.1	9-09150-505-0	01	1	9905-0301	●	●
32	WASHER; LK,FUEL TANK UNIT FRR(FR**) FSR(FS**) ID=5.1	9-09150-505-0	01	1	0302-0501	●
32	WASHER; LK,FUEL TANK UNIT ID=5.1	9-09150-505-0	01	1	0302-0501		●
35	SCREW; FUEL TANK UNIT FRR(FR**) FSR(FS**) M5X10 W/LK WASHER	9-03910-510-0	05	1	0502-0604	●
35	SCREW; FUEL TANK UNIT M5X10 W/LK WASHER	9-03910-510-0	05	1	0502-0604		●
35	SCREW; FUEL TANK UNIT FRR(FR**) FSR(FS**) M5X10 W/LK WASHER	0-36220-510-0	05	1	0605-	●
35	SCREW; FUEL TANK UNIT M5X10 W/LK WASHER	0-36220-510-0	05	1	0605-		●
35	SCREW; FUEL TANK UNIT M5X10	9-93497-510-0	05	1	9905-0501	●	●
35	SCREW; FUEL TANK UNIT FTR(FT****) M5X10	9-93497-510-0	05	1	0502-0604	●
35	SCREW; FUEL TANK UNIT FTR(FT****) M5X10	0-34218-510-0	05	1	0605-	●
38	INSULATION; SUPPORT BELT FTR(FT****) L=650	1-22553-022-1	02	1	0302-	●
38	INSULATION; SUPPORT BELT L=540	1-22553-014-2	02	1	9905-0301	●	●
38	INSULATION; SUPPORT BELT FRR(FR**) FSR(FS**) L=540	1-22553-014-2	02	1	0302-	●
38	INSULATION; SUPPORT BELT L=540	1-22553-014-2	02	1	0302-		●
40	BELT; SUPPORT,FUEL TANK FTR(FT****) L=1030	1-22550-204-2	02	1	0302-	●
40	BELT; SUPPORT,FUEL TANK L=775	1-22550-211-2	02	1	9905-0112	●	●
40	BELT; SUPPORT,FUEL TANK L=790	1-22550-186-2	02	1	0201-0301	●	●
40	BELT; SUPPORT,FUEL TANK FRR(FR**) FSR(FS**) L=790	1-22550-186-2	02	1	0302-	●
40	BELT; SUPPORT,FUEL TANK L=790	1-22550-186-2	02	1	0302-		●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	9905-0512	●	●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	0601-	●	●
43	BRACKET; FUEL TANK FTR(FT****)	1-53461-279-4	02	1	0302-	●
43	BRACKET; FUEL TANK	1-53461-206-1	02	1	9905-0301	●	●
43	BRACKET; FUEL TANK FRR(FR**) FSR(FS**)	1-53461-206-1	02	1	0302-	●
43	BRACKET; FUEL TANK	1-53461-206-1	02	1	0302-		●
49	NUT; BRKT FTR(FT****) M12	9-99110-512-0	06	1	0302-0304	●
49	NUT; BRKT FTR(FT****) M12 FLANGE	0-91150-212-0	06	1	0305-0602	●
49	NUT; BRKT FTR(FT****) M12 FLANGE	0-91180-212-0	06	1	0603-	●
49	NUT; BRKT M12 FLANGE	0-91150-212-0	12	1	9905-0301	●	●
49	NUT; BRKT FRR(FR**) FSR(FS**) M12 FLANGE	0-91150-212-0	12	1	0302-0602	●
49	NUT; BRKT M12 FLANGE	0-91150-212-0	12	1	0302-0602		●
49	NUT; BRKT FRR(FR**) FSR(FS**) M12 FLANGE	0-91180-212-0	12	1	0603-	●
49	NUT; BRKT M12 FLANGE	0-91180-212-0	12	1	0603-		●
51	BOLT; BRKT TO FRAME FTR(FT****) M12X40 FLANGE	0-28681-240-0	12	1	0302-0304	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28681-235-0	12	1	9905-0301	●	●
51	BOLT; BRKT TO FRAME FRR(FR**) FSR(FS**) M12X35 FLANGE	0-28681-235-0	12	1	0302-0304	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28681-235-0	12	1	0302-0304		●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28681-235-0	12	1	0305-0512	●	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28651-235-0	12	1	0601-	●	●
237	GASKET; BRKT TO FUEL TANK FTR(FT****) L=580	1-22553-003-0	02	1	0302-	●
237	GASKET; BRKT TO FUEL TANK L=480	1-22553-002-0	02	1	9905-0301	●	●
237	GASKET; BRKT TO FUEL TANK FRR(FR**) FSR(FS**) L=480	1-22553-002-0	02	1	0302-	●
237	GASKET; BRKT TO FUEL TANK L=480	1-22553-002-0	02	1	0302-		●
411	CLIP; FUEL TANK UNIT HARNESS L=50	1-09700-416-0	01	1	9905-0301	●	●
411	CLIP; FUEL TANK UNIT HARNESS FRR(FR**) FSR(FS**) L=50	1-09700-416-0	01	1	0302-	●
411	CLIP; FUEL TANK UNIT HARNESS L=50	1-09700-416-0	01	1	0302-		●
