◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51275 - NLR/NMR(85) AUST/NZ EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#78215) — 109 parça

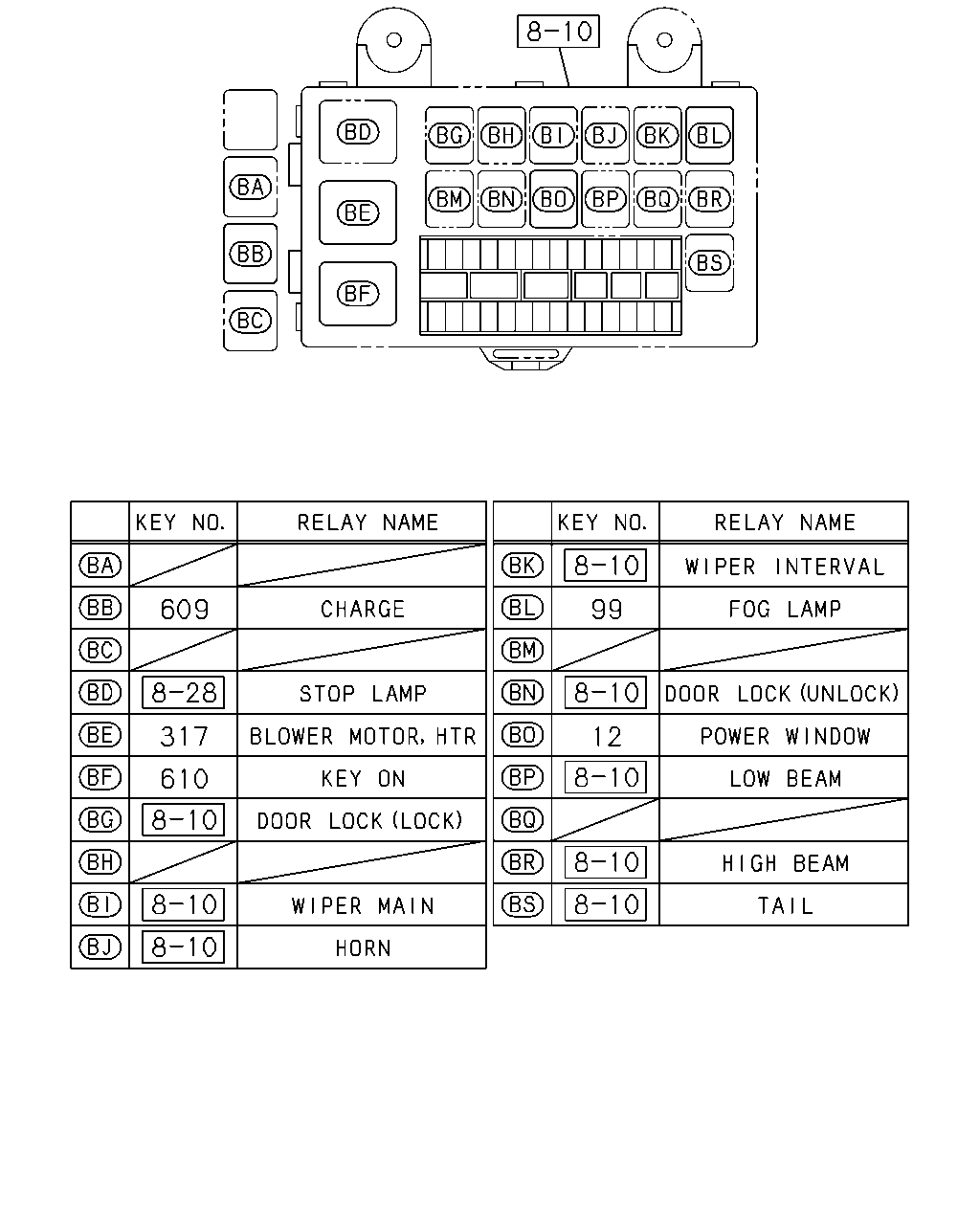

çizim 137347
609 317 610 99 12
BalonParca AdiParca NoAdetTipApplied Date A B
12 08.852 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 1009- ● ●
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1009-1212 ● ●
99 02.485 RELAY; FOG LAMP
FOG LAMP W/O LAMP<T9H>,FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1301-1303 ● ●
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1304- ● ●
317 02.510 RELAY; BLOWER MOTOR,HTR
AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1009- ● ●
609 02.485 RELAY; CHARGE
H.S.A SYSTEM<6EP> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1009- ●
609 02.485 RELAY; CHARGE
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1009- ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1009-1204 ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205- ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205- ● ●

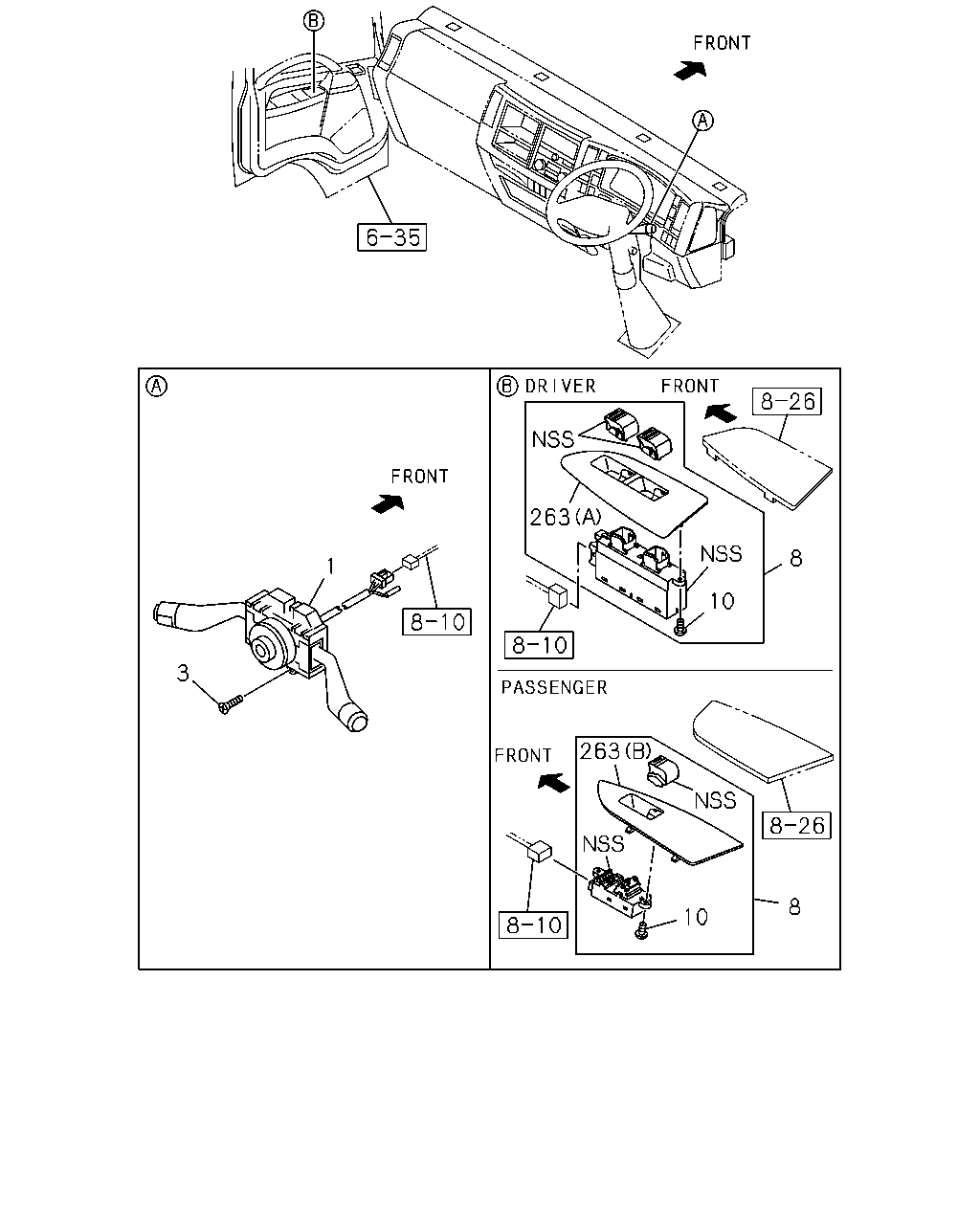

çizim 138145
10 263 1 3 8 8 10 263
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98146-635-0 01 1 1009-1210 ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98217-808-0 01 1 1211-1310 ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98243-725-0 01 1 1311- ● ●
1 02.895 SWITCH; COMB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> 		8-98069-995-1 01 1 1009-1310 ● ●
1 02.895 SWITCH; COMB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> 		8-98243-729-0 01 1 1311- ● ●
3 02.897 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 1009- ● ●
8 16.263 SWITCH; POWER WINDOW
DRIVER SIDE 		8-98159-543-0 01 1 1009-1212 ● ●
8 16.263 SWITCH; POWER WINDOW
DRIVER SIDE 		8-98227-828-0 01 1 1301-1509 ● ●
8 16.263 SWITCH; POWER WINDOW
DRIVER SIDE 		8-98298-754-0 01 1 1510- ● ●
8 16.263 SWITCH; POWER WINDOW
PASSENGER SIDE 		8-97387-034-2 01 1 1009-1212 ● ●
8 16.263 SWITCH; POWER WINDOW
PASSENGER SIDE 		8-98227-829-0 01 1 1301-1509 ● ●
8 16.263 SWITCH; POWER WINDOW
PASSENGER SIDE 		8-98316-423-0 01 1 1510- ● ●
10 03.885 SCREW; POWER WINDOW SW 8-98153-865-0 03 1 1009- ● ●
263 16.081 COVER; SW
(A) 		8-98153-836-0 01 1 1009- ● ●
263 16.081 COVER; SW
(B) 		8-98153-841-0 01 1 1009- ● ●

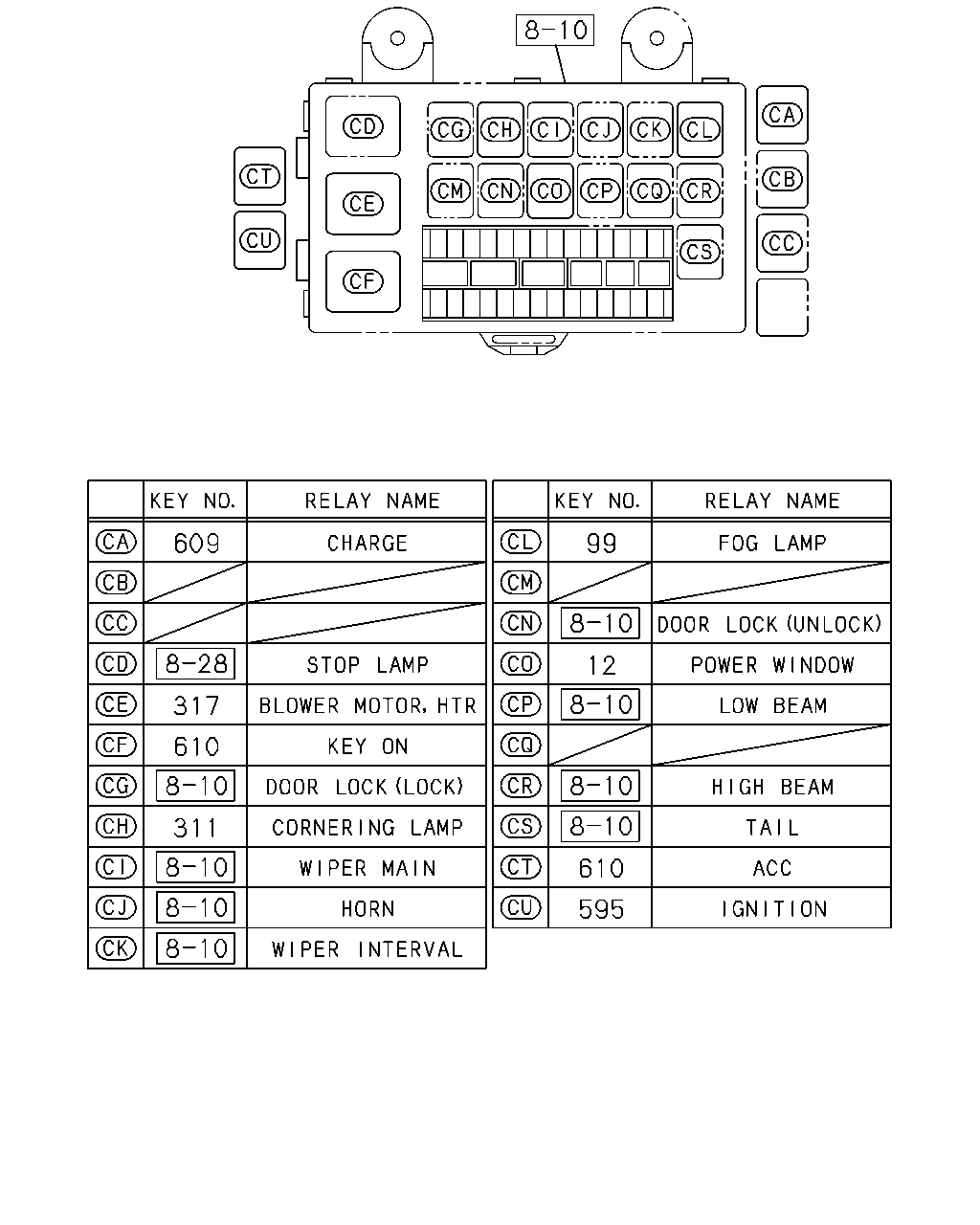

çizim 138197
609 317 610 311 12 99 610 595
BalonParca AdiParca NoAdetTipApplied Date A B
12 08.852 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 1009- ● ●
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1009-1212 ● ●
99 02.485 RELAY; FOG LAMP
FOG LAMP W/O LAMP<T9H>,FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1301-1303 ● ●
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1304- ● ●
311 02.596 RELAY; CORNERING LAMP
CORNERING LAMP<T87> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1301- ● ●
317 02.510 RELAY; BLOWER MOTOR,HTR
AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1009- ● ●
595 02.510 RELAY; IGNITION
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205- ● ●
609 02.485 RELAY; CHARGE
H.S.A SYSTEM<6EP> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1009- ●
609 02.485 RELAY; CHARGE
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1009- ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1009-1204 ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205- ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205- ● ●

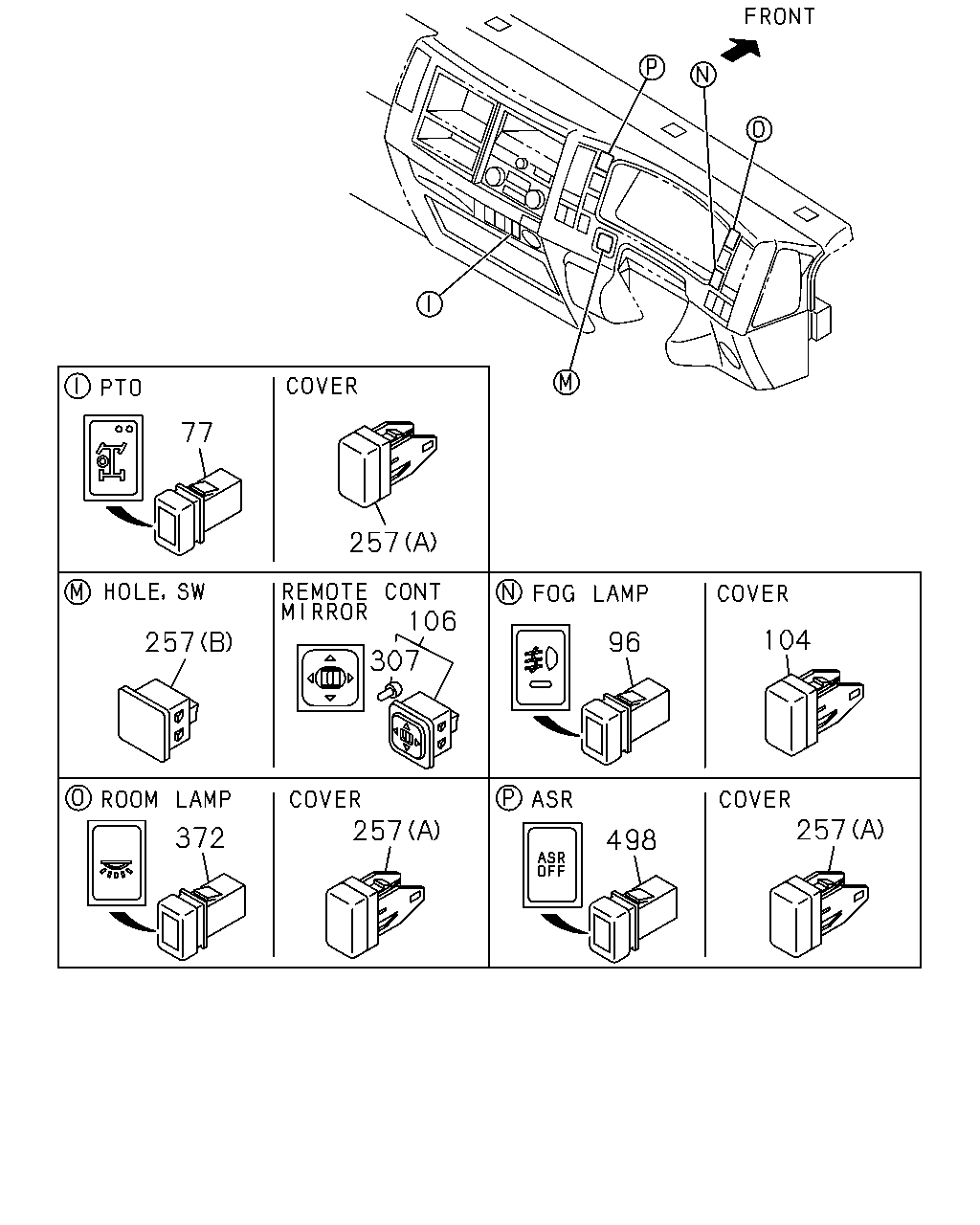

çizim 138273
77 257 372 257 307 257 106 96 498 104 257
BalonParca AdiParca NoAdetTipApplied Date A B
77 04.439 SWITCH; PTO
PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97386-964-1 01 1 1009-1211 ●
77 04.439 SWITCH; PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97386-964-2 01 1 1212- ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97387-031-3 01 1 1009-1212 ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP W/O LAMP<T9H>,FOG LAMP<T96> 		8-97387-031-3 01 1 1301-1303 ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97387-031-4 01 1 1304- ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 16.081 		8-98025-954-1 01 1 1009-1212 ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP W/O LAMP<T9H>,FOG LAMP<T96> 16.081 		8-98025-954-1 01 1 1301-1303 ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 16.081 		8-98025-954-1 01 1 1304- ● ●
106 10.186 SWITCH; REMOTE CONT MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-97173-294-1 01 1 1009- ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B) 		8-98029-914-1 01 1 1009- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1009-1211 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1009-1211 ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) 		8-98025-954-1 01 1 1009-1211 ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> (A) 		8-98025-954-1 01 1 1009-1211 ●
257 16.081 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98025-954-1 01 1 1009-1211 ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) (A) 		8-98025-954-1 01 1 1009-1211 ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1009-1211 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1009-1211 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1212- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1212- ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) 		8-98025-954-1 01 1 1212- ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> (A) 		8-98025-954-1 01 1 1212- ●
257 16.081 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98025-954-1 01 1 1212- ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1212- ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC),PTO T/M SIDE DIRECT PUMP(8KZ) (A) 		8-98025-954-1 01 1 1212- ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1212- ●
257 16.081 COVER; HOLE,SW
EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC),PTO T/M SIDE DIRECT PUMP(8KZ) (A) 		8-98025-954-1 01 1 1212- ●
307 08.991 BULB ASM; SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 24V 		8-98226-896-0 01 1 1009- ● ●
372 08.852 SWITCH; ROOM LAMP 8-97386-917-2 01 1 1009- ● ●
498 03.883 SWITCH; ASR 8-97386-920-2 01 1 1009- ● ●

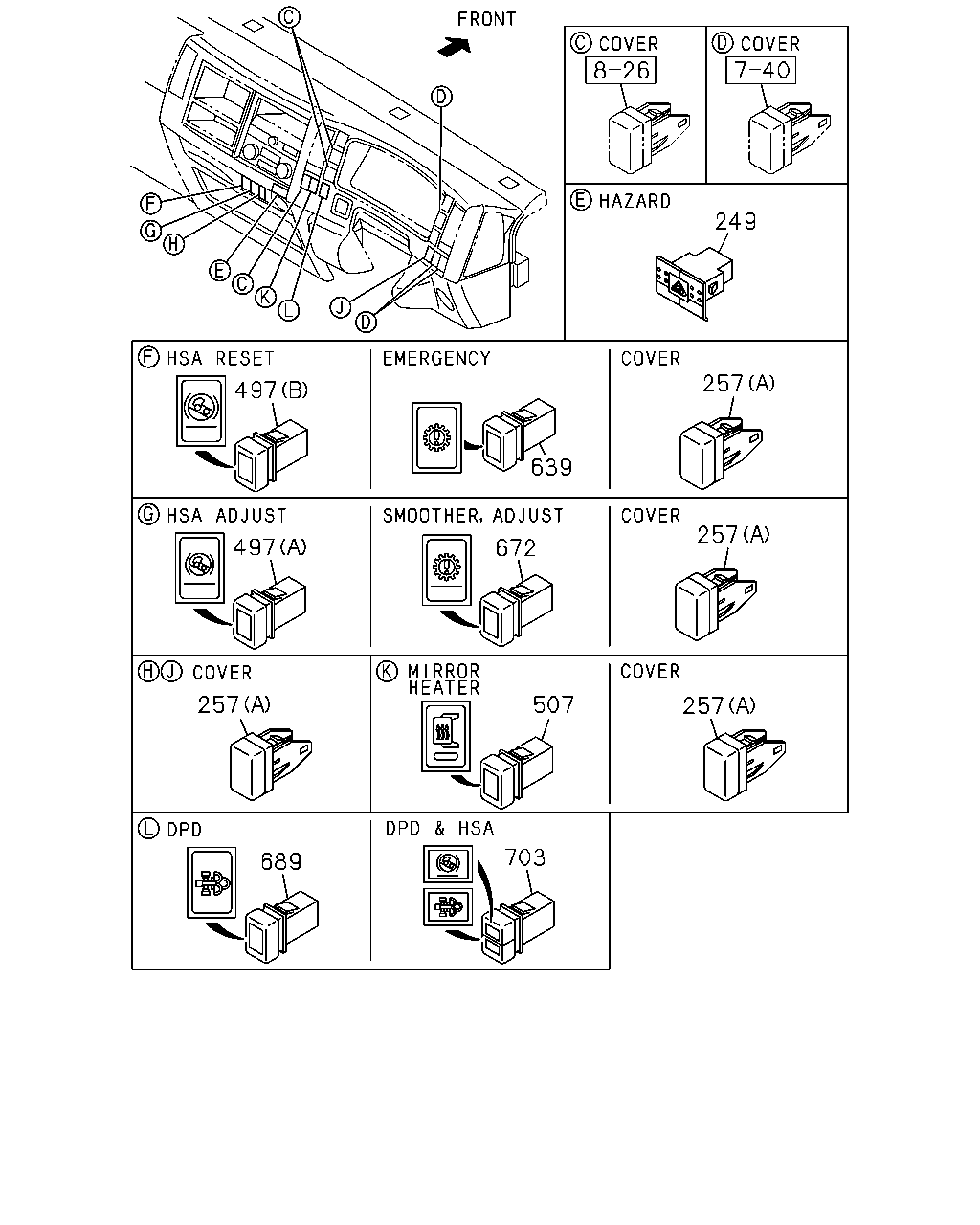

çizim 138330
249 497 639 257 497 672 257 257 507 257 703 689
BalonParca AdiParca NoAdetTipApplied Date A B
249 02.485 SWITCH; HAZARD 8-97386-922-1 01 1 1009- ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B) 		8-98029-914-1 01 1 1009- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1009-1211 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1009-1211 ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) 		8-98025-954-1 01 1 1009-1211 ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> (A) 		8-98025-954-1 01 1 1009-1211 ●
257 16.081 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98025-954-1 01 1 1009-1211 ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) (A) 		8-98025-954-1 01 1 1009-1211 ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1009-1211 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1009-1211 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1212- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1212- ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) 		8-98025-954-1 01 1 1212- ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> (A) 		8-98025-954-1 01 1 1212- ●
257 16.081 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98025-954-1 01 1 1212- ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1212- ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC),PTO T/M SIDE DIRECT PUMP(8KZ) (A) 		8-98025-954-1 01 1 1212- ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1212- ●
257 16.081 COVER; HOLE,SW
EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC),PTO T/M SIDE DIRECT PUMP(8KZ) (A) 		8-98025-954-1 01 1 1212- ●
497 04.439 SWITCH; HSA
H.S.A SYSTEM<6EP> (B) RESET 		8-98119-946-0 01 1 1009- ●
497 04.439 SWITCH; HSA
(B) RESET 		8-98119-946-0 01 1 1009- ●
497 04.439 SWITCH; HSA
H.S.A SYSTEM<6EP> (A) ADJUST 		8-98119-947-1 01 1 1009- ●
497 04.439 SWITCH; HSA
(A) ADJUST 		8-98119-947-1 01 1 1009- ●
507 10.186 SWITCH; MIRROR HEATER
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-97386-924-3 01 1 1009- ● ●
639 16.263 SWITCH; EMERGENCY
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98119-948-0 01 1 1009- ●
672 16.263 SWITCH; SMOOTHER,ADJUST
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. H.S.A SYSTEM<6EP> 		8-98119-949-1 01 1 1009- ●
689 02.780 SWITCH; DPD
EXC. H.S.A SYSTEM<6EP> 		8-97386-921-2 01 1 1009- ●
703 02.780 SWITCH; DPD & HSA
H.S.A SYSTEM<6EP> 		8-98011-346-2 01 1 1009- ●
703 02.780 SWITCH; DPD & HSA 8-98011-346-2 01 1 1009- ●
çizim 187155
608 151 154
BalonParca AdiParca NoAdetTipApplied Date A B
151 09.277 RELAY; HTR & A/C
AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1009- ● ●
154 09.277 RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1009- ● ●
608 02.485 RELAY; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF) 02.510 24V 30A MITSUBA 		8-97238-540-0 01 1 1009-1402 ●
608 02.485 RELAY; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 30A MITSUBA 		8-98259-779-0 01 1 1403- ●
çizim 187157
30 29
BalonParca AdiParca NoAdetTipApplied Date A B
29 16.263 SWITCH; DOOR
BLACK 		8-98022-211-0 01 1 1009- ● ●
29 16.263 SWITCH; DOOR
BLACK 		8-98022-211-0 01 1 1009- ●
30 16.263 SCREW; DOOR SW
M5X18 		8-98047-201-0 02 1 1009- ● ●

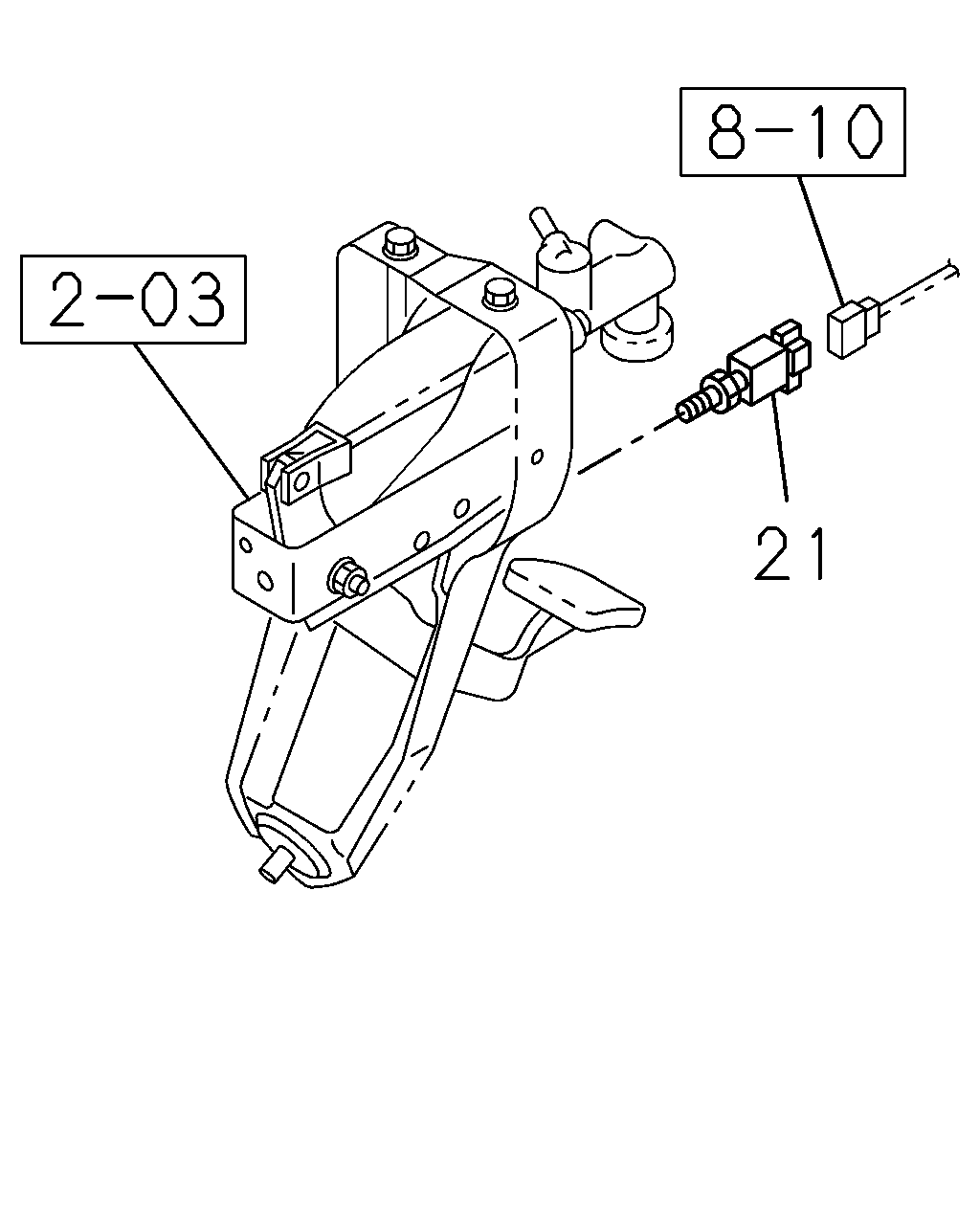

çizim 187163
21
BalonParca AdiParca NoAdetTipApplied Date A B
21 02.575 SWITCH; CLU
POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.447 		8-94109-863-0 01 1 1301- ●
21 02.575 SWITCH; CLU
POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.447 		8-94109-863-0 01 1 1301- ●
21 02.575 SWITCH; CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97358-248-0 01 1 1009-1212 ●
21 02.575 SWITCH; CLU 8-97358-248-0 01 1 1009-1212 ●
21 02.575 SWITCH; CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-97358-248-0 01 1 1301- ●
21 02.575 SWITCH; CLU
EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-97358-248-0 01 1 1301- ●
