◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51275 - NLR/NMR(85) AUST/NZ EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#78214) — 60 parça

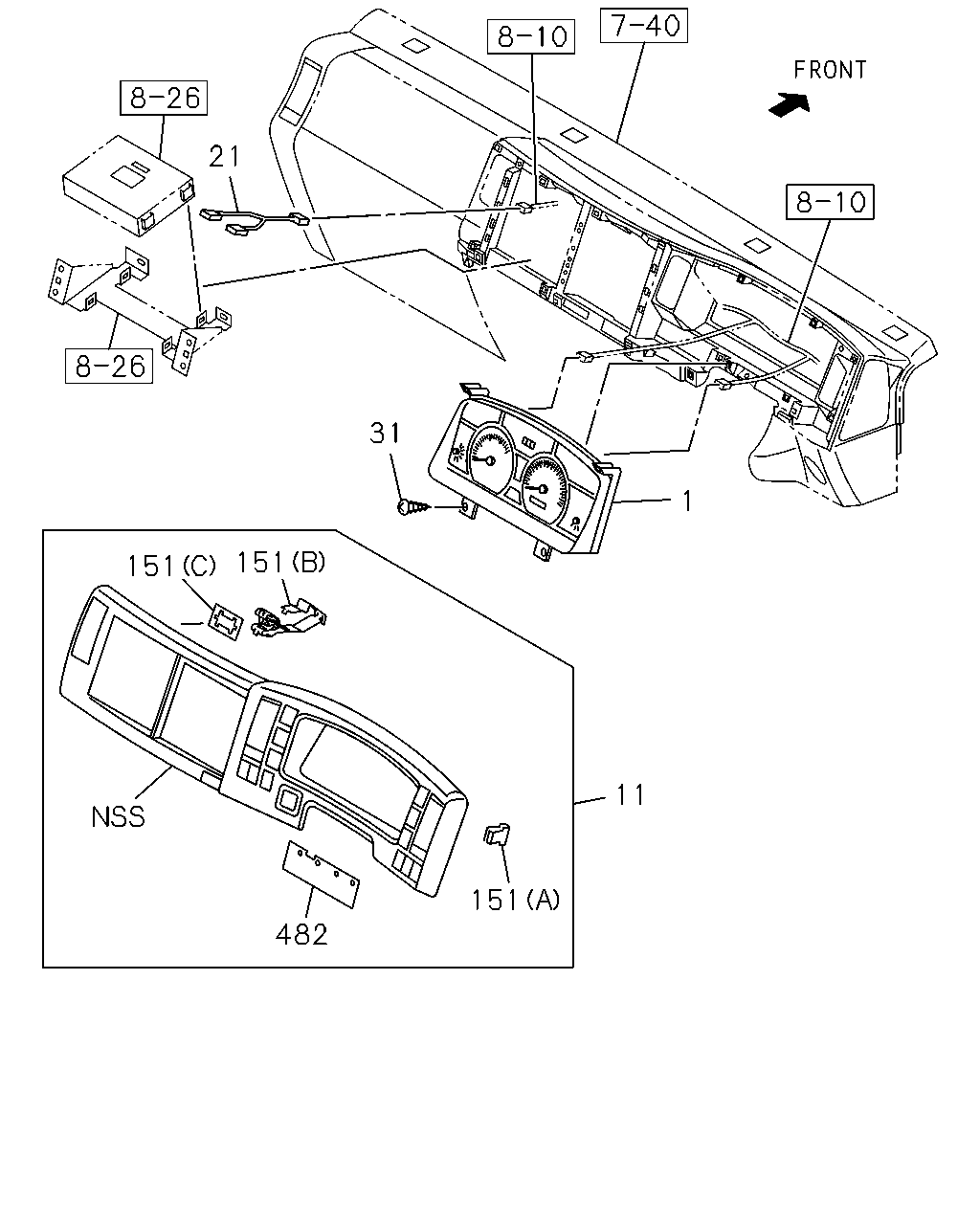

çizim 137708
11 151 482 151 151 31 1 21
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.735 METER COMPL; CLUSTER
DUMP CONTROL LEVER<RC4> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98096-900-4 01 1 1009-1212 ●
1 09.735 METER COMPL; CLUSTER
DUMP CONTROL LEVER<RC4> 		8-98096-900-4 01 1 1009-1212 ●
1 09.735 METER COMPL; CLUSTER
DUMP CONTROL LEVER<RC4> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98231-327-0 01 1 1301- ●
1 09.735 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CONTROL LEVER<RC4> 		8-98231-327-0 01 1 1301- ●
1 09.735 METER COMPL; CLUSTER
DUMP CONTROL LEVER<RC4> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98231-327-0 01 1 1301- ●
1 09.735 METER COMPL; CLUSTER
EXC. DUMP CONTROL LEVER<RC4> 		8-98231-327-0 01 1 1301- ●
1 09.735 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CONTROL LEVER<RC4> 		8-98021-251-4 01 1 1009-1212 ●
1 09.735 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CONTROL LEVER<RC4> 		8-98231-328-0 01 1 1301- ●
1 09.735 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CONTROL LEVER<RC4> 		8-98021-249-4 01 1 1009-1212 ●
1 09.735 METER COMPL; CLUSTER
EXC. DUMP CONTROL LEVER<RC4> 		8-98021-249-4 01 1 1009-1212 ●
11 09.743 CLUSTER ASM; METER
DARK GRAY 		8-97418-532-1 01 1 1009- ● ●
21 09.743 HARNESS; TACHOGRAPH
CAN INTERFACE FMS STD(8PG) 		8-98204-881-1 01 1 1112- ● ●
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1009-1101 ● ●
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 04 1 1102-1212 ● ●
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1301- ● ●
151 09.747 CLIP; METER CLUSTER
16.085 (A) 		8-98021-271-0 12 1 1009- ● ●
151 09.747 CLIP; METER CLUSTER
16.090 (B) 		8-98152-030-0 01 1 1009- ● ●
151 09.747 CLIP; METER CLUSTER
16.090 (C) 		8-98152-031-0 01 1 1009- ● ●
482 09.772 SEAL; CLUSTER METER 8-98116-842-0 01 1 1009- ● ●

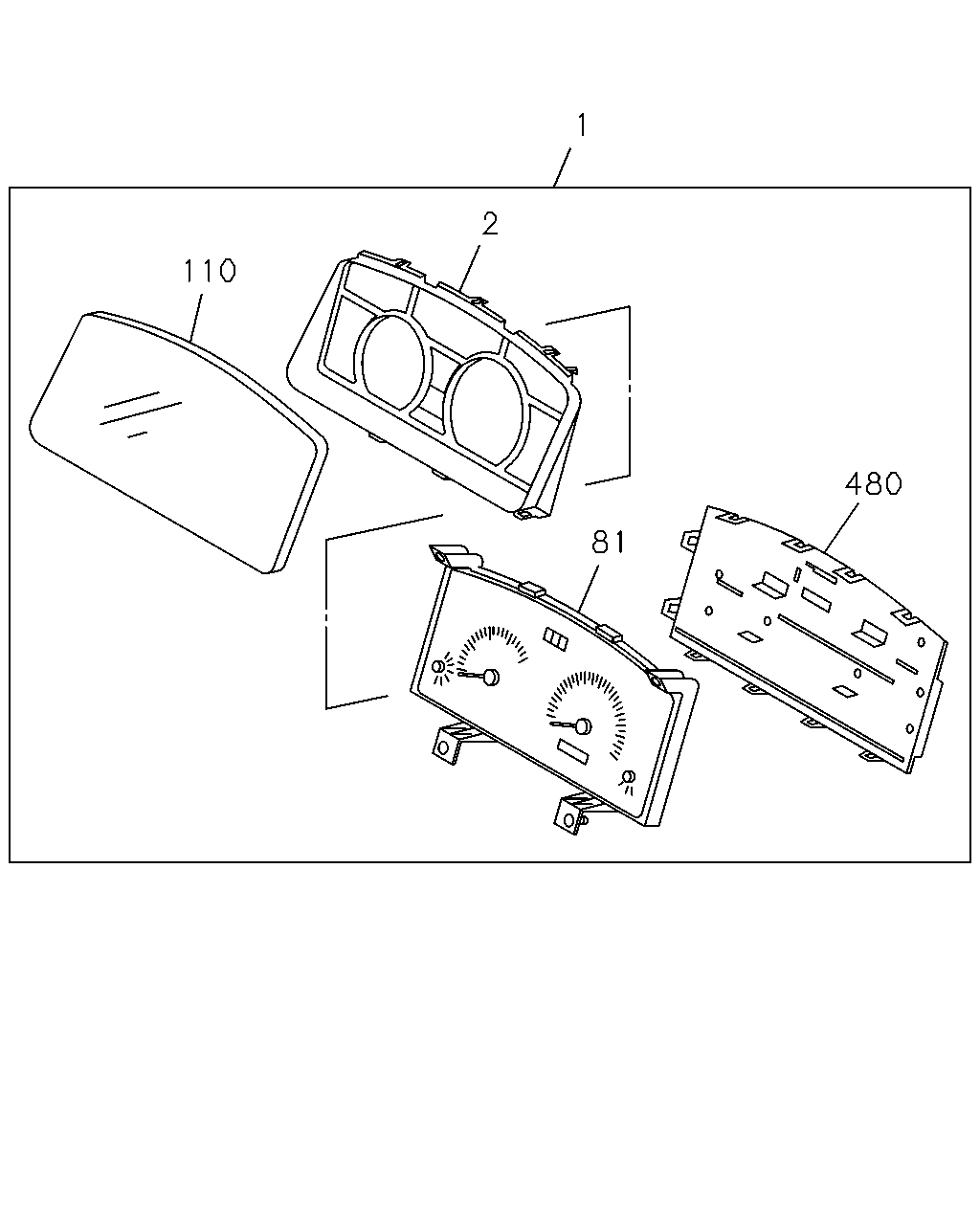

çizim 137808
480 81 2 1 110
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.735 METER COMPL; CLUSTER
DUMP CONTROL LEVER<RC4> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98096-900-4 01 1 1009-1212 ●
1 09.735 METER COMPL; CLUSTER
DUMP CONTROL LEVER<RC4> 		8-98096-900-4 01 1 1009-1212 ●
1 09.735 METER COMPL; CLUSTER
DUMP CONTROL LEVER<RC4> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98231-327-0 01 1 1301- ●
1 09.735 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CONTROL LEVER<RC4> 		8-98231-327-0 01 1 1301- ●
1 09.735 METER COMPL; CLUSTER
DUMP CONTROL LEVER<RC4> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98231-327-0 01 1 1301- ●
1 09.735 METER COMPL; CLUSTER
EXC. DUMP CONTROL LEVER<RC4> 		8-98231-327-0 01 1 1301- ●
1 09.735 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CONTROL LEVER<RC4> 		8-98021-251-4 01 1 1009-1212 ●
1 09.735 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CONTROL LEVER<RC4> 		8-98231-328-0 01 1 1301- ●
1 09.735 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CONTROL LEVER<RC4> 		8-98021-249-4 01 1 1009-1212 ●
1 09.735 METER COMPL; CLUSTER
EXC. DUMP CONTROL LEVER<RC4> 		8-98021-249-4 01 1 1009-1212 ●
2 09.735 PANEL; CLUSTER
DUMP CONTROL LEVER<RC4> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98054-432-0 01 1 1009-1212 ●
2 09.735 PANEL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CONTROL LEVER<RC4> 		8-98054-432-0 01 1 1009-1212 ●
2 09.735 PANEL; CLUSTER 8-98054-432-0 01 1 1009-1212 ●
2 09.735 PANEL; CLUSTER
DUMP CONTROL LEVER<RC4> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98054-638-0 01 1 1301- ●
2 09.735 PANEL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CONTROL LEVER<RC4> 		8-98054-638-0 01 1 1301- ●
2 09.735 PANEL; CLUSTER
DUMP CONTROL LEVER<RC4> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98054-638-0 01 1 1301- ●
2 09.735 PANEL; CLUSTER
EXC. DUMP CONTROL LEVER<RC4> 		8-98054-638-0 01 1 1301- ●
81 09.735 METER SUB ASM
DUMP CONTROL LEVER<RC4> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98096-965-0 01 1 1009-1212 ●
81 09.735 METER SUB ASM
DUMP CONTROL LEVER<RC4> 		8-98096-965-0 01 1 1009-1212 ●
81 09.735 METER SUB ASM
DUMP CONTROL LEVER<RC4> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98231-341-0 01 1 1301- ●
81 09.735 METER SUB ASM
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CONTROL LEVER<RC4> 		8-98231-341-0 01 1 1301- ●
81 09.735 METER SUB ASM
DUMP CONTROL LEVER<RC4> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98231-341-0 01 1 1301- ●
81 09.735 METER SUB ASM
EXC. DUMP CONTROL LEVER<RC4> 		8-98231-341-0 01 1 1301- ●
81 09.735 METER SUB ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CONTROL LEVER<RC4> 		8-98073-680-0 01 1 1009-1212 ●
81 09.735 METER SUB ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CONTROL LEVER<RC4> 		8-98231-342-0 01 1 1301- ●
81 09.735 METER SUB ASM
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CONTROL LEVER<RC4> 		8-98073-677-0 01 1 1009-1212 ●
81 09.735 METER SUB ASM
EXC. DUMP CONTROL LEVER<RC4> 		8-98073-677-0 01 1 1009-1212 ●
110 09.748 GLASS; CLUSTER METER
DUMP CONTROL LEVER<RC4> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98054-431-0 01 1 1009-1212 ●
110 09.748 GLASS; CLUSTER METER
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CONTROL LEVER<RC4> 		8-98054-431-0 01 1 1009-1212 ●
110 09.748 GLASS; CLUSTER METER 8-98054-431-0 01 1 1009-1212 ●
110 09.748 GLASS; CLUSTER METER
DUMP CONTROL LEVER<RC4> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98054-431-0 01 1 1301- ●
110 09.748 GLASS; CLUSTER METER
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CONTROL LEVER<RC4> 		8-98054-431-0 01 1 1301- ●
110 09.748 GLASS; CLUSTER METER
DUMP CONTROL LEVER<RC4> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98054-431-0 01 1 1301- ●
110 09.748 GLASS; CLUSTER METER
EXC. DUMP CONTROL LEVER<RC4> 		8-98054-431-0 01 1 1301- ●
480 09.748 COVER; METER
DUMP CONTROL LEVER<RC4> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BLACK 		8-98054-433-0 01 1 1009-1212 ●
480 09.748 COVER; METER
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CONTROL LEVER<RC4> BLACK 		8-98054-433-0 01 1 1009-1212 ●
480 09.748 COVER; METER
BLACK 		8-98054-433-0 01 1 1009-1212 ●
480 09.748 COVER; METER
DUMP CONTROL LEVER<RC4> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) BLACK 		8-98054-433-0 01 1 1301- ●
480 09.748 COVER; METER
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CONTROL LEVER<RC4> BLACK 		8-98054-433-0 01 1 1301- ●
480 09.748 COVER; METER
DUMP CONTROL LEVER<RC4> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) BLACK 		8-98054-433-0 01 1 1301- ●
480 09.748 COVER; METER
EXC. DUMP CONTROL LEVER<RC4> BLACK 		8-98054-433-0 01 1 1301- ●
