8-15 — FIXING PARTS; WIRING HARNESS (#78213) — 139 parça

139 53 53 139 313 7 313 139 53 575 577 7 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

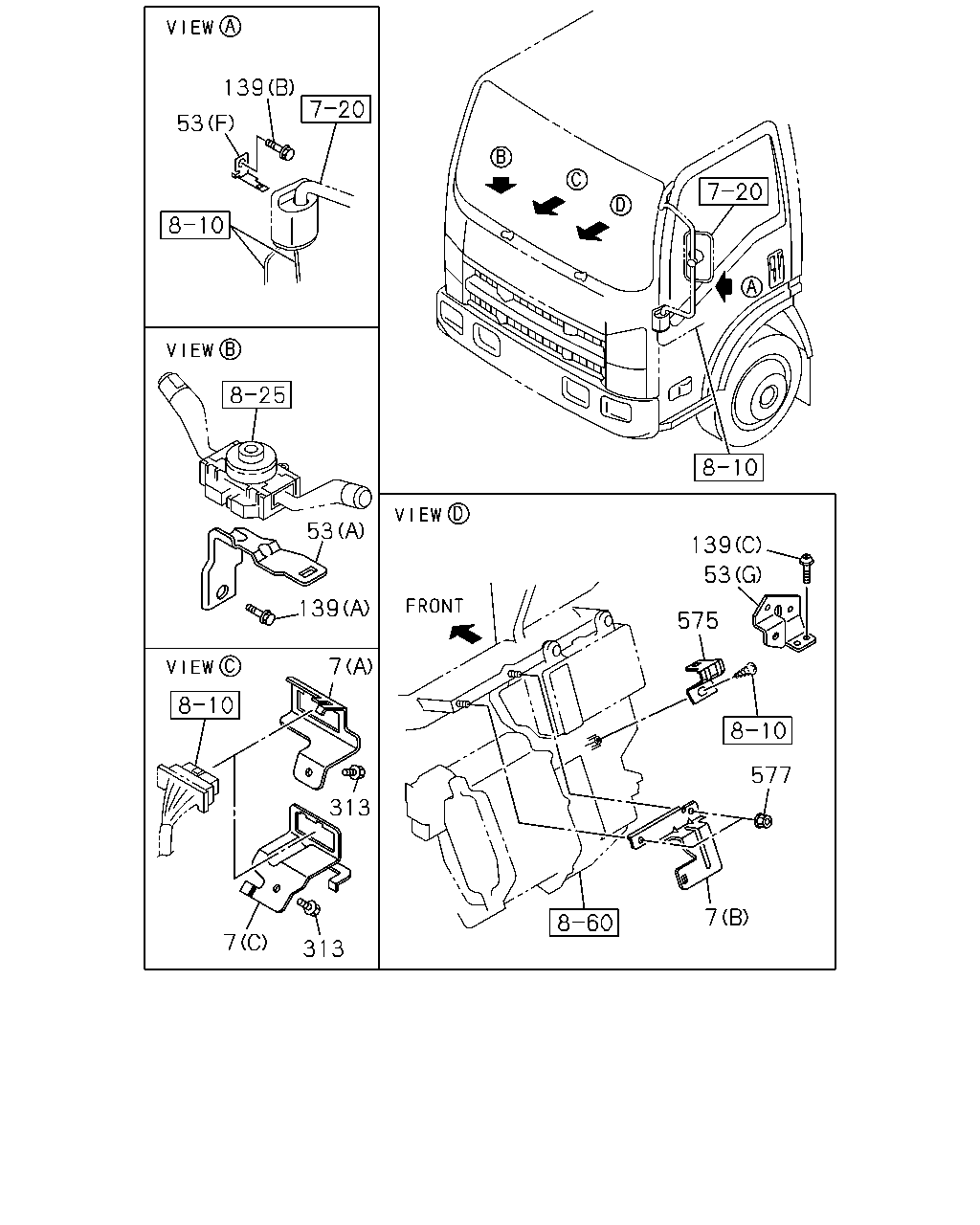

7	02.559 BRACKET; CONNECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98114-514-0	01	1	1009-	●
7	02.559 BRACKET; CONNECTOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98043-070-1	01	1	1009-	●
7	02.559 BRACKET; CONNECTOR (A)	8-98043-070-1	01	1	1009-		●
7	02.559 BRACKET; CONNECTOR (B)	8-98029-762-4	01	1	1009-	●	●

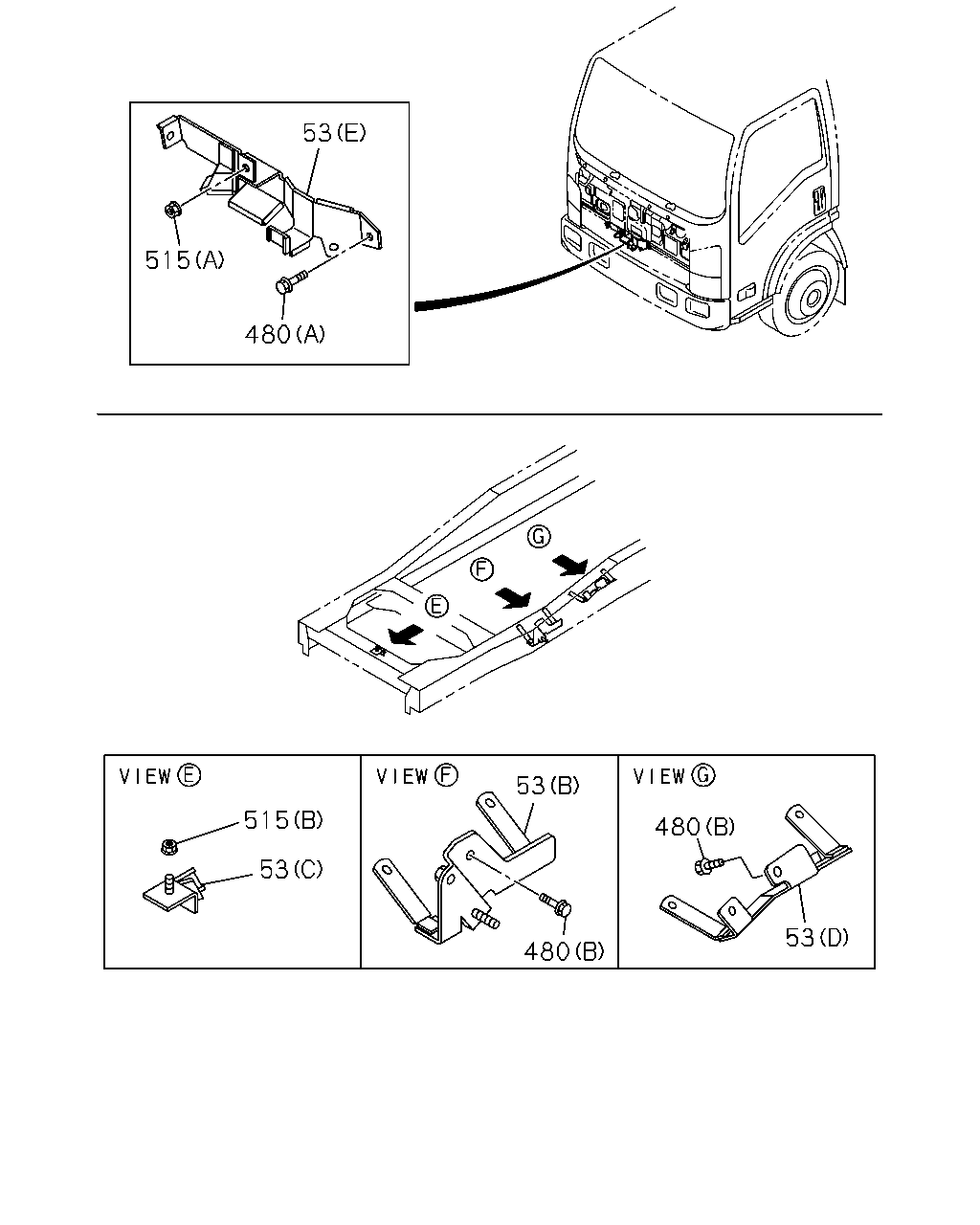

53	02.483 BRACKET; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (F)	8-98039-277-2	02	1	1009-	●	●
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	1009-	●	●
53	02.483 BRACKET; HARNESS (D)	8-98033-918-2	01	1	1009-	●	●
53	02.483 BRACKET; HARNESS (E)	8-98039-984-2	01	1	1009-	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1009-	●	●
53	02.483 BRACKET; HARNESS (B)	8-98052-900-1	01	1	1009-	●	●
53	02.483 BRACKET; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (G)	8-98084-590-0	01	1	1009-	●	●
139	02.559 BOLT; BRKT O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1009-	●	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1009-	●	●
139	02.559 BOLT; BRKT EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1009-1101	●	●
139	02.559 BOLT; BRKT EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212	●	●
139	02.559 BOLT; BRKT EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●	●
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1009-	●	●
575	02.559 BRACKET; FUSE BOX	8-98042-656-2	01	1	1009-	●	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	04	1	1009-1012	●	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	1101-	●	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	1101-	●	●

552 459 552 459 459 459 459 459 552 242 552 552 459

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

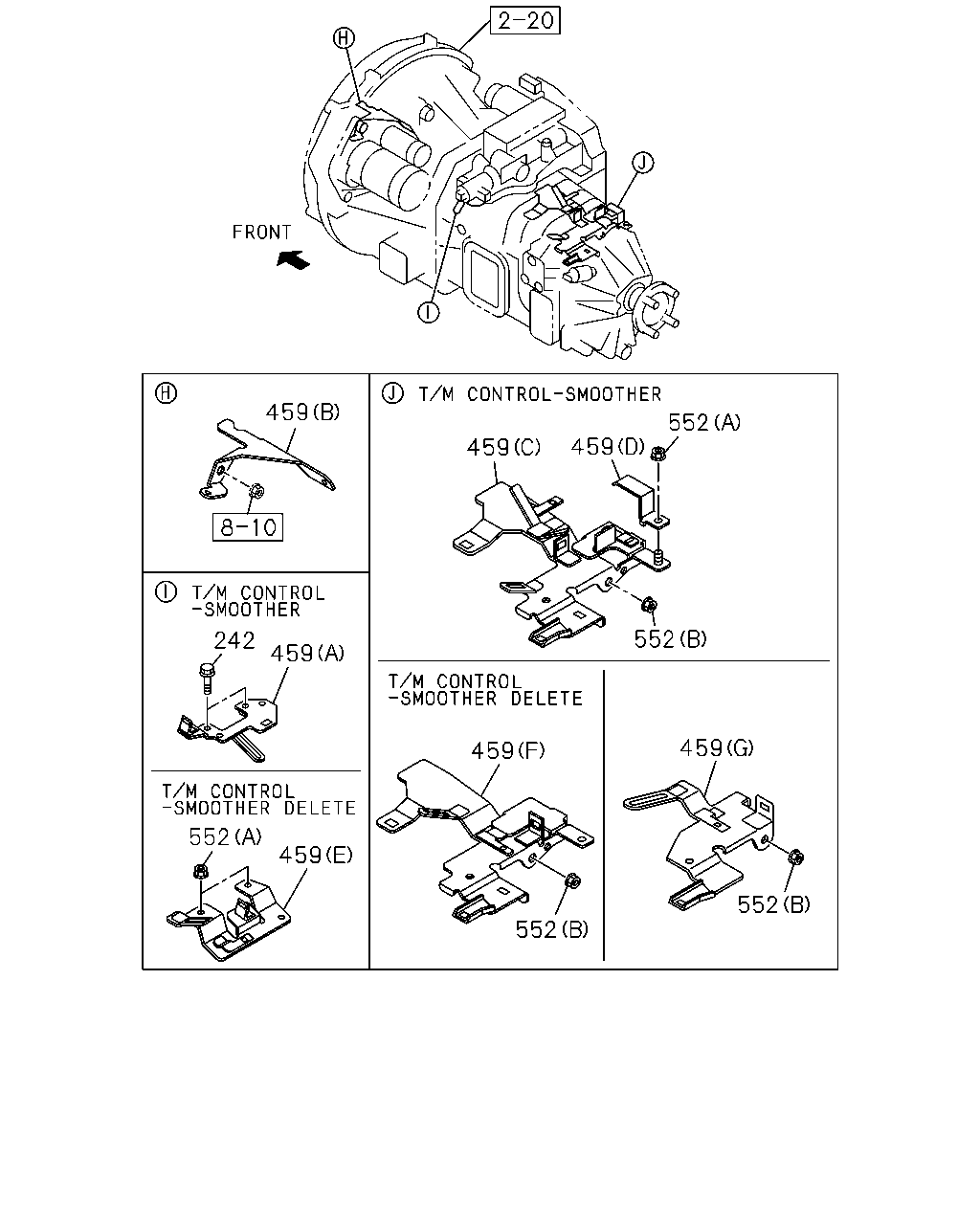

242	02.483 BOLT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.060 M8X35 FLANGE	0-28650-835-0	02	1	1009-	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98018-899-1	01	1	1009-	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98030-988-2	01	1	1009-	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98030-991-2	01	1	1009-	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98044-758-2	01	1	1009-	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98020-227-3	01	1	1009-	●
459	02.483 BRACKET; SUPPORT,HARNESS (E)	8-98020-227-3	01	1	1009-		●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F)	8-98030-990-2	01	1	1009-1109	●
459	02.483 BRACKET; SUPPORT,HARNESS (F)	8-98030-990-2	01	1	1009-1109		●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G)	8-98196-974-0	01	1	1110-	●
459	02.483 BRACKET; SUPPORT,HARNESS (G)	8-98196-974-0	01	1	1110-		●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1009-	●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1009-	●	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1009-	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1009-	●
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1009-		●

313 480 481 38 139 516 139 480 480 242 529 377 377 386 386 24 515 577 219 294 515 524 552 552 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	02.559 NUT; HARNESS 01.062 M6 FLANGE	0-91180-106-0	01	1	1009-1409	●	●
24	02.559 NUT; HARNESS M6 FLANGE STAINLESS	8-98297-112-0	01	1	1410-	●	●
38	02.559 BOLT; CLIP,HARNESS 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1009-	●	●
139	02.559 BOLT; BRKT O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1009-	●	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1009-	●	●
139	02.559 BOLT; BRKT EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1009-1101	●	●
139	02.559 BOLT; BRKT EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212	●	●
139	02.559 BOLT; BRKT EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●	●
219	02.559 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	1009-	●	●
242	02.483 BOLT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.060 M8X35 FLANGE	0-28650-835-0	02	1	1009-	●
294	02.559 NUT 01.062 M8 FLANGE	0-91180-108-0	01	1	1009-	●	●
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1009-	●	●
377	02.559 BOLT; CAB EARTH 02.343 (A) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1009-	●	●
377	02.559 BOLT; CAB EARTH (B) M6X14 W/PL WASHER	8-98164-836-0	01	1	1009-	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (A) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1009-	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (B) M8X24 W/PL WASHER	8-98141-256-1	01	1	1009-	●	●
480	02.483 BOLT; BRKT 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	1009-	●	●
480	02.483 BOLT; BRKT 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1009-	●	●
480	02.483 BOLT; BRKT 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1009-	●	●
481	13.090 BOLT; CABLE HARNESS 04.665 M8X10 W/LK WASHER	8-98029-928-0	02	1	1009-	●	●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	1009-	●	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1009-	●	●
516	02.559 BOLT; HARNESS 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1009-	●	●
524	02.559 NUT; HARNESS 01.062 M8 FLANGE	0-91180-108-0	01	1	1009-	●	●
529	02.559 BOLT; RELAY BOX 08.155 M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	1009-	●	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1009-	●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1009-	●	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1009-	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1009-	●
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1009-		●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	04	1	1009-1012	●	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	1101-	●	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	1101-	●	●

53 480 480 53 53 515 515 53 480

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
53	02.483 BRACKET; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (F)	8-98039-277-2	02	1	1009-	●	●
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	1009-	●	●
53	02.483 BRACKET; HARNESS (D)	8-98033-918-2	01	1	1009-	●	●
53	02.483 BRACKET; HARNESS (E)	8-98039-984-2	01	1	1009-	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1009-	●	●
53	02.483 BRACKET; HARNESS (B)	8-98052-900-1	01	1	1009-	●	●
53	02.483 BRACKET; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (G)	8-98084-590-0	01	1	1009-	●	●
480	02.483 BOLT; BRKT 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	1009-	●	●
480	02.483 BOLT; BRKT 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1009-	●	●
480	02.483 BOLT; BRKT 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1009-	●	●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	1009-	●	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1009-	●	●

48 16 22 48 22 22 22 617 22 488 22 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	02.559 CLIP; HARNESS MANUAL TILT CAB<RWZ> (H) ID=7-10	8-94472-578-0	01	1	1301-	●	●
16	02.559 CLIP; HARNESS CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (F) L=40.6	8-97229-357-0	01	1	1301-	●	●
16	02.559 CLIP; HARNESS (E) ID=20	8-94241-972-0	01	1	1009-	●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1009-	●	●
16	02.559 CLIP; HARNESS 02.694 (B) ID=6 & 10-13	8-97069-515-0	02	1	1009-	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	1009-	●	●
16	02.559 CLIP; HARNESS (F) L=40.6	8-97229-357-0	02	1	1009-1212	●	●
16	02.559 CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> CORNERING LAMP<T87> (F) L=40.6	8-97229-357-0	02	1	1301-	●	●
16	02.559 CLIP; HARNESS EXC. CORNERING LAMP<T87> (F) L=40.6	8-97229-357-0	02	1	1301-	●	●
16	02.559 CLIP; HARNESS (C)	8-98052-679-0	02	1	1009-	●	●
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 03.483 (G) ID=6 & 10	8-94154-844-0	01	1	1009-	●	●
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	1009-1311	●	●
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	1009-1311		●
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	1312-	●	●
22	02.559 CLIP; ENG HARNESS 02.343 (D) L=119.5	1-09707-197-0	01	1	1009-	●	●
22	02.559 CLIP; ENG HARNESS 04.594 (B) L=100	5-09707-036-1	01	1	1009-	●	●
22	02.559 CLIP; ENG HARNESS 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	1009-	●	●
22	02.559 CLIP; ENG HARNESS 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	1009-	●	●
22	02.559 CLIP; ENG HARNESS 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	1009-	●	●
22	02.559 CLIP; ENG HARNESS (C) ID=34	8-98069-482-0	01	1	1009-	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2400MM(24W) 01.240 (D) ID=14 L=47	5-09700-319-0	07	1	1009-	●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	07	1	1009-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (D) ID=14 L=47	5-09700-319-0	09	1	1009-	●
48	02.559 CLIP; FRAME HARNESS (C) ID=20	8-94241-972-0	01	1	1009-	●	●
48	02.559 CLIP; FRAME HARNESS (A) T=4.5 & 9	8-97371-947-0	01	1	1009-	●	●
48	02.559 CLIP; FRAME HARNESS (B) T=5.5	8-97371-951-0	01	1	1009-	●	●
488	02.559 CLIP; CABLE,TRAILER L=250	5-09707-030-1	01	1	1009-	●	●
617	02.559 STRAP; BAND TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 L=140	5-09707-031-1	01	1	1012-1106	●
617	02.559 STRAP; BAND 03.162 L=140	5-09707-031-1	01	1	1012-1106		●

504 16 22 16 16 16 16 16 48 513 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	02.559 CLIP; HARNESS MANUAL TILT CAB<RWZ> (H) ID=7-10	8-94472-578-0	01	1	1301-	●	●
16	02.559 CLIP; HARNESS CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (F) L=40.6	8-97229-357-0	01	1	1301-	●	●
16	02.559 CLIP; HARNESS (E) ID=20	8-94241-972-0	01	1	1009-	●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1009-	●	●
16	02.559 CLIP; HARNESS 02.694 (B) ID=6 & 10-13	8-97069-515-0	02	1	1009-	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	1009-	●	●
16	02.559 CLIP; HARNESS (F) L=40.6	8-97229-357-0	02	1	1009-1212	●	●
16	02.559 CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> CORNERING LAMP<T87> (F) L=40.6	8-97229-357-0	02	1	1301-	●	●
16	02.559 CLIP; HARNESS EXC. CORNERING LAMP<T87> (F) L=40.6	8-97229-357-0	02	1	1301-	●	●
16	02.559 CLIP; HARNESS (C)	8-98052-679-0	02	1	1009-	●	●
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 03.483 (G) ID=6 & 10	8-94154-844-0	01	1	1009-	●	●
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	1009-1311	●	●
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	1009-1311		●
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	1312-	●	●
22	02.559 CLIP; ENG HARNESS 02.343 (D) L=119.5	1-09707-197-0	01	1	1009-	●	●
22	02.559 CLIP; ENG HARNESS 04.594 (B) L=100	5-09707-036-1	01	1	1009-	●	●
22	02.559 CLIP; ENG HARNESS 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	1009-	●	●
22	02.559 CLIP; ENG HARNESS 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	1009-	●	●
22	02.559 CLIP; ENG HARNESS 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	1009-	●	●
22	02.559 CLIP; ENG HARNESS (C) ID=34	8-98069-482-0	01	1	1009-	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2400MM(24W) 01.240 (D) ID=14 L=47	5-09700-319-0	07	1	1009-	●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	07	1	1009-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (D) ID=14 L=47	5-09700-319-0	09	1	1009-	●
48	02.559 CLIP; FRAME HARNESS (C) ID=20	8-94241-972-0	01	1	1009-	●	●
48	02.559 CLIP; FRAME HARNESS (A) T=4.5 & 9	8-97371-947-0	01	1	1009-	●	●
48	02.559 CLIP; FRAME HARNESS (B) T=5.5	8-97371-951-0	01	1	1009-	●	●
504	02.559 PROTECTOR; HARNESS	8-98208-886-0	01	1	1201-	●	●
513	02.559 TAPE; SOFT,HARNESS 70X45	8-97304-372-0	01	1	1009-1309	●	●
