Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#78212) — 219 parça

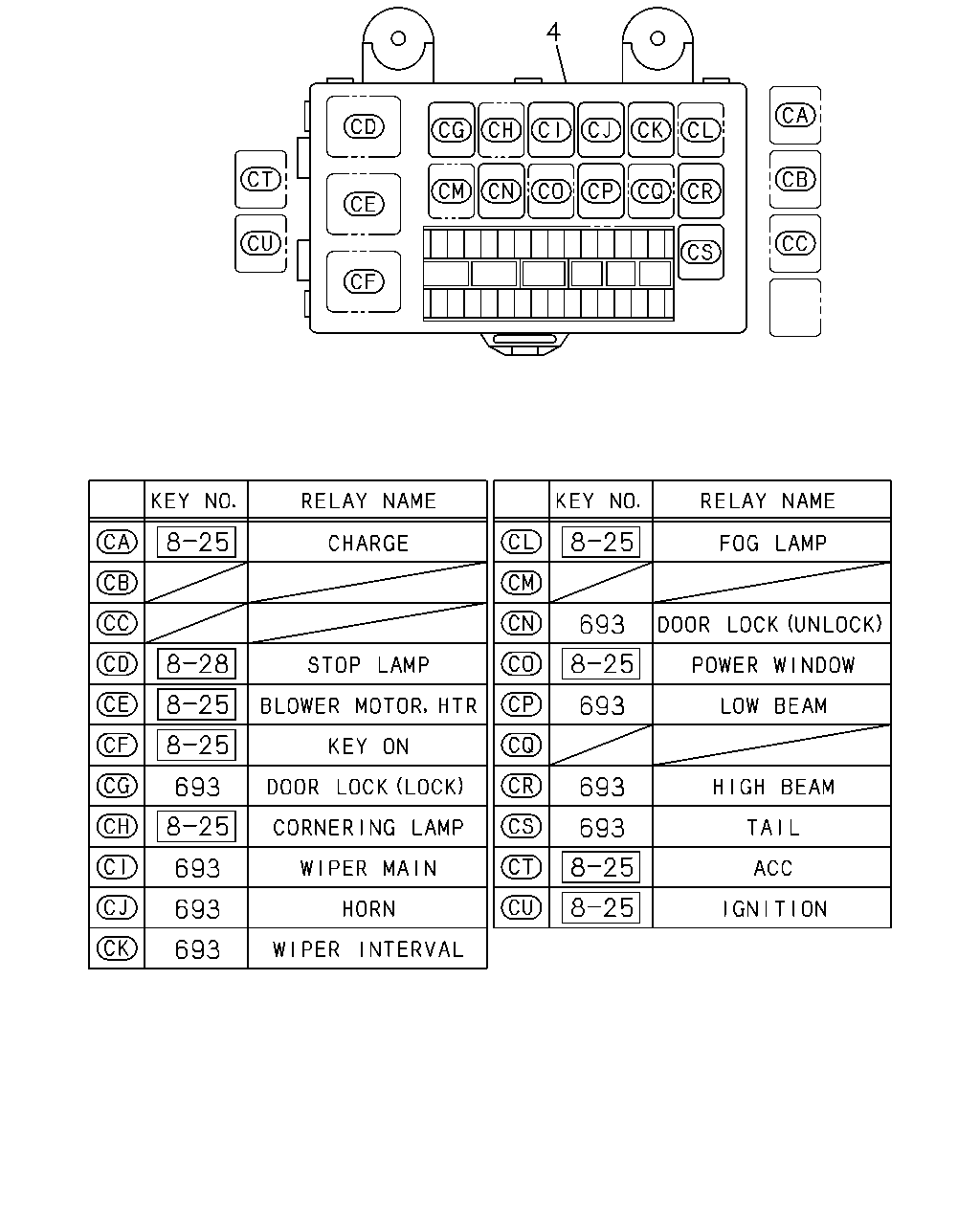

693 693 693 693 693 693 693 693 4

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	1009-	●	●
	693	02.694 RELAY; FUSE BOX 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	1009-	●	●

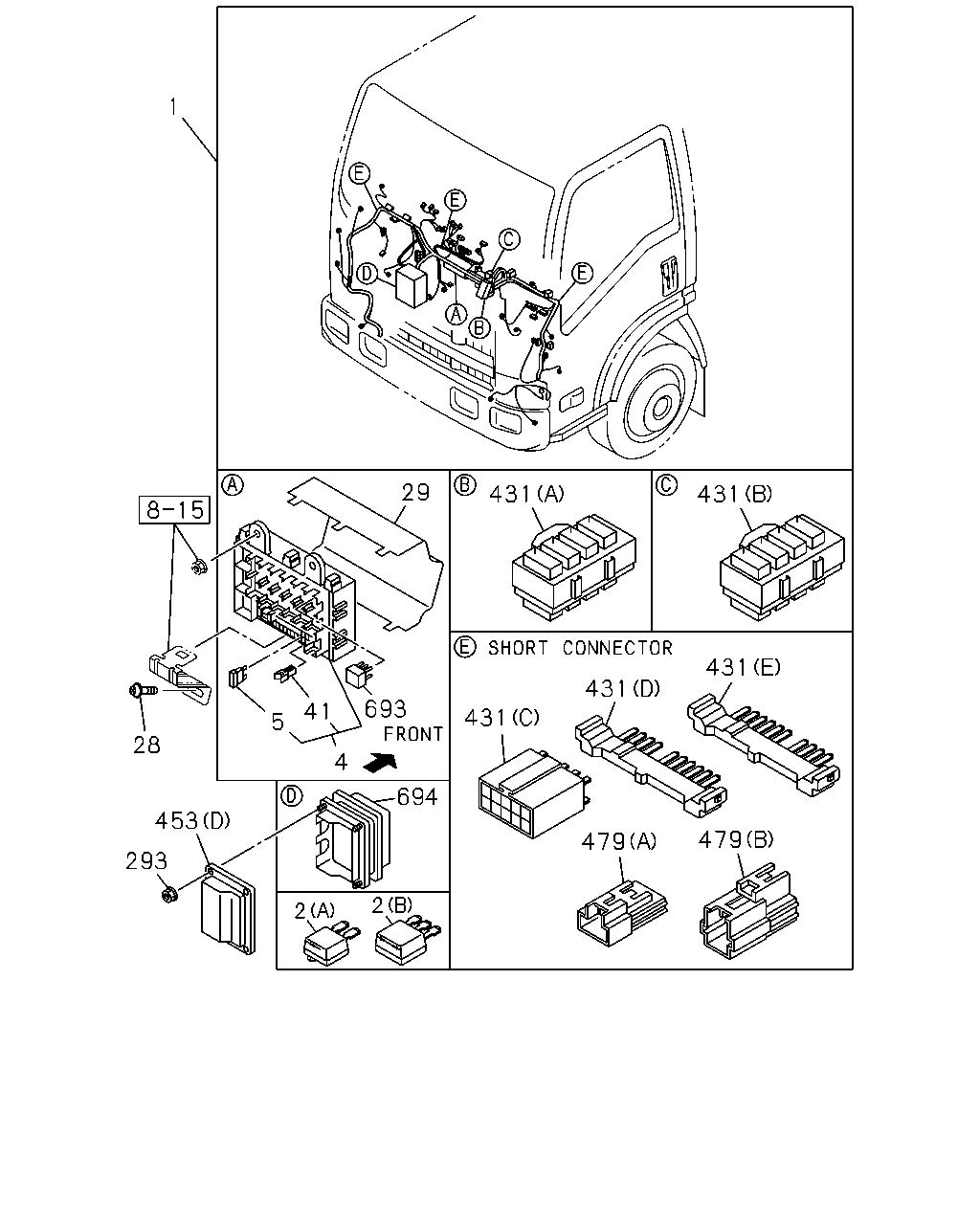

479 479 2 2 453 28 293 5 4 694 41 693 431 431 431 431 431 29 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) CAN INTERFACE FMS STD(8PG) EXC. H.S.A SYSTEM<6EP>	8-98204-553-0	01	1	1112-1204	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98204-553-0	01	1	1205-1212	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98225-752-1	01	1	1301-1310	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> PTO MANUAL CONTROL(6WC),POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68),H.S.A SYSTEM<6EP>	8-98225-752-1	01	1	1311-	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) CAN INTERFACE FMS STD(8PG) EXC. H.S.A SYSTEM<6EP>	8-98204-554-0	01	1	1112-1204	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98204-554-0	01	1	1205-1212	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98225-753-1	01	1	1301-1310	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) PTO MANUAL CONTROL(6WC),POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. H.S.A SYSTEM<6EP>	8-98225-753-1	01	1	1311-	●
1	02.480 HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CAN INTERFACE FMS STD(8PG)	8-98204-549-0	01	1	1112-1204	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> AIR CONDITIONER MANUAL CONT(C60) CAN INTERFACE FMS STD(8PG)	8-98204-549-0	01	1	1112-1204		●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98204-549-0	01	1	1205-1212	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98204-549-0	01	1	1205-1212		●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98225-748-1	01	1	1301-1310	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98225-748-1	01	1	1301-1310		●
1	02.480 HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> PTO MANUAL CONTROL(6WC),POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98225-748-1	01	1	1311-	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> PTO MANUAL CONTROL(6WC),POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98225-748-1	01	1	1311-		●
1	02.480 HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CAN INTERFACE FMS STD(8PG)	8-98204-550-0	01	1	1112-1204	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) CAN INTERFACE FMS STD(8PG)	8-98204-550-0	01	1	1112-1204		●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98204-550-0	01	1	1205-1212	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68)	8-98204-550-0	01	1	1205-1212		●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98225-749-1	01	1	1301-1310	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68)	8-98225-749-1	01	1	1301-1310		●
1	02.480 HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) PTO MANUAL CONTROL(6WC),POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98225-749-1	01	1	1311-	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) PTO MANUAL CONTROL(6WC),POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98225-749-1	01	1	1311-		●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98121-524-2	01	1	1009-1111	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. CAN INTERFACE FMS STD(8PG)	8-98121-524-2	01	1	1112-1204	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98154-787-0	01	1	1009-1111	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68)	8-98154-787-0	01	1	1009-1111		●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CAN INTERFACE FMS STD(8PG)	8-98154-787-0	01	1	1112-1204	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) EXC. CAN INTERFACE FMS STD(8PG)	8-98154-787-0	01	1	1112-1204		●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98121-523-2	01	1	1009-1111	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68),CAN INTERFACE FMS STD(8PG)	8-98121-523-2	01	1	1112-1204	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98154-786-0	01	1	1009-1111	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98154-786-0	01	1	1009-1111		●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68),CAN INTERFACE FMS STD(8PG)	8-98154-786-0	01	1	1112-1204	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68),CAN INTERFACE FMS STD(8PG)	8-98154-786-0	01	1	1112-1204		●
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FULLAUTO AIR CONDITIONER(C68)	8-98087-338-5	01	1	1009-1204	●
1	02.480 HARNESS; CAB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FULLAUTO AIR CONDITIONER(C68)	8-98087-338-5	01	1	1009-1204		●
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FULLAUTO AIR CONDITIONER(C68)	8-98207-646-0	01	1	1205-	●
1	02.480 HARNESS; CAB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FULLAUTO AIR CONDITIONER(C68)	8-98207-646-0	01	1	1205-		●
2	02.483 DIODE; CABLE HARNESS (A) BLACK 2P-1.5A	8-94422-639-1	AR	1	1009-	●	●
2	02.483 DIODE; CABLE HARNESS (B) BLACK 3P-1.5A	8-94422-640-1	AR	1	1009-	●	●
4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	1009-	●	●
5	02.485 FUSE; FACIA HARNESS 10A RED	8-98054-257-0	AR	1	1009-	●	●
5	02.485 FUSE; FACIA HARNESS 15A BLUE	8-98054-258-0	AR	1	1009-	●	●
5	02.485 FUSE; FACIA HARNESS 20A YELLOW	8-98054-259-0	AR	1	1009-	●	●
28	02.483 SCREW; FUSE BOX 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1009-1101	●	●
28	02.483 SCREW; FUSE BOX 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212	●	●
28	02.483 SCREW; FUSE BOX 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●	●
29	02.483 COVER; FUSE BOX	8-98056-968-0	01	1	1009-	●	●
41	08.821 PULLER; FUSE	8-98054-260-0	01	1	1009-	●	●
293	02.559 NUT 01.062 M6 FLANGE	0-91180-106-0	04	1	1009-	●	●
431	02.530 CONNECTOR; JOINT (D) 10P BLUE	1-82699-598-0	01	1	1009-1111	●	●
431	02.530 CONNECTOR; JOINT EURO5 SPECIFICATION(NT5) REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FULLAUTO AIR CONDITIONER(C68) (D) 10P BLUE	1-82699-598-0	01	1	1112-1204	●	●
431	02.530 CONNECTOR; JOINT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO5 SPECIFICATION(NT5) REMOTE CONT DOOR LOCK<6NF> EXC. CAN INTERFACE FMS STD(8PG) (D) 10P BLUE	1-82699-598-0	01	1	1112-1204	●	●
431	02.530 CONNECTOR; JOINT (E) 10P GREEN	1-82699-599-0	01	1	1009-1111	●	●
431	02.530 CONNECTOR; JOINT EURO5 SPECIFICATION(NT5) REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FULLAUTO AIR CONDITIONER(C68) (E) 10P GREEN	1-82699-599-0	01	1	1112-1204	●	●
431	02.530 CONNECTOR; JOINT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO5 SPECIFICATION(NT5) REMOTE CONT DOOR LOCK<6NF> EXC. CAN INTERFACE FMS STD(8PG) (E) 10P GREEN	1-82699-599-0	01	1	1112-1204	●	●
431	02.530 CONNECTOR; JOINT (C) 10P	8-97077-943-0	02	1	1009-1111	●	●
431	02.530 CONNECTOR; JOINT EURO5 SPECIFICATION(NT5) REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FULLAUTO AIR CONDITIONER(C68) (C) 10P	8-97077-943-0	02	1	1112-1204	●	●
431	02.530 CONNECTOR; JOINT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO5 SPECIFICATION(NT5) REMOTE CONT DOOR LOCK<6NF> EXC. CAN INTERFACE FMS STD(8PG) (C) 10P	8-97077-943-0	02	1	1112-1204	●	●
431	02.530 CONNECTOR; JOINT (A)	8-98046-205-0	01	1	1009-	●	●
431	02.530 CONNECTOR; JOINT (B)	8-98046-206-0	01	1	1009-	●	●
453	02.483 PROTECTOR; HARNESS (A)	8-94417-716-0	03	1	1009-1212	●	●
453	02.483 PROTECTOR; HARNESS (A)	8-94417-716-0	02	1	1301-1409	●	●
453	02.483 PROTECTOR; HARNESS (A)	8-94417-716-0	03	1	1410-	●	●
453	02.483 PROTECTOR; HARNESS (E)	8-94452-553-0	01	1	1009-	●	●
453	02.483 PROTECTOR; HARNESS (B)	8-98031-850-1	01	1	1009-	●	●
453	02.483 PROTECTOR; HARNESS (C)	8-98031-851-2	01	1	1009-	●	●
453	02.483 PROTECTOR; HARNESS (D)	8-98034-039-1	01	1	1009-	●	●
479	02.530 CAP; CONNECTOR EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (A)	8-98108-678-0	01	1	1205-	●	●
479	02.530 CAP; CONNECTOR EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (B)	8-98108-679-0	01	1	1205-	●	●
693	02.694 RELAY; FUSE BOX 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	1009-	●	●
694	02.483 BOX ASM; CONNECTOR	8-98057-772-0	01	1	1009-	●	●

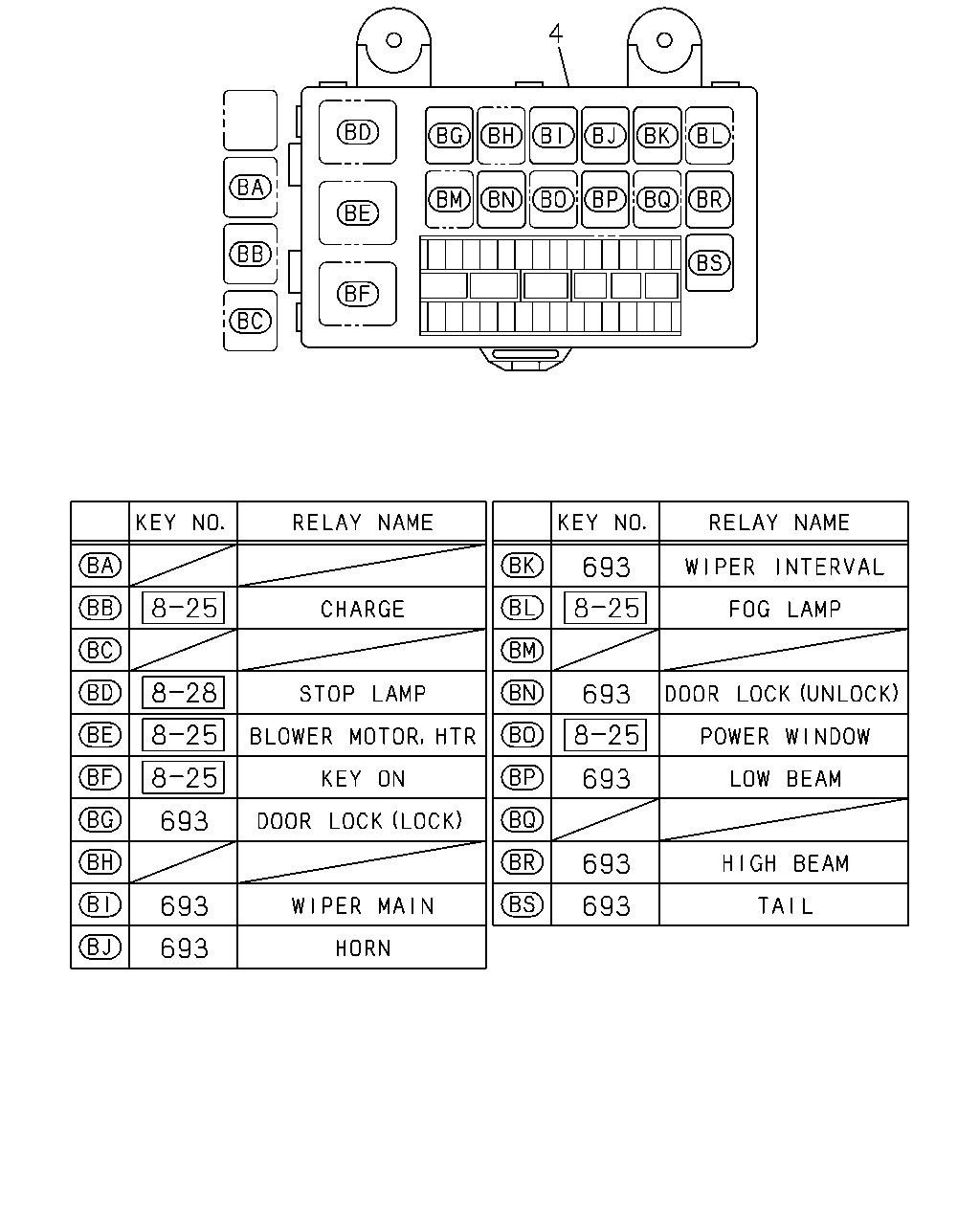

4 693 693 693 693 693 693 693 693

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	1009-	●	●
	693	02.694 RELAY; FUSE BOX 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	1009-	●	●

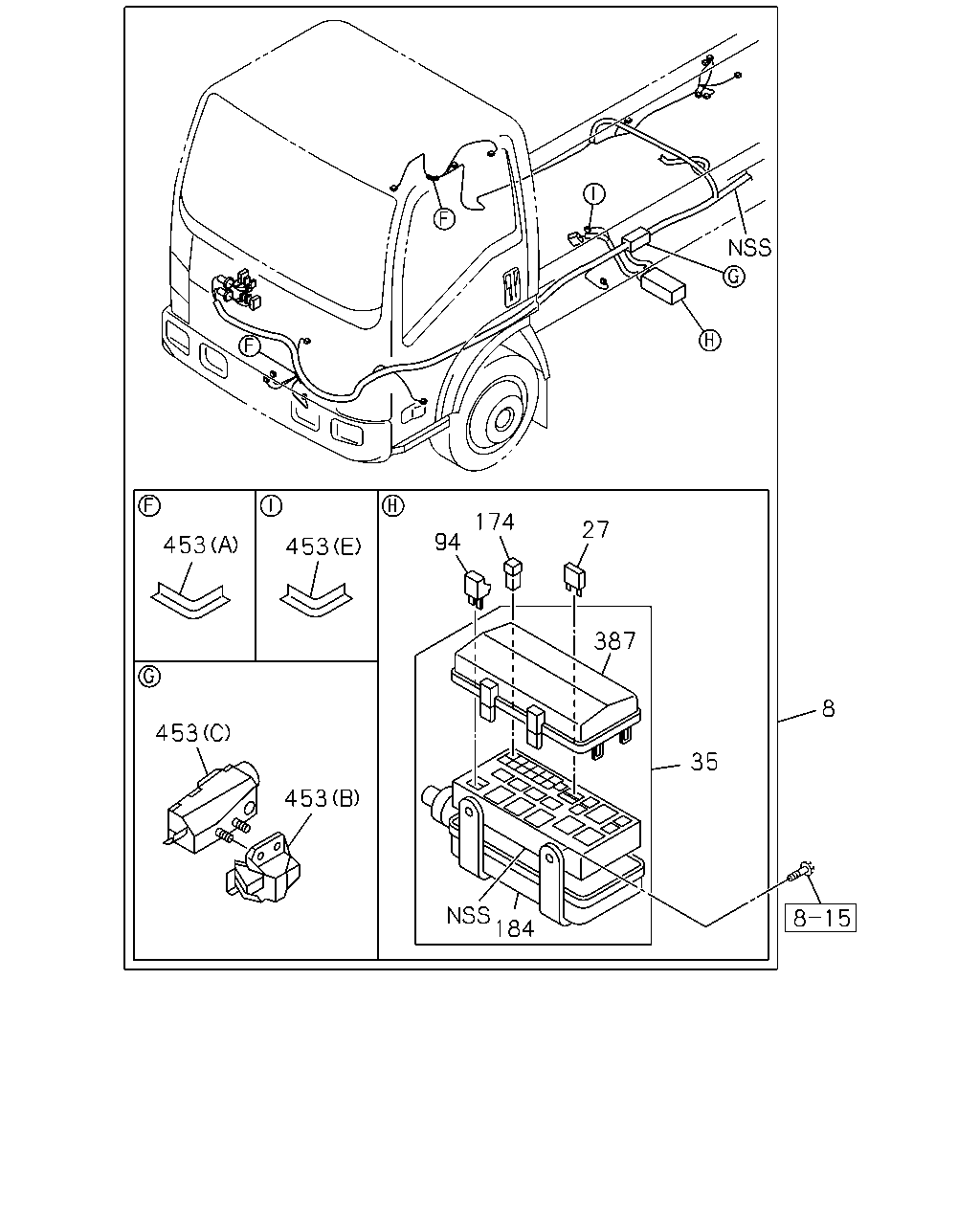

8 35 387 27 174 94 184 453 453 453 453

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	02.480 HARNESS; FRAME,FRT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98139-878-1	01	1	1009-1212	●
8	02.480 HARNESS; FRAME,FRT POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CONTROL LEVER<RC4>	8-98229-517-0	01	1	1301-1301	●
8	02.480 HARNESS; FRAME,FRT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98229-517-0	01	1	1302-1409	●
8	02.480 HARNESS; FRAME,FRT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98294-023-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98139-870-1	01	1	1009-1212	●
8	02.480 HARNESS; FRAME,FRT	8-98139-870-1	01	1	1009-1212		●
8	02.480 HARNESS; FRAME,FRT POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CONTROL LEVER<RC4>	8-98229-515-0	01	1	1301-1301	●
8	02.480 HARNESS; FRAME,FRT POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. DUMP CONTROL LEVER<RC4>	8-98229-515-0	01	1	1301-1301		●
8	02.480 HARNESS; FRAME,FRT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98229-515-0	01	1	1302-1409	●
8	02.480 HARNESS; FRAME,FRT	8-98229-515-0	01	1	1302-1409		●
8	02.480 HARNESS; FRAME,FRT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98294-022-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT	8-98294-022-0	01	1	1410-		●
27	08.965 FUSE UNIT 02.485 10A RED	8-98054-257-0	AR	1	1009-1301	●	●
27	08.965 FUSE UNIT 02.485 10A RED	8-98054-257-0	04	1	1302-	●	●
35	02.530 BOX; RELAY & FUSE	8-98030-763-0	01	1	1009-	●	●
94	02.483 DIODE; FRAME HARNESS BLACK 2P-1.5A	8-94422-639-1	AR	1	1009-1301	●	●
94	02.483 DIODE; FRAME HARNESS BLACK 2P-1.5A	8-94422-639-1	01	1	1302-	●	●
174	08.965 FUSE; SLOW BLOW 30A PINK	8-98079-191-0	AR	1	1009-	●	●
174	08.965 FUSE; SLOW BLOW 40A GREEN	8-98079-192-0	AR	1	1009-	●	●
174	08.965 FUSE; SLOW BLOW 50A RED	8-98079-193-0	AR	1	1009-	●	●
174	08.965 FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	AR	1	1009-	●	●
184	02.559 COVER; RELAY & FUSE BOX	8-98030-766-0	01	1	1009-	●	●
387	02.483 COVER; RELAY BOX	8-98081-367-0	01	1	1009-	●	●
453	02.483 PROTECTOR; HARNESS (A)	8-94417-716-0	03	1	1009-1212	●	●
453	02.483 PROTECTOR; HARNESS (A)	8-94417-716-0	02	1	1301-1409	●	●
453	02.483 PROTECTOR; HARNESS (A)	8-94417-716-0	03	1	1410-	●	●
453	02.483 PROTECTOR; HARNESS (E)	8-94452-553-0	01	1	1009-	●	●
453	02.483 PROTECTOR; HARNESS (B)	8-98031-850-1	01	1	1009-	●	●
453	02.483 PROTECTOR; HARNESS (C)	8-98031-851-2	01	1	1009-	●	●
453	02.483 PROTECTOR; HARNESS (D)	8-98034-039-1	01	1	1009-	●	●

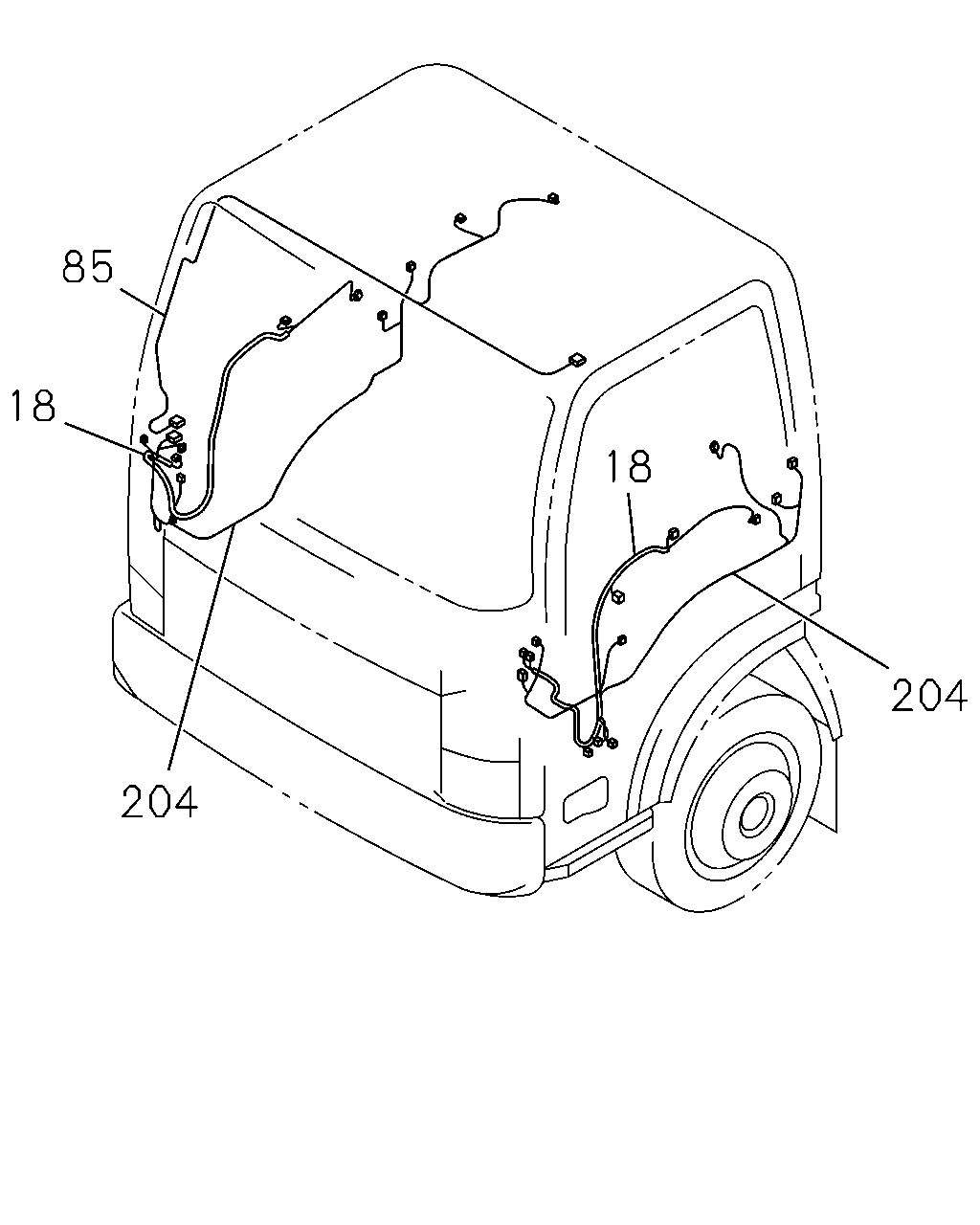

204 18 204 18 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
18	02.480 HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> CORNERING LAMP<T87>	8-98077-590-2	01	1	1301-	●	●
18	02.480 HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> CORNERING LAMP<T87>	8-98077-598-3	01	1	1301-	●	●
18	02.480 HARNESS; DOOR CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98046-746-5	01	1	1301-	●	●
18	02.480 HARNESS; DOOR CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98077-596-3	01	1	1301-	●	●
18	02.480 HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98071-078-2	01	1	1009-1212	●	●
18	02.480 HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. CORNERING LAMP<T87>	8-98071-078-2	01	1	1301-	●	●
18	02.480 HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98071-086-3	01	1	1009-1212	●	●
18	02.480 HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. CORNERING LAMP<T87>	8-98071-086-3	01	1	1301-	●	●
18	02.480 HARNESS; DOOR EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98071-076-2	01	1	1009-1212	●	●
18	02.480 HARNESS; DOOR EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,CORNERING LAMP<T87>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98071-076-2	01	1	1301-	●	●
18	02.480 HARNESS; DOOR EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98071-084-3	01	1	1009-1212	●	●
18	02.480 HARNESS; DOOR EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,CORNERING LAMP<T87>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98071-084-3	01	1	1301-	●	●
85	06.495 HARNESS; ROOM LAMP	8-98049-964-3	01	1	1009-	●	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5> MANUAL TILT CAB<RWZ>	8-98226-303-0	01	1	1301-	●	●
204	02.559 HARNESS; CABLE,FLOOR MANUAL TILT CAB<RWZ> EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-98047-164-4	01	1	1301-	●	●
204	02.559 HARNESS; CABLE,FLOOR TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98070-789-4	01	1	1011-	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98047-156-6	01	1	1009-	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98047-157-6	01	1	1009-	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98047-157-6	01	1	1009-		●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5>	8-98074-592-3	01	1	1009-1212	●	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5> EXC. MANUAL TILT CAB<RWZ>	8-98074-592-3	01	1	1301-	●	●
204	02.559 HARNESS; CABLE,FLOOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98070-787-4	01	1	1009-	●
204	02.559 HARNESS; CABLE,FLOOR EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98070-787-4	01	1	1009-		●
204	02.559 HARNESS; CABLE,FLOOR EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-98070-807-3	01	1	1009-1212	●	●
204	02.559 HARNESS; CABLE,FLOOR EXC. AIR BAG DRIVER & PASSENGER<AK5>, MANUAL TILT CAB<RWZ>	8-98070-807-3	01	1	1301-	●	●

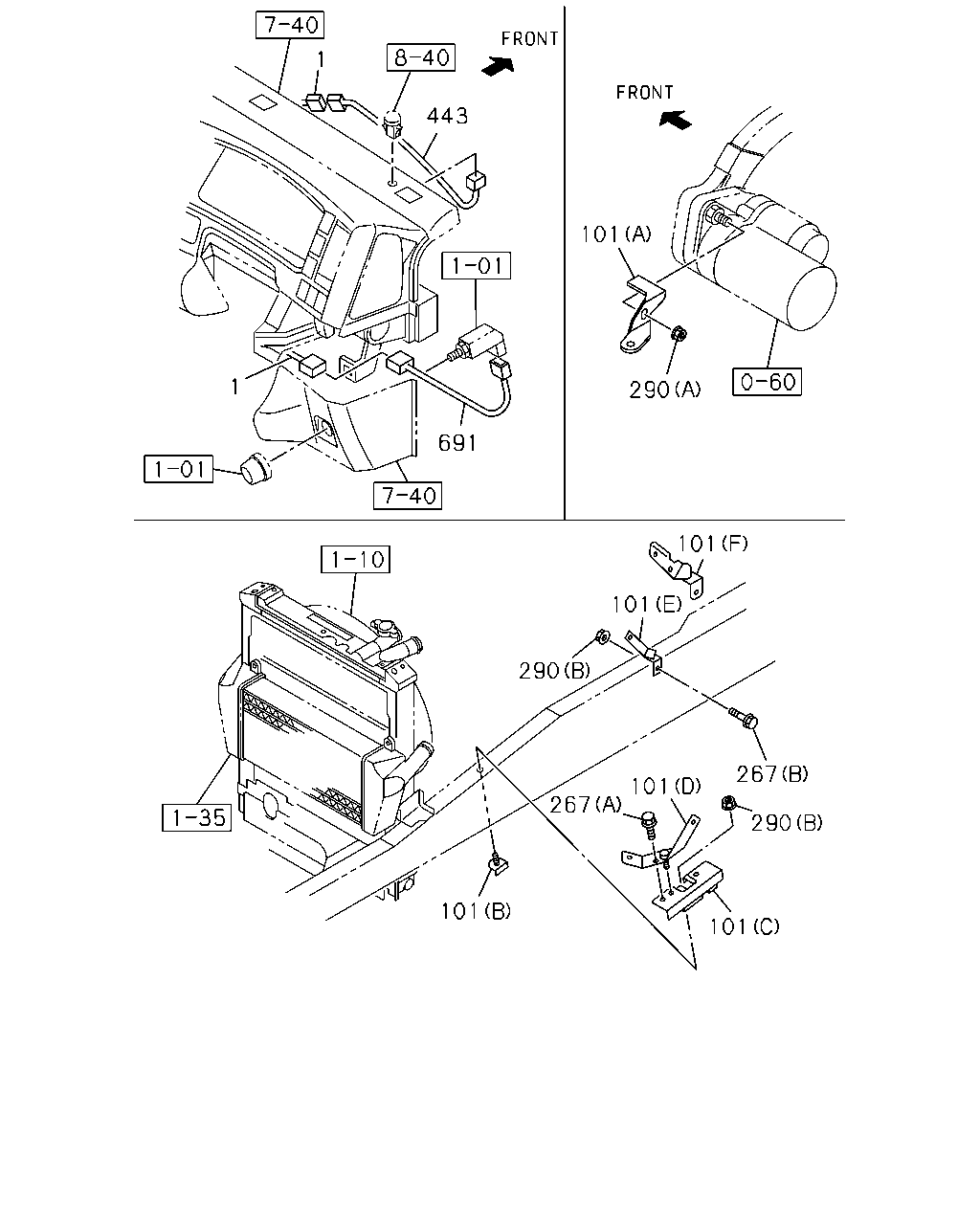

443 1 691 290 101 101 101 290 101 267 267 101 101 290 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) CAN INTERFACE FMS STD(8PG) EXC. H.S.A SYSTEM<6EP>	8-98204-553-0	01	1	1112-1204	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98204-553-0	01	1	1205-1212	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98225-752-1	01	1	1301-1310	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> PTO MANUAL CONTROL(6WC),POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68),H.S.A SYSTEM<6EP>	8-98225-752-1	01	1	1311-	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) CAN INTERFACE FMS STD(8PG) EXC. H.S.A SYSTEM<6EP>	8-98204-554-0	01	1	1112-1204	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98204-554-0	01	1	1205-1212	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98225-753-1	01	1	1301-1310	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) PTO MANUAL CONTROL(6WC),POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. H.S.A SYSTEM<6EP>	8-98225-753-1	01	1	1311-	●
1	02.480 HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CAN INTERFACE FMS STD(8PG)	8-98204-549-0	01	1	1112-1204	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> AIR CONDITIONER MANUAL CONT(C60) CAN INTERFACE FMS STD(8PG)	8-98204-549-0	01	1	1112-1204		●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98204-549-0	01	1	1205-1212	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98204-549-0	01	1	1205-1212		●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98225-748-1	01	1	1301-1310	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98225-748-1	01	1	1301-1310		●
1	02.480 HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> PTO MANUAL CONTROL(6WC),POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98225-748-1	01	1	1311-	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> PTO MANUAL CONTROL(6WC),POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98225-748-1	01	1	1311-		●
1	02.480 HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CAN INTERFACE FMS STD(8PG)	8-98204-550-0	01	1	1112-1204	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) CAN INTERFACE FMS STD(8PG)	8-98204-550-0	01	1	1112-1204		●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98204-550-0	01	1	1205-1212	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68)	8-98204-550-0	01	1	1205-1212		●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98225-749-1	01	1	1301-1310	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68)	8-98225-749-1	01	1	1301-1310		●
1	02.480 HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) PTO MANUAL CONTROL(6WC),POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98225-749-1	01	1	1311-	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) PTO MANUAL CONTROL(6WC),POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98225-749-1	01	1	1311-		●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98121-524-2	01	1	1009-1111	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. CAN INTERFACE FMS STD(8PG)	8-98121-524-2	01	1	1112-1204	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98154-787-0	01	1	1009-1111	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68)	8-98154-787-0	01	1	1009-1111		●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CAN INTERFACE FMS STD(8PG)	8-98154-787-0	01	1	1112-1204	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) EXC. CAN INTERFACE FMS STD(8PG)	8-98154-787-0	01	1	1112-1204		●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98121-523-2	01	1	1009-1111	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68),CAN INTERFACE FMS STD(8PG)	8-98121-523-2	01	1	1112-1204	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98154-786-0	01	1	1009-1111	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98154-786-0	01	1	1009-1111		●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68),CAN INTERFACE FMS STD(8PG)	8-98154-786-0	01	1	1112-1204	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68),CAN INTERFACE FMS STD(8PG)	8-98154-786-0	01	1	1112-1204		●
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FULLAUTO AIR CONDITIONER(C68)	8-98087-338-5	01	1	1009-1204	●
1	02.480 HARNESS; CAB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FULLAUTO AIR CONDITIONER(C68)	8-98087-338-5	01	1	1009-1204		●
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FULLAUTO AIR CONDITIONER(C68)	8-98207-646-0	01	1	1205-	●
1	02.480 HARNESS; CAB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FULLAUTO AIR CONDITIONER(C68)	8-98207-646-0	01	1	1205-		●
101	02.483 BRACKET; HARNESS CONNECTOR (C)	8-98078-070-1	01	1	1009-	●	●
101	02.483 BRACKET; HARNESS CONNECTOR (D)	8-98078-071-1	01	1	1009-	●	●
101	02.483 BRACKET; HARNESS CONNECTOR (E)	8-98079-011-1	01	1	1009-1205	●	●
101	02.483 BRACKET; HARNESS CONNECTOR (F)	8-98217-757-0	01	1	1206-	●	●
101	02.483 BRACKET; HARNESS CONNECTOR (B)	8-98093-465-1	01	1	1009-	●	●
101	02.483 BRACKET; HARNESS CONNECTOR EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.183 (A)	8-98030-725-1	01	1	1009-	●
101	02.483 BRACKET; HARNESS CONNECTOR 02.183 (A)	8-98030-725-1	01	1	1009-		●
267	02.483 BOLT; BRKT 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	1009-	●	●
267	02.483 BOLT; BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1009-	●	●
290	02.483 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1009-	●	●
290	02.483 NUT; BRKT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1009-	●
290	02.483 NUT; BRKT 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1009-		●
443	02.480 HARNESS; EXT,A/C FULLAUTO AIR CONDITIONER(C68)	8-98029-830-0	01	1	1009-	●	●
691	02.480 HARNESS; IDLE CONT SWITCH HIGH IDLE ENGINE SPEED CONTROL<NMT>	8-98049-014-2	01	1	1009-	●	●

441

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
441	02.480 HARNESS; CABLE,SPEED SENSOR 4 WHEEL DISC BRAKE<JF9>	8-98080-696-1	01	1	1301-1308	●
441	02.480 HARNESS; CABLE,SPEED SENSOR 4 WHEEL DISC BRAKE<JF9>	8-98080-696-1	01	1	1309-	●	●
441	02.480 HARNESS; CABLE,SPEED SENSOR REAR WIDE TREAD(V4T)	8-97308-220-4	01	1	1009-1212	●
441	02.480 HARNESS; CABLE,SPEED SENSOR REAR WIDE TREAD(V4T) EXC. 4 WHEEL DISC BRAKE<JF9>	8-97308-220-4	01	1	1301-1308	●
441	02.480 HARNESS; CABLE,SPEED SENSOR REAR WIDE TREAD(V4T) EXC. 4 WHEEL DISC BRAKE<JF9>	8-97308-220-4	01	1	1309-	●	●
441	02.480 HARNESS; CABLE,SPEED SENSOR SUSPENSION - RR UNDER SLUNG<V4U>	8-97308-213-3	01	1	1009-	●
441	02.480 HARNESS; CABLE,SPEED SENSOR	8-97308-214-4	01	1	1009-1308		●
441	02.480 HARNESS; CABLE,SPEED SENSOR SUSPENSION - RR UNDER SLUNG<V4U>	8-97308-214-4	01	1	1309-		●

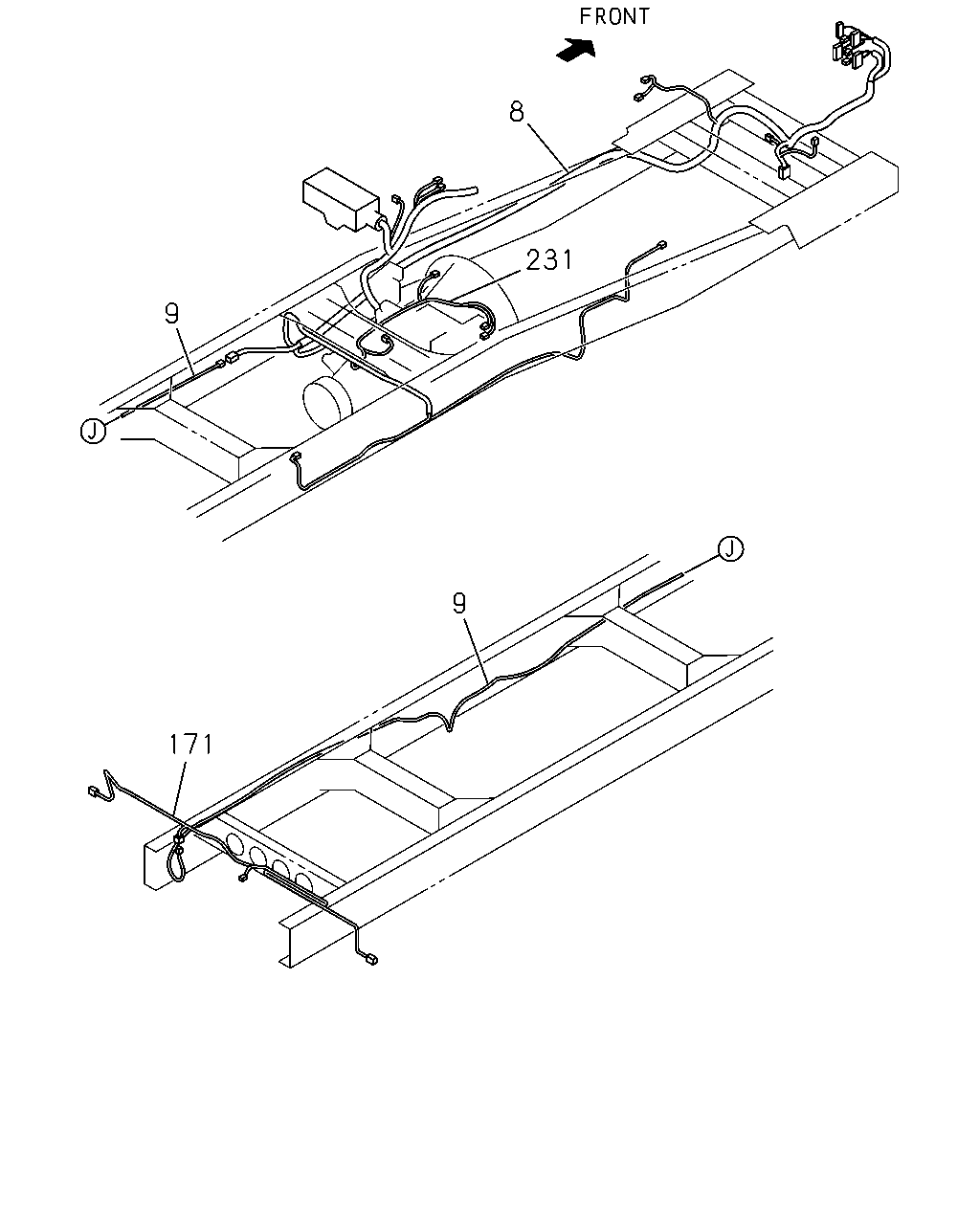

8 9 9 231 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	02.480 HARNESS; FRAME,FRT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98139-878-1	01	1	1009-1212	●
8	02.480 HARNESS; FRAME,FRT POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CONTROL LEVER<RC4>	8-98229-517-0	01	1	1301-1301	●
8	02.480 HARNESS; FRAME,FRT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98229-517-0	01	1	1302-1409	●
8	02.480 HARNESS; FRAME,FRT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98294-023-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98139-870-1	01	1	1009-1212	●
8	02.480 HARNESS; FRAME,FRT	8-98139-870-1	01	1	1009-1212		●
8	02.480 HARNESS; FRAME,FRT POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CONTROL LEVER<RC4>	8-98229-515-0	01	1	1301-1301	●
8	02.480 HARNESS; FRAME,FRT POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. DUMP CONTROL LEVER<RC4>	8-98229-515-0	01	1	1301-1301		●
8	02.480 HARNESS; FRAME,FRT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98229-515-0	01	1	1302-1409	●
8	02.480 HARNESS; FRAME,FRT	8-98229-515-0	01	1	1302-1409		●
8	02.480 HARNESS; FRAME,FRT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98294-022-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT	8-98294-022-0	01	1	1410-		●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 2400MM(24W)	8-98048-414-2	01	1	1009-	●
9	02.480 HARNESS; FRAME,RR	8-98048-414-2	01	1	1009-		●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3300MM(33W)	8-98048-424-1	01	1	1009-	●
171	02.596 HARNESS; CABLE,TAIL LAMP	8-98156-027-0	01	1	1009-	●	●
231	02.480 HARNESS; TRANS TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98029-598-1	01	1	1009-	●

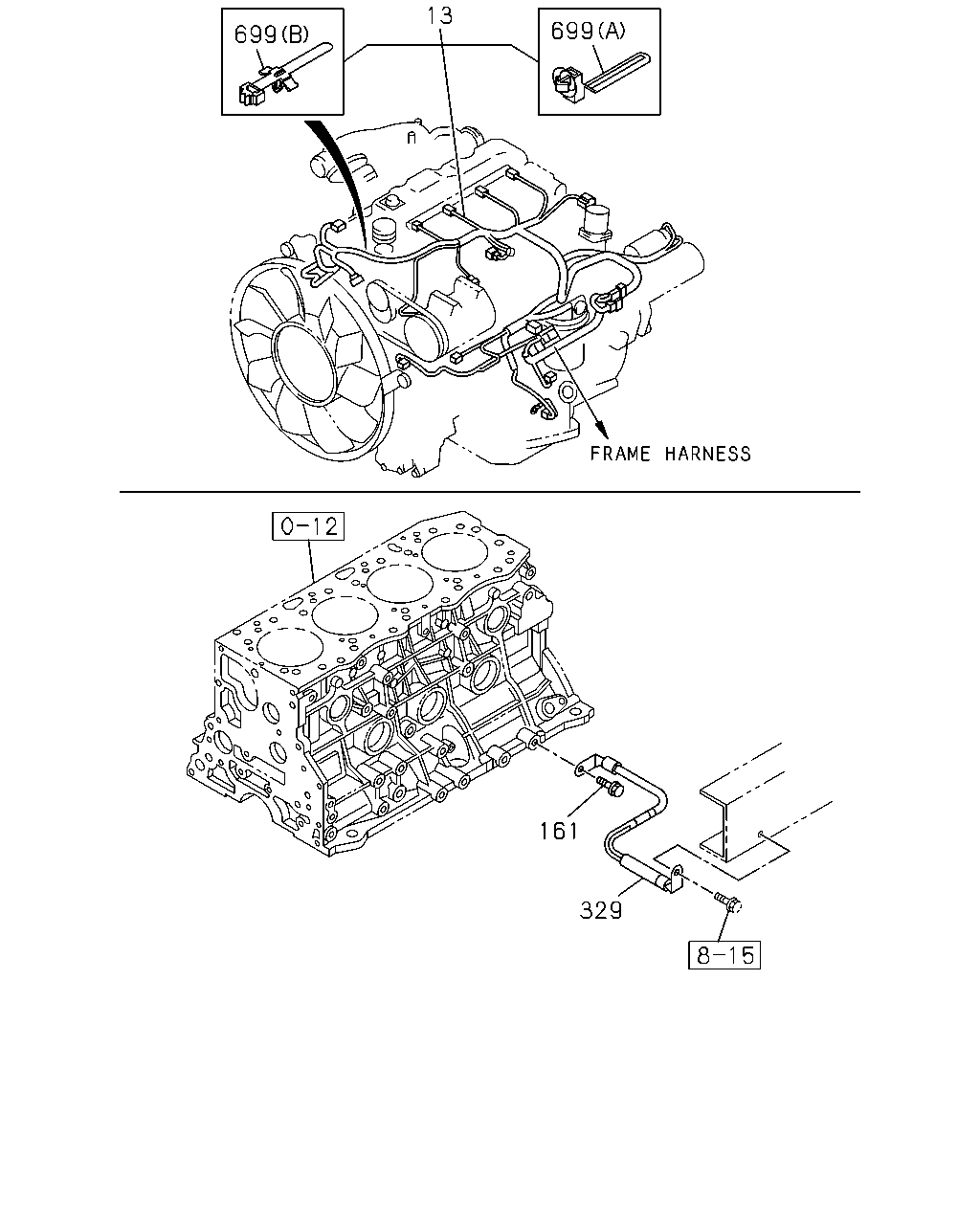

13 699 699 161 329

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	02.525 HARNESS; ENG	8-98147-729-0	01	1	1009-1310	●	●
13	02.525 HARNESS; ENG	8-98244-735-0	01	1	1311-	●	●
161	02.559 BOLT; GROUND,HARNESS 02.483 M10X16 FLANGE	0-28051-016-0	01	1	1009-	●	●
329	02.480 CABLE; ENG TO FRAME	8-98039-854-1	01	1	1009-	●	●
699	02.559 CLIP; ENG HARNESS 04.105 (A) L=140	8-97122-360-0	03	1	1009-1310	●	●
699	02.559 CLIP; ENG HARNESS (B)	8-98088-438-0	01	1	1009-1310	●	●

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

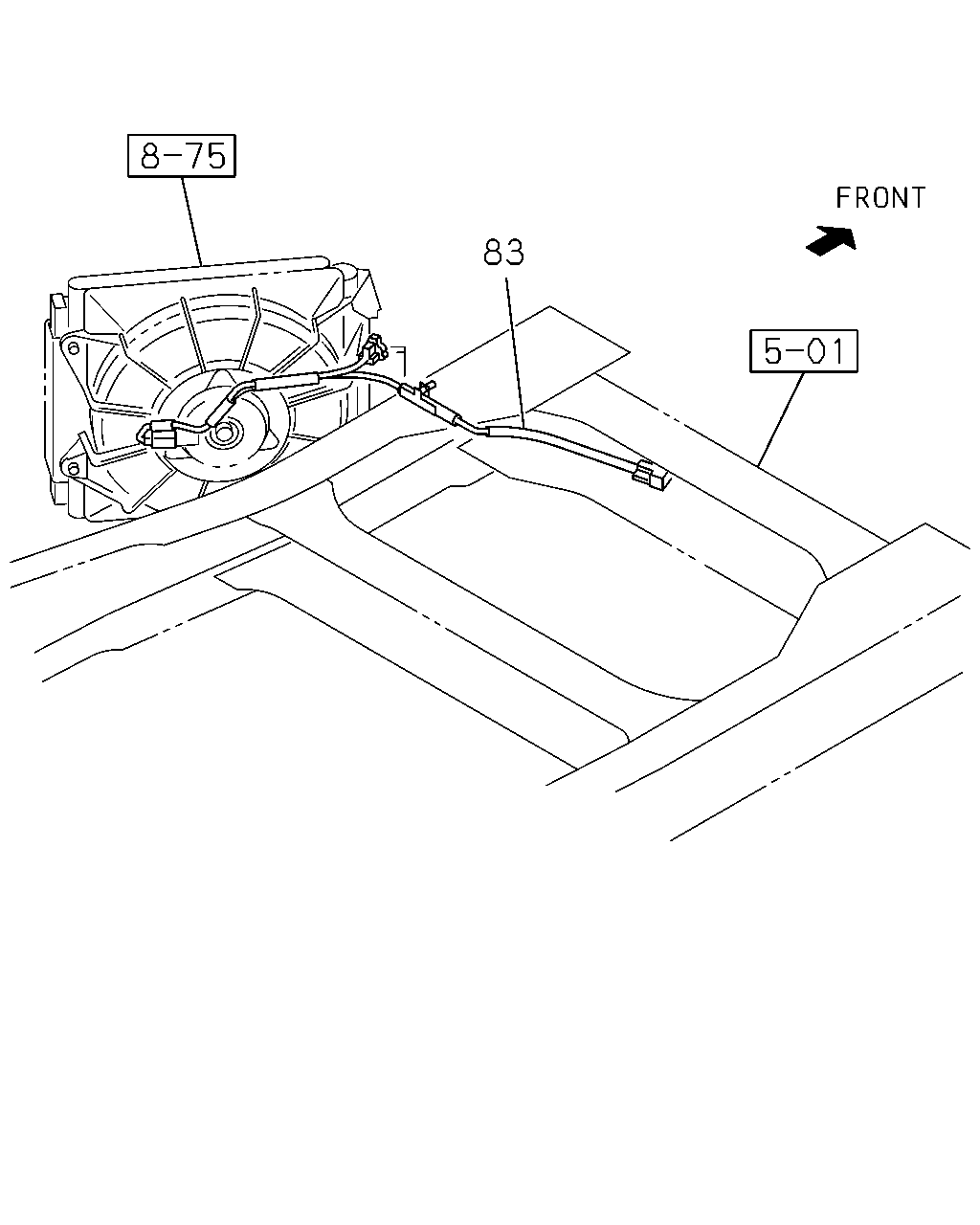

	83	02.480 HARNESS; AIR CONDITIONER AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68)	8-98140-333-2	01	1	1009-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
