Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#78207) — 184 parça

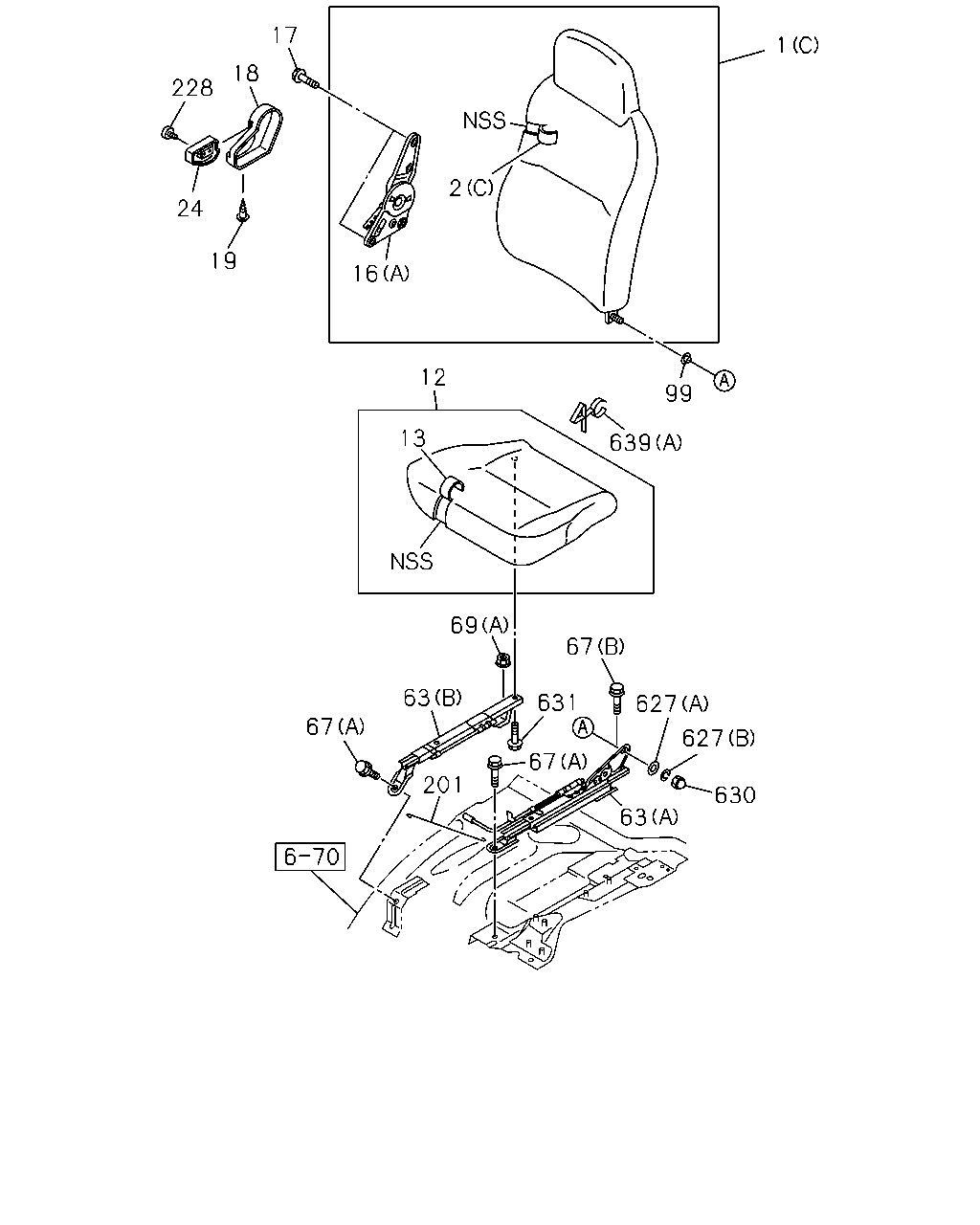

1 99 639 12 13 17 18 228 24 19 69 63 67 631 627 627 630 63 67 201 67 2 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	16.720 BACK ASM; SEAT SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> (A) DARK GRAY	8-97465-593-0	01	1	1504-	●	●
1	16.720 BACK ASM; SEAT SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> (B) DARK GRAY	8-97465-595-1	01	1	1504-	●	●
1	16.720 BACK ASM; SEAT SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORAG E<WN5>,INSPECTION ENGINE COVER<8GA> (C) DARK GRAY	8-97465-003-0	01	1	1409-	●	●
1	16.720 BACK ASM; SEAT (C) DARK GRAY	8-97414-145-5	01	1	1009-1009	●	●
1	16.720 BACK ASM; SEAT (C) DARK GRAY	8-97421-235-1	01	1	1010-1408	●	●
1	16.720 BACK ASM; SEAT EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORAG E<WN5>,SPECIAL PACKAGE<7BB> (C) DARK GRAY	8-97421-235-1	01	1	1409-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> (A) DARK GRAY	8-97466-505-0	01	1	1504-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> (B) DARK GRAY	8-97466-506-0	01	1	1504-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORAG E<WN5>,INSPECTION ENGINE COVER<8GA> (C) DARK GRAY	8-97465-005-0	01	1	1409-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK (C) DARK GRAY	8-97414-146-1	01	1	1009-1009	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK (C) DARK GRAY	8-97421-254-0	01	1	1010-1408	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORAG E<WN5>,SPECIAL PACKAGE<7BB> (C) DARK GRAY	8-97421-254-0	01	1	1409-	●	●
12	16.670 CUSHION; SEAT,FRT SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97465-596-1	01	1	1504-	●	●
12	16.670 CUSHION; SEAT,FRT SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORAG E<WN5>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97465-007-0	01	1	1409-	●	●
12	16.670 CUSHION; SEAT,FRT INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-150-1	01	1	1009-1009	●	●
12	16.670 CUSHION; SEAT,FRT INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-248-1	01	1	1010-1408	●	●
12	16.670 CUSHION; SEAT,FRT INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORAG E<WN5>,SPECIAL PACKAGE<7BB> DARK GRAY	8-97421-248-1	01	1	1409-	●	●
12	16.670 CUSHION; SEAT,FRT EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-252-1	01	1	1009-1009	●	●
12	16.670 CUSHION; SEAT,FRT EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-241-1	01	1	1010-1408	●	●
12	16.670 CUSHION; SEAT,FRT EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORAG E<WN5>,SPECIAL PACKAGE<7BB>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-241-1	01	1	1409-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORAG E<WN5>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97465-013-0	01	1	1409-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-151-1	01	1	1009-1009	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-268-1	01	1	1010-1408	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORAG E<WN5>,SPECIAL PACKAGE<7BB> DARK GRAY	8-97421-268-1	01	1	1409-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-260-0	01	1	1009-1009	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-260-1	01	1	1010-1408	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORAG E<WN5>,SPECIAL PACKAGE<7BB>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-260-1	01	1	1409-	●	●
16	16.682 ADJUSTER ASM; RECLINING (B) BLACK	8-97859-273-3	01	1	1009-1408	●	●
16	16.682 ADJUSTER ASM; RECLINING SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> (B) BLACK	8-97859-273-3	01	1	1409-	●	●
16	16.682 ADJUSTER ASM; RECLINING EXC. SPECIAL PACKAGE<7BB> (B) BLACK	8-97859-273-3	01	1	1409-	●	●
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98003-087-1	01	1	1009-	●	●
17	16.682 BOLT; RECLINING M10X20	8-98062-661-0	04	1	1009-	●	●
18	16.682 COVER; RECLINING SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97465-598-0	01	1	1504-	●	●
18	16.682 COVER; RECLINING GRAY	8-97409-332-0	01	1	1009-1408	●	●
18	16.682 COVER; RECLINING SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORAG E<WN5>,INSPECTION ENGINE COVER<8GA> GRAY	8-97409-332-0	01	1	1409-	●	●
18	16.682 COVER; RECLINING EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORAG E<WN5>,SPECIAL PACKAGE<7BB> GRAY	8-97409-332-0	01	1	1409-	●	●
19	16.686 SCREW; COVER SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA>	8-98315-974-0	01	1	1504-	●	●
19	16.686 SCREW; COVER M5	8-98062-663-0	01	1	1009-1408	●	●
19	16.686 SCREW; COVER SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORAG E<WN5>,INSPECTION ENGINE COVER<8GA> M5	8-98062-663-0	01	1	1409-	●	●
19	16.686 SCREW; COVER EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORAG E<WN5>,SPECIAL PACKAGE<7BB> M5	8-98062-663-0	01	1	1409-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT GRAY	8-97409-333-0	01	1	1009-	●	●
63	16.682 ADJUSTER; SEAT SLIDE SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> (A) INNER	8-98306-527-0	01	1	1504-	●	●
63	16.682 ADJUSTER; SEAT SLIDE (A) INNER	8-97382-800-2	01	1	1009-1408	●	●
63	16.682 ADJUSTER; SEAT SLIDE SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORAG E<WN5>,INSPECTION ENGINE COVER<8GA> (A) INNER	8-97382-800-2	01	1	1409-	●	●
63	16.682 ADJUSTER; SEAT SLIDE EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORAG E<WN5>,SPECIAL PACKAGE<7BB> (A) INNER	8-97382-800-2	01	1	1409-	●	●
63	16.682 ADJUSTER; SEAT SLIDE (B) OUTER	8-97382-801-1	01	1	1009-	●	●
67	16.682 BOLT; FRT SEAT TO BODY (A) M10X20 FLANGE	8-98055-941-0	02	1	1009-	●	●
67	16.682 BOLT; FRT SEAT TO BODY (B) M10X30 FLANGE	8-98055-942-0	01	1	1009-	●	●
69	16.682 NUT; FRT SEAT SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> (B)	8-98286-362-0	06	1	1504-	●	●
69	16.682 NUT; FRT SEAT (A) M10 FLANGE	8-98055-961-0	01	1	1009-	●	●
99	16.716 BUSHING; SEAT BACK	8-98112-751-0	01	1	1009-	●	●
201	16.682 CABLE; ADJ	8-98003-086-1	01	1	1009-	●	●
228	16.714 SCREW; KNOB M4	8-98062-662-0	01	1	1009-	●	●
627	16.682 WASHER; FRT SEAT (A)	8-98063-223-0	01	1	1009-	●	●
627	16.682 WASHER; FRT SEAT (B)	8-98063-224-0	01	1	1009-	●	●
630	16.682 NUT; CAP M8	8-98063-225-0	01	1	1009-	●	●
631	16.682 BOLT; ADJ,SEAT SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> M8X18	8-94279-109-1	03	1	1504-	●	●
631	16.682 BOLT; ADJ,SEAT SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> M8X25 W/LK WASHER	8-98062-658-0	01	1	1504-	●	●
631	16.682 BOLT; ADJ,SEAT M8X25 W/LK WASHER	8-98062-658-0	02	1	1009-1408	●	●
631	16.682 BOLT; ADJ,SEAT SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORAG E<WN5>,INSPECTION ENGINE COVER<8GA> M8X25 W/LK WASHER	8-98062-658-0	02	1	1409-	●	●
631	16.682 BOLT; ADJ,SEAT EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORAG E<WN5>,SPECIAL PACKAGE<7BB> M8X25 W/LK WASHER	8-98062-658-0	02	1	1409-	●	●
631	16.682 BOLT; ADJ,SEAT M8X32 W/LK WASHER	8-98062-659-0	02	1	1009-1408	●	●
631	16.682 BOLT; ADJ,SEAT SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORAG E<WN5>,INSPECTION ENGINE COVER<8GA> M8X32 W/LK WASHER	8-98062-659-0	02	1	1409-	●	●
631	16.682 BOLT; ADJ,SEAT EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORAG E<WN5>,SPECIAL PACKAGE<7BB> M8X32 W/LK WASHER	8-98062-659-0	02	1	1409-	●	●
639	16.679 CLIP; SEAT SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> (B)	8-98315-960-0	02	1	1504-	●	●
639	16.679 CLIP; SEAT INSPECTION ENGINE COVER<8GA> (A)	8-98097-693-0	01	1	1009-1408	●	●
639	16.679 CLIP; SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORAG E<WN5>,SPECIAL PACKAGE<7BB> (A)	8-98097-693-0	01	1	1409-	●	●

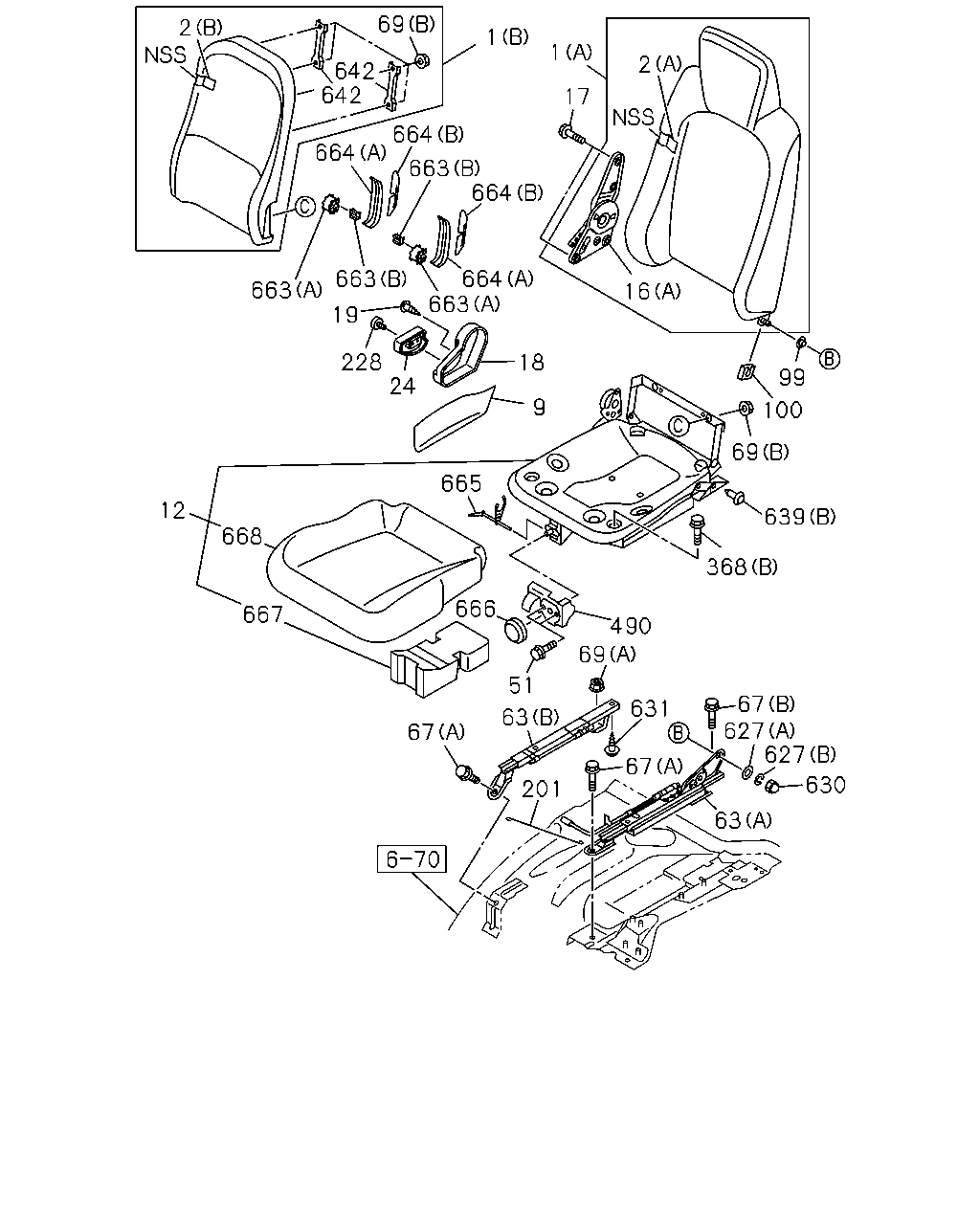

1 1 17 2 16 69 642 642 664 664 664 663 2 663 663 19 228 24 663 664 18 9 99 100 69 639 368 490 69 666 665 668 12 667 67 63 631 67 201 67 627 627 630 63 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	16.720 BACK ASM; SEAT SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> (A) DARK GRAY	8-97465-593-0	01	1	1504-	●	●
1	16.720 BACK ASM; SEAT SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> (B) DARK GRAY	8-97465-595-1	01	1	1504-	●	●
1	16.720 BACK ASM; SEAT SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORAG E<WN5>,INSPECTION ENGINE COVER<8GA> (C) DARK GRAY	8-97465-003-0	01	1	1409-	●	●
1	16.720 BACK ASM; SEAT (C) DARK GRAY	8-97414-145-5	01	1	1009-1009	●	●
1	16.720 BACK ASM; SEAT (C) DARK GRAY	8-97421-235-1	01	1	1010-1408	●	●
1	16.720 BACK ASM; SEAT EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORAG E<WN5>,SPECIAL PACKAGE<7BB> (C) DARK GRAY	8-97421-235-1	01	1	1409-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> (A) DARK GRAY	8-97466-505-0	01	1	1504-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> (B) DARK GRAY	8-97466-506-0	01	1	1504-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORAG E<WN5>,INSPECTION ENGINE COVER<8GA> (C) DARK GRAY	8-97465-005-0	01	1	1409-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK (C) DARK GRAY	8-97414-146-1	01	1	1009-1009	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK (C) DARK GRAY	8-97421-254-0	01	1	1010-1408	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORAG E<WN5>,SPECIAL PACKAGE<7BB> (C) DARK GRAY	8-97421-254-0	01	1	1409-	●	●
9	16.682 COVER; SIDE SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97465-600-0	01	1	1504-	●	●
12	16.670 CUSHION; SEAT,FRT SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97465-596-1	01	1	1504-	●	●
12	16.670 CUSHION; SEAT,FRT SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORAG E<WN5>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97465-007-0	01	1	1409-	●	●
12	16.670 CUSHION; SEAT,FRT INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-150-1	01	1	1009-1009	●	●
12	16.670 CUSHION; SEAT,FRT INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-248-1	01	1	1010-1408	●	●
12	16.670 CUSHION; SEAT,FRT INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORAG E<WN5>,SPECIAL PACKAGE<7BB> DARK GRAY	8-97421-248-1	01	1	1409-	●	●
12	16.670 CUSHION; SEAT,FRT EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-252-1	01	1	1009-1009	●	●
12	16.670 CUSHION; SEAT,FRT EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-241-1	01	1	1010-1408	●	●
12	16.670 CUSHION; SEAT,FRT EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORAG E<WN5>,SPECIAL PACKAGE<7BB>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-241-1	01	1	1409-	●	●
16	16.682 ADJUSTER ASM; RECLINING (B) BLACK	8-97859-273-3	01	1	1009-1408	●	●
16	16.682 ADJUSTER ASM; RECLINING SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> (B) BLACK	8-97859-273-3	01	1	1409-	●	●
16	16.682 ADJUSTER ASM; RECLINING EXC. SPECIAL PACKAGE<7BB> (B) BLACK	8-97859-273-3	01	1	1409-	●	●
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98003-087-1	01	1	1009-	●	●
17	16.682 BOLT; RECLINING M10X20	8-98062-661-0	04	1	1009-	●	●
18	16.682 COVER; RECLINING SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97465-598-0	01	1	1504-	●	●
18	16.682 COVER; RECLINING GRAY	8-97409-332-0	01	1	1009-1408	●	●
18	16.682 COVER; RECLINING SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORAG E<WN5>,INSPECTION ENGINE COVER<8GA> GRAY	8-97409-332-0	01	1	1409-	●	●
18	16.682 COVER; RECLINING EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORAG E<WN5>,SPECIAL PACKAGE<7BB> GRAY	8-97409-332-0	01	1	1409-	●	●
19	16.686 SCREW; COVER SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA>	8-98315-974-0	01	1	1504-	●	●
19	16.686 SCREW; COVER M5	8-98062-663-0	01	1	1009-1408	●	●
19	16.686 SCREW; COVER SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORAG E<WN5>,INSPECTION ENGINE COVER<8GA> M5	8-98062-663-0	01	1	1409-	●	●
19	16.686 SCREW; COVER EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORAG E<WN5>,SPECIAL PACKAGE<7BB> M5	8-98062-663-0	01	1	1409-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT GRAY	8-97409-333-0	01	1	1009-	●	●
51	16.686 SCREW; COVER SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA>	8-98315-974-0	02	1	1504-	●	●
63	16.682 ADJUSTER; SEAT SLIDE SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> (A) INNER	8-98306-527-0	01	1	1504-	●	●
63	16.682 ADJUSTER; SEAT SLIDE (A) INNER	8-97382-800-2	01	1	1009-1408	●	●
63	16.682 ADJUSTER; SEAT SLIDE SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORAG E<WN5>,INSPECTION ENGINE COVER<8GA> (A) INNER	8-97382-800-2	01	1	1409-	●	●
63	16.682 ADJUSTER; SEAT SLIDE EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORAG E<WN5>,SPECIAL PACKAGE<7BB> (A) INNER	8-97382-800-2	01	1	1409-	●	●
63	16.682 ADJUSTER; SEAT SLIDE (B) OUTER	8-97382-801-1	01	1	1009-	●	●
67	16.682 BOLT; FRT SEAT TO BODY (A) M10X20 FLANGE	8-98055-941-0	02	1	1009-	●	●
67	16.682 BOLT; FRT SEAT TO BODY (B) M10X30 FLANGE	8-98055-942-0	01	1	1009-	●	●
69	16.682 NUT; FRT SEAT SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> (B)	8-98286-362-0	06	1	1504-	●	●
69	16.682 NUT; FRT SEAT (A) M10 FLANGE	8-98055-961-0	01	1	1009-	●	●
99	16.716 BUSHING; SEAT BACK	8-98112-751-0	01	1	1009-	●	●
100	16.686 COVER; HINGE SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA>	8-98315-969-0	01	1	1504-	●	●
201	16.682 CABLE; ADJ	8-98003-086-1	01	1	1009-	●	●
228	16.714 SCREW; KNOB M4	8-98062-662-0	01	1	1009-	●	●
368	16.682 BOLT; SEAT SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> (B)	8-98315-986-0	06	1	1504-	●	●
368	16.682 BOLT; SEAT 16.320 (A) M8X24.5 W/LK&PL WASHER	8-94279-217-0	01	1	1009-1408	●	●
368	16.682 BOLT; SEAT SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> 16.320 (A) M8X24.5 W/LK&PL WASHER	8-94279-217-0	01	1	1409-	●	●
368	16.682 BOLT; SEAT EXC. SPECIAL PACKAGE<7BB> 16.320 (A) M8X24.5 W/LK&PL WASHER	8-94279-217-0	01	1	1409-	●	●
490	16.682 COVER; FRONT SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97465-602-0	01	1	1504-	●	●
627	16.682 WASHER; FRT SEAT (A)	8-98063-223-0	01	1	1009-	●	●
627	16.682 WASHER; FRT SEAT (B)	8-98063-224-0	01	1	1009-	●	●
630	16.682 NUT; CAP M8	8-98063-225-0	01	1	1009-	●	●
631	16.682 BOLT; ADJ,SEAT SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> M8X18	8-94279-109-1	03	1	1504-	●	●
631	16.682 BOLT; ADJ,SEAT SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> M8X25 W/LK WASHER	8-98062-658-0	01	1	1504-	●	●
631	16.682 BOLT; ADJ,SEAT M8X25 W/LK WASHER	8-98062-658-0	02	1	1009-1408	●	●
631	16.682 BOLT; ADJ,SEAT SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORAG E<WN5>,INSPECTION ENGINE COVER<8GA> M8X25 W/LK WASHER	8-98062-658-0	02	1	1409-	●	●
631	16.682 BOLT; ADJ,SEAT EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORAG E<WN5>,SPECIAL PACKAGE<7BB> M8X25 W/LK WASHER	8-98062-658-0	02	1	1409-	●	●
631	16.682 BOLT; ADJ,SEAT M8X32 W/LK WASHER	8-98062-659-0	02	1	1009-1408	●	●
631	16.682 BOLT; ADJ,SEAT SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORAG E<WN5>,INSPECTION ENGINE COVER<8GA> M8X32 W/LK WASHER	8-98062-659-0	02	1	1409-	●	●
631	16.682 BOLT; ADJ,SEAT EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORAG E<WN5>,SPECIAL PACKAGE<7BB> M8X32 W/LK WASHER	8-98062-659-0	02	1	1409-	●	●
639	16.679 CLIP; SEAT SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> (B)	8-98315-960-0	02	1	1504-	●	●
639	16.679 CLIP; SEAT INSPECTION ENGINE COVER<8GA> (A)	8-98097-693-0	01	1	1009-1408	●	●
639	16.679 CLIP; SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORAG E<WN5>,SPECIAL PACKAGE<7BB> (A)	8-98097-693-0	01	1	1409-	●	●
642	16.716 SLIDER; CUSHION SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA>	8-98315-971-0	02	1	1504-	●	●
663	16.724 GEAR; SLIDE, SEATBACK SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-98286-369-0	02	1	1504-	●	●
663	16.724 GEAR; SLIDE, SEATBACK SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> (B)	8-98286-370-0	02	1	1504-	●	●
664	16.724 COVER; SLIDE, SEATBACK SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-98286-363-0	02	1	1504-	●	●
664	16.724 COVER; SLIDE, SEATBACK SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> (B)	8-98286-364-0	02	1	1504-	●	●
665	16.716 GAGE; WEIGHT,SEAT SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA>	8-98286-371-0	01	1	1504-	●	●
666	16.716 DIAL; WEIGHT GAGE SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA>	8-98286-375-0	01	1	1504-	●	●
667	16.716 PAD; SEAT SUSPENSION SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA>	8-98315-951-0	01	1	1504-	●	●
668	16.716 TRIM COVER & PAD; SEAT CUSHION SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA>	8-97466-589-0	01	1	1504-	●	●

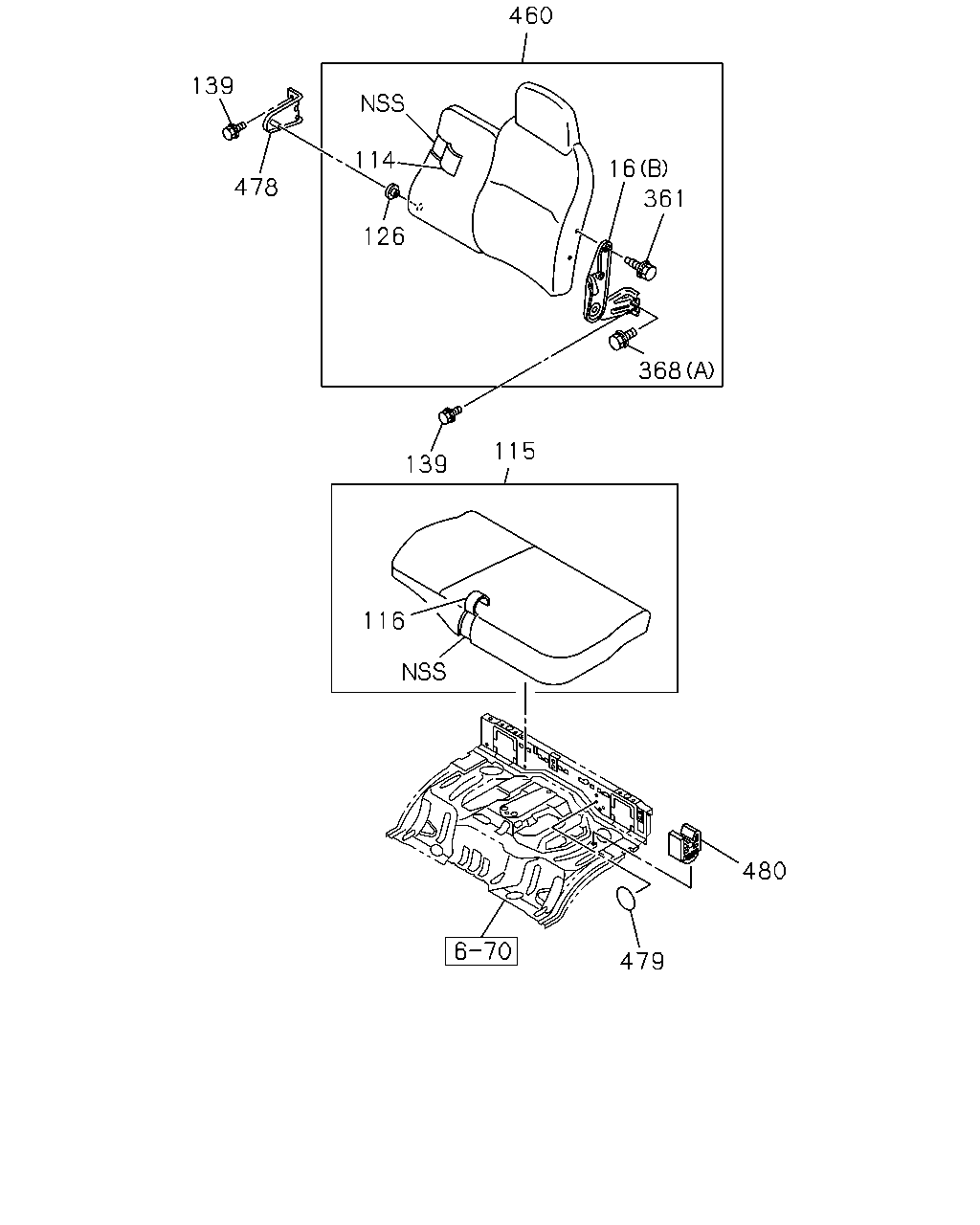

460 114 126 16 361 368 478 139 139 115 116 479 480

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	16.682 ADJUSTER ASM; RECLINING (B) BLACK	8-97859-273-3	01	1	1009-1408	●	●
16	16.682 ADJUSTER ASM; RECLINING SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> (B) BLACK	8-97859-273-3	01	1	1409-	●	●
16	16.682 ADJUSTER ASM; RECLINING EXC. SPECIAL PACKAGE<7BB> (B) BLACK	8-97859-273-3	01	1	1409-	●	●
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98003-087-1	01	1	1009-	●	●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97427-885-0	01	1	1409-	●	●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK DARK GRAY	8-97409-280-1	01	1	1009-1009	●	●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK DARK GRAY	8-97421-288-1	01	1	1010-1408	●	●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK EXC. SPECIAL PACKAGE<7BB> DARK GRAY	8-97421-288-1	01	1	1409-	●	●
115	16.720 CUSHION ASM; PASSENGER SEAT SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97427-896-0	01	1	1409-	●	●
115	16.720 CUSHION ASM; PASSENGER SEAT INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-271-0	01	1	1009-1009	●	●
115	16.720 CUSHION ASM; PASSENGER SEAT INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-317-1	01	1	1010-1408	●	●
115	16.720 CUSHION ASM; PASSENGER SEAT INSPECTION ENGINE COVER<8GA> EXC. SPECIAL PACKAGE<7BB> DARK GRAY	8-97421-317-2	01	1	1409-	●	●
115	16.720 CUSHION ASM; PASSENGER SEAT EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-270-0	01	1	1009-1009	●	●
115	16.720 CUSHION ASM; PASSENGER SEAT EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-315-0	01	1	1010-1408	●	●
115	16.720 CUSHION ASM; PASSENGER SEAT EXC. SPECIAL PACKAGE<7BB>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-315-1	01	1	1409-	●	●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97427-905-0	01	1	1409-	●	●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-286-0	01	1	1009-1009	●	●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-337-0	01	1	1010-1408	●	●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI INSPECTION ENGINE COVER<8GA> EXC. SPECIAL PACKAGE<7BB> DARK GRAY	8-97421-337-1	01	1	1409-	●	●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-285-0	01	1	1009-1009	●	●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-335-0	01	1	1010-1408	●	●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI EXC. SPECIAL PACKAGE<7BB>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-335-1	01	1	1409-	●	●
126	16.686 BUSHING; HINGE,RECLINING	8-98069-558-0	01	1	1009-1408	●	●
126	16.686 BUSHING; HINGE,RECLINING SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA>	8-98069-558-0	01	1	1409-	●	●
126	16.686 BUSHING; HINGE,RECLINING EXC. SPECIAL PACKAGE<7BB>	8-98069-558-0	01	1	1409-	●	●
139	16.679 BOLT; PASSENGER SEAT M8X20 W/PL WASHER	8-98031-841-0	03	1	1009-	●	●
361	16.682 BOLT; ADJ,RECLINING M8X18	8-94279-109-1	02	1	1009-1408	●	●
361	16.682 BOLT; ADJ,RECLINING SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> M8X18	8-94279-109-1	02	1	1409-	●	●
361	16.682 BOLT; ADJ,RECLINING EXC. SPECIAL PACKAGE<7BB> M8X18	8-94279-109-1	02	1	1409-	●	●
368	16.682 BOLT; SEAT SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> (B)	8-98315-986-0	06	1	1504-	●	●
368	16.682 BOLT; SEAT 16.320 (A) M8X24.5 W/LK&PL WASHER	8-94279-217-0	01	1	1009-1408	●	●
368	16.682 BOLT; SEAT SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> 16.320 (A) M8X24.5 W/LK&PL WASHER	8-94279-217-0	01	1	1409-	●	●
368	16.682 BOLT; SEAT EXC. SPECIAL PACKAGE<7BB> 16.320 (A) M8X24.5 W/LK&PL WASHER	8-94279-217-0	01	1	1409-	●	●
460	16.670 BACK ASM; PASSENGER SEAT SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97427-881-0	01	1	1409-	●	●
460	16.670 BACK ASM; PASSENGER SEAT DARK GRAY	8-97406-335-5	01	1	1009-1009	●	●
460	16.670 BACK ASM; PASSENGER SEAT DARK GRAY	8-97421-275-2	01	1	1010-1408	●	●
460	16.670 BACK ASM; PASSENGER SEAT EXC. SPECIAL PACKAGE<7BB> DARK GRAY	8-97421-275-2	01	1	1409-	●	●
478	16.716 BRACKET ASM; HINGE,PASSENGER SEA	8-97868-186-0	01	1	1009-	●	●
479	16.716 PLUG; HINGE 16.165 OD=25 BLACK	1-76798-019-0	02	1	1009-	●	●
480	16.716 CLIP; CUSHION	8-94279-977-0	05	1	1009-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
