◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51275 - NLR/NMR(85) AUST/NZ EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-43 - SUN VISOR AND ASSIST GRIP ▶
7-43 — SUN VISOR AND ASSIST GRIP (#78206) — 61 parça

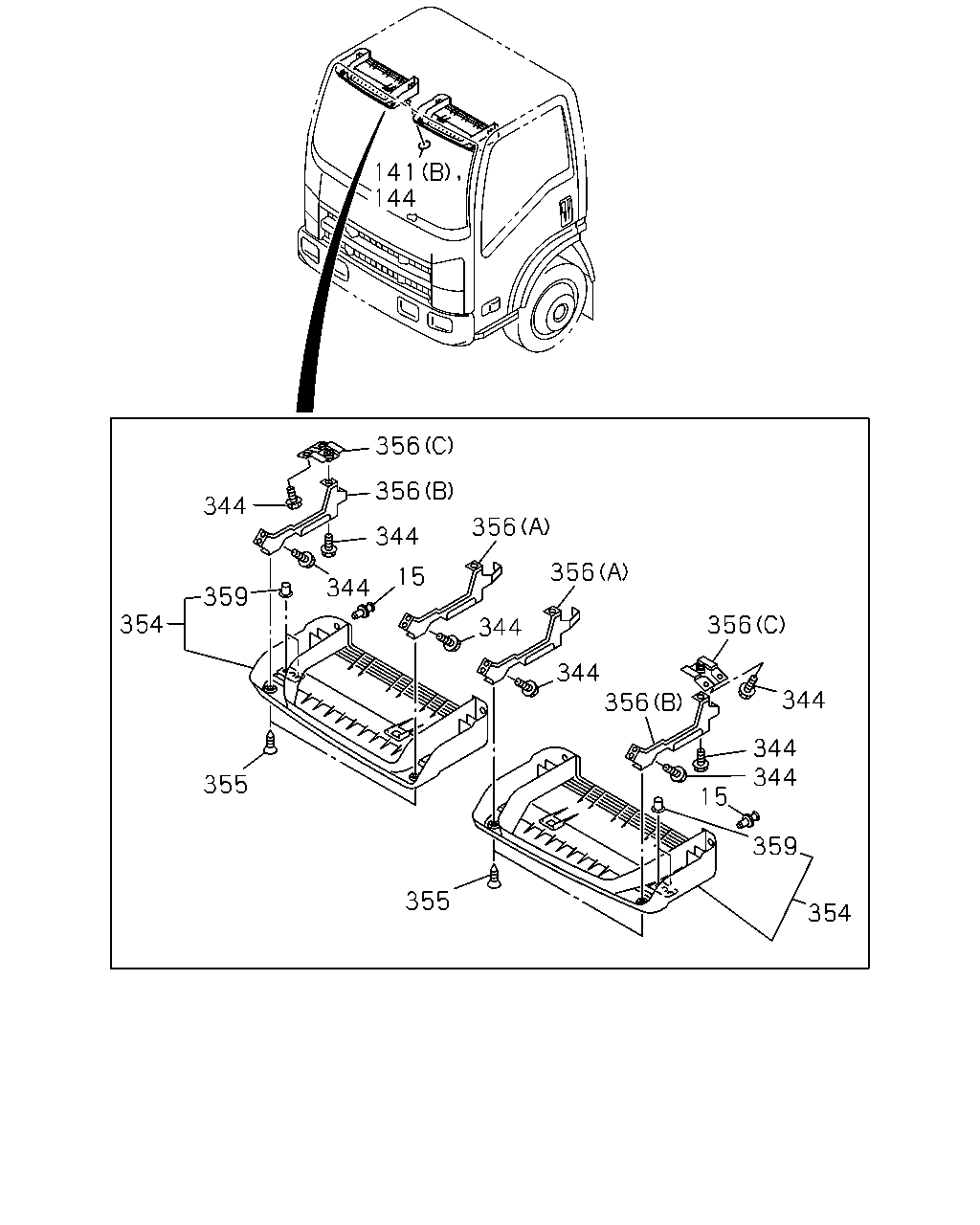

çizim 133244
141 144 356 356 344 344 344 359 354 15 355 356 344 356 356 344 356 355 344 344 344 359 354 15
BalonParca AdiParca NoAdetTipApplied Date A B
15 16.742 FASTENER; HEADER SHELF BOARD
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97406-299-0 02 1 1009- ● ●
15 16.742 FASTENER; HEADER SHELF BOARD
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97406-299-0 02 1 1009- ● ●
141 16.070 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (A) L=66 B=30 DARK GRAY 		8-97408-029-0 01 1 1009- ● ●
141 16.070 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (B) OD=30 T=0.05 DARK GRAY 		8-97408-030-0 01 1 1009- ● ●
141 16.070 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 1009- ● ●
141 16.070 COVER; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>, INTERIOR TRIM-FULL TRIMMING<WM3>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 1009- ● ●
141 16.070 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 1009- ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR EBONY BLACK(508),BODY COLOR ALGRAY(517),BODY COLOR BRIGHT YELLOW(538), BODY COLOR TELEMAGENTA(539),BODY COLOR TOLL GREEN(543),BODY COLOR FT ORANGE(609),B ODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829) ,BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GRE EN(989),BODY COLOR QUICK SILVER MET(998), BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1504- ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR EBONY BLACK(508),BODY COLOR ALGRAY(517),BODY COLOR BRIGHT YELLOW(538), BODY COLOR TELEMAGENTA(539),BODY COLOR TOLL GREEN(543),BODY COLOR FT ORANGE(609),B ODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829) ,BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GRE EN(989),BODY COLOR QUICK SILVER MET(998), BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1504- ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1504- ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1504- ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR EBONY BLACK(508),BODY COLOR ALGRAY(517),BODY COLOR BRIGHT YELLOW(538), BODY COLOR TELEMAGENTA(539),BODY COLOR FTORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY C OLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COL OR SUNBELT GREEN(989),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1009-1203 ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR EBONY BLACK(508),BODY COLOR ALGRAY(517),BODY COLOR BRIGHT YELLOW(538), BODY COLOR TELEMAGENTA(539),BODY COLOR FTORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY C OLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COL OR SUNBELT GREEN(989),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. SUNVISOR PASSENGER SIDE<D20>, INTERIOR TRIM-FULL TRIMMING<WM3>,HEADER TRAY DRI VER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1009-1203 ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR EBONY BLACK(508),BODY COLOR ALGRAY(517),BODY COLOR BRIGHT YELLOW(538), BODY COLOR TELEMAGENTA(539),BODY COLOR FTORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY C OLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COL OR SUNBELT GREEN(989),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1009-1203 ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR EBONY BLACK(508),BODY COLOR ALGRAY(517),BODY COLOR BRIGHT YELLOW(538), BODY COLOR TELEMAGENTA(539),BODY COLOR TOLL GREEN(543),BODY COLOR FT ORANGE(609),B ODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829) ,BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GRE EN(989),BODY COLOR QUICK SILVER MET(998), BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1204-1503 ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR EBONY BLACK(508),BODY COLOR ALGRAY(517),BODY COLOR BRIGHT YELLOW(538), BODY COLOR TELEMAGENTA(539),BODY COLOR TOLL GREEN(543),BODY COLOR FT ORANGE(609),B ODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829) ,BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GRE EN(989),BODY COLOR QUICK SILVER MET(998), BODY COLOR TRANS BLUE(999) EXC. SUNVISOR PASSENGER SIDE<D20>, INTERIOR TRIM-FULL TRIMMING<WM3>,HEADER TRAY DRI VER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1204-1503 ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR EBONY BLACK(508),BODY COLOR ALGRAY(517),BODY COLOR BRIGHT YELLOW(538), BODY COLOR TELEMAGENTA(539),BODY COLOR TOLL GREEN(543),BODY COLOR FT ORANGE(609),B ODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829) ,BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GRE EN(989),BODY COLOR QUICK SILVER MET(998), BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1204-1503 ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR EBONY BLACK(508),BODY COLOR ALGRAY(517),BODY COLOR BRIGHT YELLOW(538), BODY COLOR TELEMAGENTA(539),BODY COLOR TOLL GREEN(543),BODY COLOR FT ORANGE(609),B ODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829) ,BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GRE EN(989),BODY COLOR QUICK SILVER MET(998), BODY COLOR TRANS BLUE(999) EXC. SUNVISOR PASSENGER SIDE<D20>, INTERIOR TRIM-FULL TRIMMING<WM3>,HEADER TRAY DRI VER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1504- ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) EXC. SUNVISOR PASSENGER SIDE<D20>, INTERIOR TRIM-FULL TRIMMING<WM3>,HEADER TRAY DRI VER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 01 1 1009-1503 ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 01 1 1009-1503 ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 01 1 1009-1503 ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) EXC. SUNVISOR PASSENGER SIDE<D20>, INTERIOR TRIM-FULL TRIMMING<WM3>,HEADER TRAY DRI VER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 01 1 1504- ● ●
344 16.450 BOLT; BRKT,FRT
HEADER TRAY DRIVER & PASSENGER<8LY> 03.604 M6X12 FLANGE 		8-97108-669-0 06 1 1009- ● ●
344 16.450 BOLT; BRKT,FRT
HEADER TRAY DRIVER & PASSENGER<8LY> 03.604 M6X12 FLANGE 		8-97108-669-0 06 1 1009- ● ●
354 16.120 TRAY; HEADER ROOF
INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97408-060-2 01 1 1009- ● ●
354 16.120 TRAY; HEADER ROOF
INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97408-061-2 01 1 1009- ● ●
354 16.120 TRAY; HEADER ROOF
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97408-064-2 01 1 1009- ● ●
354 16.120 TRAY; HEADER ROOF
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97408-065-2 01 1 1009- ● ●
355 16.742 SCREW; TRAY
HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 1009- ● ●
355 16.742 SCREW; TRAY
HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 1009- ● ●
356 16.742 BRACKET; ROOF OUTER
HEADER TRAY DRIVER & PASSENGER<8LY> (C) 		8-97386-874-1 01 1 1009- ● ●
356 16.742 BRACKET; ROOF OUTER
HEADER TRAY DRIVER & PASSENGER<8LY> (C) 		8-97386-874-1 01 1 1009- ● ●
356 16.742 BRACKET; ROOF OUTER
HEADER TRAY DRIVER & PASSENGER<8LY> (B) 		8-97585-576-4 01 1 1009- ● ●
356 16.742 BRACKET; ROOF OUTER
HEADER TRAY DRIVER & PASSENGER<8LY> (B) 		8-97585-576-4 01 1 1009- ● ●
356 16.742 BRACKET; ROOF OUTER
HEADER TRAY DRIVER & PASSENGER<8LY> (A) 		8-98036-022-4 01 1 1009- ● ●
356 16.742 BRACKET; ROOF OUTER
HEADER TRAY DRIVER & PASSENGER<8LY> (A) 		8-98036-023-4 01 1 1009- ● ●
359 16.070 HOLDER; HEADER TRAY
HEADER TRAY DRIVER & PASSENGER<8LY> 		8-98041-754-0 02 1 1009- ● ●
359 16.070 HOLDER; HEADER TRAY
HEADER TRAY DRIVER & PASSENGER<8LY> 		8-98041-754-0 02 1 1009- ● ●

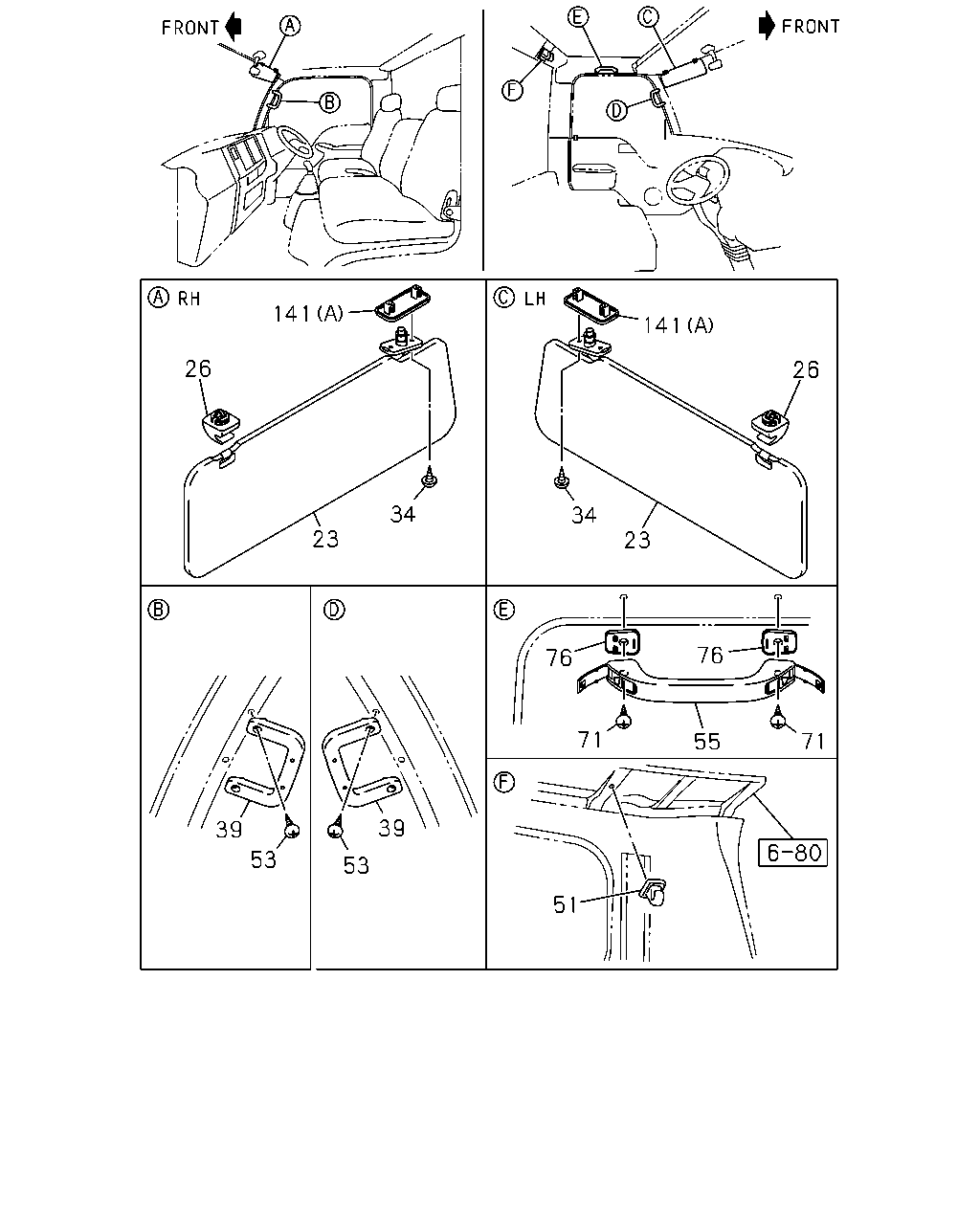

çizim 134154
51 71 55 71 76 76 39 53 53 39 23 26 34 34 23 26 141 141
BalonParca AdiParca NoAdetTipApplied Date A B
23 16.070 SUN VISOR
SUNVISOR PASSENGER SIDE<D20> HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97406-197-3 01 1 1009- ● ●
23 16.070 SUN VISOR
SUNVISOR PASSENGER SIDE<D20> EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97406-196-1 01 1 1009- ● ●
23 16.070 SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97413-093-1 01 1 1009- ● ●
23 16.070 SUN VISOR
EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97413-091-1 01 1 1009- ● ●
26 16.070 HOLDER; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-171-0 01 1 1009- ● ●
26 16.070 HOLDER; SUN VISOR
EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97406-200-0 01 1 1009- ● ●
26 16.070 HOLDER; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97406-200-0 01 1 1009- ● ●
26 16.070 HOLDER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-171-0 01 1 1009- ● ●
34 16.070 SCREW; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> M6X26 		8-98033-674-0 04 1 1009- ● ●
34 16.070 SCREW; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20> M6X26 		8-98033-674-0 02 1 1009- ● ●
34 16.070 SCREW; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> M6X26 		8-98033-674-0 02 1 1009- ● ●
39 16.450 HANDLE; ASSIST,A-POST
DARK GRAY 		8-97405-249-2 02 1 1009- ● ●
51 16.570 HOOK; COAT HANGER
INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97405-302-1 01 1 1009- ● ●
51 16.570 HOOK; COAT HANGER
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.070 DARK GRAY 		8-97406-200-0 01 1 1009- ● ●
53 16.450 SCREW; ASSIST HANDLE
M6X28 		8-98004-344-0 04 1 1009- ● ●
55 16.450 GRIP; ASSIST,CAB SIDE UPR
DARK GRAY 		8-97405-285-2 01 1 1009- ● ●
71 16.450 SCREW
M6X28 		8-98004-344-0 02 1 1009- ● ●
76 16.742 SPACER; ASSIST GRIP
INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97405-286-0 02 1 1009- ● ●
141 16.070 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (A) L=66 B=30 DARK GRAY 		8-97408-029-0 01 1 1009- ● ●
141 16.070 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (B) OD=30 T=0.05 DARK GRAY 		8-97408-030-0 01 1 1009- ● ●
141 16.070 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 1009- ● ●
141 16.070 COVER; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>, INTERIOR TRIM-FULL TRIMMING<WM3>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 1009- ● ●
141 16.070 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 1009- ● ●
