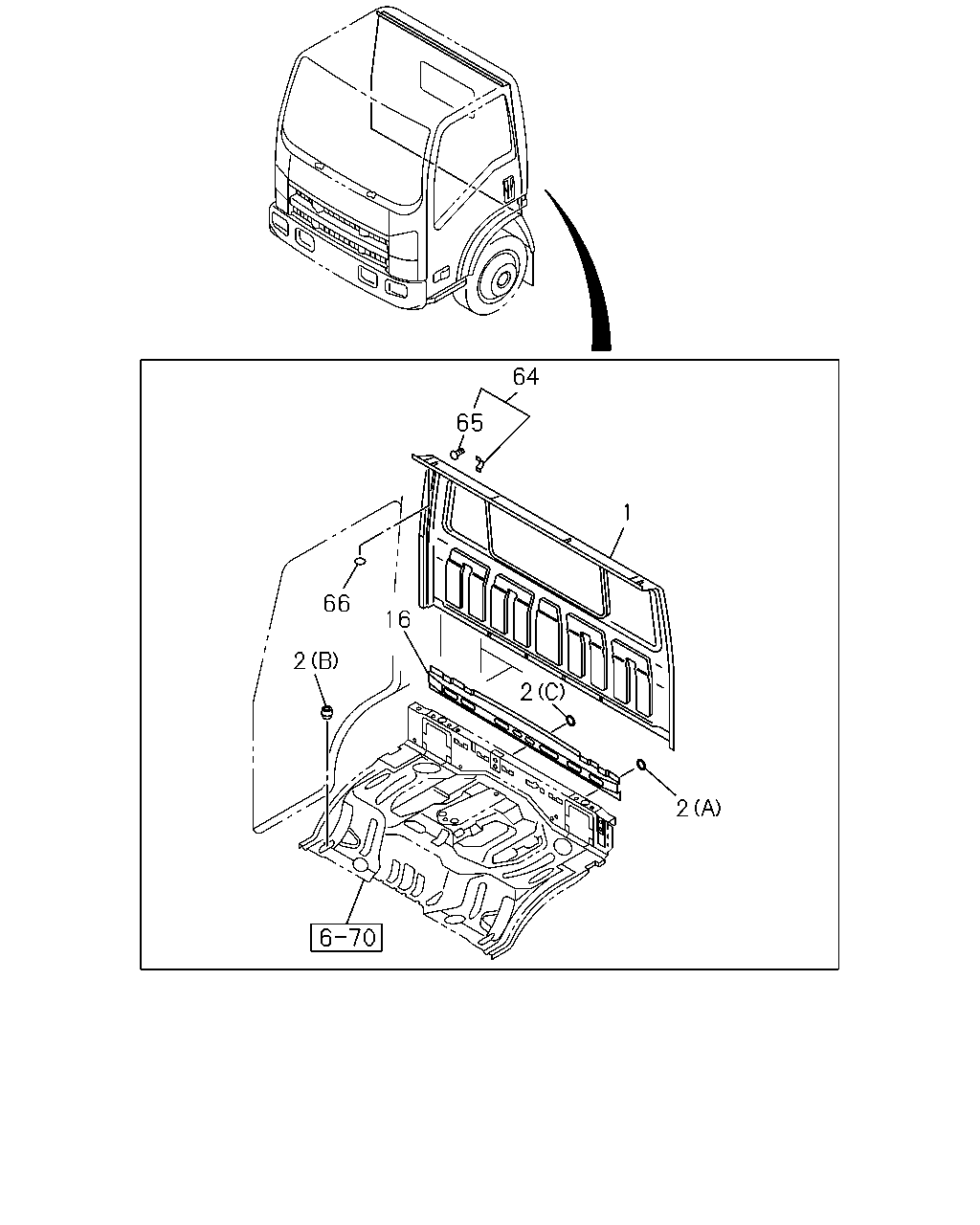

1 |
16.587 PANEL; BACK OUTER
|
8-97584-300-3 |
01 |
1 |
1009- |
● |
● |
| |
2 |
16.587 GROMMET; LOCATION HOLE,BACK PANE
INSPECTION ENGINE COVER<8GA>
16.545
(C)
OD=32 BLACK
|
8-98031-126-0 |
09 |
1 |
1009- |
● |
● |
| |
2 |
16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165
(A)
OD=25 BLACK
|
1-76798-019-0 |
02 |
1 |
1009- |
● |
● |
| |
2 |
16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547
(B)
OD=12.1
|
8-97898-423-0 |
04 |
1 |
1009- |
● |
● |
| |
2 |
16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545
(C)
OD=32 BLACK
|
8-98031-126-0 |
02 |
1 |
1009- |
● |
● |
| |
2 |
16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA>
16.545
(C)
OD=32 BLACK
|
8-98031-126-0 |
06 |
1 |
1009- |
● |
● |
| |
16 |
16.575 REINFORCEMENT; BACK OUTER PNL
|
8-97584-607-3 |
01 |
1 |
1009- |
● |
● |
| |
64 |
16.587 BRACKET; AIR INTAKE DUCT
16.570
|
8-97584-611-1 |
01 |
1 |
1009- |
● |
● |
| |
65 |
17.198 STUD; BACK PANEL
|
8-94389-701-0 |
01 |
1 |
1009- |
● |
● |
| |
66 |
16.587 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR
ALGRAY(517),BODY COLOR BRIGHT YELLOW(538),
BODY COLOR TELEMAGENTA(539),BODY COLOR
FTORANGE(609),BODY COLOR PURPLISH
BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR
DARK BLUE(695),BODY COLOR CARDINAL
RED(736),BODY COLOR WOODLAND GREEN(807),BODY C
OLOR WHEATLAND YELLOW(812),BODY COLOR
SAHARA BEIGE(829),BODY COLOR MARINE
BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COL
OR SUNBELT GREEN(989),BODY COLOR QUICK
SILVER MET(998),BODY COLOR TRANS BLUE(999)
EXC. INTERIOR TRIM-FULL TRIMMING<WM3>
16.165
OD=20 T=0.05 BLACK
|
5-76777-036-0 |
03 |
1 |
1009-1203 |
● |
● |
| |
66 |
16.587 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR
ALGRAY(517),BODY COLOR BRIGHT YELLOW(538),
BODY COLOR TELEMAGENTA(539),BODY COLOR
TOLL GREEN(543),BODY COLOR FT ORANGE(609),B
ODY COLOR PURPLISH BLUE(668),BODY COLOR
GERANIUM RED(681),BODY COLOR DARK
BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR
WOODLAND GREEN(807),BODY COLOR WHEATLAND
YELLOW(812),BODY COLOR SAHARA BEIGE(829)
,BODY COLOR MARINE BLUE(890),BODY COLOR
HIGHWAY ORANGE(944),BODY COLOR SUNBELT GRE
EN(989),BODY COLOR QUICK SILVER MET(998),
BODY COLOR TRANS BLUE(999)
EXC. INTERIOR TRIM-FULL TRIMMING<WM3>
16.165
OD=20 T=0.05 BLACK
|
5-76777-036-0 |
03 |
1 |
1204- |
● |
● |
| |
66 |
16.587 SEAL; BACK PANEL
BODY COLOR POLAR WHITE(534),BODY COLOR
ARC WHITE(729)
EXC. INTERIOR TRIM-FULL TRIMMING<WM3>
16.570
OD=20 T=0.05 WHITE
|
8-98059-421-0 |
03 |
1 |
1009- |
● |
● |
