Sayfa 6-75 - Isuzu EPC

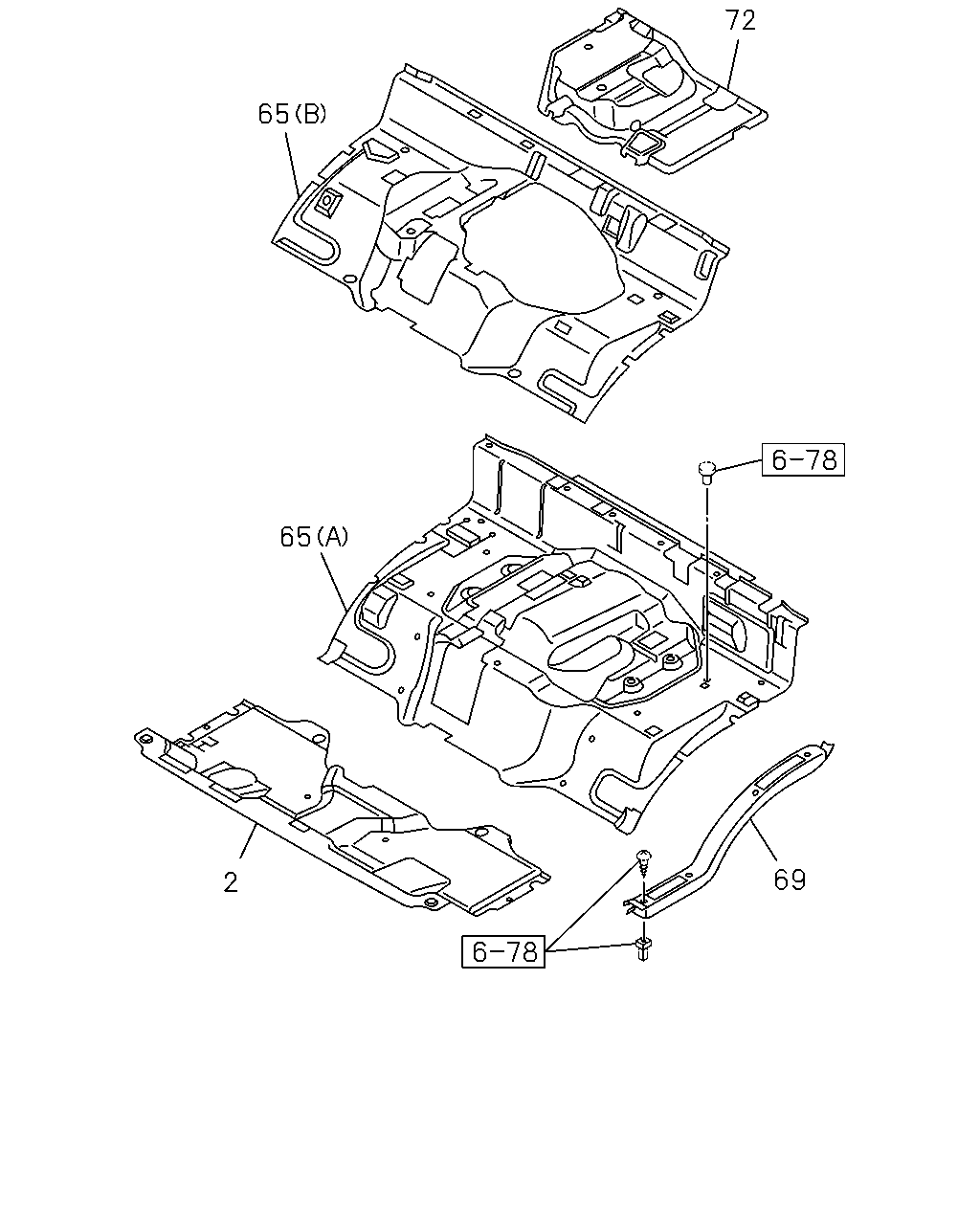

6-75 — MAT AND CARPET (#78193) — 8 parça

65 72 69 2 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	16.800 MAT; FLOOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY	8-97406-154-6	01	1	1009-	●
2	16.800 MAT; FLOOR GRAY	8-97406-154-6	01	1	1009-		●
2	16.800 MAT; FLOOR EXC. TRANSMISSION CONTROL-SMOOTHER DELETE (8GJ) GRAY	8-97406-155-6	01	1	1009-	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR INSPECTION ENGINE COVER<8GA> (B) GRAY	8-97406-229-9	01	1	1009-	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97406-227-7	01	1	1009-	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-388-1	01	1	1009-	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-389-1	01	1	1009-	●	●
72	16.800 MAT; SILENCER,ENG COVER INSPECTION ENGINE COVER<8GA> GRAY	8-97406-252-3	01	1	1009-	●	●
