1-30 — AIR CLEANER (#7819) — 92 parça

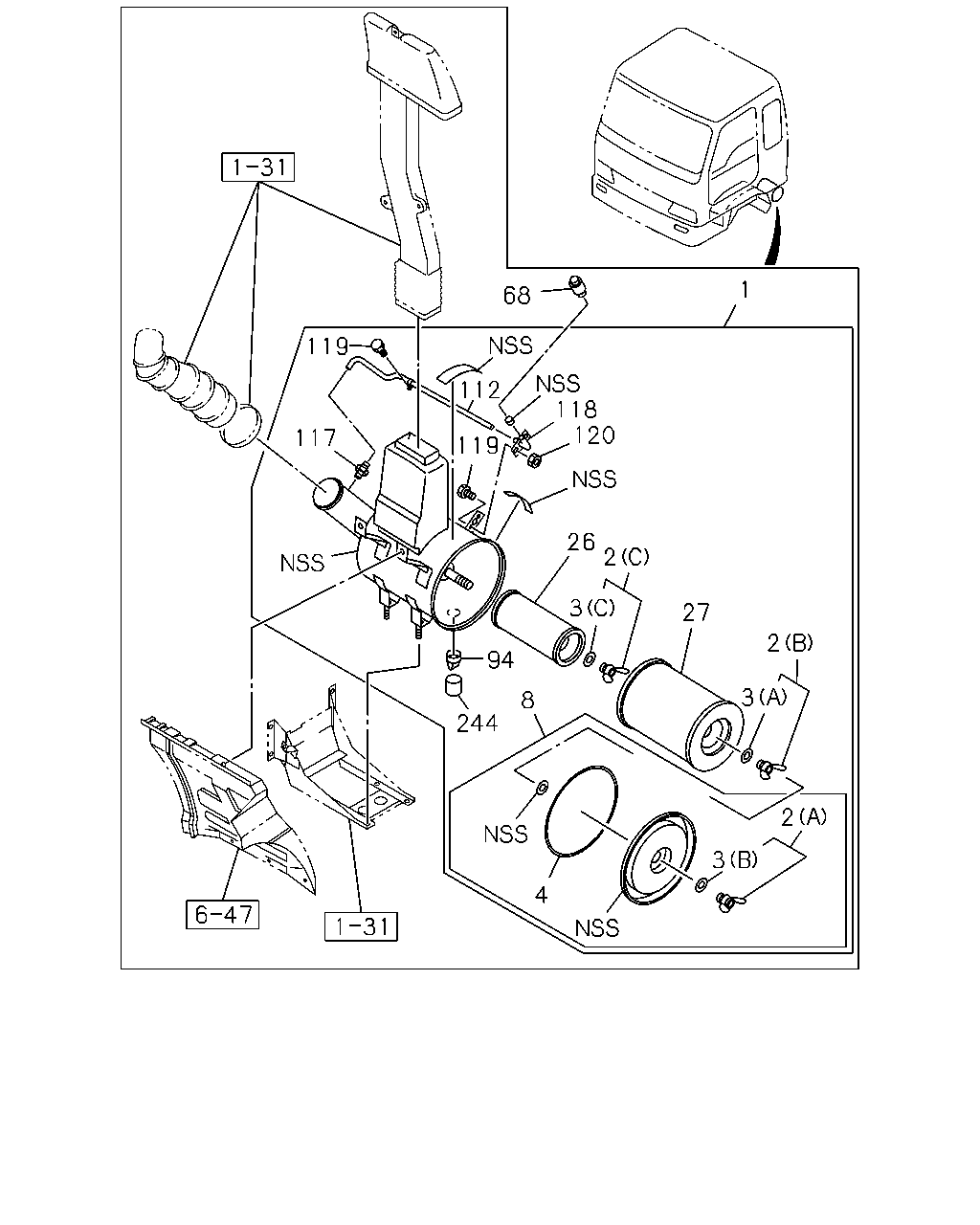

çizim 26813
1 68 119 118 120 112 117 119 26 2 3 27 2 94 3 8 244 2 3 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 CLEANER ASM; AIR
FTR(FT****) 		1-14210-807-1 01 1 0302- ●
1 CLEANER ASM; AIR
FRR(FR****) 		1-14210-820-1 01 1 9905- ●
1 CLEANER ASM; AIR
FSR(FS****) 		1-14210-835-2 01 1 9905- ●
1 CLEANER ASM; AIR 1-14210-835-2 01 1 9905- ●
2 NUT; WING,ELEMENT
(C) 		1-14217-003-0 01 1 9905- ● ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 9905- ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 9905- ● ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-032-0 01 1 9905- ● ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 9905- ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 9905- ● ●
4 GASKET; COVER TO BODY
FTR(FT****) 		1-14219-266-0 01 1 0302- ●
4 GASKET; COVER TO BODY
FRR(FR****) 		1-14218-128-0 01 1 9905- ●
4 GASKET; COVER TO BODY
FSR(FS****) 		1-14219-128-0 01 1 9905- ●
4 GASKET; COVER TO BODY 1-14219-128-0 01 1 9905- ●
8 COVER ASM; ACL 1-14212-053-0 01 1 9905- ● ●
26 FILTER; ACL,INNER 1-14215-151-0 01 1 9905- ● ●
27 FILTER; ACL,OUTER 1-14215-181-0 01 1 9905- ● ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 9905- ● ●
94 VALVE; VACUATOR
FTR(FT****) 		1-14219-192-0 01 1 0302- ●
94 VALVE; VACUATOR
FRR(FR****) 		1-14219-129-0 01 1 9905- ●
94 VALVE; VACUATOR
FSR(FS****) 		1-14219-279-0 01 1 9905- ●
94 VALVE; VACUATOR 1-14219-279-0 01 1 9905- ●
112 HOSE; INDICATOR
FTR(FT****) 		1-14219-259-0 01 1 0302- ●
112 HOSE; INDICATOR
FRR(FR****) 		1-14219-260-0 01 1 9905- ●
112 HOSE; INDICATOR
FSR(FS****) 		1-14219-269-0 01 1 9905- ●
112 HOSE; INDICATOR 1-14219-269-0 01 1 9905- ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 9905- ● ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 9905- ● ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 9905- ● ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 9905- ● ●
244 COVER ASM; VALVE
FTR(FT****) 		1-14219-281-0 01 1 0302- ●

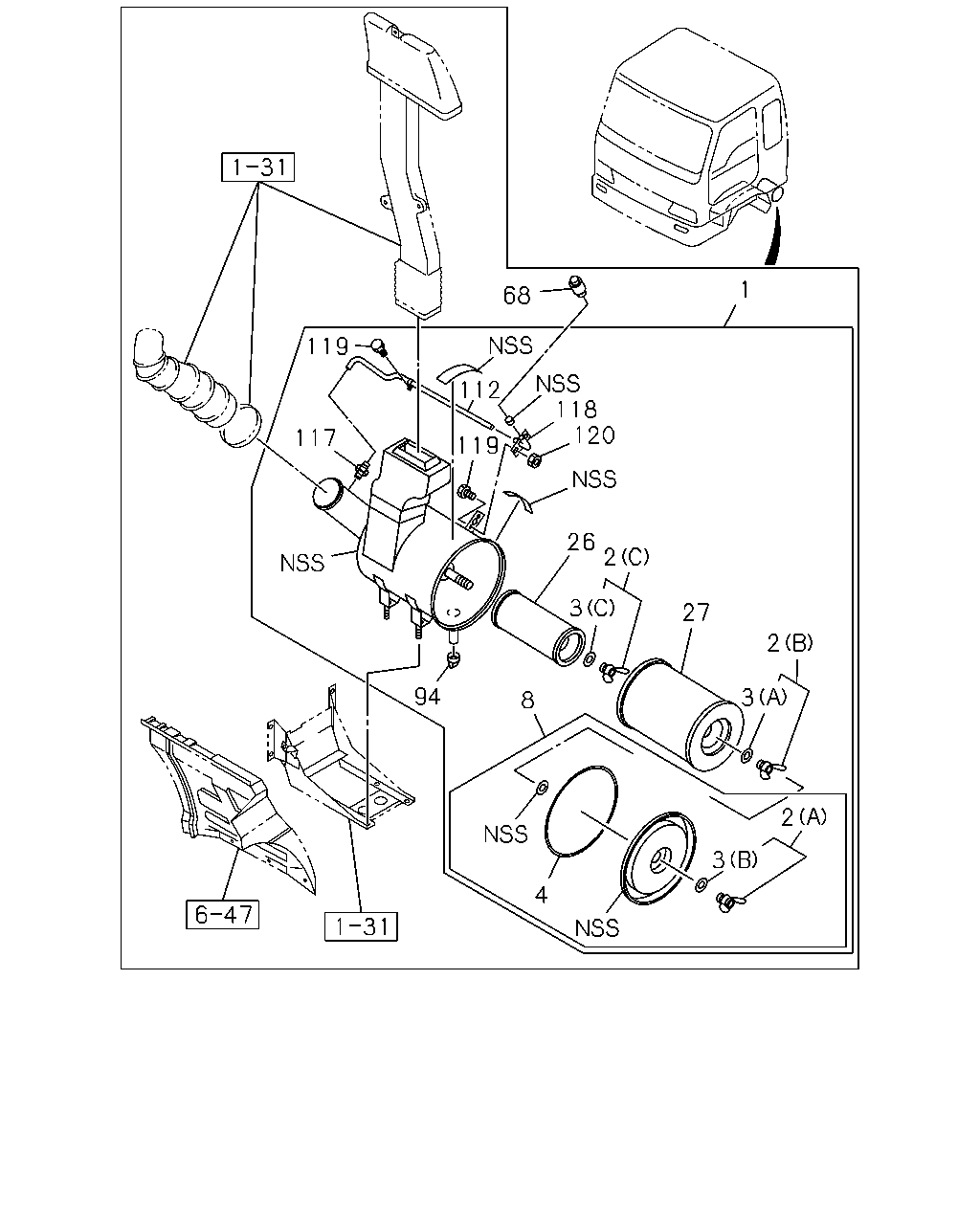

çizim 26897
1 68 119 118 120 112 117 119 26 2 3 27 2 94 3 8 2 3 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 CLEANER ASM; AIR
FTR(FT****) 		1-14210-807-1 01 1 0302- ●
1 CLEANER ASM; AIR
FRR(FR****) 		1-14210-820-1 01 1 9905- ●
1 CLEANER ASM; AIR
FSR(FS****) 		1-14210-835-2 01 1 9905- ●
1 CLEANER ASM; AIR 1-14210-835-2 01 1 9905- ●
2 NUT; WING,ELEMENT
(C) 		1-14217-003-0 01 1 9905- ● ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 9905- ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 9905- ● ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-032-0 01 1 9905- ● ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 9905- ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 9905- ● ●
4 GASKET; COVER TO BODY
FTR(FT****) 		1-14219-266-0 01 1 0302- ●
4 GASKET; COVER TO BODY
FRR(FR****) 		1-14218-128-0 01 1 9905- ●
4 GASKET; COVER TO BODY
FSR(FS****) 		1-14219-128-0 01 1 9905- ●
4 GASKET; COVER TO BODY 1-14219-128-0 01 1 9905- ●
8 COVER ASM; ACL 1-14212-053-0 01 1 9905- ● ●
26 FILTER; ACL,INNER 1-14215-151-0 01 1 9905- ● ●
27 FILTER; ACL,OUTER 1-14215-181-0 01 1 9905- ● ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 9905- ● ●
94 VALVE; VACUATOR
FTR(FT****) 		1-14219-192-0 01 1 0302- ●
94 VALVE; VACUATOR
FRR(FR****) 		1-14219-129-0 01 1 9905- ●
94 VALVE; VACUATOR
FSR(FS****) 		1-14219-279-0 01 1 9905- ●
94 VALVE; VACUATOR 1-14219-279-0 01 1 9905- ●
112 HOSE; INDICATOR
FTR(FT****) 		1-14219-259-0 01 1 0302- ●
112 HOSE; INDICATOR
FRR(FR****) 		1-14219-260-0 01 1 9905- ●
112 HOSE; INDICATOR
FSR(FS****) 		1-14219-269-0 01 1 9905- ●
112 HOSE; INDICATOR 1-14219-269-0 01 1 9905- ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 9905- ● ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 9905- ● ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 9905- ● ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 9905- ● ●

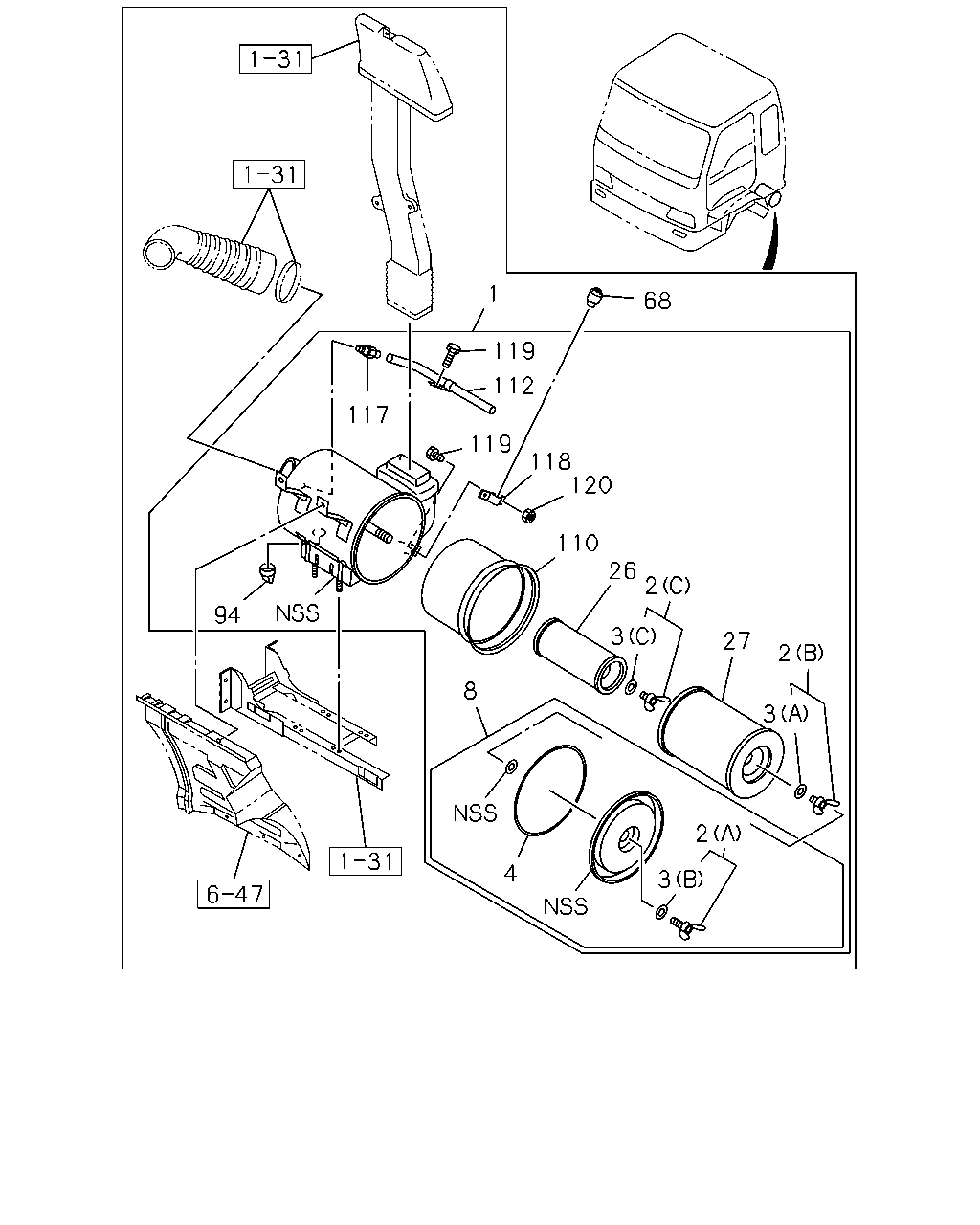

çizim 26947
1 68 119 112 117 119 118 120 110 26 2 94 3 27 2 8 3 2 4 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 CLEANER ASM; AIR
FTR(FT****) 		1-14210-807-1 01 1 0302- ●
1 CLEANER ASM; AIR
FRR(FR****) 		1-14210-820-1 01 1 9905- ●
1 CLEANER ASM; AIR
FSR(FS****) 		1-14210-835-2 01 1 9905- ●
1 CLEANER ASM; AIR 1-14210-835-2 01 1 9905- ●
2 NUT; WING,ELEMENT
(C) 		1-14217-003-0 01 1 9905- ● ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 9905- ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 9905- ● ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-032-0 01 1 9905- ● ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 9905- ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 9905- ● ●
4 GASKET; COVER TO BODY
FTR(FT****) 		1-14219-266-0 01 1 0302- ●
4 GASKET; COVER TO BODY
FRR(FR****) 		1-14218-128-0 01 1 9905- ●
4 GASKET; COVER TO BODY
FSR(FS****) 		1-14219-128-0 01 1 9905- ●
4 GASKET; COVER TO BODY 1-14219-128-0 01 1 9905- ●
8 COVER ASM; ACL 1-14212-053-0 01 1 9905- ● ●
26 FILTER; ACL,INNER 1-14215-151-0 01 1 9905- ● ●
27 FILTER; ACL,OUTER 1-14215-181-0 01 1 9905- ● ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 9905- ● ●
94 VALVE; VACUATOR
FTR(FT****) 		1-14219-192-0 01 1 0302- ●
94 VALVE; VACUATOR
FRR(FR****) 		1-14219-129-0 01 1 9905- ●
94 VALVE; VACUATOR
FSR(FS****) 		1-14219-279-0 01 1 9905- ●
94 VALVE; VACUATOR 1-14219-279-0 01 1 9905- ●
110 ADAPTER; ACL
FRR(FR****) 		1-14219-175-0 01 1 9905- ●
112 HOSE; INDICATOR
FTR(FT****) 		1-14219-259-0 01 1 0302- ●
112 HOSE; INDICATOR
FRR(FR****) 		1-14219-260-0 01 1 9905- ●
112 HOSE; INDICATOR
FSR(FS****) 		1-14219-269-0 01 1 9905- ●
112 HOSE; INDICATOR 1-14219-269-0 01 1 9905- ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 9905- ● ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 9905- ● ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 9905- ● ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 9905- ● ●
