6-20 — SIDE PANEL AND STEP (#78183) — 50 parça

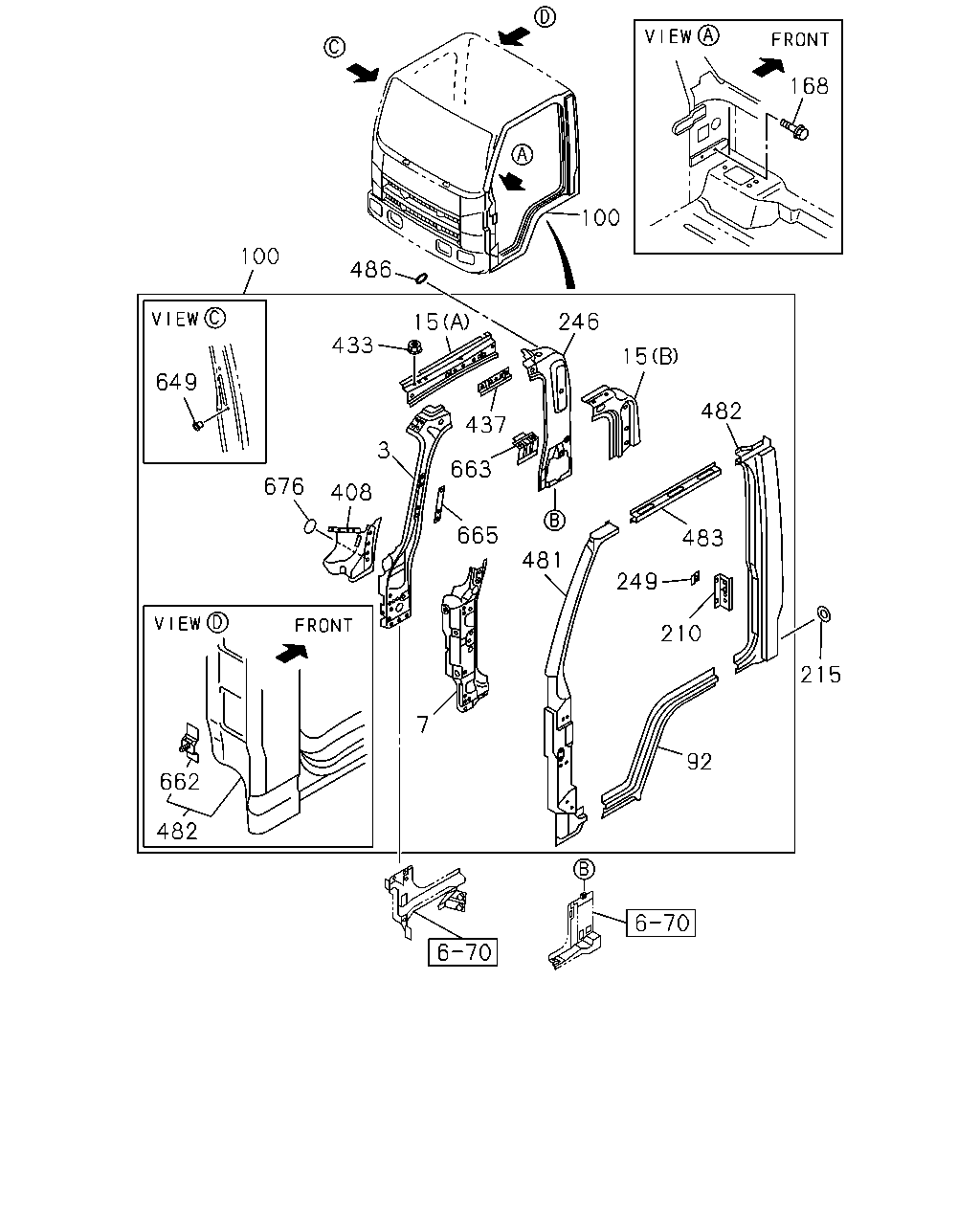

çizim 126355
92 215 210 249 483 482 481 665 663 437 246 15 7 15 433 676 662 482 408 3 486 100 649 100 168
BalonParca AdiParca NoAdetTipApplied Date A B
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1009- ● ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1009- ● ●
7 16.570 REINFORCEMENT; HINGE 8-97585-240-3 01 1 1009- ● ●
7 16.570 REINFORCEMENT; HINGE 8-97585-244-4 01 1 1009- ● ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97585-294-2 01 1 1009- ● ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97585-295-2 01 1 1009- ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97585-302-1 01 1 1009- ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97585-303-2 01 1 1009- ● ●
92 16.570 PANEL; SIDE SILL,CAB 8-98055-461-1 01 1 1009- ● ●
92 16.570 PANEL; SIDE SILL,CAB 8-98055-462-1 01 1 1009- ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97585-200-9 01 1 1009- ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97586-023-5 01 1 1009- ● ●
168 16.570 BOLT; BODY SIDE PANEL
16.650 T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 1009- ● ●
210 16.588 PANEL; DOOR STRIKER REINF 8-97585-260-4 01 1 1009- ● ●
210 16.588 PANEL; DOOR STRIKER REINF 8-97585-261-4 01 1 1009- ● ●
215 16.674 GROMMET; RR PILLAR
15.222 OD=35 		8-94122-971-0 01 1 1009-1211 ● ●
215 16.674 GROMMET; RR PILLAR
MANUAL TILT CAB<RWZ> 15.222 OD=35 		8-94122-971-0 01 1 1212-1212 ● ●
246 16.575 PANEL; RR PILLAR,INNER 8-97585-301-3 01 1 1009- ● ●
246 16.575 PANEL; RR PILLAR,INNER 8-97586-154-3 01 1 1009- ● ●
249 16.674 REINFORCEMENT; RR PILLAR 8-98012-287-1 01 1 1009- ● ●
249 16.674 REINFORCEMENT; RR PILLAR 8-98012-287-1 01 1 1009- ● ●
408 16.570 GUSSET; PILLAR 8-97585-316-3 01 1 1009- ● ●
408 16.570 GUSSET; PILLAR 8-97585-317-4 01 1 1009- ● ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 1009- ● ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 1009- ● ●
437 08.155 BRACKET; ROOF RAIL 8-98039-019-0 01 1 1009- ● ●
437 08.155 BRACKET; ROOF RAIL 8-98039-020-0 01 1 1009- ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98055-451-0 01 1 1009- ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98055-470-0 01 1 1009- ● ●
482 16.570 PANEL; SIDE RR PILLAR 8-98055-463-0 01 1 1009- ● ●
482 16.570 PANEL; SIDE RR PILLAR 8-98055-464-0 01 1 1009- ● ●
483 16.570 PANEL; SIDE CANTRAIL 8-98055-458-0 01 1 1009- ● ●
483 16.570 PANEL; SIDE CANTRAIL 8-98055-460-0 01 1 1009- ● ●
486 16.570 SEAL; BODY SIDE
BODY COLOR EBONY BLACK(508),BODY COLOR ALGRAY(517),BODY COLOR BRIGHT YELLOW(538), BODY COLOR TELEMAGENTA(539),BODY COLOR FTORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY C OLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COL OR SUNBELT GREEN(989),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1009-1203 ● ●
486 16.570 SEAL; BODY SIDE
BODY COLOR EBONY BLACK(508),BODY COLOR ALGRAY(517),BODY COLOR BRIGHT YELLOW(538), BODY COLOR TELEMAGENTA(539),BODY COLOR TOLL GREEN(543),BODY COLOR FT ORANGE(609),B ODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829) ,BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GRE EN(989),BODY COLOR QUICK SILVER MET(998), BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1204- ● ●
486 16.570 SEAL; BODY SIDE
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1009- ● ●
649 16.570 NUT; POP
09.647 M5 POP NUT 		8-97249-574-0 02 1 1009- ● ●
662 16.570 BRACKET; DUCT 8-97584-611-1 01 1 1009- ● ●
663 08.228 BRACKET; AIR 8-97585-207-2 01 1 1009- ● ●
663 08.228 BRACKET; AIR 8-97585-208-2 01 1 1009- ● ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 1009- ● ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 1009- ● ●
676 16.520 SEAL
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1009- ● ●

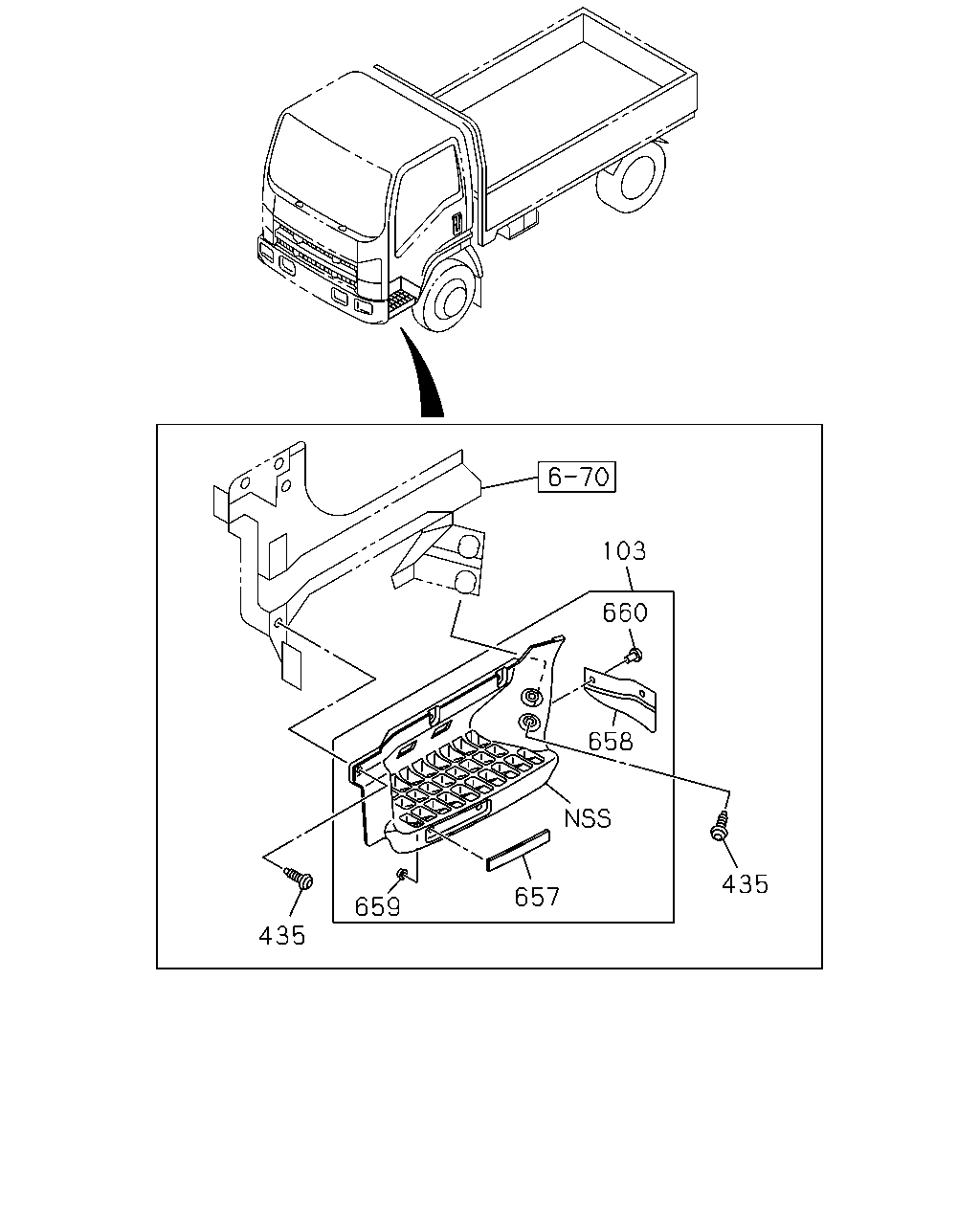

çizim 130585
103 660 658 657 435 659 435
BalonParca AdiParca NoAdetTipApplied Date A B
103 08.228 PLATE; STEP 8-98022-774-3 01 1 1009- ● ●
103 08.228 PLATE; STEP 8-98022-775-3 01 1 1009- ● ●
435 08.225 BOLT; RR STEP
M8X18 		8-98004-345-0 12 1 1009- ● ●
657 16.585 REFLECTOR; REFLEX 8-97378-910-0 02 1 1009- ● ●
658 08.228 FLAP; STEP 8-98037-560-1 02 1 1009- ● ●
659 08.131 CLIP; SPRING NUT 8-97811-510-0 04 1 1009- ● ●
660 08.131 CLIP; FLAP 8-98111-558-0 04 1 1009- ● ●
