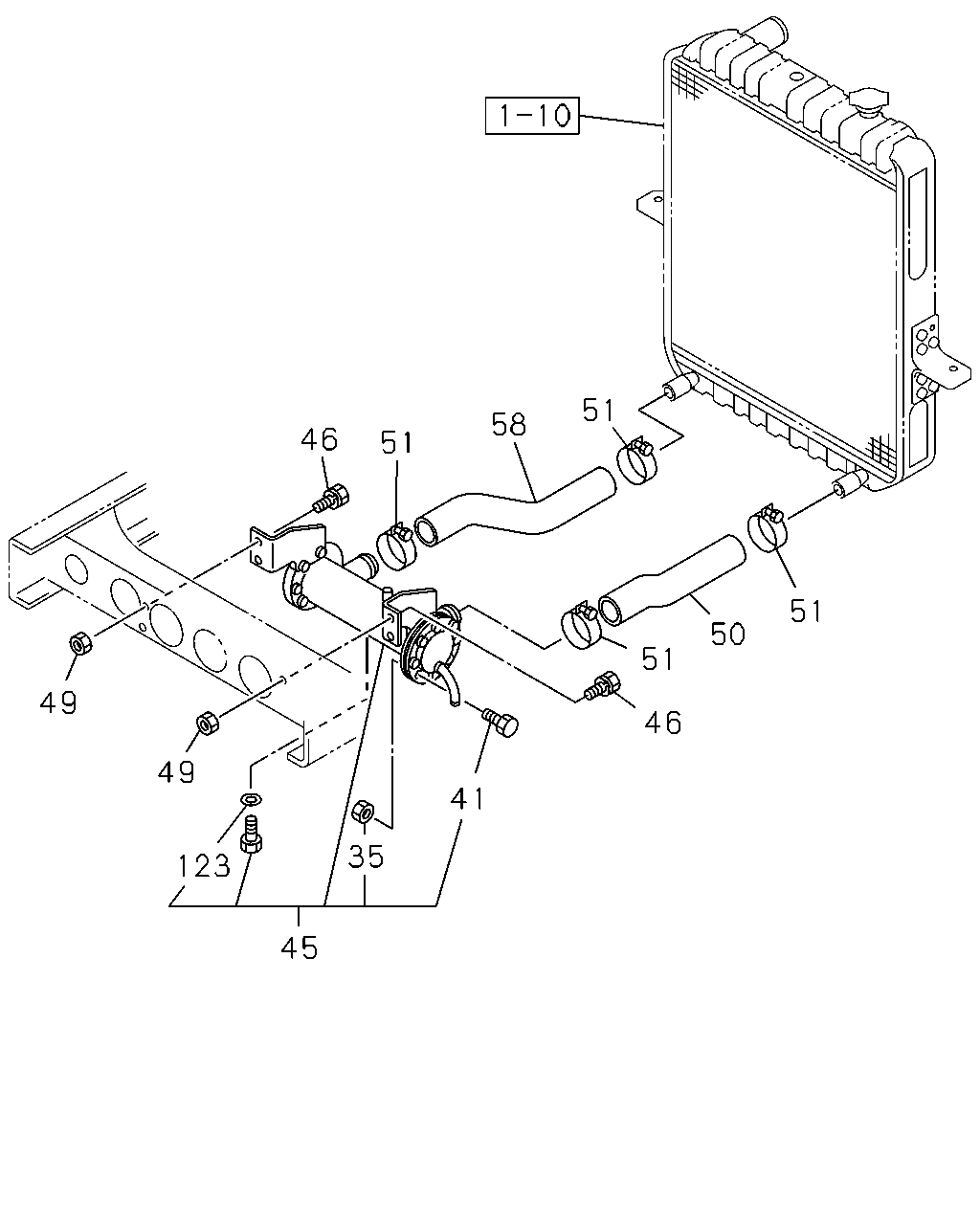

1-11 — RADIATOR HOSE AND SUB TANK (#7818) — 67 parça

51 58 46 51 51 50 51 49 46 49 41 35 123 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
35	NUT M6	9-09110-406-0	16	1	9905-0512	●
35	NUT M6	0-91110-506-0	16	1	0601-	●
41	BOLT M6X25 FLANGE	0-28680-625-0	16	1	9905-0512	●
41	BOLT M6X25 FLANGE	0-28650-625-0	16	1	0601-	●
45	RADIATOR; SUB	1-21410-691-2	01	1	9905-	●
46	BOLT; BRKT TO SUB RAD M8X25 FLANGE	0-28680-825-0	02	1	9905-0512	●
46	BOLT; BRKT TO SUB RAD M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
49	NUT; BRKT TO SUB RAD M8 FLANGE	0-91150-108-0	04	1	9905-0602	●
49	NUT; BRKT TO SUB RAD M8 FLANGE	0-91180-108-0	04	1	0603-	●
50	HOSE; WATER,RAD TO SUB RAD	1-21437-760-0	01	1	9905-	●
51	CLIP; WATER HOSE,RAD ID=63	1-09704-067-0	04	1	9905-	●
58	HOSE; WATER,RAD TO PIPE	1-21437-761-0	01	1	9905-	●
123	GASKET ID=14.2 OD=23.0	9-09572-014-0	01	1	9905-	●

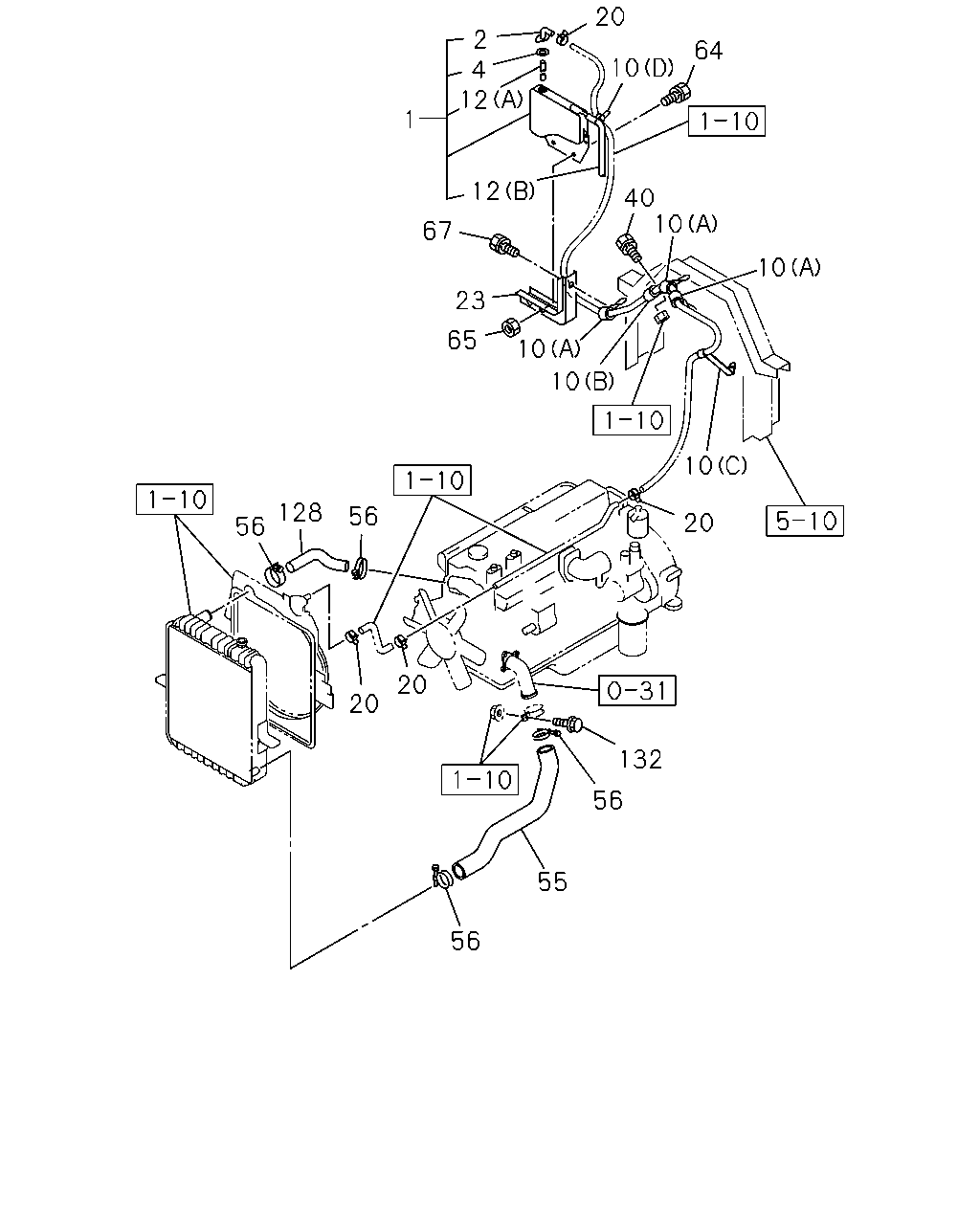

20 2 4 12 64 10 1 12 40 10 67 10 23 10 65 10 10 128 56 20 56 20 20 132 56 55 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; SURGE,RAD FRR(FR****)	1-21480-105-0	01	1	9905-0102		●
1	TANK; SURGE,RAD FSR(FS****)	1-21480-104-0	01	1	9905-0102		●
1	TANK; SURGE,RAD	1-21480-104-0	01	1	9905-0102	●
1	TANK; SURGE,RAD	1-21480-104-1	01	1	0103-	●	●
2	CAP; SURGE TANK	1-21483-008-0	01	1	9905-	●	●
4	GASKET; SURGE TANK	5-21489-006-0	01	1	9905-	●	●
10	CLIP; RUBBER HOSE FTR(FT****) (A) ID=14 L=44	9-09917-427-0	01	1	0302-		●
10	CLIP; RUBBER HOSE FTR(FT****) (A) ID=14.5 L=40	1-09701-014-0	03	1	0302-0302		●
10	CLIP; RUBBER HOSE FTR(FT****) (A) ID=14.5 L=40	1-09701-014-0	02	1	0303-		●
10	CLIP; RUBBER HOSE FTR(FT****) (A) ID=12 L=70	1-09700-097-1	01	1	0303-		●
10	CLIP; RUBBER HOSE FTR(FT****) (B) ID=13 L=20	9-09525-235-0	01	1	0303-0606		●
10	CLIP; RUBBER HOSE FTR(FT****) (B) ID=13 L=20	0-95235-235-0	01	1	0607-		●
10	CLIP; RUBBER HOSE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	9905-0301	●	●
10	CLIP; RUBBER HOSE FRR(FR**) FSR(FS**) (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0302-0302		●
10	CLIP; RUBBER HOSE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0302-0302	●
10	CLIP; RUBBER HOSE FRR(FR**) FSR(FS**) (B) ID=13 L=50	9-09525-286-0	01	1	0303-0606		●
10	CLIP; RUBBER HOSE (B) ID=13 L=50	9-09525-286-0	01	1	0303-0606	●
10	CLIP; RUBBER HOSE (B) ID=13 L=50	0-95235-286-0	01	1	0607-	●	●
10	CLIP; RUBBER HOSE (D) L=140	5-09707-031-1	01	1	9905-	●	●
10	CLIP; RUBBER HOSE (B) ID=13 L=50	9-09525-286-0	01	1	9905-0302	●	●
10	CLIP; RUBBER HOSE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0303-	●	●
10	CLIP; RUBBER HOSE (A) ID=14 L=44	9-09917-427-0	03	1	9905-0301	●	●
10	CLIP; RUBBER HOSE FRR(FR**) FSR(FS**) (A) ID=14 L=44	9-09917-427-0	03	1	0302-		●
10	CLIP; RUBBER HOSE (A) ID=14 L=44	9-09917-427-0	03	1	0302-	●
12	HOSE; SURGE TANK FSR(FS****) (A)	1-21489-203-0	01	1	9905-0102		●
12	HOSE; SURGE TANK (A)	1-21489-203-0	01	1	9905-0102	●
12	HOSE; SURGE TANK (A)	1-21489-203-0	01	1	0103-	●	●
12	HOSE; SURGE TANK (B) L=300	1-09366-199-0	01	1	9905-	●	●
20	CLIP; HOSE,RAD ID=12	8-94238-610-0	04	1	9905-	●	●
23	BRACKET; RESERVE TANK	1-21489-128-0	01	1	9905-	●	●
40	BOLT; CLIP FTR(FT****) M8X20 FLANGE	0-28680-820-0	04	1	0302-0302		●
40	BOLT; CLIP FTR(FT****) M8X20 FLANGE	0-28680-820-0	05	1	0303-0512		●
40	BOLT; CLIP FTR(FT****) M8X20 FLANGE	0-28650-820-0	05	1	0601-		●
40	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	9905-0301	●	●
40	BOLT; CLIP FRR(FR**) FSR(FS**) M8X20 FLANGE	0-28680-820-0	02	1	0302-0512		●
40	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0302-0512	●
40	BOLT; CLIP FRR(FR**) FSR(FS**) M8X20 FLANGE	0-28650-820-0	02	1	0601-		●
40	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
55	HOSE; WATER,RAD OUTLET FTR(FT****)	1-21437-759-1	01	1	0302-		●
55	HOSE; WATER,RAD OUTLET	1-21437-758-1	01	1	9905-0301	●	●
55	HOSE; WATER,RAD OUTLET FRR(FR**) FSR(FS**)	1-21437-758-1	01	1	0302-		●
55	HOSE; WATER,RAD OUTLET	1-21437-758-1	01	1	0302-	●
56	CLIP; WATER HOSE,RAD ID=63	1-09704-067-0	04	1	9905-	●	●
64	BOLT; BRKT,SUB TANK M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	9905-	●	●
65	NUT; BRKT,SUB TANK M8 FLANGE	0-91150-108-0	04	1	9905-0602	●	●
65	NUT; BRKT,SUB TANK M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
67	BOLT; BRKT M10X20 FLANGE	0-28681-020-0	02	1	9905-0512	●	●
67	BOLT; BRKT M10X20 FLANGE	0-28651-020-0	02	1	0601-	●	●
128	HOSE; WATER,RAD INL FTR(FT****)	1-21437-757-0	01	1	0302-		●
128	HOSE; WATER,RAD INL	1-21437-756-0	01	1	9905-0301	●	●
128	HOSE; WATER,RAD INL FRR(FR**) FSR(FS**)	1-21437-756-0	01	1	0302-		●
128	HOSE; WATER,RAD INL	1-21437-756-0	01	1	0302-	●
132	BOLT; CLIP,WATER HOSE,OUTLET M8X30 FLANGE	0-28680-830-0	01	1	9905-0512	●	●
132	BOLT; CLIP,WATER HOSE,OUTLET M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
